Xhorse VVDI MLB TOOL Key Programmer with Solder-free Adapter XDMLBPGL Kit and 5pcs XSMA4YEN Audi Style MLB 3 Buttons Key

A bundle of the Xhorse VVDI MLB Tool, the XDMLBPGL solder free adapter kit and five XSMA4YEN Audi style MLB three button keys. The kit covers five adapter types across Audi, Lamborghini, Bentley, Porsche and the VW Touareg.

Specifications

• Bundle Package: Xhorse VVDI MLB TOOL + XHORSE MLB Tool Solderfree Adapter Kit + 5pcs XHORSE XSMA4YEN MLB Remote Key A.D A4 Model With 3 Buttons Key Shell

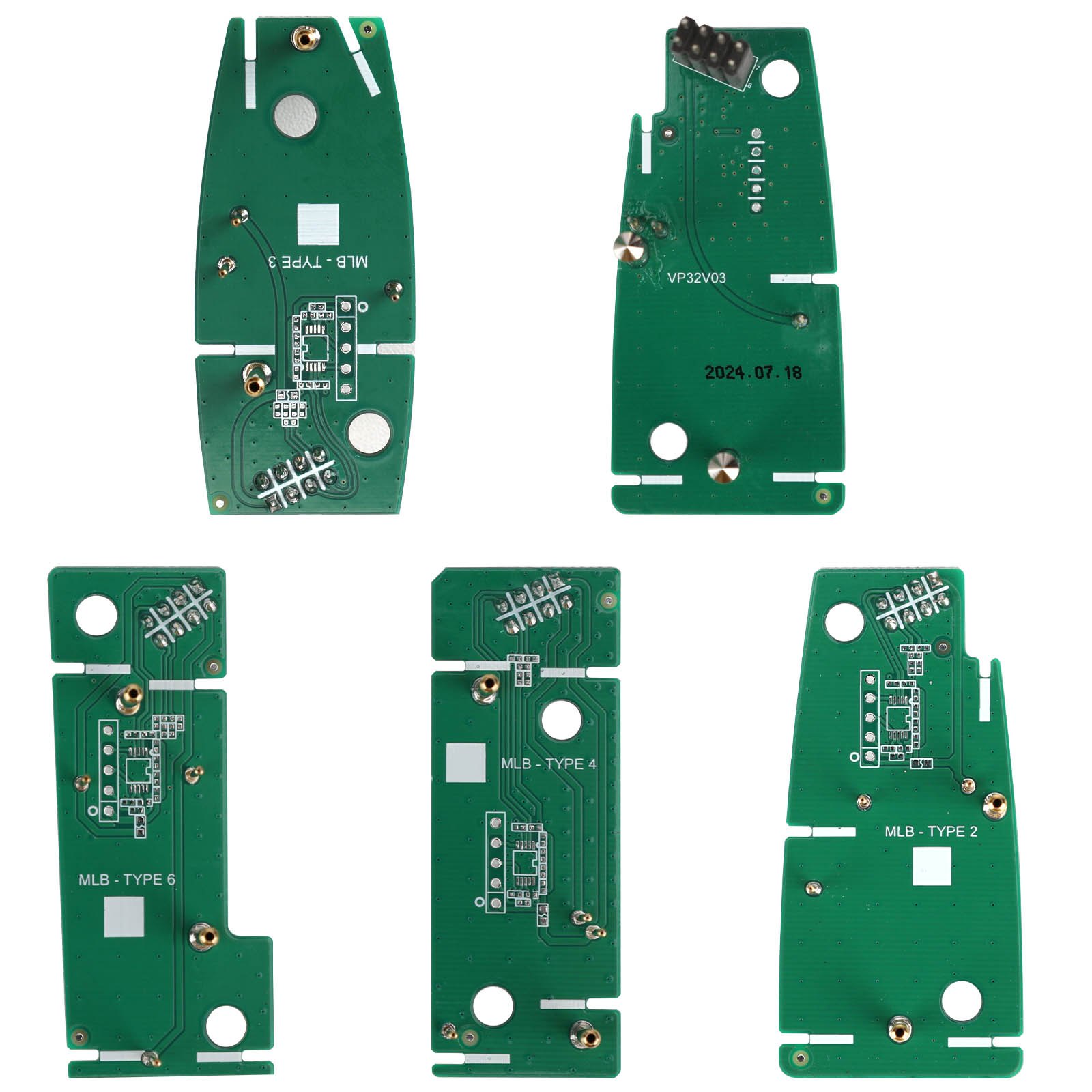

• Type 1 Supported Models: Audi Lamborghini
• Type 2 Supported Models: Audi Lamborghini
• Type 3 Supported Models: Audi Bentley
• Type 4 Supported Models: Porsche
• Type 5 Supported Models: Volkswagen Touareg
• PN: XSMA4YEN

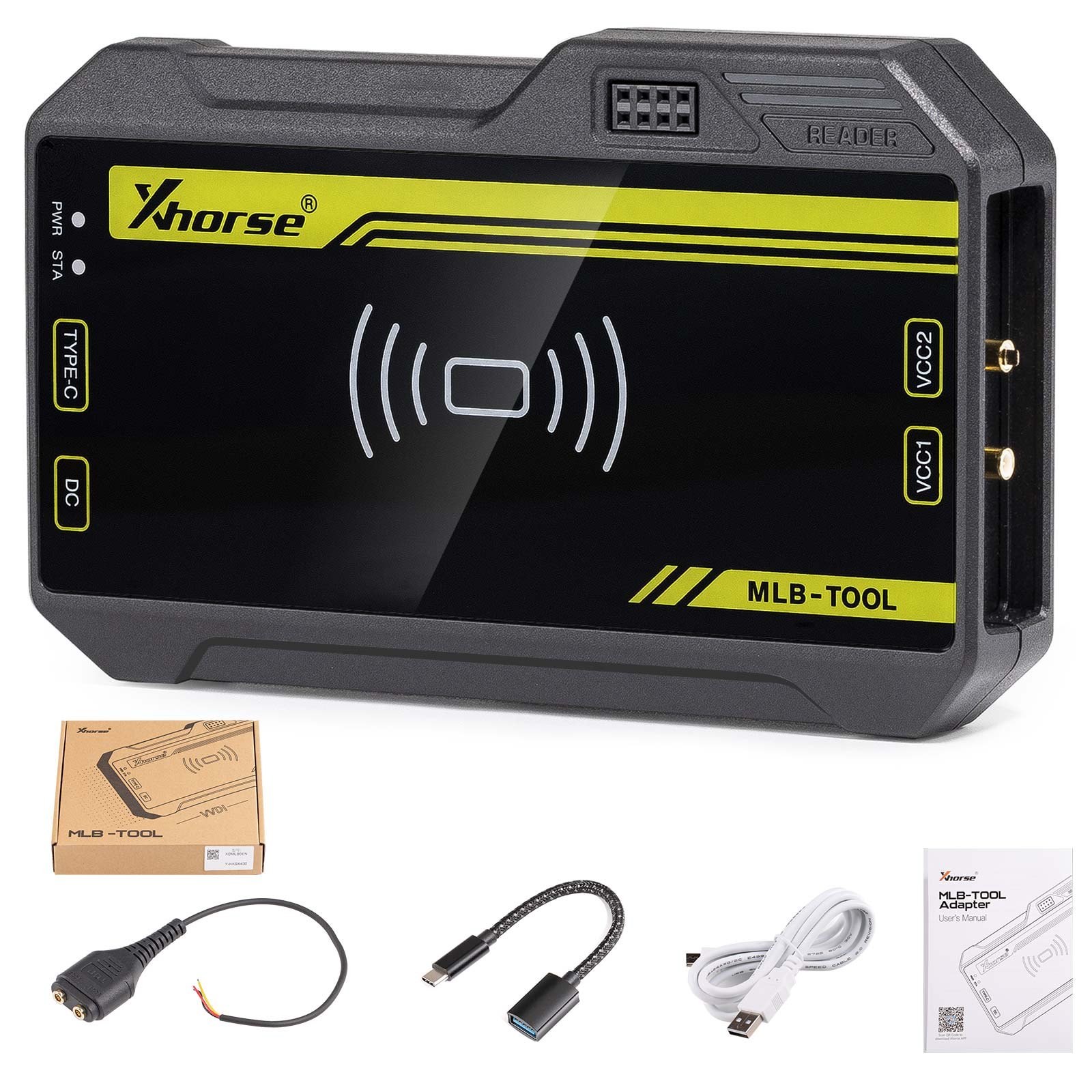

What you get

• 1pc x MLB Tool
• 1pc x MLB Cable
• 1pc x USB Type C Cable
• 1pc x OTG Adapter
• 1pc x User Manual
• 1pc x MLB Tool Solder-free Adapter Kit XDMLBPGL
• 5pcs x Xhorse XSMA4YEN VVDI XS MLB key PCB
• 5pcs x Key Shell
• Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Works with VVDI Key Tool Plus VVDI2,No points required when using VVDI MLB specialized key.

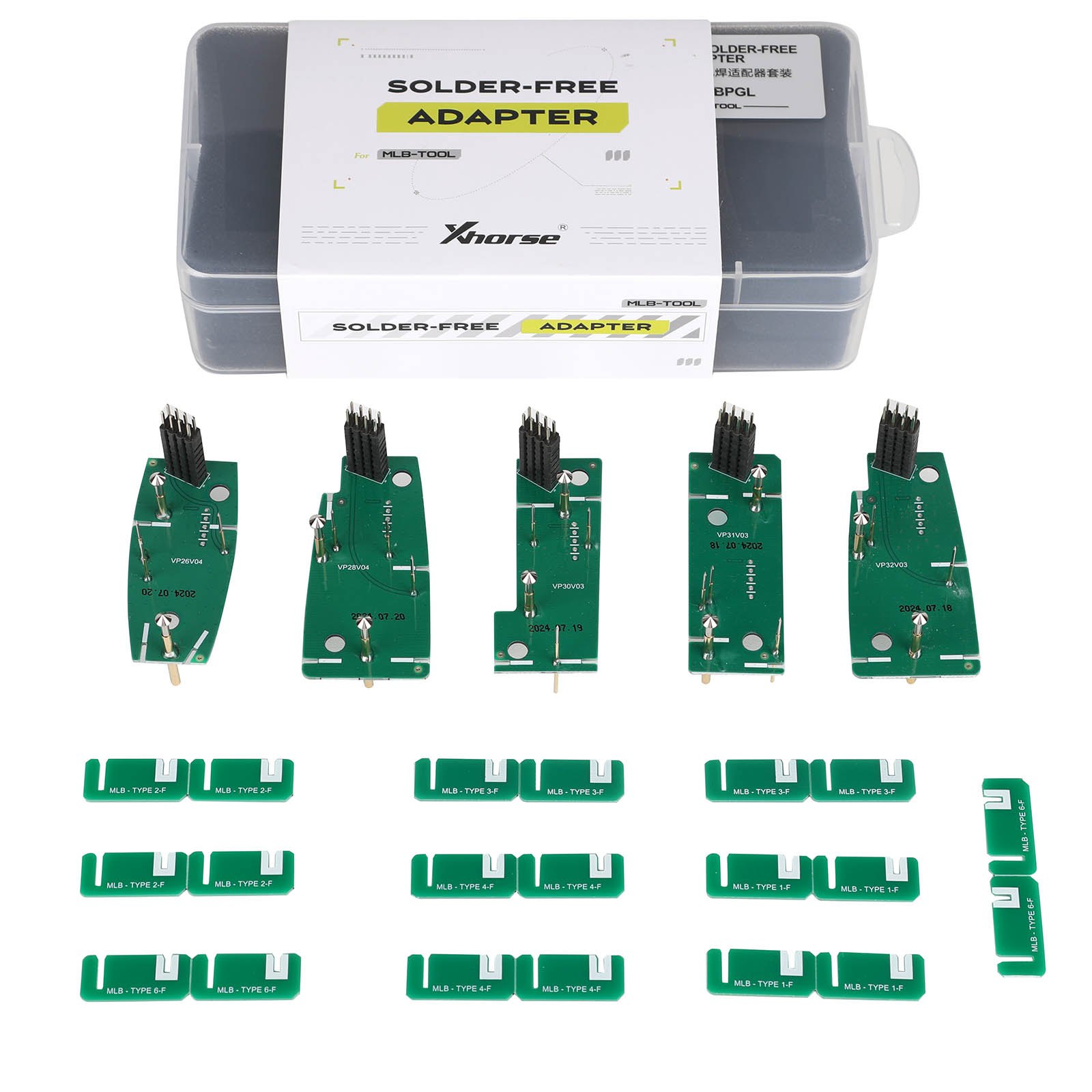

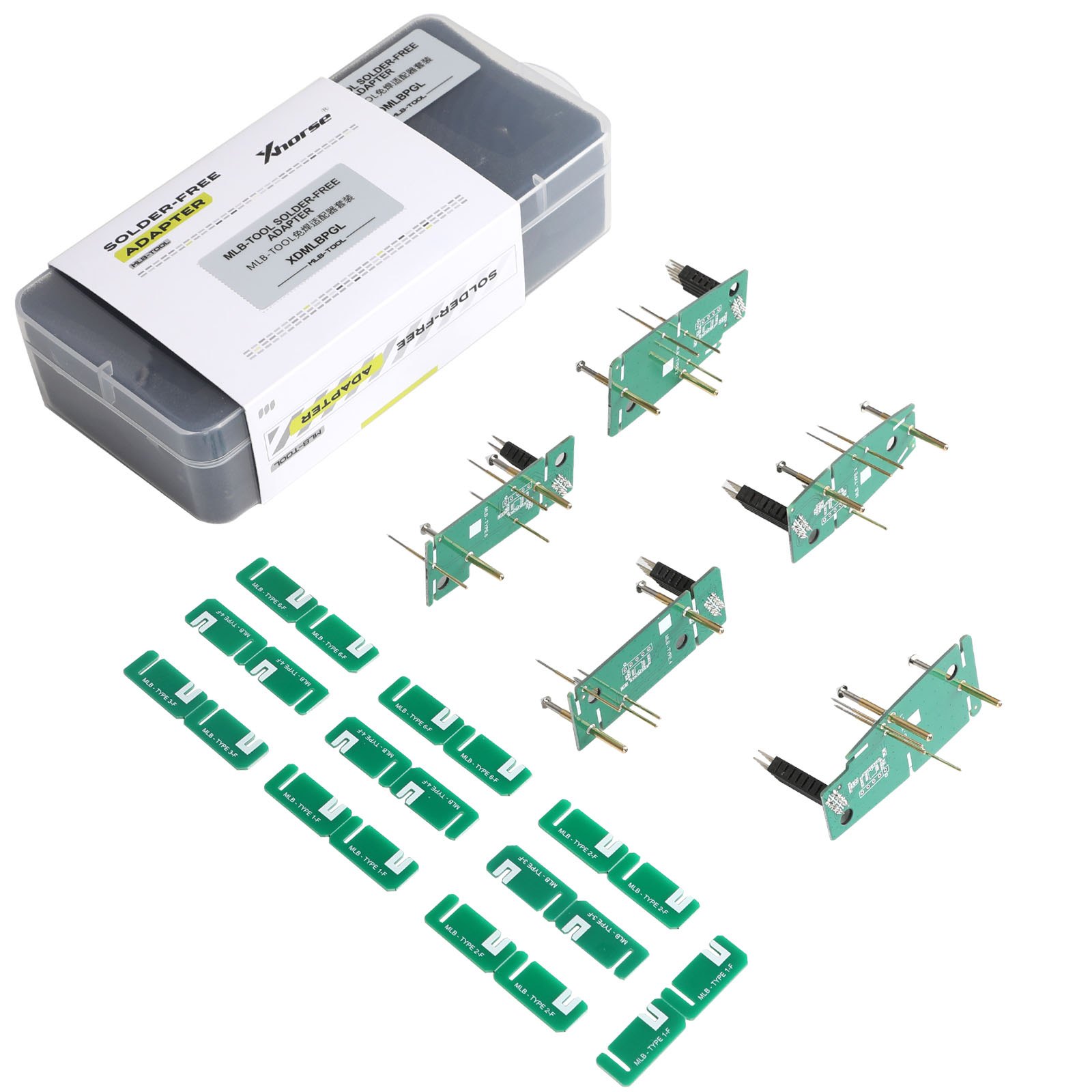

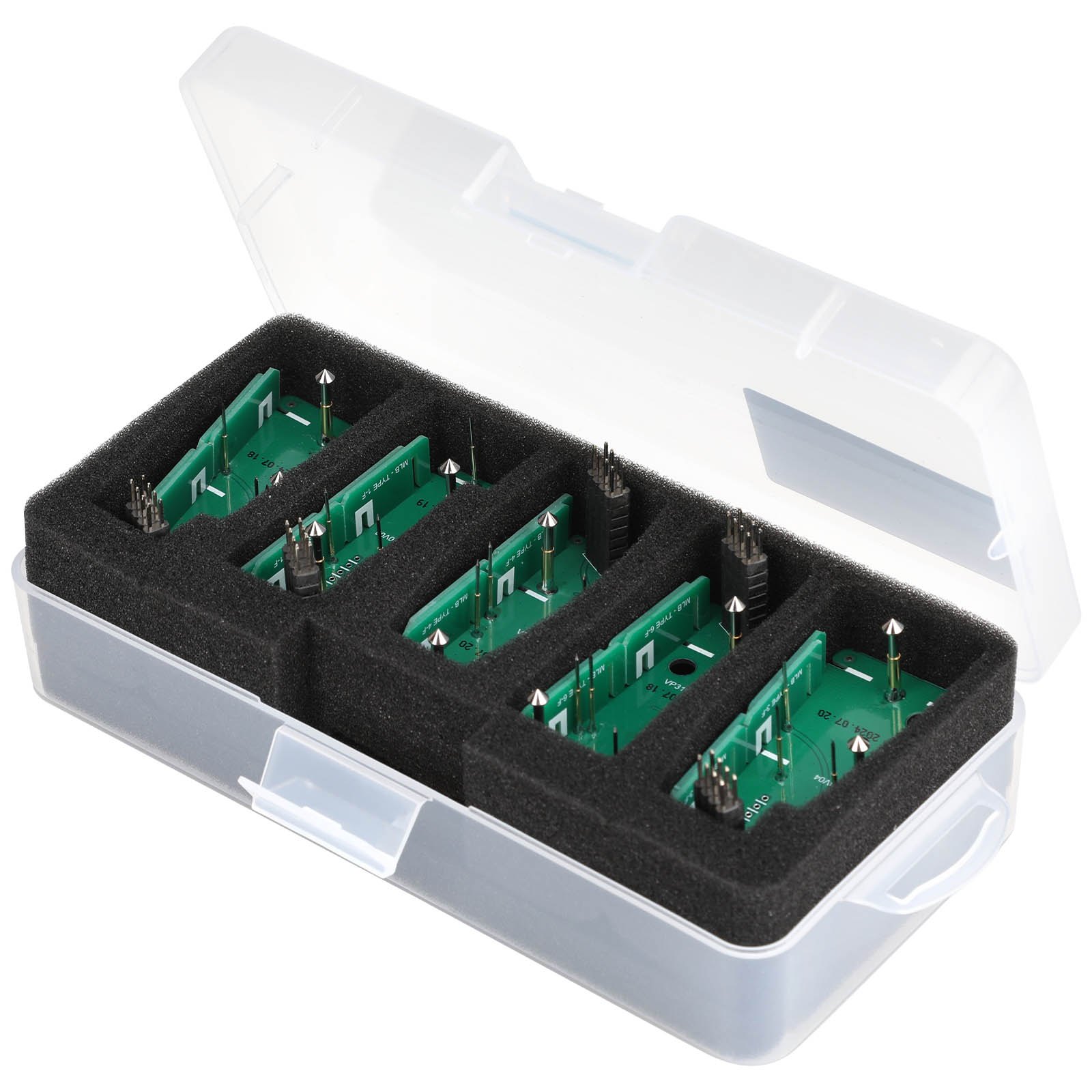

• XHORSE XDMLBPGL MLB Tool Solderfree Adapter Kit Support Add Keys for MLB Models.
• 5pcs XHORSE XSMA4YEN MLB Remote Key A.D A4 Model With 3 Buttons Key Shell Complete Key work with MLB / VVDI2 / Key Tool Plus
• Xhorse VVDI MLB TOOL XDMLB0 Key Programmer with Solder-free Adapter XDMLBPGL Kit and 5pcs XSMA41EN Audi Style MLB 3 Buttons Key

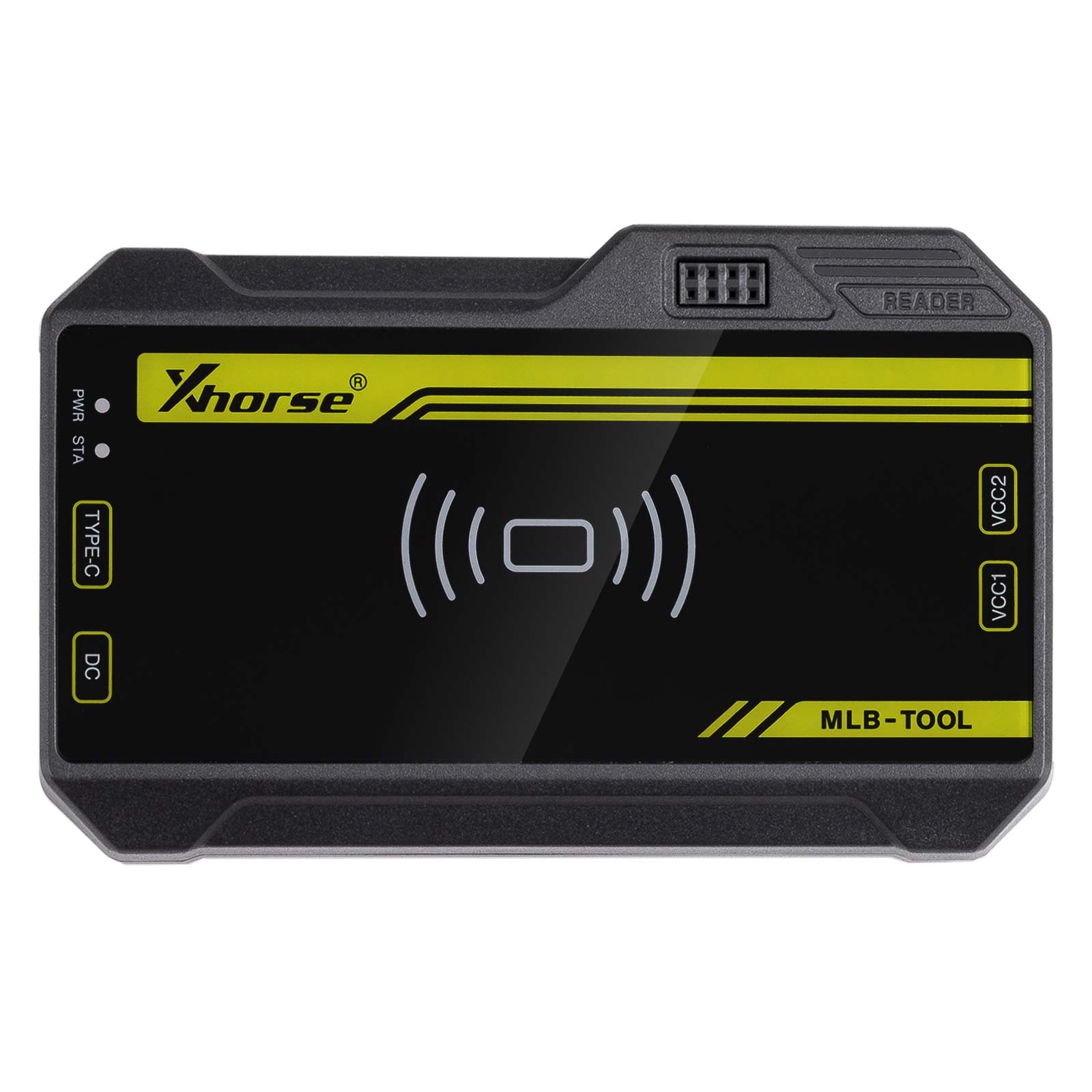

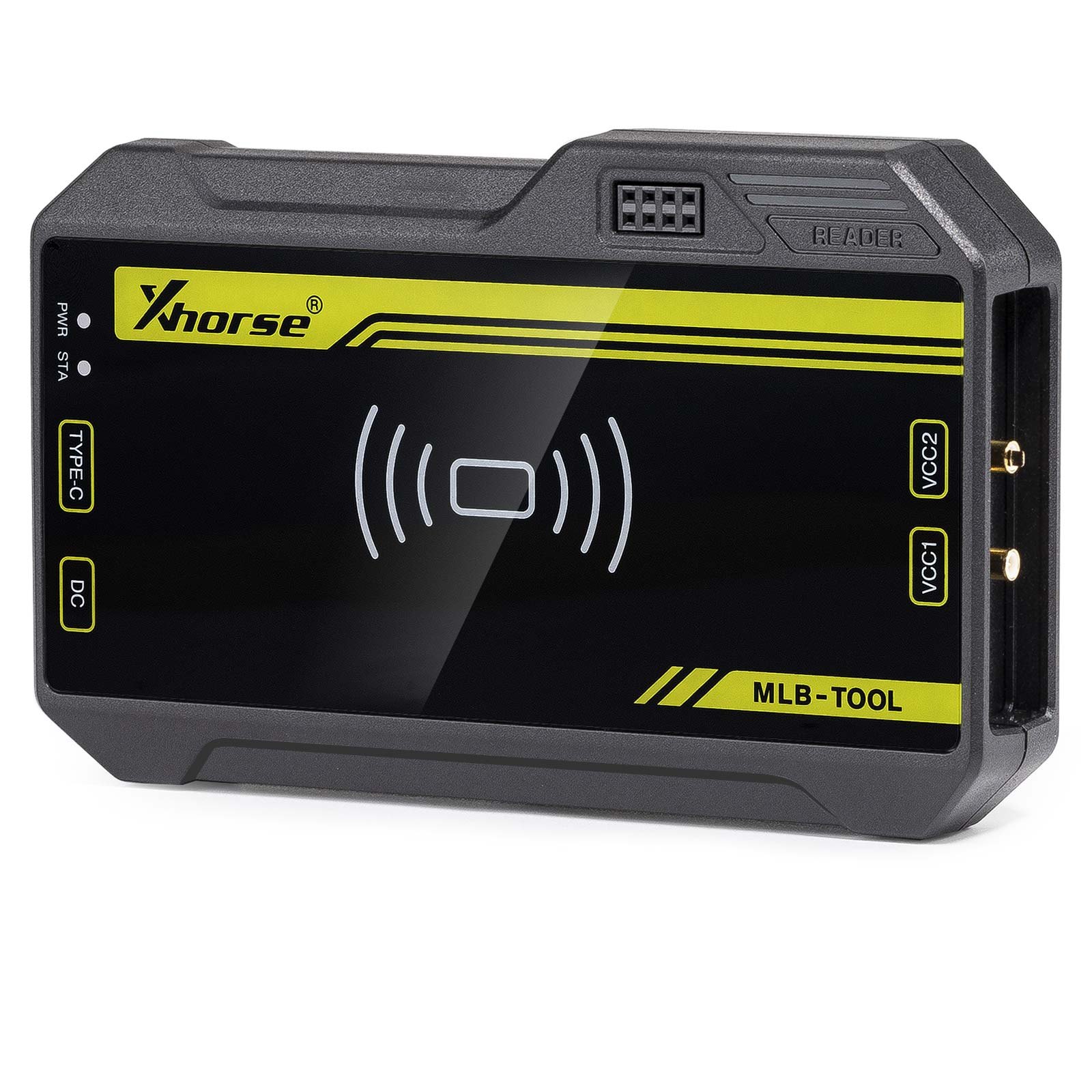

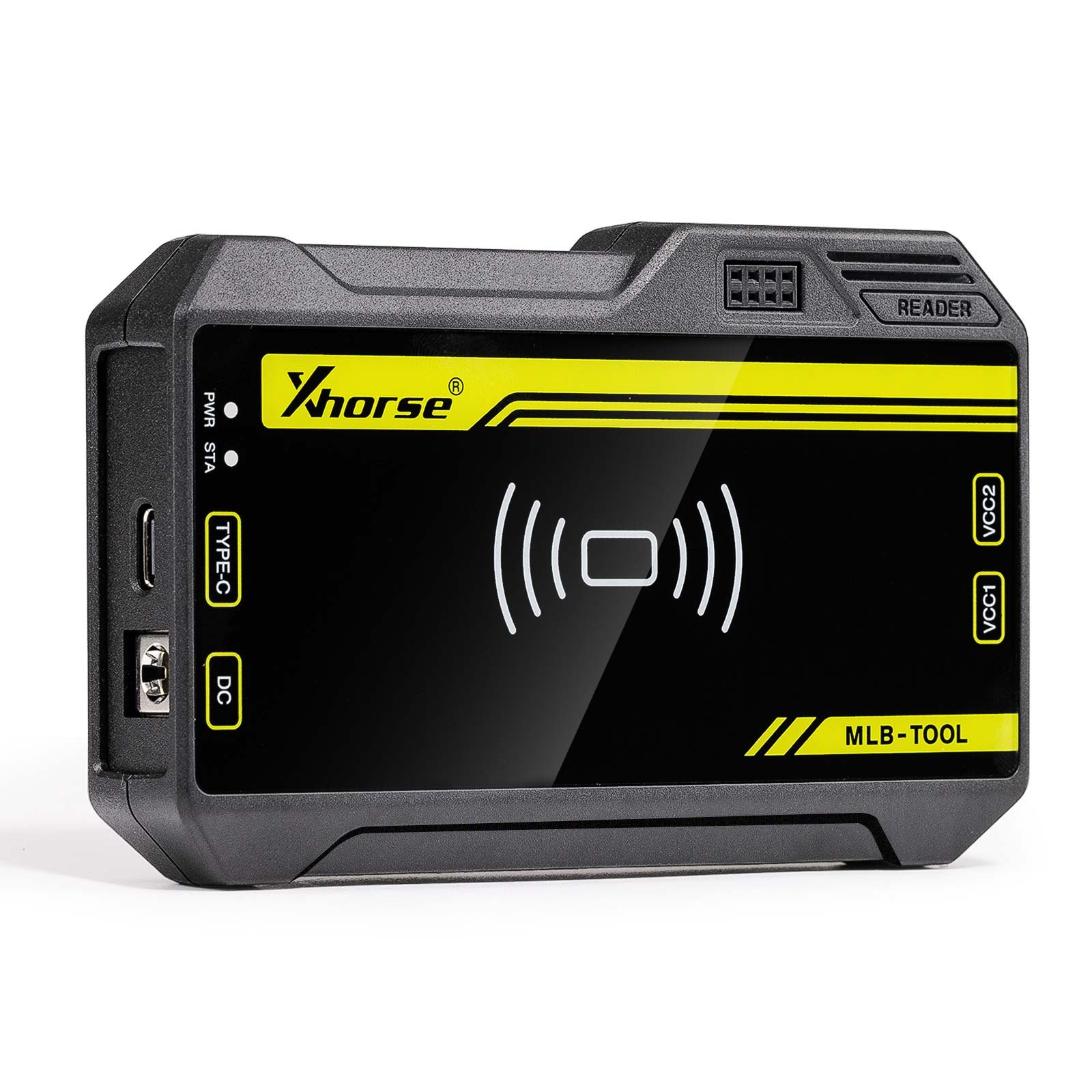

• Xhorse VVDI MLB TOOL XDMLB0 Key Programmer Highlights:
• No points required when using VVDI MLB specialized key
• The following two scenarios require points deduction for MLB calculations:
• When adding keys, points will be deducted to calculate the IMMO data.
• When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored
• Work with VVDI2 / Key Tool Plus Pad for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
• VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated
• 2.Excel in key Adding for MLB Models
• Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
• No Need to Remove the Chip
• Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
• Wireless Key Generation for Ultimate Convenience
• Generate original dealership keys and Xhorse specialized keys wirelessly.
• Built-in Immo detection module supports wireless key recognition
• Compatibility with Original Keys and Xhorse Specialized Keys
• Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
• Rewrite Uninitialized Key IDs
• Support rewriting uninitialized original key IDs.
• No Need for On-Vehicle Data Collection
• Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.
• Users are required to bind MLB-Tool with Xhorse App to perform immo data online calculation. Go to Special Function- Bind Device and scan QR code to bind device.
• Software Update online, current version 1.0.3.0 (Software Free Download),Operating system: Win10, Win11

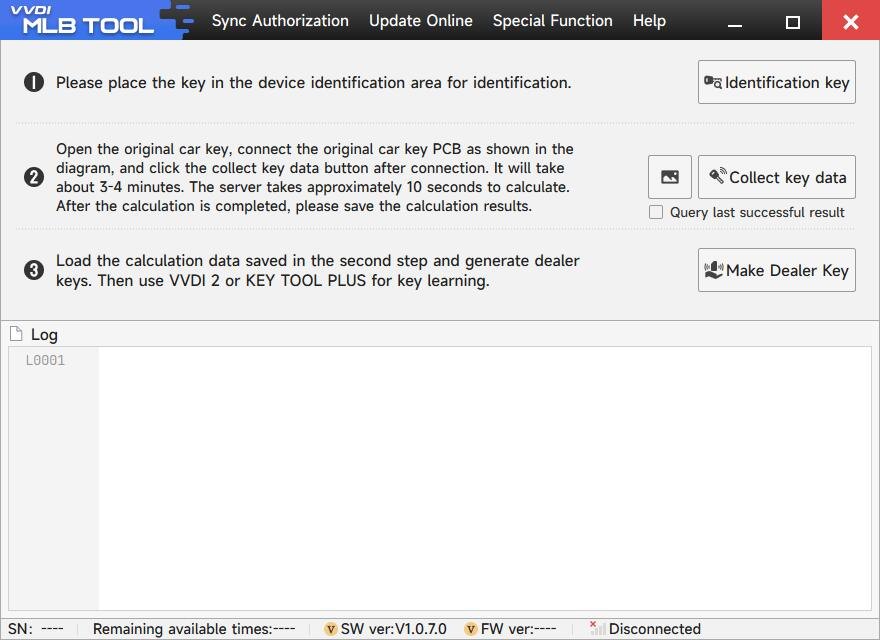

• MLB PC Software is required when you use with vvdi2. If use with vvdi key tool plus, connect MLB-Tool with KTP via the OTG converter. Then you collect key data, make dealer key and learn key all in the key tool plus.
• A. It depends on the key you use.
• Collect the VVDI MLB key, no points are required
• Collect the original key (without our VVDI MLB remote key), will require 200 points
• Collect the original key (but have our VVDI MLB remote key), identify the VVDI key first, and then you can avoid deducting points. (1 VVDI key can only be identified once)
• A. 1. When adding keys, points will be deducted to calculate the IMMO data.
• When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key.
• You need to deduct points to collect and calculate the IMMO data of the key before it can be restored.
• Q. Does the original key for XHORSE MLB TOOL have to be a brand new one, or can it be a used one?
• A. For the original key. Here are several occasions.
• Unlocked, uninitialized, with ID, can generate and learn the key directly
• Unlocked, uninitialized, but without ID, can change ID for once
• Unlocked, initialized, can restore key to unlocked, uninitialized, no ID state by calculating anti-theft data
• Locked, initialized, this original car key cannot be unlocke
• Q. The MLB PC software is only required when using it with VVDI2, right?
• A. yes, that is right. MLB PC software is needed when used with VVDI2. When using with a KTP, you can use an OTG adapter to connect. like this
• Add Keys for MLB Models with Ease

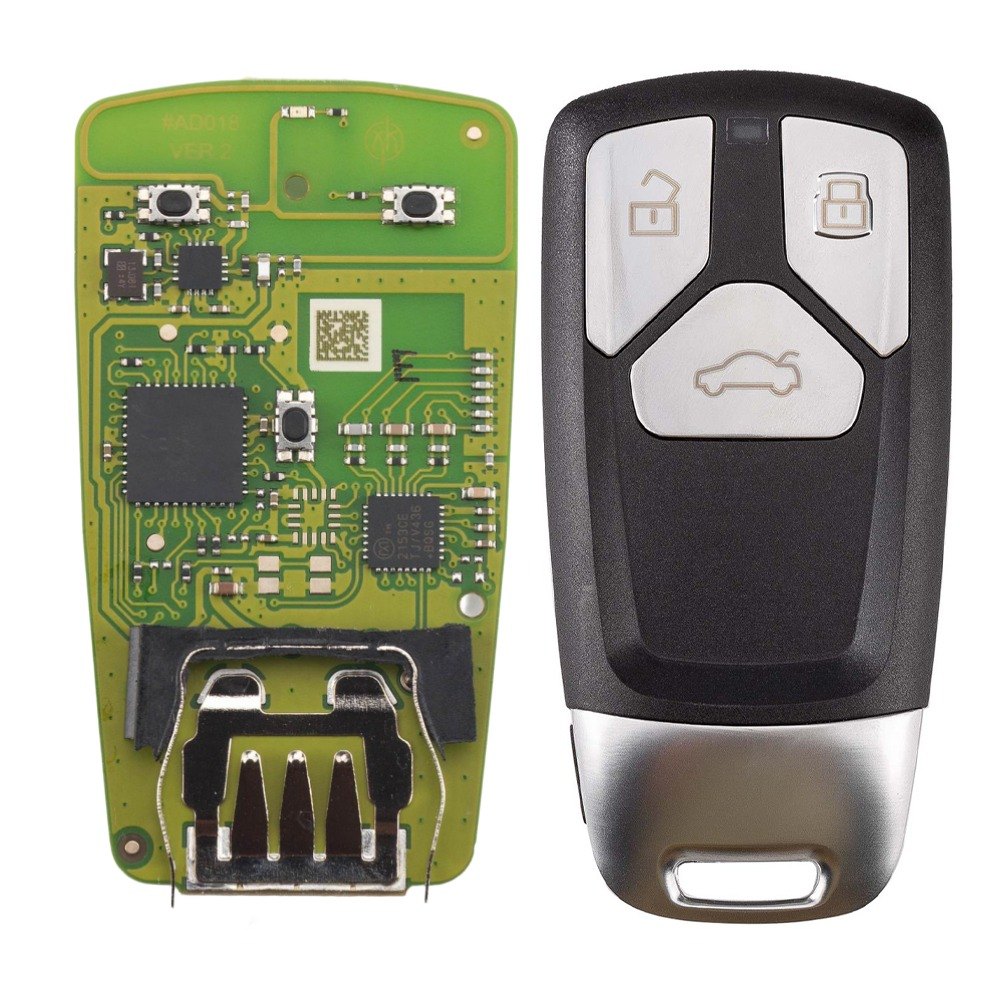

• Xhorse XSMA4YEN MLB Remote Key A.D A4 Model PCB with 3 Buttons Key Shell work with MLB / VVDI2 / Key Tool Plus
• Audi style MLB Key 3 Buttons
• Work with VVDI MLB Tool /VVDI2/ VVDI Key Tool Plus, no need points
• OEM chip solution, offering more options
• Supports customizable button settings
• Supports direct unlocking after programming
• Supports MLB models
