Xhorse VVDI Key Tool Plus Pad Global Advanced Version Free Upgrade MQB 5C 5D All-in-One Programmer

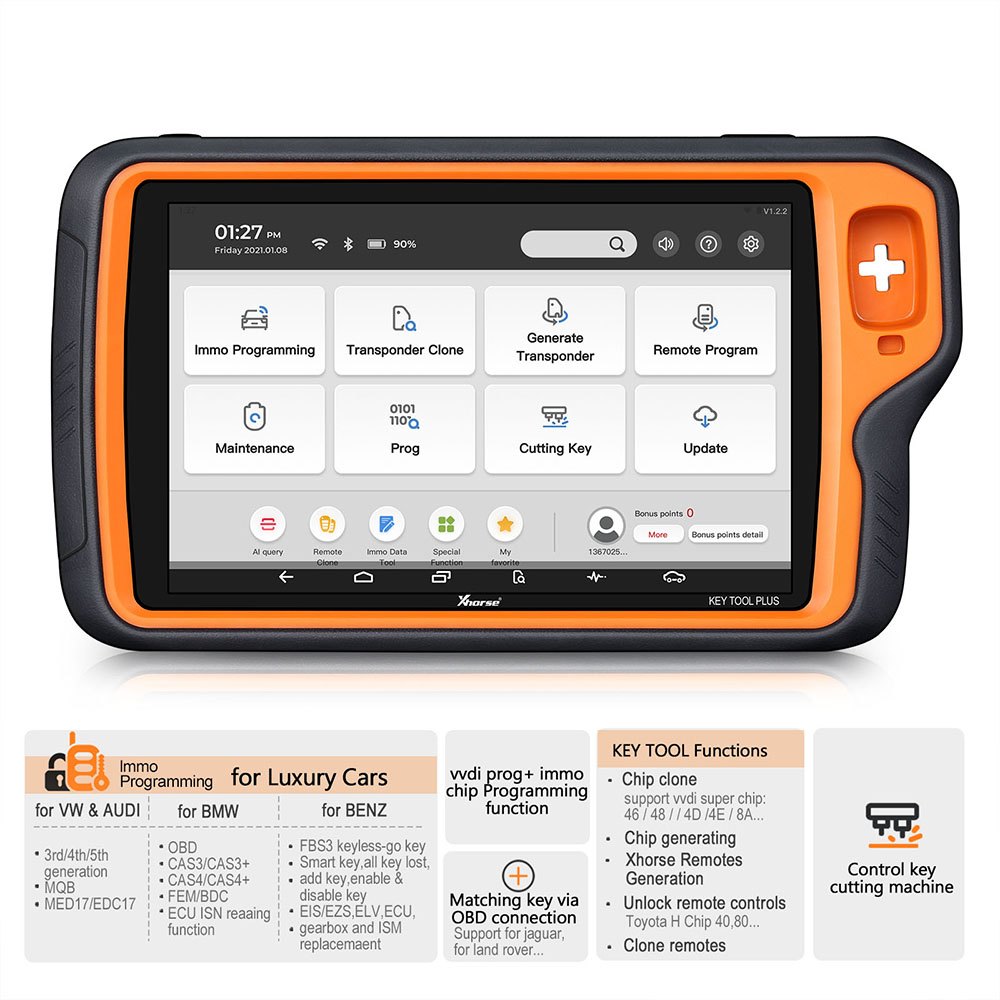

The Xhorse VVDI Key Tool Plus Pad in global advanced version, an all in one security programmer with the free MQB 5C and 5D upgrade. VW and Audi coverage runs third, fourth and fifth generation plus MQB and MED17 or EDC17. BMW covers OBD, CAS3 and CAS3+, CAS4 and CAS4+, FEM and BDC and ECU ISN reading. Benz covers FBS3 keyless go and smart keys, all keys lost and add key. It reads and writes EEPROM and most transponder types, supports DOIP, CAN-FD, CAN and K protocol, and runs Android 9 on an eight core 2GHz CPU with 4GB and 128GB, a 10.1 inch anti-glare FHD+ screen and a 13MP rear camera.

Specifications

• VW&AUDI: 3rd/4th/5th generation, MQB, MED17/EDC17
• BMW: OBD, CAS3/CAS3+, CAS4/CAS4+, FEM/BDC, ECU ISN reading function
• BENZ: FBS3 keyless-go key, Smart key, all key lost, add key, enable & disable key, EIS/EZS, ELV, ECU, gearbox and ISM replacement
• Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
• Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)
• CPU: 8-core 2GHz (4xCortex-A53 up to 2.3Ghz,4xCortex-A53 up to 1.8Ghz)
• RAM+ROM: 4G+128G
• Operation System: Android 9.0
• Screen Size: 10.1" HD Anti-glare; Anti-fingerprint,Resolution up to FHD+ (2,400*1,080)
• Rear HD Camera: 13.0MP
• Battery Capacity: 10000mAh
• Charging: 30W Super Fast Charge
• Bluetooth: 5.0 Bluetooth
• WIFI: 2.4G/5G
• Light sensor: detect the brightness in the surrounding environment
• USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
• DB15 port: support standard & optional programming adapters with DB15 port

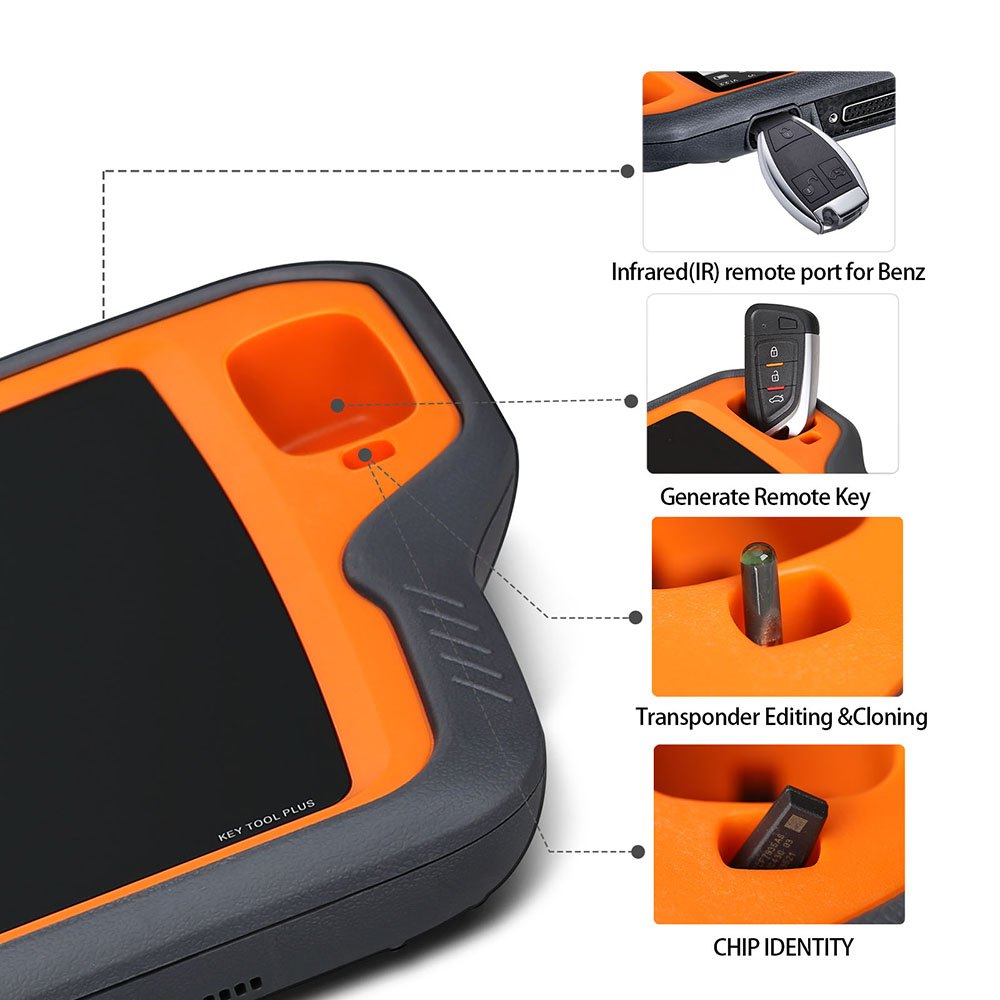

• Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader
• Q1: What are the features of VVDI Key Tool Plus Tablet?

Also stated by the supplier

• Xhorse VVDI Key Tool Plus provides an all-in-one security solution for locksmiths, which combines immo programming for luxury cars like BMW, BENZ, AUDI, and VW etc as well as common functdions of key programming and car diagnosis in one single platform.
• Support DOIP/CAN-FD/ CAN and K protocol switch pin/Chip pin detection/Toyota smart key programming without simulator/Long distance IMMO collection.
• Xhorse VVDI Key Tool Plus All-In-One Automotive Solution for Locksmith
• VVDI Key Tool Plus provides an all-in-one security solution for locksmiths. Much easier to complete various automotive programming anywhere, no need to take your laptop, mobile phone.
• Support IMMO programming for luxury cars like BMW, BENZ, AUDI, and VW etc.
• Available to control the key cutting machines developed by Xhorse. Greatly saving cost and facilitating the work process. Bind with Xhorse key cutting machine to get one free BGA token everyday.
• Advanced Version with Free Update Online

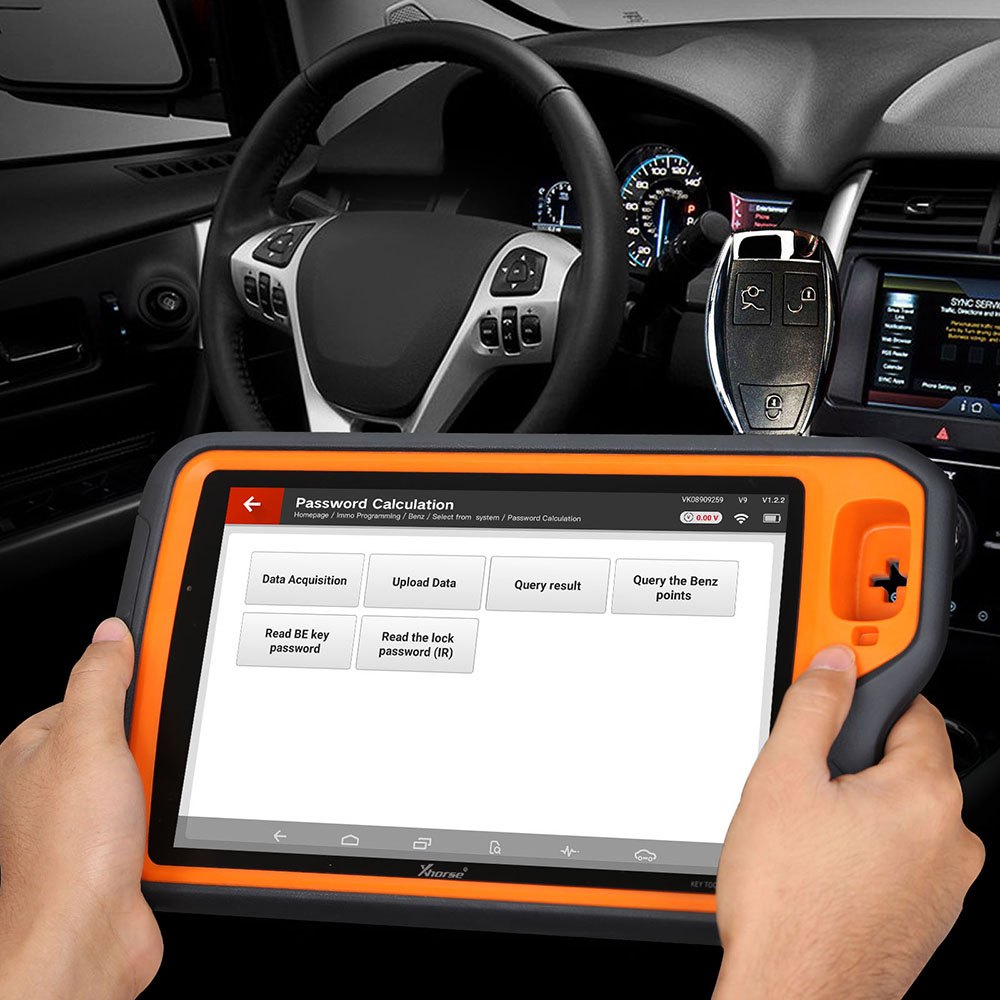

• ID48 96bit and read MB Key password online will need token, but both can read xhorse bonus points. Read Xhorse bonus points for copy 48 96 bit ( 100 points ) and Mercedes calcuation ( 200 points ).
• The most advanced application processor of VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.
• Work with New VW Solder-Free Adapter Set for Audi Add Key and All Key Lost. No Need Token, No Need To Connect VW Server.
• Support Ford All Key Lost to year 2020 While Alarm On with Extra Ford All Key Lost Cable. No need to power off over and over again.
• Extra optional Xhorse XDKP91GL 40 Pin Gateway Cable for Nissan Mitsubishi. Support Add Key and All Key Lost Bypass Pin Code.
• Free Upgrade 5C/5D.
• 5C supports VVDI smart key and original keys (locked/unlocked)
• 5D currently supports original keys only
• Supports the latest 5C / 5D key models from Volkswagen, Skoda, Audi, Porsche, and more
• Supports KEY TOOL PLUS for soldered reading (Solder-free adapter reading will be supported soon)
• VW MQB48-NEC35xx License, BMW Bench Read ISN and BMW Motorcycle License are the three extra paid license for Key Tool Plus PAD.
• All-In-One Automotive Solution for Locksmith
• Powerful Hardware,Super Advanced Processor
• IMMO Programming For Luxury Cars
• Available to Control The Key Cutting Machines
• Generate Remotes and Smart keys
• Renew (unlock) remotes
• Remotes clone
• Program and Immo Transponder
• Frequency Detection
• Transponder detection, clone, and generating
• Support for Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, and others
• Key cutting machine control
• Chip pin detection
• Toyota Smart key programming without simulator
• Radiofrequency simulator
• Smart key simulator
• Integrated key identification coil
• Common Car Brands - Toyota, Honda, Mazda, Ford, etc.

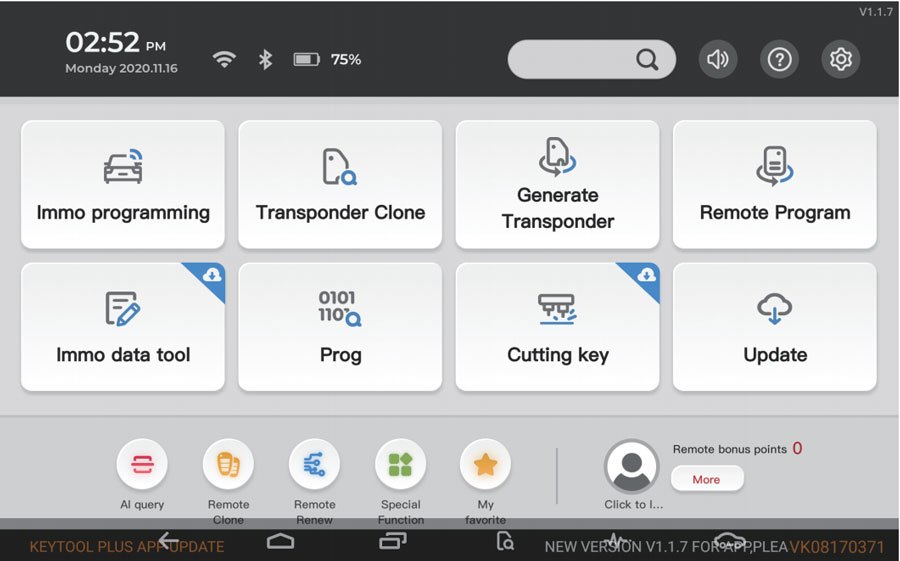

• Key Tool Plus supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.
• Key Tool Plus supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", "Read ECU with CAN" and "ECU", etc.
• Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
• IMMO Data Tool (File Make Key)
• Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.
• [ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]
• Xhorse Key Tool Plus supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

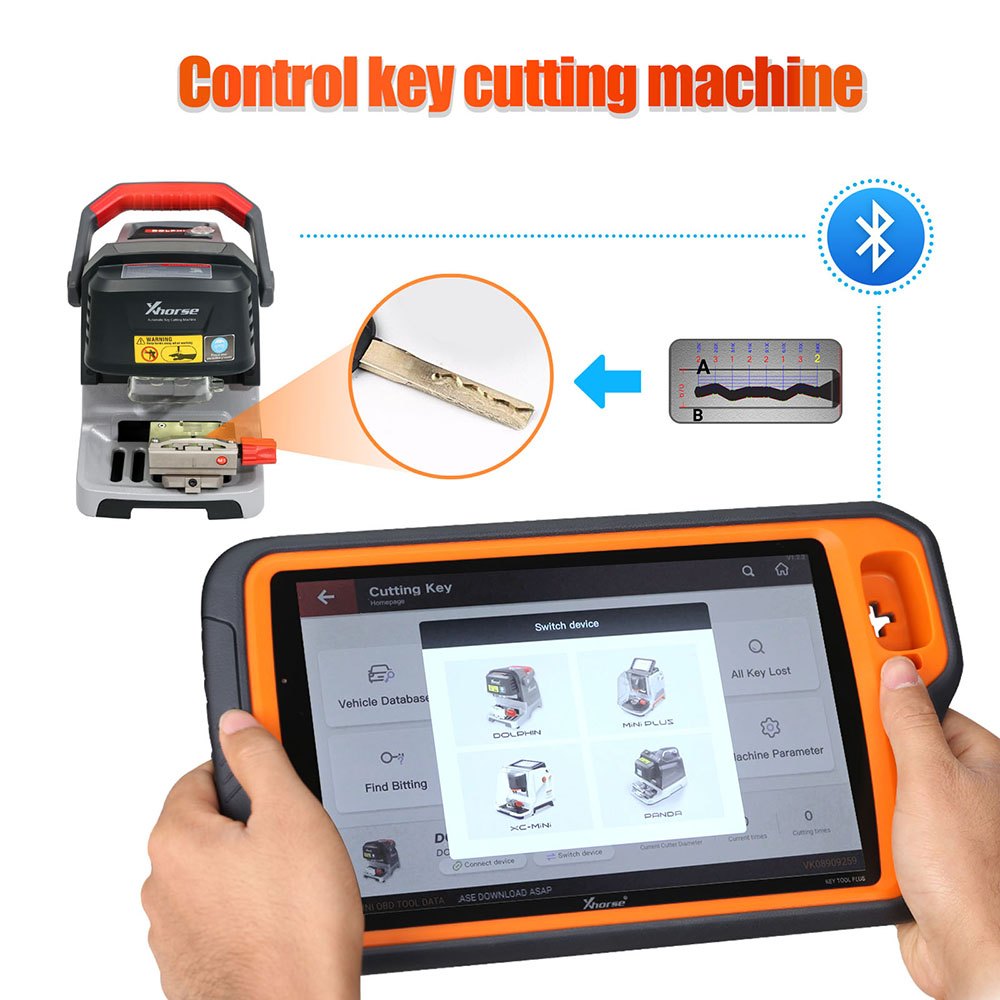

• Control Xhorse Key Cutting Machines
• Key Tool Plus is available to control the Xhorse key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.
• The most advanced application processor of KEY TOOL PLUS, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.
• Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)
• Support reading, writing, and cloning common immo transponders
• Support reading common ID transponders
• Support reading common IC transponders
• Support frequency detection of common vehicle remotes
• Immo transponder placement hole for vehicle immo transponders
• PS2 port for remote programming
• DB25 port for OBD matching
• A1: KEY TOOL PLUS Tablet is a professional locksmith tool that integrates the main functions of remote control and chip, anti-theft matching, programming, accessory replacement, maintenance reset, etc., and also reserves future expansion capabilities. One dev

Xhorse note some functions need the Key Tool connected as well, so read the function list carefully.
