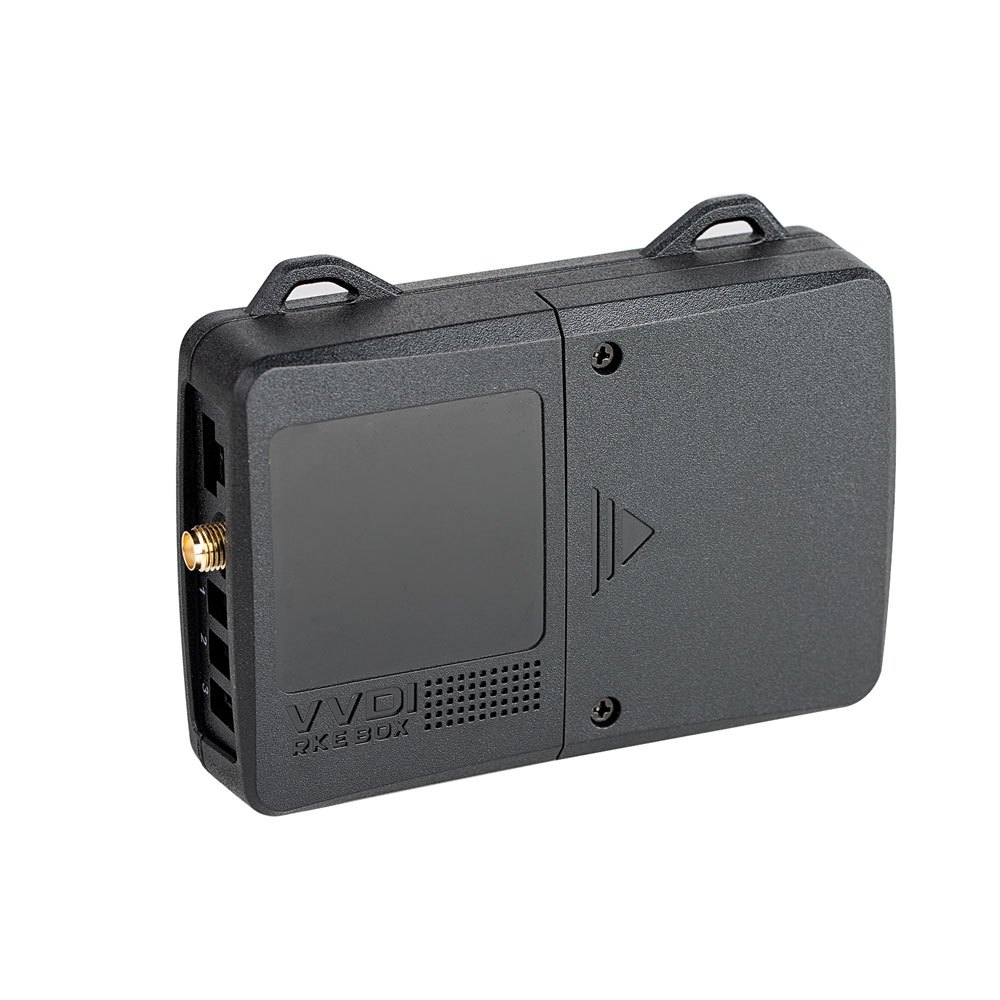

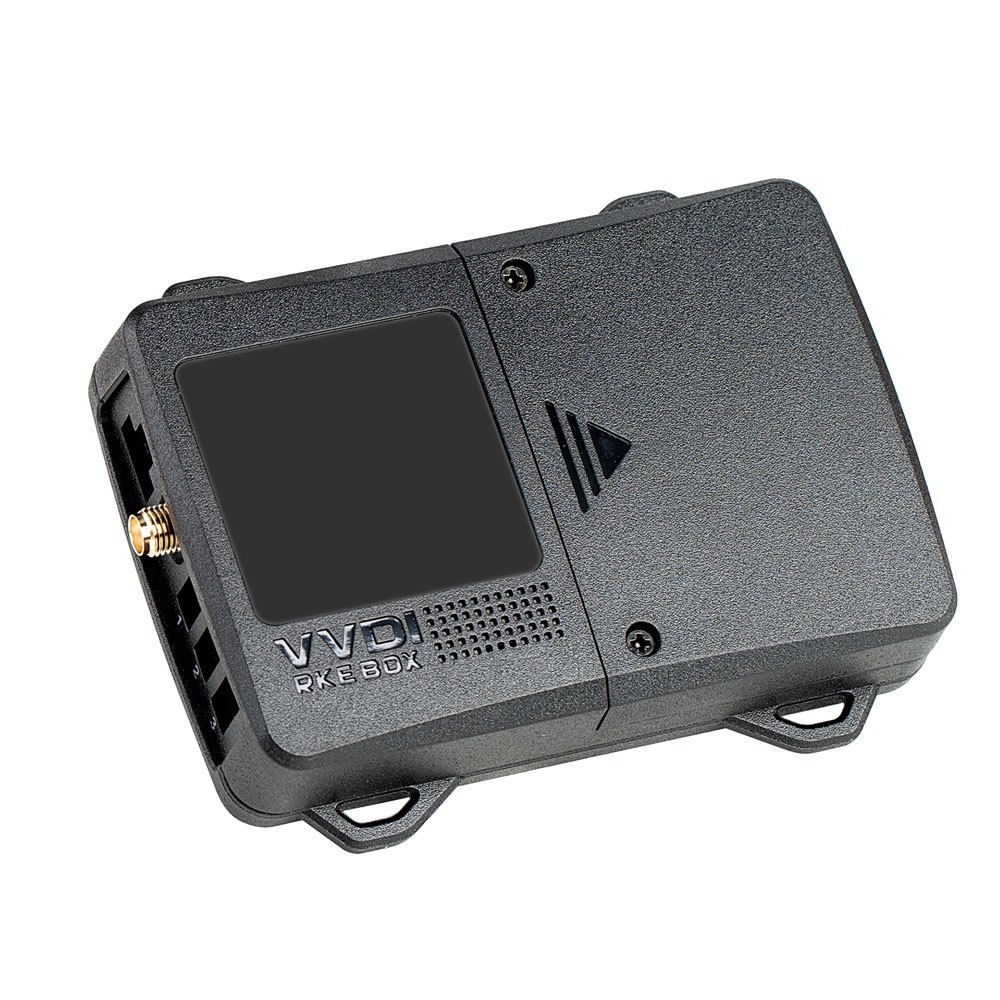

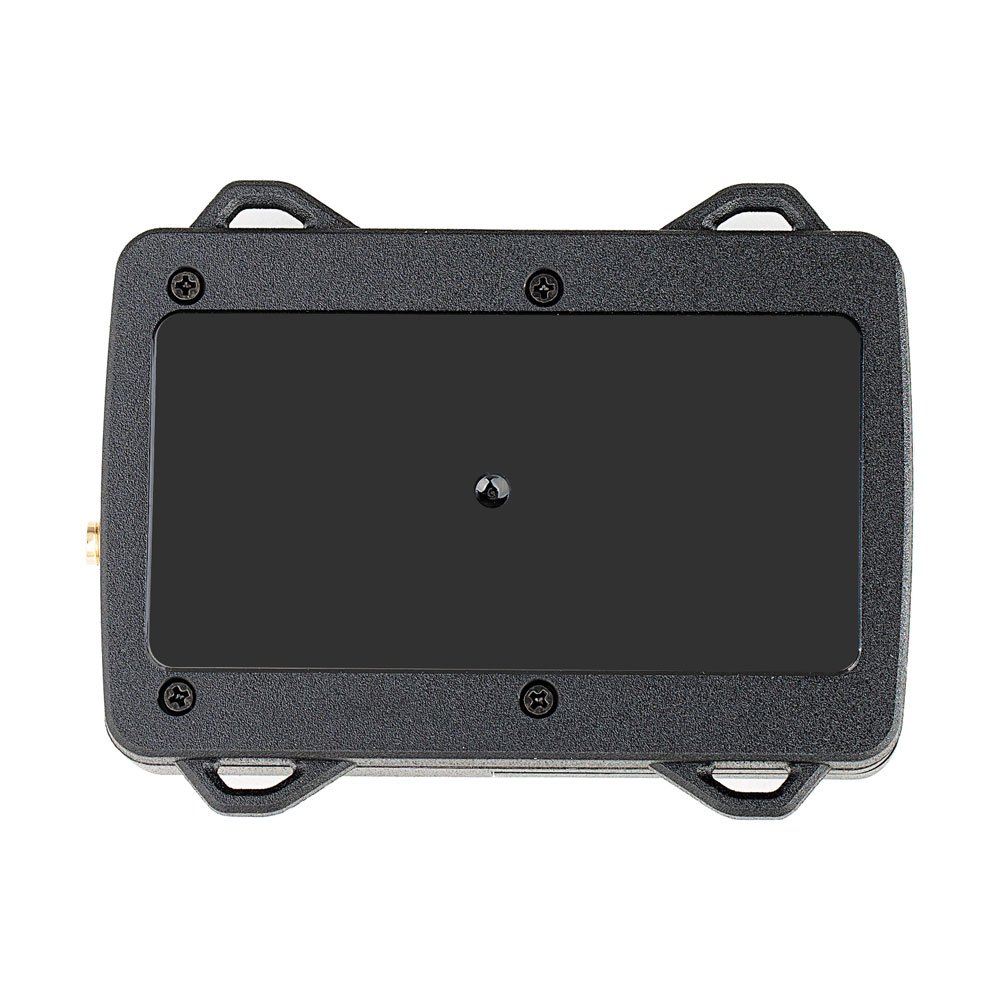

Xhorse Smart Key Box XDSKE0EN Bluetooth Adapter Work with MINI Key Tool/ Key Tool Max/ Key tool Plus/ VVDI2

An Xhorse Smart Key Box XDSKE0EN Bluetooth adapter, working with the MINI Key Tool, the Key Tool Max, the Key Tool Plus and VVDI2. It measures 100 by 78 by 20mm, runs 8V to 12V and draws 9mA at rest.

Specifications

• Size: 100mm*78mm*20mm
• Operating Voltage: 8V-12V
• Quiescent Current: 9mA(12V)

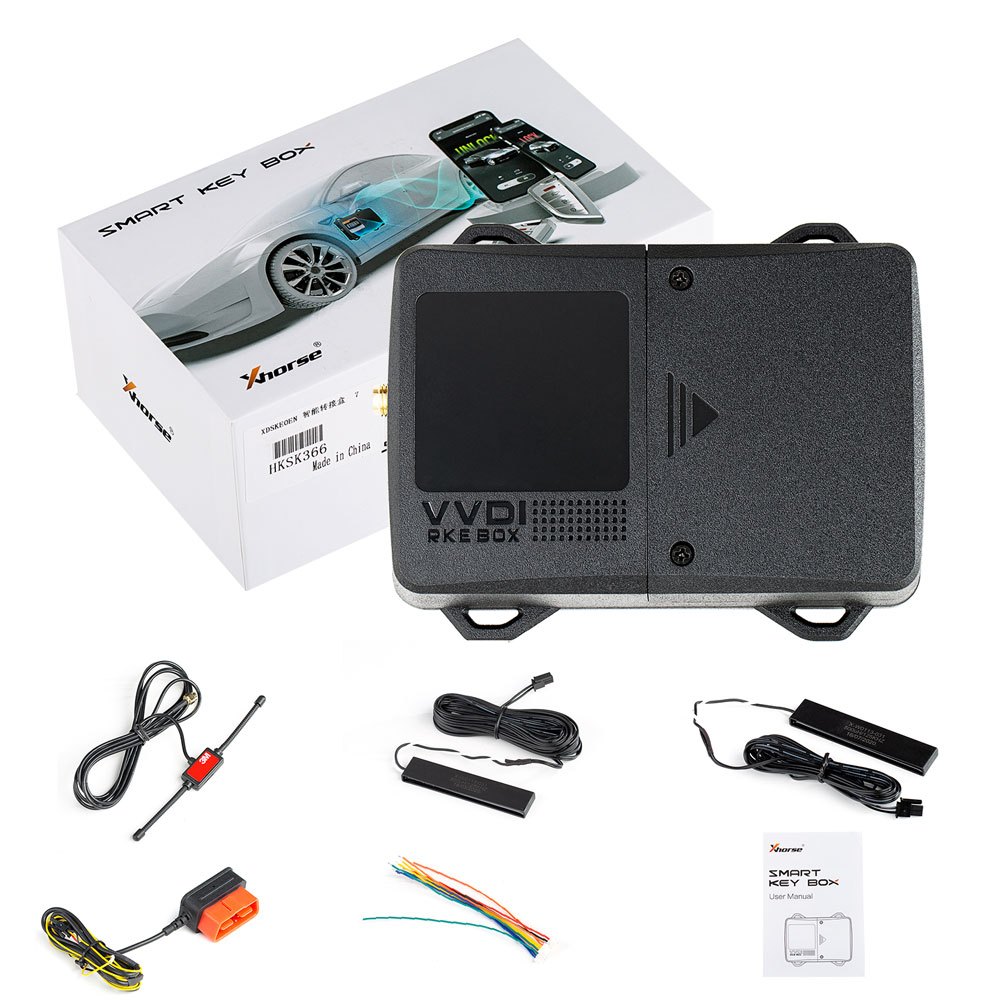

What you get

• 1pc x Machine
• 1pc x LF Antenna
• 1pc x RF Antenna
• 1pc x Power Supply Cable
• 1pc x User Manual
• 1pc x Product Quality Certificate
• Xhorse Smart Key Box Installation Tutorials
• SMART KEY BOX is a newly designed tool by Xhorse, aiming to help users achieve a non-remote driving experience. By installing the tool into your car, your smartphone is able to work as an independent car key.
• Xhorse Smart Key Box Work with Smart Phone
• SMART KEY BOX is a newly designed tool by Xhorse, aiming to help users achieve a non-remote driving experience. By installing the tool into your car, your smartphone is able to work as an independent car key. Usually, it inherits all of the functions of your original remote, including lock, unlock, panic and trunk. Furthermore, keyless entry is also a function that can be performed on your smartphone.
• Developed and produced for the aftermarket. It adpots advanced RF technology and is suitable for the car with push start function.
• Support add smart key for car
• Support add or modify the keyless-enter function
• Use VVDI Device to generate remote control.
• Work together with Mini Key Tool, Key Tool Max, Key Tool Plus Pad and VVDI2.
• A maximum of 6 mobile phones and 6 smart keys are supported by this device.
• How to Install Xhorse Smart Key Box?

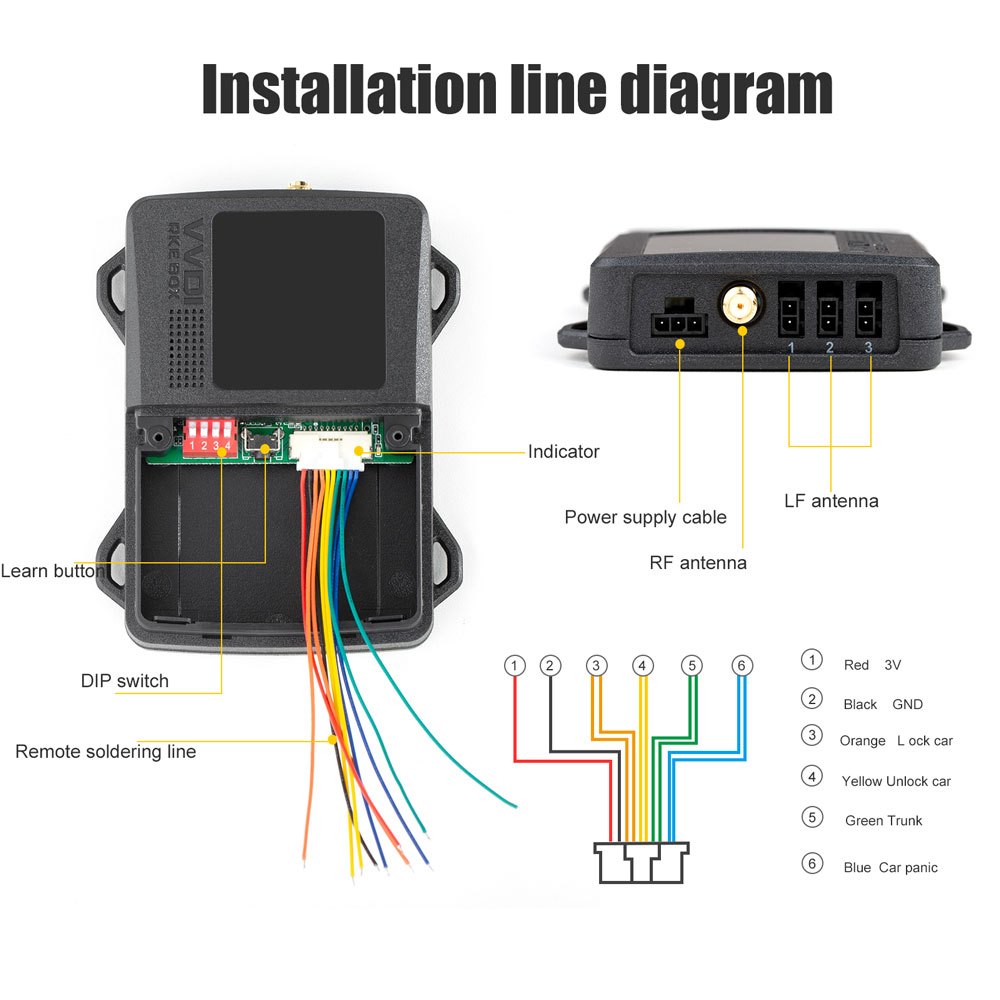

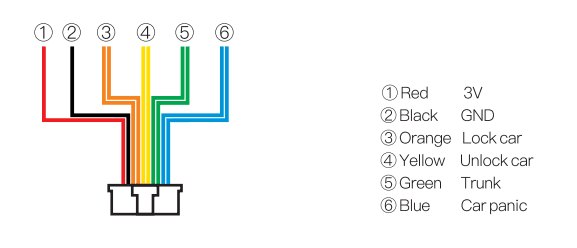

• Take out the original remote control, solder the cable according to the soldering diagram of the original remote control, pay attention to the direction.

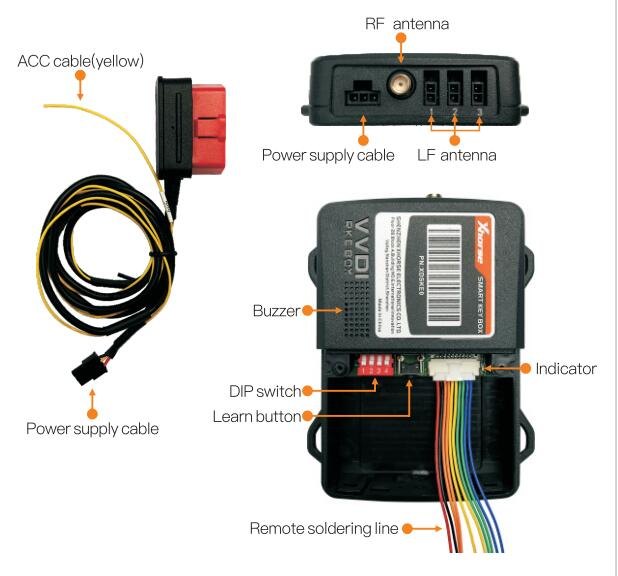

• Connect the RF antenna, LF antenna (connect any two interfaces of Lfantenna), and the original remote control to be transferred.
• Find the ACC signal line( the original car radio, the line with electricity after the navigation power onor the instrumentlight on).
• Connect the Vbat wire, ground wire and ACC wire of thepower supply cable to the car.
• Bindings of remote control and mobile phone (refer to binding instruction
• After installed, take a key close to the car, test the automatic unlock and lock function if you stay away (test other keys in the same way
• Test unlock, lock, trunk and car panic function after connecting with APP
• The safety index is higher than the original remote control.
• You can perform "Security Settings" on the "Smart Key BOX" APP.

The Smart Key Box turns a phone into the key for a car, driven from the Xhorse app.
