Xhorse Multi Prog Programmer + Exclusive Adapters + MQB48 Adapters + MQB-RH850 Adapter + GODIAG ECU GPT Boot AD and G-V ECU Cable Bundle Package Kit

This is the everything bundle around Multi Prog: the programmer itself, the exclusive adapter set, MQB48 and MQB-RH850 adapters, plus the GODIAG ECU GPT Boot AD board and G-V ECU cable so bench work on VAG controllers is ready out of the box.

Specifications

• Bunding Package: Xhorse Multi Prog Programmer + Exclusive Adapters + MQB48 Adapters + MQB-RH850 Adapter + GODIAG ECU GPT Boot AD and G-V ECU Cable Bundle Package Kit
• Reserve Ports: For future update
• Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

What you get

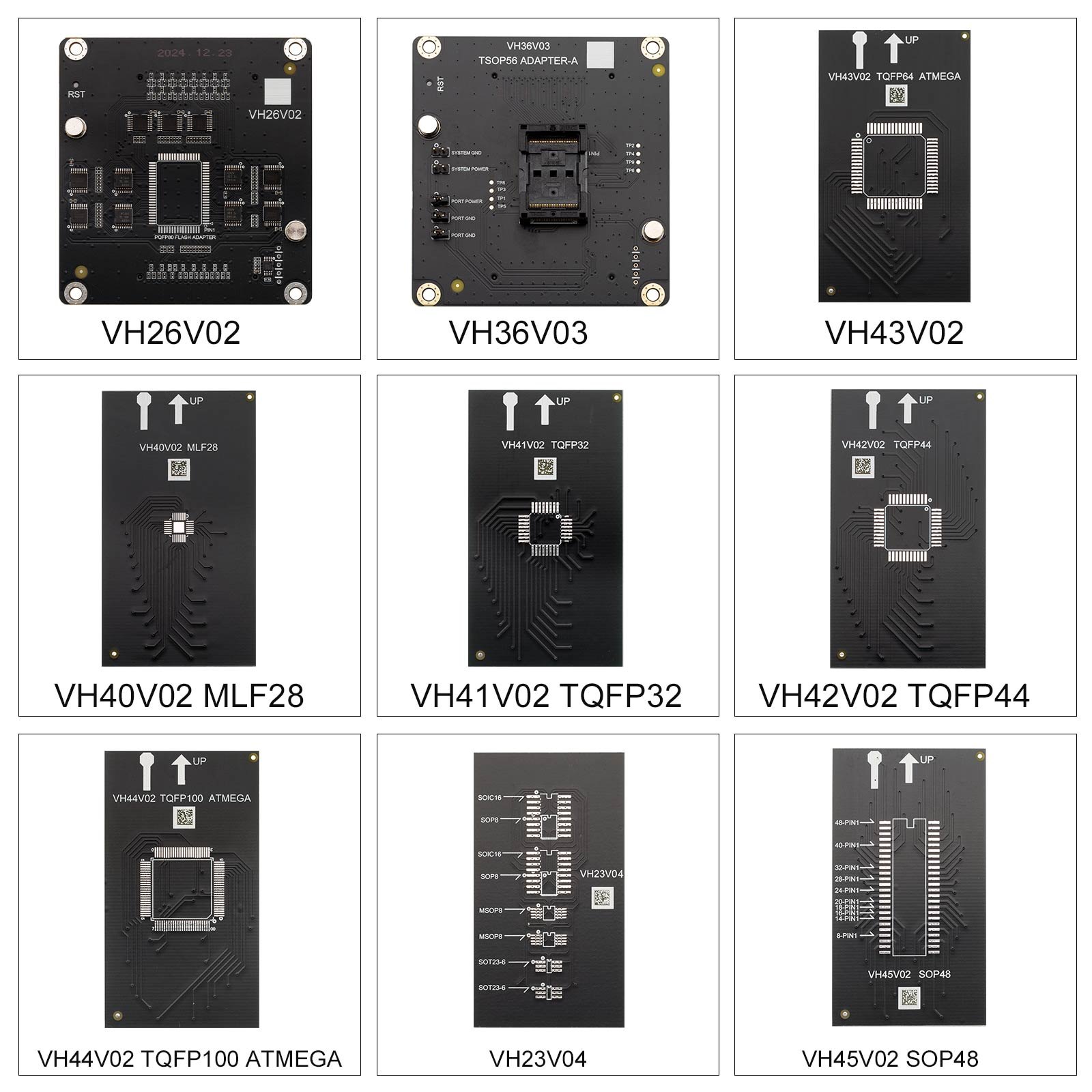

• These soldering boards support Reading & Writing of common EEPROM and FLASH chips.
• XHORSE XDMP03GL Adapter EEPROM&FLASH Soldering Board Supports Reading & Writing of common EEPROM and FLASH chips.
• XHORSE XDMP09GL Adapter TSOP56 Adapter Chip holder (Footprint:TSOP56) reads and writes, performs FLASH
• XHORSE XDMP10GL Adapter PQFP80 Adapter AM29BDD160G (Footprint:PQFP80) Reads and Writes
• XHORSE XDMP11GL Adapter Support ATMEGA103 (Footprint:TQFP64) Reading and Writing
• XHORSE XDMP12GL Adapter MLF28 Adapter Support ATMEGA88PA(Footprint:MLF28) Reading and Writing
• XHORSE XDMP13GL Adapter TQFP32 Adapter Support ATMEGA88PA(Footprint:TQFP32) Reading and Writing
• XHORSE XDMP14GL Adapter TQFP44 Adapter Support ATMEGA163(Footprint:TQFP44) Reading and Writing
• XHORSE XDMP15GL Adapter TQFP100 & ATMEG Adapter Support ATMEGA3250(Footprint:TQFP100) Reading and Writing
• XHORSE XDMP16GL Adapter SOP48 Adapter: Support ATMEGA3250(Footprint:TQFP100) Reading and Writing

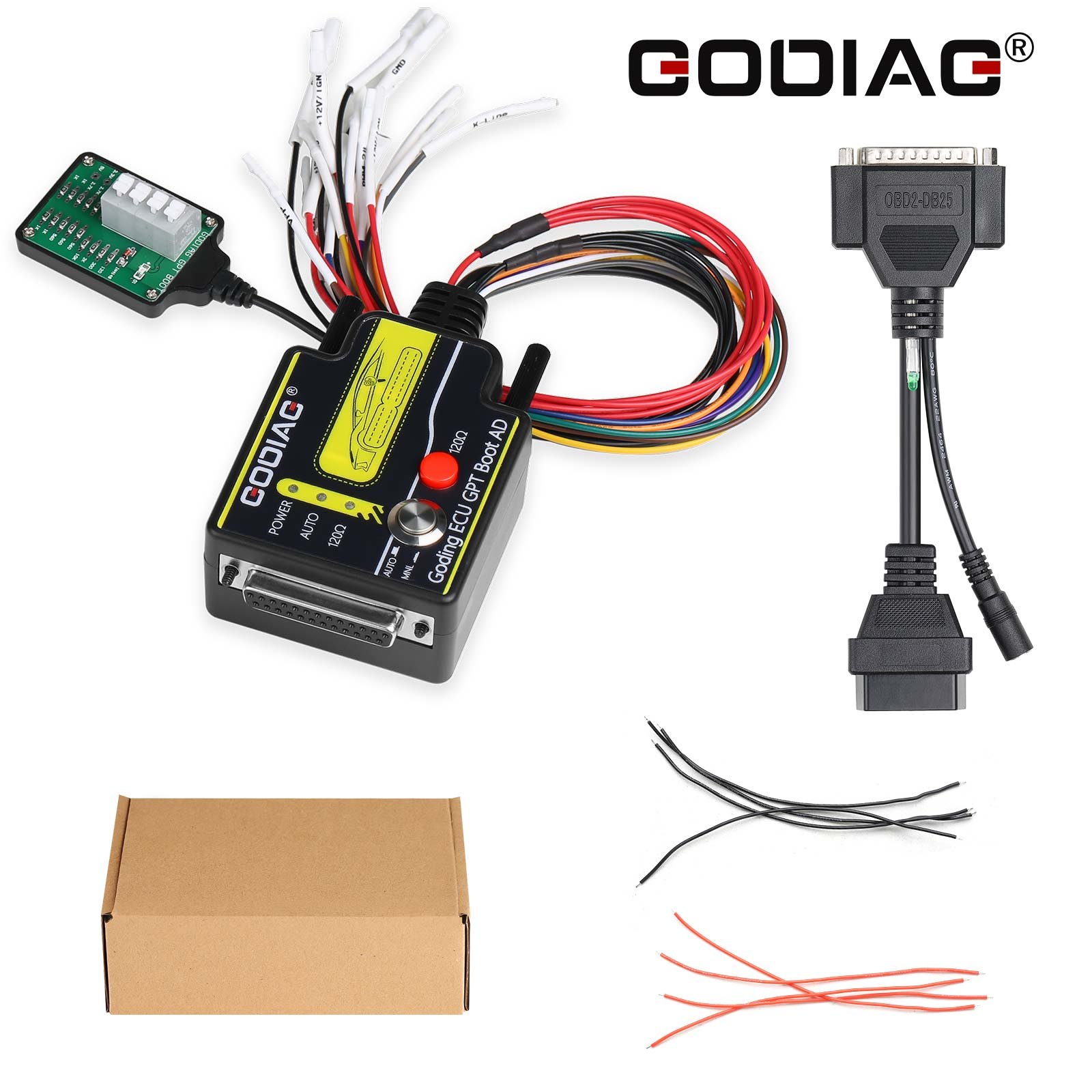

• GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.
• Support manual ignition power control
• Support ECU conversion to OBD2 mode to read and write data
• Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
• Support PCMFlash automatic control of ignition power supply
• CANbus is equipped with a switch to freely select the 120Ω resistor
• Diagnostic function supports standard OBD2 protocol equipment.
• Supports ECU reading and writing data, and supports J2534 devices.
• Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
• Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
• Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

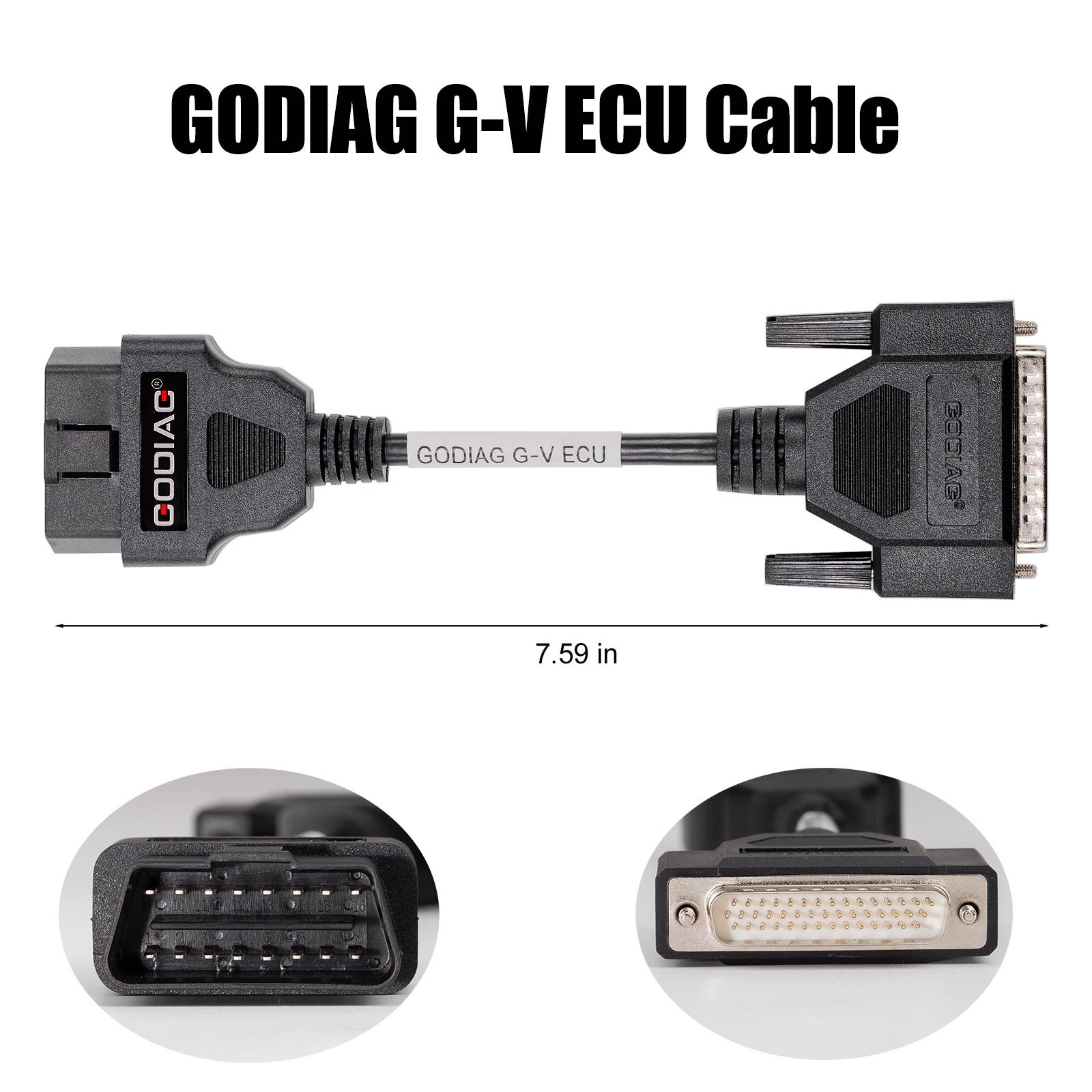

• GODIAG G-V ECU Cable is used to connect Xhorse MULTI PROG with GT107 or GT107+ GPT BENCH BOOT to read and write data on VAG gearbox ECU and engine ECU, clone ECU.

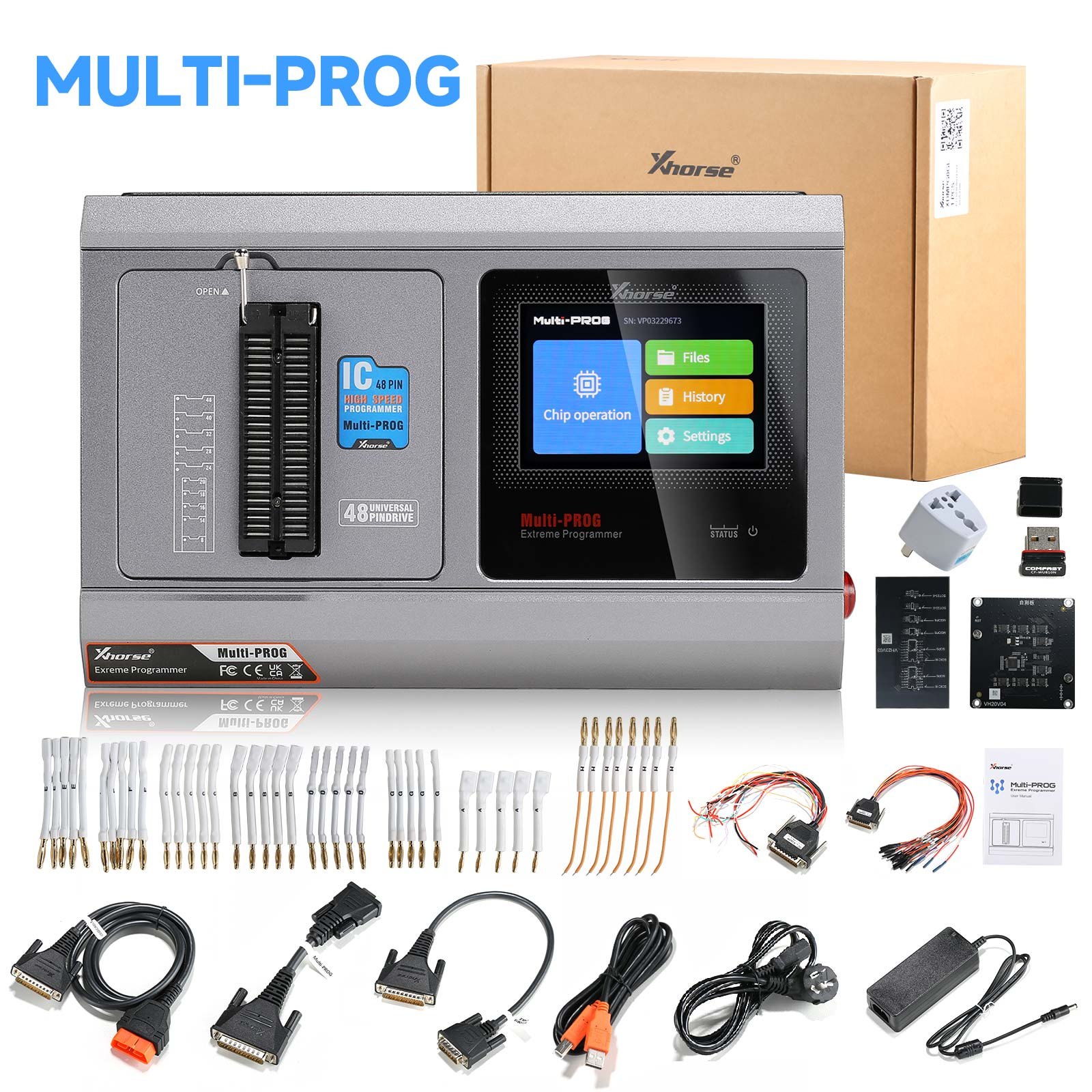

• 1pc x Multi-PROG
• 1pc x USB Cable
• 1pc x Power Adapter (15V 4A)
• 1pc x 220V Power Cord
• 1pc x VH13 Interface Adapter Board
• 1pc x VH20 Interface Adapter Board
• 1pc x VH23 Interface Adapter Board
• 1pc x MCU Adapter Multi-PROG Solder Cable
• 1pc x MCU DB15 Adapter Cable
• 1pc x ECU Adapter Multi-PROG Solder Cable
• 1pc x ECU DB15 Adapter Cable
• 1pc x Multi-PROG OBD Cable
• 1pc x USB WIFI Network Card
• 1pc x Product Manual
• 1pc x Certificate Of Conformity
• 43pcs x ECU Cable Plugs
• 13pcs x Xhorse MQB48 adapters XDNPM3GL
• 1pc x Xhorse XDMPR8GL MQB-RH850/V850 Adapter for Xhorse MULTI-PROG Pro-level Programmer
• 1pc x XDMP03GL
• 1pc x XDMP09GL
• 1pc x XDMP10GL
• 1pc x XDMP11GL
• 1pc x XDMP12GL
• 1pc x XDMP13GL
• 1pc x XDMP14GL
• 1pc x XDMP15GL
• 1pc x XDMP16GL
• 1pc x Xhorse XDMP04GL VH24
• 1pc x Xhorse XDMP05GL VH29
• 1pc x Xhorse XDMP06GL VH30
• 1pc x Xhorse XDMP07GL VH31
• 1pc x GODIAG ECU GPT Boot AD Programming Adapter
• Xhorse Multi Prog Programmer + Exclusive Adapters + MQB48 Adapters + MQB-RH850 Adapter + GODIAG ECU GPT Boot AD and G-V ECU Cable Bundle Package Kit
• Xhorse Multi-Prog Programmer Adapters XDMP04GL VH24 + XDMP05GL VH29 + XDMP06GL VH30 + XDMP07GL VH31

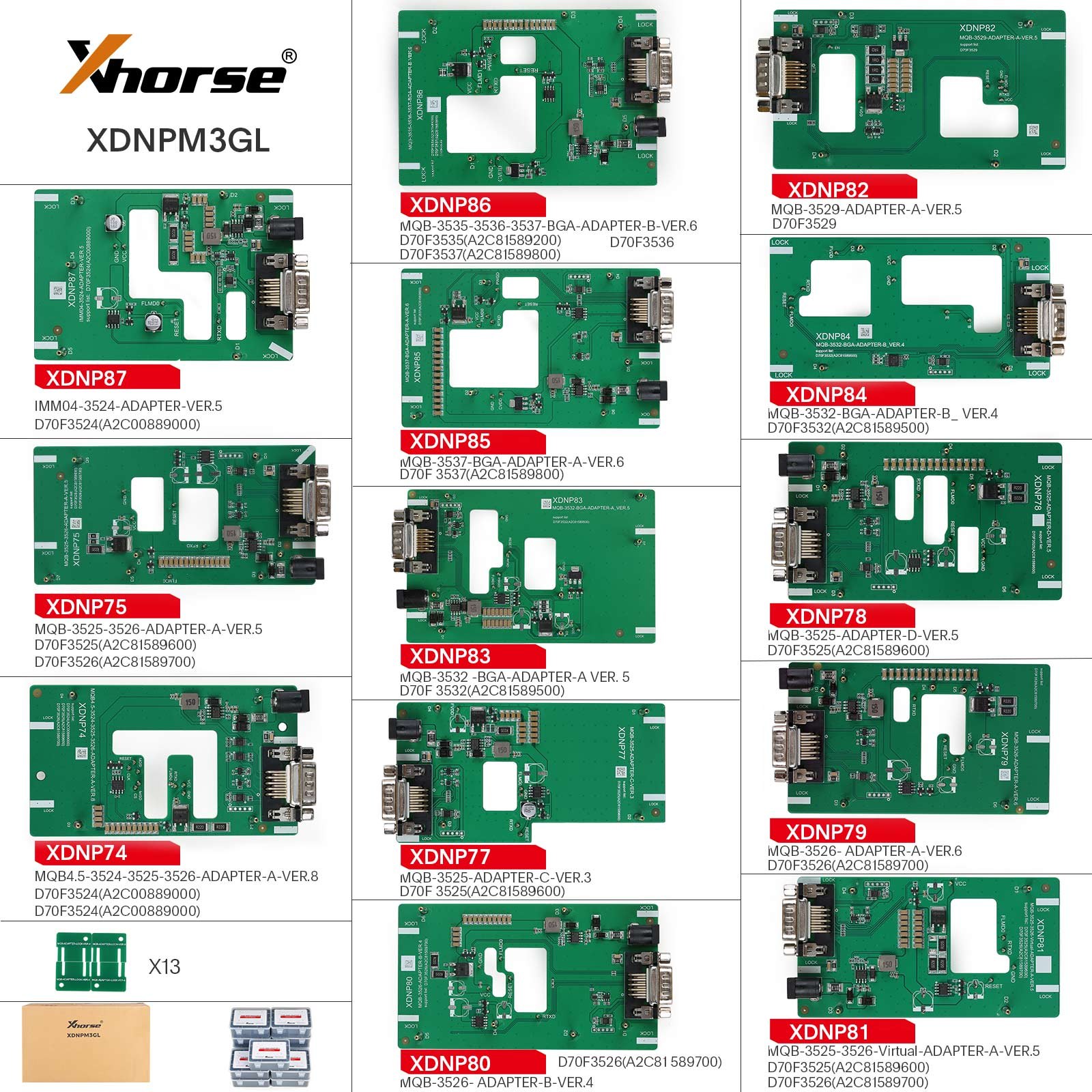

• Xhorse MQB48 No Disassembly No Soldering 13 Full Set Adapters XDNPM3GL
• Xhorse Multi Prog Adapters for EEPROM and FLASH 9pcs/set
• Xhorse XDMPR8GL MQB-RH850/V850 Adapter
• Multi-Prog support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
• With Free MQB48 License and BMW Bench Read ISN.
• Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too
• Supports Checksum correction for some EDC16/EDC17 ECUs (more to come)
• Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
• With built-in free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function.
• Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc.
• Support chip data verify, checkblank function
• Free Pin code calculation service by Dump for various models
• Support Read and Write BMW N20, N55 ECU (show ISN directly)
• Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
• Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
• Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
• Supports EDC17/MED17 data calculation (checksum correction)
• Support for third-party automatic HEX editing scripts

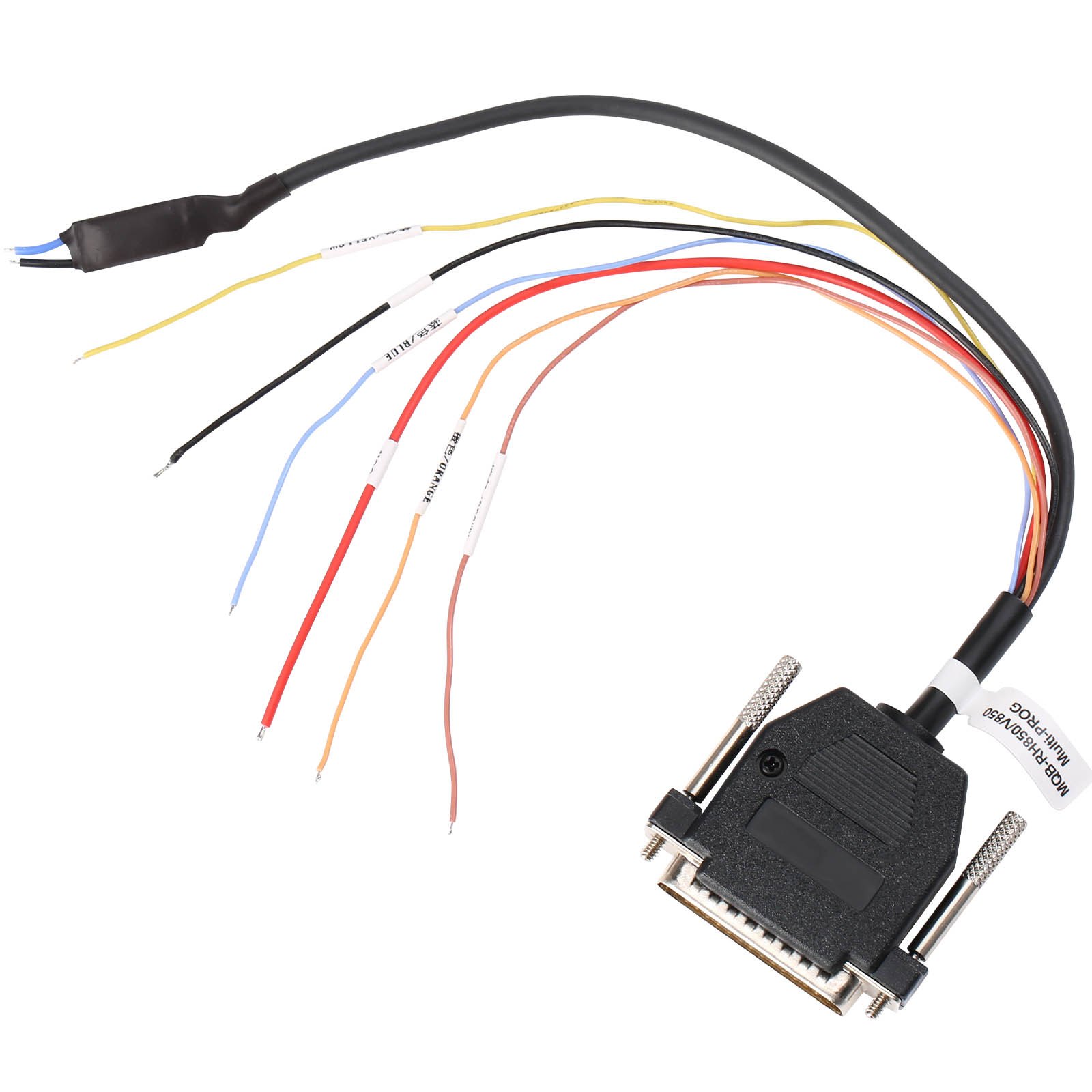

• Xhorse XDMPR8GL MQB-RH850/V850 Adapter for Xhorse MULTI-PROG Pro-level Programmer
• No need to cut wire or lift pin to read MQB48/MQB49/5C dashboards.
• VW 4th Gen Johnson Controls 34xx series
• MQB 34XX series
• MQB-RH850(R7F)series

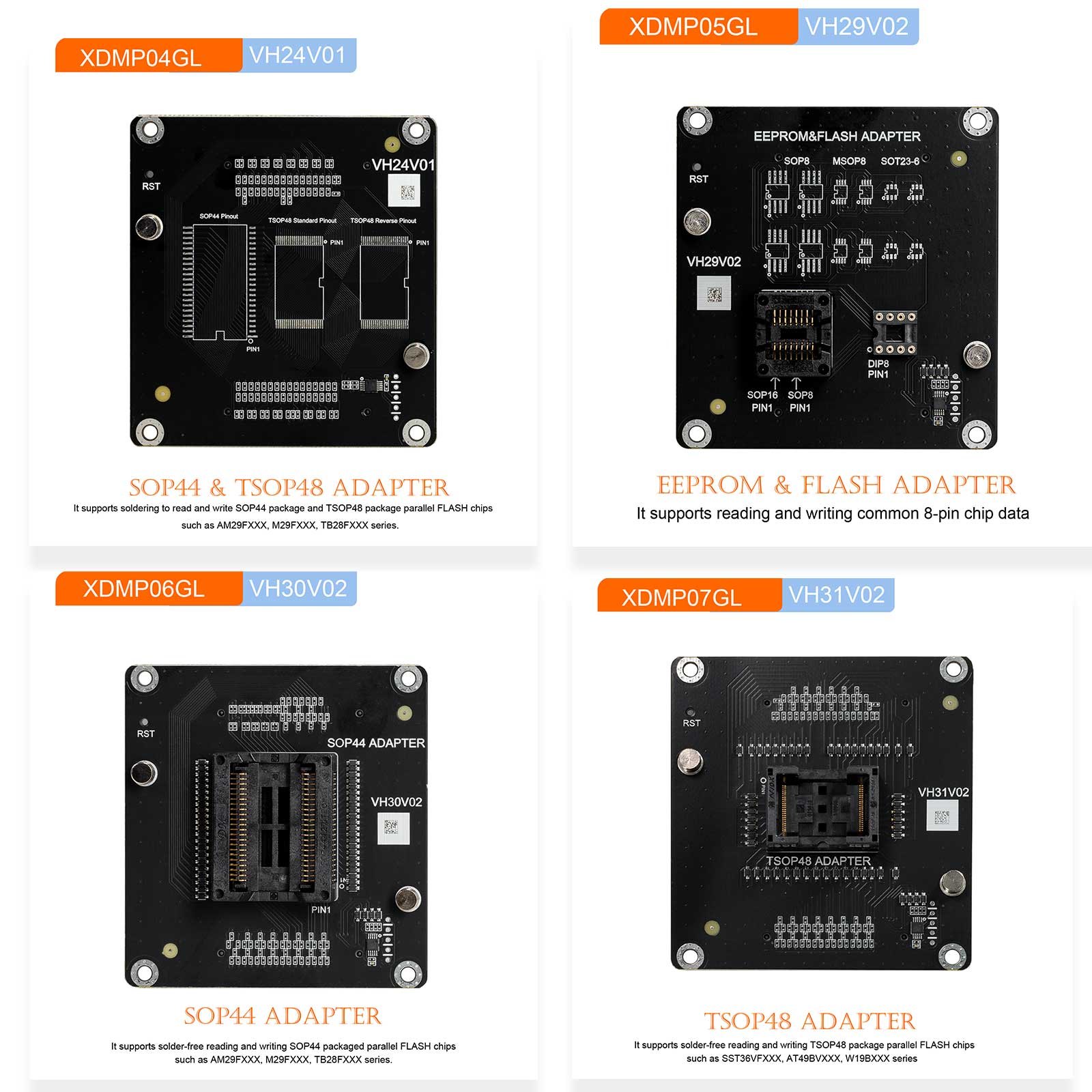

• Xhorse Multi-Prog Programmer Adapters XDMP04GL VH24 SOP44 TSOP48 + XDMP05GL VH29 EEPROM FLASH + XDMP06GL VH30 SOP44 + XDMP07GL VH31 TSOP48
• Supports soldering to read and write SOP44 package and TSOP48 package parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.
• Supports solder-free reading and writing TSOP48 packaged parallel FLASH chips, such as SST36VFXXX, AT49BVXXX, W19BXXX series.
• Supports reading and writing common 8-pin chip data.
• Supports solder-free reading and writing SOP44 packaged parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.
• No soldering, no lifting pin, no cutting wire
• Can be used with Muti-PROG, VVDI PROG, Key Tool Plus.

Multi Prog supports expert mode for batch chip writing, where VVDI Prog writes one chip at a time, which is the practical reason to move up. Reserve ports are built in for future updates.
