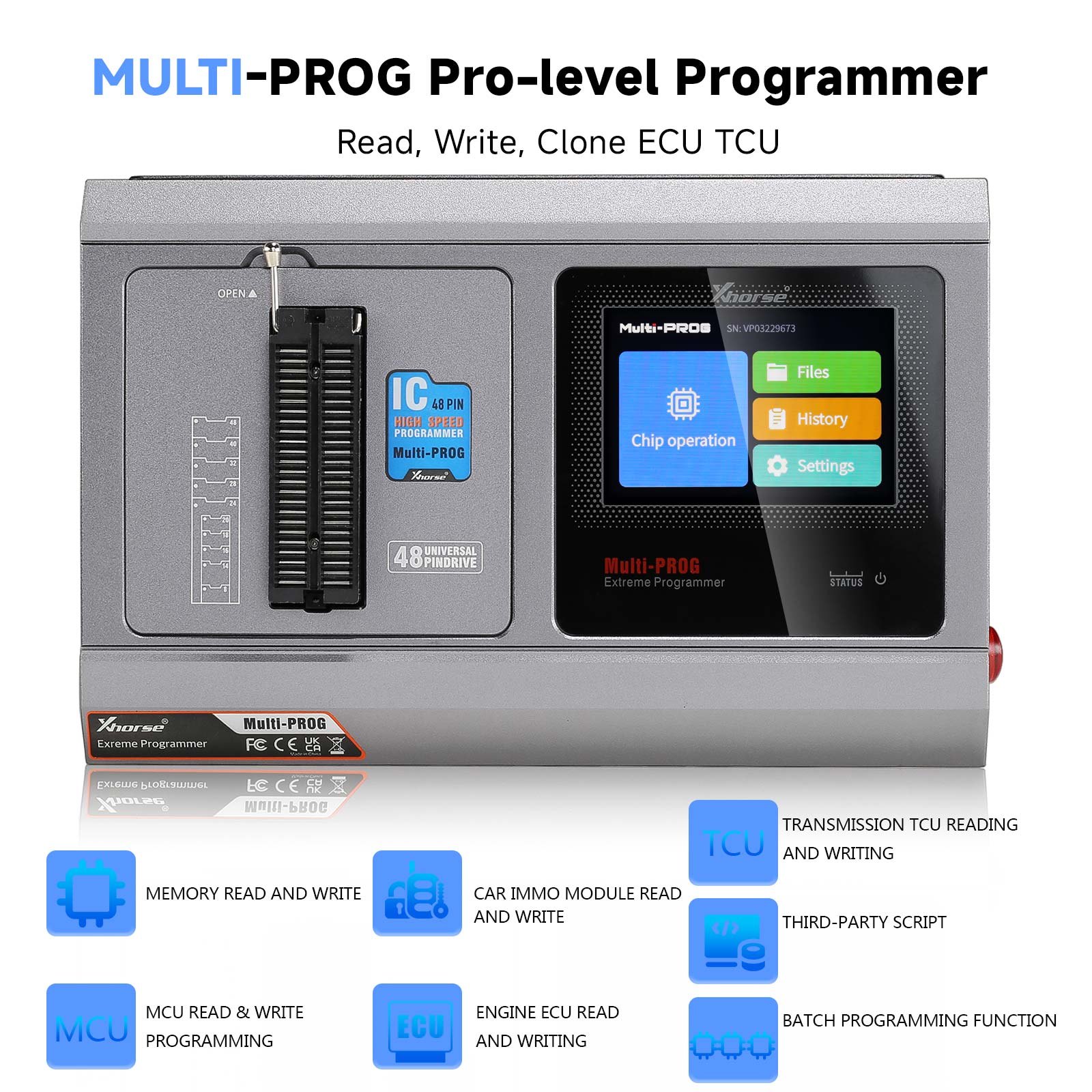

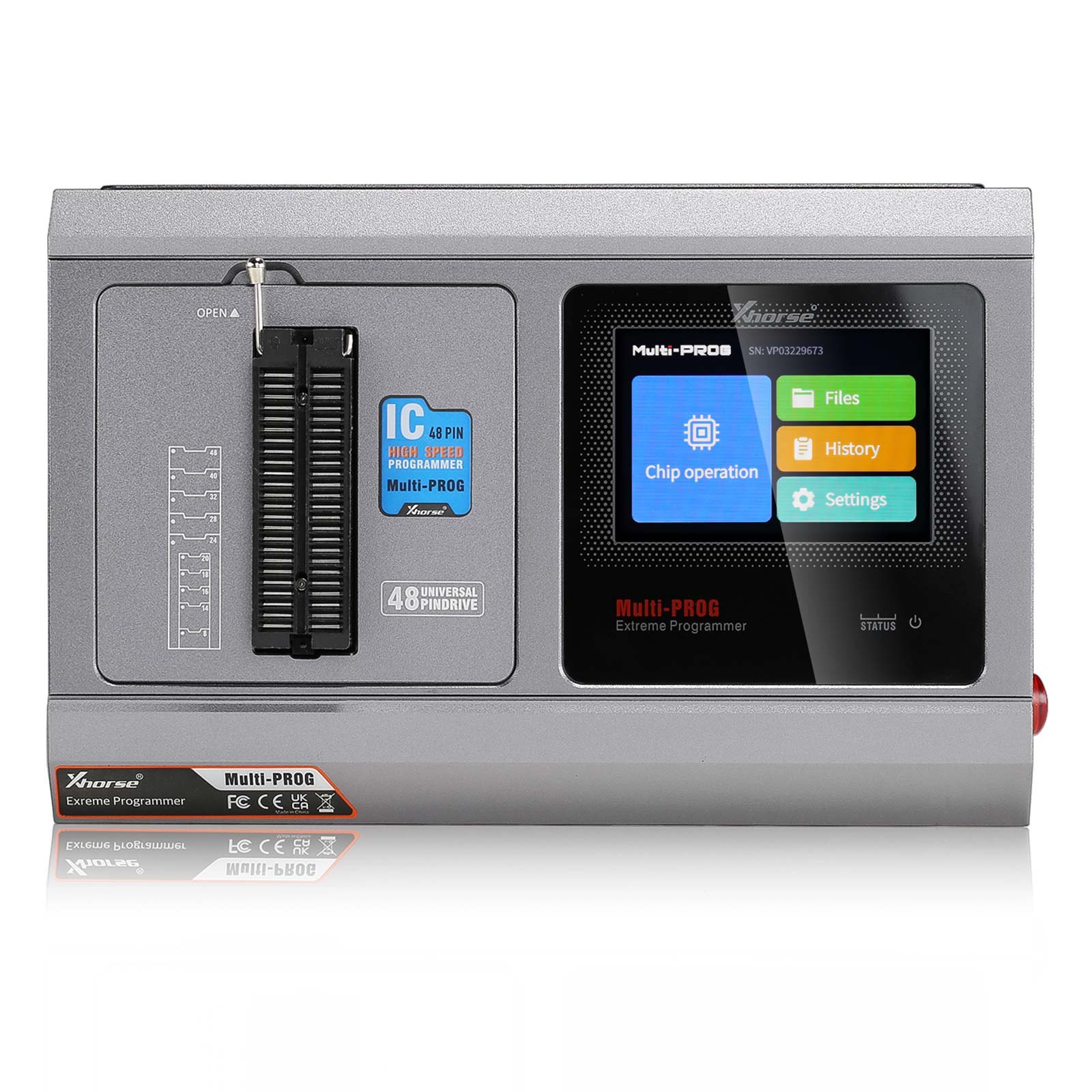

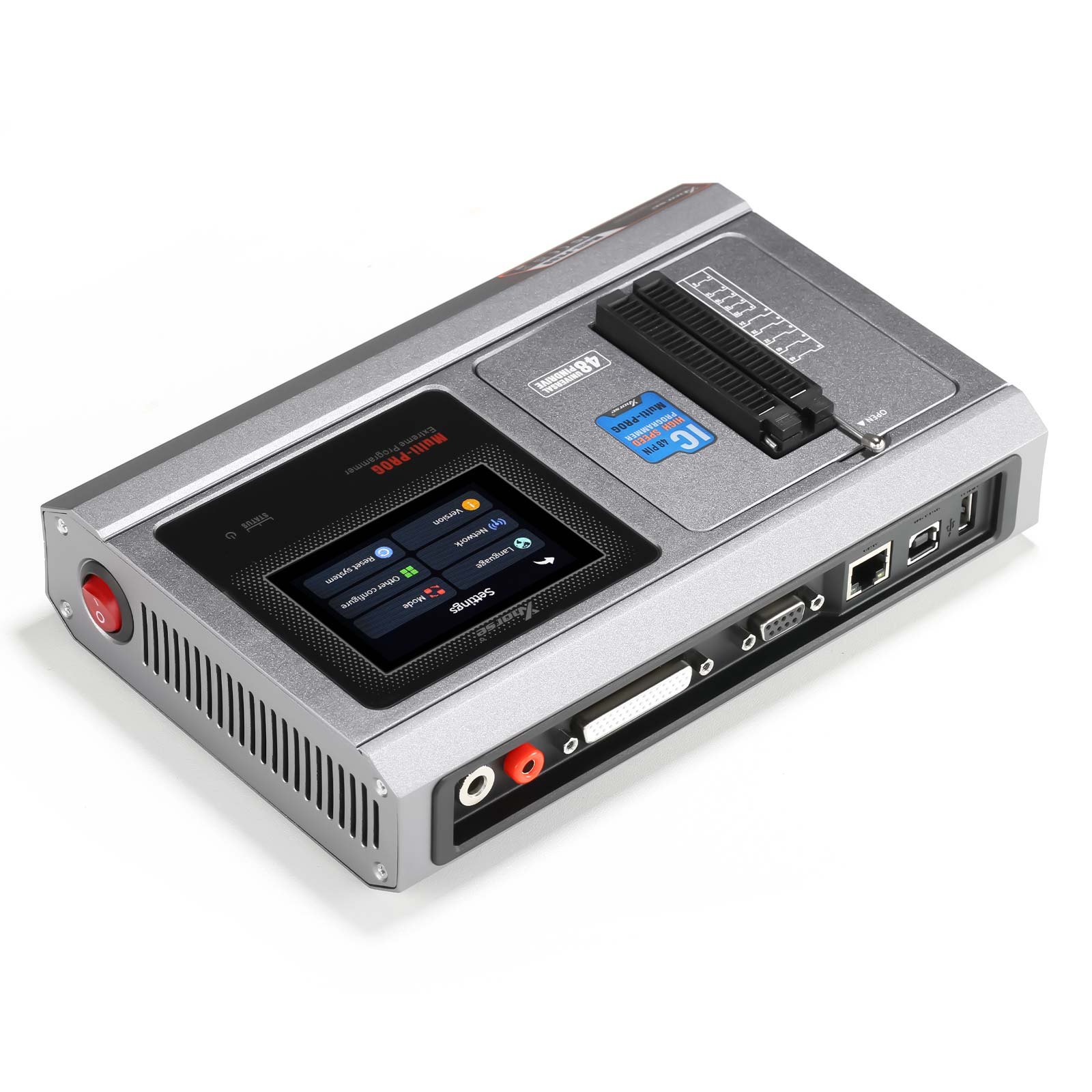

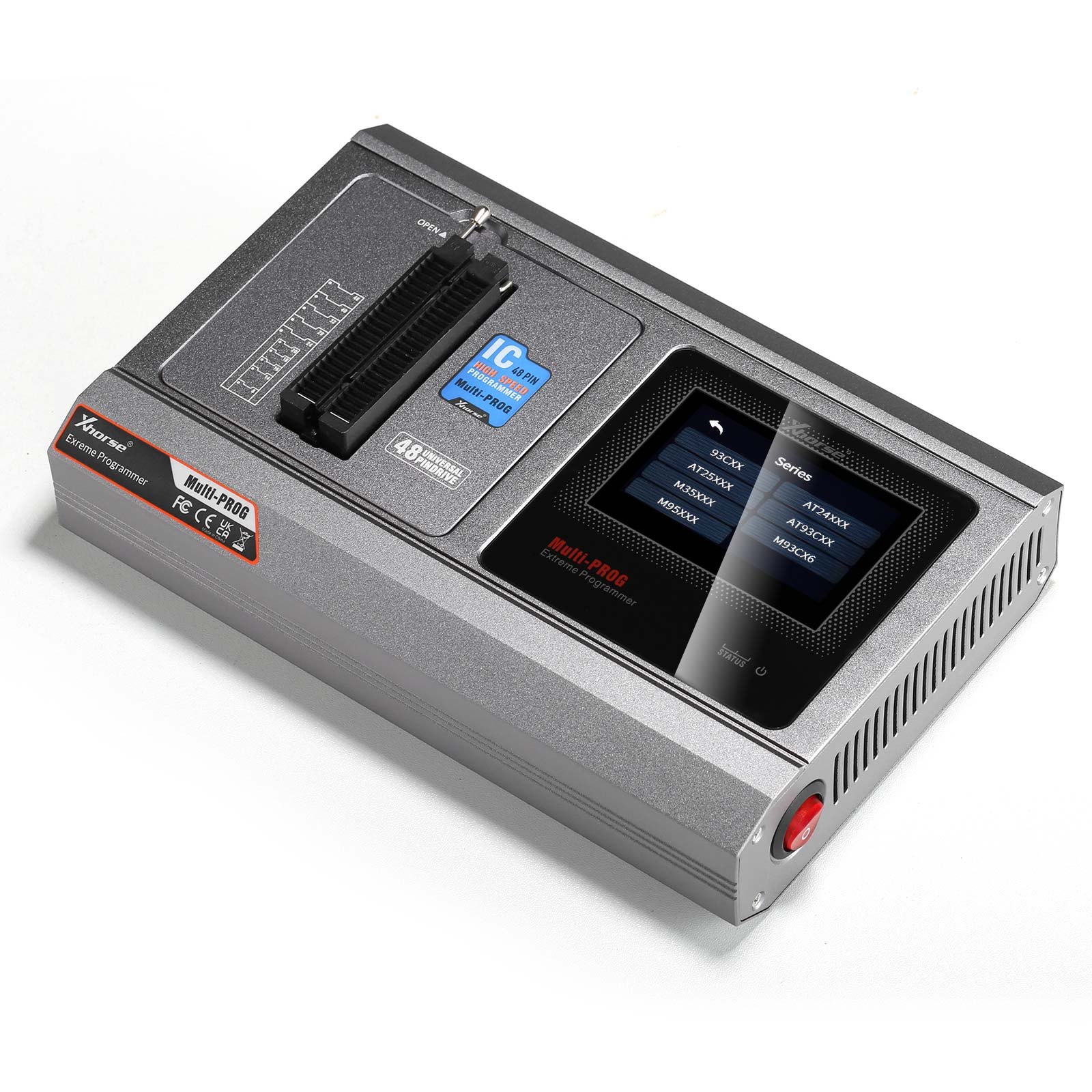

Xhorse Multi-PROG Multi Prog ECU TCU Programmer With Xhorse Multi Prog Adapters Kit 9 Pieces for EEPROM and FLASH

The Xhorse Multi-PROG ECU and TCU programmer bundled with the nine piece Xhorse adapter kit for EEPROM and FLASH. It supports expert mode for batch writing chips, where VVDI Prog writes a single chip at a time, and keeps reserve ports for future updates.

Specifications

• Bunding Package: Xhorse Multi-PROG Multi Prog ECU TCU Programmer + Xhorse Multi Prog Adapters for EEPROM and FLASH 9pcs/set

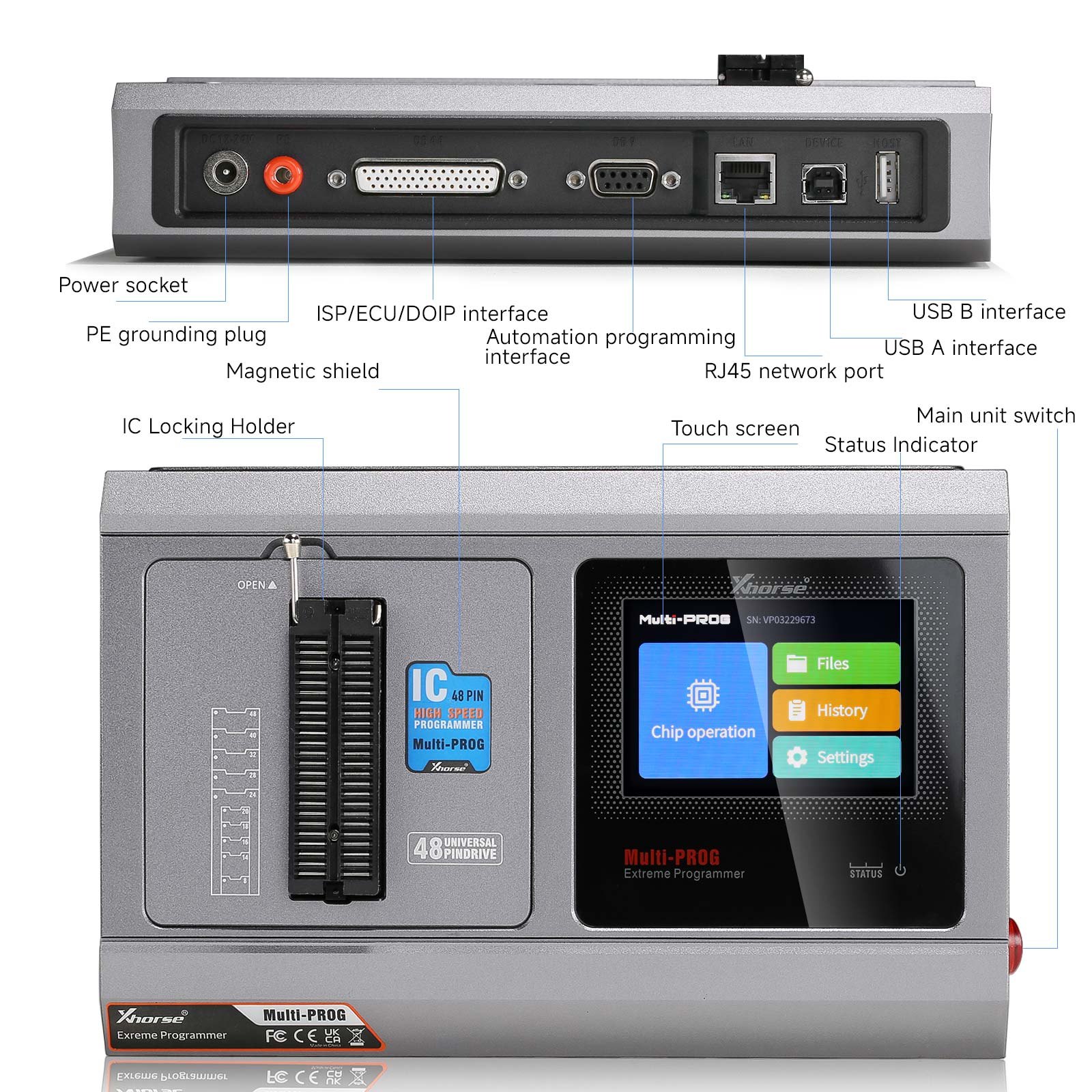

• Reserve Ports: For future update
• Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

What you get

• These soldering boards support Reading & Writing of common EEPROM and FLASH chips.
• XHORSE XDMP03GL Adapter EEPROM&FLASH Soldering Board Supports Reading & Writing of common EEPROM and FLASH chips.
• XHORSE XDMP09GL Adapter TSOP56 Adapter Chip holder (Footprint:TSOP56) reads and writes, performs FLASH
• XHORSE XDMP10GL Adapter PQFP80 Adapter AM29BDD160G (Footprint:PQFP80) Reads and Writes
• XHORSE XDMP11GL Adapter Support ATMEGA103 (Footprint:TQFP64) Reading and Writing
• XHORSE XDMP12GL Adapter MLF28 Adapter Support ATMEGA88PA(Footprint:MLF28) Reading and Writing
• XHORSE XDMP13GL Adapter TQFP32 Adapter Support ATMEGA88PA(Footprint:TQFP32) Reading and Writing
• XHORSE XDMP14GL Adapter TQFP44 Adapter Support ATMEGA163(Footprint:TQFP44) Reading and Writing
• XHORSE XDMP15GL Adapter TQFP100 & ATMEG Adapter Support ATMEGA3250(Footprint:TQFP100) Reading and Writing
• XHORSE XDMP16GL Adapter SOP48 Adapter: Support ATMEGA3250(Footprint:TQFP100) Reading and Writing

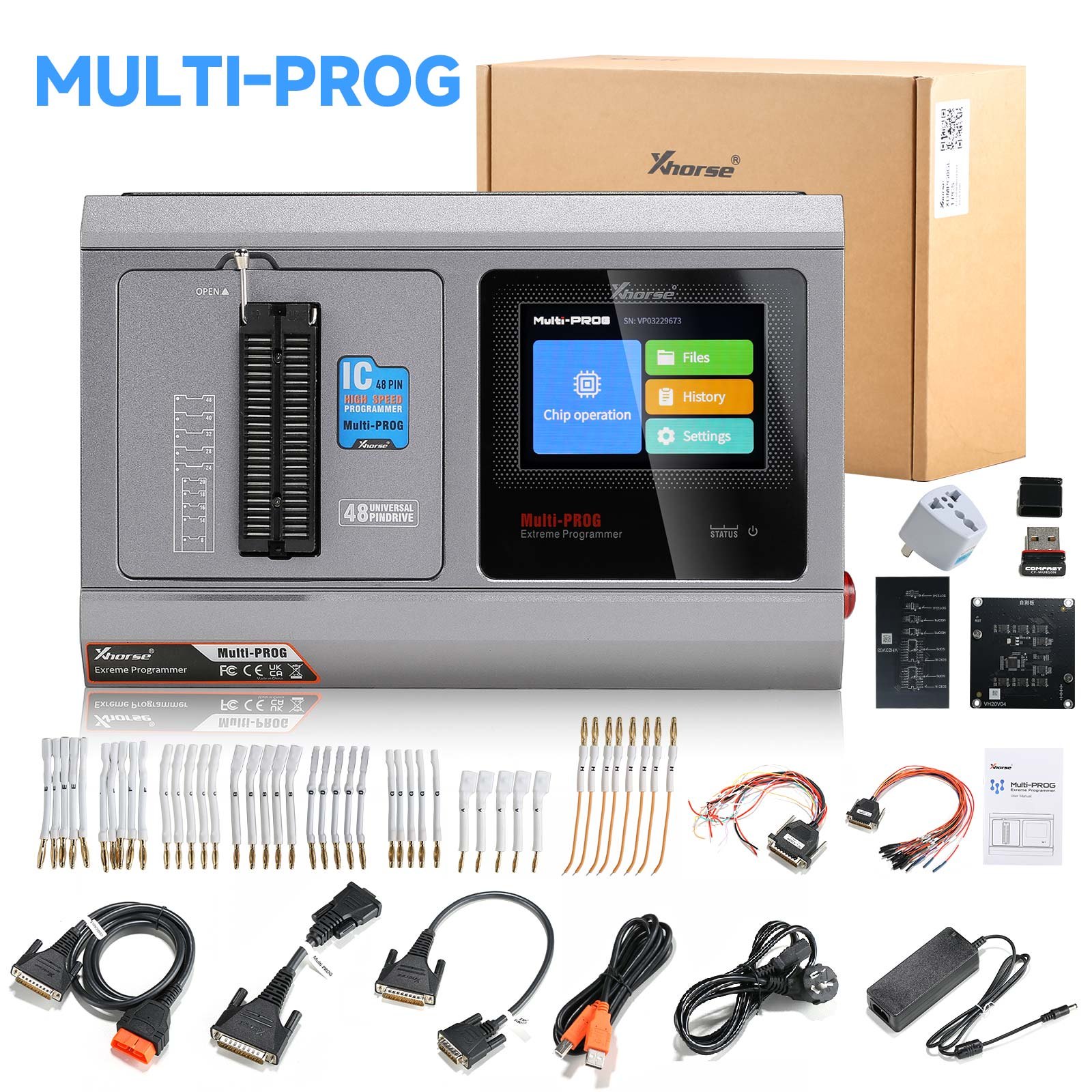

• 1pc x Multi-PROG
• 1pc x USB Cable
• 1pc x Power Adapter (15V 4A)
• 1pc x 220V Power Cord
• 1pc x VH13 Interface Adapter Board
• 1pc x VH20 Interface Adapter Board
• 1pc x VH23 Interface Adapter Board
• 1pc x MCU Adapter Multi-PROG Solder Cable
• 1pc x MCU DB15 Adapter Cable
• 1pc x ECU Adapter Multi-PROG Solder Cable
• 1pc x ECU DB15 Adapter Cable
• 1pc x Multi-PROG OBD Cable
• 1pc x USB WIFI Network Card
• 1pc x Product Manual
• 1pc x Certificate Of Conformity
• 43pcs x ECU Cable Plugs
• 1pc x XDMP03GL
• 1pc x XDMP09GL
• 1pc x XDMP10GL
• 1pc x XDMP11GL
• 1pc x XDMP12GL
• 1pc x XDMP13GL
• 1pc x XDMP14GL
• 1pc x XDMP15GL
• 1pc x XDMP16GL

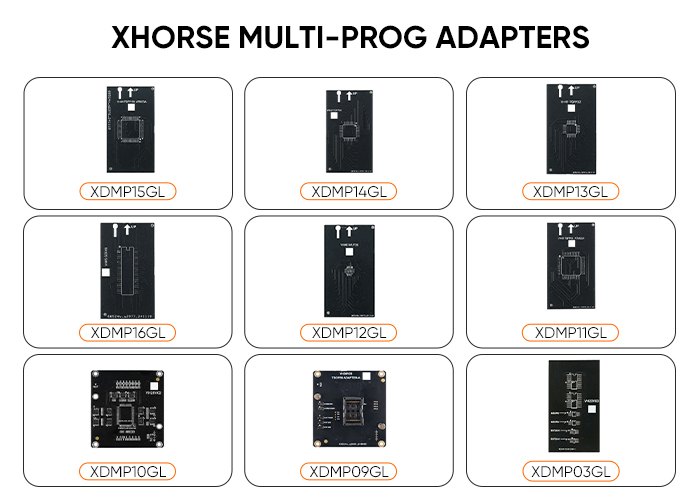

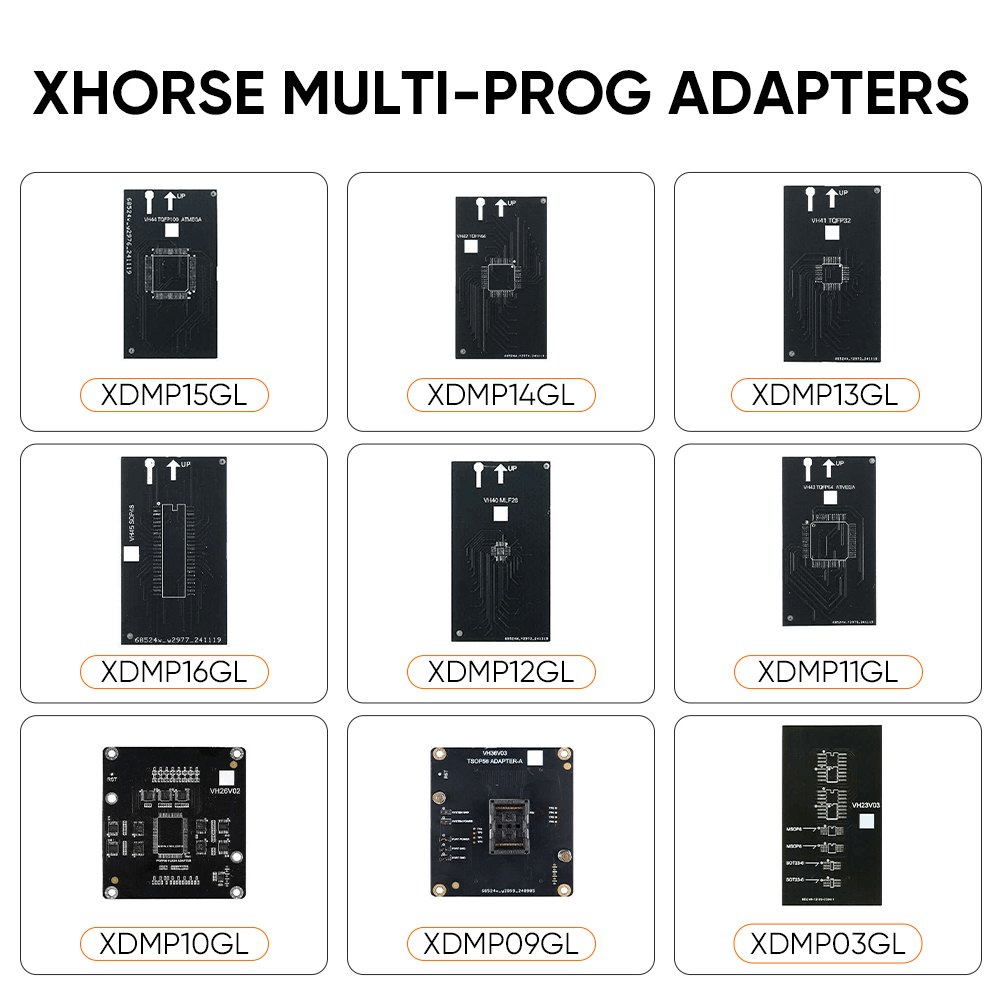

• Multi-PROG Exclusive Adapters includes XDMP03GL, XDMP09GL, XDMP10GL, XDMP11GL, XDMP12GL, XDMP16GL, XDMP15GL, XDMP14GL and XDMP13GL.
• Xhorse Multi-PROG Multi Prog ECU TCU Programmer With 9pcs Xhorse Multi Prog Adapters for EEPROM and FLASH
• The XDMPG0GL Multi-Prog ECU Programmer is a versatile tool meticulously designed by Xhorse to access and modify crucial data stored in a vehicle's Engine Control Unit (ECU) and Transmission Control Unit (TCU). From engine maps to transmission parameters and immobilizer settings, the XDMPG0GL ECU Programmer empowers users with unprecedented control and customization.
• Multi-Prog support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
• With Free MQB48 License and BMW Bench Read ISN.
• Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too
• Supports Checksum correction for some EDC16/EDC17 ECUs (more to come)
• Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
• With built-in free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function.
• NEW! Add VAG MQB RH850 dashboard processor (Need Extra Xhorse XDMPR8GL MQB-RH850/V850 Adapter )
• Can work with Xhorse Multi-Prog Exclusive Adapters 4 in 1 to extend more chip reading and writing.
• 15.Xhorse Multi-Prog Free Software Download
• Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc.
• Support chip data verify, checkblank function
• Free Pin code calculation service by Dump for various models
• Support Read and Write BMW N20, N55 ECU (show ISN directly)
• Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
• Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
• Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
• Supports EDC17/MED17 data calculation (checksum correction)
• Support for third-party automatic HEX editing scripts
• Xhorse Adapter for EEPROM and FLASH Work with Multi Prog 9pcs/set

Batch writing is the reason to move up from VVDI Prog if you handle chips in quantity.
