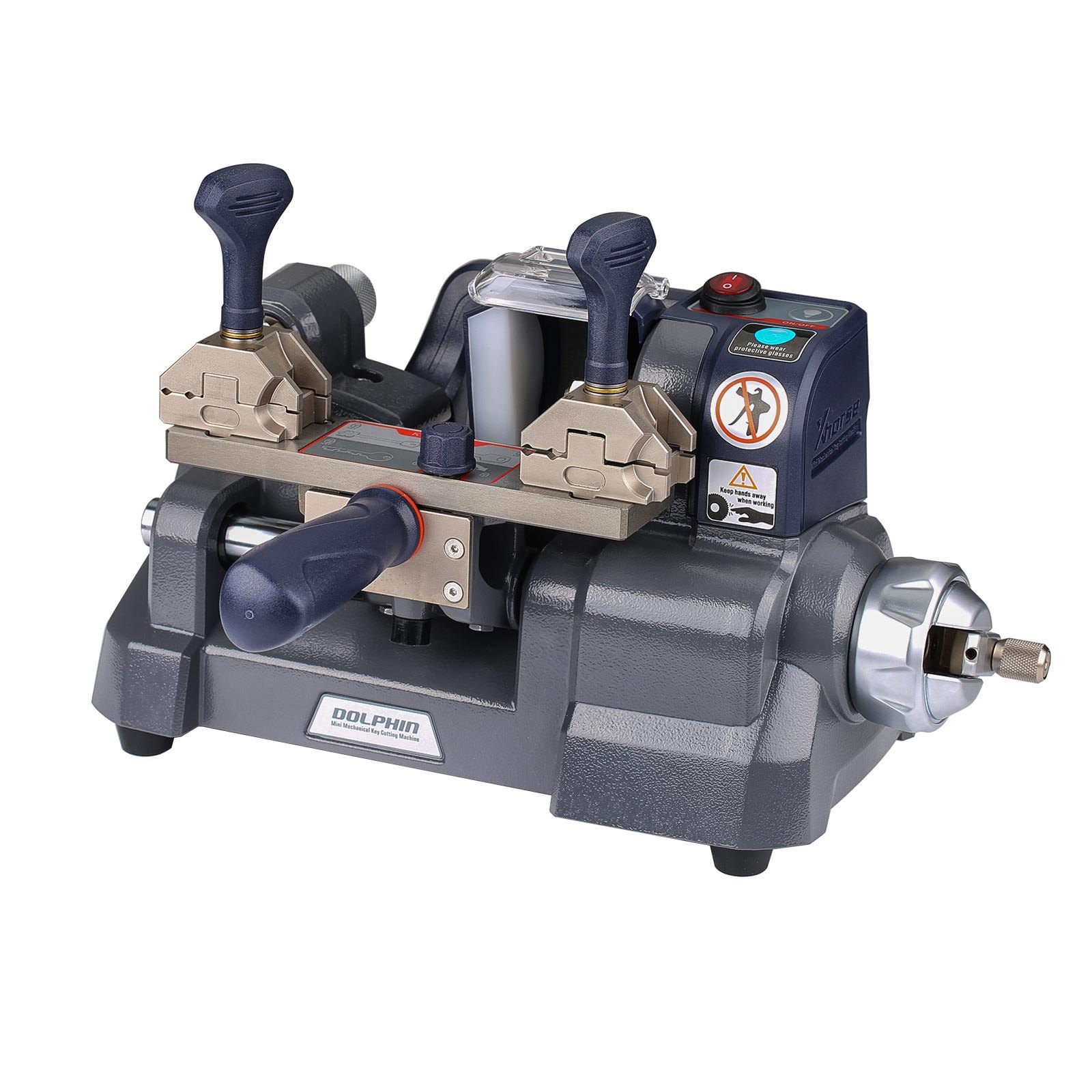

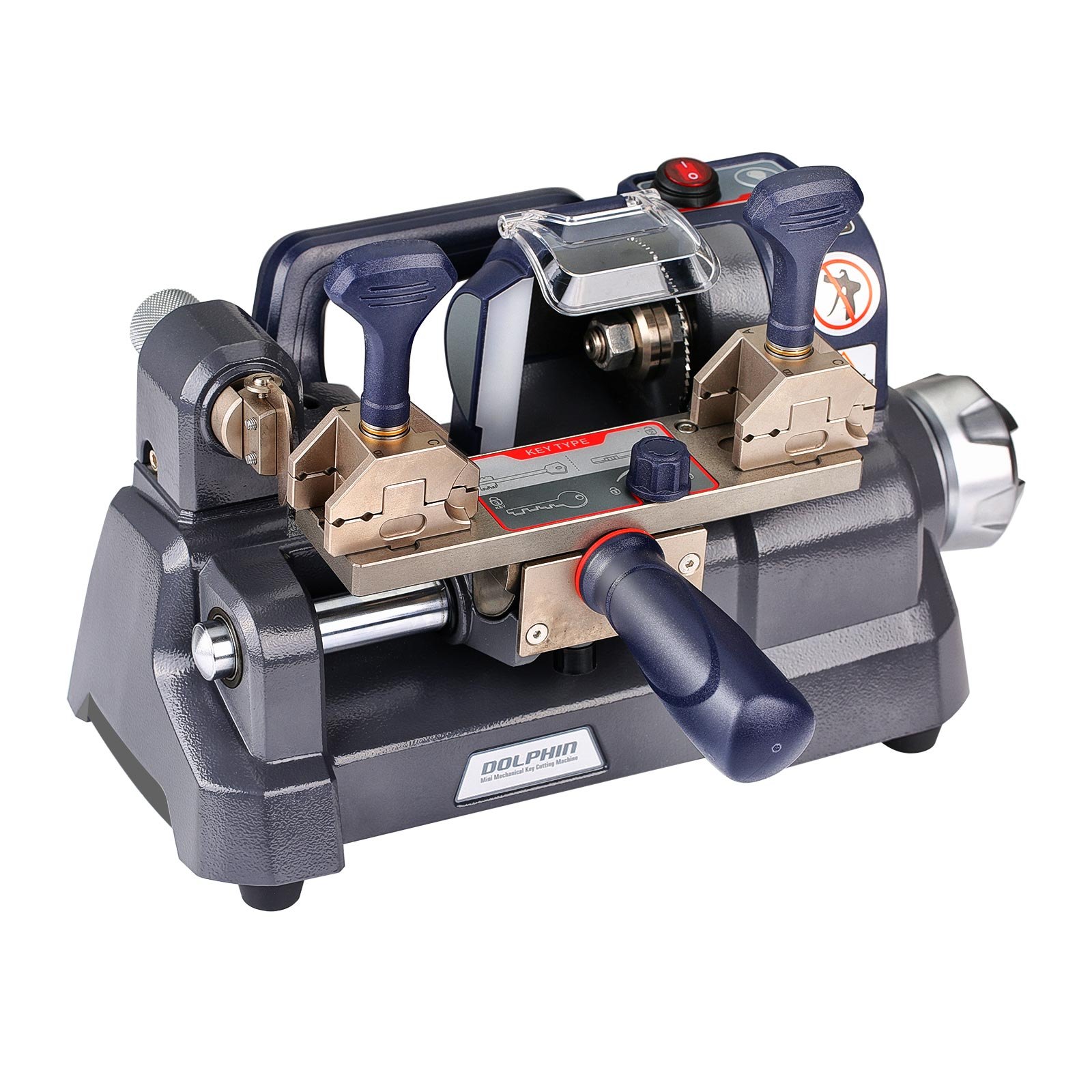

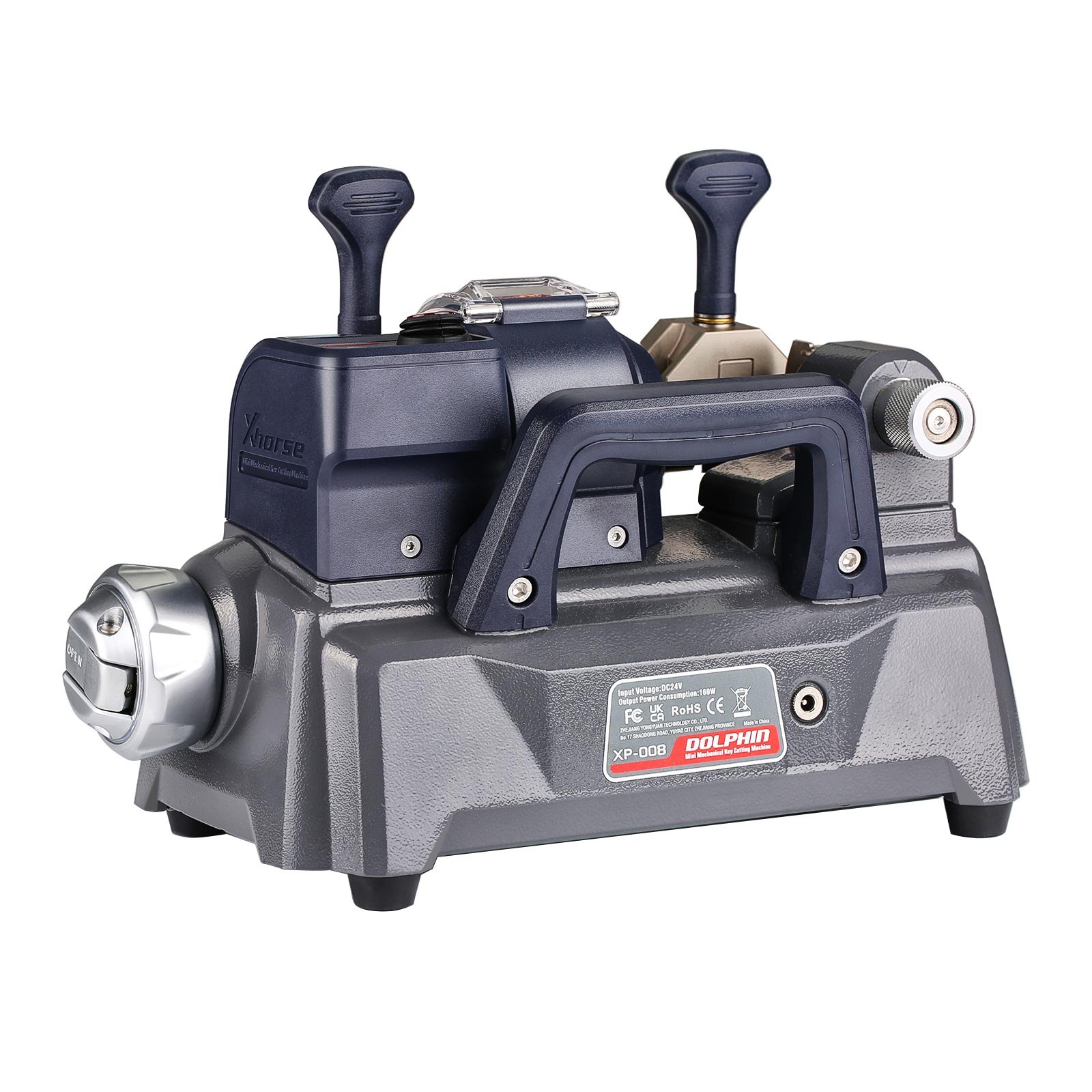

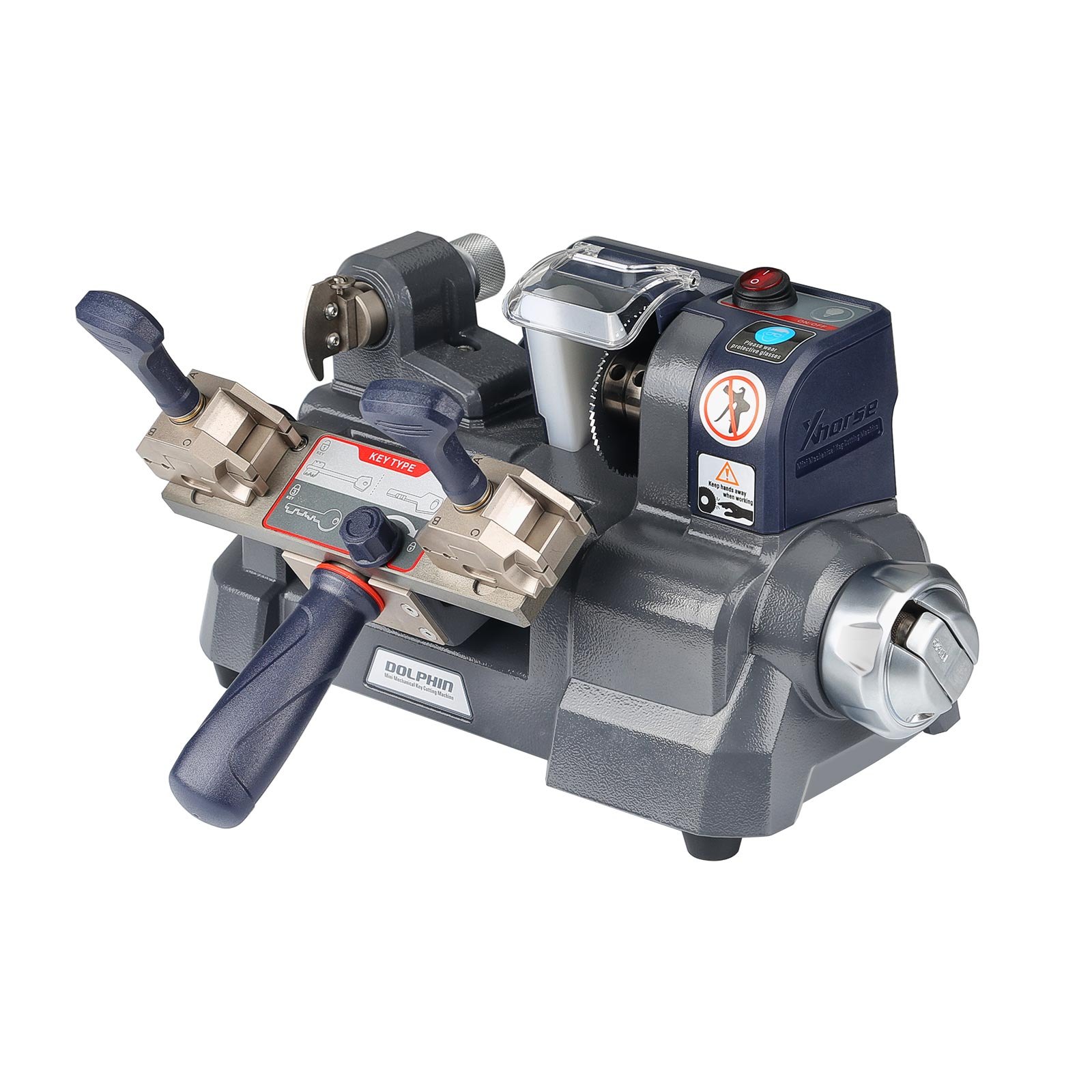

Xhorse Dolphin XP-008 XP008 Key Cutting Machine Mini Mechanical for Special Bit/ Double Bit Keys

The Xhorse Dolphin XP-008, a mini mechanical key cutting machine built for special bit and double bit keys. It runs at 145W on 24V DC at 47 to 63Hz, with a 1050rpm spindle, 46mm of table travel, a clamp rotating through 0 to 45 degrees and 1.32Nm of motor torque, in a 305 by 185 by 200mm body at 10.8kg net and 12.5kg gross.

Specifications

• Input Frequency: 47-63Hz
• Spindle Speed: 1050rpm
• Travel of Table: 46mm
• Clamp Rotation Angle: 0-45°

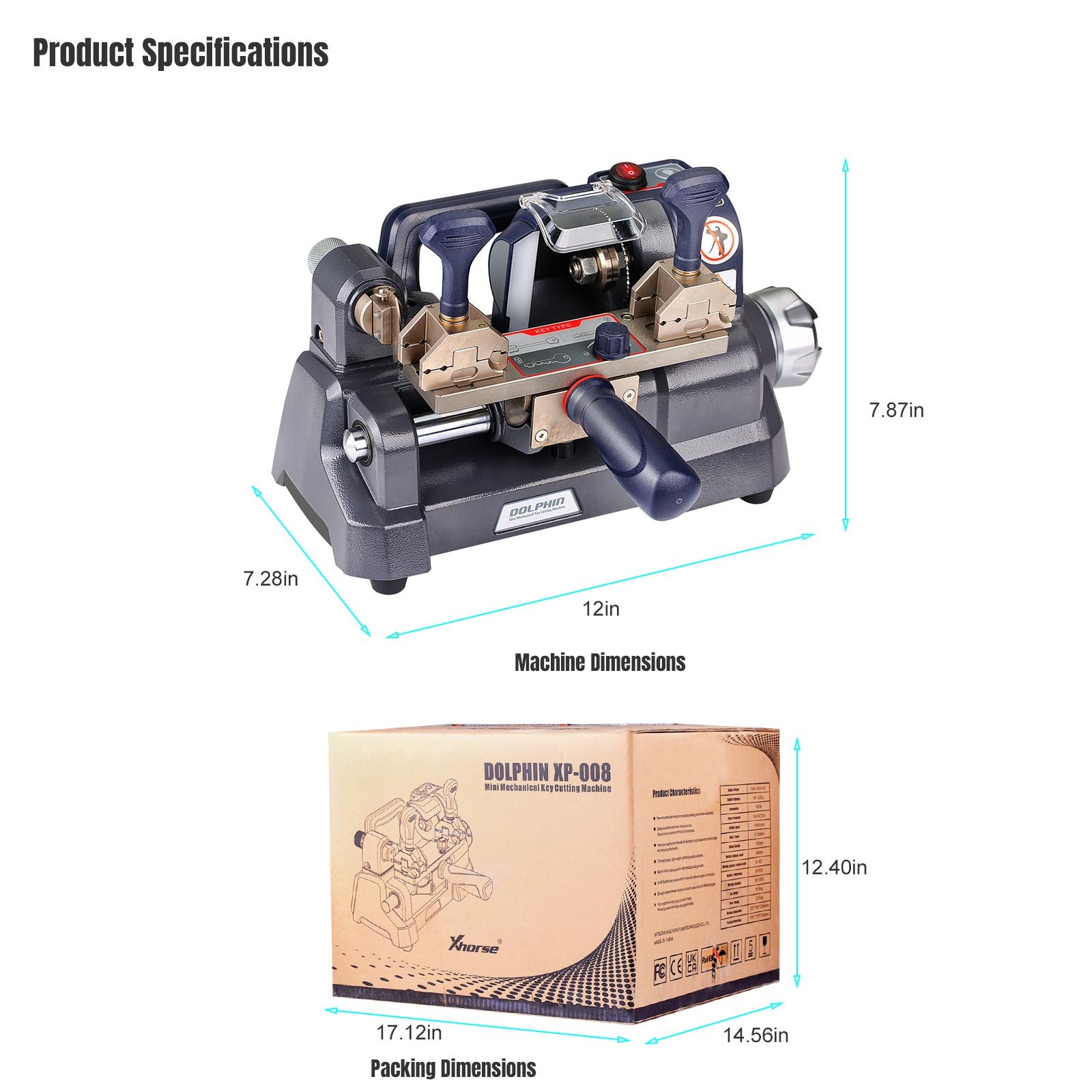

• Machine Dimensions: 305x185x200mm
• Power: 145W
• Input Voltage: 24V/DC
• Motor Torque: 1.32Nm
• Net Weight: 10.8kg
• Gross Weight: 12.5kg

What you get

• 435x370x315mm
• Xhorse Dolphin XP-008 Key Cutting Machine Mini Mechanical for Special Bit/ Double Bit Keys
• Special Keys Cutting, Ergonomic Design
• Ultra-high Precision Processing, Built-in Lithium Battery
• Xhorse Dolphin XP-008 is Xhorse new released mini mechanial key cutting machine, designed for bit/pump and safe deposit box keys. It is with ergonomic design,all-purpose clamps,high precision processing and easy to carry.

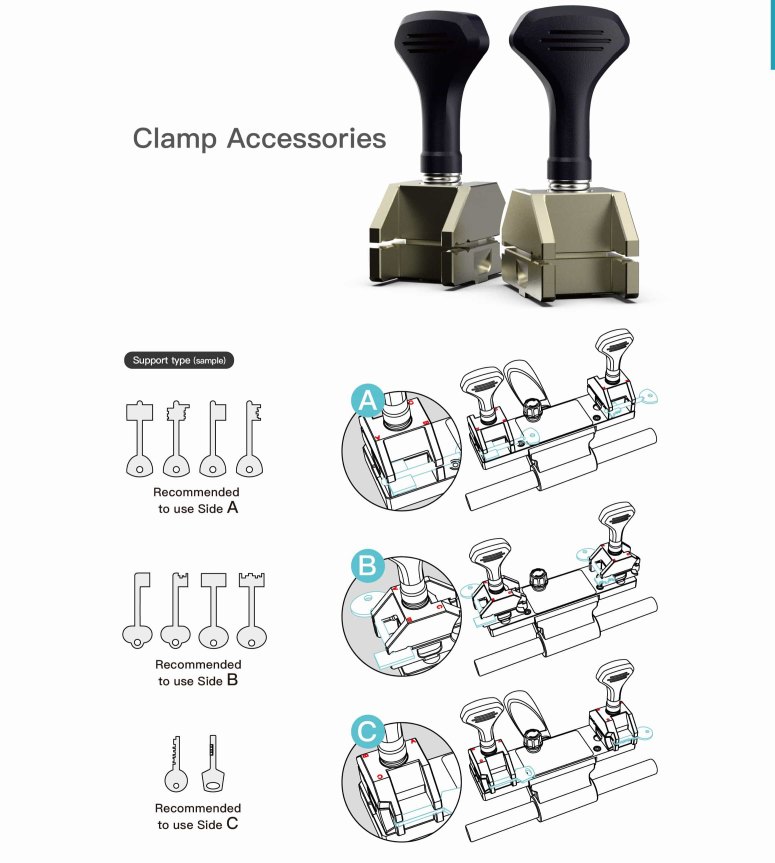

• XP-008 features a wide clamp space reaching 115mm, providing a more flexible experience to clamp different keys with no limits to the stem length. XP-008 also offers a wide rotation range so the rotation bench can rotate 0-45°when turing the handle. This makes sure that keys with different titled angles can be perfectly cut.

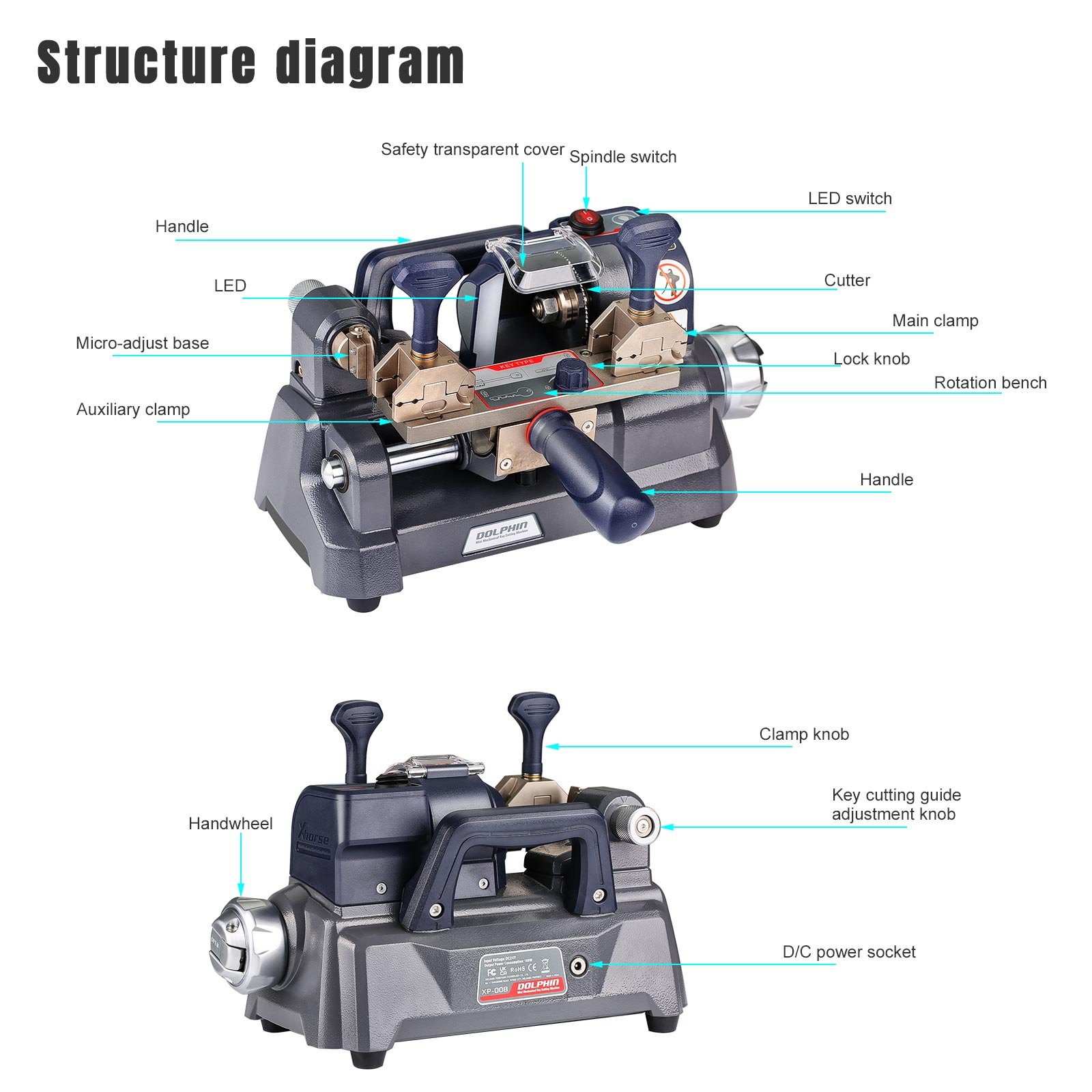

• Ergonomic design brings users an extraordinary working experience, DOLPHIN XP-008 comes with an LED light, helping users work in different scenes with ease.
• Users can complete the lateral cutting feed by simply turning the handwheel which can be entirely concealed inside after duplication.
• To all-direction micro-adjustment base consisting of a key cutting guide and micro-adjustment knob is innovatively developed,making it possible to achieve ultra-high precision duplicating.
• Efficient Cutting Guaranteed
• The spindle speed reaching 1050 rpm guarantees high efficiency in cutting. More importantly, it helps minimize the wear and tear of the cutter and ensures high-quality cutting results.
• A one-year(365 days) warranty is offered from the date you purchased the product.
• Worry-free Warranty
• A one-year(365 days) warranty is offered from the data you purchased the product.

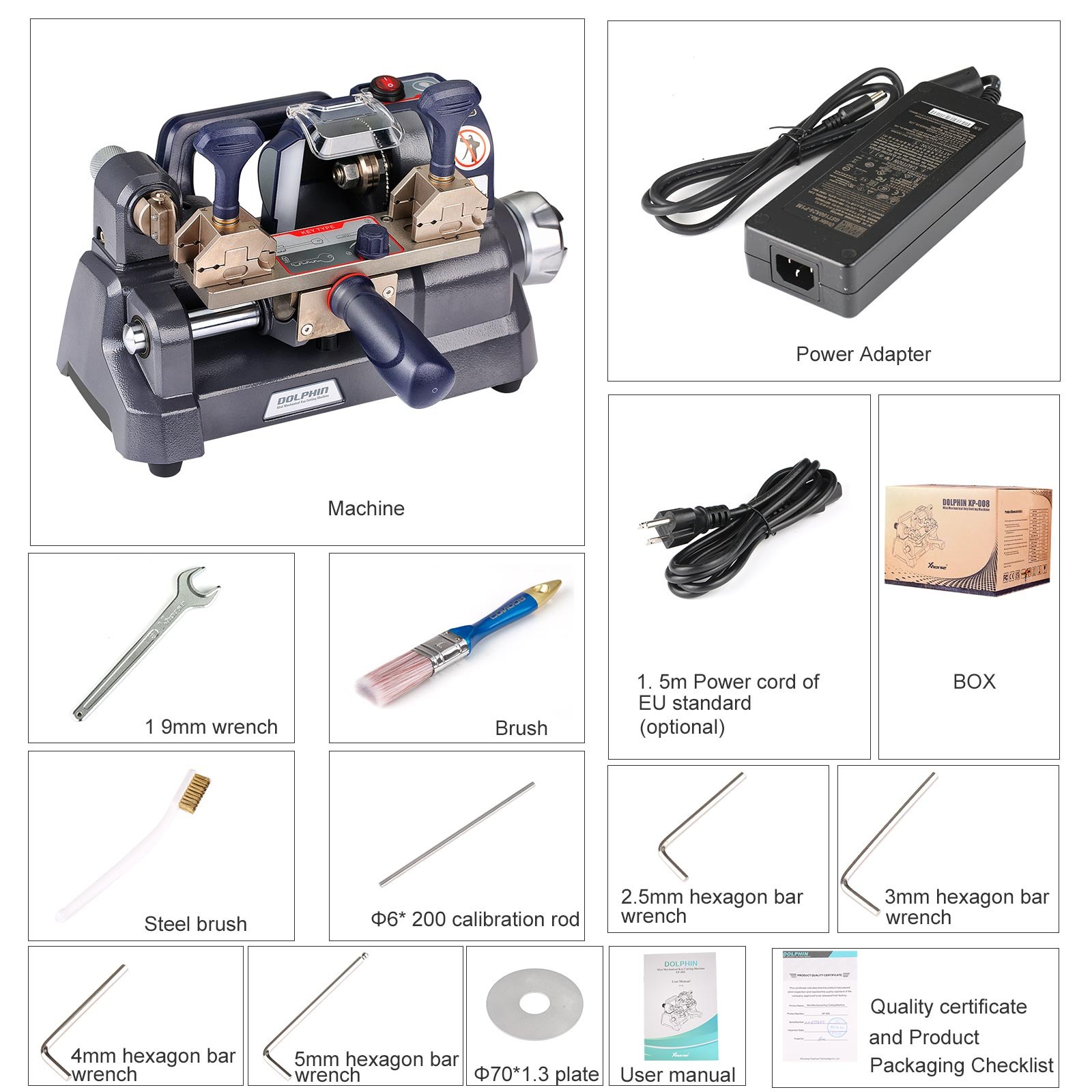

• 1pc x Xhorse Dolphin XP-008

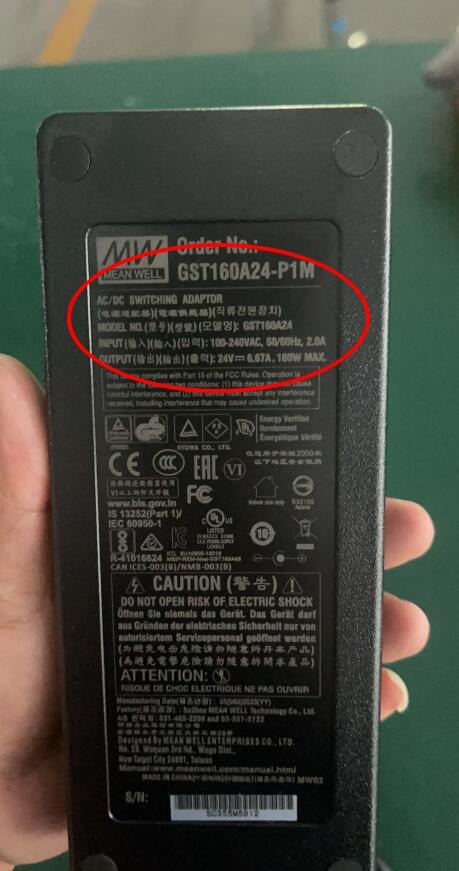

• 1pc x power supply adapter
• 1pc x power cord
• 1pc x calibration plate
• 1pc x brush
• How to Calibrate Xhorse Dolphin XP-008 Key Cutting Machine
• Xhorse Dolphin XP-008 Key Cutting Machine Introduction

The rotating clamp is what lets one machine cut both bit profiles rather than needing a second jig.
