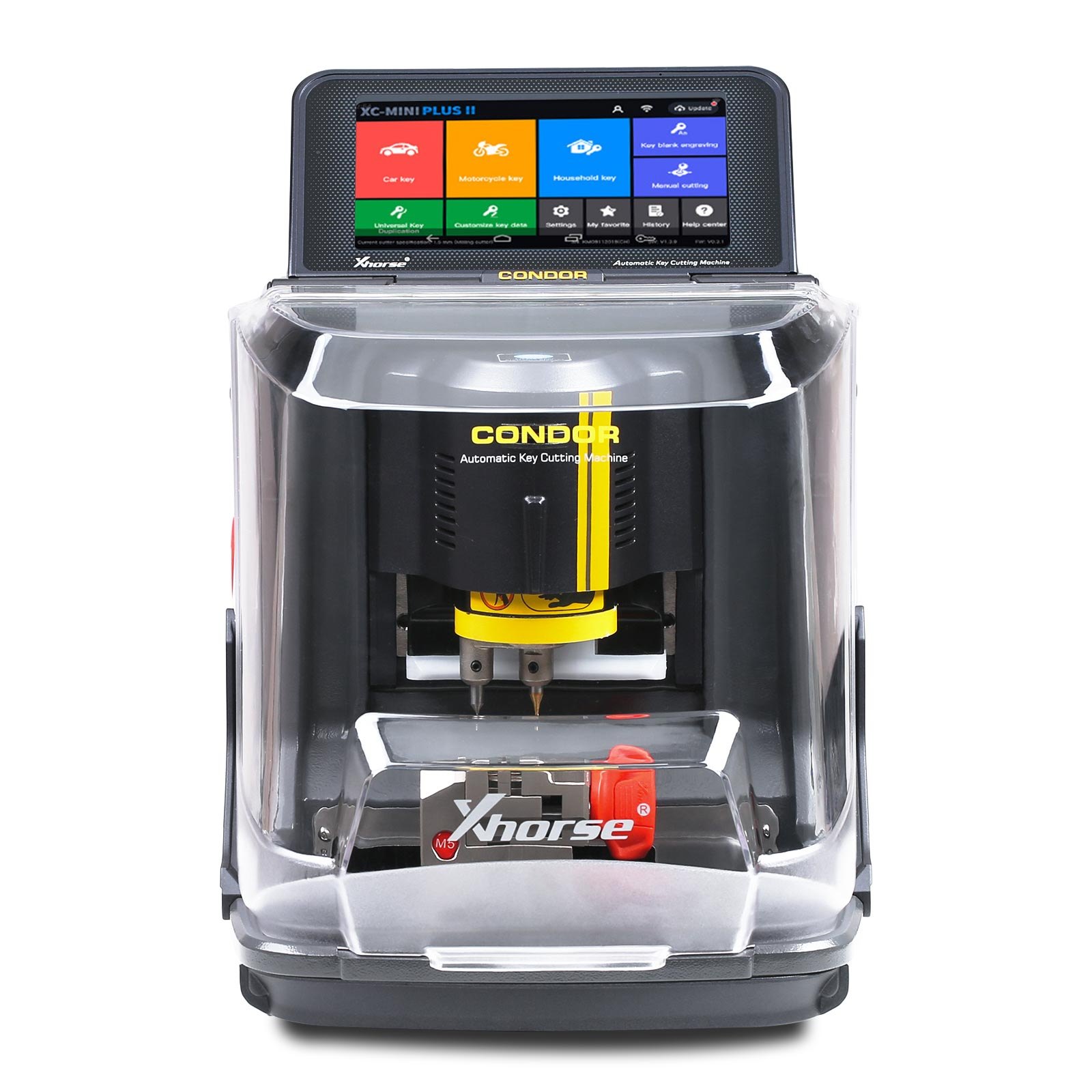

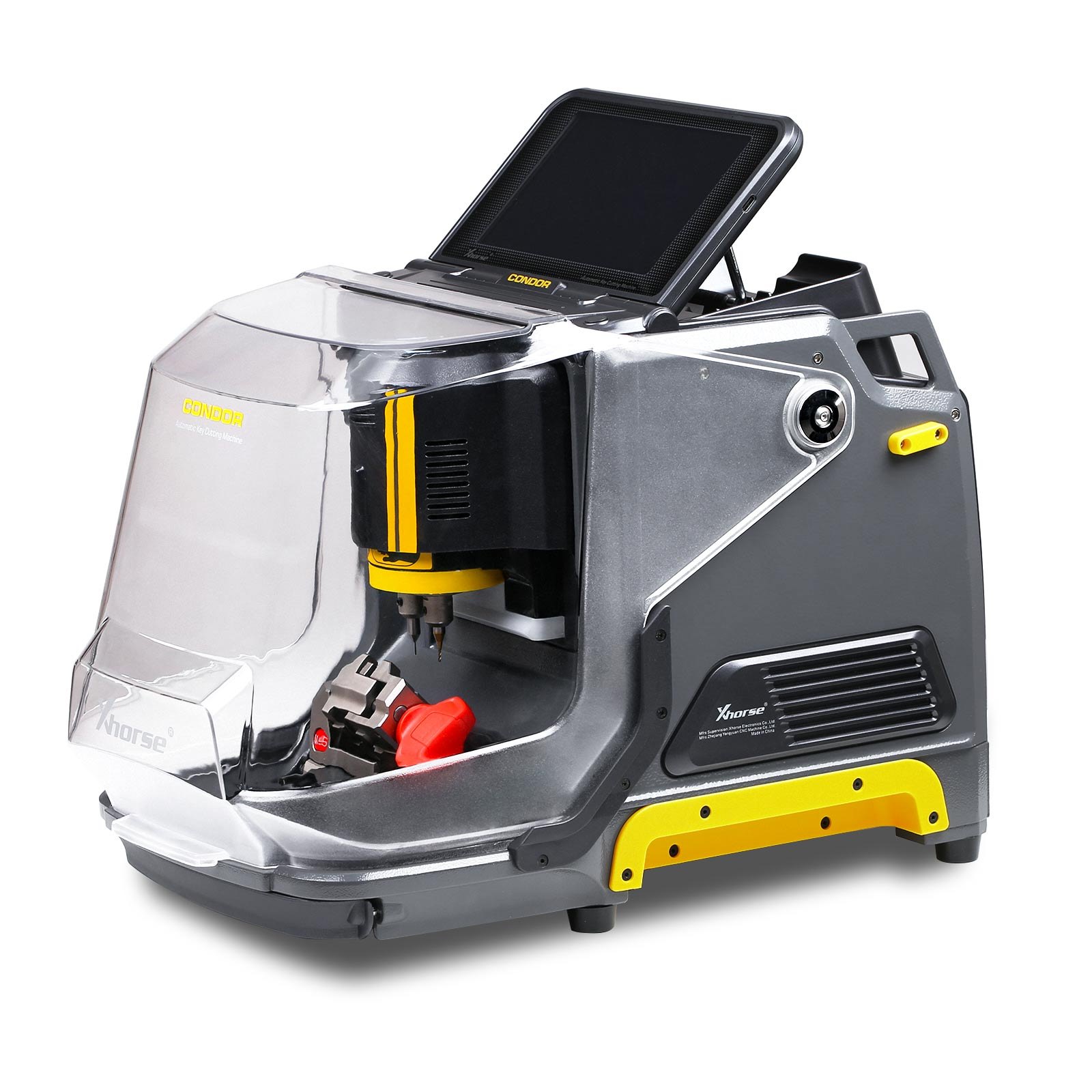

Xhorse Condor XC-MINI Plus II Key Cutting Machine (Car, Motorbike, Household Keys, M5 Clamp)

The Xhorse Condor XC-MINI Plus II is a second-generation automatic key cutting machine for car, motorcycle, and household keys, with AI technology and super high precision processing. Finished keys pass advanced optical instrument precision tests, holding accuracy past 150,000 cuts.

Versions

Four versions are available at different prices: M4 clamp, Key Reader, XC-MINI Plus II shown here, and the Plus with Key Reader bundle.

New features

• Car, motorcycle, and household keys
• Online updates directly on the machine
• Intelligent indicator light with 7-inch HD touch screen
• Key blank engraving

12 top features

• Smart Android user interaction
• Intelligent indicator light
• 8-core processor
• 7-inch intelligent touch screen
• Powerful database
• All-purpose clamps
• All keys lost solution
• Key blank engraving
• Key data customization
• Bluetooth and WiFi
• Optical key bitting recognition with Key Reader
• Key 3D preview

Highlights

• Intelligent color synchronization with LED chips and lampshade following working status, flicker-free
• Android system with stronger compatibility and faster running
• Fast effective all-keys-lost expertise
• All keys lost database with 100+ car brands, 2,000 car models, and 20,000 keys with lifelong free upgrades

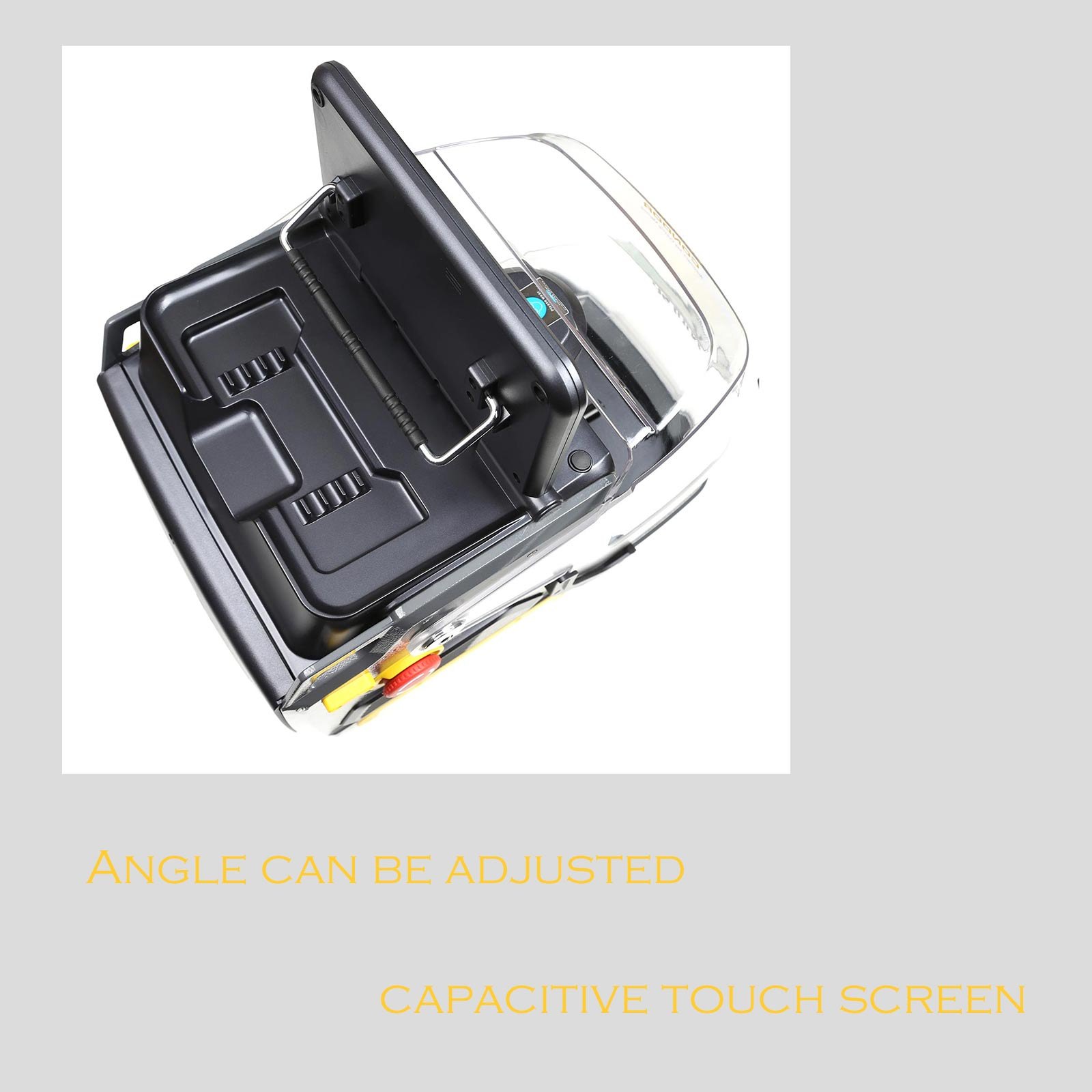

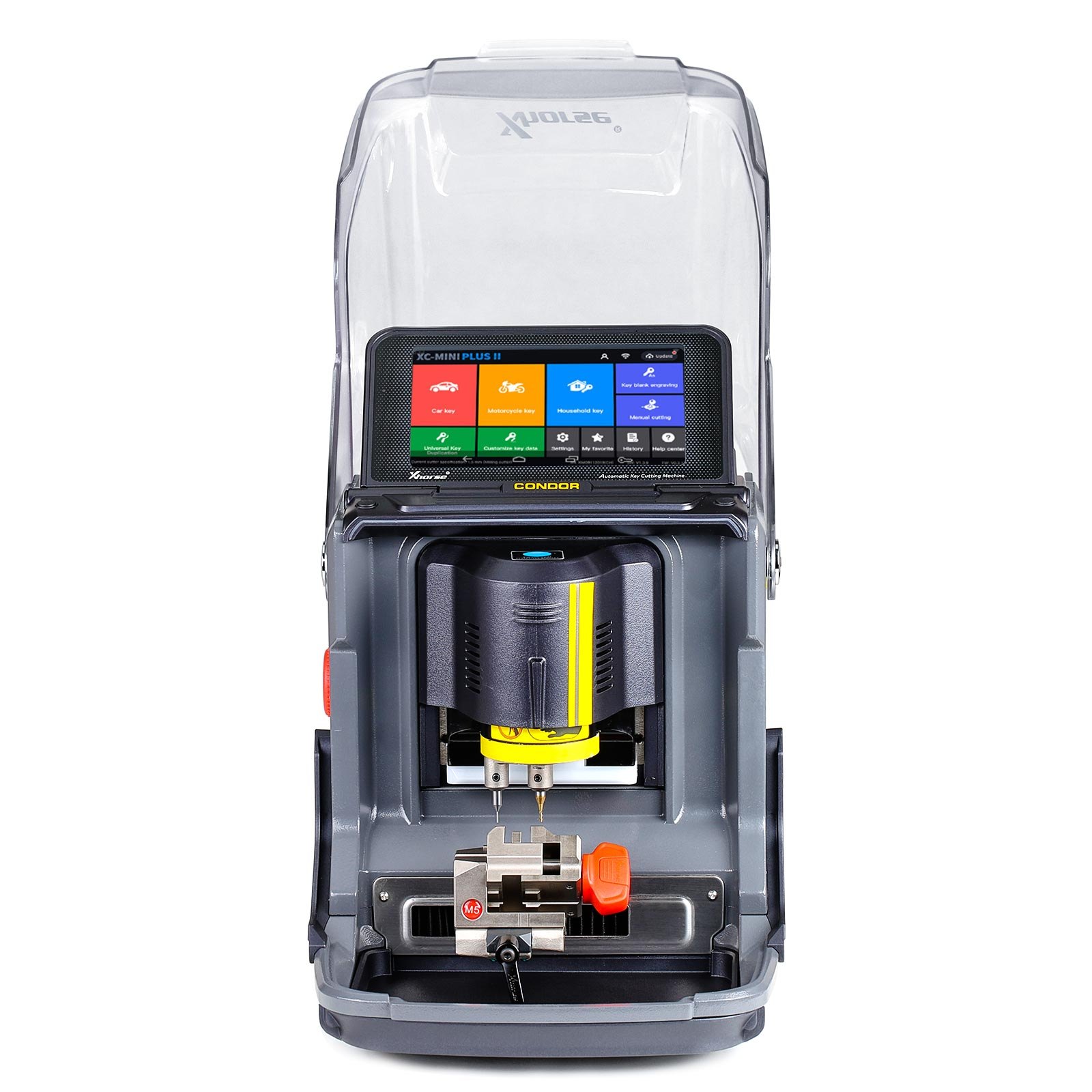

• 7-inch capacitive touch screen at 1280 by 720 pixels with adjustable angle
• Automobile, motorbike, residential, and other key types
• Offline operation after database download, free lifelong online database upgrades
• Key blank engraving with text and picture adding, deletion, resizing, and rotation
• Optical key bitting recognition with the Xhorse Key Reader for car, motorcycle, plastic, and aluminum keys
• Smart app control with photo bitting recognition, 3D preview, cut by bitting, find bitting, and custom key data
• 3D preview before cutting to save blanks
• Super high precision processing results
• Custom key data with manual key type choice and data input, synced to the machine

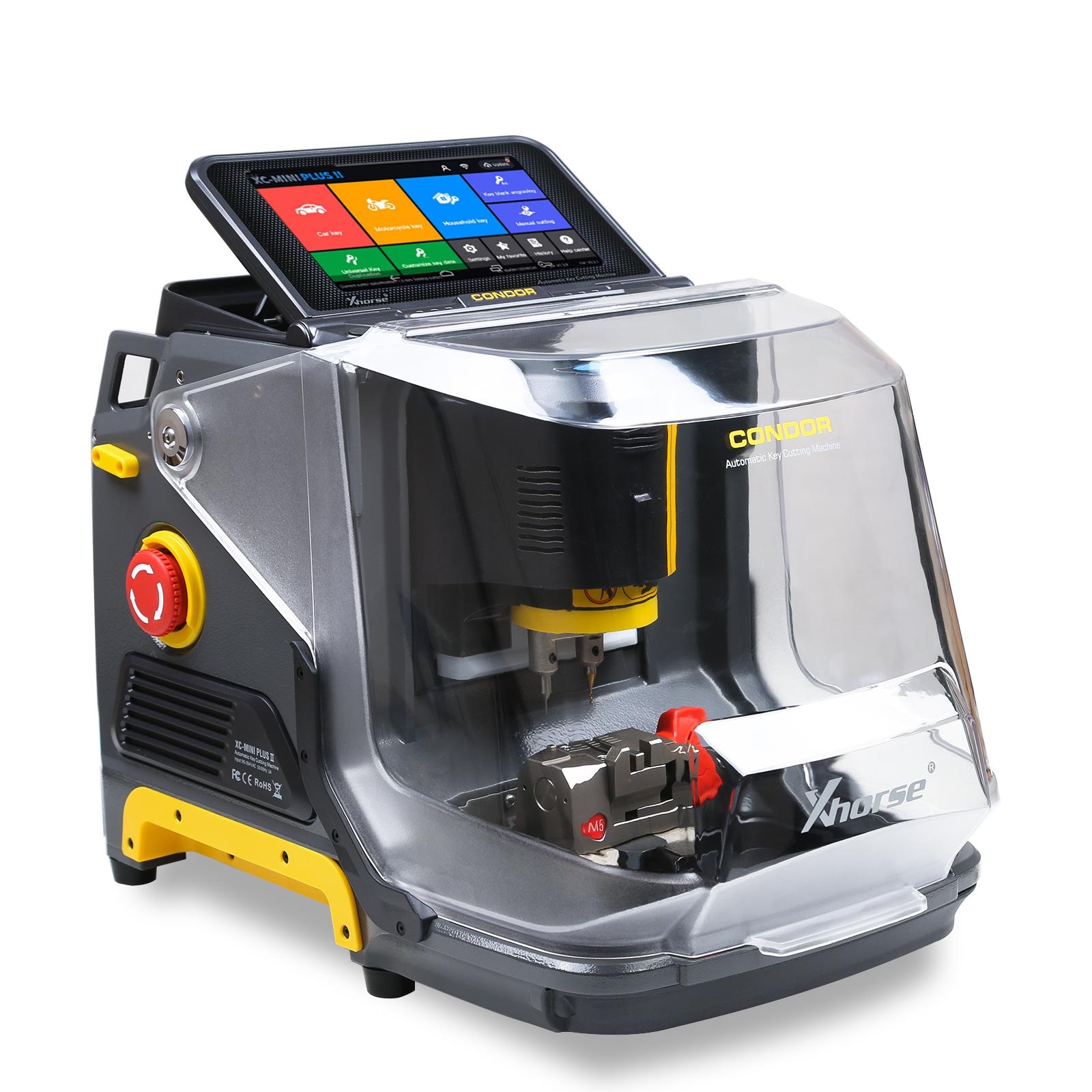

• All-aluminum body machined on Germany-made DMG CNC equipment. Transparent shield shows work while blocking debris
• Lifelong free online technical support. 3-year warranty.

Clamps

The machine ships with M5 and M3 clamps. Only the M4 clamp is optional. The M5 is a 2-in-1 clamp of M1 and M2 and switches between them directly with no repeated installing and uninstalling. Supported types: side, track, Tibbe, F021 and Citroen SX9 keys, and residential keys.

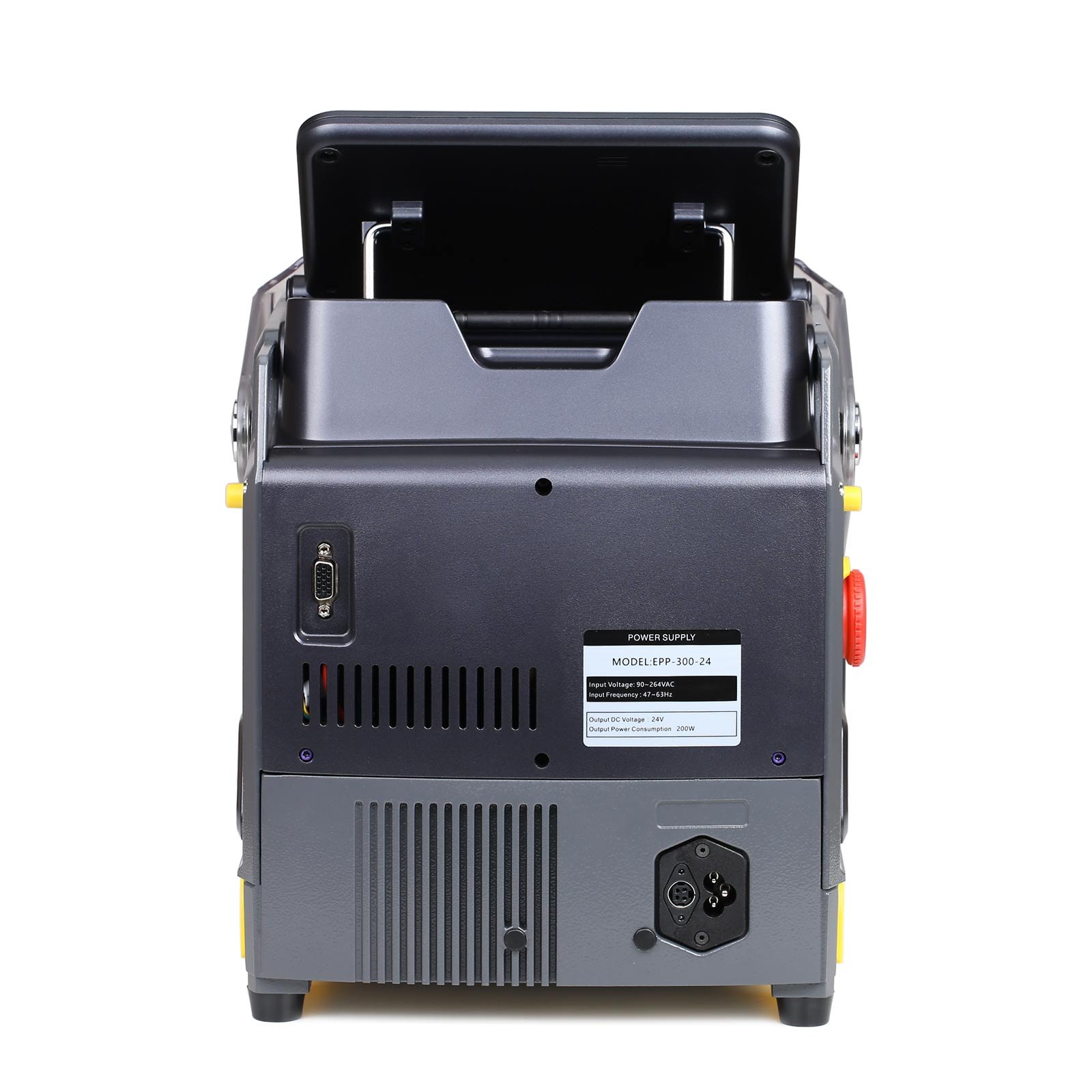

Parameters

• Power: 200W
• LED screen resolution: 1280 by 720 pixels
• Motor rotation speed: 10000rpm
• Package dimensions: 515 by 480 by 380mm
• Product dimensions: 413 by 250 by 300mm
• Input frequency: 47 to 63Hz
• Input voltage: 90 to 264V
• Net weight: 19KG
• Gross weight: 24KG

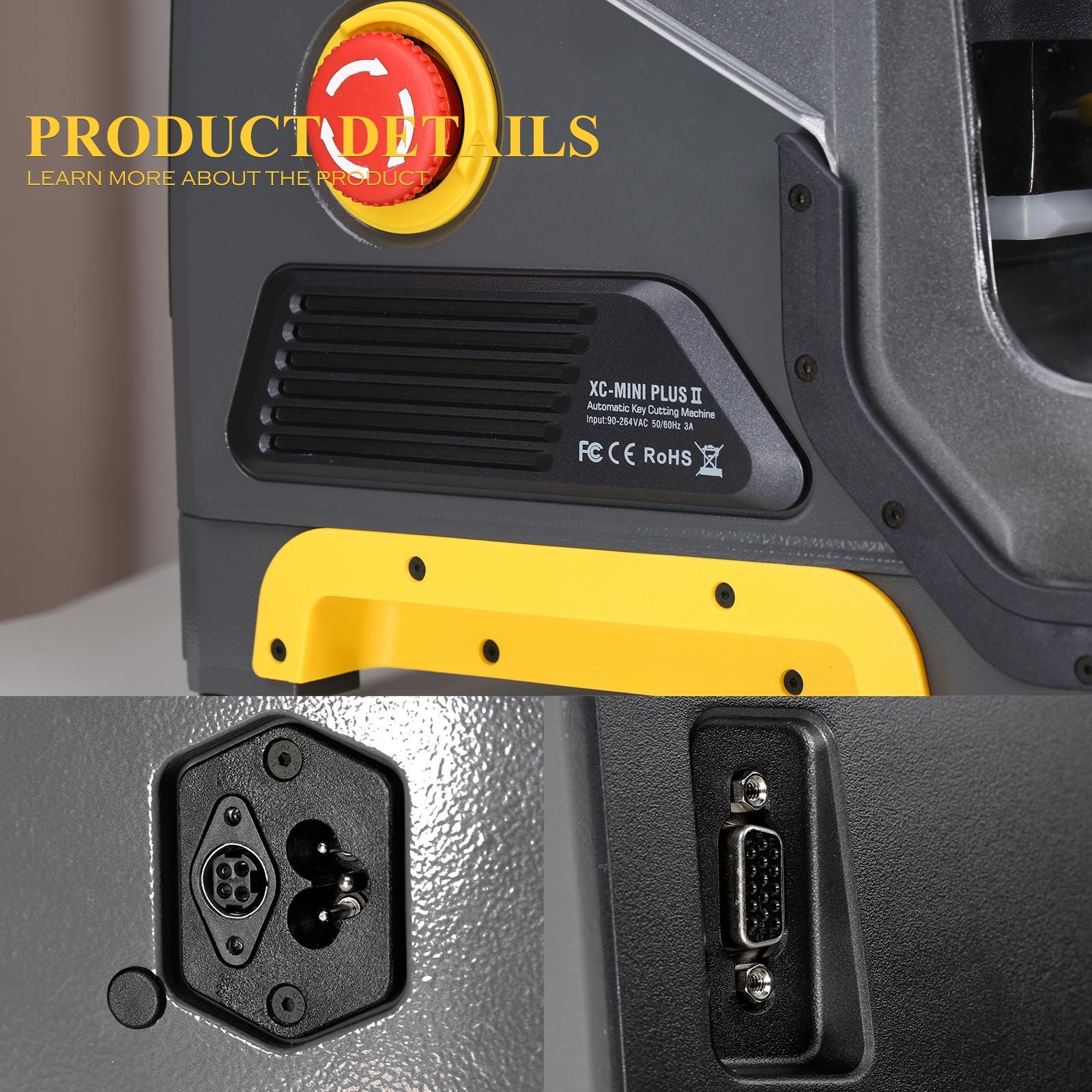

• USB port: DB15

Setup tutorials

Cutter installation: put the cutter into the mounting hole to the top limit, then fix it clockwise with the cutter tightening wrench. Clamp installation: loosen the clamp wrench counter-clockwise, slide the correct clamp into the holder to the left limit, then tighten clockwise.

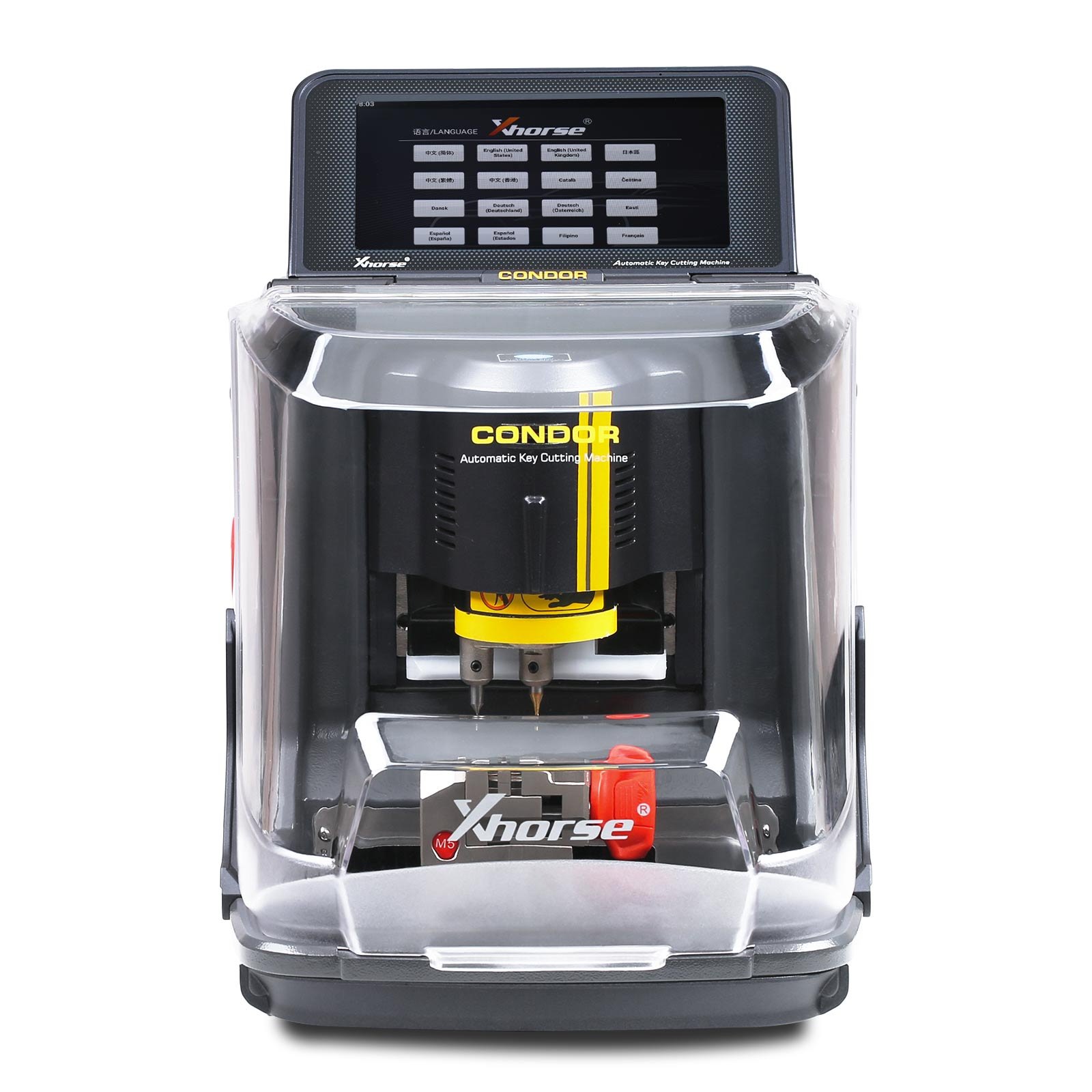

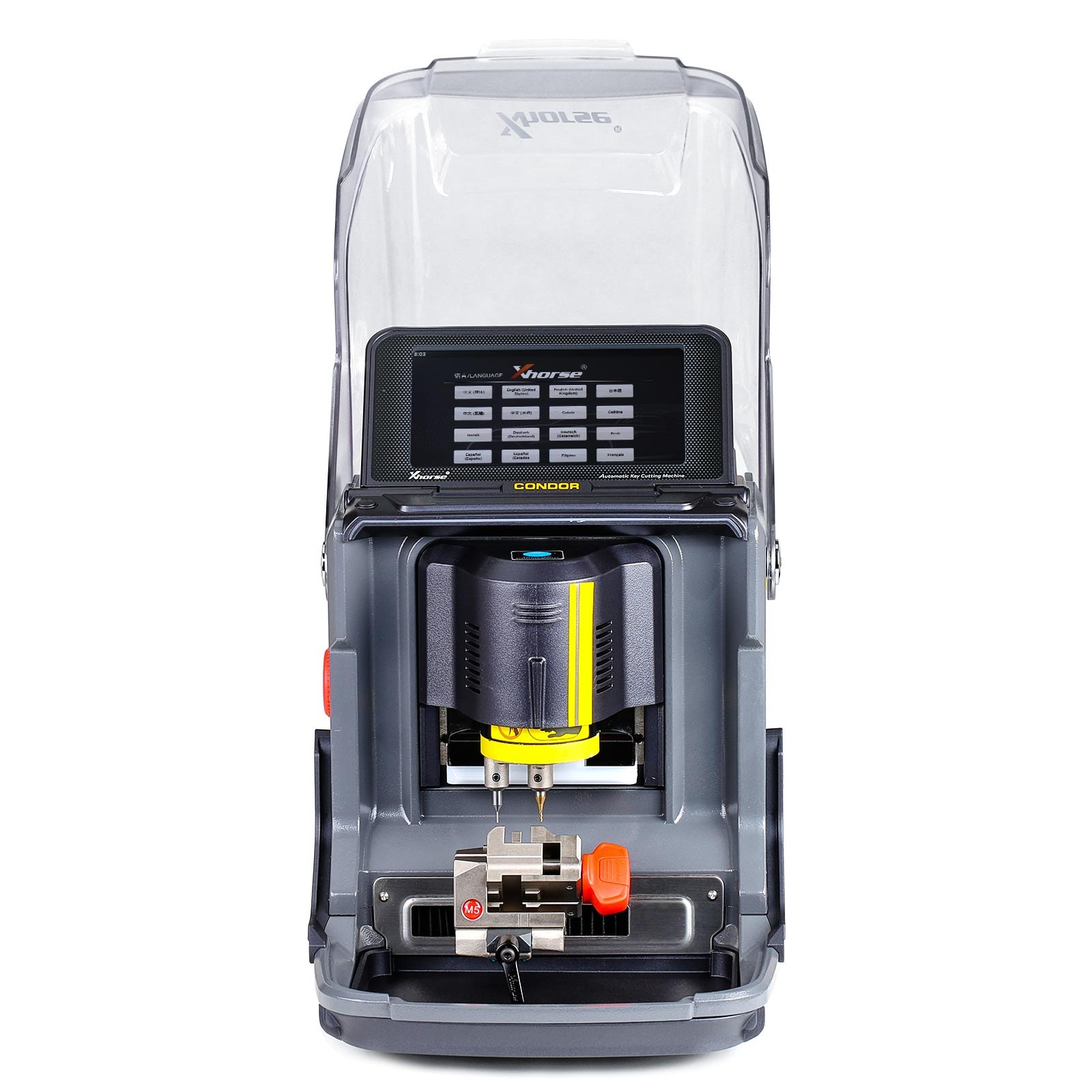

Activation: select the machine language, power on, enter the main interface, and press START TO SET. Select a WiFi network, enter the password, press Connect, then NEXT. Log in to the Xhorse account.

Videos

• Condor XC-MINI Plus II introduction
• How to update the machine
• Easy operation and quick response
• Tutorials: cutter and clamp installation, activation, calibration, and update

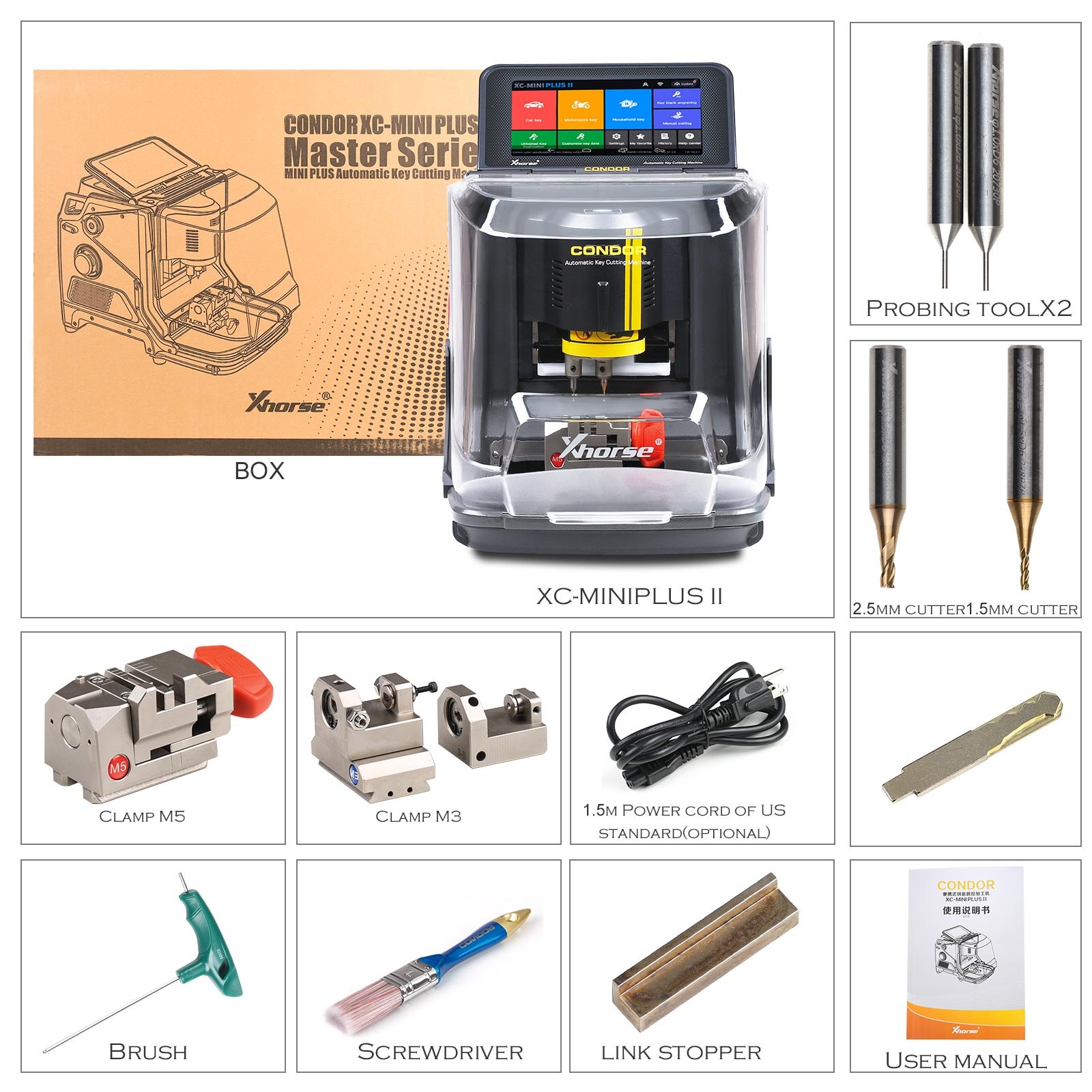

What is in the box

• 1pc MINI PLUS II
• 2pcs probing tool
• 1pc 1.5mm cutter
• 1pc 2.5mm cutter
• 1pc clamp M5
• 1pc clamp M3
• 1pc brush
• 1pc screwdriver
• 1pc key blank
• 1pc link stopper
• 1pc user manual
