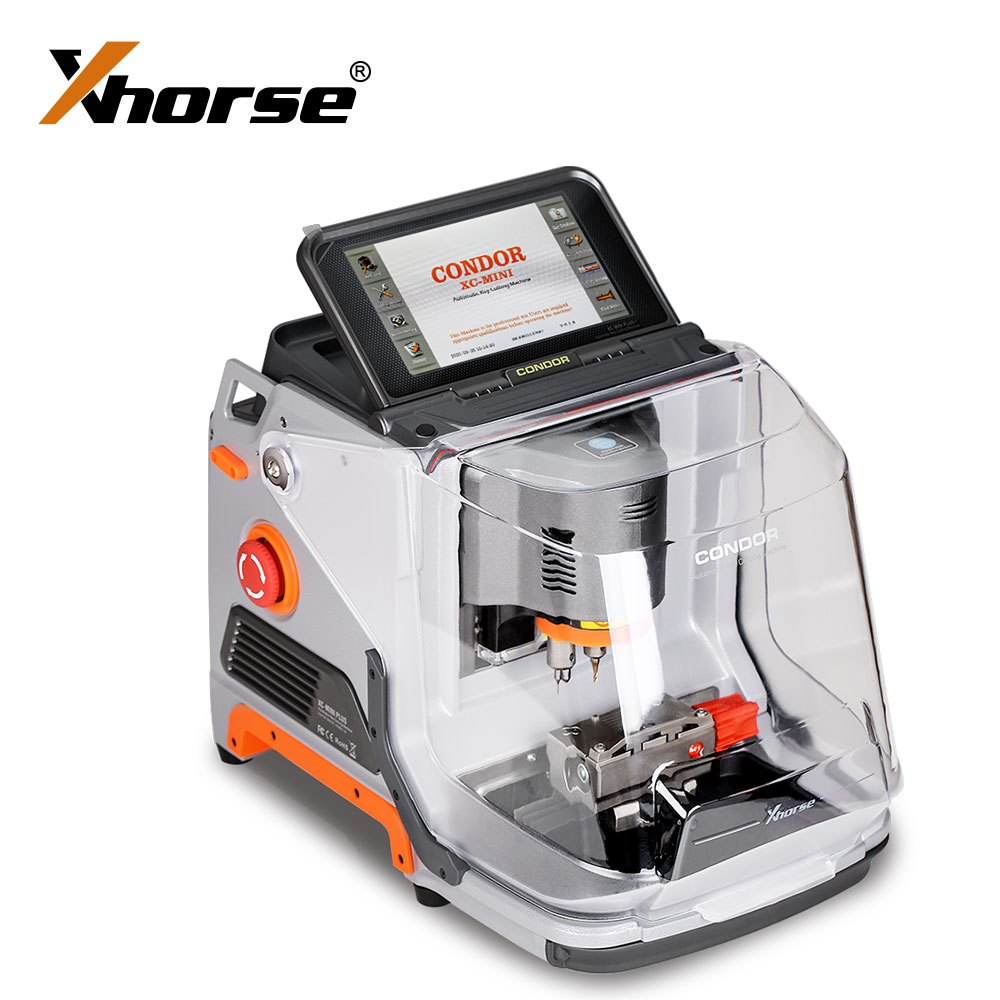

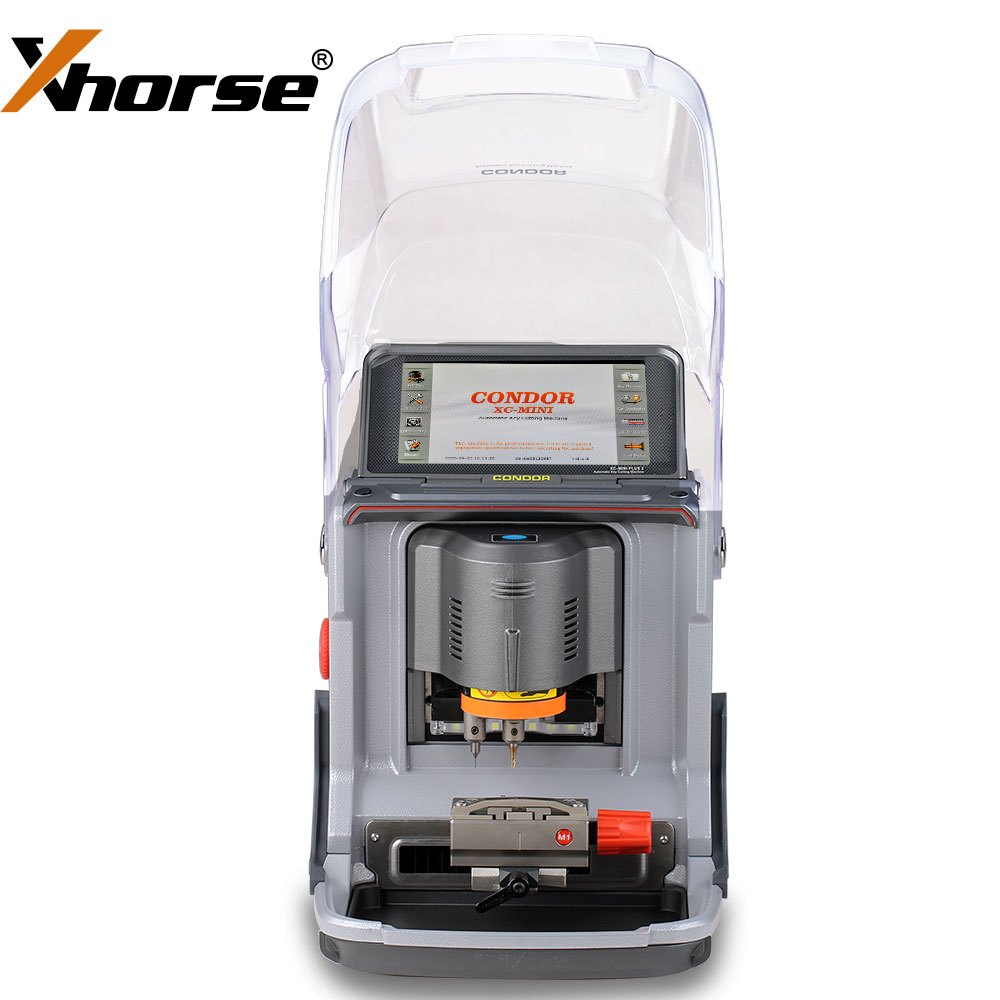

Xhorse Condor MINI Plus Cutting Machine with VVDI MB Tool Key Programmer (1-Year Unlimited Tokens)

The Xhorse Condor MINI Plus Cutting Machine with the VVDI MB BGA Tool for Benz key programming includes 1 year of unlimited token service. After one year, one free token arrives every day. Part numbers: SL273-C and SK185-F1.

Notice

The Condor XC-Mini Plus is out of stock. The Condor XC-MINI Plus II replaces it.

Advantages

• Bigger space between cover and key than the XC-MINI. VW flip keys close the cover properly
• Adjustable-angle screen for high desks and viewing angles
• Mounting support for mobile van installations
• Better PCB and motors for stable accurate work
• Sealed design keeps cutting dust out for longer service life

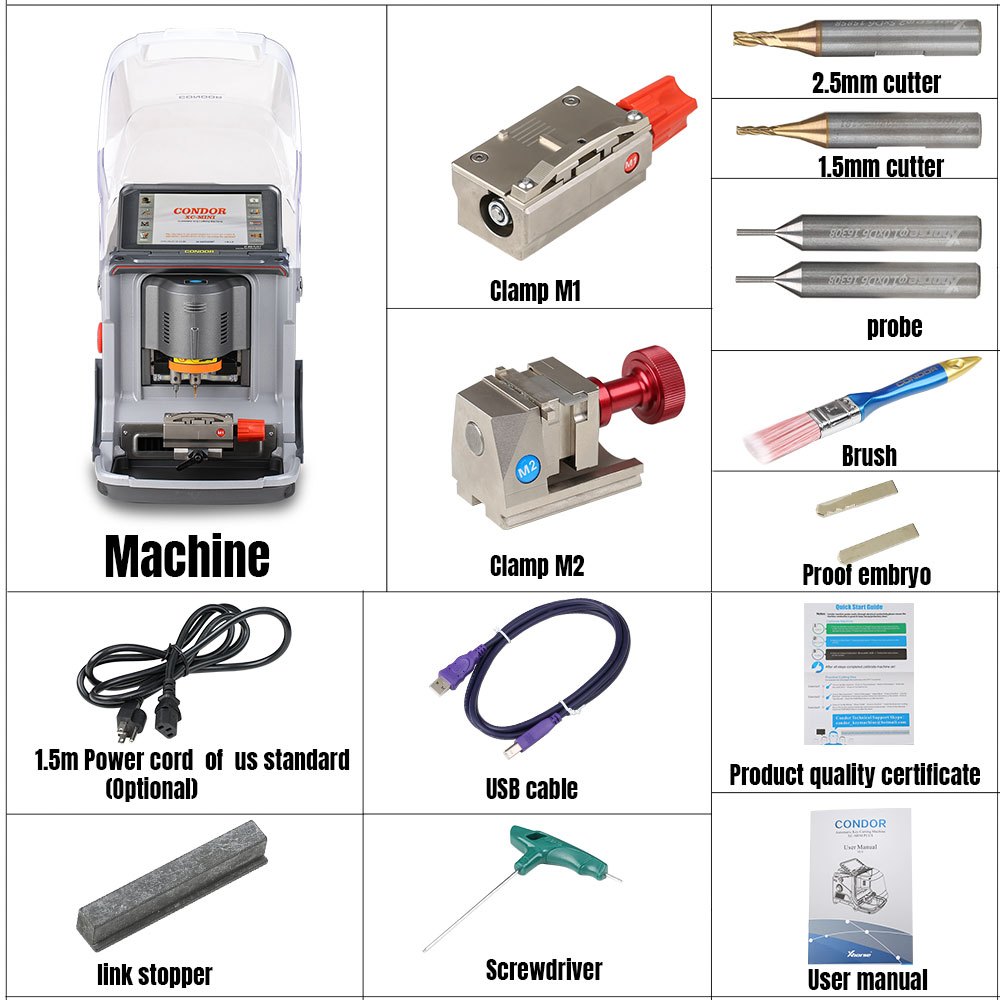

Clamps

Standard M1 and M2 clamps support sided, track, dimple, and Tibbe keys. Optional M3 clamps fit Ford FO21 and Citroen SX9 keys. M3 and M4 clamps are optional.

Database and patents

Built-in accurate database with parameters and clear key graphics. Edit blank shape, space, width, and depth for custom keys. Domestic automobile data is added continuously. Holds design patent, software copyright registration, and utility model patent certificates.

All keys lost

Updated key database plus cut-by-biting and find-biting functions. All-aluminum main body with partial 304 stainless steel parts. Gross weight 24KG with 3-axis precision ball screw transmission, more accurate than T-screw. 200V brushless motors with high rotation speed, low noise, and minimal vibration.

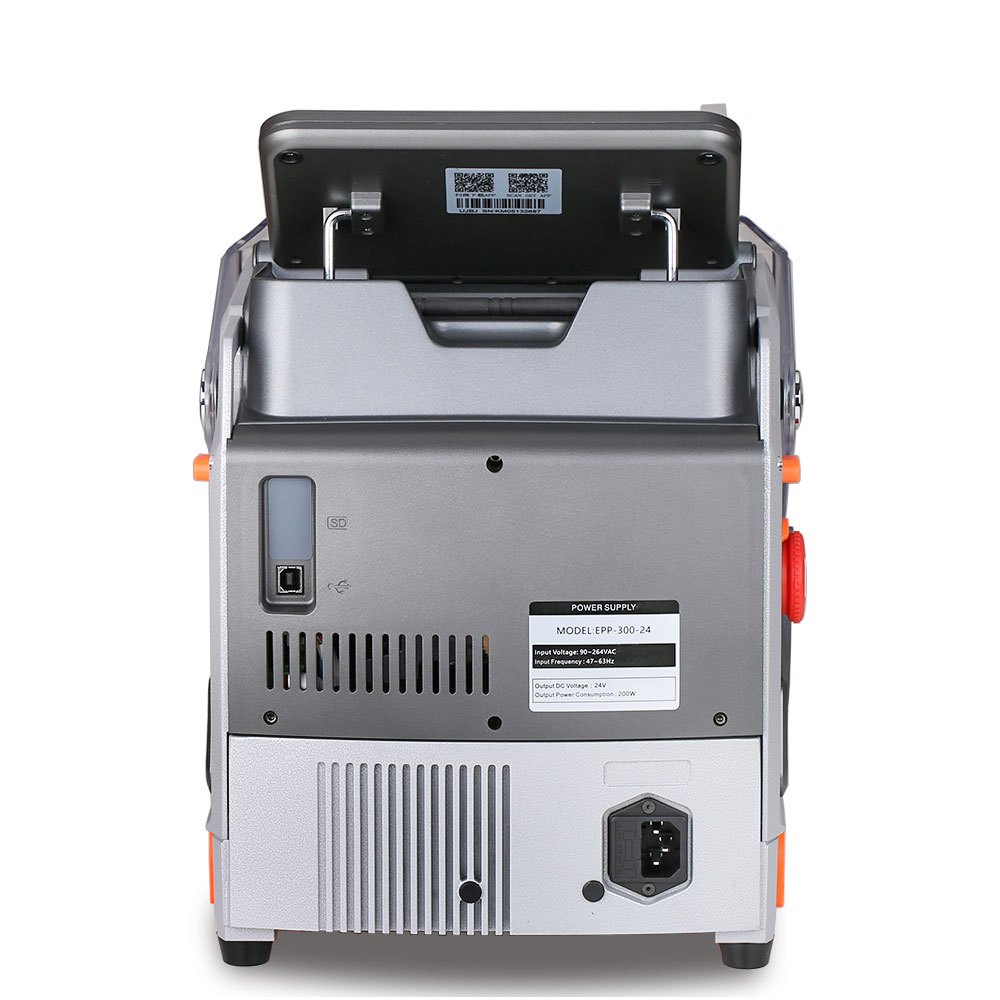

Power and updates

• Internal full-range AC input 90V to 26V at up to 93 percent efficiency. Survives 300V surge input for up to 5 seconds. No-load loss under 5 watts
• Online updates over internet-connected PC with 24/7 region-free servers, plus offline file log shows in the software automatically
• Free online technical support, 3-year warranty, and lifelong after-sale service
• 60+ global brands, 2,000 car models, and 20,000 all keys lost us for the detailed support list

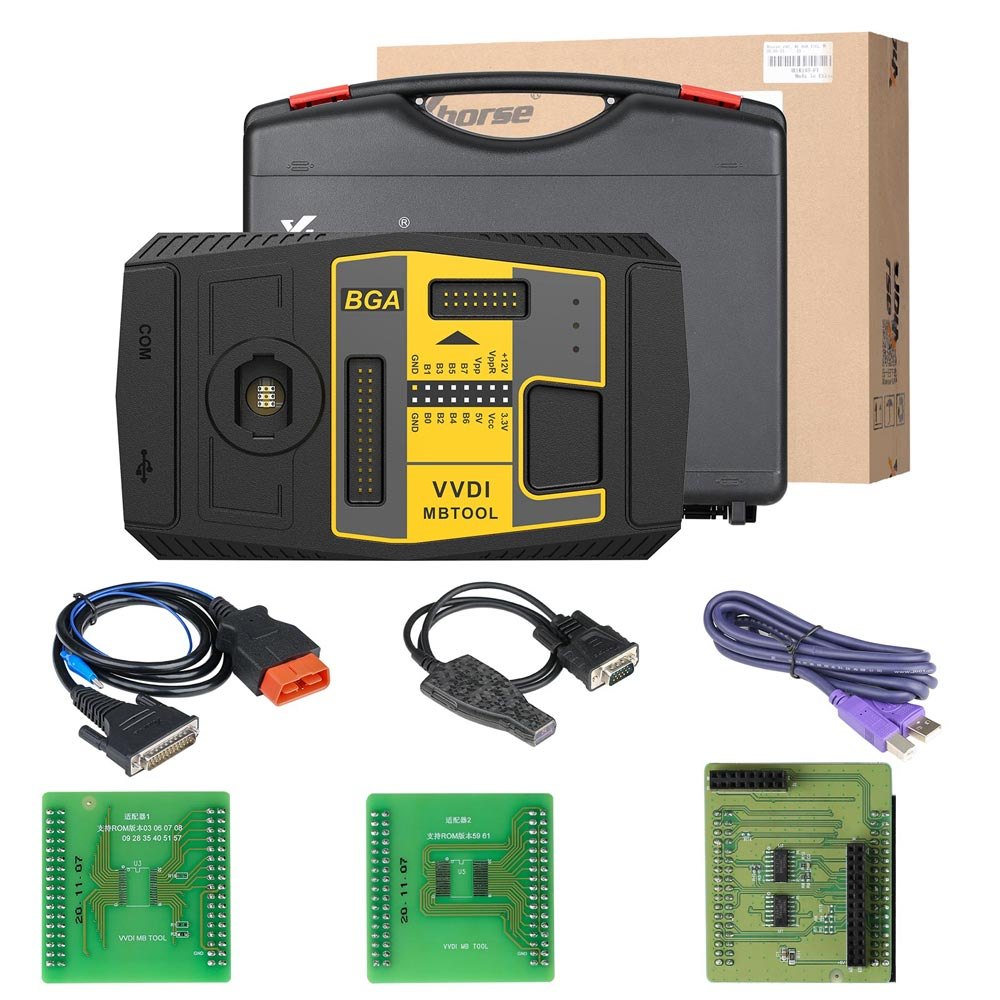

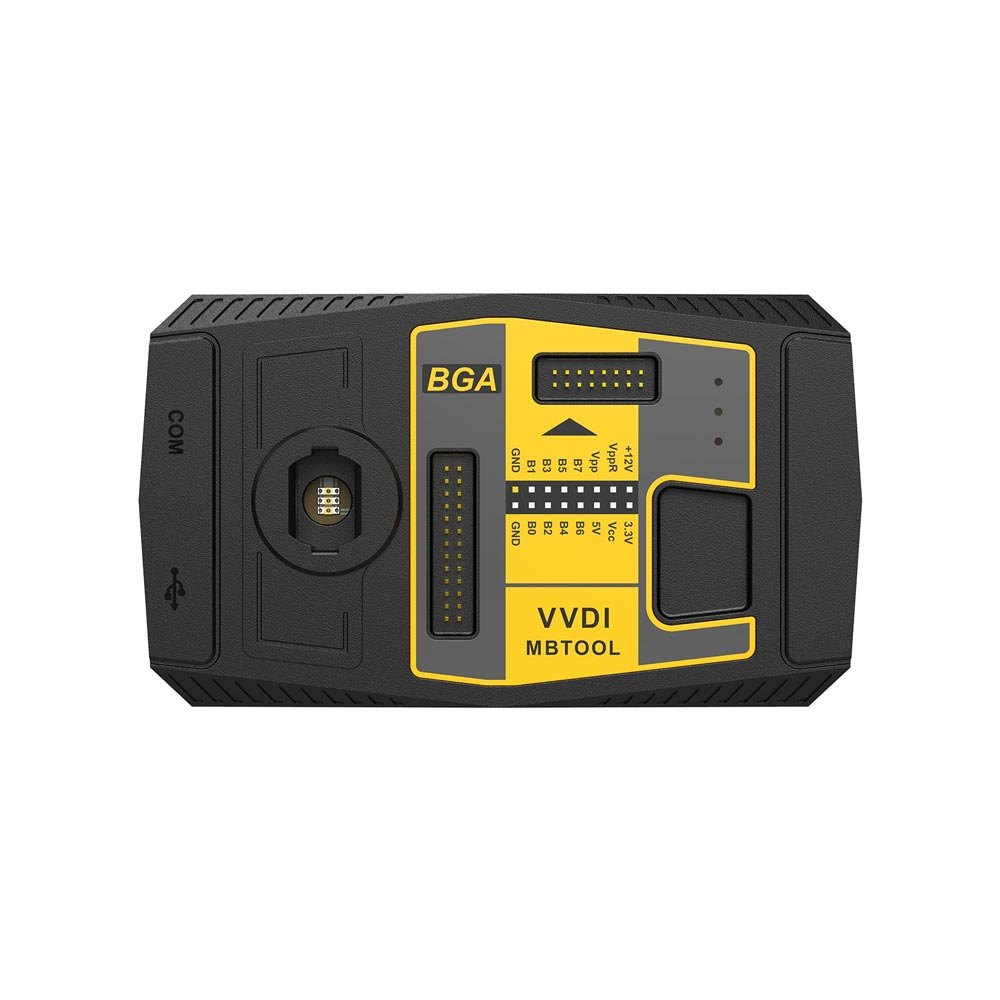

VVDI MB BGA tool

The VVDI MB BGA tool programs Benz keys with the BGA calculator function. It supports all keys lost on W204, W207, W166, W246, W212, W212 old, W216, W164 from 2009, W210 newly added, and others.

• Read and write keys: basic key info, BE key password reading over IR, key renewal, new key file writing over IR, IR key repair
• NEC adapter reads key passwords from NEC v51 and v57. Writes and renews NEC v51, v57, v28, v35, v40, v03, v06, v08 Keyless Go, v05, v07, v09 Keyless Go, v59, and v61 Keyless Go
• EIS tools: EIS data reading over OBD and IR adapter, auto EIS type detection for CAN, W164/W209/W211 EIS reading over OBD without gateway, old Motorola EIS (HC05, HC08, K-Line) password over IR, EIS renewal to new over online, EIS replacement with original data over IR, new VIN writing, TP clearing, key position disabling, W204 ESL personalization, EIS and ELV and working key status tests
• Supported types: W164, W164 2009 and up, W166, 197, 212, 218, 246, W169, 209, 211, W172, 204, 207, 212 old with ELV, W203, 463, 639 (K), W202, 208, 210 (K), W215, 220 (K), W230 (K), W216, W221, and W639 2009 and up
• Password calculation from working keys and EIS online. CAN EIS fully supports BGA and other NEC keys. NEC v51 and v57 calculation with no soldering. Acquisition takes about 3.5 to 13 minutes with BGA about 5 minutes. Server calculation takes 30 seconds to 1 minute. Lost-all-keys calculation for W166, W212, W246, and W212 old with ELV. Supported with working key: W164, W164 2009 and up, W166, 197, 212, 218, 246, W169, 209, 211, W172, 204, 207, 212 old with ELV, W216, W221, and W639 2009 and up
• Key file preparation in about 20 seconds, for VVDI-MB EIS data and old Motorola EEPROM dumps
• ESL tools: ESL data reading over OBD (K-Line), ESL renewal to new over online, ESL replacement with original ESL or EIS data, new VIN writing, TP clearing, auto ESL personalization without EIS renewal, ESL damage checks, W204 ESL NEC chip fatal error 0xAA repair, Motorola ESL chip repair, and VVDI-MB W204 emulator renewal
• ECU and gearbox renewal with VIN writing and personalization

Parameters

• Working temperature: -20 to 50 degrees C
• Humidity: 10 to 90 percent
• Working voltage: 90 to 264V AC
• Input frequency: 47 to 63Hz
• Package dimensions: 515 by 480 by 380mm
• Machine dimensions: 250 by 413 by 300mm
• Net weight: 20kg
• Gross weight: 24kg
• Power: 200W
• USB port: USB2.0
• LED display: 1024 by 600
• Motor rotation speed: 9000rpm

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
