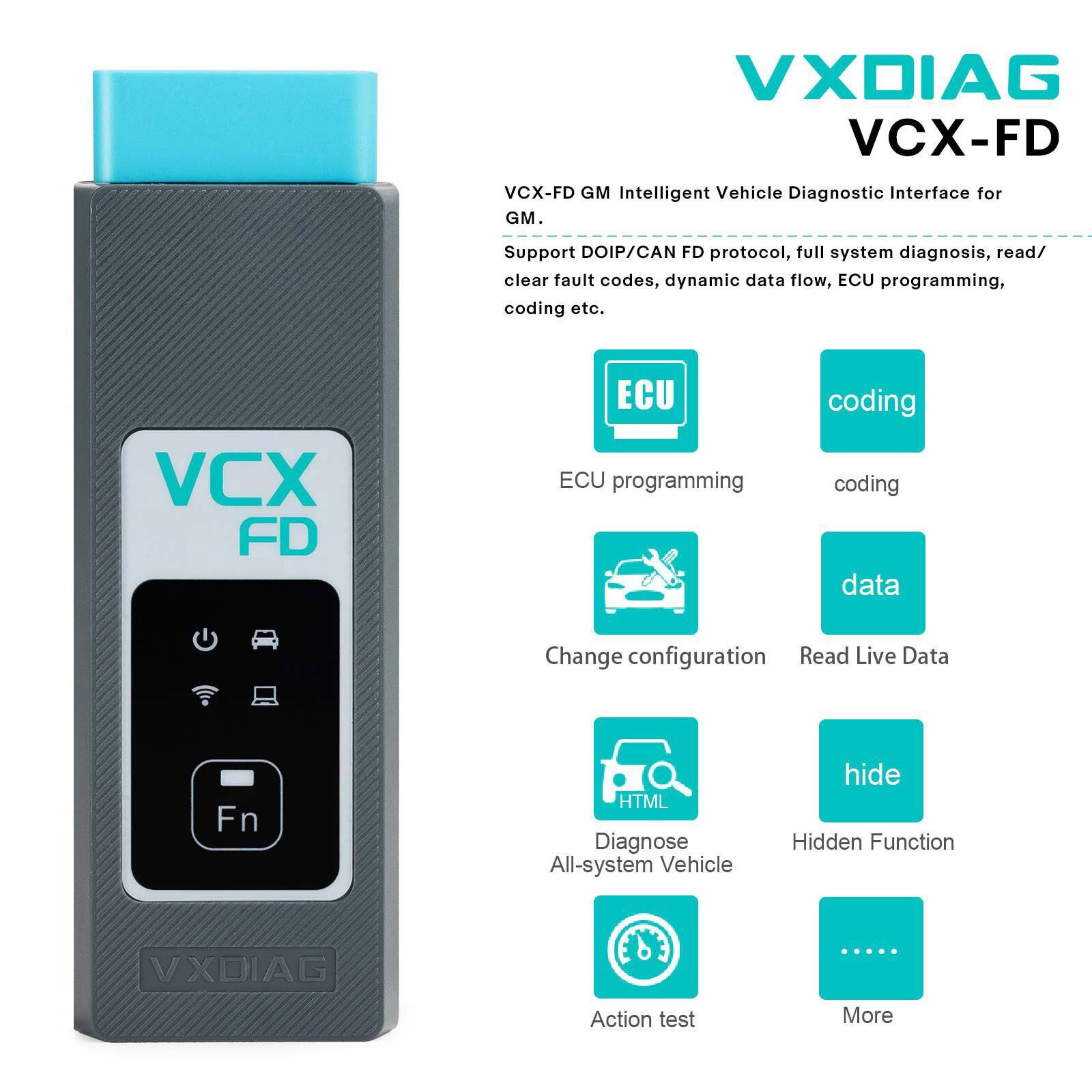

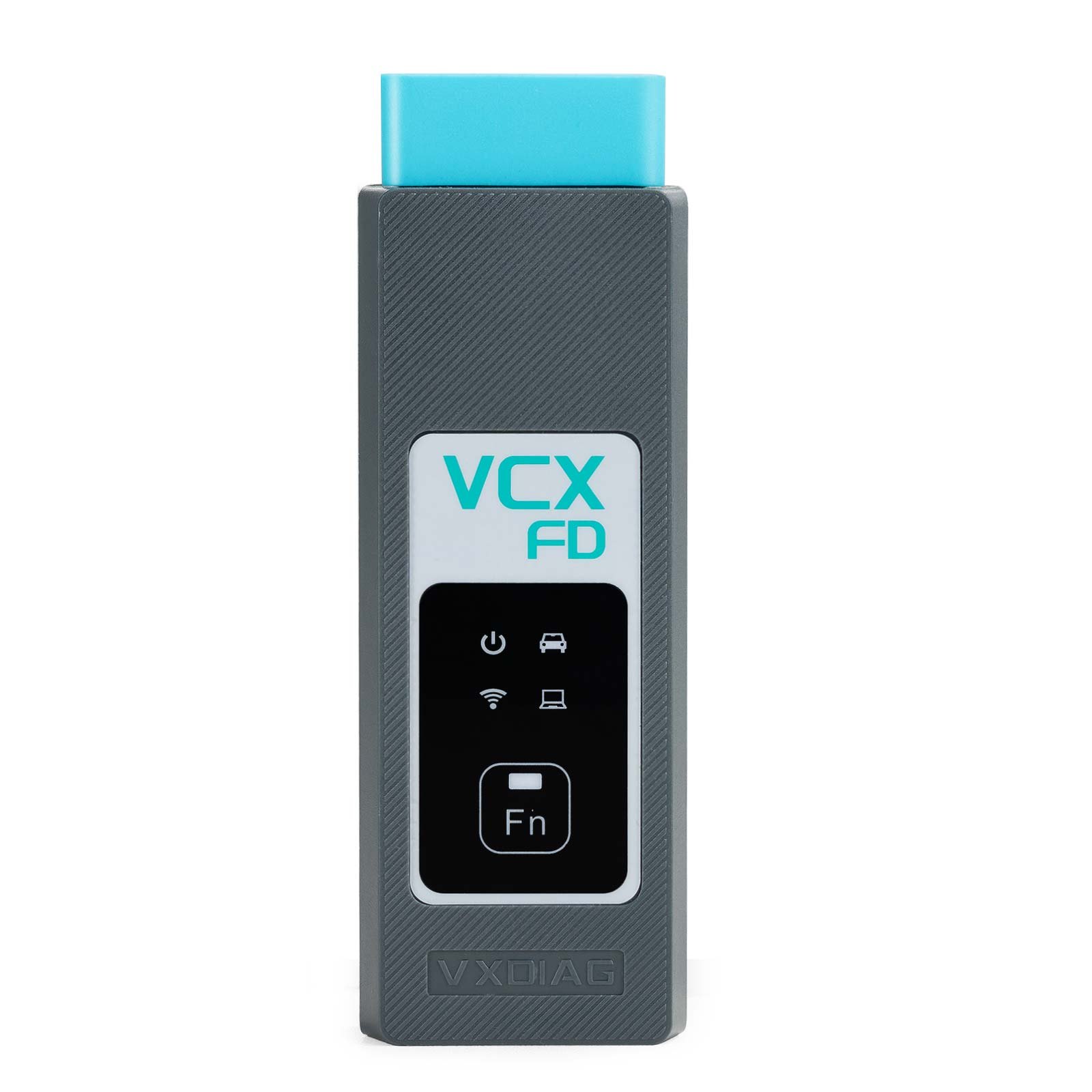

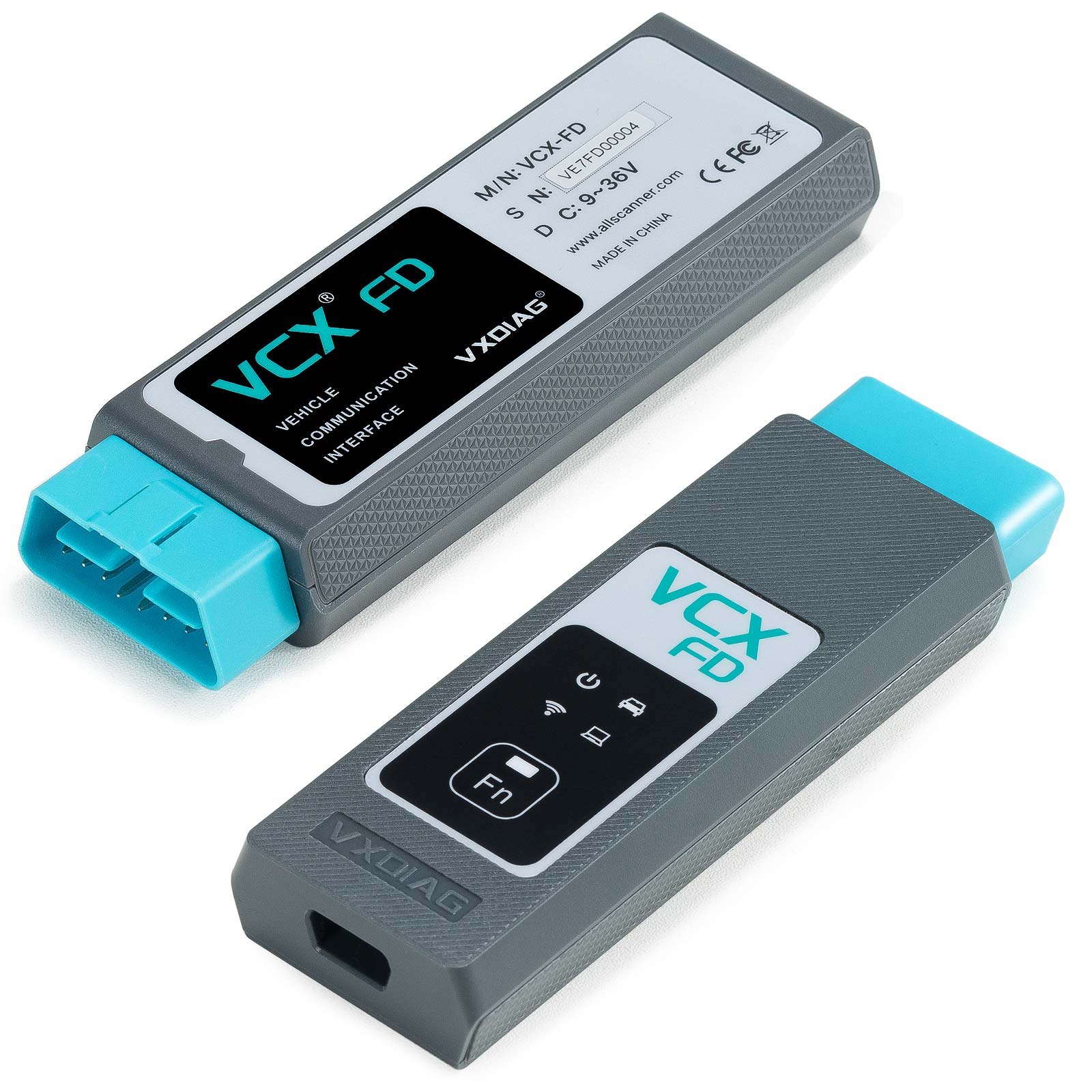

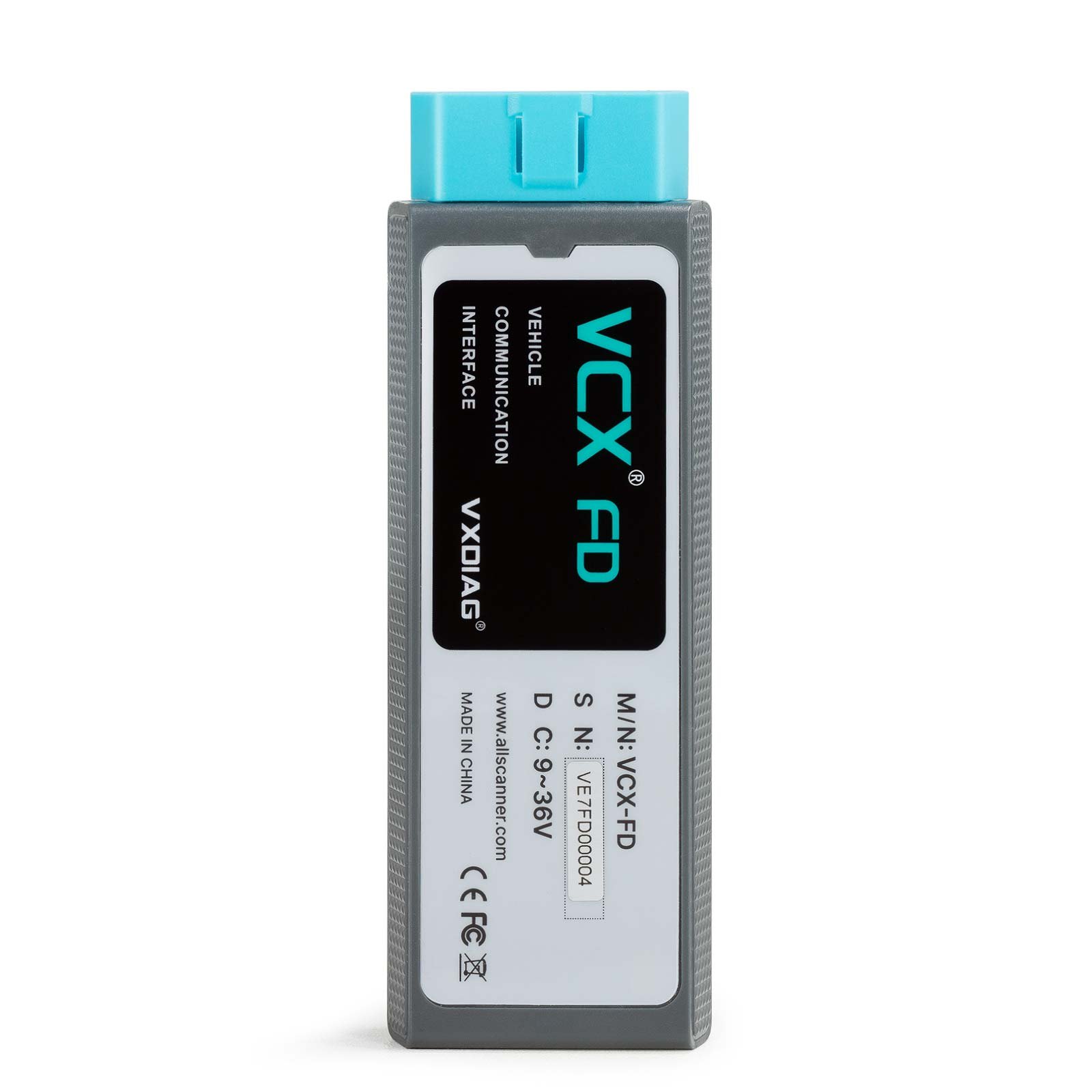

VXDIAG VCX-FD VCX FD GM Intelligent Vehicle Diagnostic Interface for GM Chevrolet/ Buick/ Cadillac/ Opel/ Holden Diagnostic Tool

A VXDIAG VCX-FD intelligent vehicle diagnostic interface for GM, covering Chevrolet, Buick, Cadillac, Opel and Holden. It is the GM configuration of the same hardware that also serves Ford and Mazda.

Specifications

• Installation Tips: Please turn off anti-virus software before install.

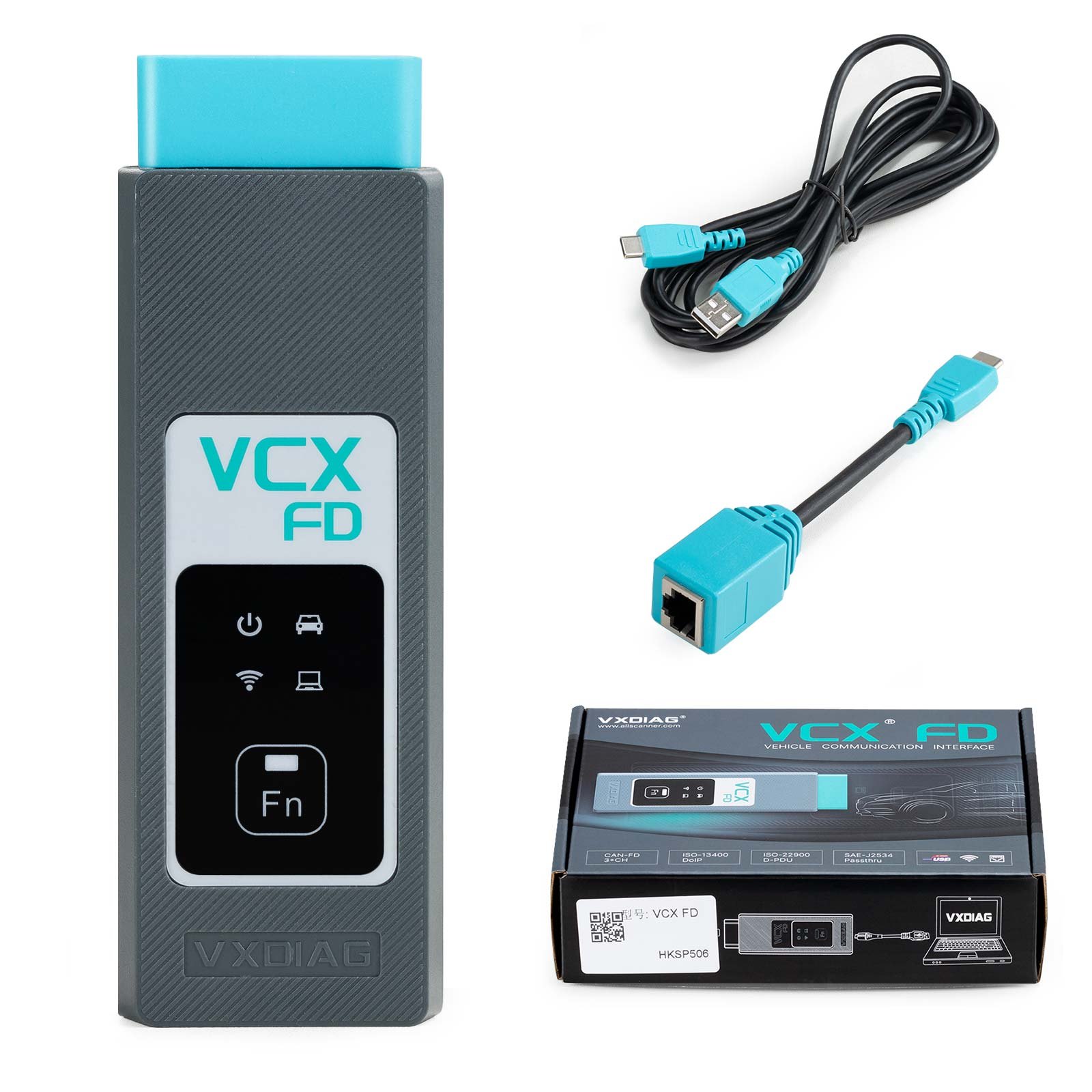

What you get

• 1pc x VCX-FD device
• 1pc x USB cable
• 1pc x RJ45 Ethernet adapter
• Supports GM Tech2Win and GDS2, can replace GM original tool MDI/ Tech2.
• Supports GM vehicle from year 2000 to 2024.
• VXDIAG VCX-FD GM Intelligent Vehicle Diagnostic Interface for GM for Chevrolet, Buick, Cadillac, Opel, Holden Diagnostic Tool
• VCX-FD intelligent vehicle diagnostic interface represents the next generation of diagnostic technology. The product adopts a newly upgraded dual-core high-speed processor, fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. VCX-FD also supports local and super remote dual-mode diagnostics, providing users with an excellent diagnostic experience.
• GM(Chevrolet, Buick, Cadillac, Opel, Holden): GM GDS2 & Tech2Win & RDS
• How to Install VXDIAG GM GDS2 and Tech2win?
• Install Tech2win using the AutoInstall.exe file
• Install GDS2 using the AutoInstall.exe file
• Install VX Manager (install passthru and GDS2/T2W drivers)
• Run software (run GDS2 from patch, run Tech2win on desktop)
• If you are running Windows 10 you MUST disable driver signing enforcement. For detail installation instruction, check PDF above.
• Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more
• Quick access to vehicle data for maintenance or management reports
• Supports GM vehicle from year 2000 to 2024
• The 550MHz ARM protocol processor supports CAN-FD and all traditional vehicle bus protocols.
• 560MHz MIPS network processor supports DoIP Super Diagnostic Gateway.
• Dual-core processor communicates via 100M Ethernet, high bandwidth and low latency

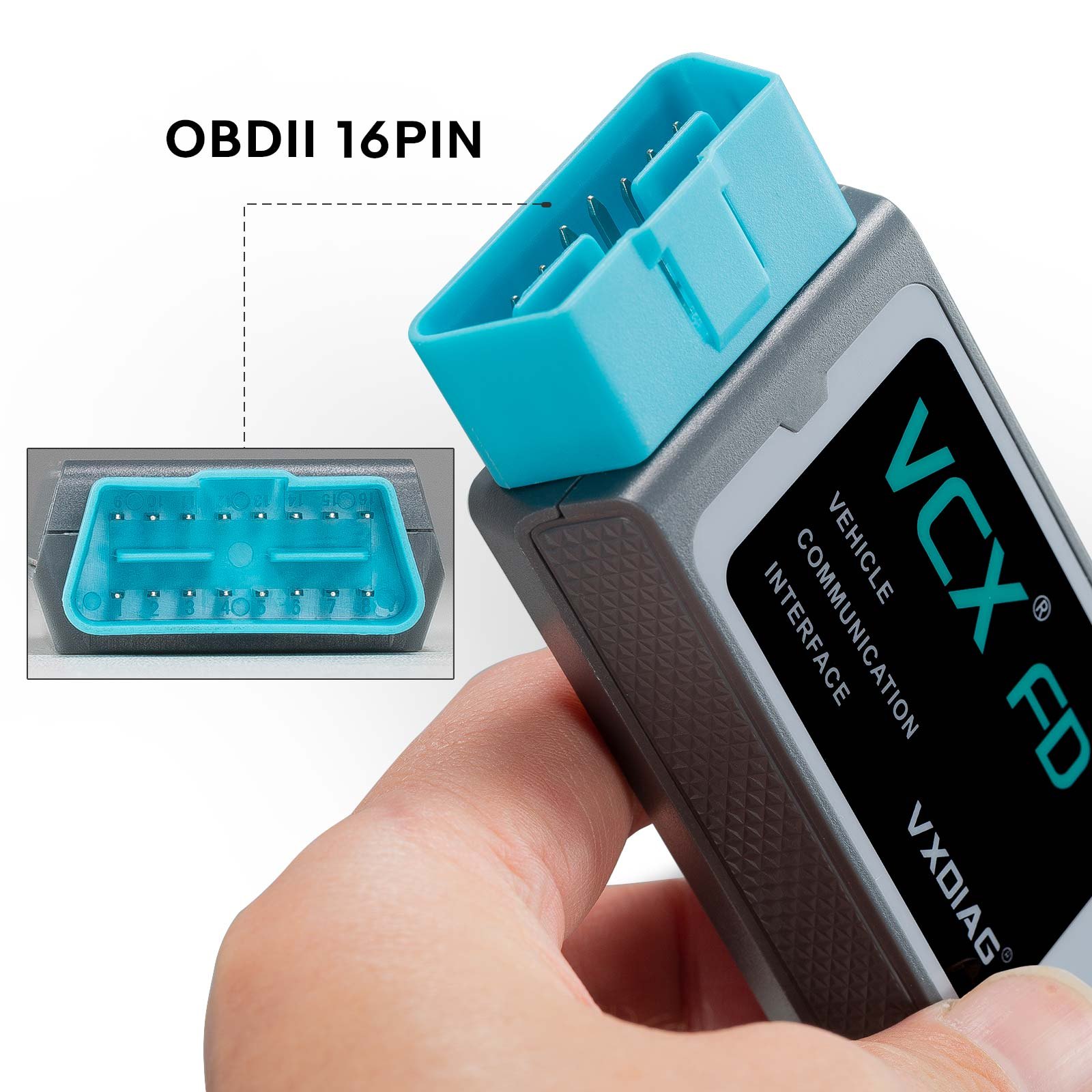

• Integrated OBD smart protocol multiplexer chip, all pins can intelligently switch any protocol.
• Supports 3-channel CAN-FD multi-channel concurrent communication, supporting up to 5M Bps high-speed communication.
• Supports ISO-13400 standard dual-channel DoIP interface Option 1 and Option 2.
• The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
• Supports mapping vehicle DoIP Ethernet to WLAN for wireless DoIP diagnostics.

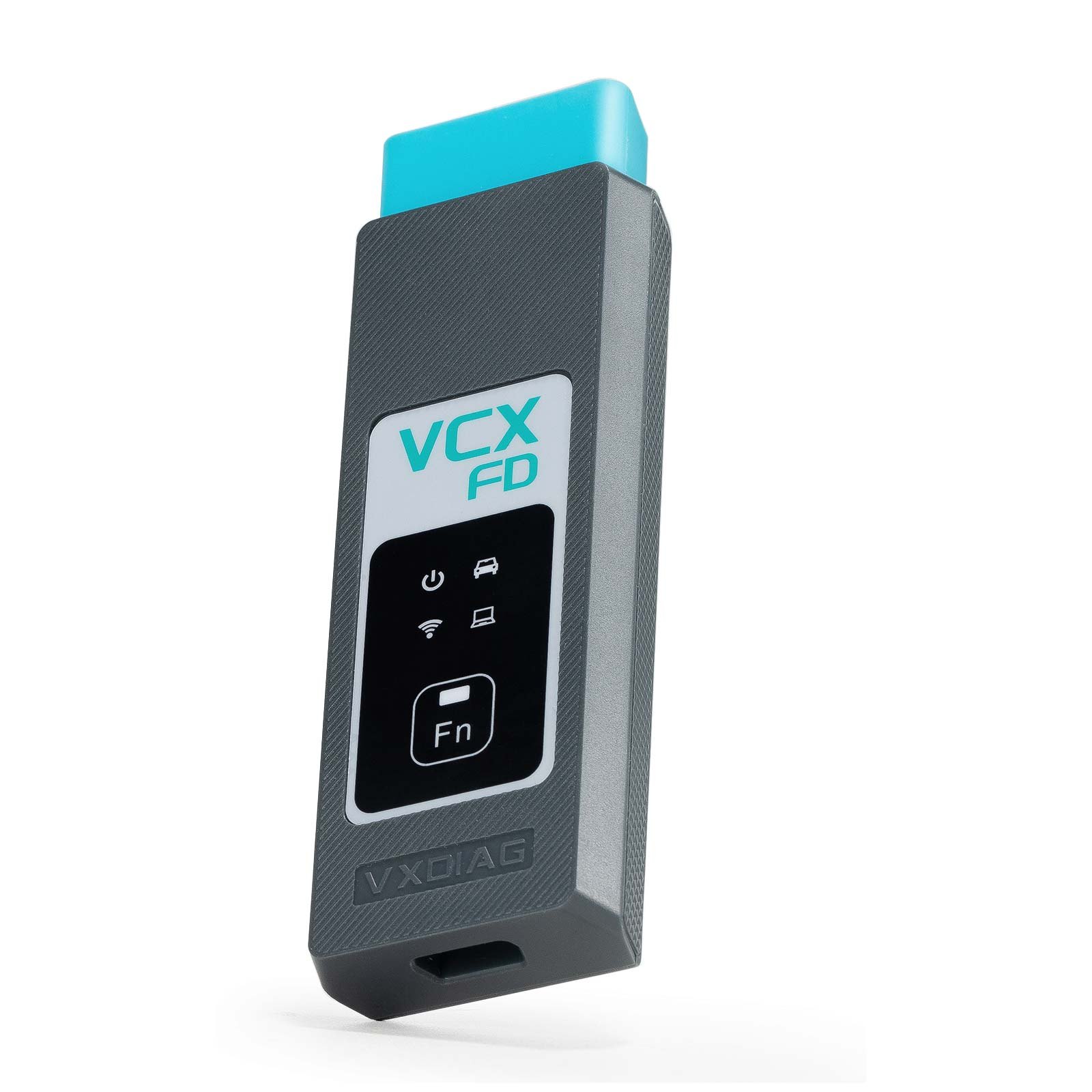

• Brand new appearance design

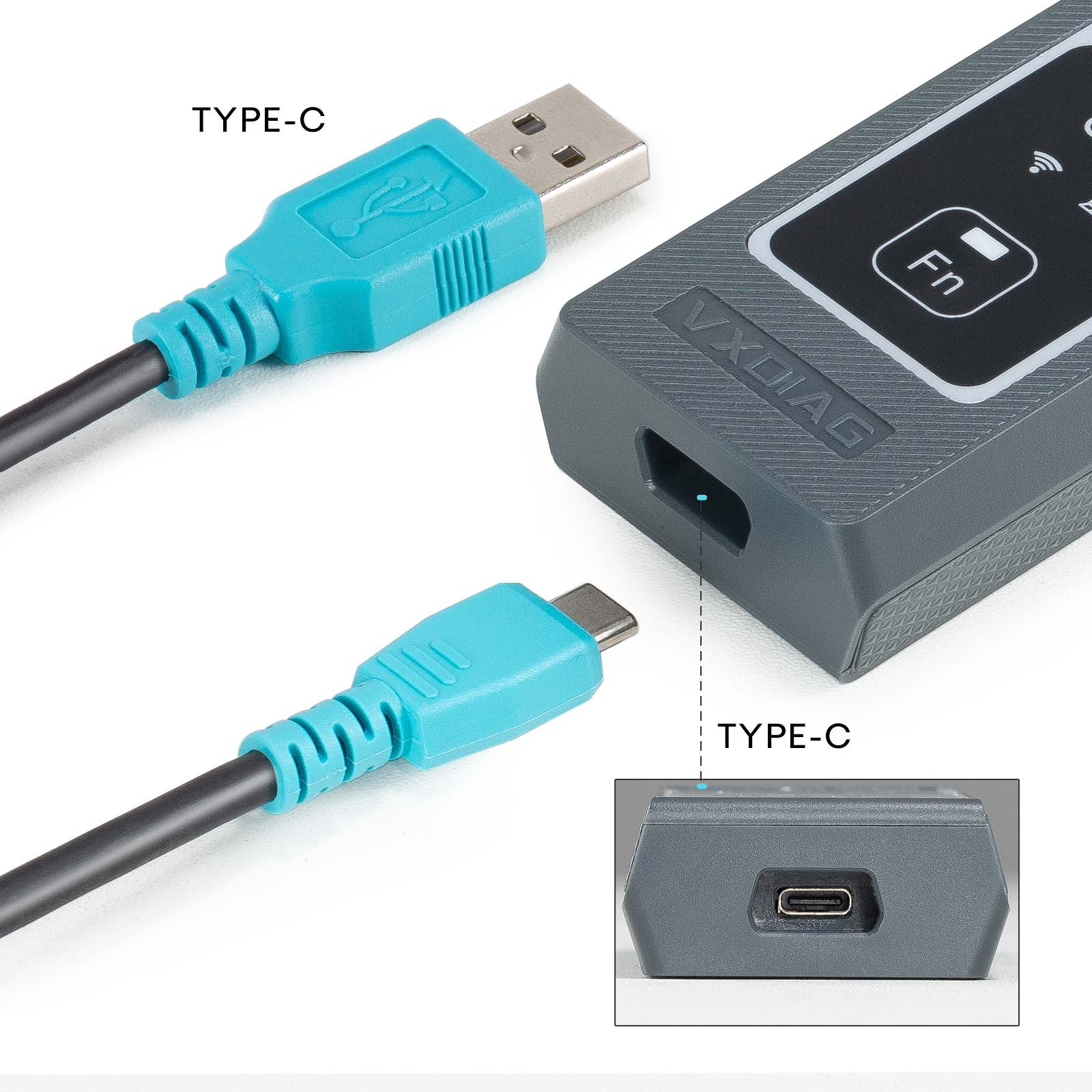

• The reinforced Type-C interface prevents shaking and falling off, making the connection more reliable.
• VCX-FD is currently compatible with 15 original factory diagnostic model brands.
• After the hardware update, it fully supports new models and new original factory diagnostic software based on CAN-FD and DoIP.
• SAE-J2534-1/2 PassThru V04.04 & V05.00
• ISO-22900 D-PDU API for MVCI
• RP-1210A/B/C API for VDA
• J2534 original ECU programming function
• J2534 controllable programmable voltage output.
• Dual-mode intelligent remote diagnosis
• Super remote diagnosis only requires the device to be connected to the Internet to achieve original factory online diagnosis.
• Compatible with remote diagnosis, it can support remote diagnosis of a variety of devices with special functions.
• The device supports one-click network distribution function and quick access to the remote diagnosis platform.
• Install the latest VX MANAGER version via www.vxdiag.net
• Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car's OBD2 Port.

VXDIAG advise turning off antivirus software before installing, since it interferes with the setup.
