VXDIAG VCX-FD for GM and Ford/Mazda 2-in-1 Intelligent Diagnostic Interface for Ford/Mazda GM Chevrolet, Buick, Cadillac, Opel, Holden
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description

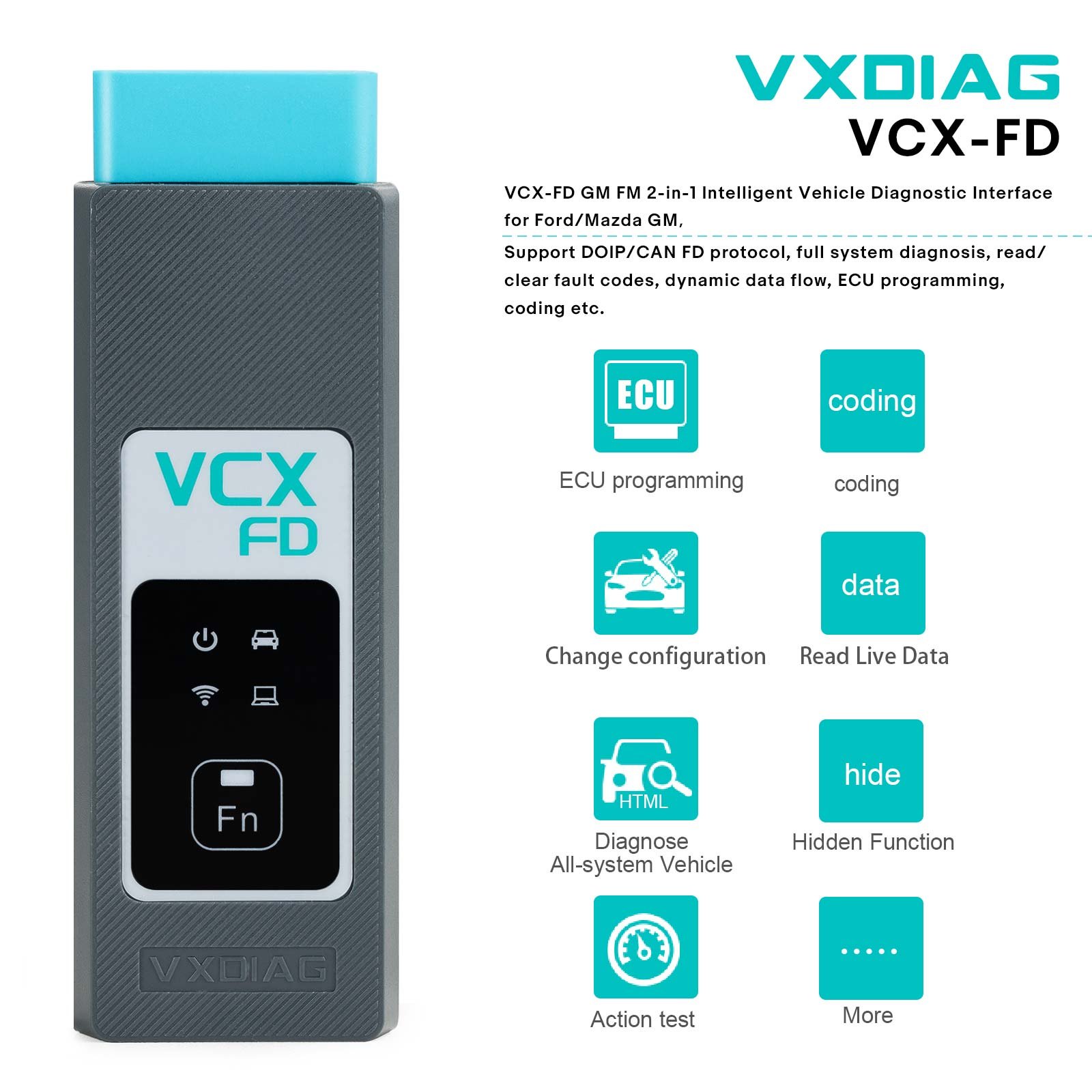

One interface that covers two software families. The VCX-FD runs the GM dealer stack and the Ford and Mazda IDS stack, so a workshop that services both does not need two boxes on the bench.
The GM side supports SPS2 online programming, which needs your own online account with GM. Check that before you buy the GM option, because the hardware alone will not authorise a module flash.
Coverage
- GM: Chevrolet, Buick, Cadillac, Opel and Holden, with GDS2, Tech2Win and RDS
- GM models up to 2024, over K-line, CAN bus and CAN FD
- Ford and Mazda models from 2005 to 2024, over K-line, CAN bus and CAN FD
- GM SPS2 online programming, with an online account
- Local and remote dual mode diagnostics
Software supplied
- GM GDS2 V2023.10.19
- Tech2WIN 16.02.24
- Ford IDS V130
- Mazda IDS V131
Specifications
- Protocol processor: 550MHz ARM, supporting CAN FD and traditional vehicle bus protocols
- Network processor: 560MHz MIPS, supporting the DoIP diagnostic gateway
- Architecture: dual core
- Communication: 100M Ethernet
Options
- Hardware only
- For Ford and Mazda
- For GM
- GM plus Ford and Mazda, 2 in 1

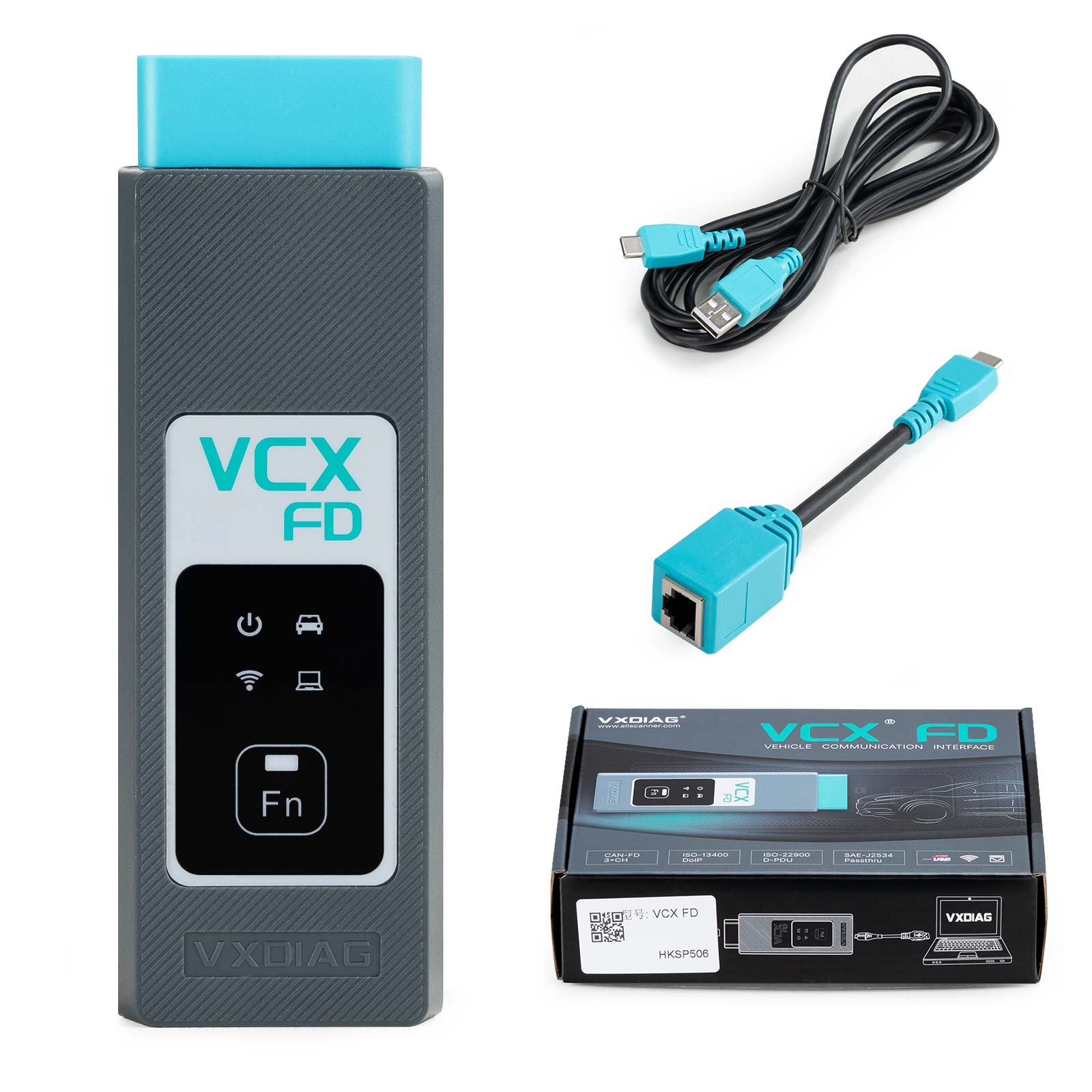

In the box

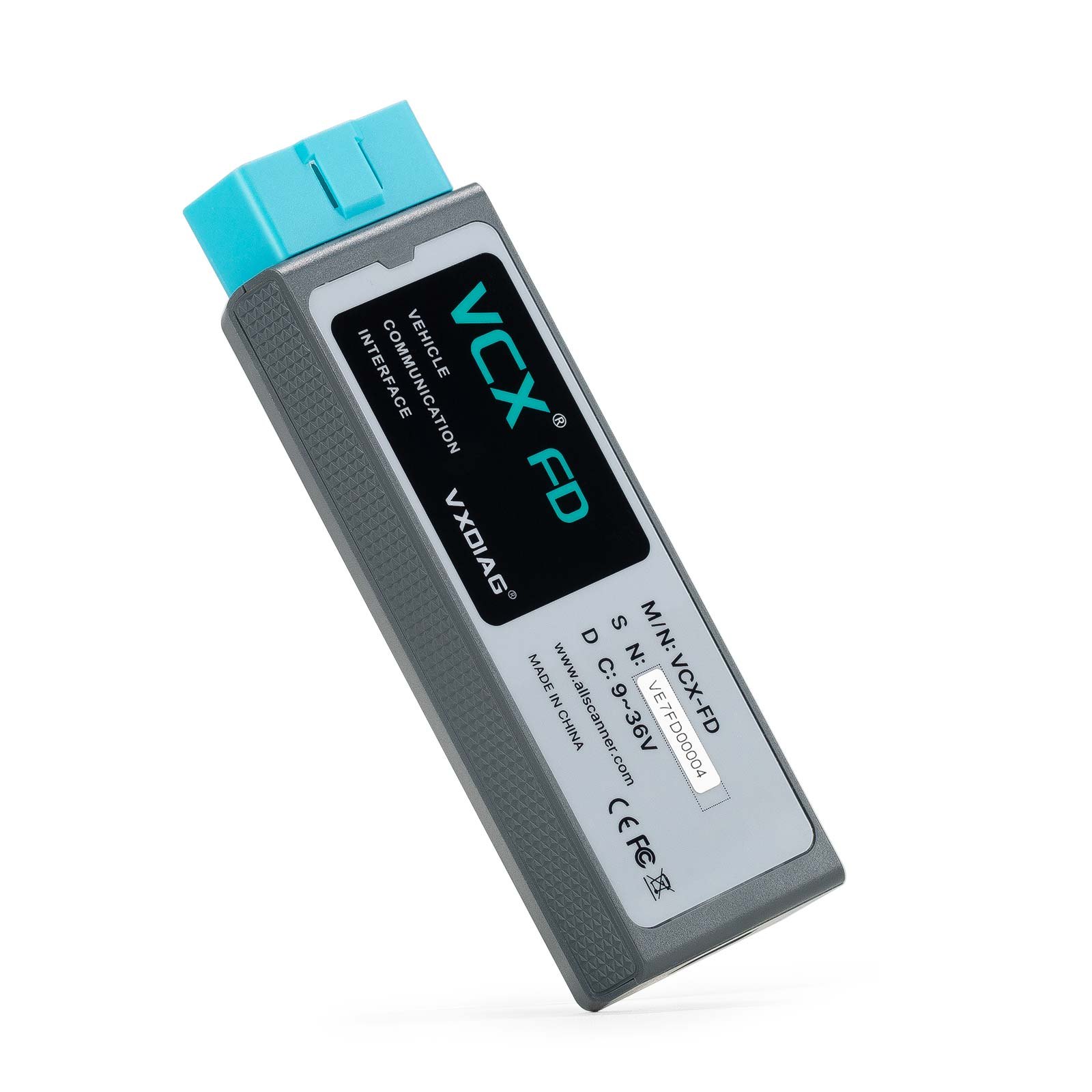

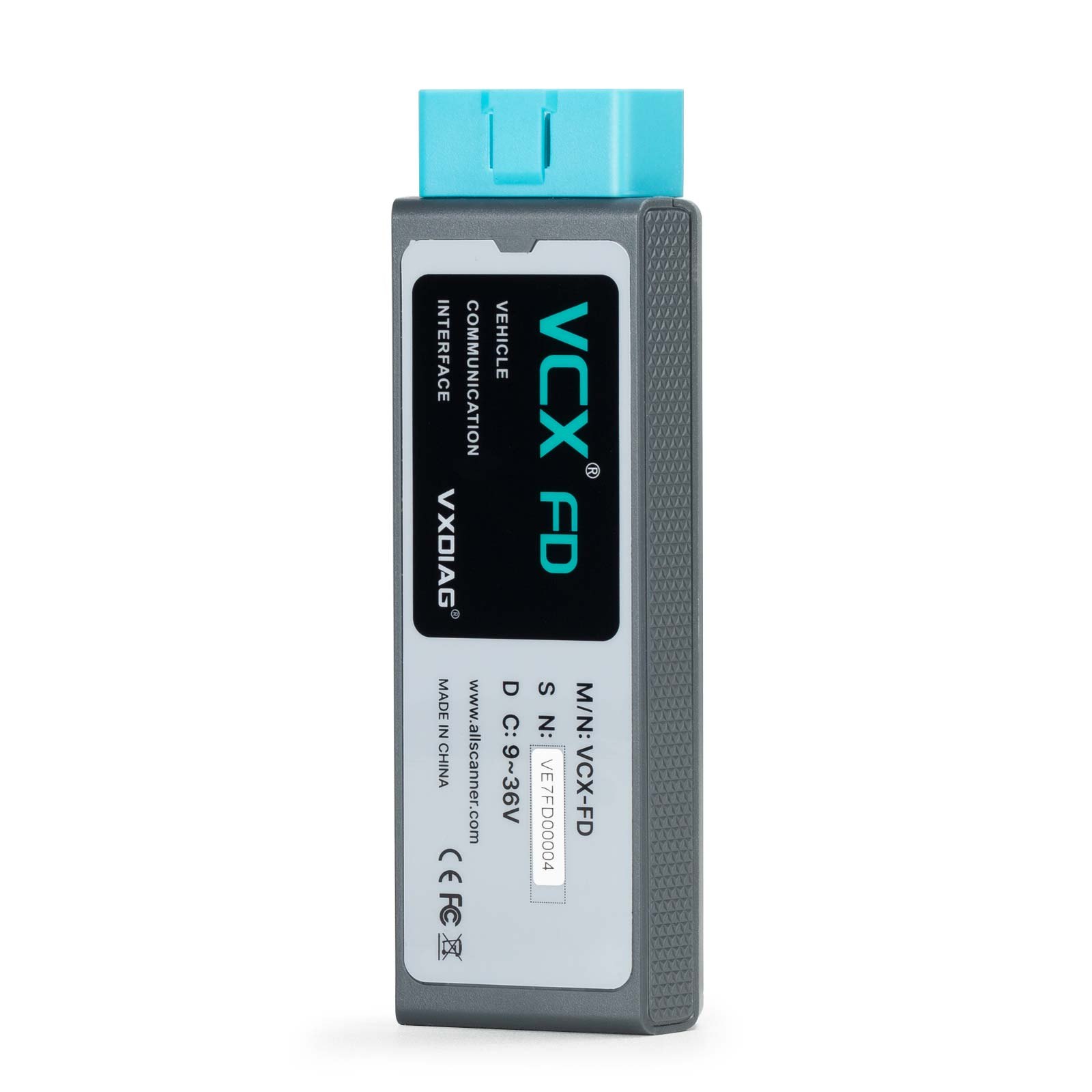

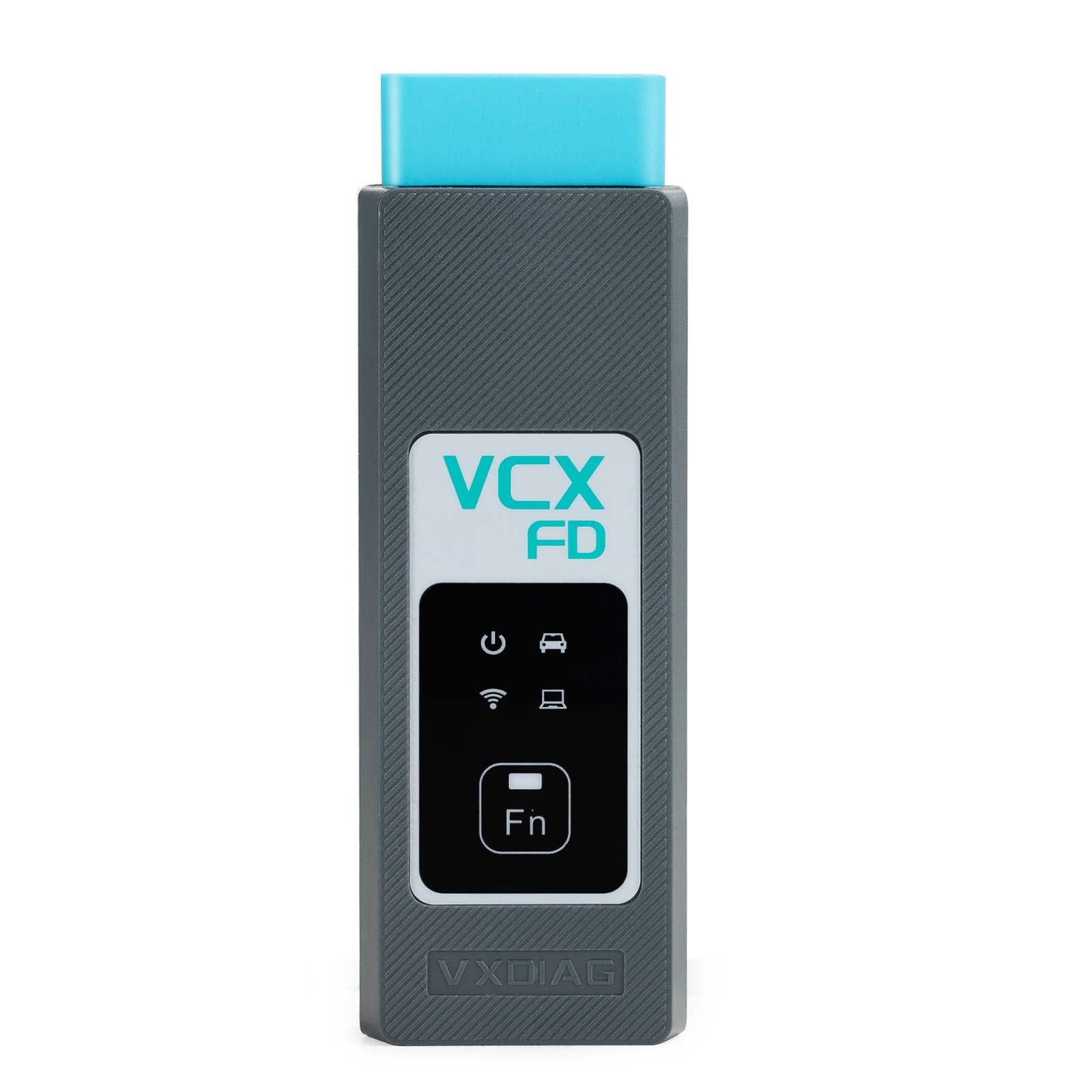

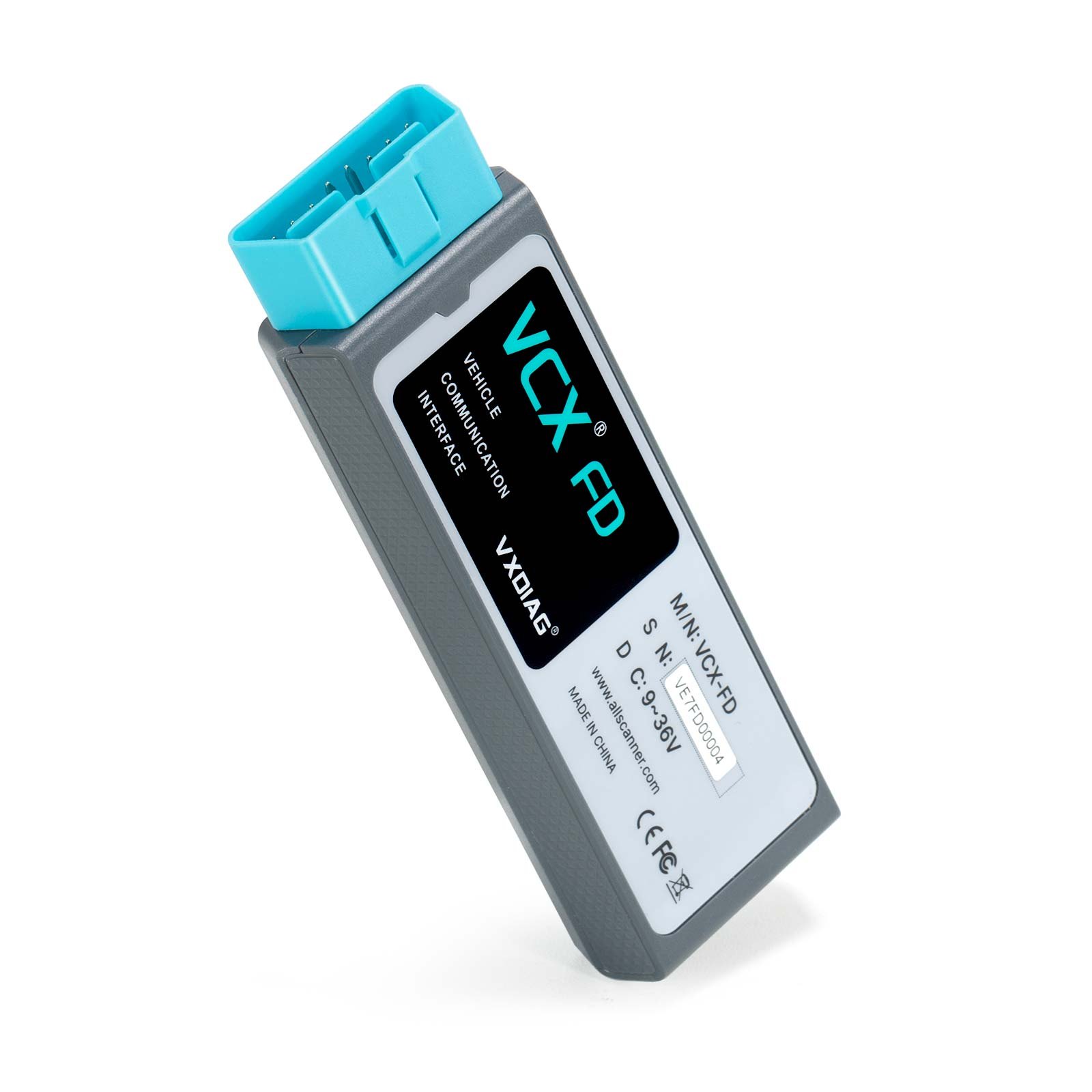

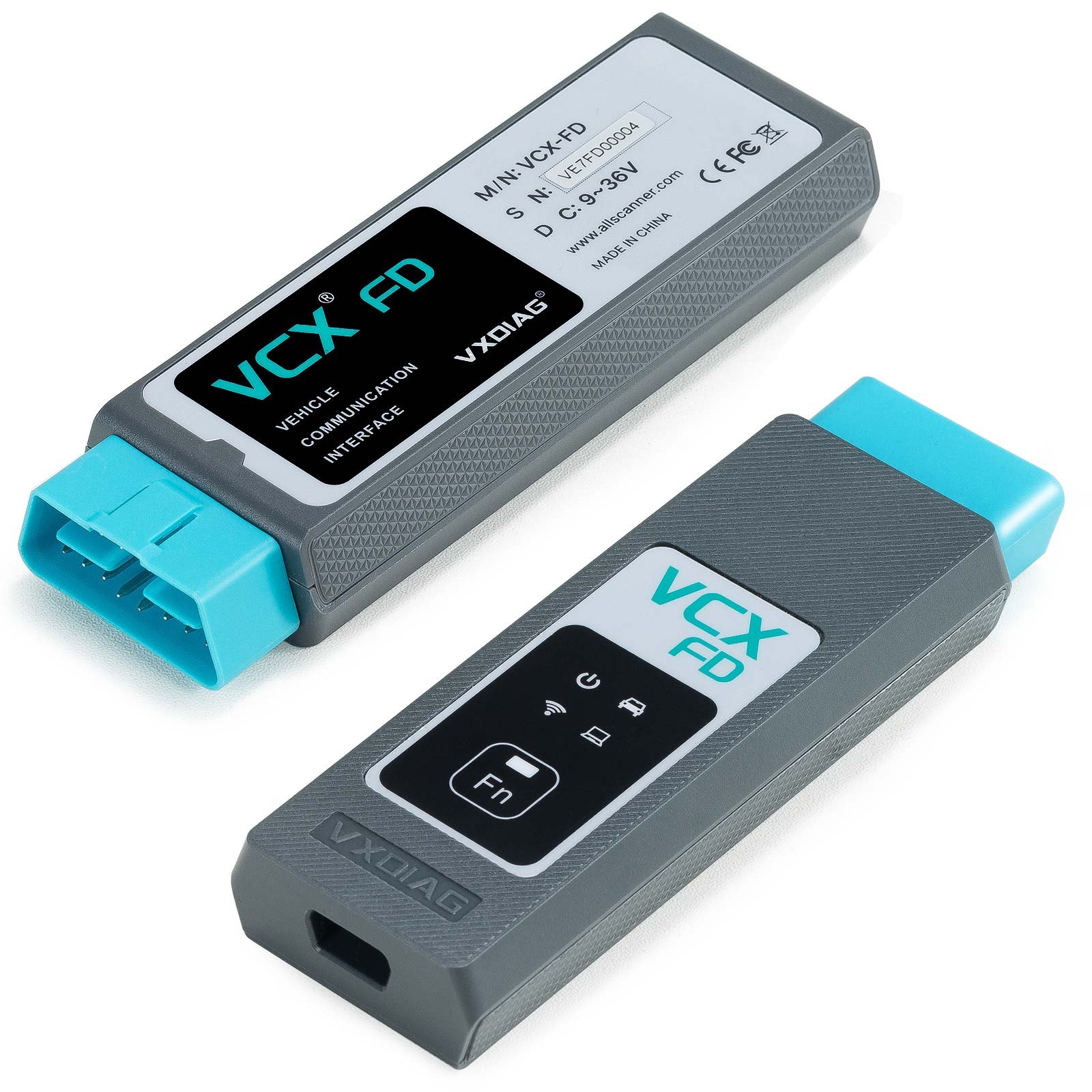

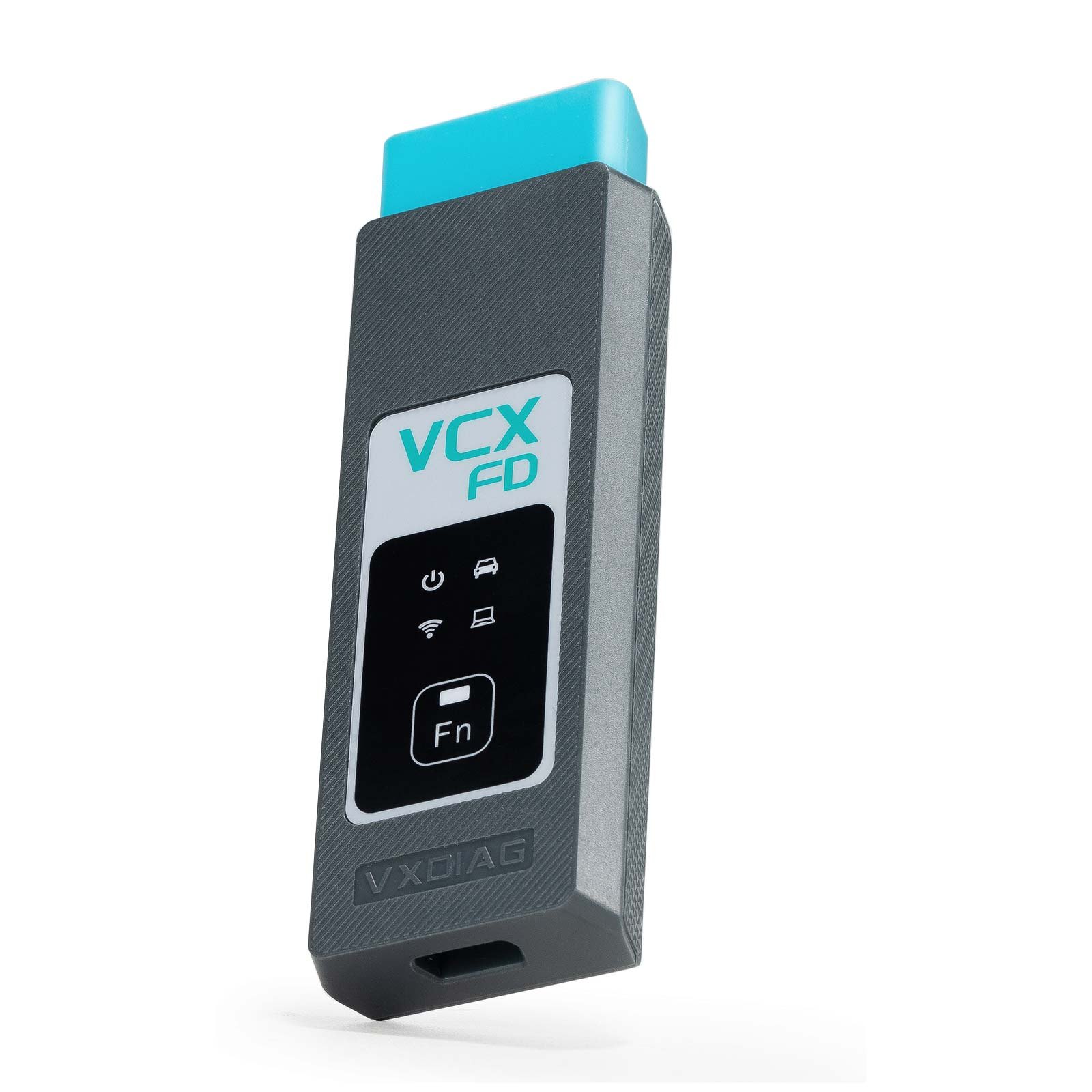

- 1 x VXDIAG VCX-FD interface
Specifications
| Brand | VXDIAG |
|---|---|
| Type | Car Diagnostic Tool |
| Part number | HKSP506 |
| Condition | New |
| Version | Hardware Only, for Ford/Mazda, for GM, GM + Ford/Mazda 2-in-1 |
| Price range | $543.99 to $763.99 |
