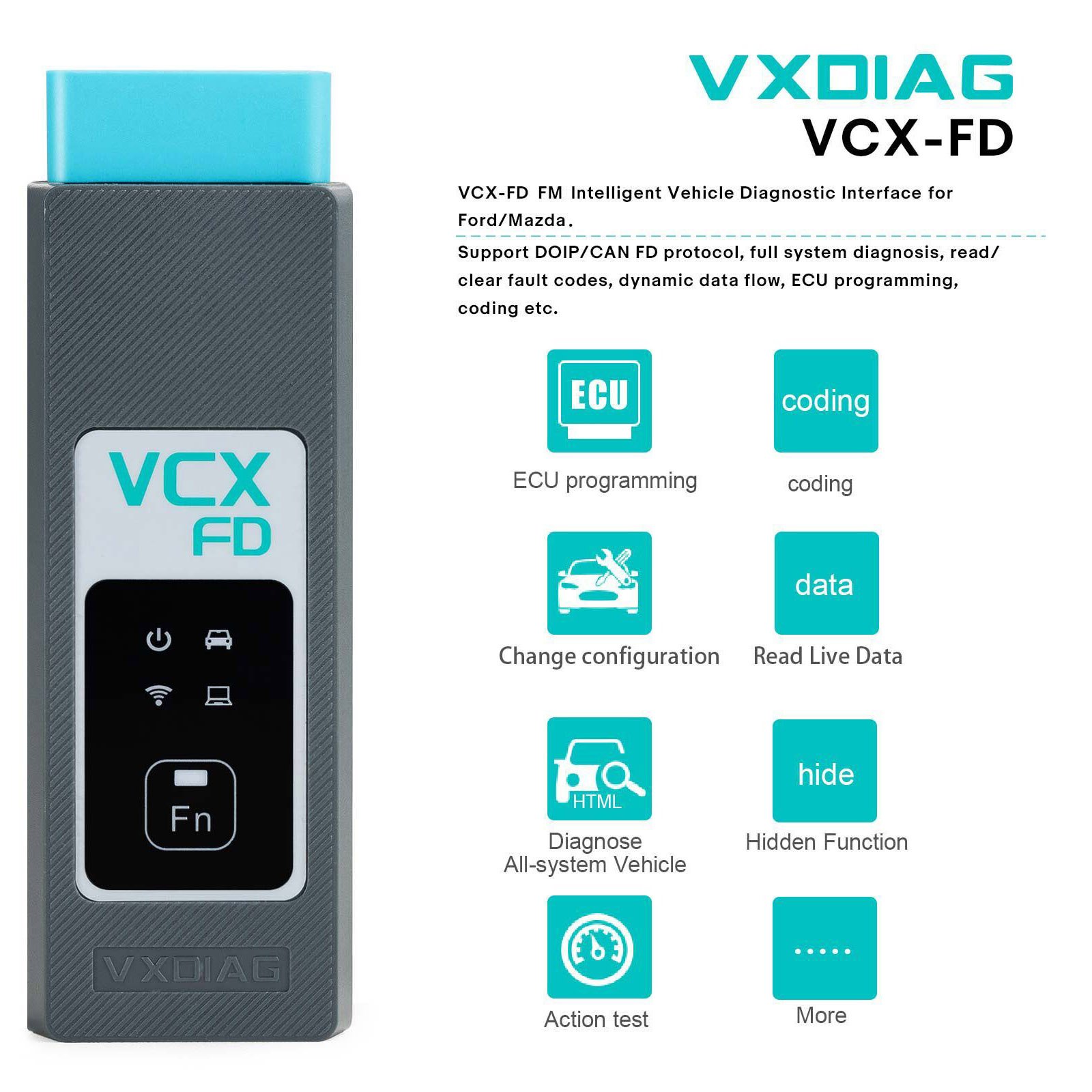

VXDIAG VCX-FD FM Intelligent Vehicle Diagnostic Interface for Ford/Mazda Diagnostic Tool

A VXDIAG VCX-FD intelligent vehicle diagnostic interface for Ford and Mazda, running Ford IDS V130 and Mazda IDS V131. It needs Windows 10 or 11 Pro in 64 bit with at least 8GB of RAM.

Specifications

• Ford IDS Version: V130, Mazda IDS Version: V131
• FORD: FORD IDS
• MAZDA: MAZDA IDS
• OS: WINDOWS 10/11 PRO 64BITS
• RAM: At least 8GB
• Installation Tips: Please turn off anti-virus software before install.

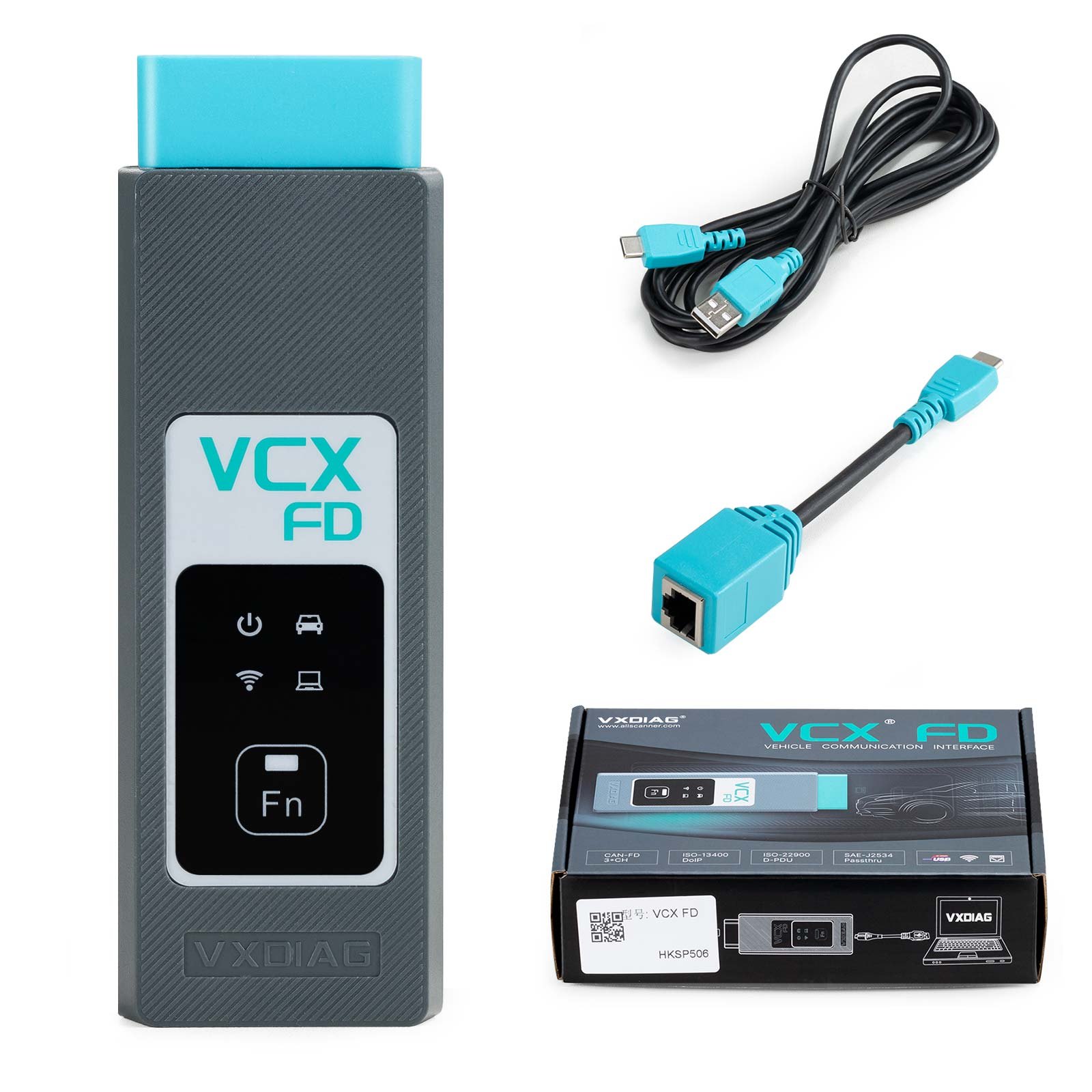

What you get

• 1pc x VCX-FD device
• 1pc x USB cable
• 1pc x RJ45 Ethernet adapter
• Perfect replacement for Ford VCM2
• Support both new and old vehicles from year 2005 to 2024, Ford F series after 2010.
• Compatible with IDS, ForScan, FJDS, FDRS and MDARS. New Models after 2020 need to use FDRS or MDARS.
• VXDIAG VCX-FD for FM Intelligent Vehicle Diagnostic Interface for Ford/Mazda Diagnostic Tool
• VCX-FD intelligent vehicle diagnostic interface represents the next generation of diagnostic technology. The product adopts a newly upgraded dual-core high-speed processor, fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. VCX-FD also supports local and super remote dual-mode diagnostics, providing users with an excellent diagnostic experience.
• The 550MHz ARM protocol processor supports CAN-FD and all traditional vehicle bus protocols.
• 560MHz MIPS network processor supports DoIP Super Diagnostic Gateway.
• Dual-core processor communicates via 100M Ethernet, high bandwidth and low latency

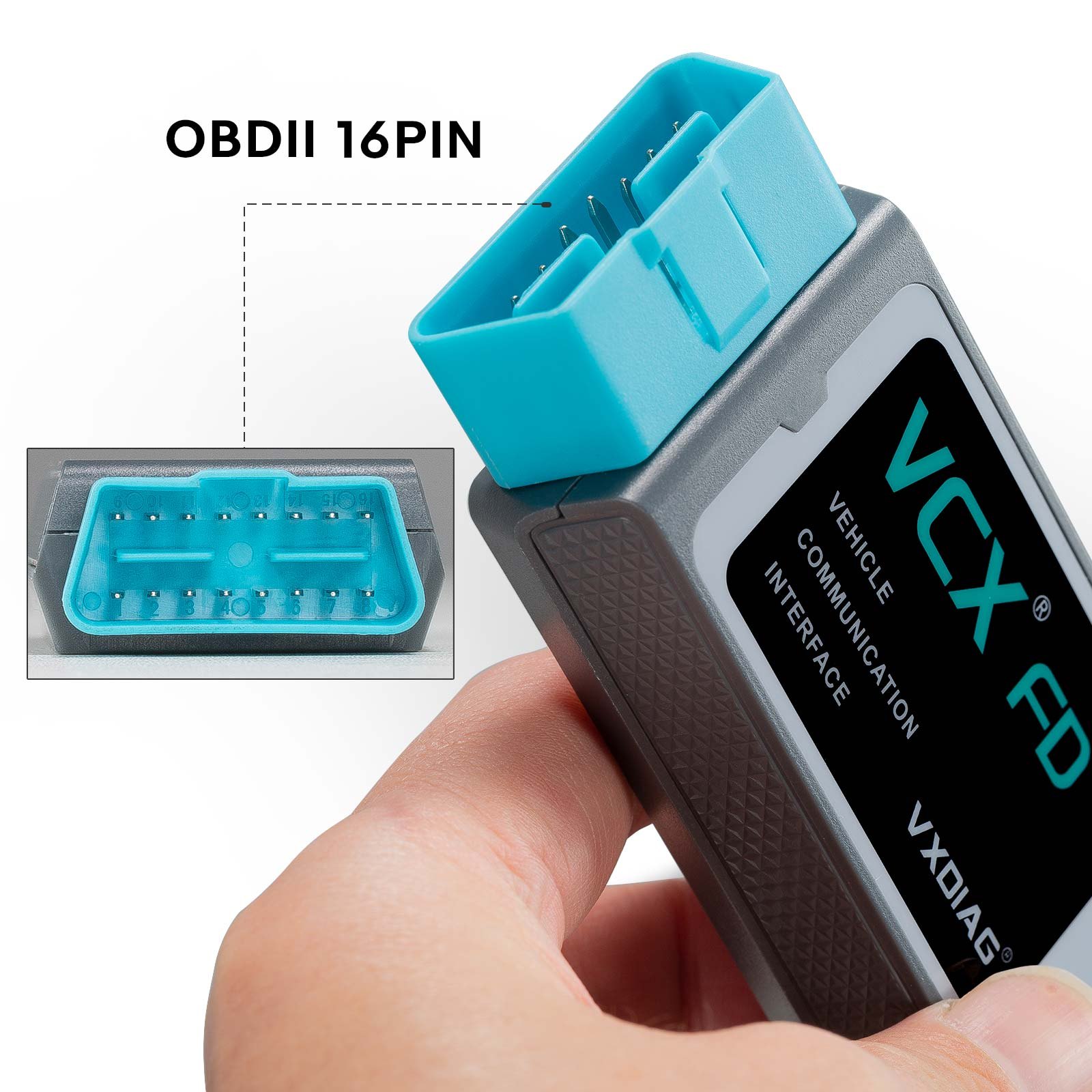

• Integrated OBD smart protocol multiplexer chip, all pins can intelligently switch any protocol.
• Supports 3-channel CAN-FD multi-channel concurrent communication, supporting up to 5M Bps high-speed communication.
• Supports ISO-13400 standard dual-channel DoIP interface Option 1 and Option 2.

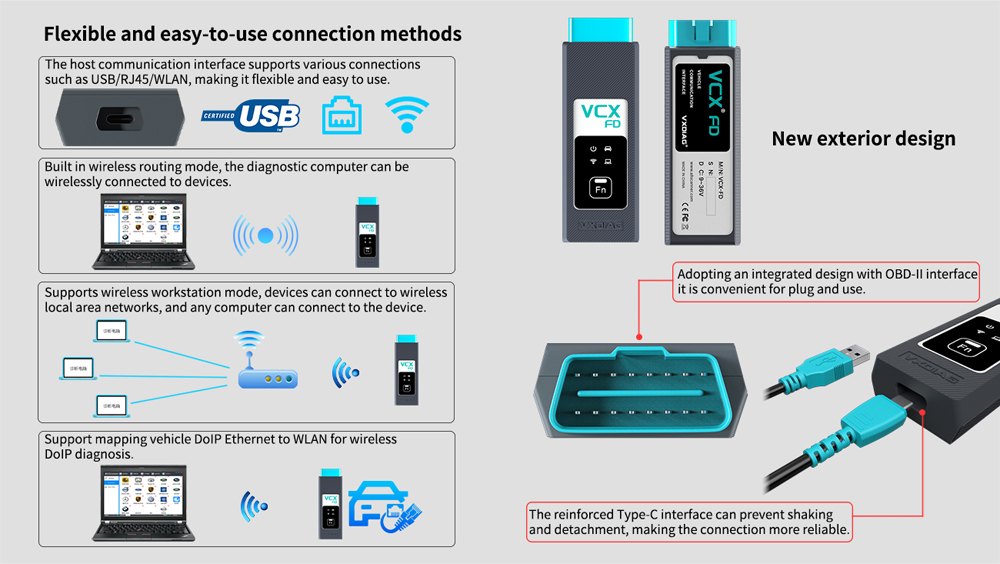

• The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
• Supports mapping vehicle DoIP Ethernet to WLAN for wireless DoIP diagnostics.

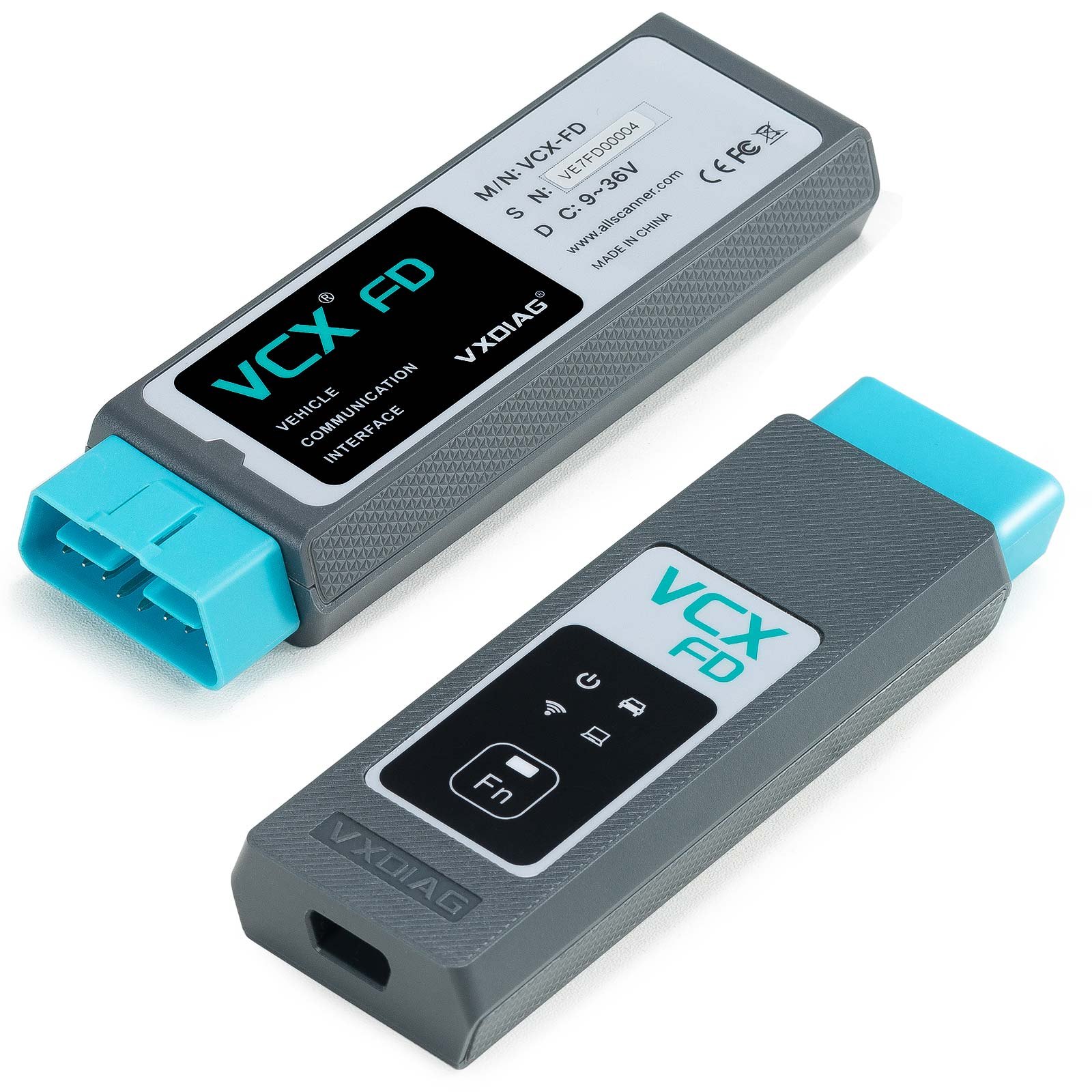

• Brand new appearance design

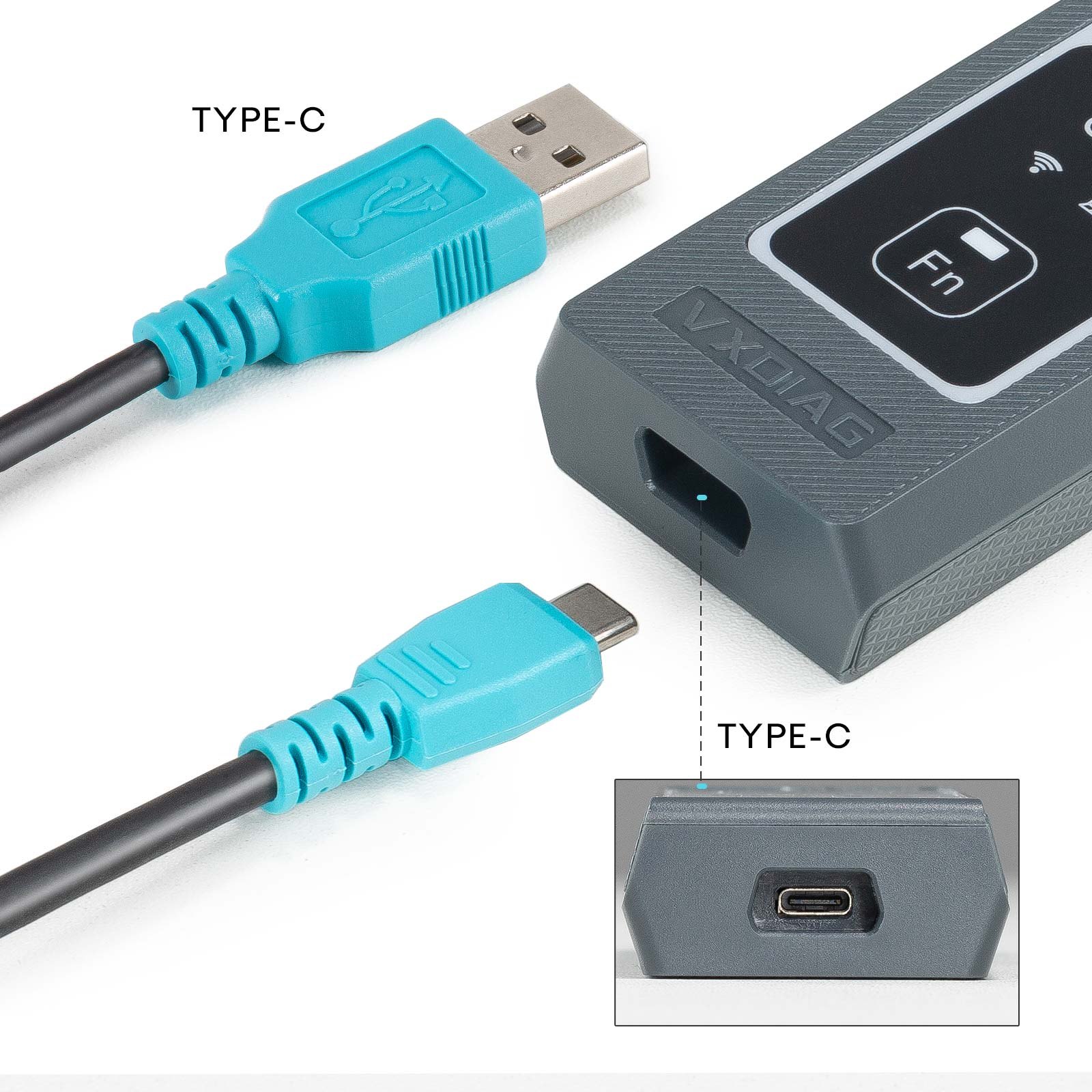

• The reinforced Type-C interface prevents shaking and falling off, making the connection more reliable.
• VCX-FD is currently compatible with 15 original factory diagnostic model brands.
• After the hardware update, it fully supports new models and new original factory diagnostic software based on CAN-FD and DoIP.
• SAE-J2534-1/2 PassThru V04.04 & V05.00
• ISO-22900 D-PDU API for MVCI
• RP-1210A/B/C API for VDA
• J2534 original ECU programming function
• J2534 controllable programmable voltage output.
• Dual-mode intelligent remote diagnosis
• Super remote diagnosis only requires the device to be connected to the Internet to achieve original factory online diagnosis.
• Compatible with remote diagnosis, it can support remote diagnosis of a variety of devices with special functions.
• The device supports one-click network distribution function and quick access to the remote diagnosis platform.
• Make sure there is no other Software installed on the computer, Ford IDS and Mazda IDS need to install on 2 separate clean windows systems.
• Install Ford IDS-1**
• Wait for the installation of Ford IDS &nD-A-Sh; 1**, and restart the computer
• Install the Ford original VCI software_ 1.0.0.10.exe
• Wait for VX manager and IDS driver installation to complete
• Install mazdaids-1**
• Wait for mazdaids &nD-A-Sh; 1** installation to complete and restart the computer
• Install the latest VX MANAGER version via www.vxdiag.net

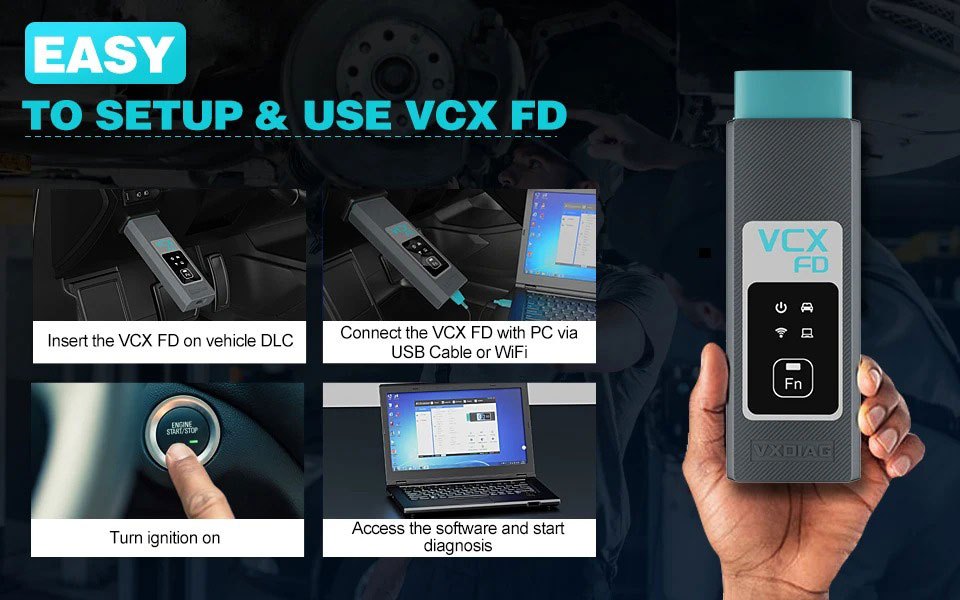

• Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car's OBD2 Port.

VXDIAG advise turning off antivirus software before installing, since it interferes with the setup.
