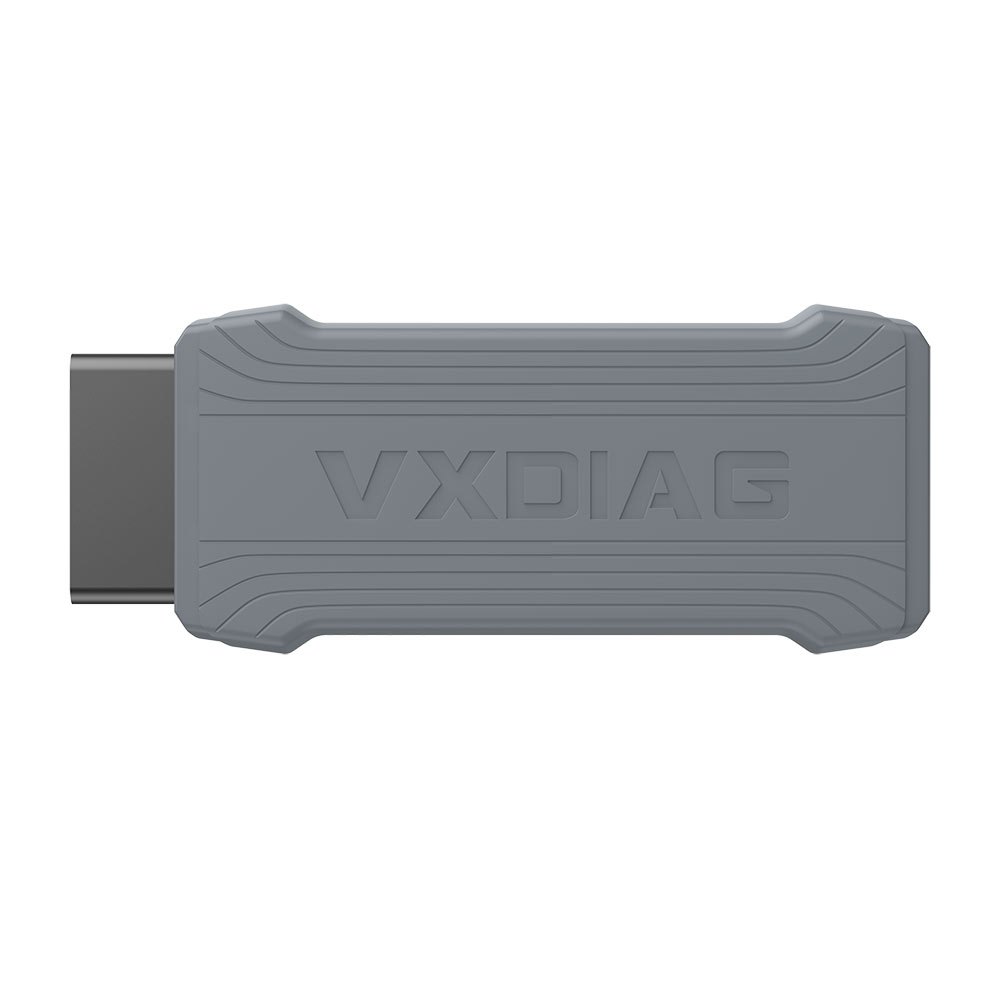

USB Version VXDIAG VCX Nano for GM And OPEL Diagnostic Tool

A USB version VXDIAG VCX Nano for GM and Opel, working on Chevrolet, Cadillac, GMC, Buick, Hummer and Opel. It supports GM Tech2Win and GDS2, replacing the original MDI and MDI2, and diagnoses engines, transmissions, ABS and instruments. GDS2 runs in English, Spanish, French, Italian, Portuguese and Dutch, with Tech2Win in English.

Specifications

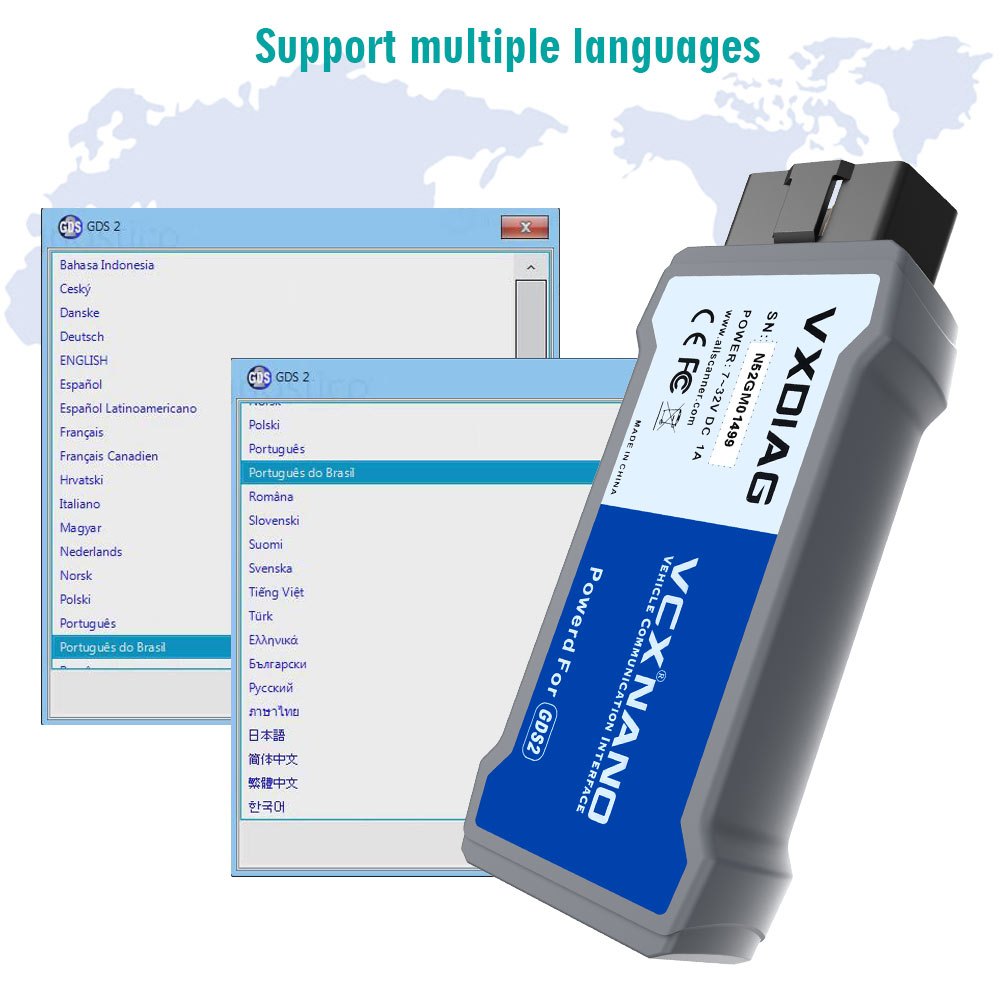

• GM GDS2 Languages: English, Spanish, French, Italian, Portuguese, Netherlands, Russian, Arabic, Japanese, Chinese, Vietnamese
• GM Tech2win language: English
• Q: Can this do 2006 Cadillac CTS via Tech2Win?
• A: Yes, it can support.

Also stated by the supplier

• VXDIAG VCX Nano for GM/OPEL works on GM Chevrolet Cadillac GMC Buick Hummer OPEL till 2022 year
• Support GM Tech2Win and GDS2, perfectly replace GM original tool MDI and MDI2
• Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more

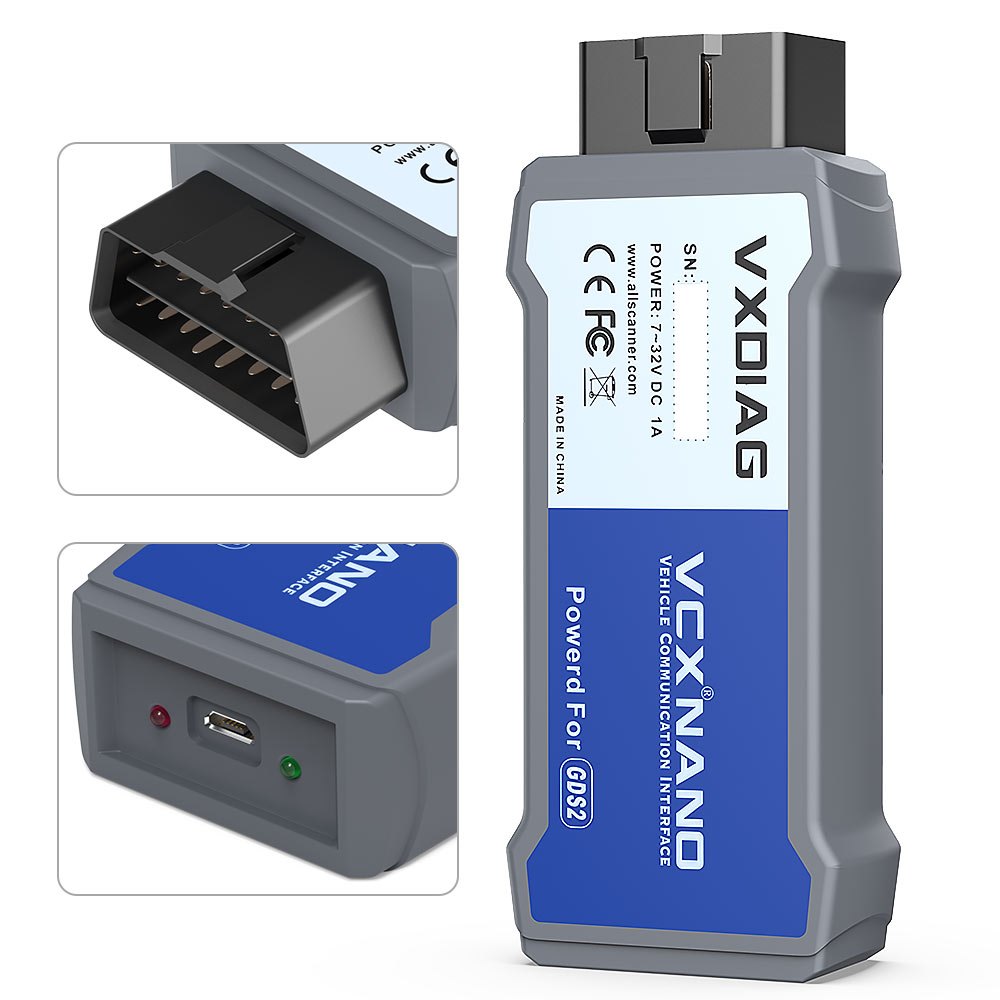

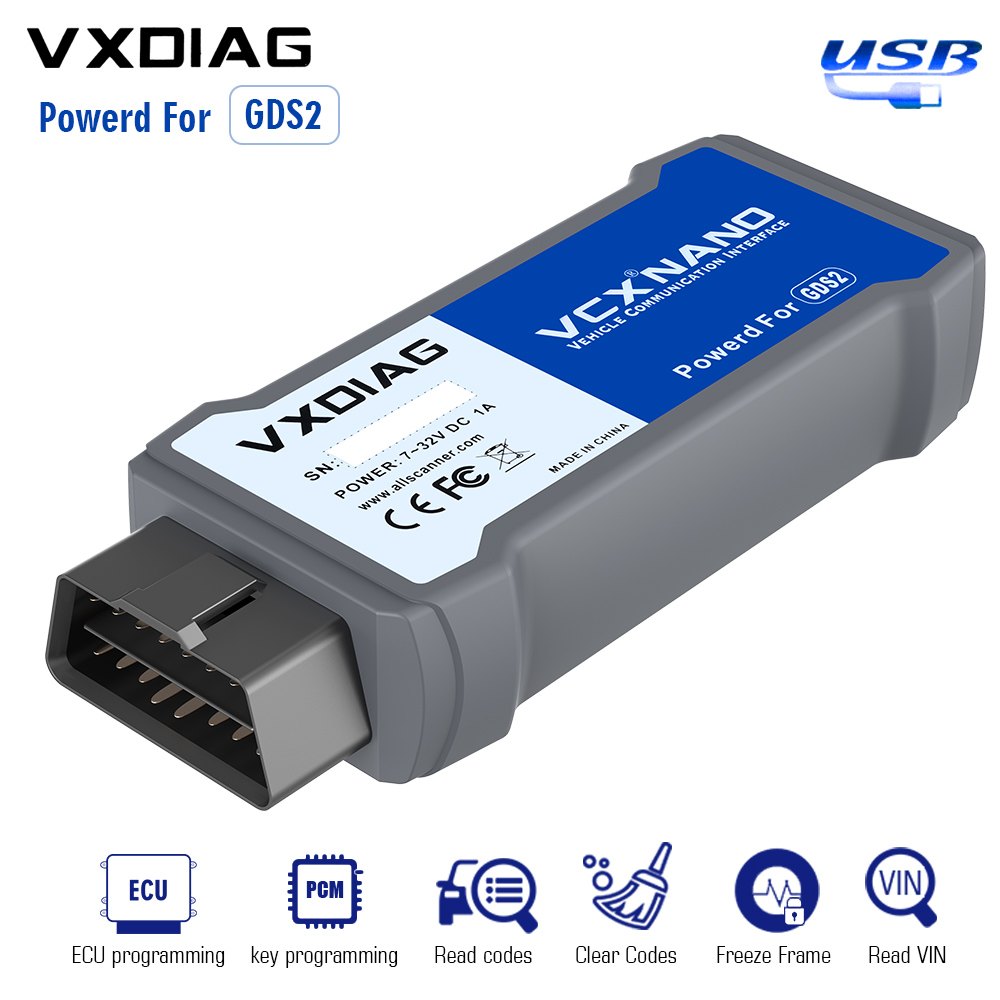

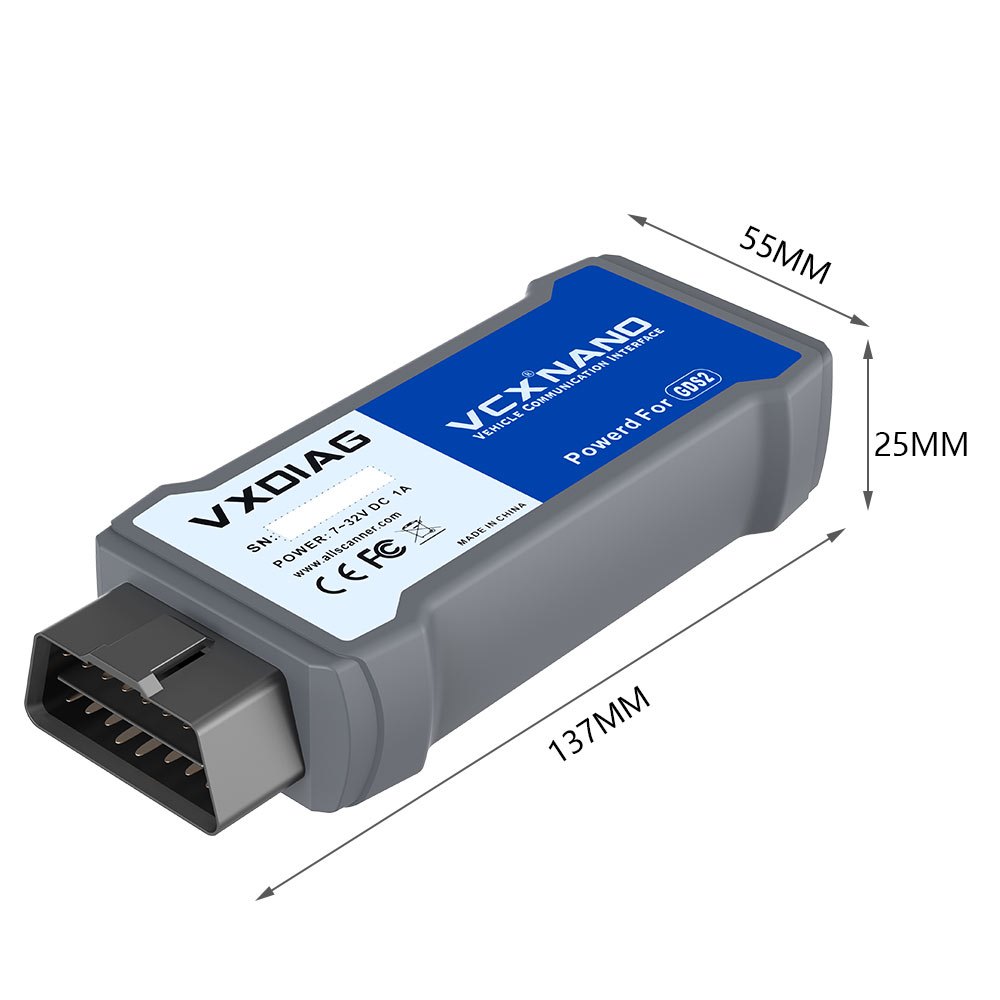

• USB Version VXDIAG VCX NANO for GM/Opel Diagnostic Tool
• Support GM Tech2Win and GDS2, perfectly replace GM MDI and GM MDI2.
• Quick access to vehicle data for maintenance or management reports
• Support GM vehicle from year 2000 to 2022
• GDS2 V2022.05
• Tech2WIN 16.02.24
• With USB Disk in Package containing latest Software.
• Only GDS2 supports Opel and Saab. Tech2Win DOESN'T support Opel and Saab (2000-2010). Can't work on Holden.
• Fully compatible with SAE-J2534-1 & SAE-J2534-2

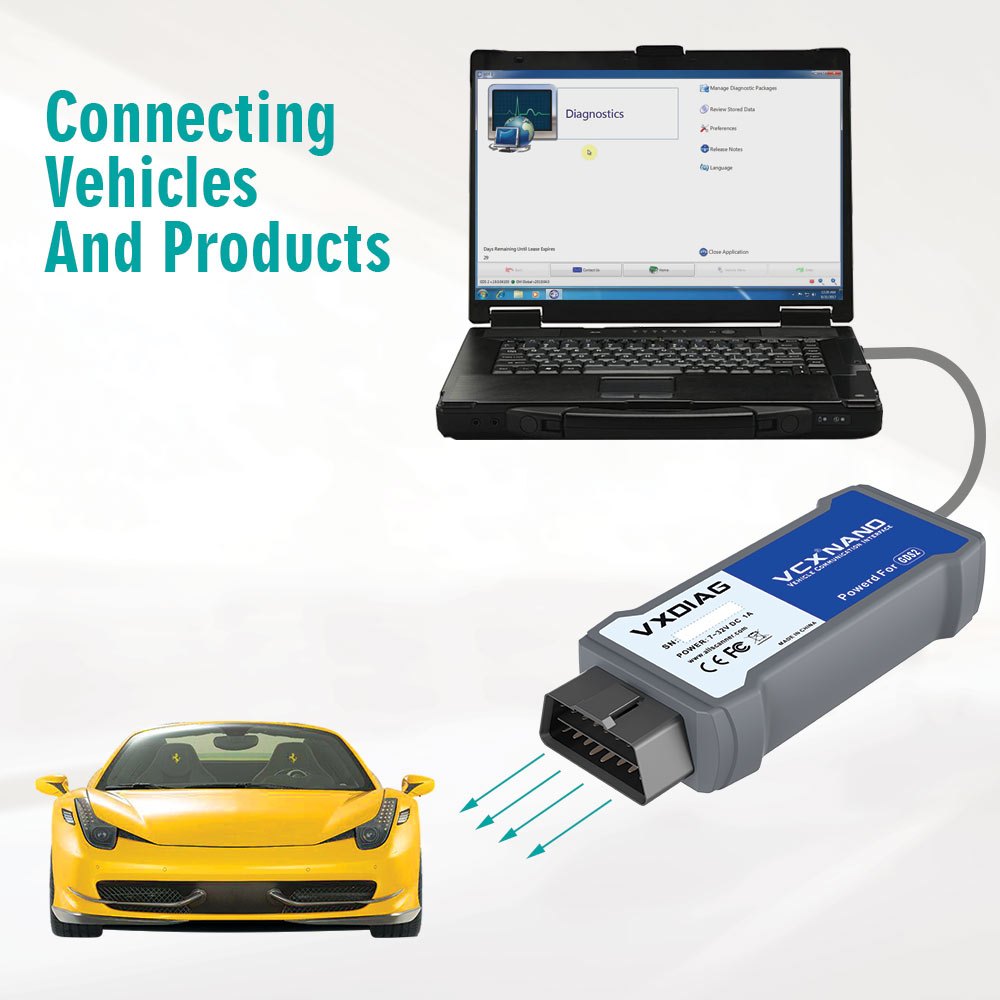

• USB Vehicle-to-PC connectivity (Check: VXDIAG VCX NANO for GM/OPEL WIFI Version)
• All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.
• CE and FCC compliance for hardware
• Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
• Support GM TIS2WEB online Service Programming System (SPS)
• Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality
• Global Diagnostic System (GDS & GDS2)
• New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.
• GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.
• VCX Nano GM Kit support both GDS & GDS2. GDS 2 works similar to the original GDS. easier and faster
• GDS 2 Provides the Following Capabilities in Multiple Languages:
• Read VIN, ECU part numbers and software numbers.
• passthrough programming on GM past model and Global A vehicles
• Increase reprogramming speed 20-70% and get ready to service new models
• For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2.For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That's a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.

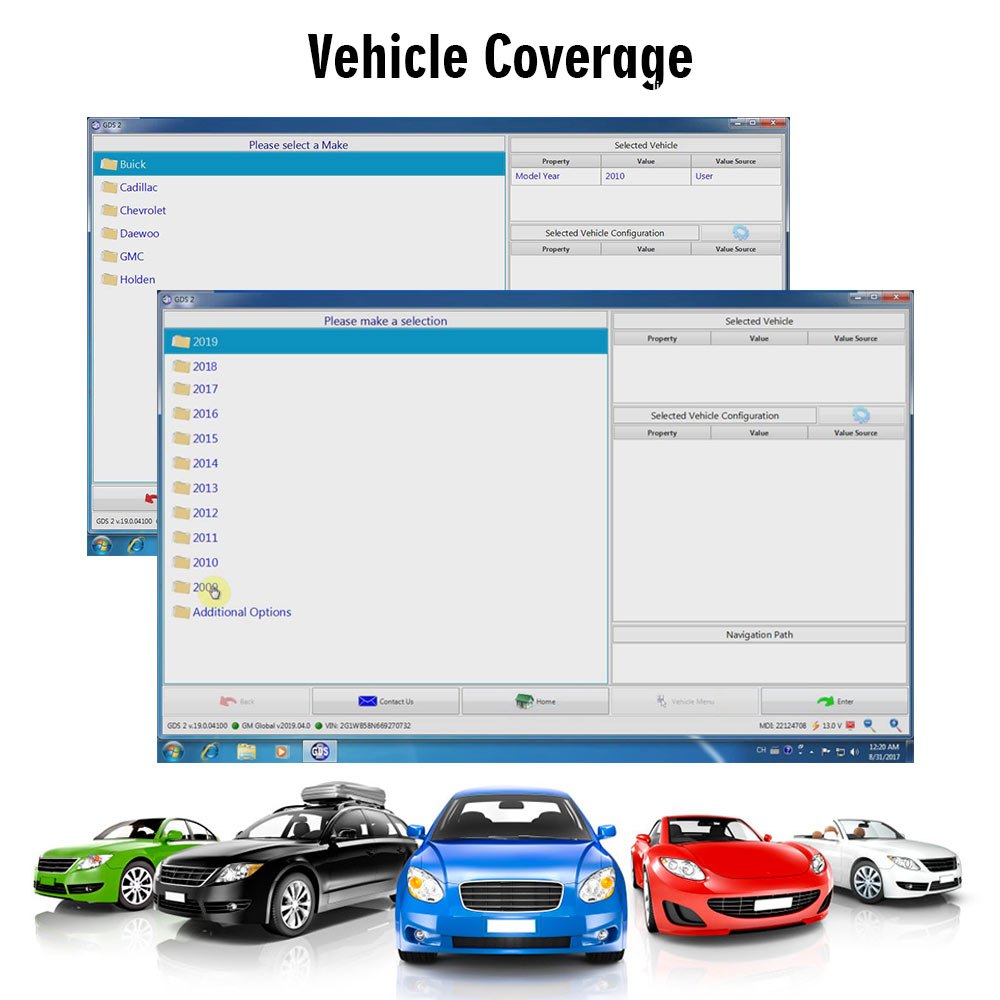

• New Vehicles Model list
• VCX Nano Prime GM KIT is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).Below is the list of vehicles being delivered this year that will rely exclusively on this tool for service.
• Tech2Win Function
• Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel, Saab etc.
• 1pc x VXDIAG VCX NANO for GM WIFI Version
• 1pc x USB Cable
• 1pc x U Disk with Software
• How to Install VXDAIG GDS2 TechWin2 for GM Opel--UOBD2

VXDIAG confirm it covers a 2006 Cadillac CTS through Tech2Win, which the newer software cannot reach.
