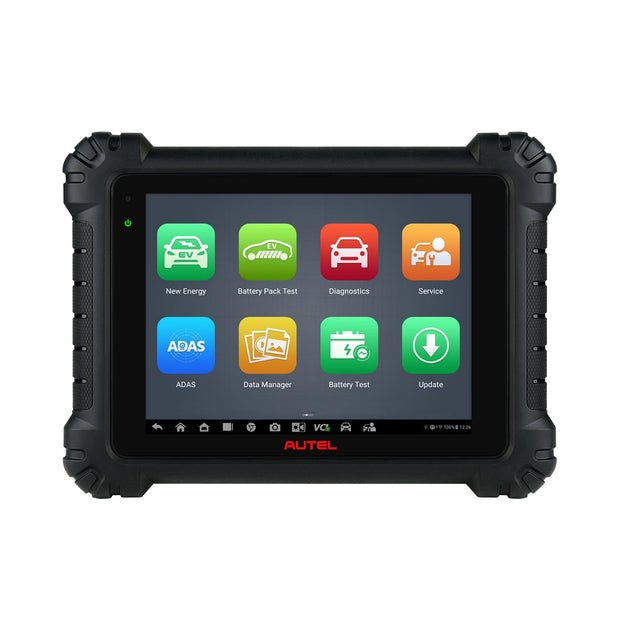

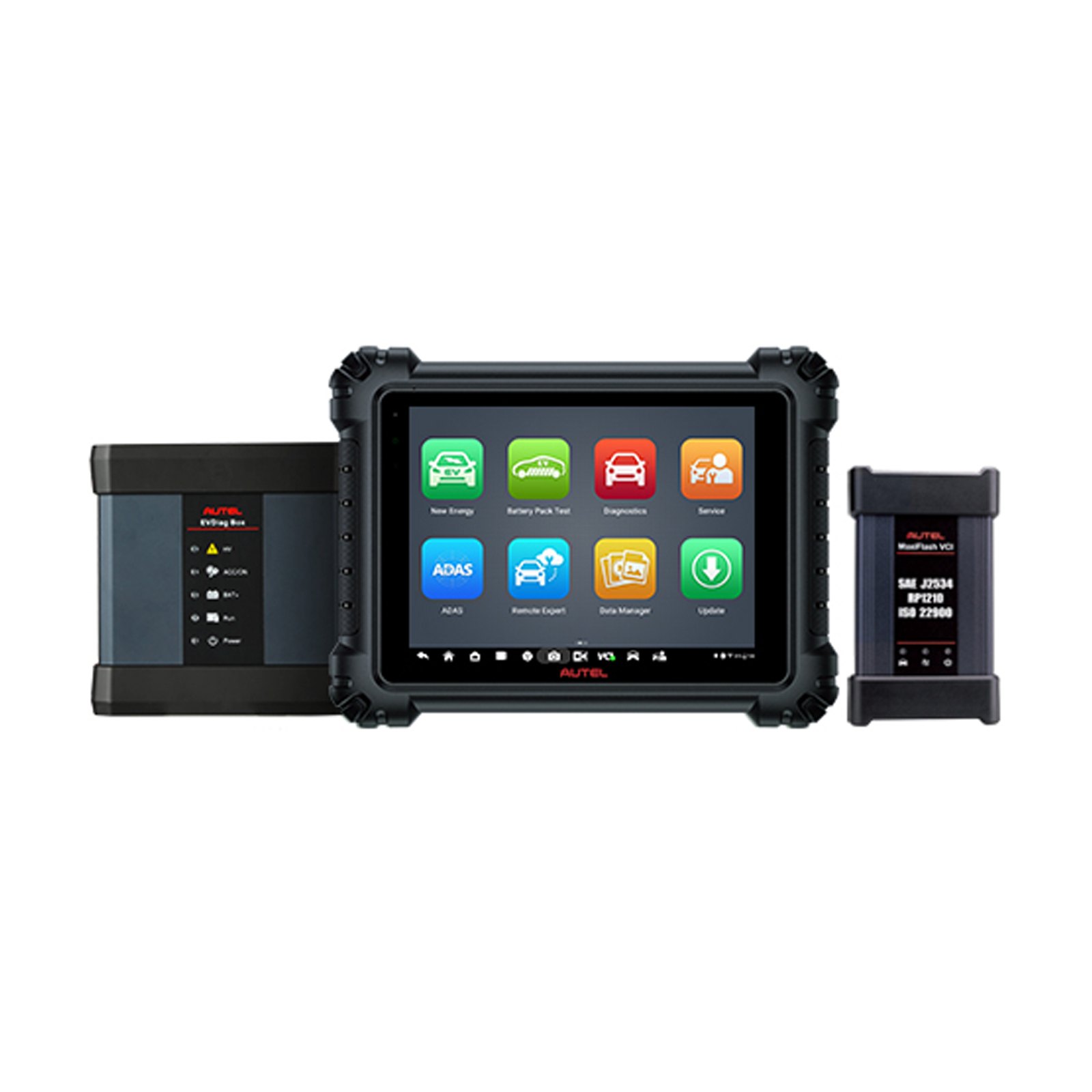

Autel MaxiSys MS909EV EV Diagnostics Scanner with MaxiFlash VCI and J2534

The Autel MaxiSys MS909EV EV Diagnostics Scanner covers electric, hybrid, gas, and diesel vehicles with a dedicated EVDiag box, MaxiFlash VCI, graphics, system information, and step-by-step instructions. Part number: XN-SP584-US.

Notice

For US addresses only. Other addresses use the Autel Ultra EV.

Highlights

• Advanced diagnostics for US, European, and Asian electric, gas, diesel, and hybrid vehicles
• Rapid high-voltage system analysis with code reading, erasing, and live data
• High-voltage block diagrams, component and socket diagrams, and step-by-step disassembly instructions
• State of Charge and State of Health analysis for true battery condition
• Battery pack analysis through OBD or directly with specialty cables and jumpers, with connection guidance
• Automatic system and software updates with real-time push notifications
• Interactive data logging with direct Autel support contact
• Multitasking workshop management for data files, customer info, and vehicle records
• Cloud data manager for customer and vehicle records, scanner data, and technician notes

Five-model comparison

MS909EV, Ultra EV, MS909, MS919, and Ultra compared.

• Connection: Bluetooth MaxiFlash VCI on MS909EV and MS909. Bluetooth MaxiFlash VCMI on Ultra EV, MS919, and Ultra
• Screen: 9.7 inch on MS909EV, MS909, and MS919. 12.9 inch on Ultra EV and Ultra
• Battery: 15,000mAh on MS909EV, MS909, and MS919. 18,000mAh on Ultra EV and Ultra
• Processor: 2.2GHz plus 1.8GHz octa-core on all five
• Memory: 128GB SSD and 4GB RAM on MS909EV, MS909, and MS919. 256GB SSD and 4GB RAM on Ultra EV and Ultra
• Camera: 16MP rear and 16MP front on MS909EV, MS909, and MS919. 16MP rear and 5MP front on Ultra EV and Ultra
• Docking station: missing on MS909EV, MS909, and MS919. Included on Ultra EV and Ultra
• EVDiag box: included on MS909EV and Ultra EV. Missing on MS909, MS919, and Ultra
• Operating system: Android 10.0 on MS909EV, MS909, and MS919. Android 7.0 on Ultra EV and Ultra
• Detection: Auto-VIN and auto-scan, plus scan VIN and plate scan, on all five
• Secure gateway: authorized FCA access with AutoAuth account on all five
• Plate reader on select vehicles on all five
• Coverage: US, European, and Asian electric, gas, diesel, and hybrid vehicles on all five
• OBDII test modes: all 10 on all five
• Service resets: 36 features on all five
• Diesel PM reset for light and medium duty vehicles on all five
• System diagnostics across all modules on all five
• High-voltage diagrams on MS909EV and Ultra EV only
• Battery pack SOC and SOH analysis on MS909EV and Ultra EV only
• Bidirectional control on all five
• Coding and adaptations on all five
• ADAS upgrade and frame kit purchase required on all five
• Cloud remote programming and report storage on all five
• Guided repair procedures with DTC analysis on all five
• Topology color-coded status screen on supported vehicles on all five
• DTC troubleshooting cases on all five
• Technical service bulletins on select vehicles on all five
• Oscilloscope: missing on MS909EV, MS909, and MS919. VCMI 5-in-one with VCI multimeter, waveform generator, and CAN bus tester on Ultra EV, MS919, and Ultra

MS909EV EV features

• High-voltage diagnosis with codes, live data, SOC, SOH, total voltage, total current, pack voltage delta, and temperature
• High-voltage block diagram, line circuits, and module location
• Picture and video operating guidelines
• Offline battery pack diagnostics
