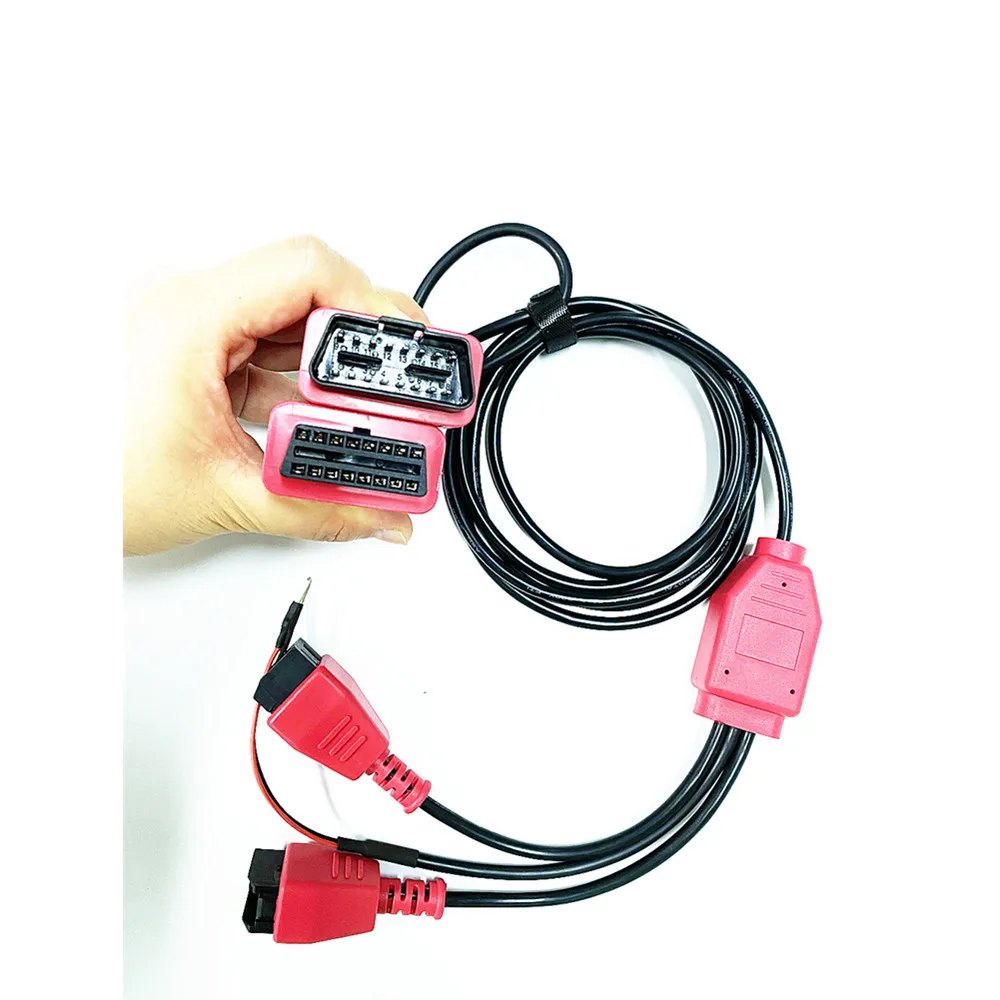

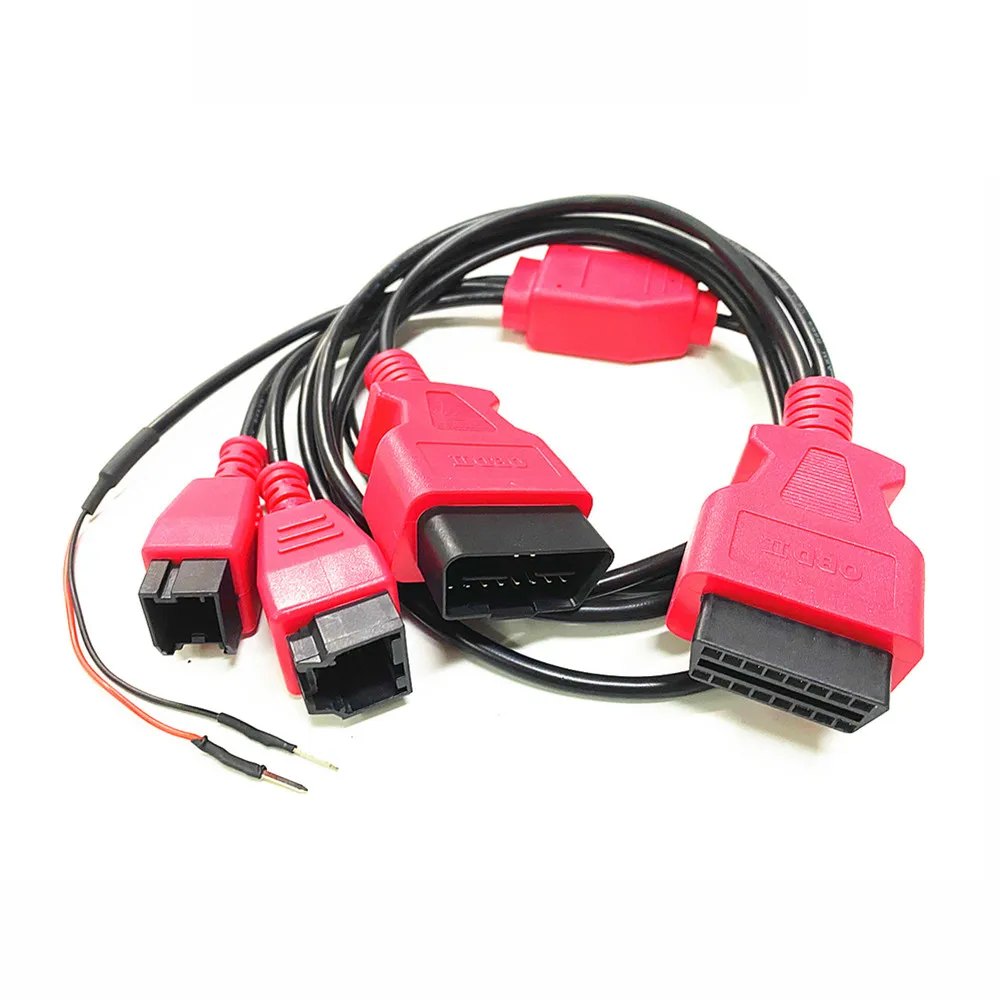

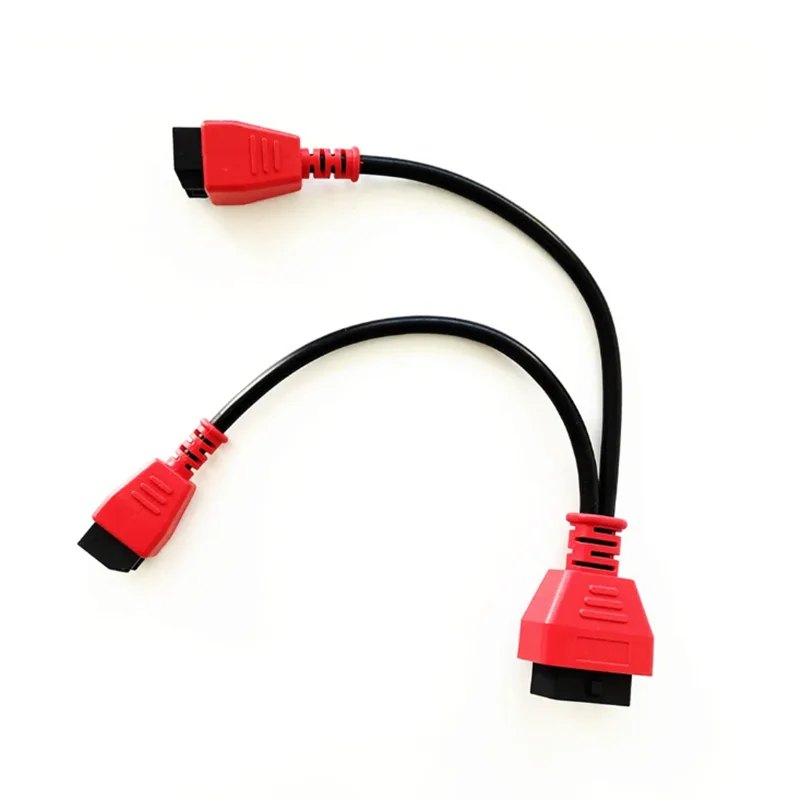

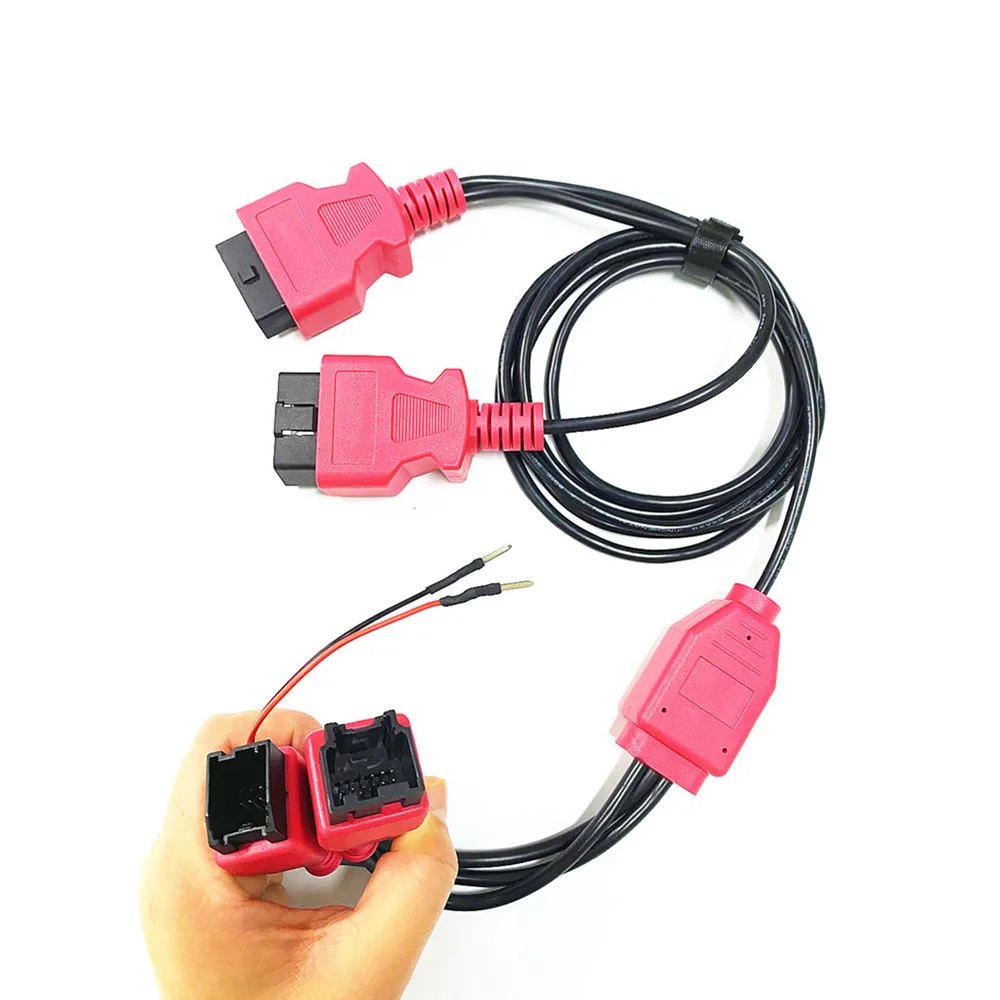

Universal For Chrysler 12+8 Adapter Connector Cable Adapter for Autel MaxiSys Programming Cable After 2018 Year

An adapter cable that brings the Chrysler 12 plus 8 connector to an Autel MaxiSys, needed on Chrysler group vehicles built after 2018 where the security gateway sits between the diagnostic socket and the modules.

What you get

• 1pc x for Chrysler 12+8 Cable Adaptor for Autel MaxiSys
• for CHRYSLER cable is universal cable,it works for AUTEL maxisys scanner also works for LAUNCH X431/OBDSTAR scanners etc..
• Top Reasons for Choosing This Cable
• for Chrysler 12+8 Adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.
• 2018 and newer for Chrysler, for Dodge, for Ram, for Jeep, and for Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new for Chrysler 12+8 Diagnostic Cable allows communication with latest model for Chrysler,for Dodge,for Jeep, for Fiat & for Alfa vehicles.
• The Cable Adapter can be used with for Autel Maxisys Series Scanners,such as MS906,MS906BT,MS906TS,MS908, MS908S, MS908S PRO, Maxisys Elite etc.
• Use with for Autel MaxiSys scanner to diagnose for Chrysler Jeep Renegade Wrangler 300C after 2018 year
• Most 2018 and newer FCA vehicles include a Security Gateway Module.
• Expect to see this message when scanning for Chrysler with the Security Gateway Module:
• OBDII Cable Adapter for Autel maxisysfor Chrysler for Dodge for Jeep for Fiat for Alfa 12+8
• Access for Chrysler and for Fiat Vehicles Using Secure Gateway Module
• Required to Access 80% of 2018 for Chrysler and for Fiat vehicles
• Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles
• Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:
• 2013+ for RAM Promaster
• 2015+ for Fiat 500x
• 2015+ for RAM Promaster City
• 2016+ for Jeep Renegade
• 2017+ for Alfa Romeo Giulia
• 2017+forJeep Compass
• 2017+forJeep Cherokee
• 2018+forJeep Wrangler
• 2018+ for Ram Trucks
• 2018+ for Dodge Durango
• 2018+ for Jeep Wrangler (JL Body only, not JK)
• 2018+ for Dodge Journey
• 2018+ for Jeep Grand Cherokee
• 2018+ for Chrysler Pacifica
• 2018+ for Chrysler 300
• 2018+ for Dodge Charger
• 2018+ for Dodge Challenger
• 2019+ Most for Fiat for Chrysler for Jeep for Ram vehicles
• 2020+ ALL for FCA vehicles

Two versions are listed, marked 12+8 and NEW 12+8. Check which your tool and model year need, since the later cars changed the pinout.
