TOPDON Phoenix Scope 4 Channel Oscilloscope with Accessories Works with Phoenix Max, Smart, Elite, Phoenix Lite 3, Phoenix Lit

The TOPDON Phoenix Scope, a four channel oscilloscope supplied with accessories, working with the Phoenix Max, Phoenix Smart, Phoenix Elite and Phoenix Lite 3. The trigger function supports edge, pulse width and other trigger types, and it carries a one year warranty with updates.

Specifications

• Warranty & Updates: 1 Year Warranty
• Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.

What you get

• 1pc x Phoenix Scope
• 1pc x MDCI Pro Type A to B Cable
• 1pc x Phoenix Scope Back Probe Pins Suite
• 1pc x Phoenix Scope Probe Assembly
• 8pcs x Crocodile Clips (4 Red, 4 Black)
• 1pc x BNC to 4mm Test Leads
• 1pc x Phoenix Scope Quick Start Guide
• 1pc x Phoenix Scope Probe Assembly User Manual
• 23 Types of Automatic Measurements
• Special Fast Storage Function
• Soft Keyboard Input
• TOPDON Phoenix Scope 4 Channel Oscilloscope with Accessories
• Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

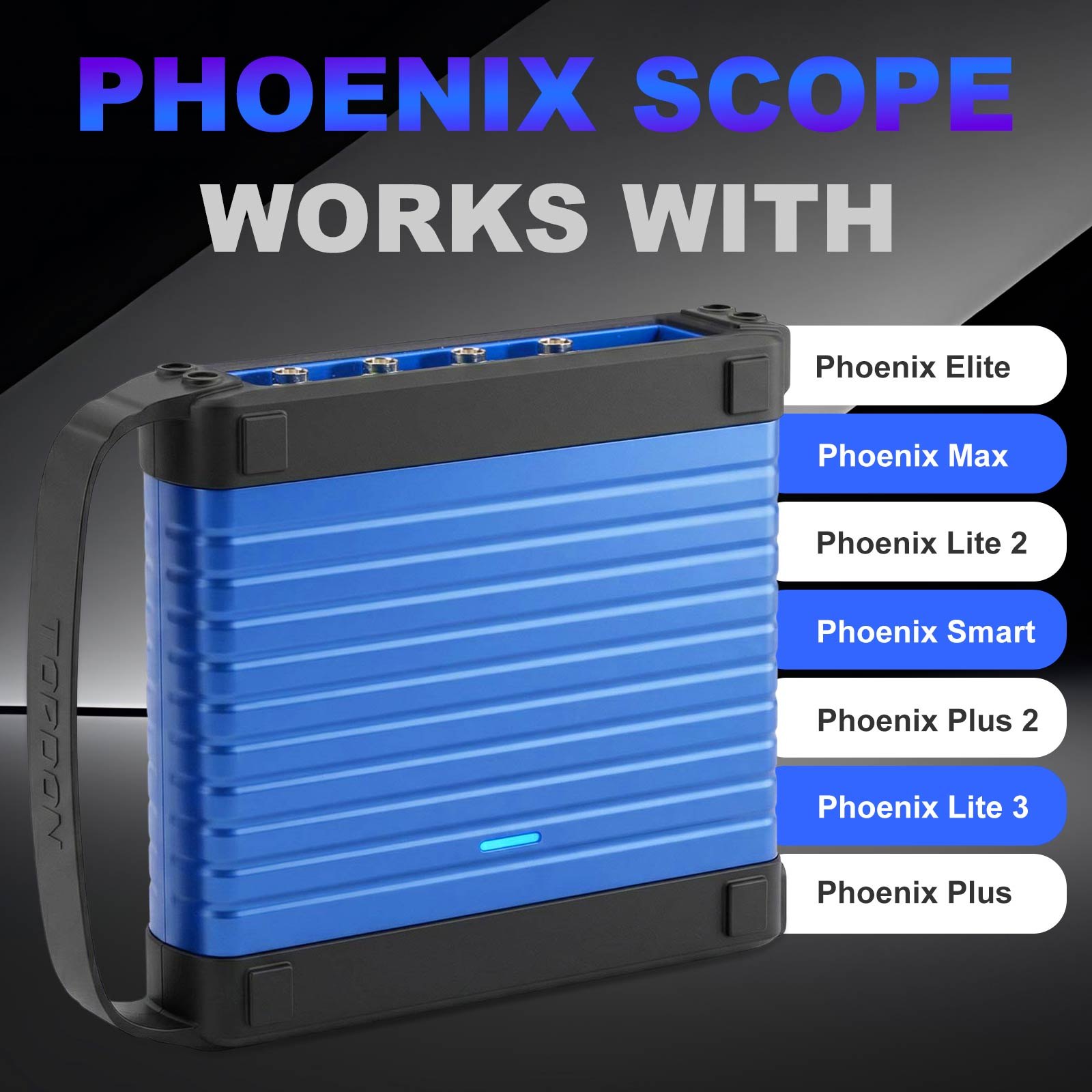

• The Phoenix Scope is compatible with the Phoenix Max, Phoenix Smart, Phoenix Elite, Phoenix Lite 3, Phoenix Lite 2, Phoenix Plus, and Phoenix Plus 2. It does not work independently of these tools.
• Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.
• With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.
• Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.
• When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.
• The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.
• This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.
• This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.

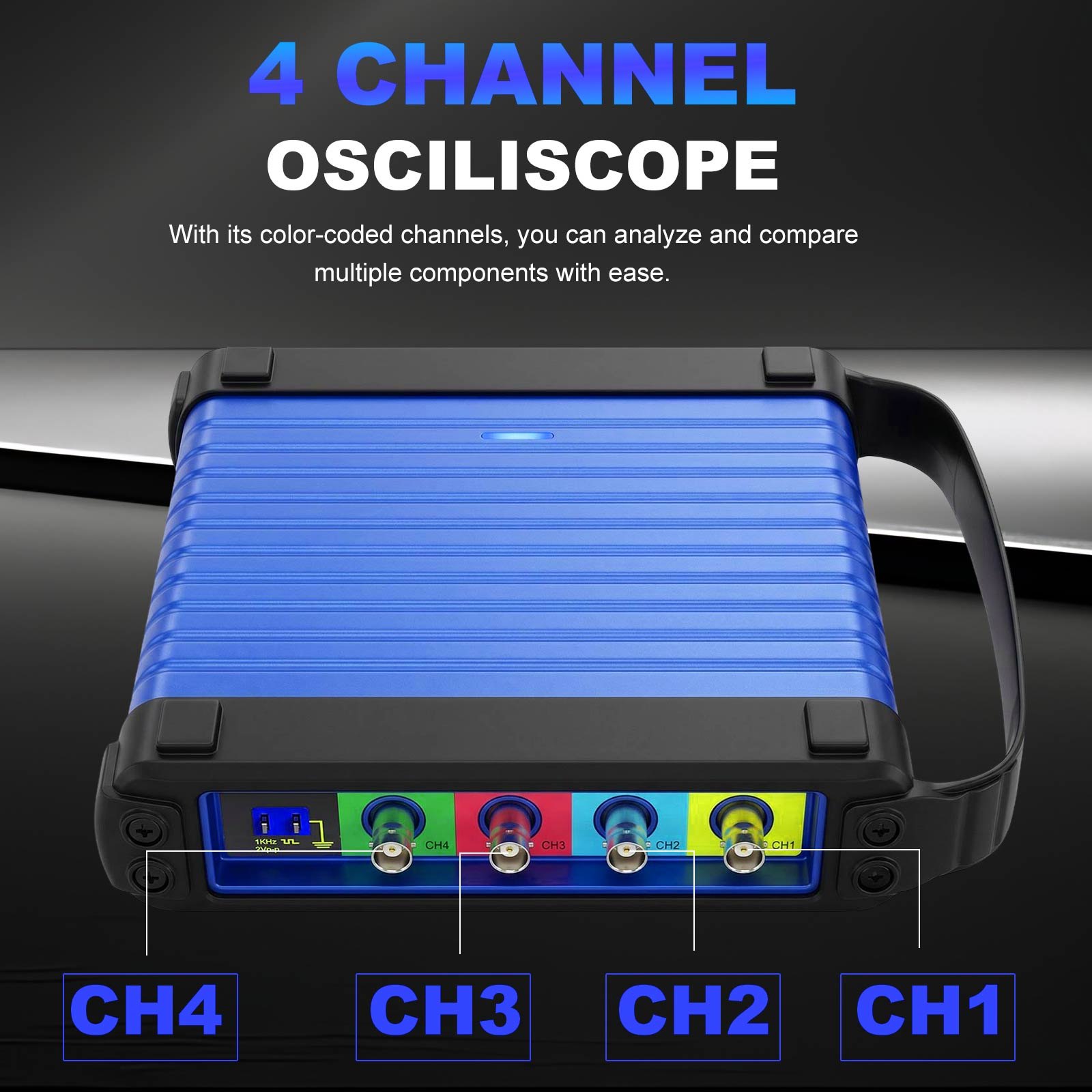

Four channels lets a cam and crank pair be compared against injection and ignition on one screen.
