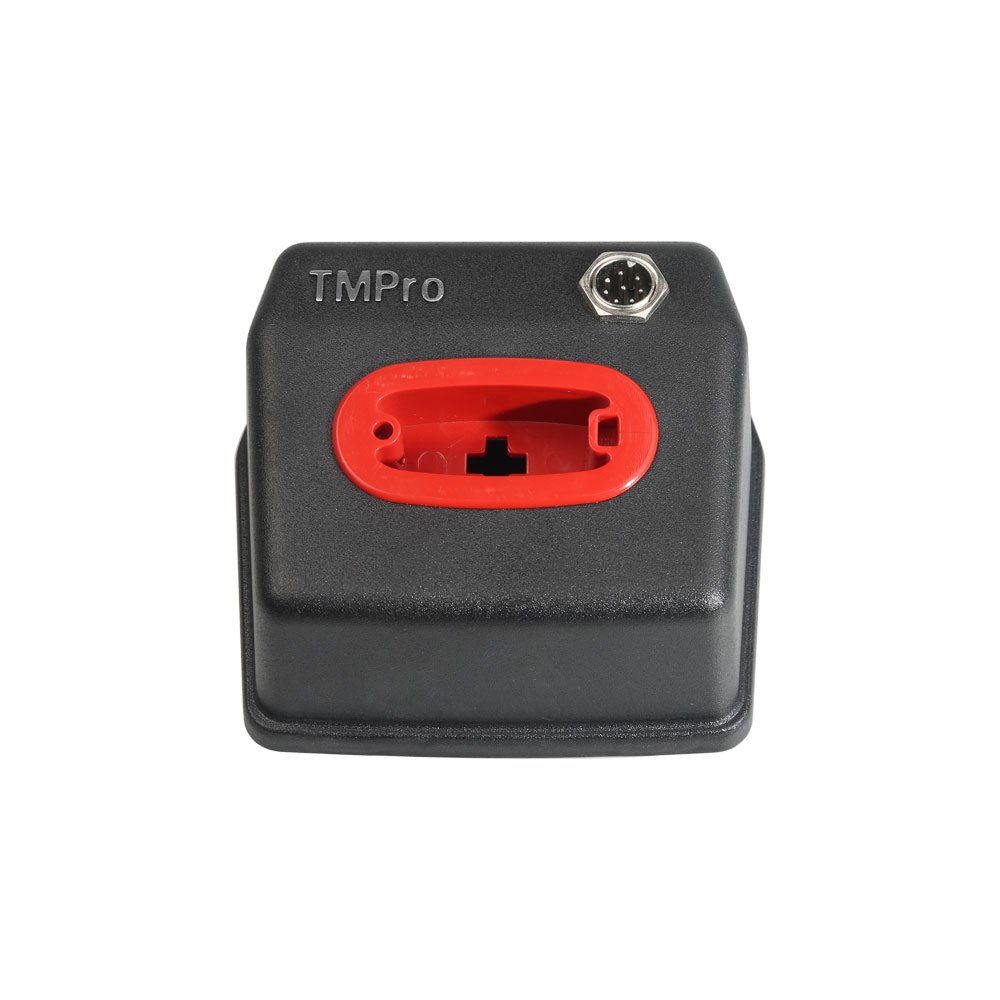

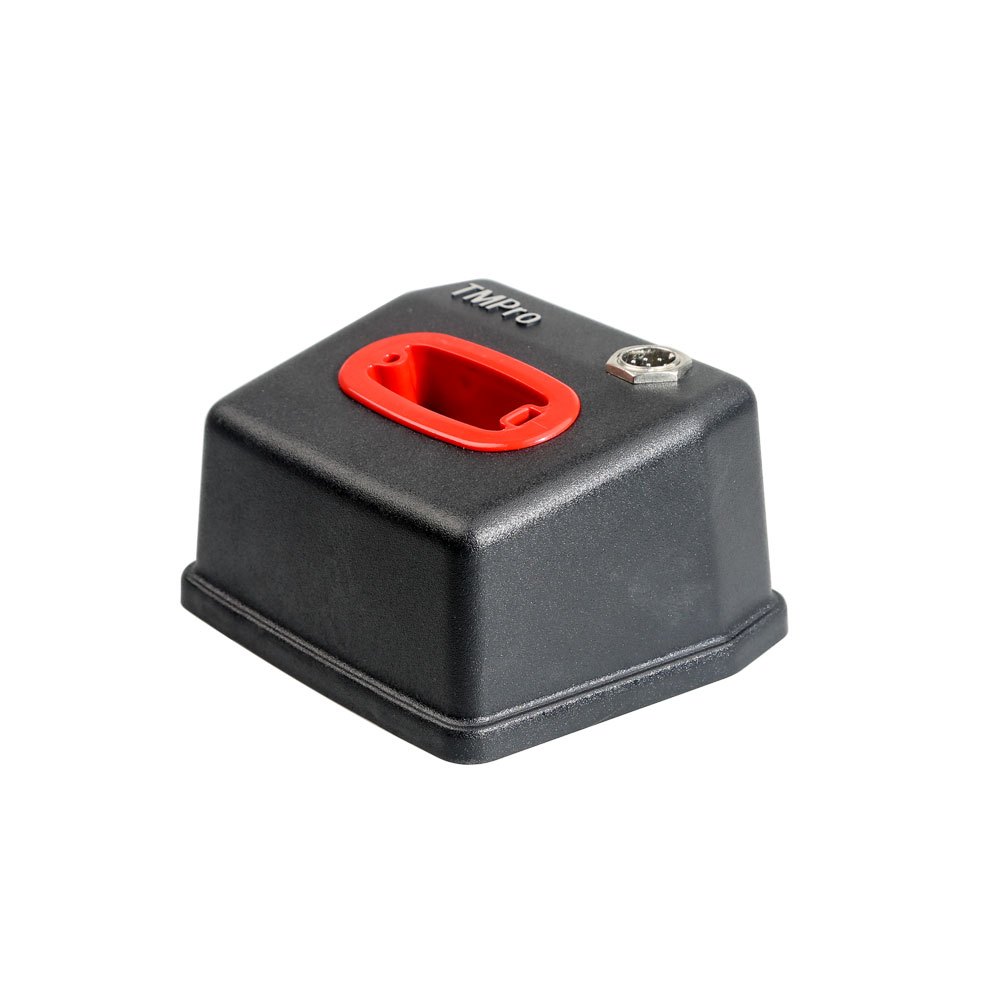

TMPro 2 Original Transponder Key Programmer Transponder Key Copier and PIN Code Calculator Basic

TMPro 2, also called Transponder Maker Pro or TMPro2 keymaker, is a bench transponder tool: it makes keys, copies transponders and calculates pin codes. This is the basic set, which is the starting configuration of a modular system.

Specifications

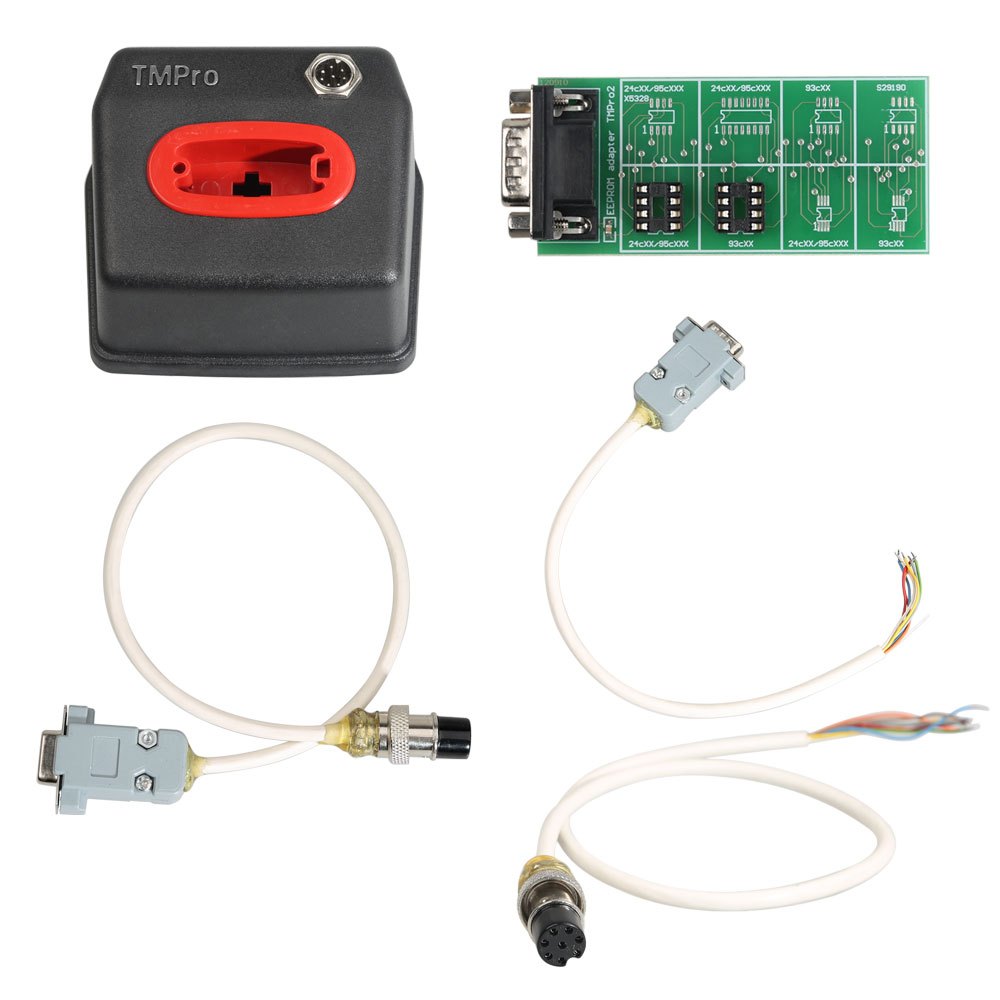

• NOTE: Microchip PIC adapter, eeprom adapter, cable with 8 stripped wires and cable for adapters are included in basic set of TMPro2.
• NOTE: Motorola HC805P18 adapter is not included in basic set of TMPro2. You can buy it along with basic set or at later time.
• NOTE: REMOTE part for keys that use PCF7946 will be programmed and will work.
• Optional: Motorola HC805P18 adapter (used with SW 140,143,159,173,184) - 100 Euro

Also stated by the supplier

• TMPro 2 Original Transponder Key Programmer Transponder Key Copier and PIN Code Calculator Basic
• What is TMPro 2?
• Transponder Maker Pro (also known as TMPro keymaker or TMPro2 keymaker) is a programmer and softwares for transponder key making, transponder key programming, transponder key copying and PIN code/ security code has to be connected to USB port of computer, it does not require external power supply. Main software user interface supports 14 languages, Bulgarian, English, French, Portuguese, Polish, Hungarian, Spanish, Serbian, Italian, Czech, Chinese, Greek, Turkish and Romanian. Programmer and all softwares are auto-updateable to latest version available on server.
• TMPro2 works with immobilisers eeprom dumps. You must have electronic knowledges and to know how to use soldering-desoldering tools and memory devices programmers. It is your choice what programmer you will use for reading memory devices, TMPro2 memory device programmer or other progarmmer. In order to program transponder you have to remove immobox/BSI/UCH unit from car, open it, desolder memory device or solder wires on testpoints, and read it. Depending of vehicle memory device can be serial eeprom, Motorola MCU, Microchip PIC MCU, ST10F269 MCU, Texas Instruments MCU etc... Next step is to program transponder. Last step is to solder back memory device, reassemble immobox/BSI/UCH and fit back to car.
• Working with TMPro2 is easy. You must have some electronic knowledges and equipment, like soldering iron, hot air gun, multimeter etc. Also you need to know which unit contains key data, and it`s location in vehicle. Remove unit from vehicle, open it and locate memory device. For some of units memory device is easy to be accessed, but for other it is not easy, you must cut a hole, dig a silicone etc.
• When type of memory device is clear, you have to see how you can read/write it.
• For 70% of softwares reading and writing of memory devices can be done either by TMPro2 or by other programmer.
• For 5% of softwares reading and writing is mandatory to be made with TMPro2.
• For 25% of softwares for reading and writing of memory devices you must use other programmer.
• Memory device depends on unit, that contains key device can be:

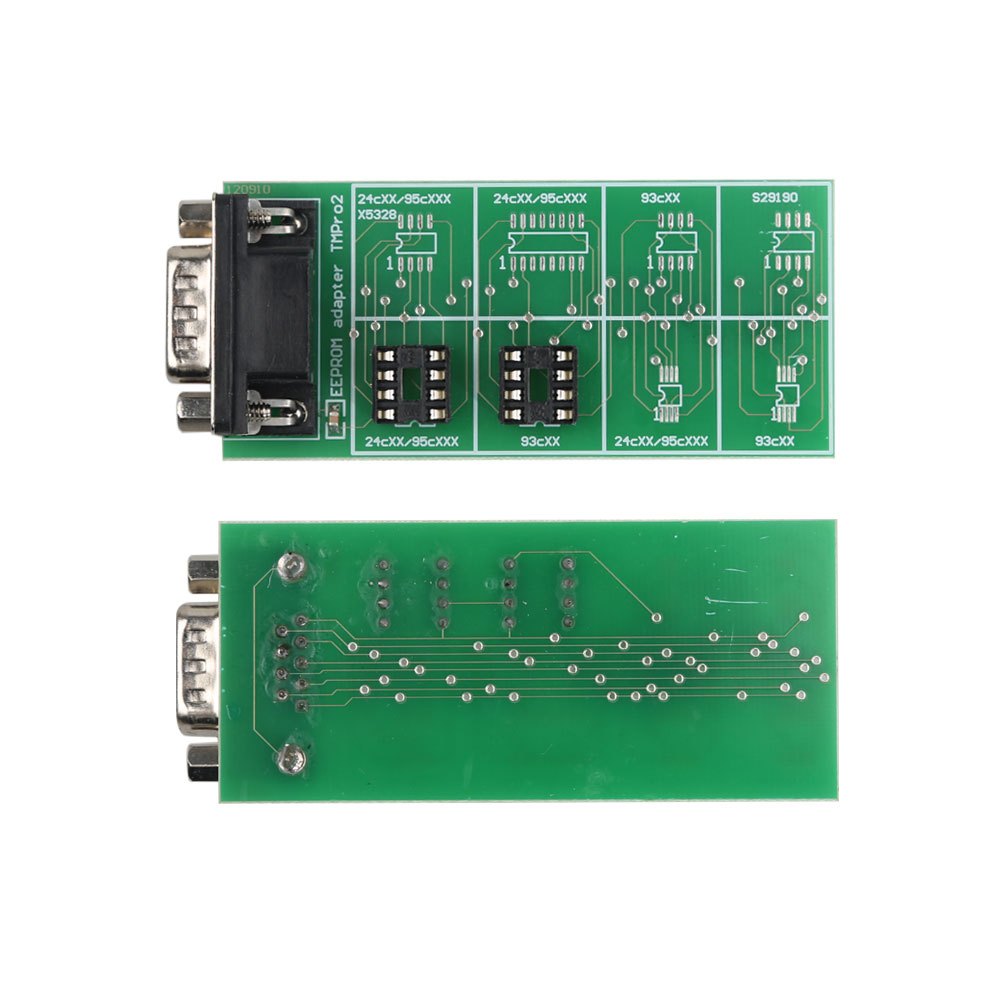

• Serial eeprom. Supported are all 93cXX, 24cXX, 25/95cXXX, X5328, S29190, X24c01, 95p08.To read or write serial eeproms, you must desolder it from board and solder on TMPro2 eeprom adapter. On adapter there are sockets for 3 different types, DIL, SMD and SSOP.
• Motorola 912/9S12 not locked, ST10F269 or Moric. To read or write these MCU you have to use cable with 8 stripped wires. Solder wires according to connection diagram for particular software.
• Motorola HC805P18. To read or write this Motorola you must use TMPro2 Motorola HC805P18 adapter. Desolder MCU from immobox and solder it on adapter.
• Microchip PIC. To read or write Microchip PIC you must use TMPro2 PIC adapter. Solder wires according to connection diagram for particular software.

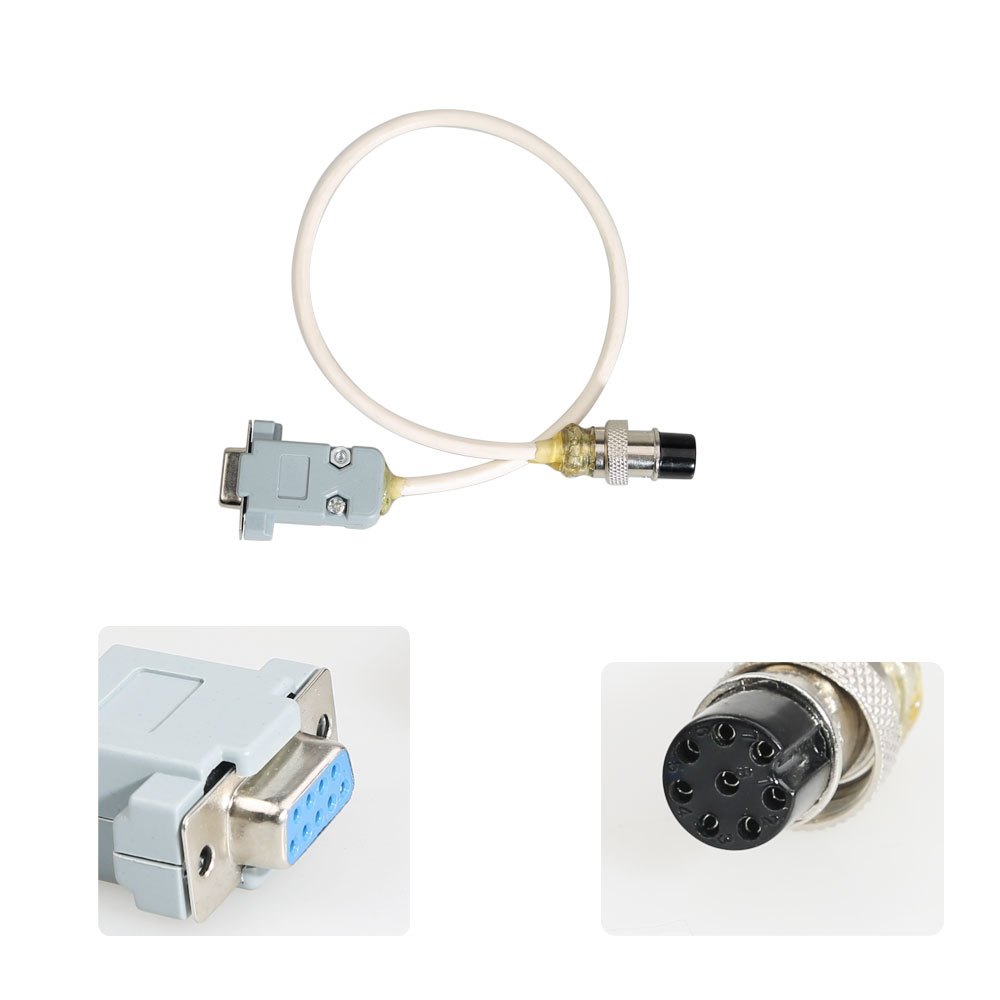

• To connect adapters to TMPro2 box you must use cable for adapters.
• Motorola HC05/HC908/HC11, Motorola 9S12 locked, flash chip, TMS370C702. To read or write these memory devices you have to use other programmer.
• After all connections are done, you have to press on Select and read memory device button, select correct memory device and press OK to process with reading. After reading is done if you wish you can save file read for your archive.
• In case for to read and write memory devices you use other programmer, then after memory device is read and file is saved by your programmer you have to load this file in TMPro2 by clicking on Open file button.
• Transponder Maker Pro price list All prices are NETTO - WITHOUT 20% VAT
• Range Rover and Land Rover 2001-2010
• TMPro is FIRST tool in the world that can make key for Range Rover Sport and LandRover LR3 with PIC18F6620 in BCM.TMPro is FIRST tool in the world that can make key for Land Rover with SAWDOC immboiliser with PIC18F252.
• Using specific softwares 40, 174, 180, 181, 199 you can program transponder ready to start car. For Range Rover Sport or Land Rover LR3 remote part of key will be programmed and will work.
• Fiat/ Lancia/ Peugeot/ Alfa Romeo/ Citroen CODE2 Cars:
• Softwares cover all vehicles from 1999 till present, which use precoded by chassis number keys with ID44(PCF7935), ID48(Megamos Crypto) and ID46 (PCF7936/PCF7946).NO MORE need to order keys from dealer and to wait for them. Using software modules 6, 7, 8, 9, 45, 48, 59, 100, 112, 118, 175, 194 software prepares chip ready programmed to start car. Softwares also show PIN code if you need to program keys by OBD2.
• Porsche cars 1997-2005 with PAS ALARM unit that uses ID13 or ID48 in key
• Using specific softwares 54 or 165 you can solve LOST KEY or make SPARE KEY very fast, no need car in your workshop, only PAS ALARM unit.
• Use 4C, 4D-60, 4D-67, 4D-68, 4D-70, 6D-72 and 128-bit AES chips. NO MORE need to wait for reseting of immobox and ECU and to use expencive dealer keys. Using specific softwares 52, 83, 87, 92, 153, 188 you can program transponder ready to start car.
• Using specific softwares 34, 37, 51, 53, 88, 93, 151, 170 you can solve LOST KEY problem or make SPARE KEY.
• BMW, Ducati, Yamaha, Suzuki, Kawasaki, Honda, Aprilia, Moto Guzzi, Gilera, KTM, MV Agusta, Peugeot, Piaggio. THERE IS NO tool in the world that supports more motorbikes for key making! Using specific softwares 25, 33, 58, 66, 67, 68, 90, 96, 97, 98, 101, 108, 109, 128, 129, 131, 168, 171, 177, 178, 182, 183, 186, 189, 191, 193, 196, 197, 198, 203, 204, 205, 206, 207, 208 (35 softwares total) you can solve LOST KEY problem or make SPARE KEY. For BMW, Ducati, Kawasaki and KTM there are softwares for keyless models. TMPro is THE ONLY tool in the world that can make key for keyless BMW motorbikes.
• Key Copying Softwares
• Allows you to copy many different key types, fixed ID11, ID12, ID13, ID33, ID4C and crypto ID41, ID42, ID44 VAG, ID45, ID46, ID4D, ID8C and ID48 for Kia and Daewoo.
• TMPro box + PIC adapter + Eeprom adapter + Set of 2 cables + Main SW - 200 Euro
• PIC adapter - 15 Euro
• Eeprom adapter - 5 Euro
• Set of 2 cables - 8 Euro
• Round 8-pin connector on top of the box - 2 Euro
• SW 1 - Fiat,Lancia,Citroen,Peugeot immobox Delphi - 100 Euro
• SW 2 - Fiat,Lancia IMM001-01 immobox Marelli - 100 Euro
• SW 3 - Fiat,Lancia IMM110-01 immobox Marelli - 100 Euro
• SW 4 - Alfa Romeo,Iveco CODE1 immobox Bosch - 100 Euro
• SW 5 - Alfa Romeo CODE2 immobox Bosch - 100 Euro
• SW 6 - Fiat,Lancia,Alfa Romeo BSI Marelli - 100 Euro
• SW 7 - Fiat,Lancia,Alfa Romeo BSI Delphi - 100 Euro
• SW 8 - Fiat,Citroen,Peugeot CODE2 Delphi - 100 Euro
• SW 9 - Fiat,Lancia IMM100-01 immobox Marel

Read the set contents carefully. The basic set includes the Microchip PIC adapter, an EEPROM adapter and a cable with eight stripped leads, but not the Motorola HC805P18 adapter, which is optional and needed for software modules 140, 143, 159, 173 and 184. Keys using PCF7946 have their remote part programmed. This is a factory expired listing, so stock is limited to what is on the shelf.
