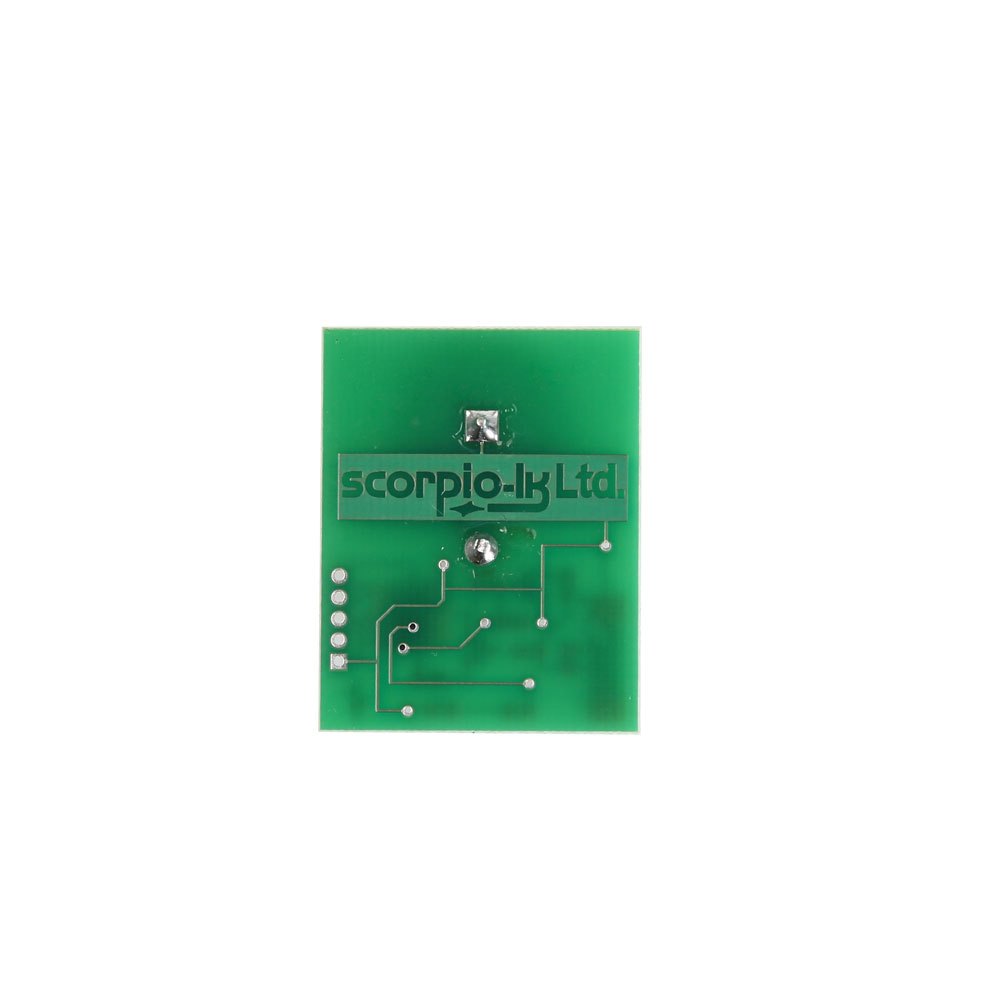

Scorpio-LK Emulators SLK-06 for Tango Key Programmer

A Scorpio-LK SLK-06 emulator for the Tango key programmer, supplied including its listing carries the maker's own troubleshooting notes on sniffing errors, and states that H immobiliser keys on page 1 20 are not currently supported.

Specifications

• Q 1: Sniffer(Slk-06)Doesn't blink?
• Q 2: During Obtaining data LED on SLK-06 blinks, but then it doesnt turn solid?
• Q 3: Error: Calculation error. Please make a new sniffing and try calculate again.
• A 3: Blank or no SLK-06 placed in Tango / Obtaining data steps were not performed.
• Q 4: Error: Detected zero captured frame. Expected at least two frames.
• A 4: During Obtaining data steps 1 to 8 were not performed.
• Q 5: Error: Detected one captured frame. Expected at least two frames.
• A 5: During Obtaining data step 8 were not performed.
• Q 6: I have vehicle with H immo system, key page 1 20.
• A 6: At present moment P1 20 are not supported, only the main types P1, 39, 59, 3A, 5A.

Also stated by the supplier

• Scorpio-LK Emulators SLK-06 for Tango Key Programmer including Authorization

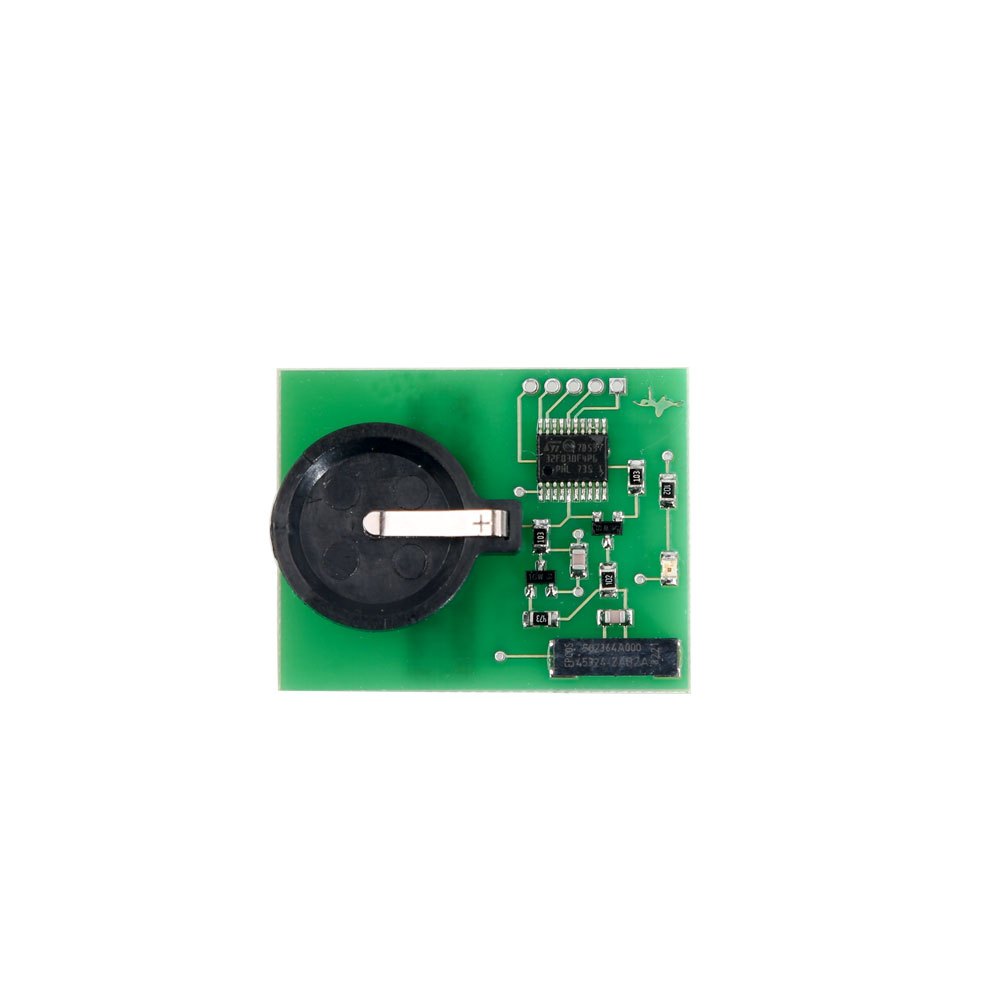

• SLK-06 is battery powered. Note that a battery is not included with an emulator and has to be obtained locally. Three standard types of battery are compatible for our emulators:CR1616,CR1620.CR1632
• If battery is removed all data from the emulator will be lost. When power is restored the default data will be loaded into the transponder memory.
• Thus the transponder can be cleaned to default state just by taking off the battery.
• Scorpio-LK Emulators SLK-06 Support List:
• SLK-06 sniffer for Toyota-H Immobilizer AKL solution
• Toyota H-Keys (Page1 3A, 7A)on TRPWS21 transponder
• Reset Subaru SmartKey (F3)
• Key maker BMW K19 (25160,DST80)
• Key maker Nissan Micra 2005- (93C56,DST40)
• Key maker Nissan Tiida 2005- (93C56,DST40)
• Key maker SsangYong Action 2011- (S9S12,DST80)
• Key maker Ford Cargo 2014- (24C64,DST40)
• Key maker Buick Excelle 2013- (9S12,DST80)
• Key maker Fiat Palio 2012- (95160,HITAG)
• Key maker SAIC Kai Yue 2013- (9S12,DST80)
• Key maker SAIC Datong V80 (95160,HITAG)
• Key maker MAN truck (M29W160,MEG13)
• Key maker BMW K19 (25160, DST80)*
• A 1: Not inserted or low battery/Not placed correctly or next to ignition switch/Low or not connected vehicle battery or some other hardware issue with the vehicle. The sniffer itself can be tested in Tango Place battery, start Tango and press Autodetect.
• A 2: Data obtaining failure. At present moment roughly 50% of all vehicles equipped with H immobilizer ever produced can be done using our system. Unfortunately they can't be categorized by vehicle model/year/region, or even part number.

The sniffing steps 1 to 8 have to be completed in order, which is what most of the listed errors trace back to.
