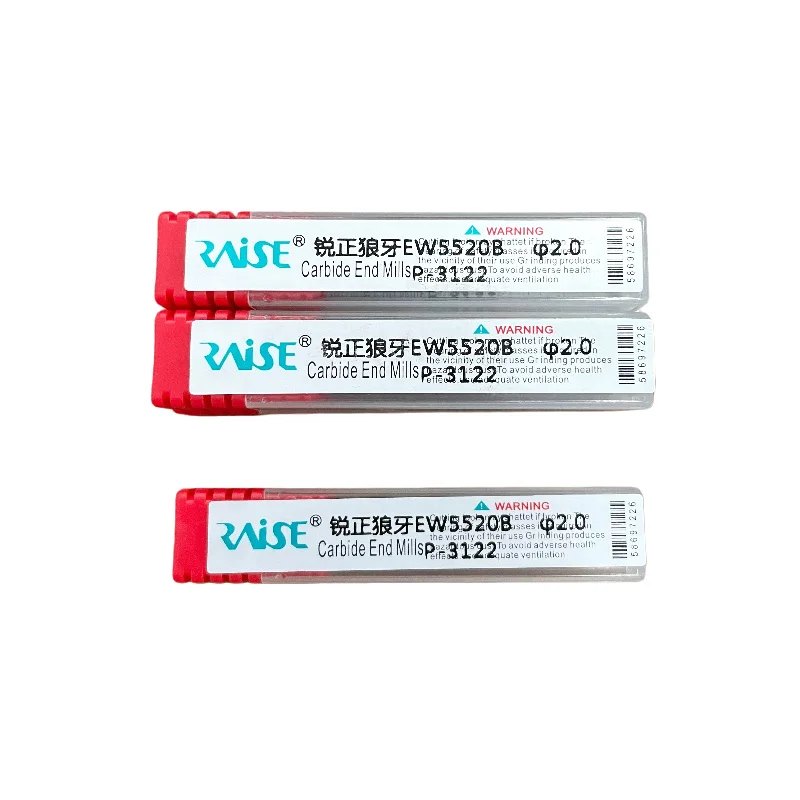

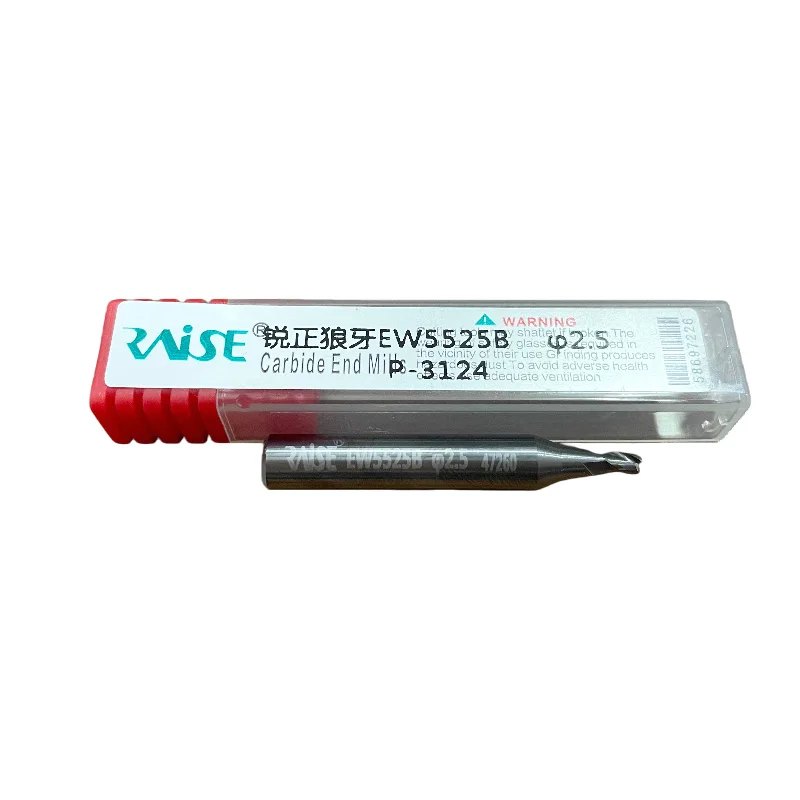

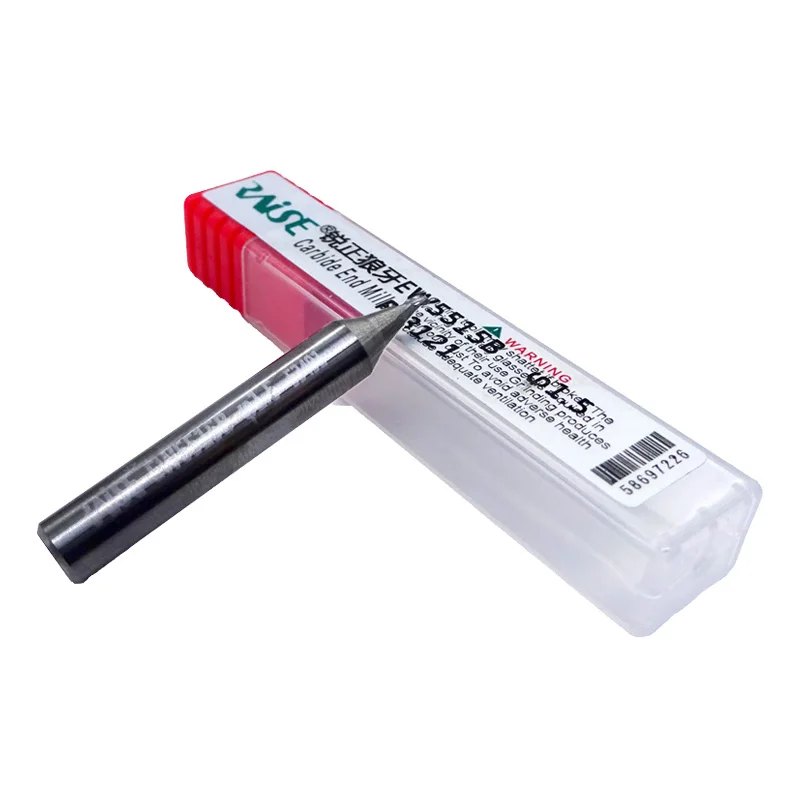

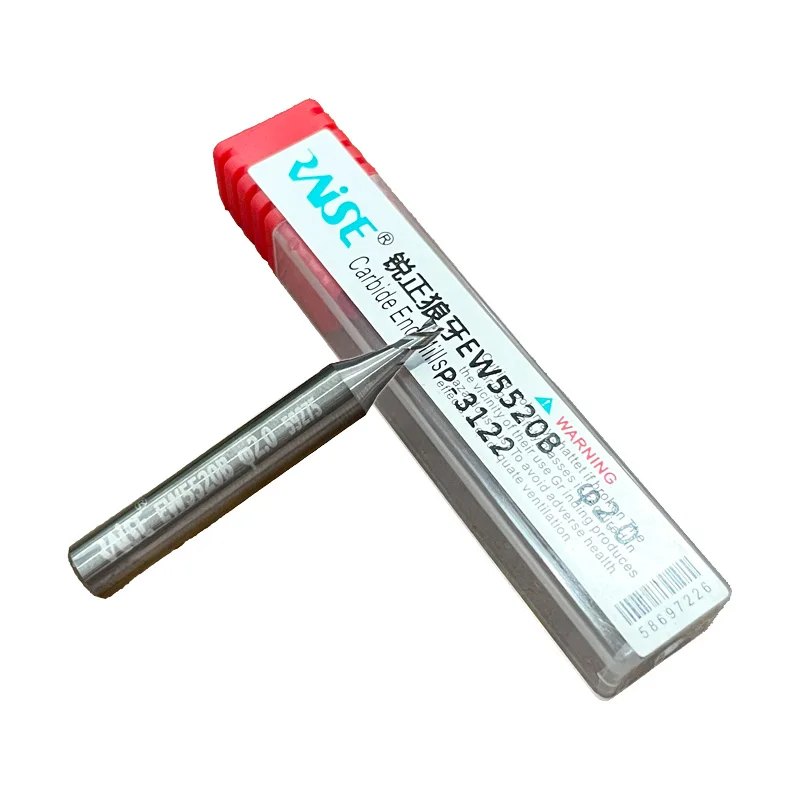

Raise Carbide End Mills 1.5/2/2.5mm/95° Cutter Resistant to Breakage for Wenxing DEFU JZ Goso 368A 998A Models Locksmith Tools

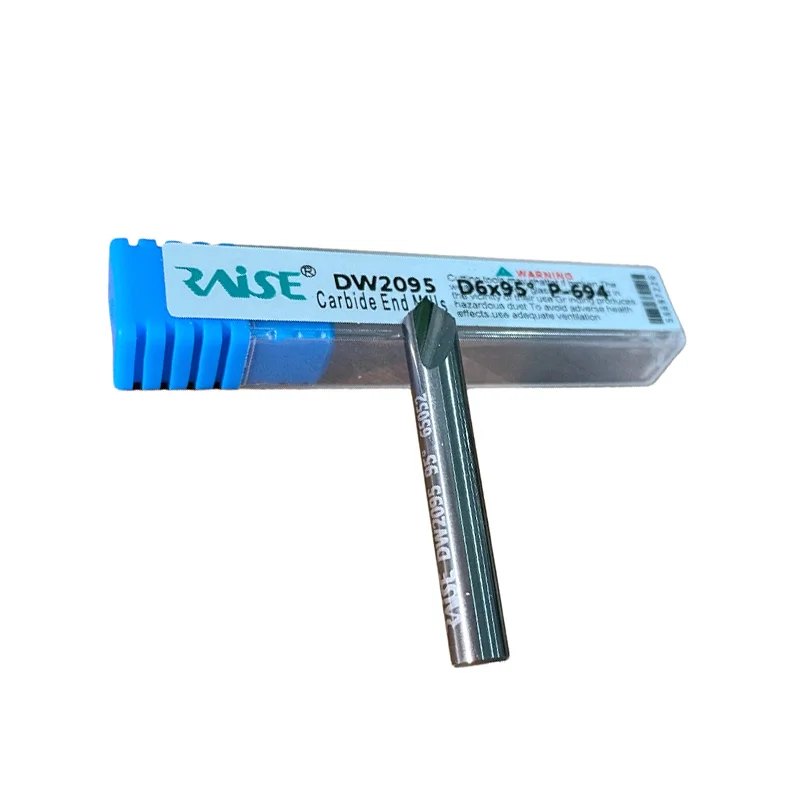

The Raise DW2095 is a 95° solid carbide flat drill/end mill designed for vertical key cutting machines, featuring a 6mm shank diameter, 40mm length of cut, and a reduced 4.5mm tip. It is widely used by locksmiths for precision dimple and hole-drilling on various metal keys.

• Brand / Manufacturer: Raise (锐正)

• Part Code: DW2095 (DW2095-J4.5)

• Material: Solid Tungsten Carbide (Carbide)

• Application: Vertical/handle key cutting machines

• Tip Angle: 95°

• Cutter/Tip Diameter: 4.5mm (small-head design to prevent clamp scratching)

• Shank Diameter: 6mm

• Shank/Flute Length: 40mm

• Flutes: 2 Flutes (2T)

• Reduced Tip: Shrinks the cutting edge down to 4.5mm to prevent the blade from clipping or bumping the clamp edges during deep or double-row side curve key cuts.

• Side Chip Grooves: Includes side groove slots to help clear metal and brass shavings efficiently.

• Anti-Vibration Design: Optimized helix and rigid carbide composition provide smooth drilling with flat hole bottoms.
