PCF79XX Adapter work with Xhorse VVDI PROG for PCF7922 PCF7941 PCF7945 PCF7952 PCF7953 PCF7961 Chip Models

A PCF79XX adapter for the Xhorse VVDI PROG, covering the PCF7922, PCF7941, PCF7945, PCF7952, PCF7953 and PCF7961. EEPROM is the data storage space and reads and writes even protected, EROM is the program memory, and the protected and unprotected buttons lock and unlock the chip for reading.

Specifications

• Note: If PCF79XX adapter option can't recognize chip due to the affection of circuit board, just remove chip and put it in IC socket, then use option "PCF79XX chip" to operate.
• "EEPROM": data storage space, it can read & write in protected status.
• "EROM": program memory space (equal to other chip's FLASH space), it can read & write in unprotected status.
• "Protected": click "Protected" to lock chip and unable to read out chip data.
• "Unprotected": click "Unprotected" to unlock chip and able to read out chip data.

What you get

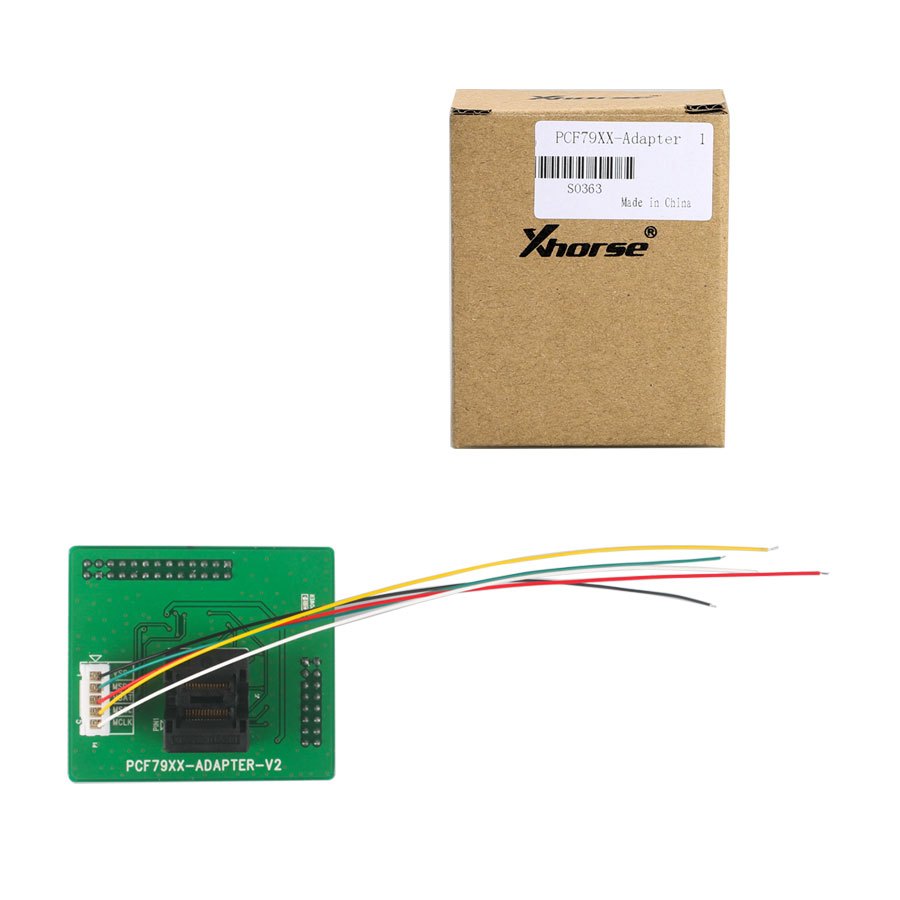

• 1pc x PCF79XX-Adapter
• PCF79XX Adapter works together with VVDI PROG, used for PCF79XX Chips.
• PCF79XX Adapter for VVDI PROG
• PCF7922 PCF7941 PCF7945 PCF7952 PCF7953 PCF7961
• Two Optional Ways to Read Write PCF79XX Chip

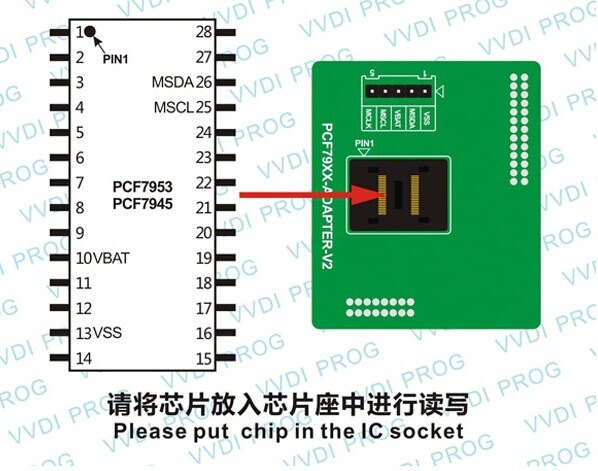

• Remove the chip and put it in the IC socket, select option "PCF79XX chip" shown as follows.

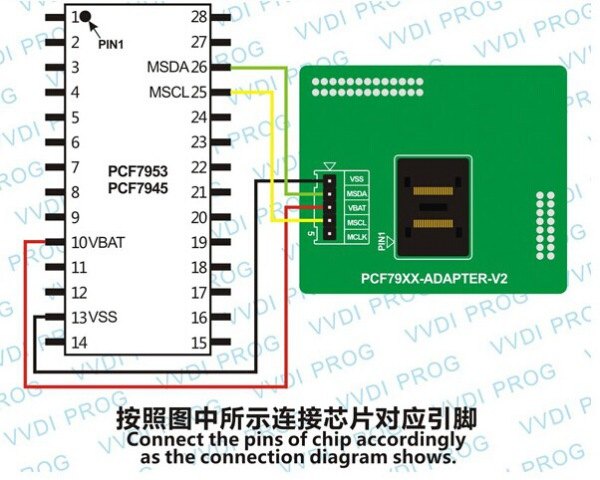

• Connect wire to the circuit board, select option "PCF79XX adapter" shown as follows.

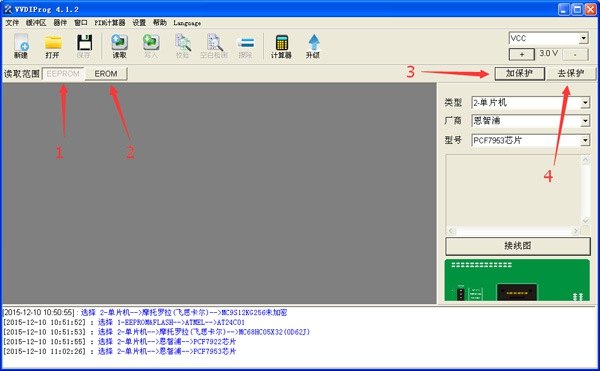

• 3.VVDI Pro Options Description
• After unlock, the original data in the chip will be cleared.
• PCF79XX Chip Function
• Currently PCF79XX chip support lock, unlock and read/write data.

The note in the manual explains what to do when the adapter cannot recognise a chip at all.
