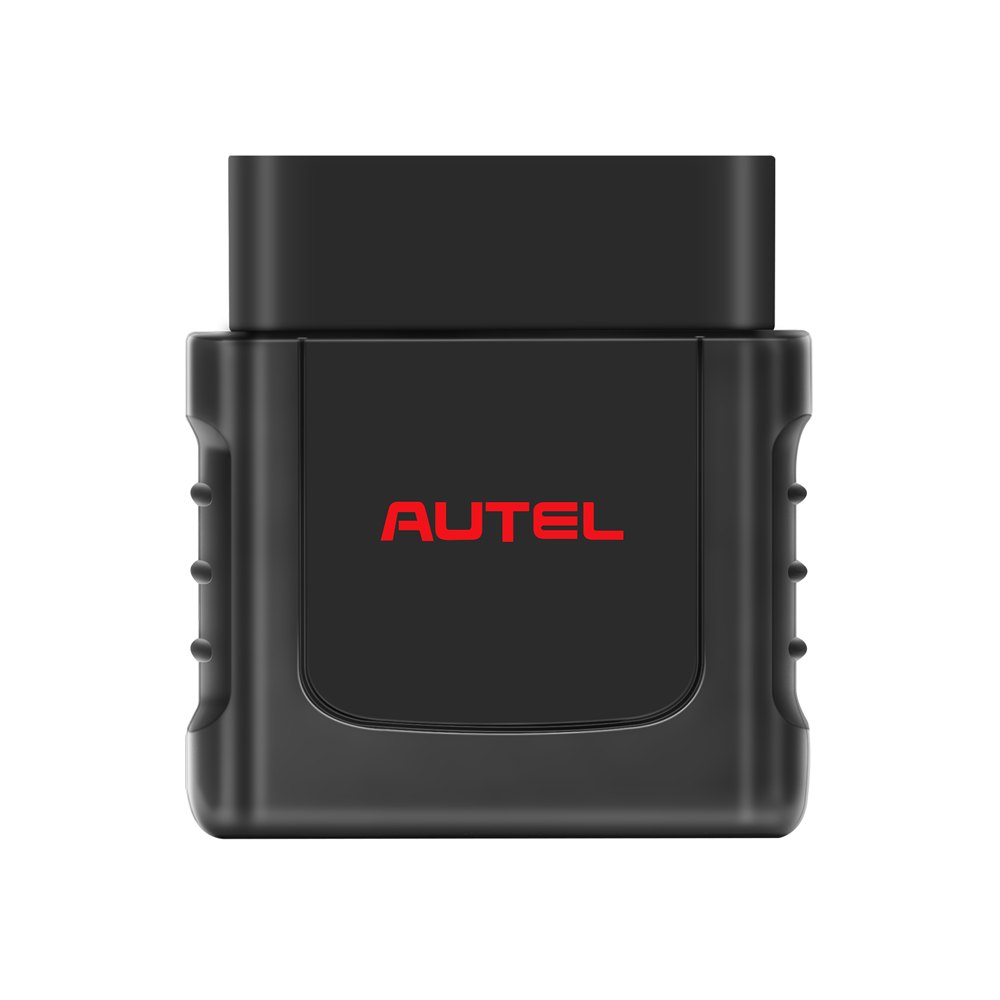

Original Autel MaxiVCI Mini VCI Mini Bluetooth Diagnostic Interface for MK808BT MK808TS MX808TS MP808TS TS608 MS906S

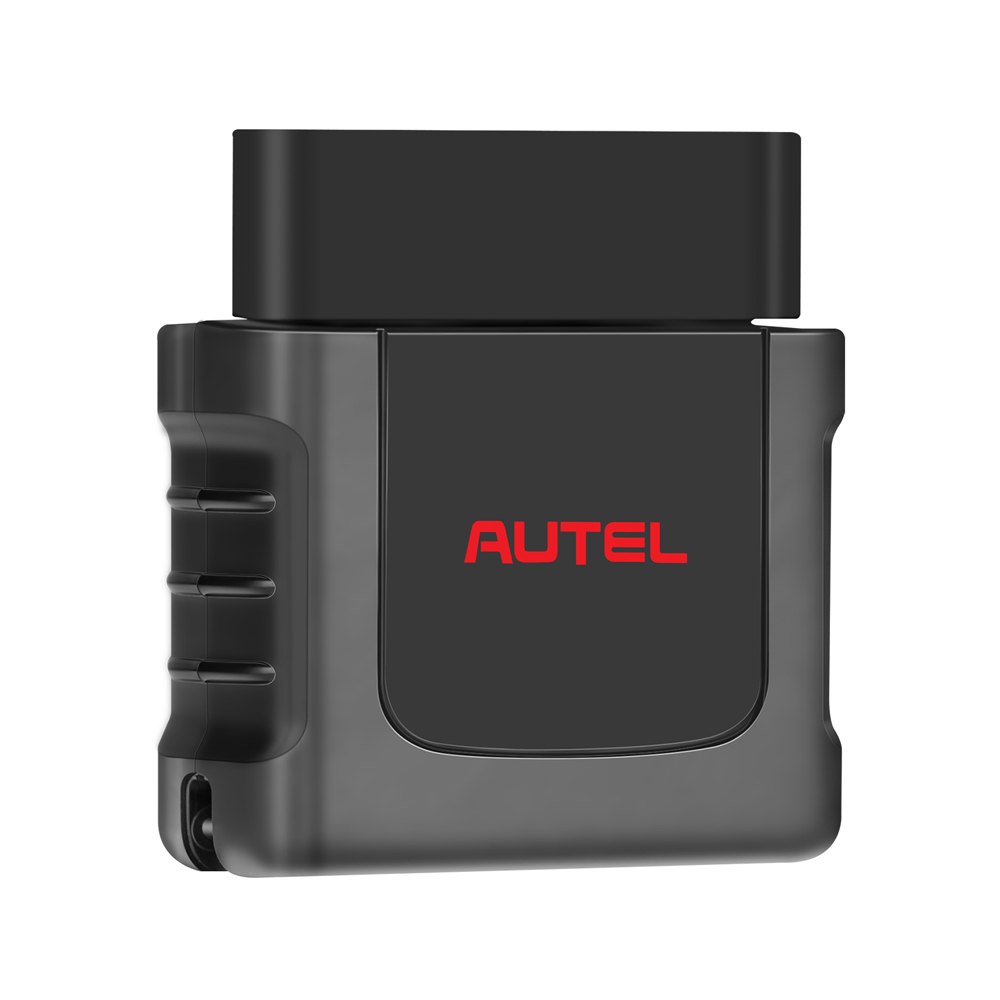

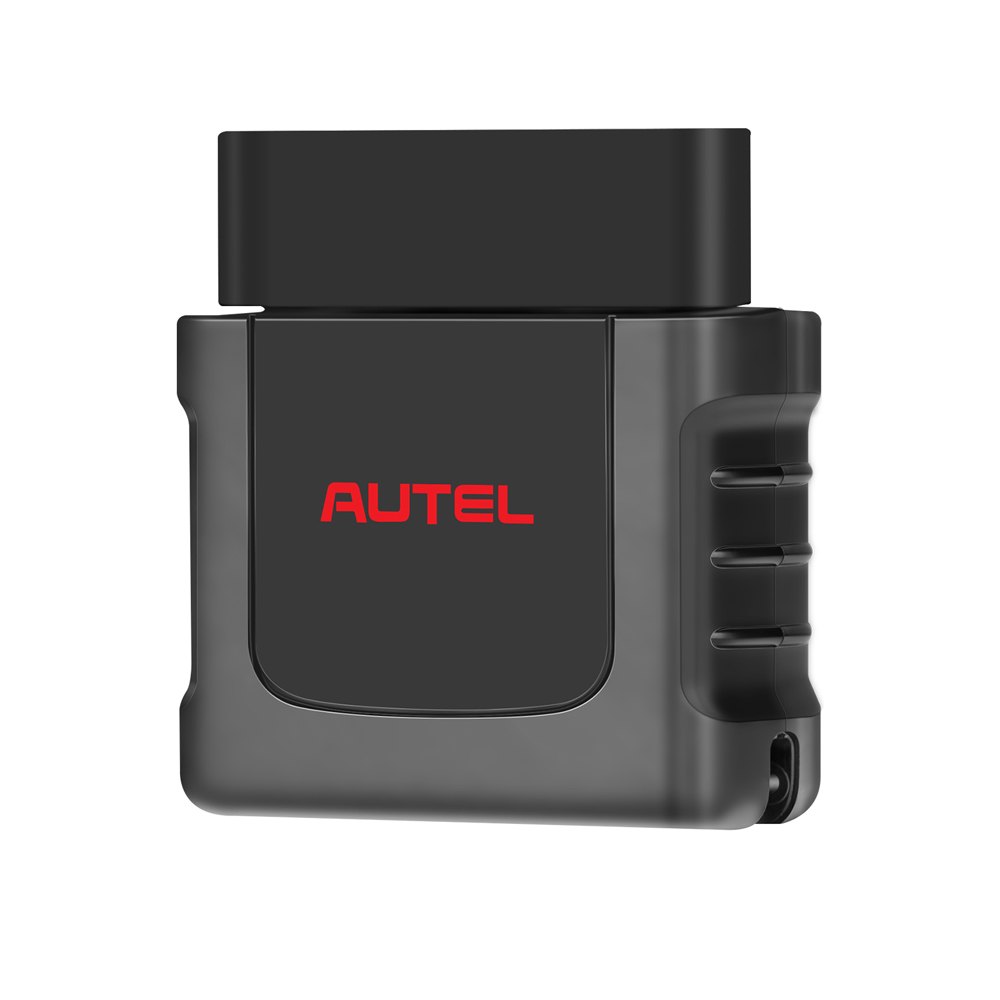

An original Autel MaxiVCI Mini Bluetooth diagnostic interface, for the MK808BT, MK808TS, MX808TS, MP808TS, TS608 and MS906S. It is the half that stays with the car while the tablet stays with you.

What you get

• 1pc x Original Autel MaxiVCI Mini VCI Mini Bluetooth
• Autel VCI Mini is designed to connect wirelessly with the MaxiCom / Maxicheck / MaxiPro and MaxiTPMS Display Tablet, as a vehicle communication interface (VCI) for vehicle data transmission.
• Original Autel MaxiVCI Mini VCI Mini Bluetooth Diagnostic Interface for MK808BT MK808TS MX808TS MP808TS TS608 MS906S

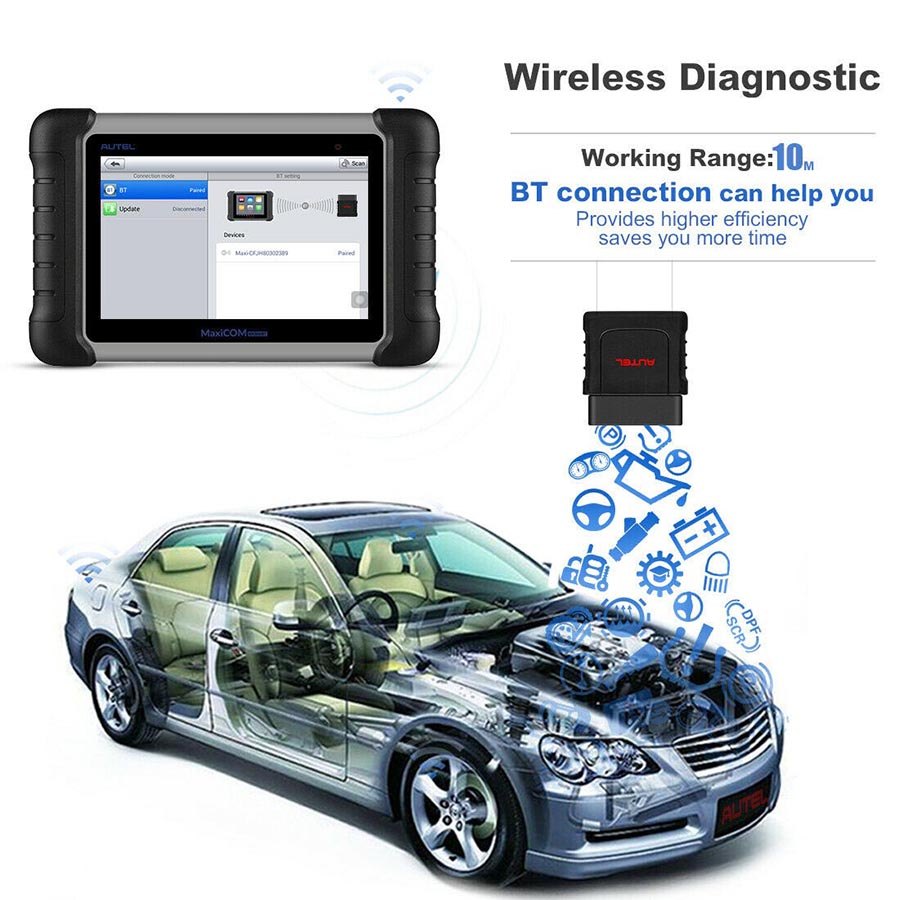

• Autel VCI Mini is designed to connect wirelessly with the MaxiCom / Maxicheck / MaxiPro and MaxiTPMS Display Tablet, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless Bluetooth technology, with which you are allowed to work freely around the vehicle. This interface device can communicate with vehicles' electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics.

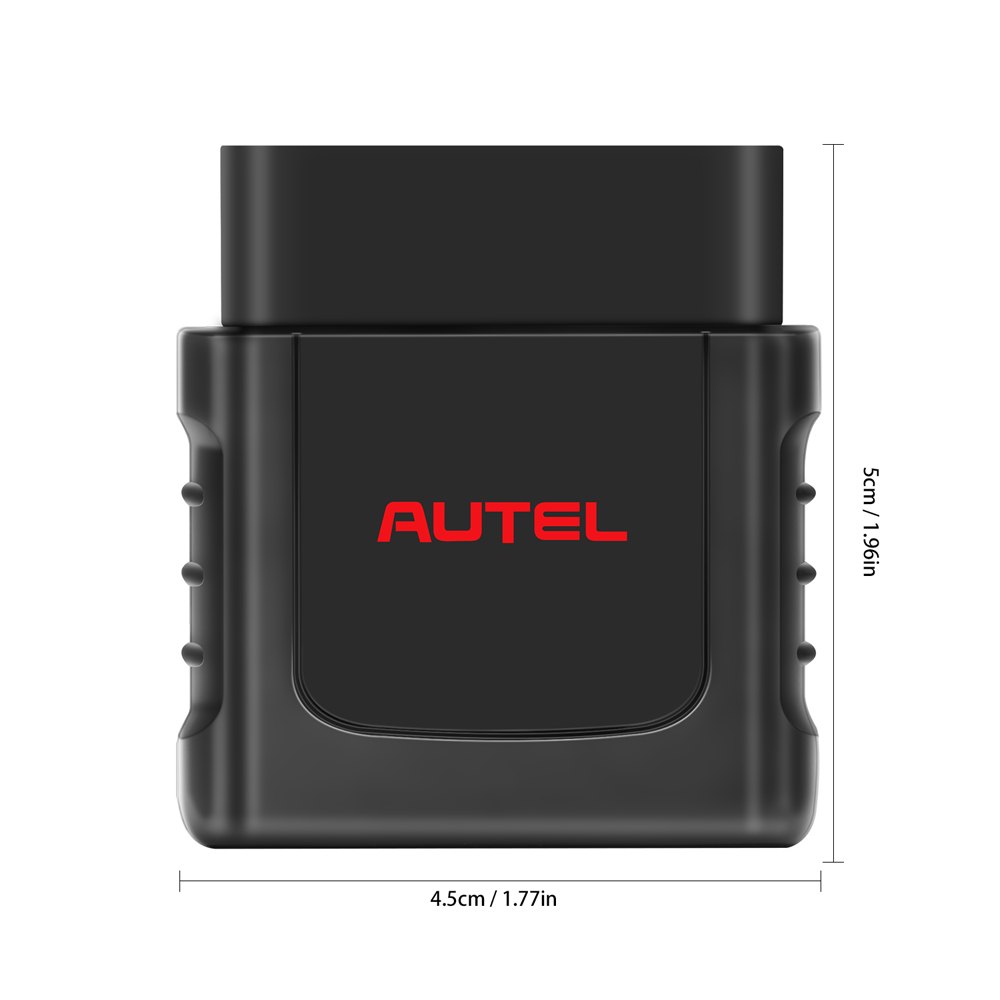

• Lightweight Vehicle Connection Interface (VCI)
• The Tablet in This Advertising is Not Included! It is for Reference Only!
• The MaxiVCI Need to Be Used With Autel Tablet Device Like MK808BT, MK808TS, MX808TX, MP808TS, MS906S etc.
• Power Sources
• The MaxiVCI Mini operates on 12-volt vehicle power, which is received through the vehicle's DLC. The unit powers on whenever it is connected to the vehicle's DLC.

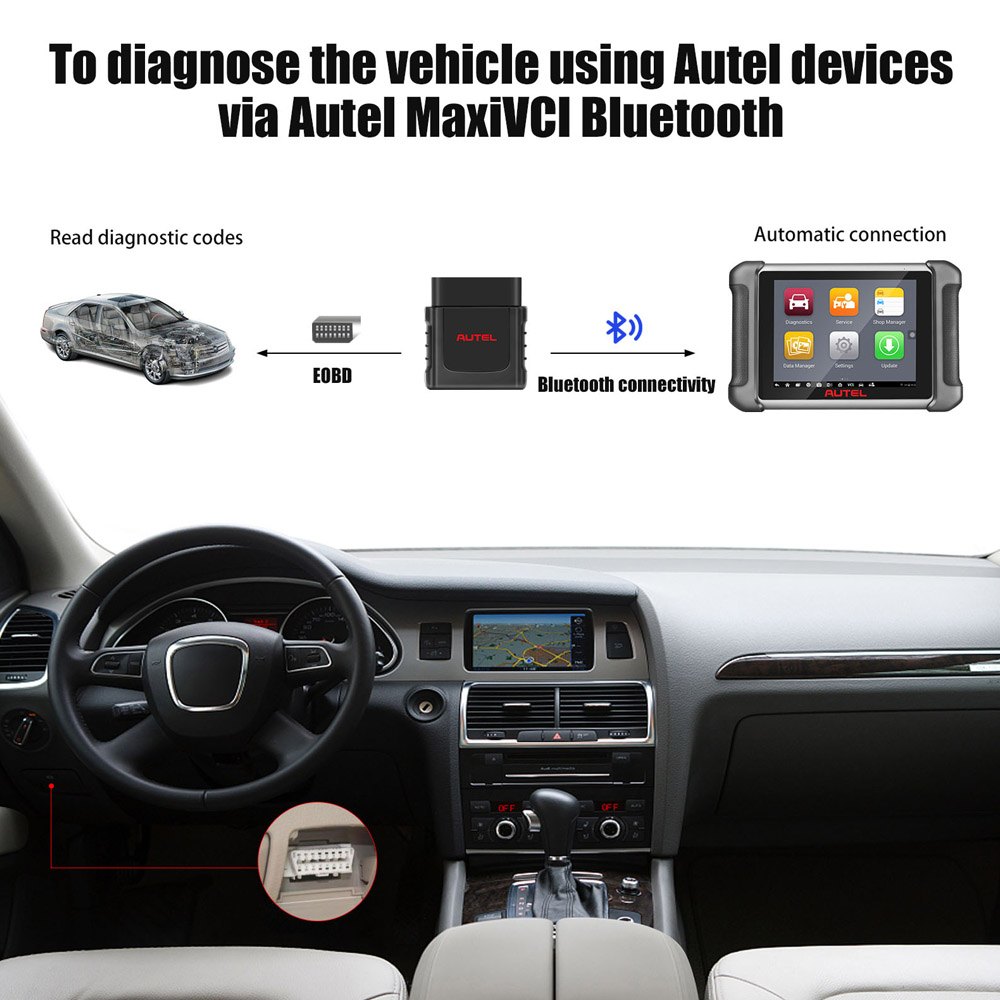

• The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle's data link connector (DLC) and connect wirelessly with the tablet for vehicle data transmission.
• Vehicle Data Connector (16-Pin), connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.

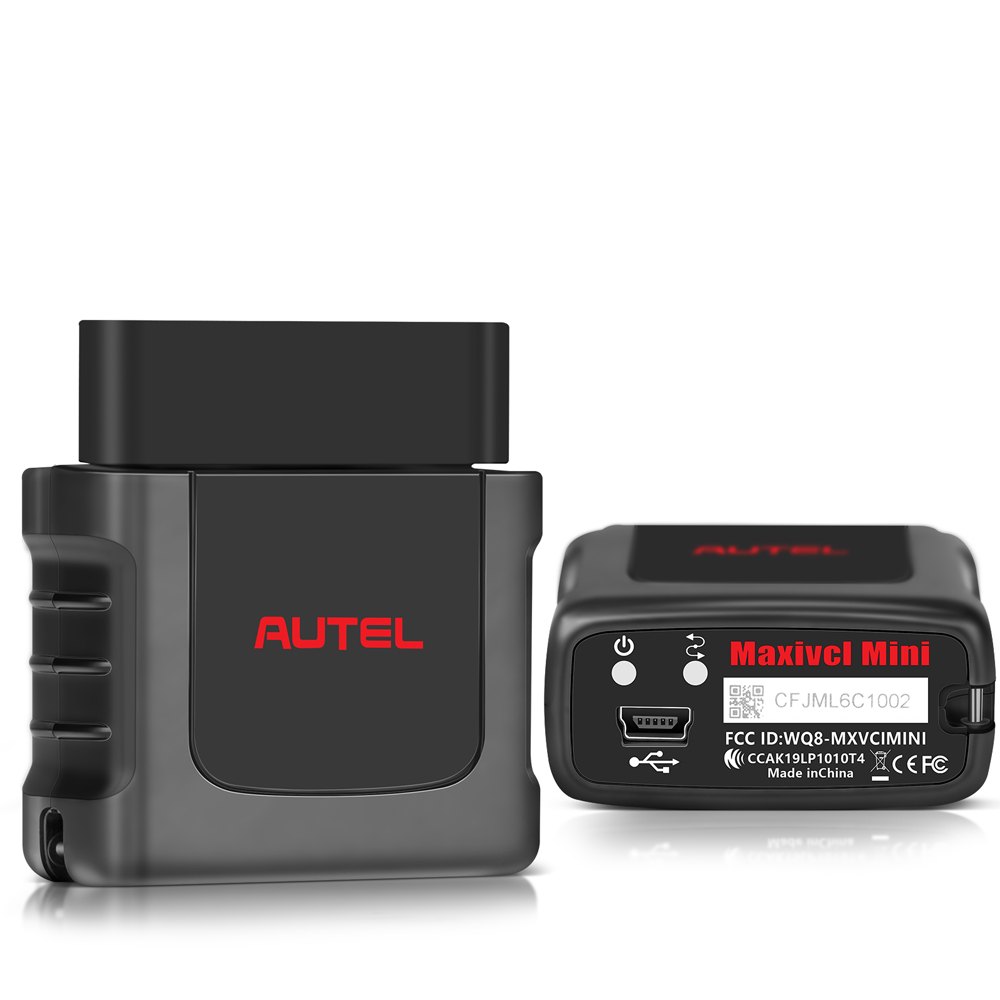

• Power LED, refer to Table 2- 2 Power LED on the Front Panel
• Connection LED, refer to Table 2- 3 Connection LED on the Front Panel
• Table 2- 2 Power LED on the Front Panel
• Color
• Power
• Lights solid green when powered on
• Blinks red when system failure occurs. Note: The power LED briefly lights red each time the device powers on and then lights green when the device is ready
• Table 2- 3 Connection LED on the Front Panel
• BT V.2.1 + EDR
• USB 2.0
• Wireless Frequency
• 2.4 GHz
• Input Voltage Range
• 12 VDC to 24 VDC
• 150 mA @ 12 VDC
• 0°C to 50°C (ambient)
• 20°C to 70°C (ambient)

A spare VCI keeps a tablet earning while a damaged interface goes away for repair.
