Original Autel MaxiSys Ultra Full System Diagnostics with Free MSOBD2KIT or BT506

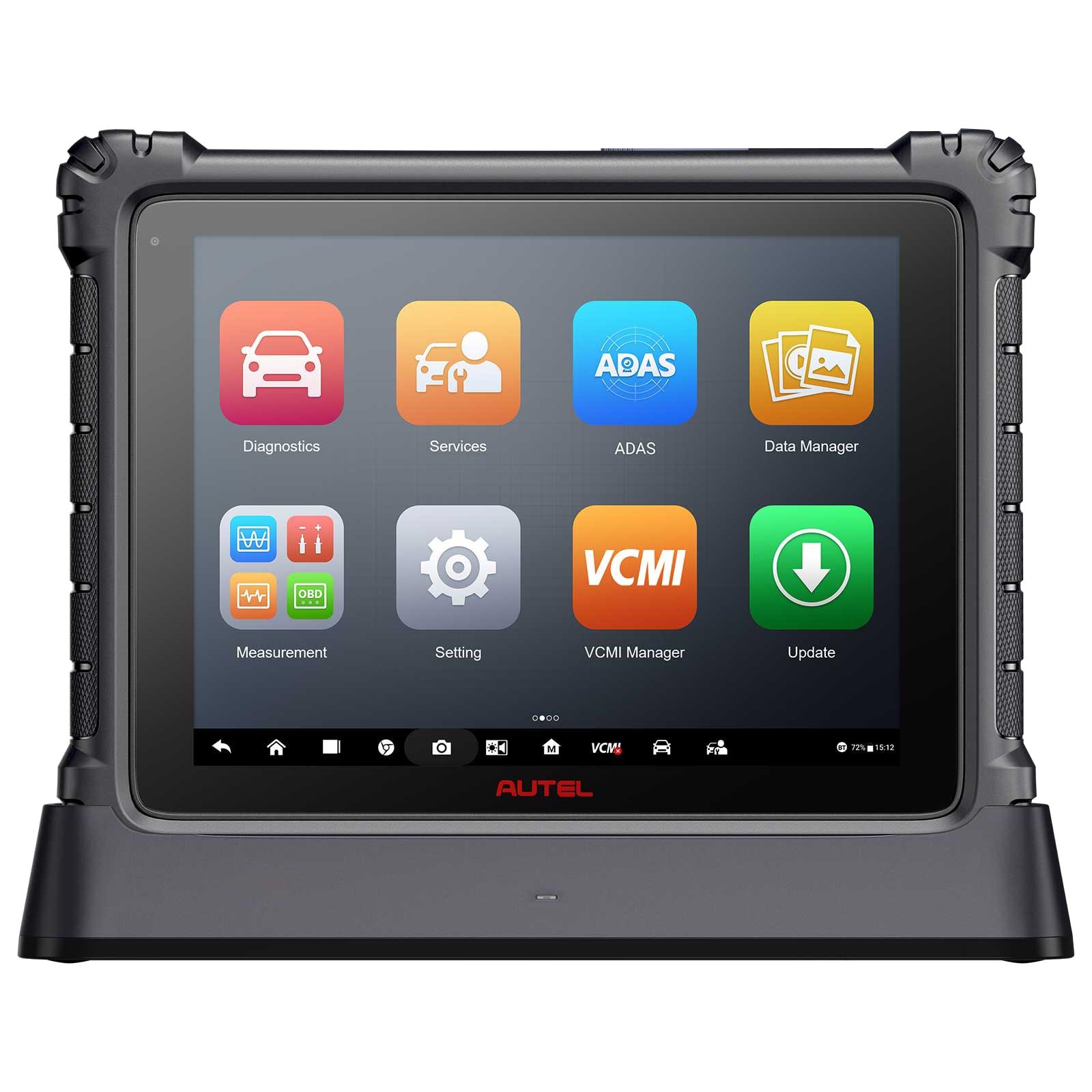

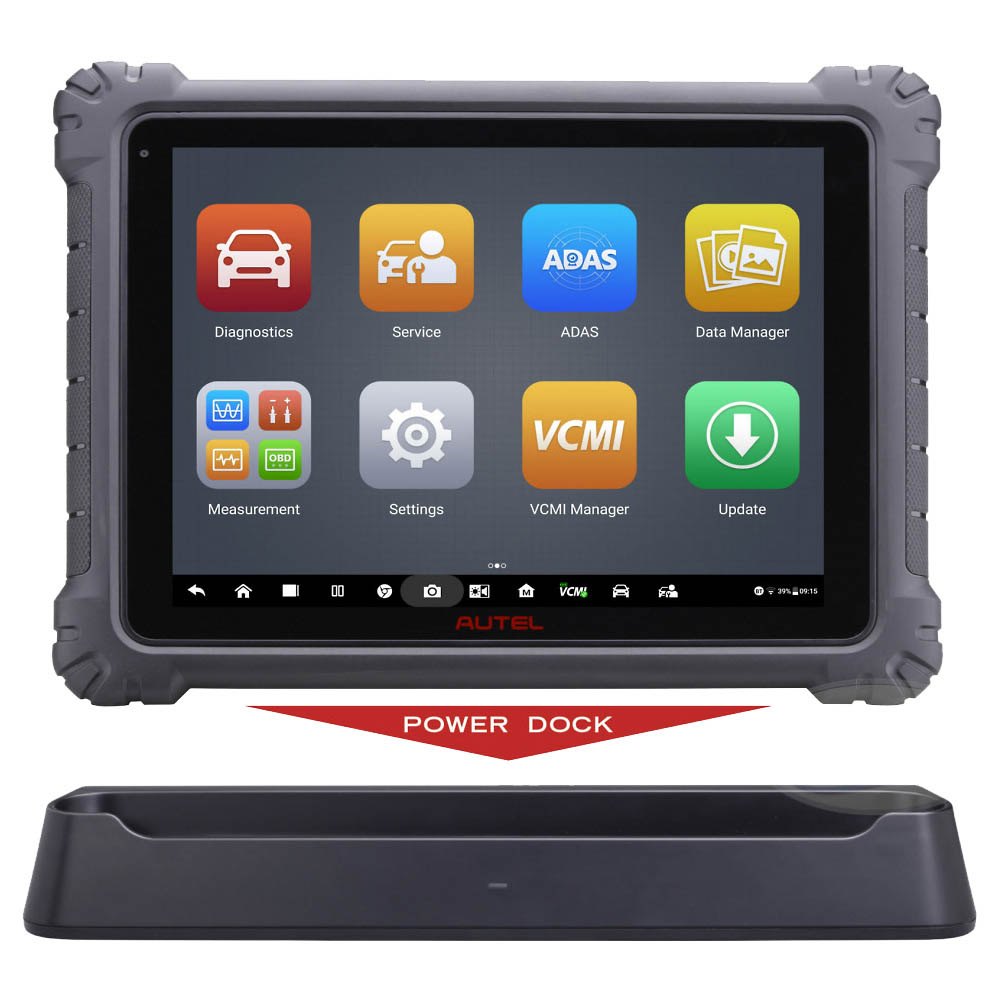

The Original Autel MaxiSys Ultra Full System Diagnostics tool with MaxiFlash VCMI runs a 12.9-inch touchscreen Android tablet on an octa-core processor (2.3GHz quad plus 1.7GHz quad) with 256GB of memory and split-screen multi-application choose a free MSOBD2KIT or a free MaxiBAS BT506 gift. Part numbers: SP358 and SO628.

Versions

Six versions are available at different prices: Ultra one year update service, Autel MaxiCOM Ultra Lite S, Autel Maxisys Ultra, Ultra with MSOBD2KIT or BT506 shown here, Ultra with MSOAK, and Autel Maxisys Ultra plus EV upgrade kit.

Highlights

• No IP limitation
• Updated from MK908P, MS908P, Elite, MS909, and MS919. All-in-one scanner for large repair workshops
• One year free online update on the official Autel website
• New VCI protocols: D-PDU, SAE J2534, RP1210, DoIP, and CAN FD
• Advanced 5-in-1 VCMI: VCI, oscilloscope, multimeter, waveform generator, and CAN bus check
• OE-level coverage for 99.99 percent of makes: 80+ US domestic, Asian, and European vehicles including supercars
• Exceptional OE-level functions from OBDII diagnostics to ECU coding and programming
• Secure gateway access: authorized FCA SGM access with AutoAuth account

Notice

• If the gift is not needed, buy the Autel Maxisys Ultra alone
• Does not support the Benz gateway

Diagnostics detail

• Split-screen multi-application navigation
• Oscilloscope preset guides, component tests, and waveform library
• Repair assist with guided procedures, DTC analysis, and fault code solutions
• Code-related technical service bulletins on select vehicles
• License plate reader
• ScanVIN barcode and text recognition with camera
• Secure gateway access with authorized FCA SGM and AutoAuth account, sold separately

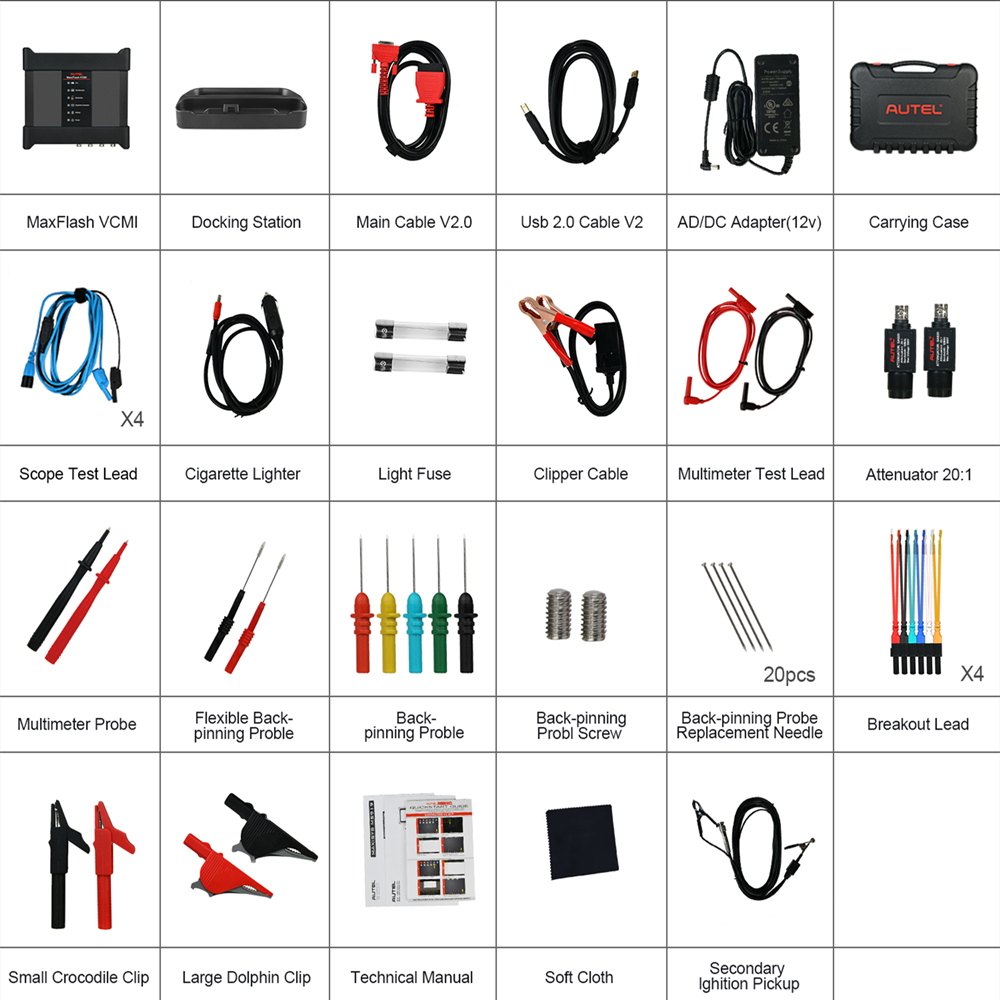

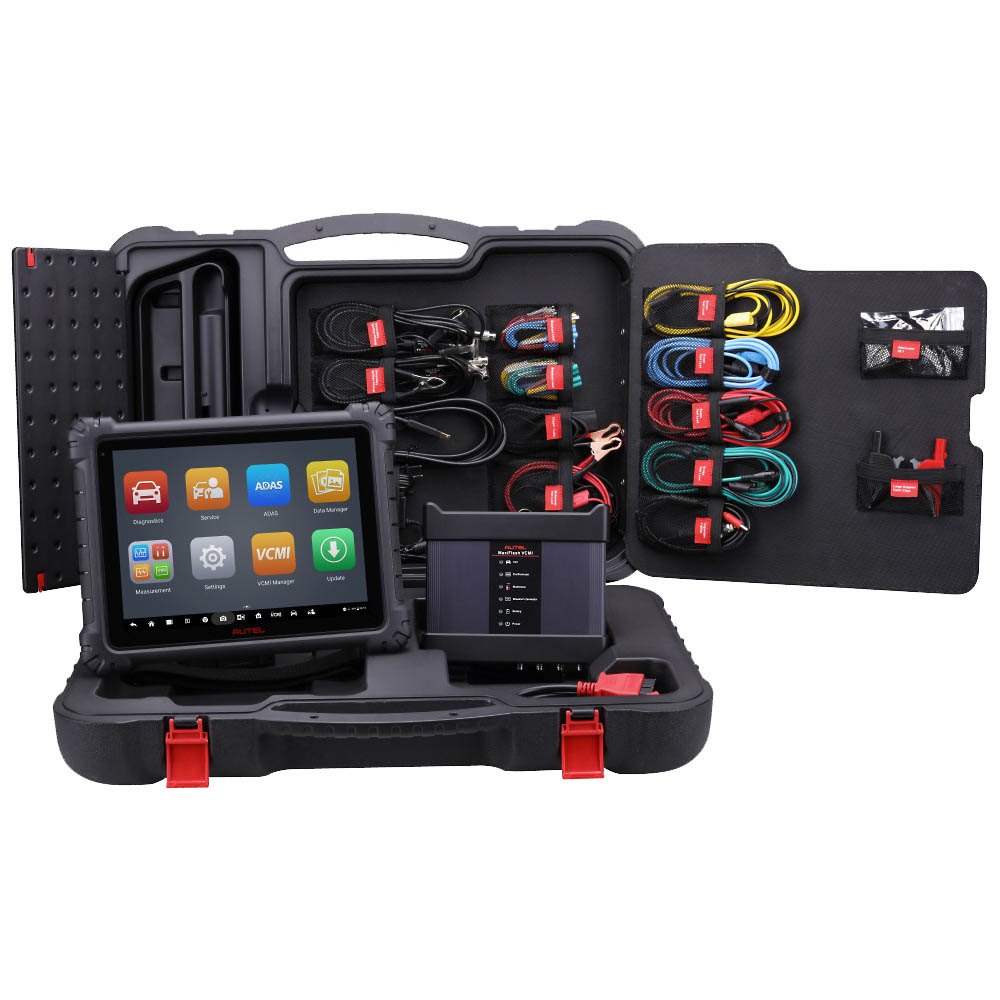

• Docking station, cables, scope connectors, and carrying case included
• PreSCAN and PostSCAN enhanced reports
• Interactive data logging with direct Autel support contact
• Multitasking workshop management for data files, customer info, and vehicle records
• Cloud data manager for customer and vehicle records, scanner data, and technician notes

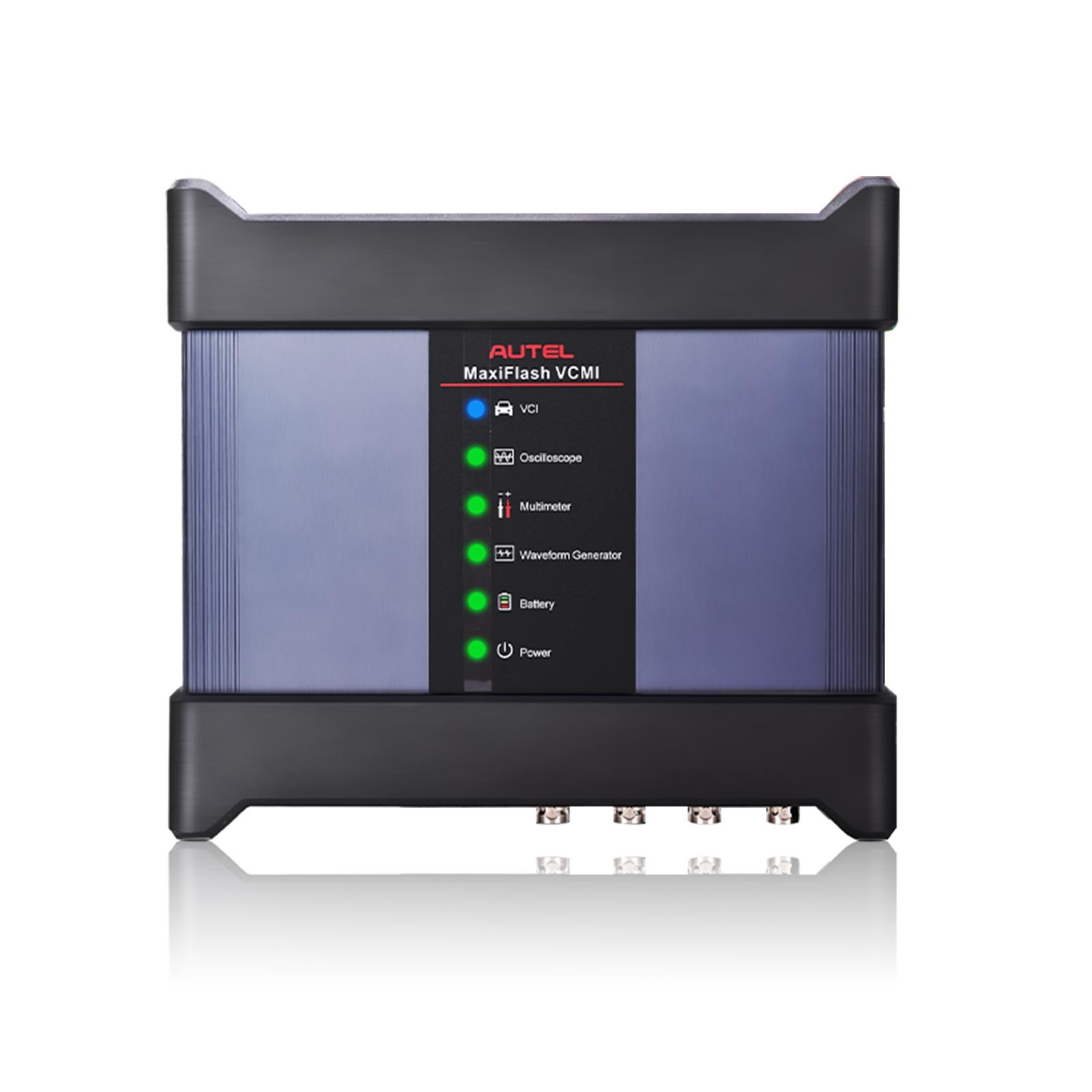

VCMI functions

• DTC and symptom repair guidance
• Single-screen repair options: technical service bulletin search, DTC analysis with OE repair library advice, repair assist with OE content, repair tips from the MaxiFIX community, relevant cases from OE repair history, and guided VCMI component measurement

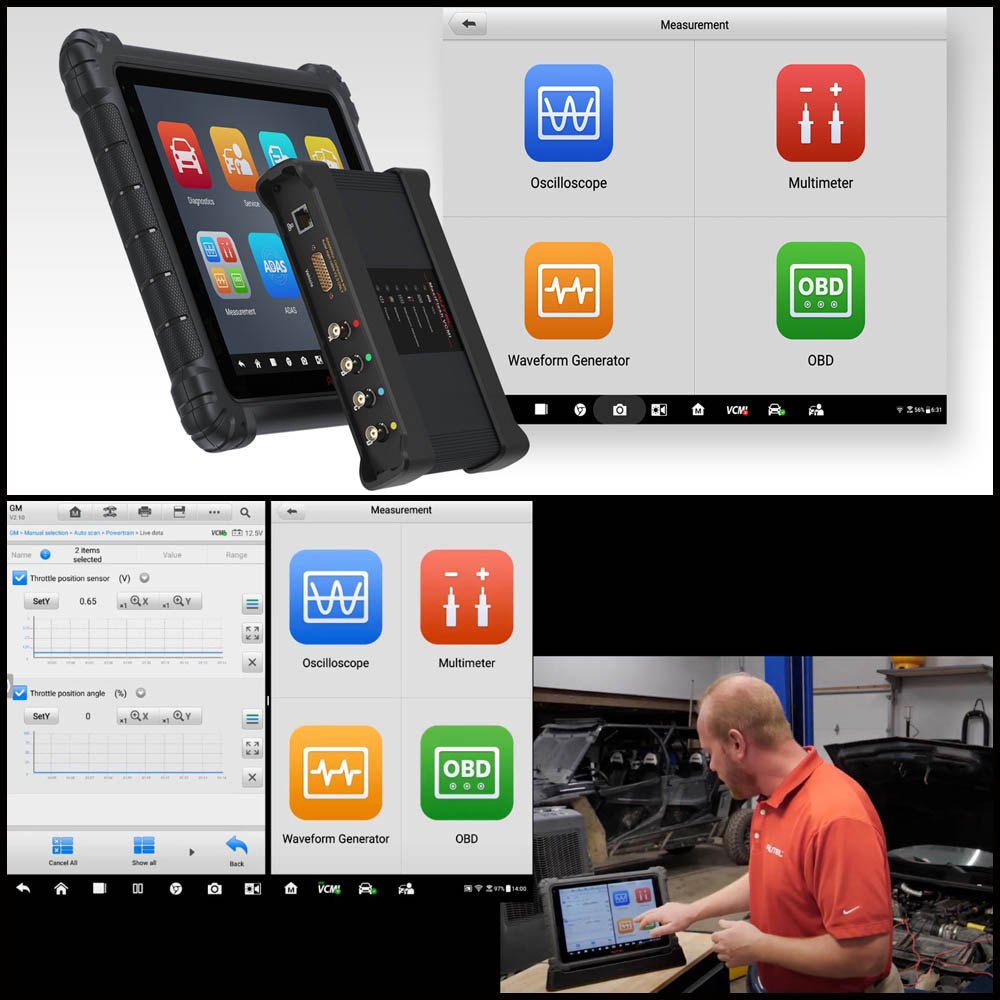

• 5-in-1: diagnostic tool plus 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester
• D-PDU, SAE J2534, and RP1210 protocols reach more OEM tools and vehicles than J2534-only tools
• New VCMI interface: D-PDU, J2534, and RP1210 coverage, DoIP and CAN FD for new models, faster 20MHz bandwidth oscilloscope at 80MS/s sampling, 12-bit resolution, 32M samples memory
• Affordable test combination: combined signal detection and stimulation, OBDII channel detection with DLC pin location and direct measurement, CAN protocol testing with advanced triggering and auto-scale zoom
• Preset guided tests: custom probe specs, reference waveform libraries, saved test configurations, component tests, and data graphs

Programming and coding

Coding (teach-in program, component adaptation) reprograms adaptive data after repairs and replacements. Programming downloads the latest software from the online server automatically over the internet and reprograms the ECU.

• Online ECU programming and coding without special connectors for BMW F and G chassis
• Online ECU programming for new Benz chassis (204, 212, 207, 463, and others) and online SCN for Benz (222, 212, 204, 205, and others)
• Online ECU coding for Volkswagen, Audi, Porsche, Renault, and others
• ECU programming and coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, and others
• VCMI bus protocols: KPW, CAN, CAN-FD, DoIP, and others. CAN-FD runs 14 times faster than CAN

Services

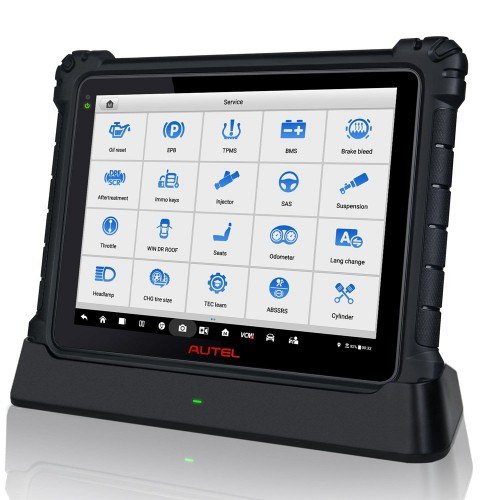

26 commonly used reset services: oil reset, EPB, BMS, ABS bleed, TPMS, airbag reset, DPF regeneration, IMMO service, injector coding, SAS calibration, suspension calibration, throttle adaption, ABS and SRS, gear learning, sunroof initialization, seats calibration, language change, headlight matching, A and F setting, WIN DR roof, odometer, CHG tire size, cylinder, turbocharging, limit, and transmission adaption.
