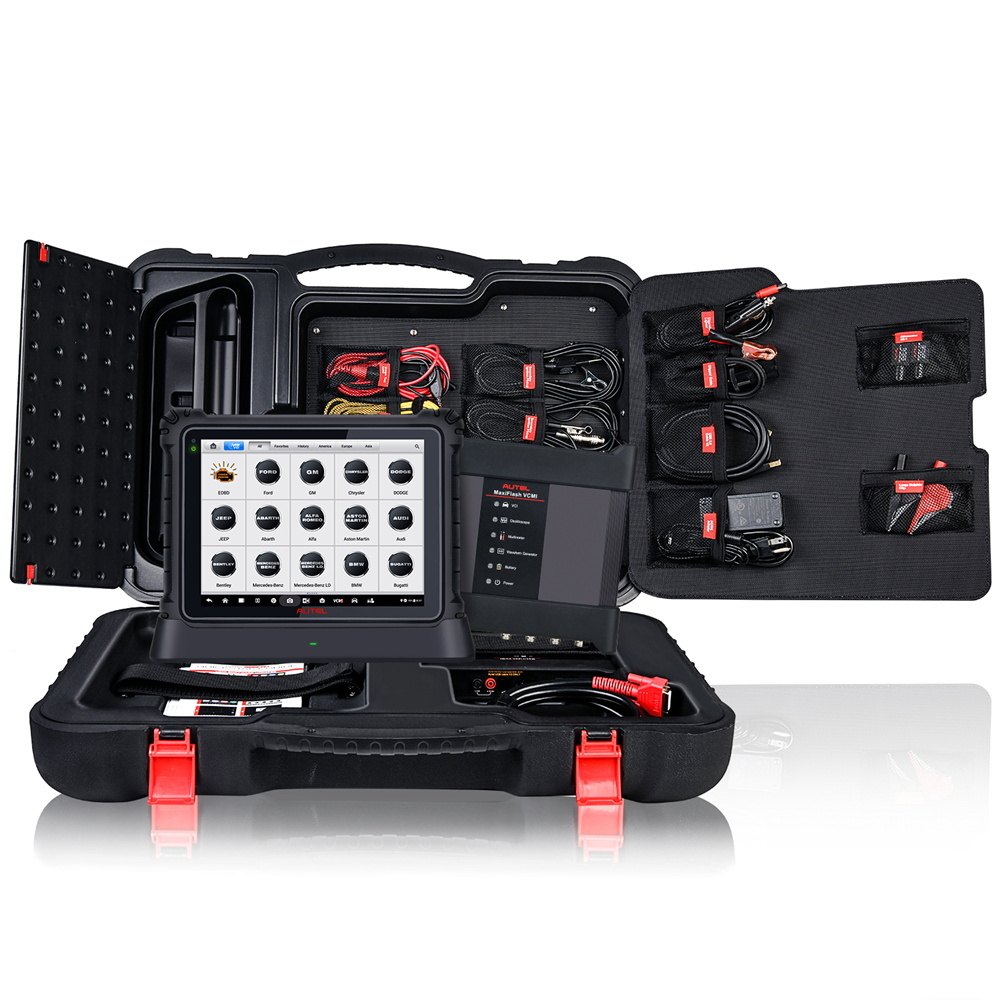

Original Autel MaxiSys Ultra Full System Diagnostics with MSOAK Oscilloscope Kit

The Original Autel MaxiSys Ultra Full System Diagnostics tool with the MSOAK oscilloscope kit runs a 12.9-inch touchscreen tablet on Android 7.0 with an octa-core processor (2.3GHz quad plus 1.7GHz quad) and 256GB of memory, with split-screen multi-application numbers: SP358 and SO627.

Versions

Six versions are available at different prices: Ultra one year update service, Autel MaxiCOM Ultra Lite S, Autel Maxisys Ultra, Ultra with MSOBD2KIT or BT506, Ultra with MSOAK shown here, and Autel Maxisys Ultra plus EV upgrade kit.

Highlights

• One year free online update on the official Autel website
• New VCI protocols: D-PDU, SAE J2534, RP1210, DoIP, and CAN FD
• Updated from MK908P, MS908P, Elite, MS909, and MS919. All-in-one scanner for large repair workshops
• Advanced 5-in-1 VCMI: VCI, oscilloscope, multimeter, waveform generator, and CAN bus check
• OE-level coverage for 99.99 percent of makes: 80+ US domestic, Asian, and European vehicles including supercars
• Languages: English, German, Spanish, French, Polish, Italian, Dutch, Portuguese, Swedish, and Russian

Notice

Does not support the Benz gateway.

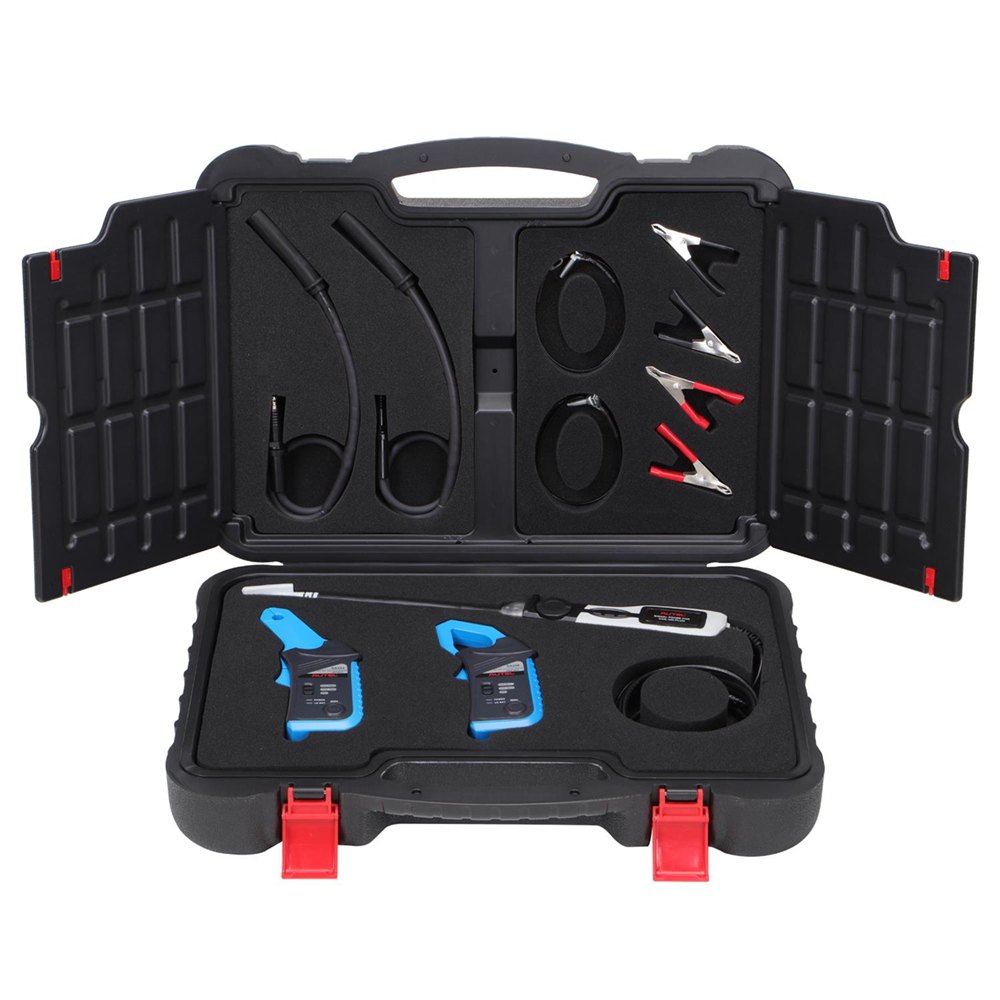

MSOAK oscilloscope kit

The MSOAK kit works with the MaxiFlash VCMI included with Autel Ultra, MS919, and MP408.

• 65A and 650A AC and DC clamp with HT extension lead, battery clip, and carrying case
• 65A AC and DC current clamp and 650A AC and DC current clamp
• Coil on plug probe, HT extension leads (2pcs), and battery clips (2pcs)
• Blow-molded carrying case

Advantages

• Processor: 2.3GHz quad plus 1.7GHz quad
• Battery: 18000mAh for 10 hours of continuous use
• Memory: 256GB SSD and 4GB RAM
• OBD interface: CAN, EOBD, OBD, and OBDII
• Protocols: KPW, CAN, CAN-FD, DoIP, and others
• Screen: 12.9 inch touchscreen
• Camera: 16MP rear and 5MP front
• Connectivity: WiFi, Bluetooth, and MaxiFlash VCMI
• Coverage: 99.999 percent of car makes including Ford, Toyota, Nissan, GM, BMW, and Benz
• Systems: ABS, DPF, EPB, SAS, SRS, TPMS, and IMMO

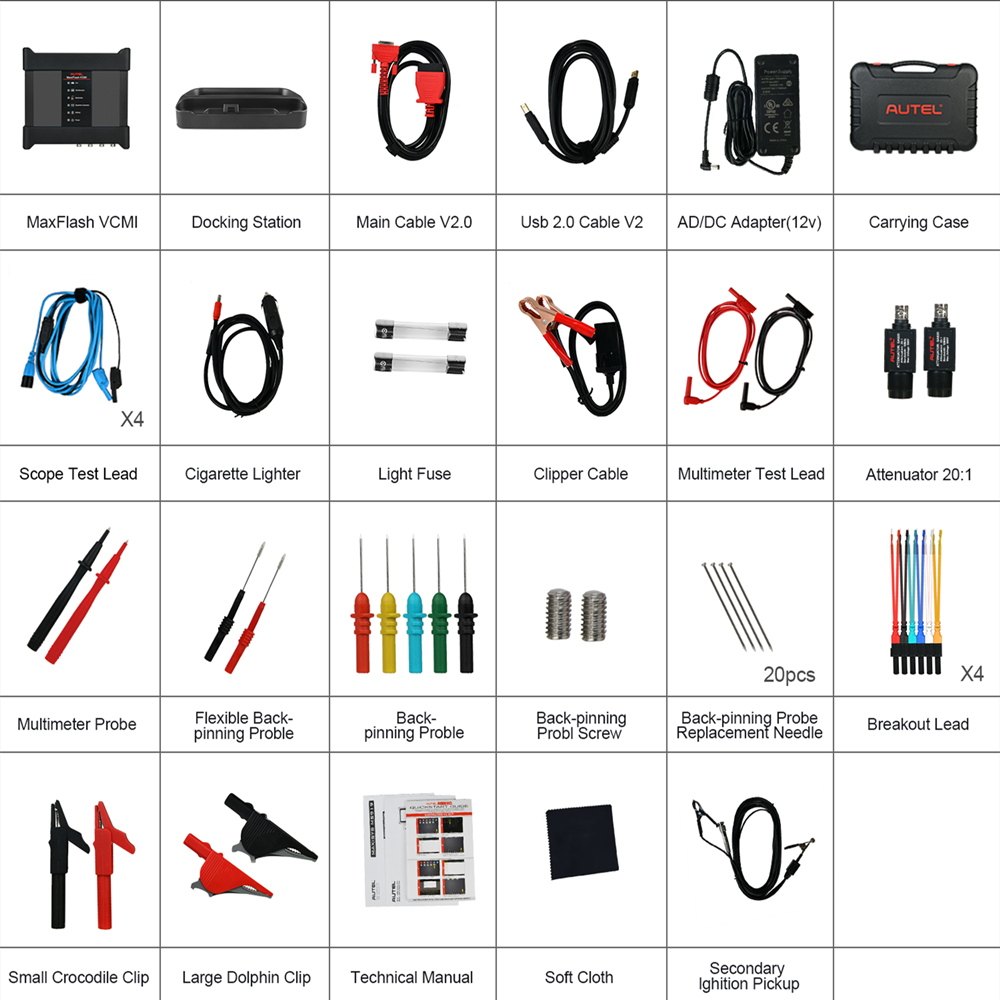

• Accessories: adapter cable, carrying case, USB cable, user guide, and MaxiFlash VCMI

Topology mapping

The CAN bus tree lists all control units of the test vehicle in color: system counts, scanned systems, scan results, per-module DTC presence and counts, communication structure, direct fault code display with system entry, and zoomable color-coded module with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, and others.

Advance diagnostics

Smart shortcuts lead directly to fault-code information: vehicle system and detected DTC display, technical service bulletins with recalls and campaigns, DTC analysis, component measurement with oscilloscope test guides, and relevant fault-clearing cases. Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Mercedes-Benz, VW, and others.

VCMI 5-in-1

Diagnostic tool plus 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester. D-PDU, SAE J2534, and RP1210 protocols reach more OEM tools and more vehicles than J2534-only tools.

Programming and coding

Coding (teach-in program, component adaptation) reprograms adaptive data after repairs and replacements. Programming downloads the latest software from the online server automatically over the internet and reprograms the ECU.

• Online ECU programming and coding without special connectors for BMW F and G chassis
• Online ECU programming for new Benz chassis (204, 212, 207, 463, and others) and online SCN for Benz (222, 212, 204, 205, and others)
• Online ECU coding for Volkswagen, Audi, Porsche, Renault, and others
• ECU programming and coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, and others
• VCMI bus protocols: KPW, CAN, CAN-FD, DoIP, and others. CAN-FD runs 14 times faster than CAN

26 reset services

Oil reset, EPB, BMS, ABS bleed, TPMS, airbag reset, DPF regeneration, IMMO service, injector coding, SAS calibration, suspension calibration, throttle adaption, ABS and SRS, gear learning, sunroof initialization, seats calibration, language change, headlight matching, A and F setting, WIN DR roof, odometer, CHG tire size, cylinder, turbocharging, limit, and transmission adaption.
