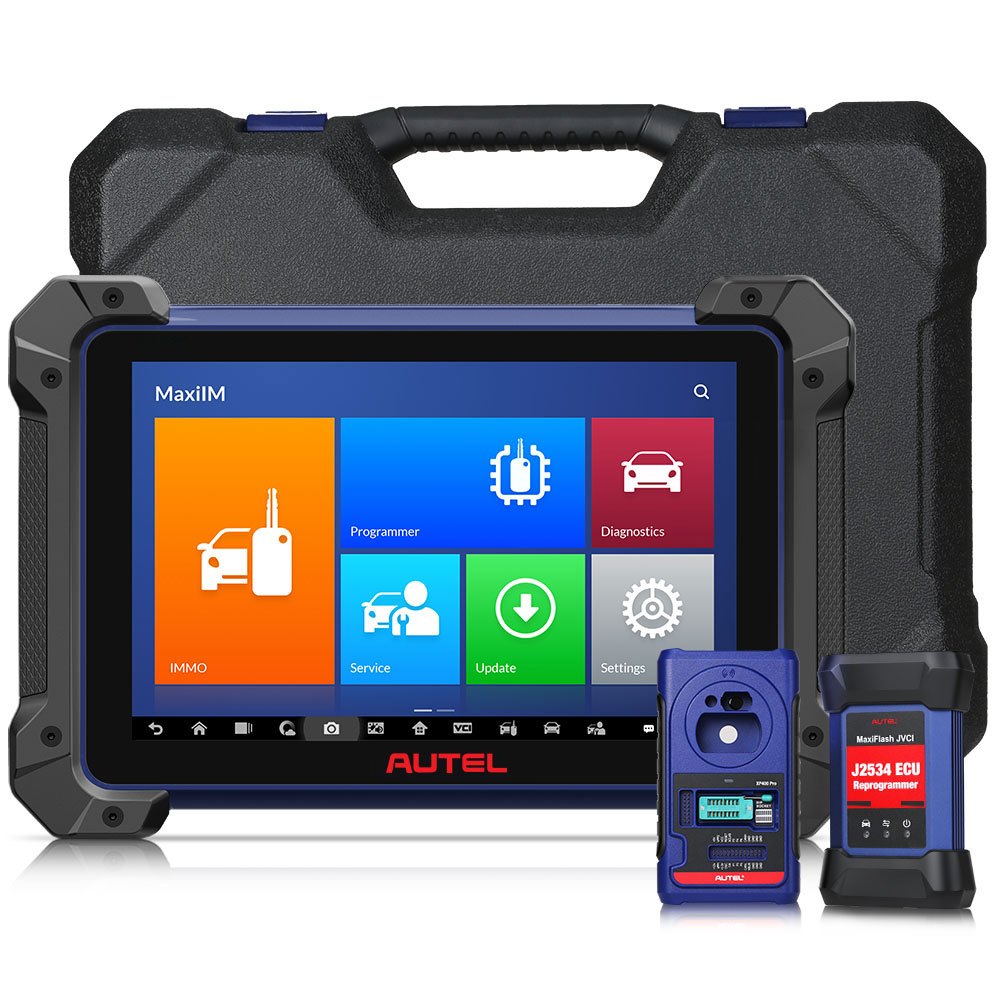

Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool with XP400 Pro Upgraded Version of IM608

The original Autel MaxiIM IM608 PRO key programmer and diagnostic tool supplied with the XP400 Pro, the upgraded version of the IM608. It carries two years of free online updates, with subscription only, APB112 with G-Box2 and full version options listed alongside.

Specifications

• Big Promotion: Get 2 Years Free Update Online. After 2 Years, please check Autel MaxiIM IM608/IM608Pro One Year Update Service

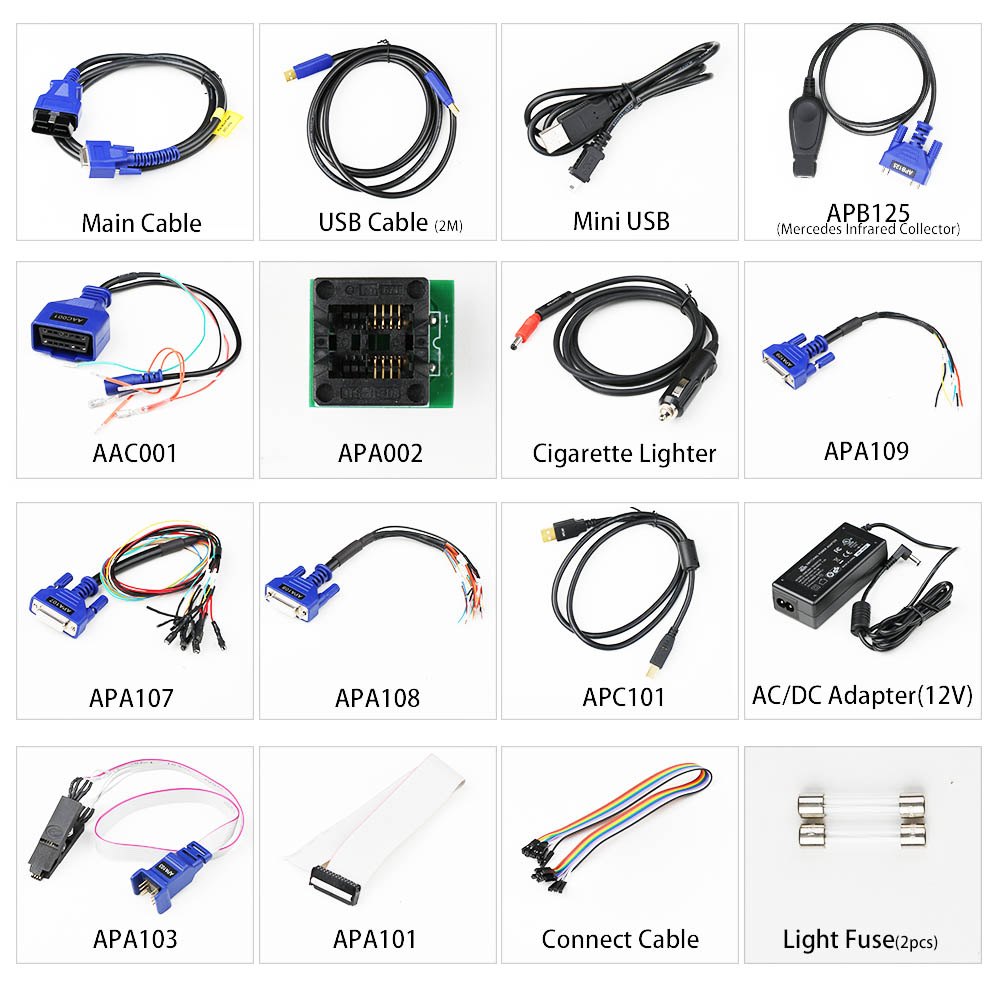

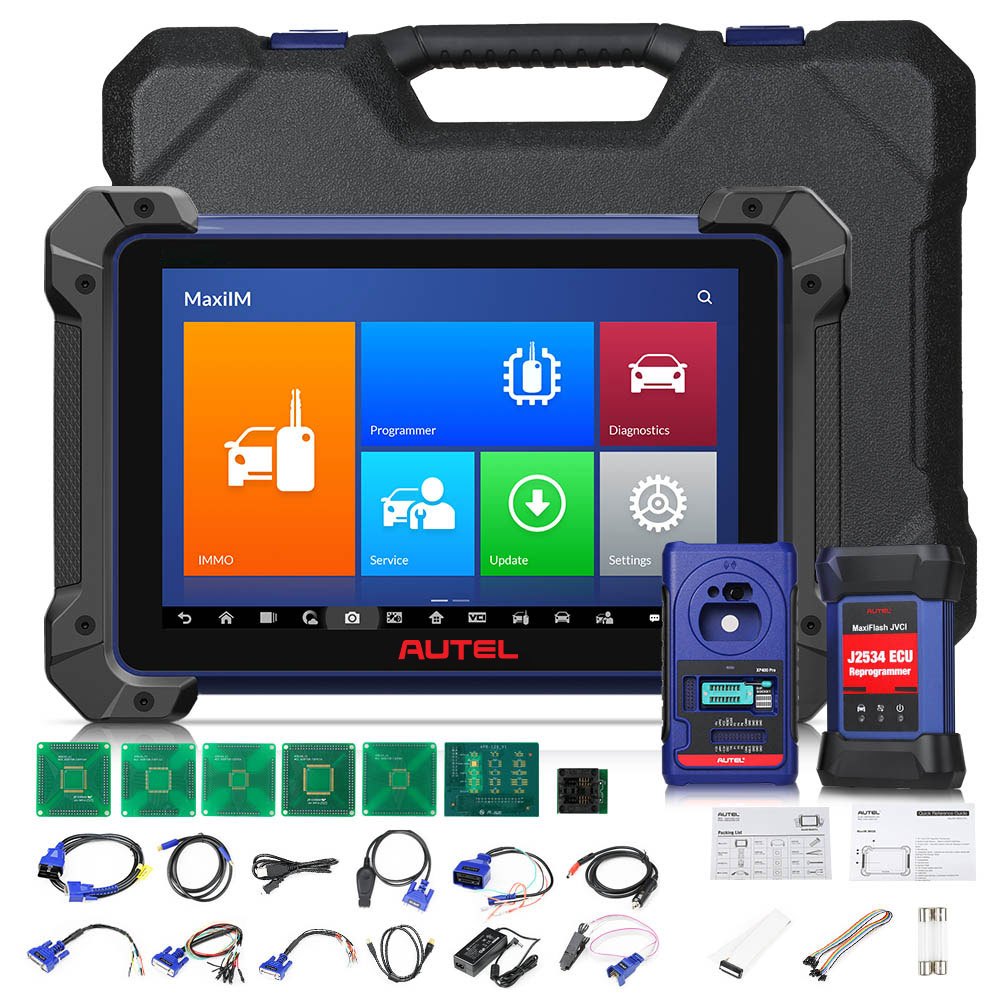

What you get

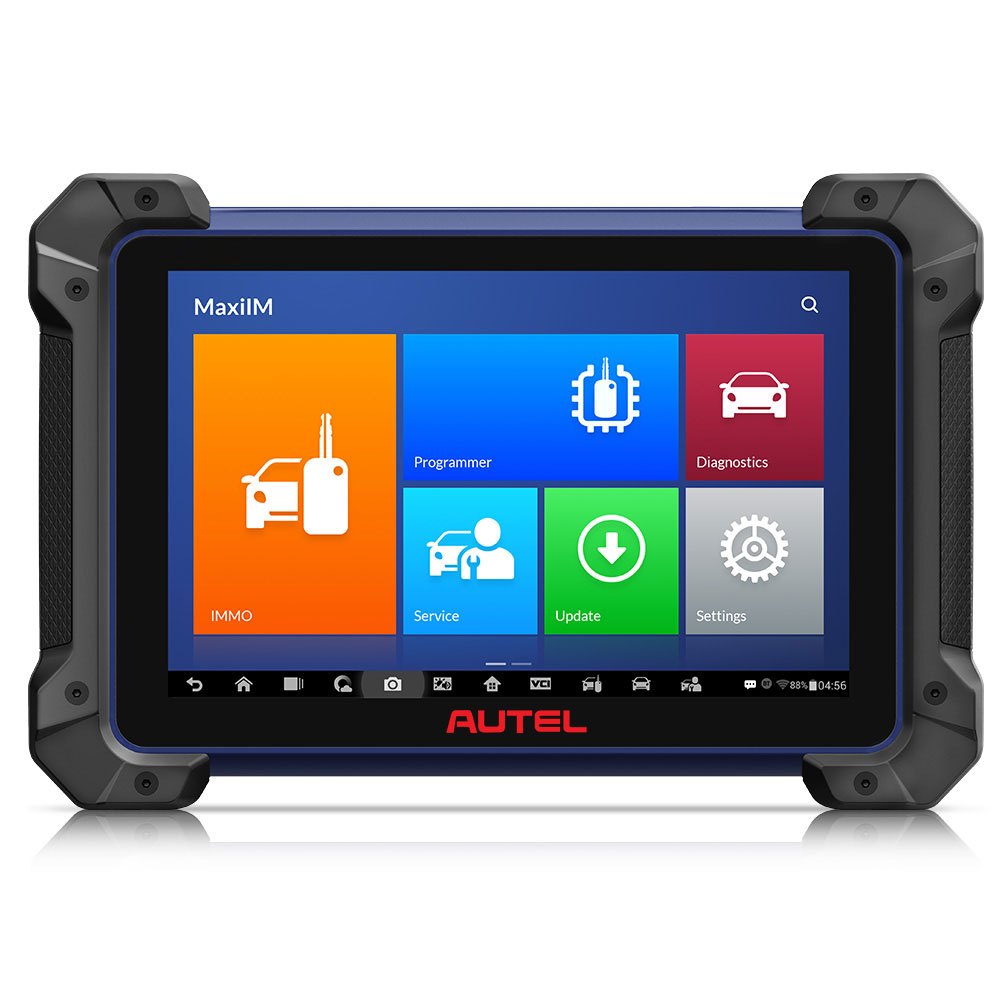

• 1pc x MaxiIM IM608 Tablet
• 1pc x XP400 Pro Key Programmer
• 1pc x MaxiFlash JVCI ECU Reprogrammer
• 1pc x Carry Case
• 1pc x Main Cable
• 1pc x USB Cable (2m)
• 1pc x Mini USB Cable
• 1pc x AC/DC Adapter (12V)
• 1pc x Light Fuse - 6*30mm (2pcs)
• 1pc x Cigarette Lighter
• 1pc x AAC001
• 1pc x APC101 (USB Cable)

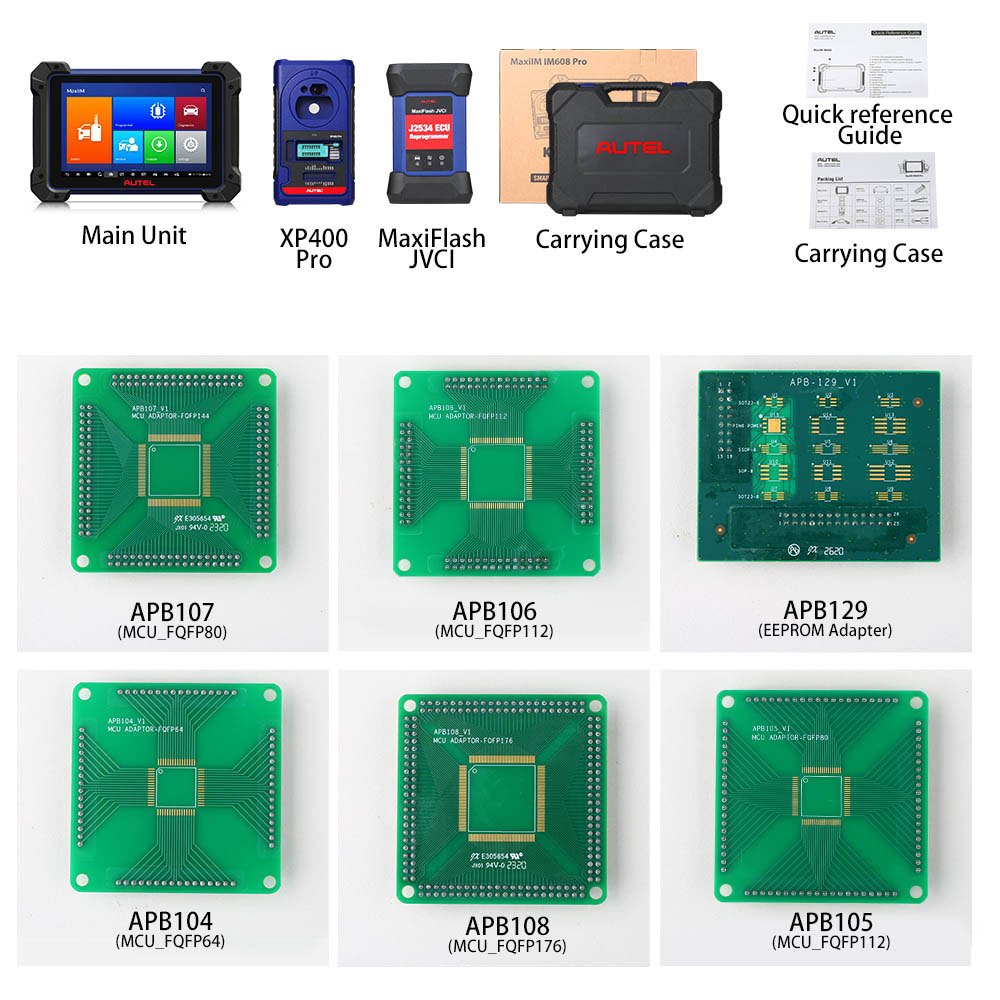

• 1pc x APB129 (EEPROM Adapter)
• 1pc x APB125 (Mercedes Infrared Collector)
• 1pc x APB103 (MCU_PLCC52)
• 1pc x APB104 (MCU_FQFP64)
• 1pc x APB105 (MCU_FQFP80)
• 1pc x APB106 (MCU_FQFP112)
• 1pc x APB107 (MCU_FQFP144)
• 1pc x APB108 (MCU_FQFP176)

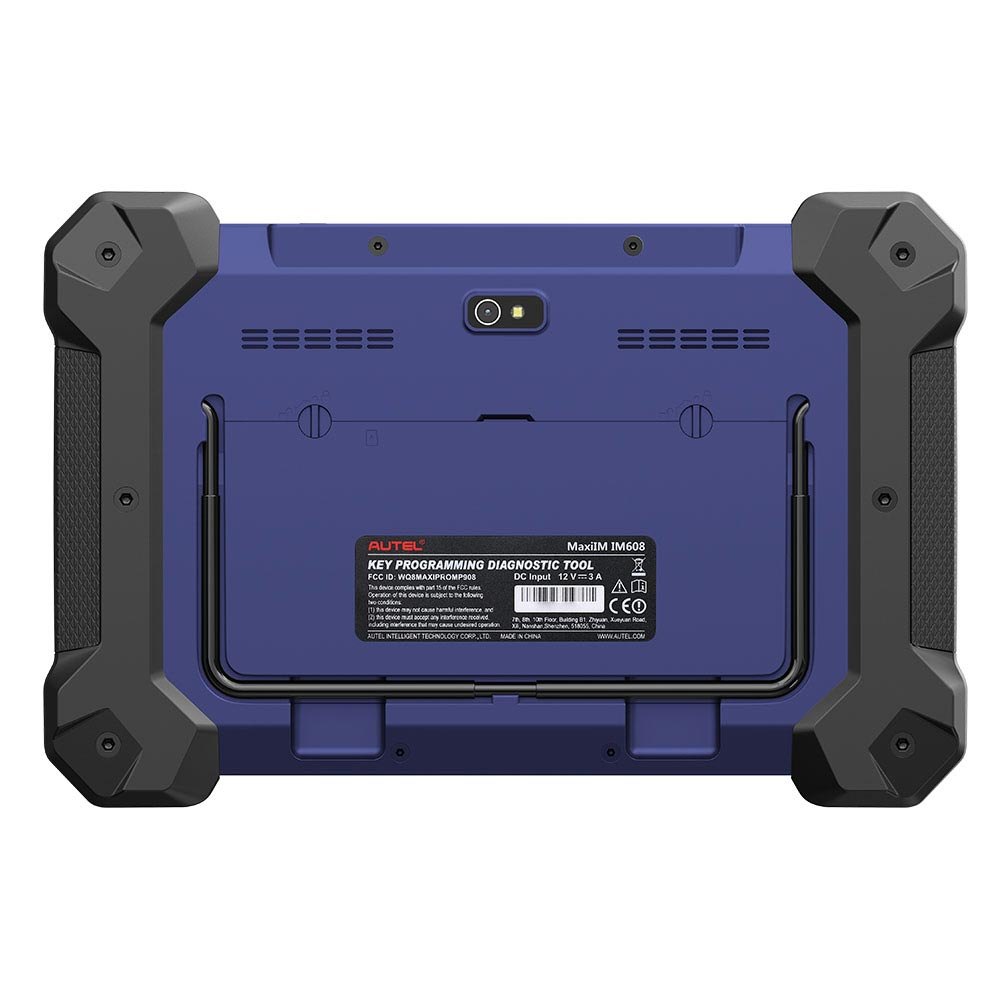

• Autel MaxiIM IM608 Pro with upgraded key programmer XP400 Pro is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android-based 10.1-inch touchscreen tablet.
• Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool
• Upgraded Version of Autel IM608
• Comes with XP400 Pro which adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading
• Could be used with IMKPA Accessories (Need to Buy Separately) Which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read/write/erase
• Existing Autel IM508/ IM608 Users Can Upgrade To IM608 Pro by Purchasing Autel XP400 Pro
• Multi-Language for both Diagnosis and IMMO Menu:
• Do Not Connect XP400Pro to Vehicles or Power Supply Directly, Otherwise Both XP400Pro and IM608 Pro Will Be Damaged.
• Autel MaxiIM IM608PRO is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit (optional). The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. Autel IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.
• What's the new added function of Autel IM608 Pro?
• Autel MaxiIM IM608 Pro comes with XP400 Pro:
• Expanded EEPROM functions for more component access
• 170+ types Odometer component reading funcitons
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types
• Includes 1-Year Warranty / Free Software Update for Life of Tool
• Supports over 10 key unlock types
• BMW EWS3 key learning
• Benz NEC key learning
• Benz ESL_W209 read/write/erase
• Autel MaxiIM IM608 Pro Detail Functions Supported:
• Auto Detect Make/Model/Year/System
• Read PIN (All Key Lost)
• Key Learning
• Remote Learning
• AUDI Q5/A4/A5 2015-2017 Key Learning
• VW MQB Key Learning
• BMW FEM/BDC Key Learning and Adaption
• BMW CAS4 Key Learning and Adaption
• Mercedes Key Learning
• 2015-2018 Land Rover & Jaguar write key via dump
• Volvo Smart Key Learning/knob-style smart key

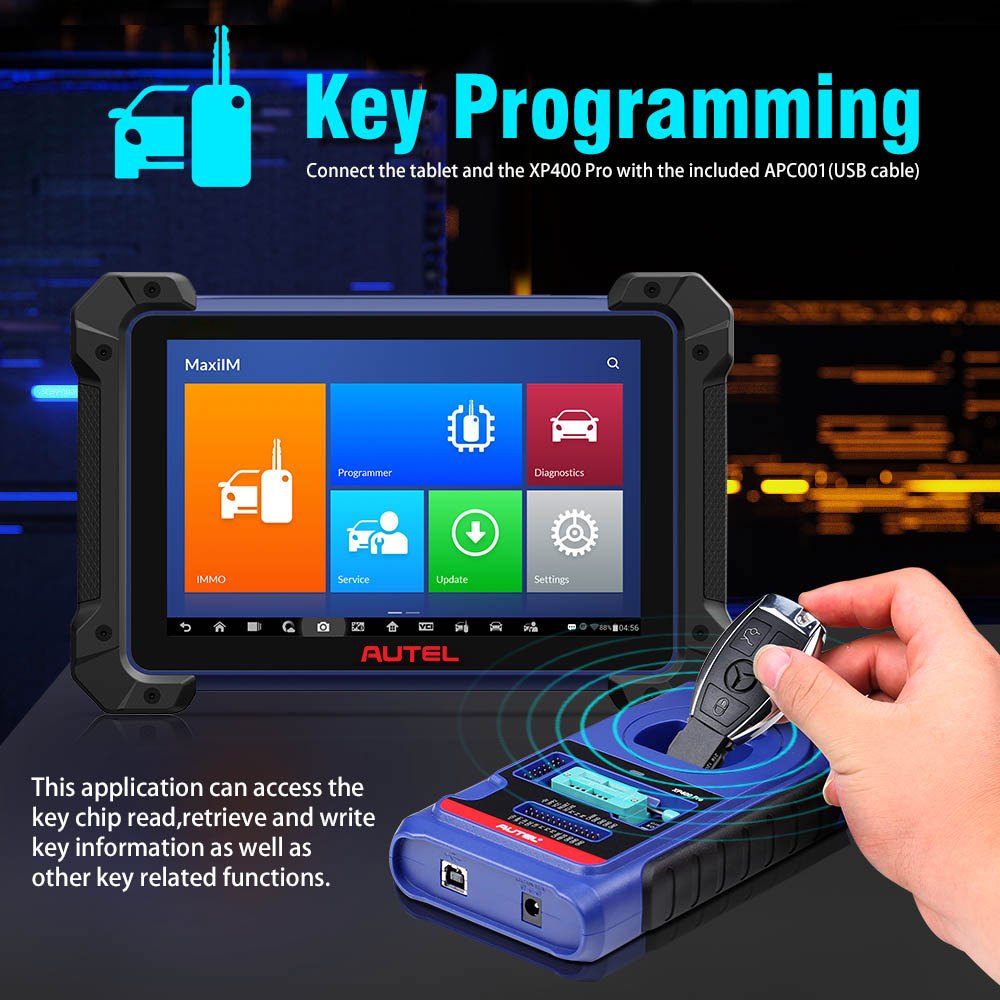

• Key Programming
• Mercedes Key Read/Write
• Remote Frequency Detect
• All system diagnostics and Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)
• Battery Registration and Reset
• XP400Pro adds support for following chips:
• EEPROM-->>AMD-->>AM29FXXX series chip
• EEPROM-->> FUJITSU-->> MB29FXXX series chip
• EEPROM-->> ST-->> M29FXXX series chip
• Engine control module-->> ST-->> M29FXXX series chip
• IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
• IMMO-->> BMW-->>EWS3 module read/write function
• REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase
• XP400 Pro adds support for following adaptor board:
• APB113 PCF79XXadaptor board
• APB114 EWS3 adaptor board
• APB115 NEC Adapter board
• APB118 NEC ELV adaptor board
• APB119 TB28FXXXadaptor board
• APB120 TMS370adaptor board
• APB121 AM29FXXX Adapter board
• APB122 AM29FXXX adaptor board1
• APB123 AM29FXXX adaptor board2
• APB126 M35080/D80 adaptor board
• APB127 MC68HC0(7)05BXX adaptor board
• APB128 MC68HC05X32 adaptor board
• What's the Difference Between IM608 and IM608 Pro?
• The only difference between IM608 and IM608 Pro is the programmer that comes with the tablet.
• The tablets themselves IM608 and IM608Pro have no difference in terms of hardware and software. All keep the same.
• As for the difference of XP400 and XP400Pro, the main difference is the hardware upgrade. XP400PRO is more powerful.
• But the good thing is you can buy XP400Pro and optional adaptors together with any Autel key programming tool like IM508 and IM608 to have the same features with IM608Pro&XP400Pro and optional adaptors.
• XP400Pro programmer upgrade and improvement compare to XP400:
• Fixed the problem of connecting the XP400 to the vehicle ODB connector causing the burnout of the device.
• Fixed the stability problem of using APB102 IR key to read/write.
• Upgrade the hardware of programmer, Chip read/write function is more stable and support more EEPROM chips.
• Fixed the problem of EERPOM adaptor APB101 can't read/write EEPROM chip and rename it as APA129.
• Rename accessories APA104、APA105、APA106 as APA107、APA108、APA109.
• APA108 and APA109 cable length is shorter than before, reducing the signal interference.
• XP400 Pro add support for following chips:
• EEPROM-->>AMD-->>AM29FXXX series chip;
• EEPROM-->> FUJITSU-->> MB29FXXXseries chip;
• EEPROM-->> ST-->> M29FXXXseries chip;
• Engine control module-->> ST-->> M29FXXXseries chip;
• IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function;
• IMMO-->> BMW-->>EWS3 module read/write function;
• REMOTE_RENEW(renew key)-->> NEC-->> V51 and V57 chip read/write/erase; (Support original dealer key learning with key dump mode.)
• APB113 PCF79XXadaptor
• APB114 EWS3 adaptor
• APB115 NEC Adapter
• APB118 NEC ELV adaptor
• APB119 TB28FXXXadaptor
• APB120 TMS370adaptor
• APB121 AM29FXXX Adaptor
• APB122 AM29FXXX adaptor
• APB123 AM29FXXX adaptor
• APB127 MC68HC0(7)05BXX adaptor
• APB128 MC68HC05X32 adaptor
• 400pro supports 12 types of unlocking smart key:
• BMW E Chasis remote control
• OE 315 remote refresh
• OE 868 remote refresh
• Aftermarket remote control refresh
• BMW F Chasis remote control
• 315 remote refresh
• 433 remote refresh
• 868 remote refresh
• Audi--semi smart key
• PCB2_8T0959754_433_REMOTE
• PCB2_8T0959754D_868_REMOTE
• Audi--smart key
• PCB3_4H0959754DA_433_SMARTKEY
• PCB3_4H0959754DB_315_SMARTKEY
• PCB3_4H0959754DD_868_SMART

The XP400 Pro is the bench programmer half. This listing pairs it with the tablet rather than the APB112 kit.
