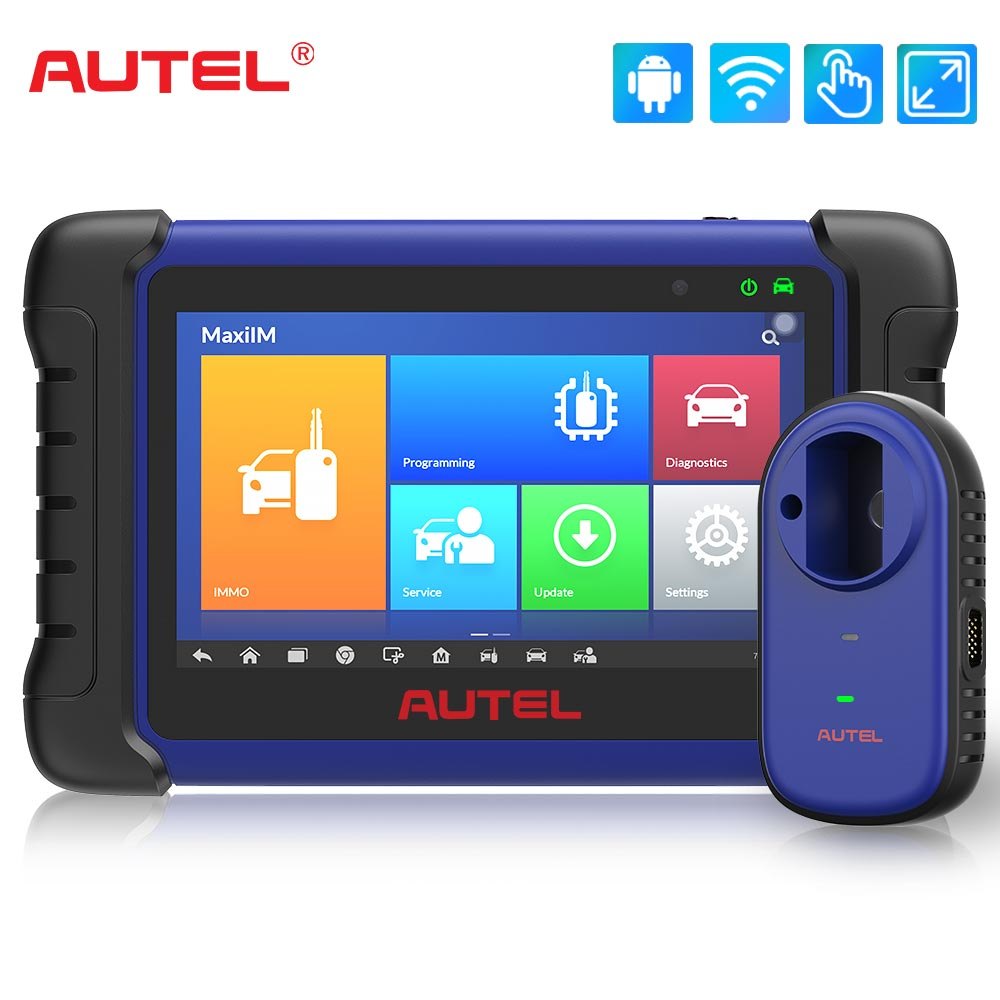

Original Autel MaxiIM IM508 XP400 Pro APB112 G-BOX3 Full Kit

The Original Autel MaxiIM IM508 with XP400 Pro, APB112 and G-BOX3 full kit shown here covers key programming and diagnostics with IMMO functions listed as equal to IM608 Pro. With XP400 Pro, APB112 and G-BOX3 it is listed to cover 95 percent of cars for key programming. Note: Autel IM508 has stopped production, supplier suggests IM508S full kit as alternative.

Versions

Four versions are available at different prices: IM508 one year update service, Autel IM508 with XP200, Autel IM508 with XP400 Pro, and Autel IM508 with XP400 Pro plus APB112 and G-Box2 shown here. Title lists G-BOX3 while variant label lists GBox2 as listed in source version before ordering.

Compatibility

OE level diagnostics for more than 80 US, Asian and European makes and models. Languages for diagnosis and IMMO menu: English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian and Traditional Chinese. Global version with no IP blocking issue. Android system for fast boot and multitasking. XP400 Pro works with IM508, IM608, IM100 and IM600 where listed. APB112 works with IM508 and IM608 and must be used with a diagnostic tool. Advanced key coverage includes Benz one tap programming by OBD and 3rd generation IMMO CAN and K line add key and all key lost, BMW EWS3 and EWS4, CAS 1 to 4, FEM and BDC add key and all key lost, Volkswagen and Audi one tap online programming and add key and all key lost by OBD for 2013 to 2020 models, GM IMMO password read and add key and all key lost up to 2020, Ford add key and all key lost with no PIN up to 2020, Mazda add key and all key lost with no PIN up to 2020, FCA password read and add key and all key lost up to 2020, Renault add key and all key lost with no PIN up to 2020, Land Rover and Jaguar add key and all key lost up to 2019, Volvo semi-smart learning by OBD up to 2018 and smart, blade and Fobik learning by dump. Functions vary by vehicle.

Specifications and Functions

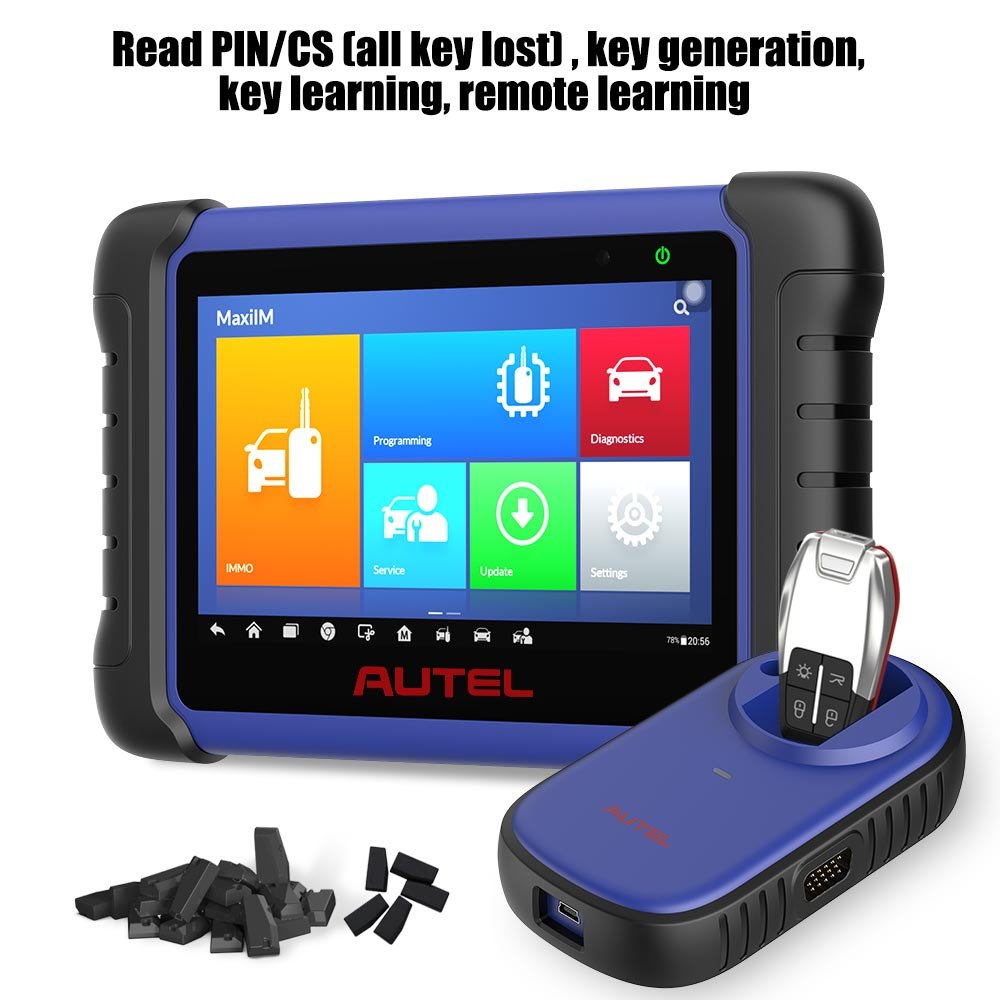

All systems diagnostics with AutoVIN and AutoScan, read and erase codes, view, record and playback live data, view freeze frame data, shop and data manager. Key functions: key read and write, EEPROM and MCU read and write, read PIN and CS for all key lost, key generation, key learning, remote learning, backup and restore IMMO data, IMMO ECU reset and adaptation, IMMO ECU refresh and coding, BMW FEM and BDC learning and adaptation, VW and AUDI MQB learning, 48 transponder 96-bit add key, all key lost, A6 all keys lost and more. XP400 Pro advanced programmer as replacement for XP400 with added BMW, Mercedes-Benz and EEPROM functions, over 2000 chip, component and device types, EEPROM and MCU read, odometer read and write and more, plus EWS3, W209 and NEC functions. Listed counts: 170 plus odometer components, 180 plus immobilizer ECU types, 40 plus engine ECU types, 2000 plus MCU types, 440 plus EEPROM types. Comparison as listed: EEPROM read and write 330 types for XP400, 445 added types for XP400 Pro including AM29FXXX and MB29FXXX series, 429 types for VVDI Prog. MCU read and write 1541 types for XP400, 2067 types for XP400 Pro, 1758 types for VVDI Prog. Engine ECU 40 types for XP400, 41 types for XP400 Pro with added SIMTEC76 AM29F800BB write, 74 types read for VVDI Prog. Immobilizer ECU 40 types for XP400, 41 types for XP400 Pro with added SIMTEC76 write, 74 types read for VVDI Prog. Odometer 168 types for XP400, 181 types for XP400 Pro, 171 types for VVDI Prog. Airbag and odometer modules 9 types for XP400, 171 types for XP400 Pro, 171 types for VVDI Prog. Frequency detection 5 types for XP400 and XP400 Pro, 54 types for VVDI Prog. Key read and write 315, 433 and 868 MHz for XP400 and XP400 Pro. Key renewal on 11 key types for XP400 Pro with IMKPA adapters, 11 types for Audi and BMW, 6 types for VVDI Prog. Write key by dump for Mitsubishi, Suzuki, Fiat, Land Rover and Jaguar on XP400 series, 40 plus makers on VVDI Prog. Stability and menus as listed with high definition wiring diagrams. Product does not support IC card read and write, IC induction area removed on XP400 Pro. APB112 smart key simulator for ignition coil data collection, coil fault identification, key chip decoding and simulation including 46 and 4D collection, 46 password calculation and chip simulation, Toyota 4D 94, D4 and 98 simulation, Toyota H 88, A8, A9 and 39 simulation, Toyota and Lexus smart key all key lost, Hyundai 46 decoding. G-Box3 adapter for faster and more secure Bosch EDC17, MEx17, MD1 and MG1 reading and writing, on vehicle and on bench fast mode in Mercedes-Benz all keys lost. One year free update for XP400 Pro on official site, one year warranty, free software updates for life of tool as listed.

Box Contents

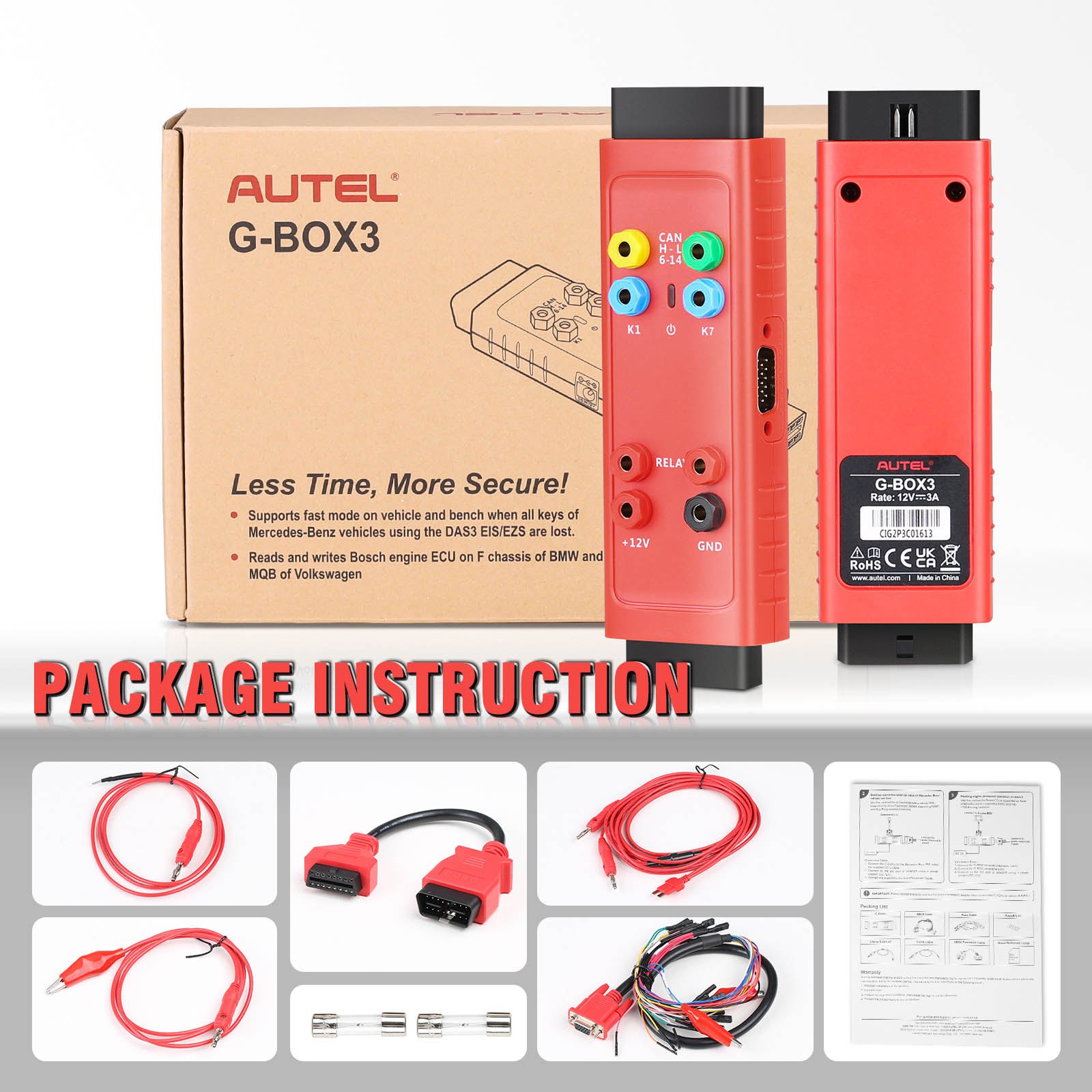

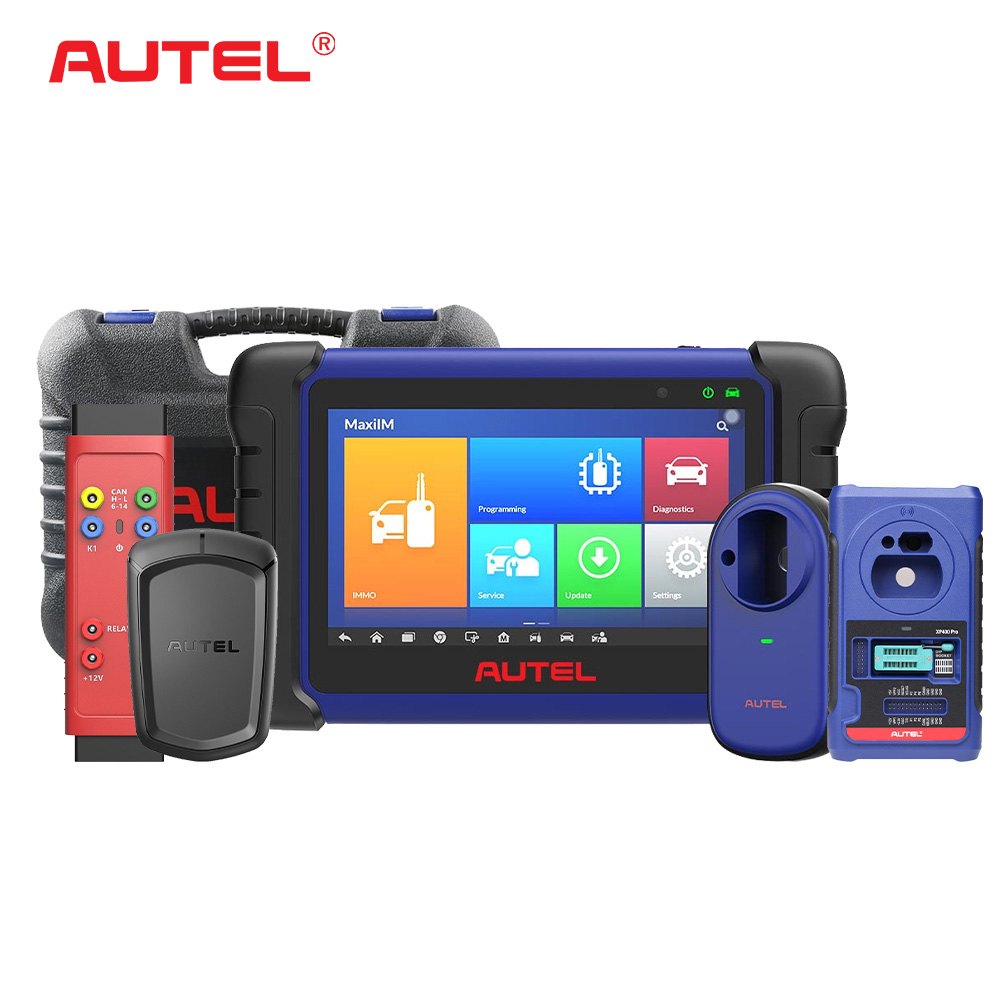

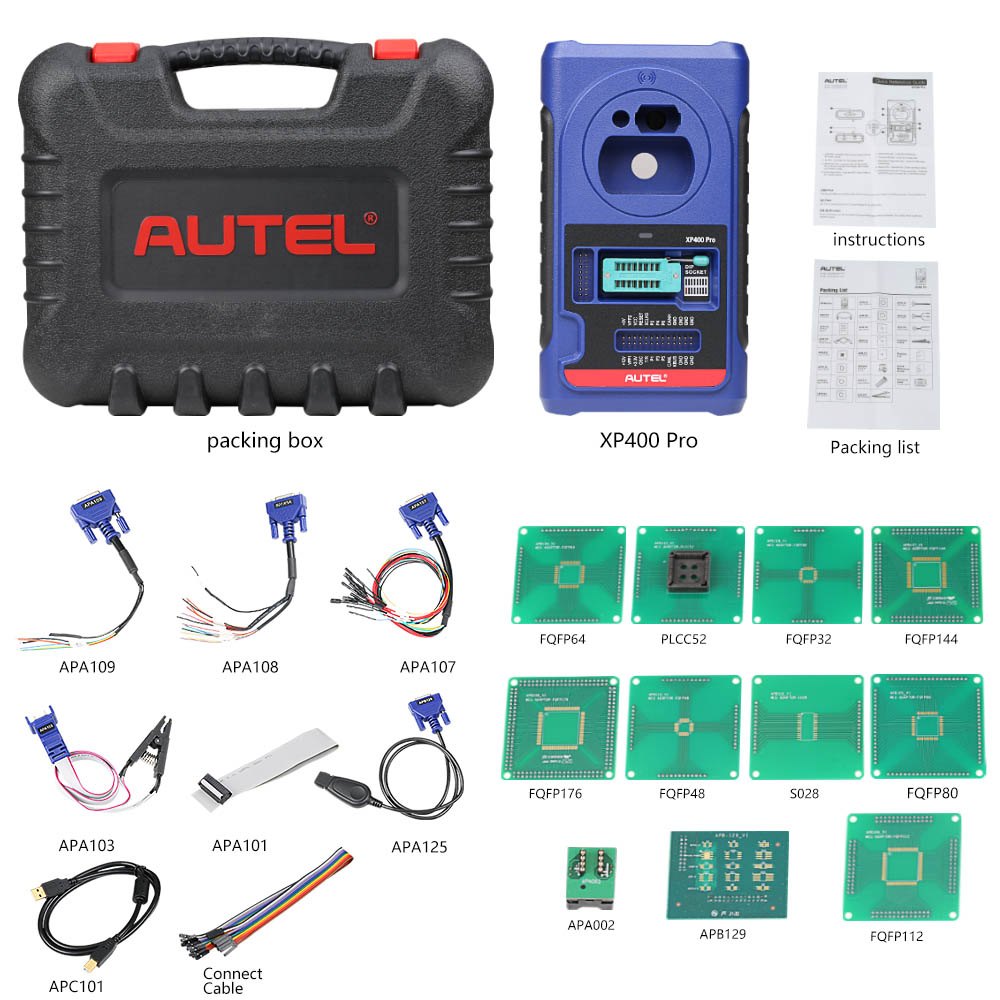

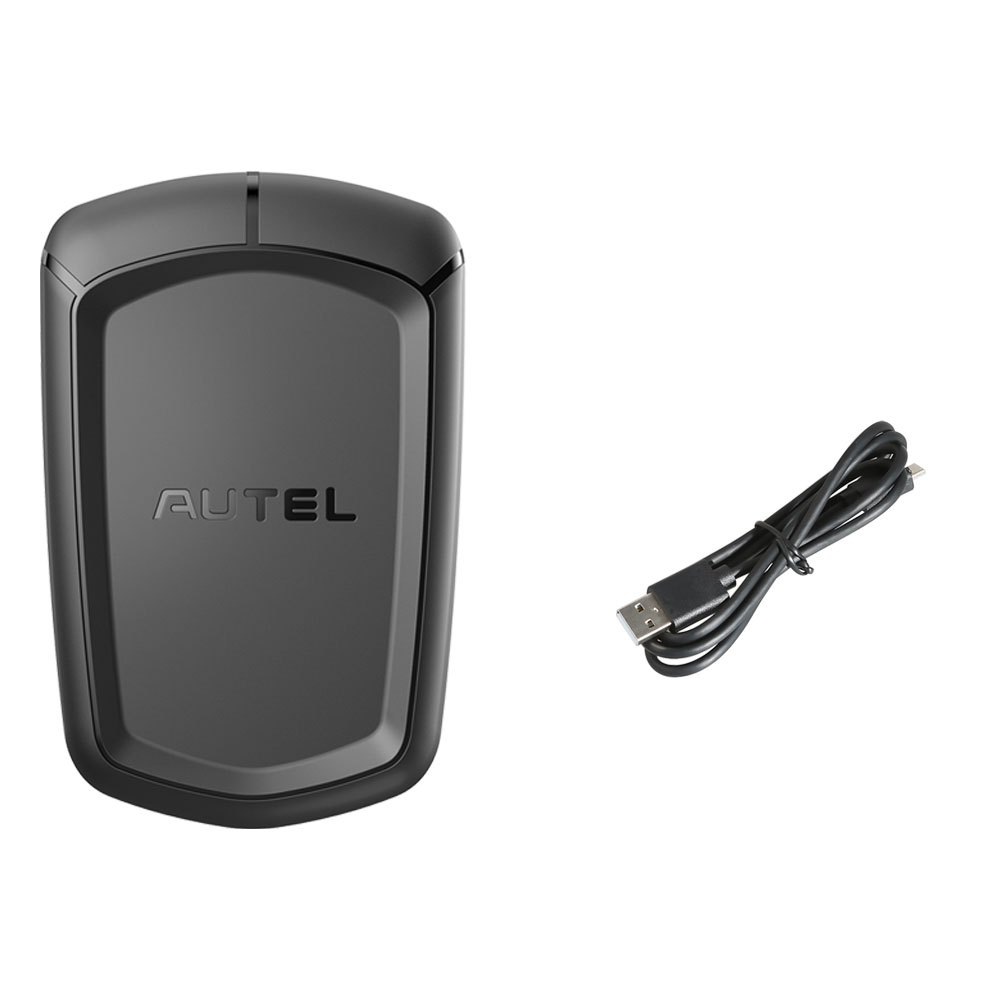

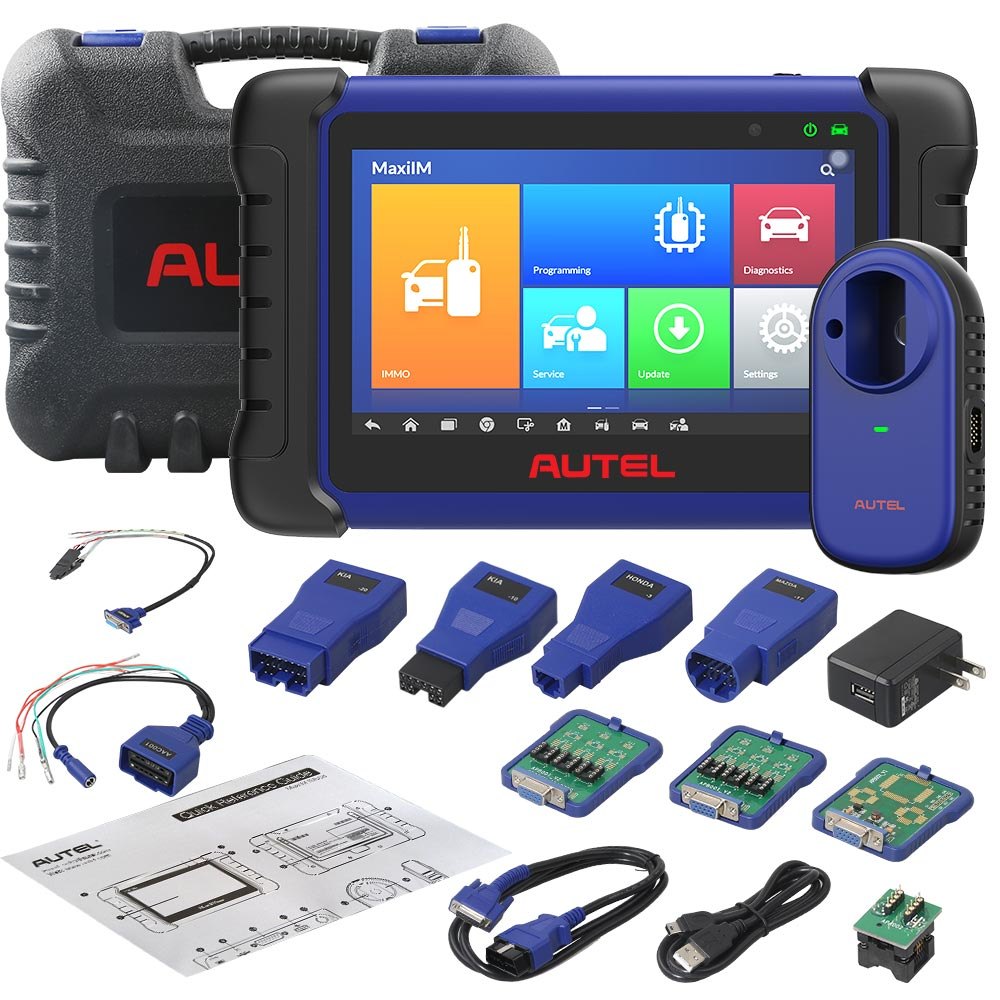

Full kit as listed includes IM508 tablet, XP400 Pro programmer, APB112 simulator and G-BOX adapter. Confirm exact adapters and cables before ordering as box list varies by version.

Notices and Terms

• 2 years free update online included in this promotion. After 2 years use IM508 one year update service.
• IM508 has stopped production. Confirm availability and alternative IM508S before ordering.
• Functions vary by model and year. Check compatibility before ordering.
• XP400 Pro with IM100 and IM600 does not include 4 channel labscope software and AutoAuth as listed.
