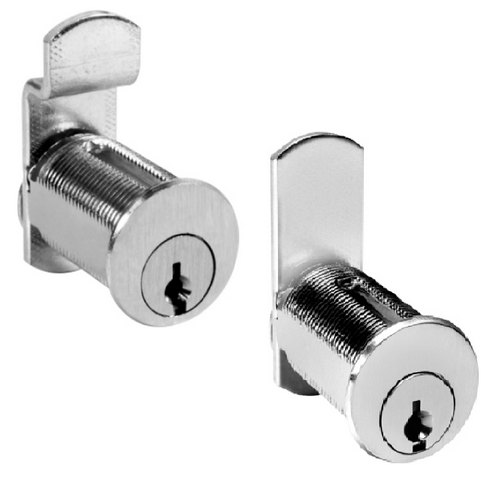

National Lock C8102 Pin Tumbler Cam Look 1-1/16" Keyed Alike to 101 26D Finish

The National Lock C8102 Pin Tumbler Cam Look 1-1/16" Keyed Alike to 101 26D Finish is supplied new.

Specifications

• Part number: C8102
• Application: For drawer, R.H. or L.H. doors with Flush, lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the 1-1/2" cylinder length. Also see overlay detail below. The other locks are for flush application.
• Operation: 90 degree cam turn, key removable in both locked and unlocked positions. Through the use of a shifter, the 360 degree key turn turns the cam 90 degree in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
• Keying: Keyed Alike to key 101. Will key together with all other pin tumbler locks using D4291 key blank except mail box locks. Master keying to GM1 IS available as a .
• Packaging: Supplied with two keys, trim washer, spur washer for wood, C2014 cam lock mounting plate for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.The National Lock C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1 - 1/16" Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with Flush, lipped or overlay construction.
