MUCAR 563HD Heavy-duty Diagnostic Scanner, Supports Full-system Diagnostics, 71 Truck Brands, 8 Maintenance Reset Functions

Truck diagnostics live or die on brand coverage, and the 563HD carries software for 71 heavy duty makes with full system access rather than engine only. It runs Android 8.1 over a wired connection and speaks SAE-J1850 PWM and VPW, ISO 9141 and ISO 14230-2.

Specifications

• Operating System: Android 8.1
• Diagnostic Functions: Full system basic functions
• Diagnostic Software: 71 heavy-duty truck models software
• Diagnostic Protocols: SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD
• Connection Method: Wired
• Online Programming: Not supported
• Maintenance Functions: 8 (Oil Maintenance Reset, Injector Coding, Brake Reset, D#P#F Regen, Clutch Matching, Cylinder Cut Out Test, Speed Limit Reset, SCR Reset)
• Remote Diagnosis: Not supported
• TPMS: Not supported
• ADAS: Not supported
• Expansion Modules: Not supported
• Diagnostic Smart Navigation: Not supported
• Diagnostic Topology Map: Not supported
• Screen size: 5 inches
• Resolution: 854×480
• Processor: RK3326S, quad-core Cortex-A35, 1.6GHz (Y9S)
• RAM: 2GB
• ROM: 64GB
• Expandable memory: Supported
• Battery: 3150mAh / 3.8V
• Camera: None
• Bluetooth: Bluetooth 5.0
• Wi-Fi: 2.4G/5G (dual-band)
• Speaker: None
• Microphone: None
• Buttons: Power on/off

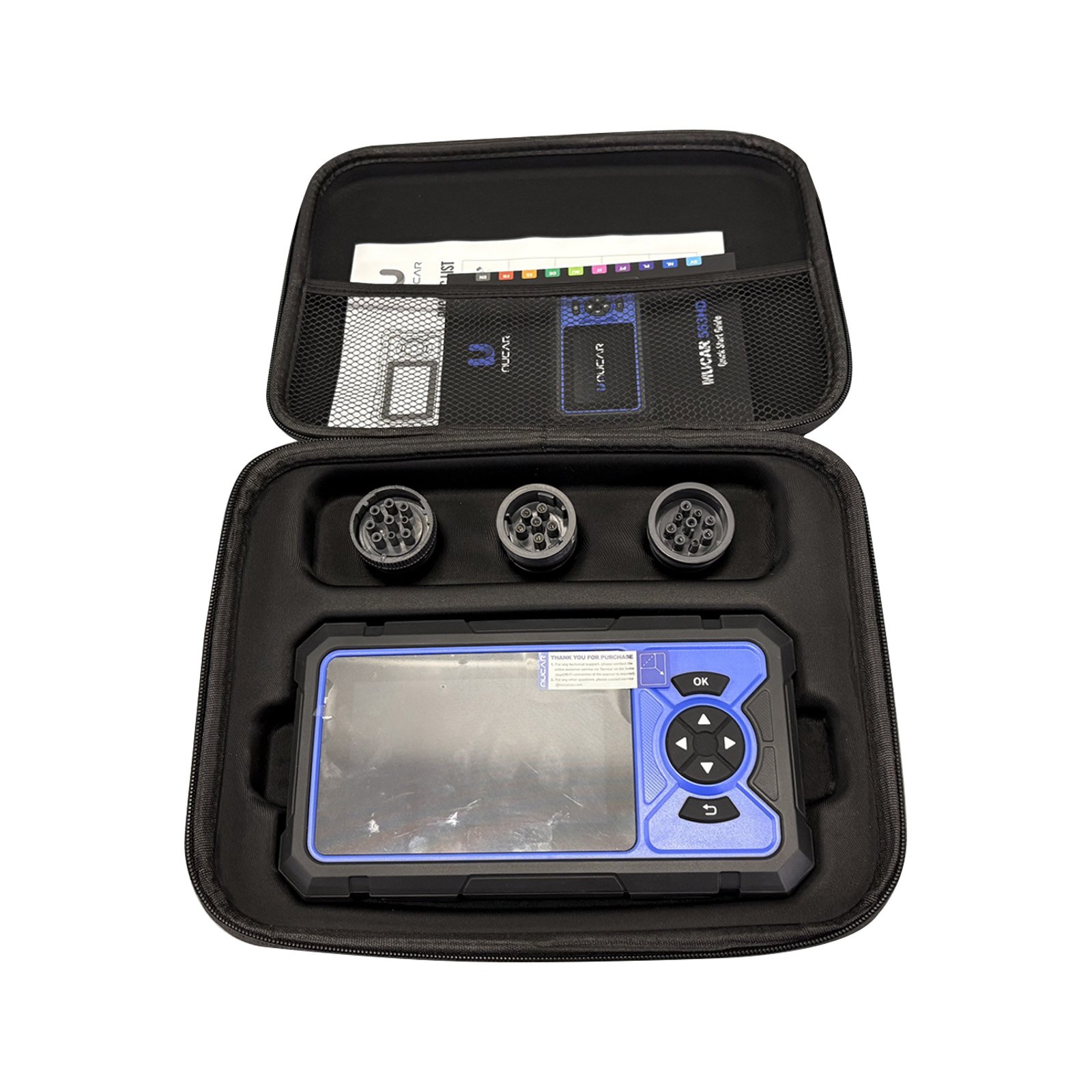

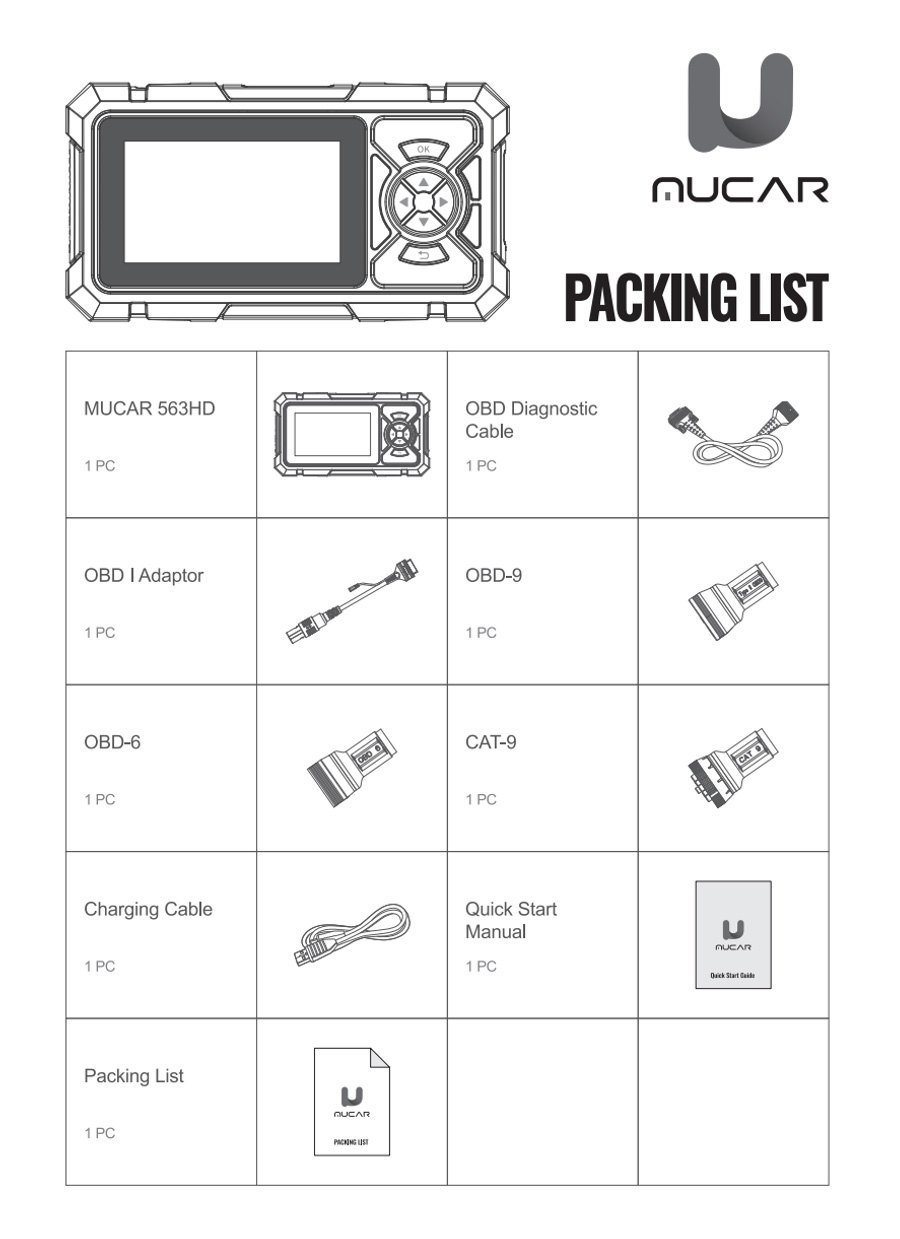

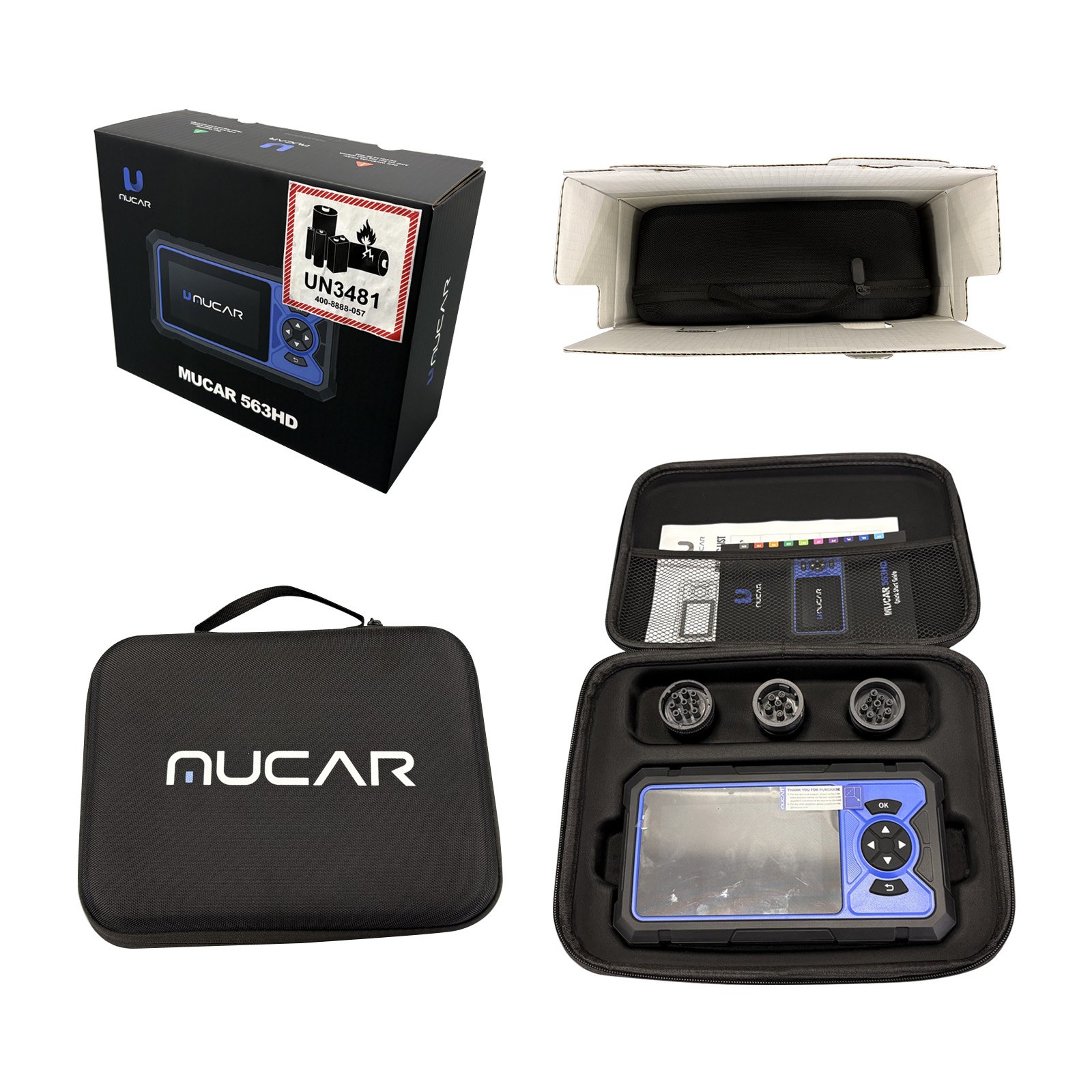

What you get

• 1pc x MUCAR 563HD Tablet
• 1pc x Diagnostic Cable
• 1pc x OBDI Adapter Cable
• 1pc x OBD-9 Adapter
• 1pc x OBD-6 Adapter
• 1pc x CAT-9 Adapter
• 1pc x Charging Cable
• Specialized Heavy-duty Truck Diagnostics
• Covers 71 Truck Brands
• 8 Maintenance Reset Functions

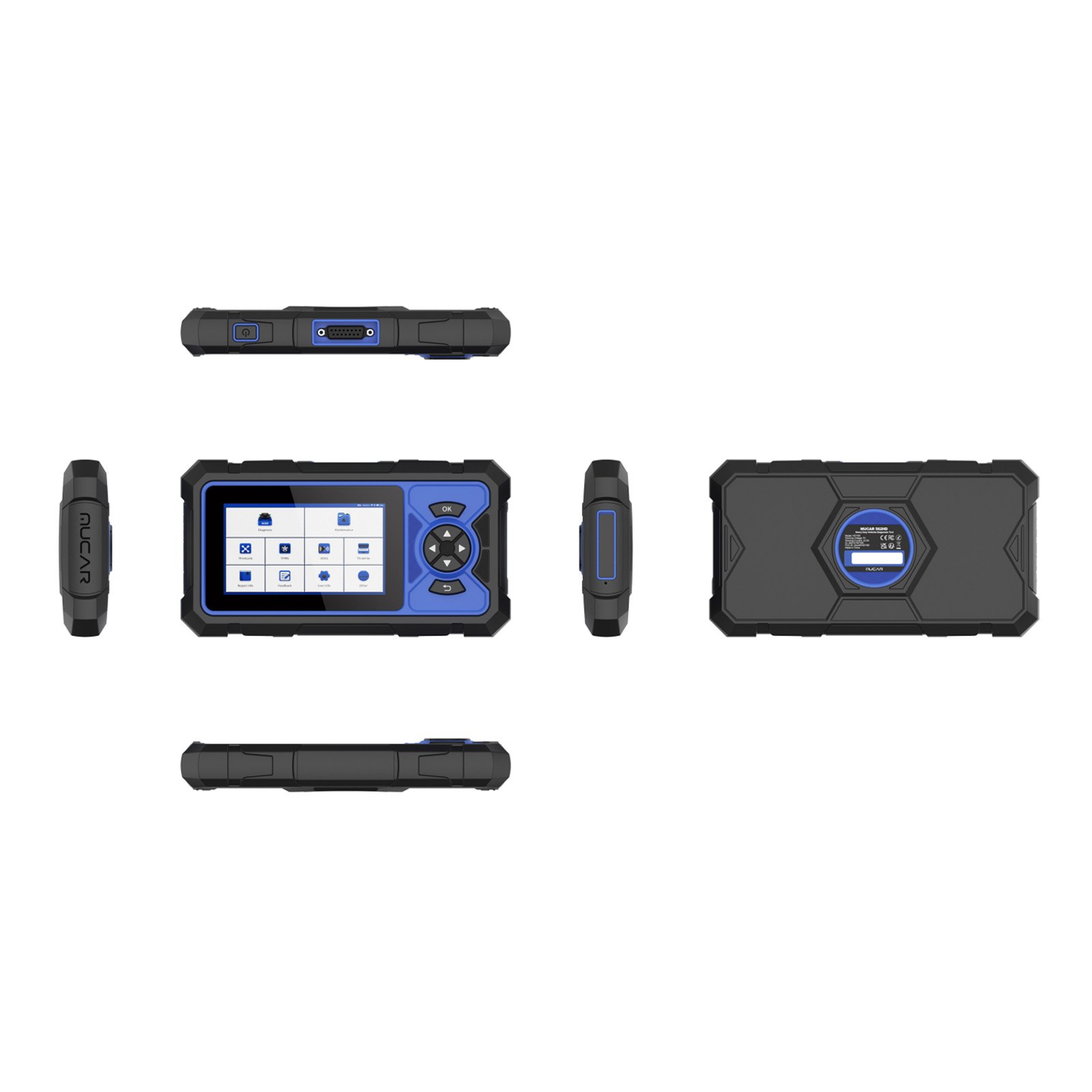

• 5-inch Display Screen
• 2 Years of Free Updates
• MUCAR 563HD Heavy-duty Diagnostic Scanner, Supports Full-system Diagnostics, 71 Truck Brands, 8 Maintenance Reset Functions
• THINKCAR MUCAR 563HD is a professional diagnostic tool specifically designed for heavy-duty trucks and commercial vehicles. It covers 71 truck brands, supports full-system diagnostics, and offers 8 maintenance reset functions. Equipped with a 5-inch screen and a wired connection for stable and reliable data transmission, it also comes with 2 years of free updates to keep the device up to date.
• The kit includes 3 OBD1 adapters (OBD-9, OBD-6, and CAT-9) for broader vehicle compatibility. An ideal entry-level heavy-duty diagnostic scanner for repair shops looking to expand into commercial vehicle maintenance.

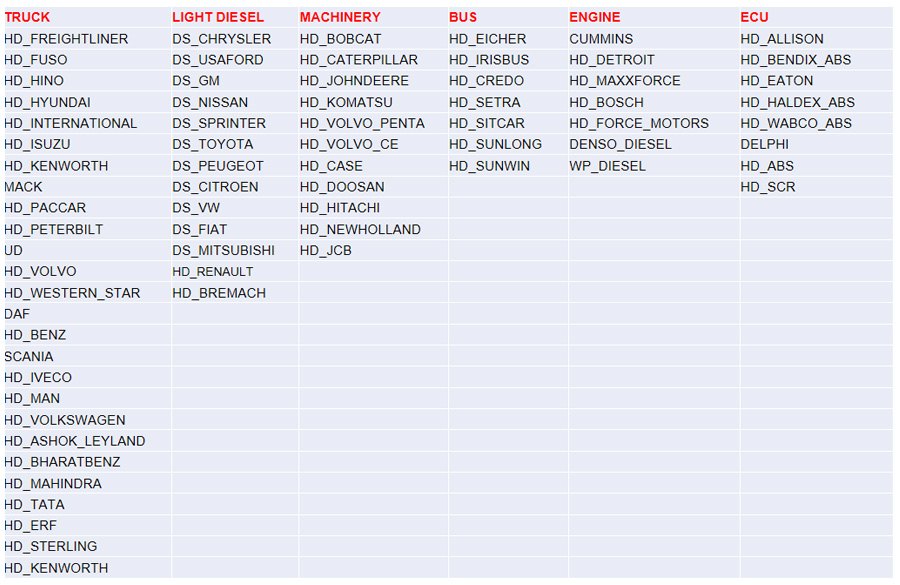

• For FREIGHTLINER, for FUSO, for HINO, for HYUNDAI, for ISUZU, for VOLVO, for IVECO, for MAN...
• For CHRYSLER, for GM, for NISSAN, for TOYOTA, for VW, for FIAT, for RENAULT...
• For Bobcat, for CATERPILLAR, for JOHNDEERE, for CASE, for HITACHI, for JCB...
• For EICHER, for IRISBUS, for CREDO, for SETRA, for SITCAR, for SUNLONG, for SUNWIN
• For CUMMINS, for DETROIT, for MAXXFORCE, for BOSCH, for DENSO...
• For ALLISON, for EATON for WABCO for DELPHI, for HALDEX...

Eight maintenance functions are included: oil reset, injector coding, brake reset and DPF among them. Note what it does not do, so there are no surprises: no online programming, no remote diagnosis, no TPMS and no ADAS.
