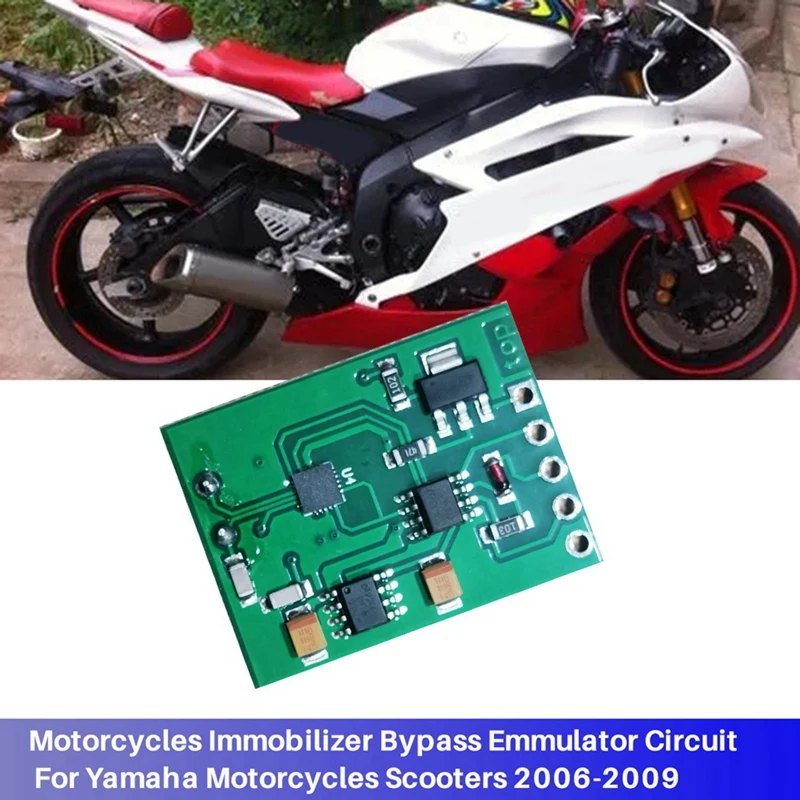

Motorcycles Immobilizer Bypass Emmulator Circuit For Yamaha Motorcycles Scooters 2006-2009 Parts Immobiliser Emulator Chips

An emulator rather than a bypass: it answers the bike's immobiliser directly, which is what you need when the original immobiliser box is faulty or missing rather than when you are adding a remote starter. Covers Yamaha motorcycles and scooters built between 2006 and 2009. Plastic and metal construction.

Specifications

• Material: plastic+metal
• colour: Green
• Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

What you get

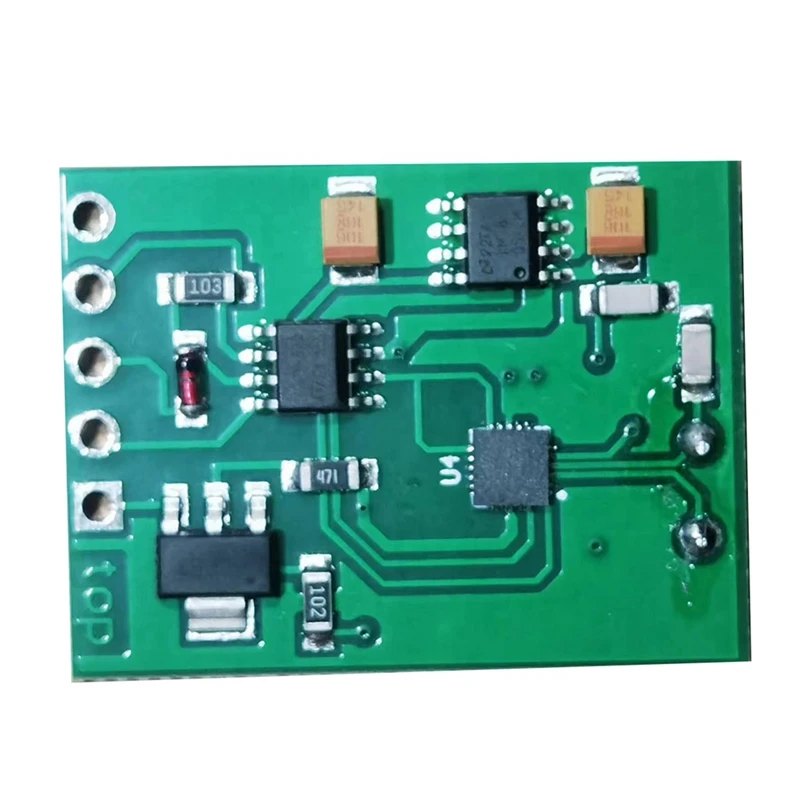

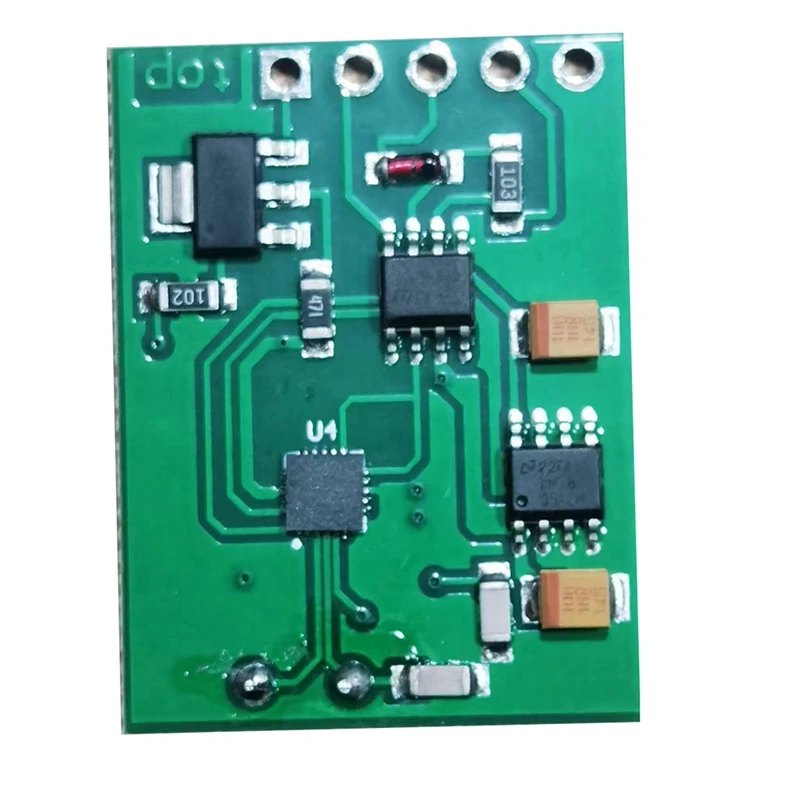

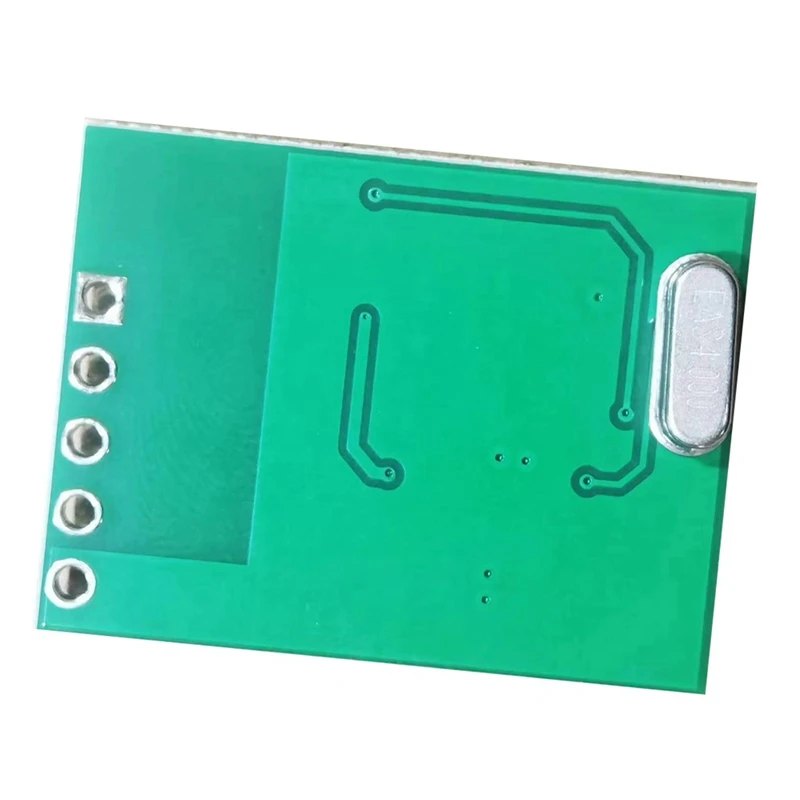

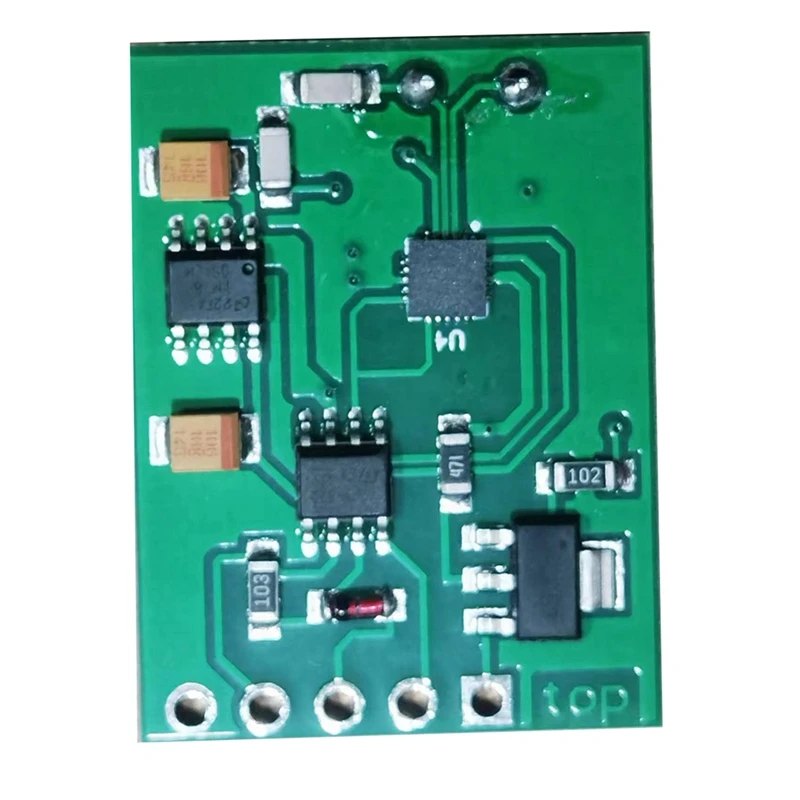

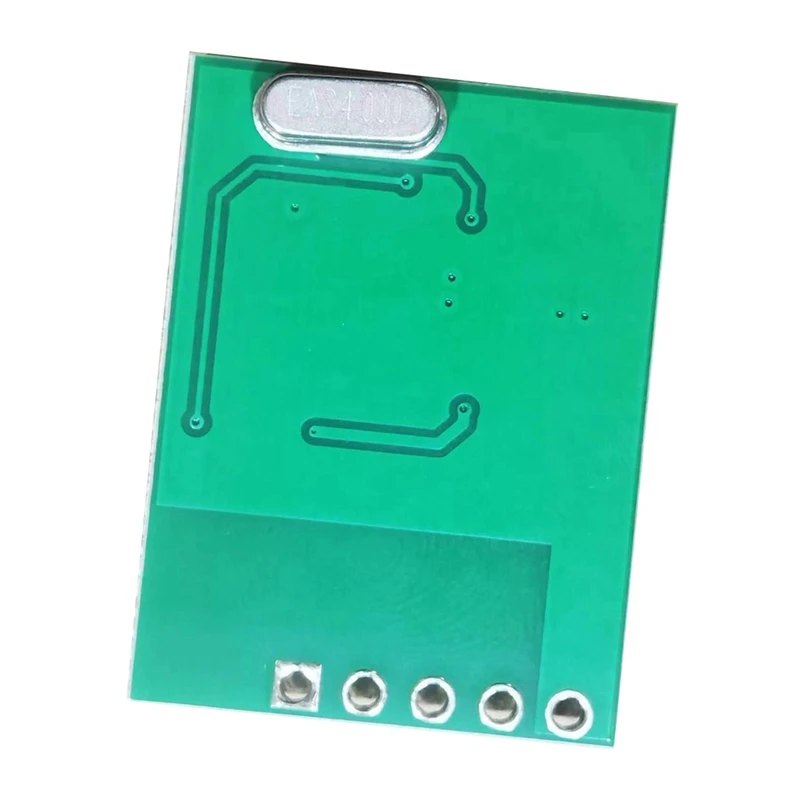

• 1 x Motorcycles Scooters Immobiliser Emulator Circuit
• Only the above package content, other products are not included.

Also stated by the supplier

• Motorcycles Immobilizer Bypass Emmulator Circuit For Yamaha Motorcycles Scooters 2006-2009 Parts Immobiliser Emulator Chips
• the emulator of an immobilizer for motorcycles and scooters FOR Yamaha.
• Works with for Yamaha all motorcycles and scooters from 2006 to 2009.
• Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.
• For emulator installation in the case of a regular immobilizer:
• 1. Remove glue hermetic from the immobilizer case.
• 2. Take out a PCB from immobilizer and desolder from it wires.
• 3. Connect the emulator according to drawing more low.
• 4. Insert the emulator into the immobilizer case.
• Colouring of wires and their appointment:
• Black (2 pcs.) GND
• Red BATT (+12v)
• Yellow IGN (+12v)
• Gray LED (+5v)
• for Yamaha 2006-2009 all motorcycles and scooters

Model years matter here. This covers 2006 to 2009 Yamaha machines and is not a general purpose motorcycle emulator.
