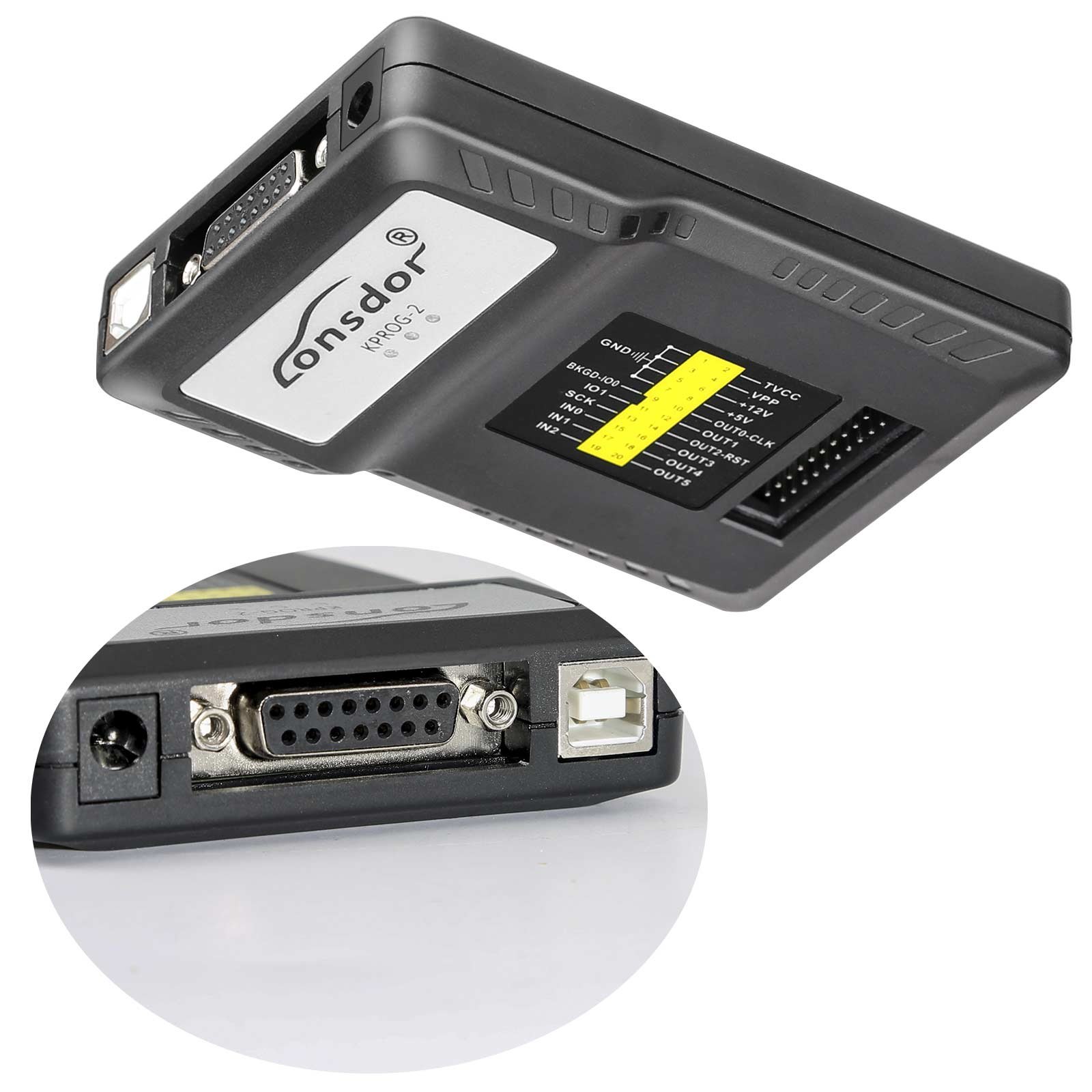

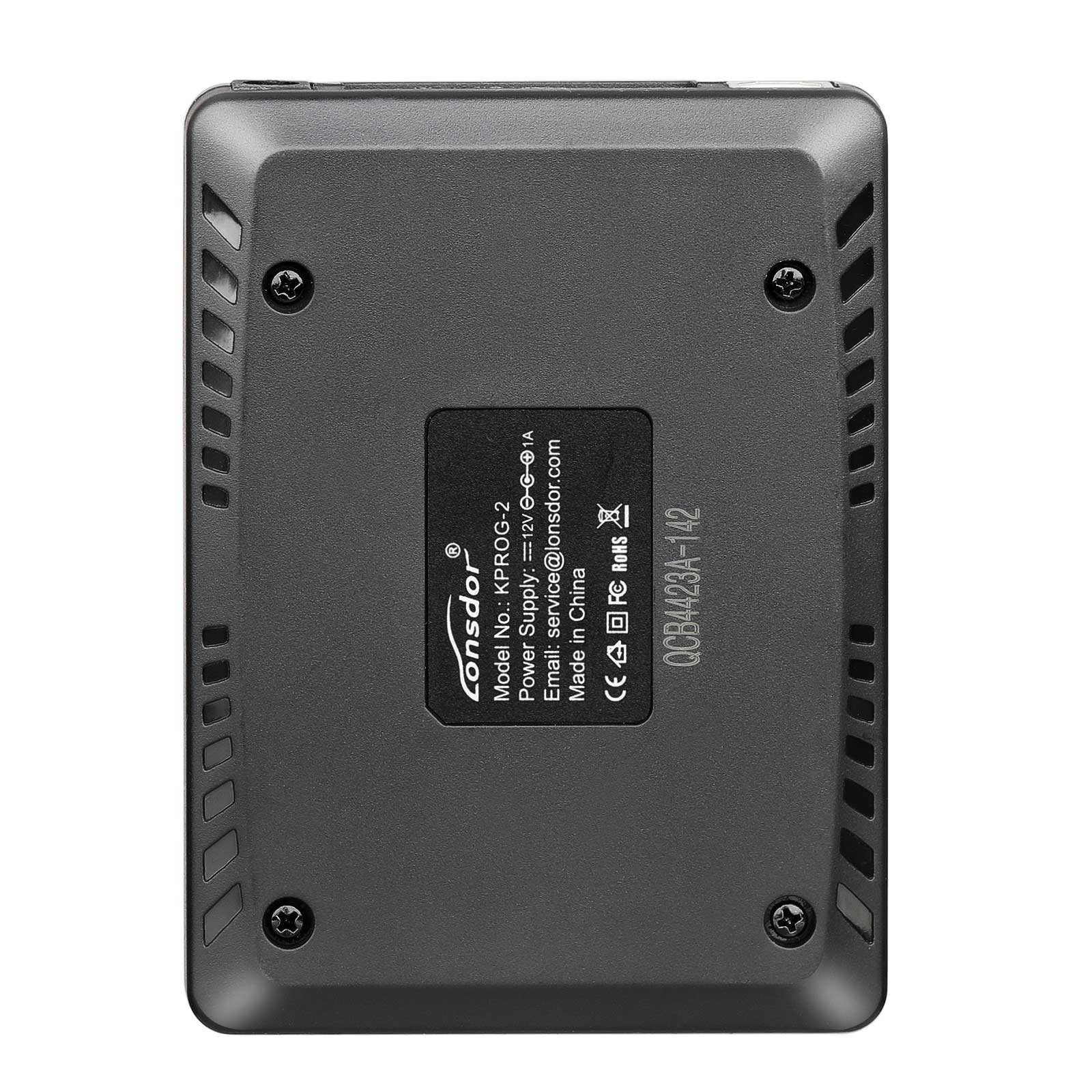

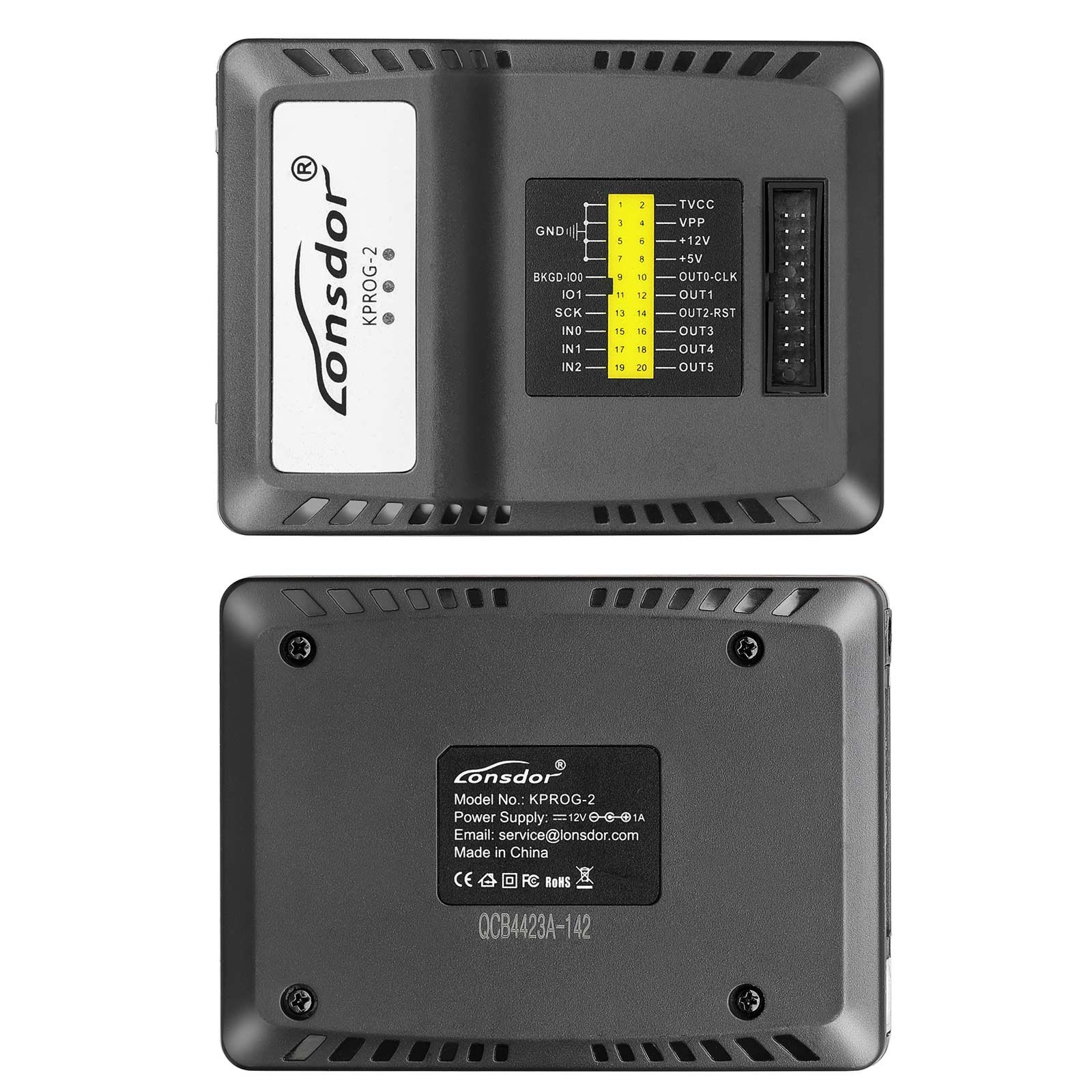

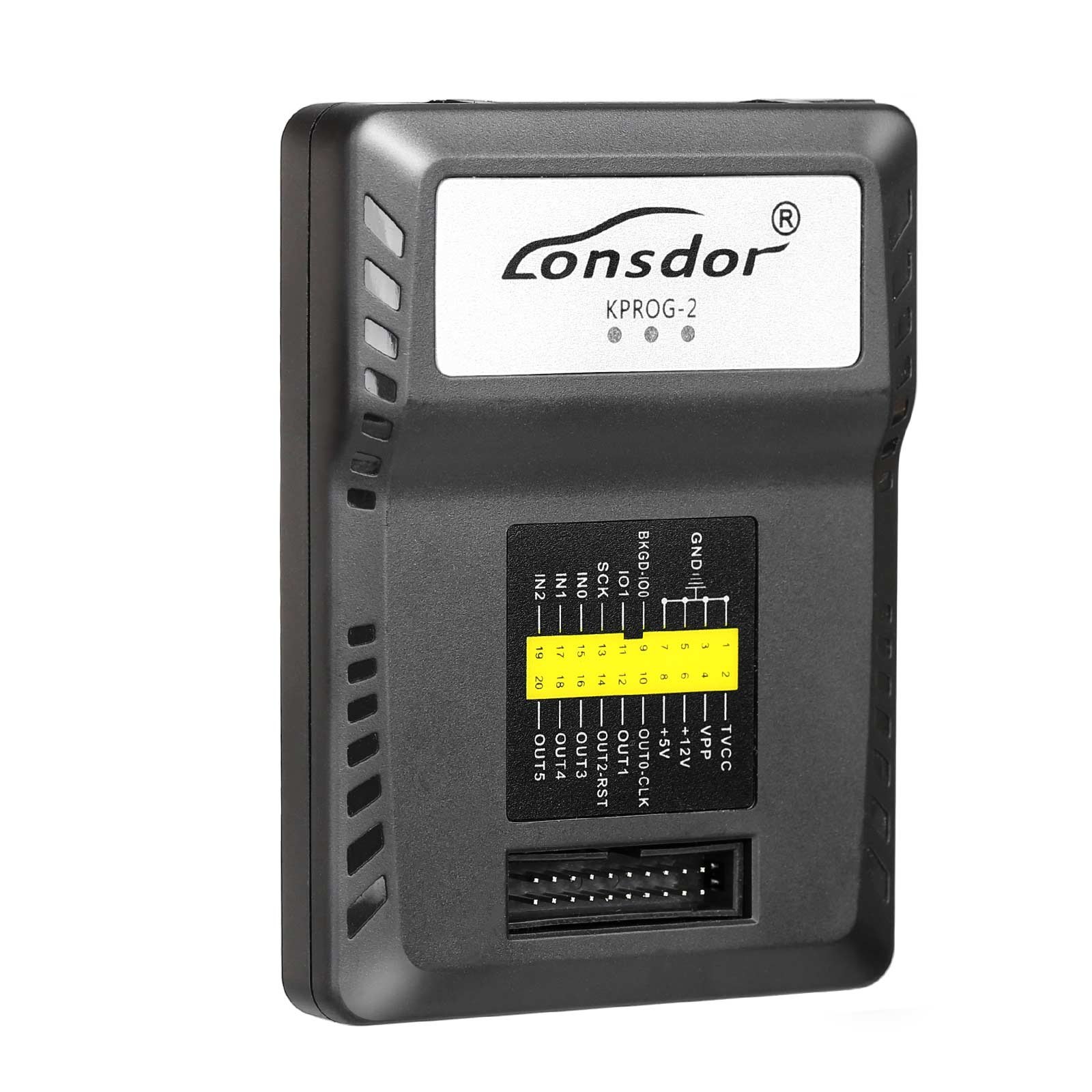

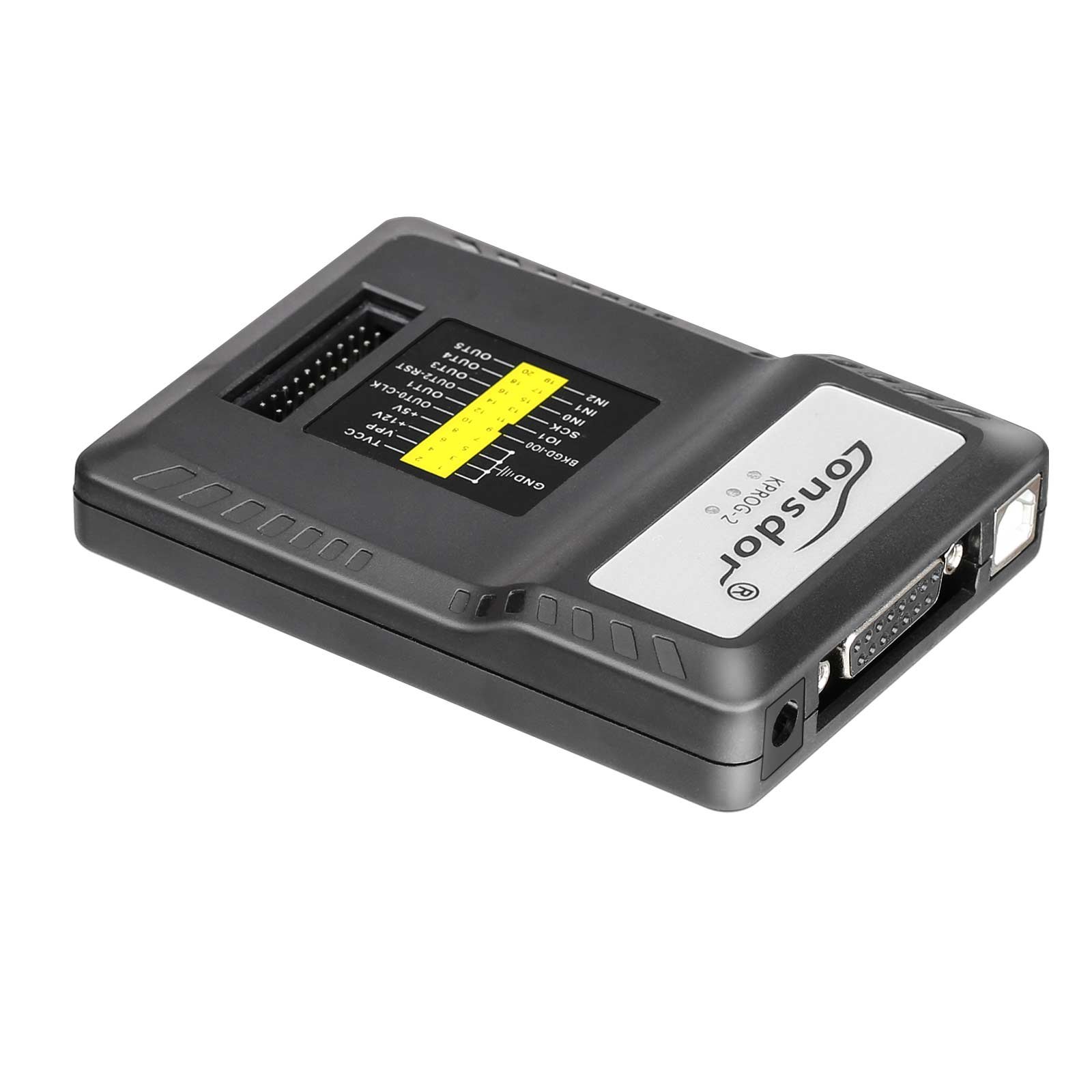

Lonsdor KPROG2 KPROG-2 Adapter for K518 PRO/ K518 FCV Key Programmer Read/Write EEPROM Soic Chip/MCU Chip

A Lonsdor KPROG2 adapter for the K518 PRO and K518 FCV key programmer, reading and writing EEPROM SOIC and MCU chips. It programs MCU and EEPROM directly on an ECU circuit board rather than needing the chip lifted.

Specifications

• KPROG: Support programming MCU and EEPROM on ECU circuit board.

Also stated by the supplier

• Lonsdor KPROG2 KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer,to read and write an eeprom soic chip/mcu chip. You can get it for backup or replacement. eeprom.
• Lonsdor KPROG2 KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer
• KPROG adapter must be bound to K518 before using:
• Step 1. Connect adapter to K518 with mainline
• Step 2. Connect K518 with 12V power supply
• Step 3. Enter into "Setting"
• Step 4. Click "Bind adapter"
• Step 5. Click "OK" to complete
• Lonsdor KPROG-2 Adapter Read & Write EEPROM Chip List
• 24 series Support ATMEL & ST chip
• AT24C01 128 byte
• AT24C02 256 byte
• AT24C04 512 byte
• AT24C08 1K
• AT24C16 2K
• AT24C32 4K
• AT24C64 8K
• AT24C128 16K
• AT24C256 32K
• 93 series; Support ATMEL & ST chip
• AT93C46-8bit 128 byte read/write
• AT93C56-8bit 256 byte read/write
• AT93C57-8bit 256 byte read/write
• AT93C66-8bit 512 byte read/write
• AT93C76-8bit 1024 byte read/write
• AT93C86-8bit 2048 byte read/write
• AT93C46-16bit 128 byte read/write
• AT93C56-16bit 256 byte read/write
• AT93C57-16bit 256 byte read/write
• AT93C66-16bit 512 byte read/write
• AT93C76-16bit 1024 byte read/write
• AT93C86-16bit 2048 byte read/write
• 25 series; Support ATMEL chip
• AT25010 128 byte
• AT25020 256 byte
• AT25040 512 byte
• AT25080 1K
• AT25160 2K
• AT25320 4K
• AT25640 8K
• AT25128 16K
• AT25256 32K
• AT25M01 1M
• AT25M02 2M
• 95 series; Support ST chip
• 95010 128 byte
• 95020 256 byte
• 95040 512 byte
• 95080 1K
• 95160 2K
• 95320 4K
• 95640 8K
• 95128 16K
• 95256 32K
• 95M01 1M
• 95M02 2M
• It is only assigned to one K518 programmer.
• KPROG - 2
• EEPROM/COMMON/24CXXX
• EEPROM/COMMON/93CXXX
• EEPROM/COMMON/25XXX/95XXX
• Adaptor LC4256V upgrade, Dashboard clock LC4256V upgrade, Adaptor EPM240 upgrade,
• MCU/Freescale/9S12G
• MC9S12G(N)16, MC9S12G(N)32, MC9S12G(A)48, MC9S12G(A)64, MC9S12G(A)96, MC9S12G(A)128, MC9S12G(A)192,
• MCU/Renesas/R32C/M16C/UART
• Read FLASH, Read DATAFLASH, Read E2_FLASH, Write FLASH, Write DATAFLASH, Write E2_FLASH,
• MCU/Renesas/R32C/M16C/SPI
• Read FLASH, Read E2FLASH, Write FLASH, Write E2FLASH, Read DATAFLASH, Write DATAFLASH,

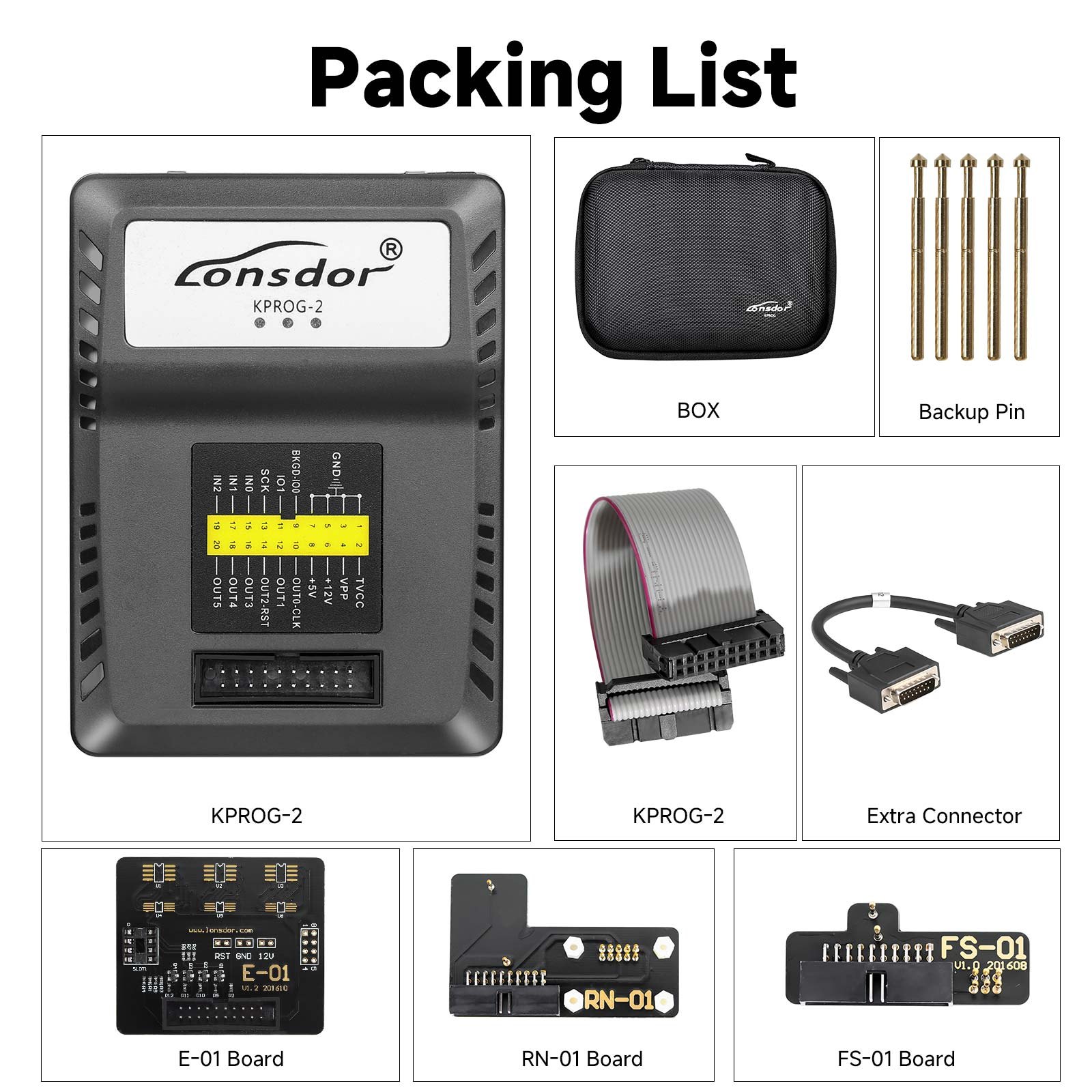

• 1pc x KPROG2 Adapter
• upgrade-process-for-k518ise-adaptor-kernel.pdf (184K)

Lonsdor require the KPROG adapter to be bound to the K518 before it will work at all.
