KWIN Small Diameter Tungsten Steel Carbide Milling Cutter 2-Flutes Micro Flat Bottom / Ball End CNC Mechanical Maching Tools

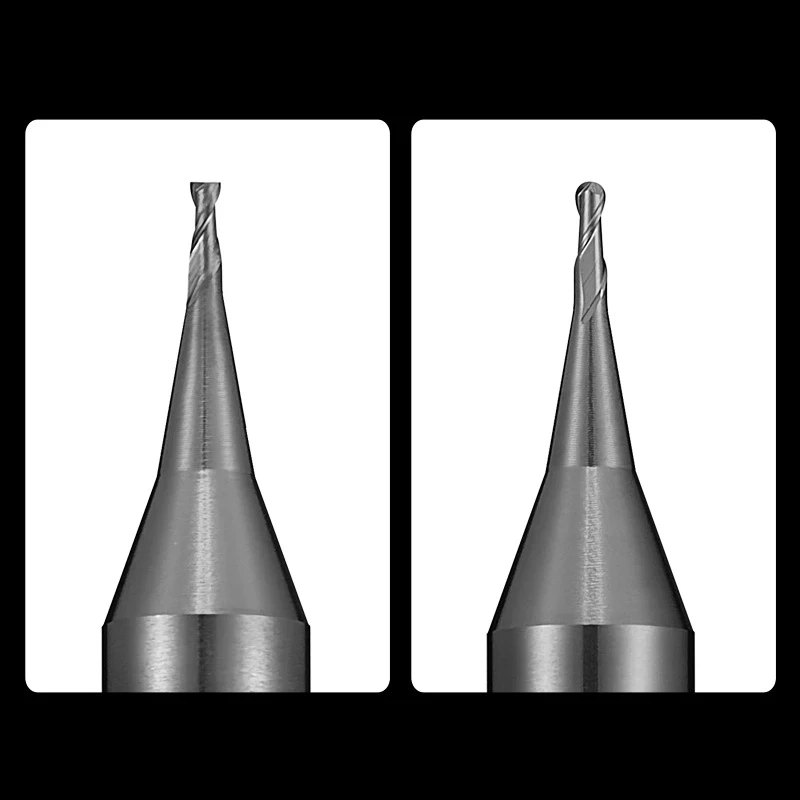

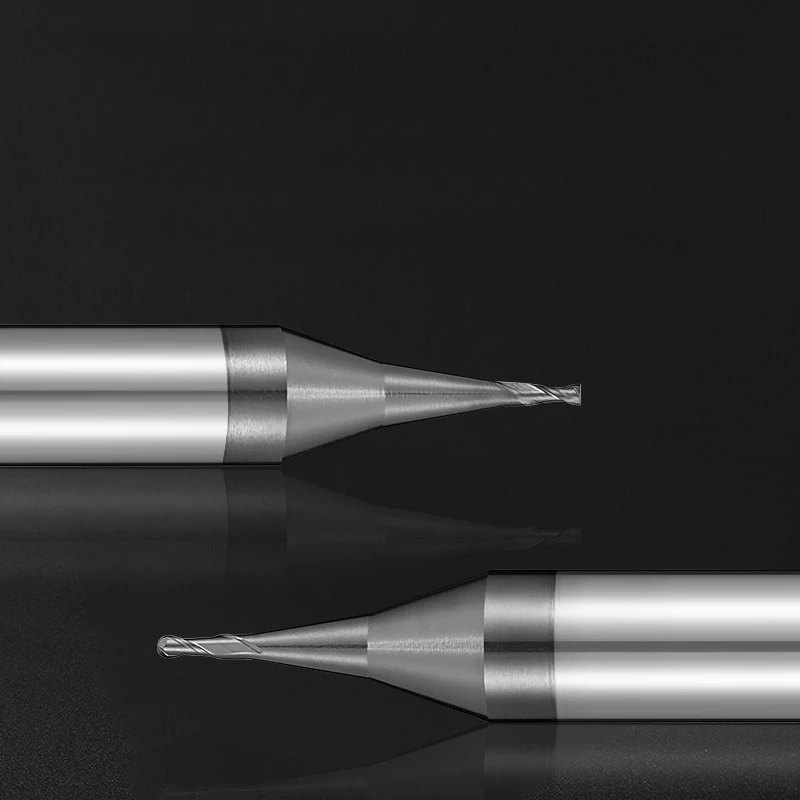

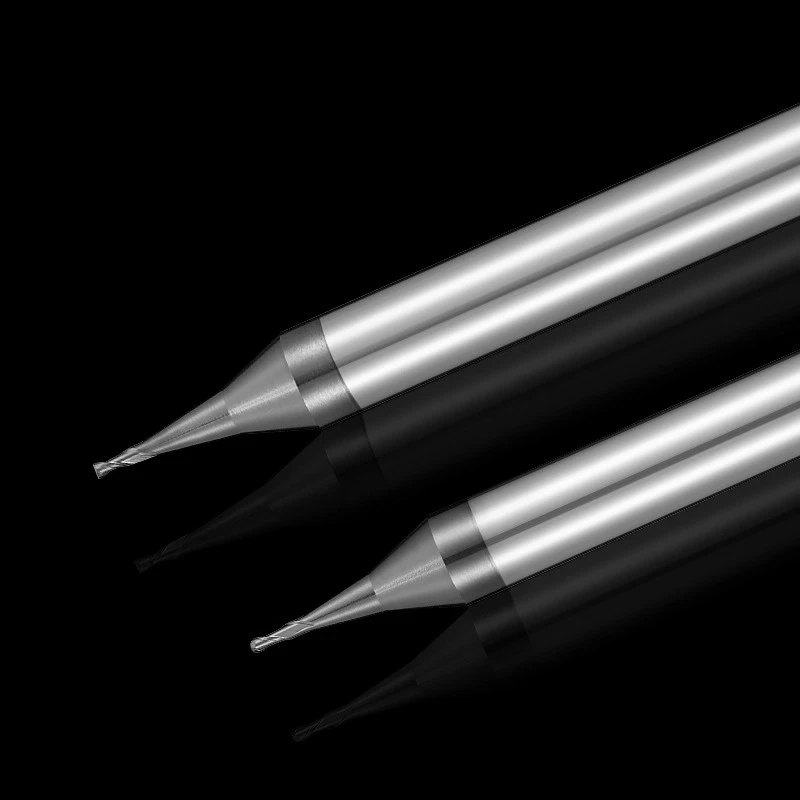

A micro end mill from KWIN in hard alloy tungsten steel at HRC65, with a nano black composite coating and two flutes. Flat models run D0.1 to D0.9mm and ball models R0.05 to R0.45mm, with a fully ground cutting edge.

Specifications

• Name: HRC65° Micro Flat / Ball End Mills

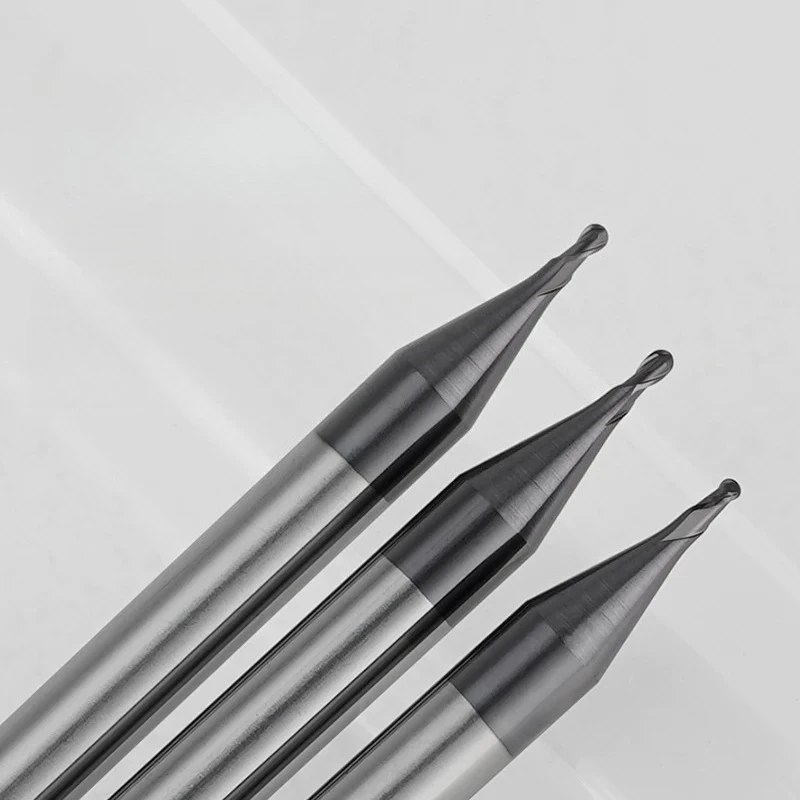

• Model: D0.1-D0.9 (Flat end) / R0.05-R0.45 (Ball end)
• Material: Hard alloy tungsten steel
• Blade coating: Nano black composite coating
• Hardness: HRC65°
• Applicable materials: Stainless steel, quenched steel, alloy steel, titanium alloy, etc. Stainless steel, quenched steel, alloy steel, titanium alloy, etc.
• Suitable for processing: Stainless steel, titanium alloy, quenched and tempered steel. High temperature alloy forquenched steel ≤62° steel parts.

Also stated by the supplier

• Fully ground cutting edge, high smoothness, strong wear resistance, corrosion resistance, high temperature resistance, high-precision milling.

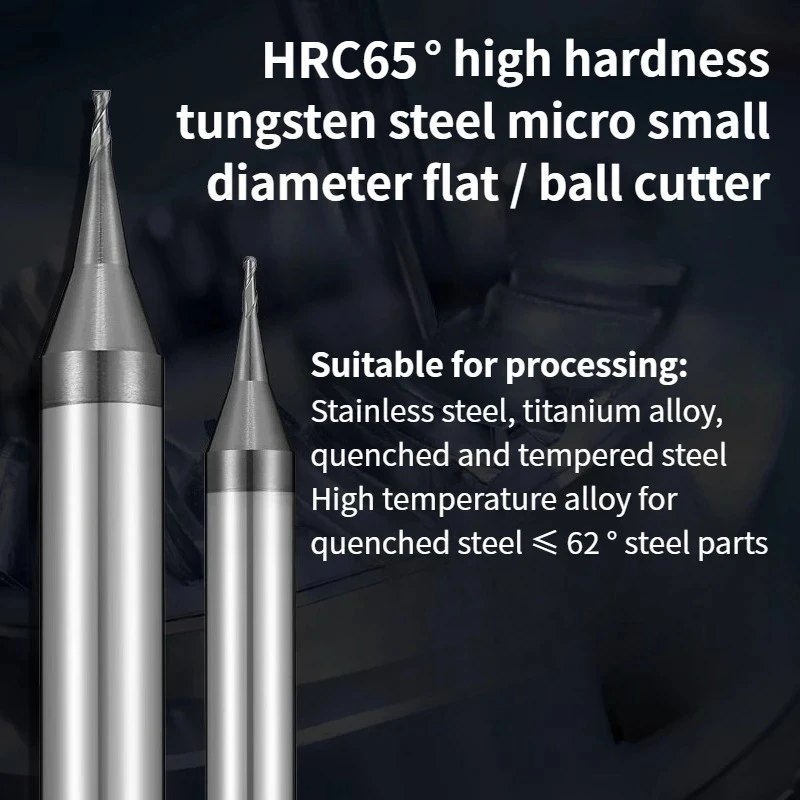

• HRC65° high hardness tungsten steel micro small diameter flat/ball cutter

The supplier lists it for stainless, quenched steel, alloy steel and titanium. At these diameters spindle runout matters as much as the cutter itself.
