Keyway Broach A1-2/A1-3/B1-4/B1-5/C1-5/C1-6/C1-8/D1-10/D1-12/D1-14/E1-16/E1-18MM High Speed Steel for CNC Cutting Machine Tool

Material Description: The standard American keyway is W2, while the square is M2 (for special material requirements, please consult customized M2 or M35). W2 high-speed steel: suitable for pulling some softer materials such as cast iron, wood, etc. M2 high-speed steel: suitable for pulling stainless steel, etc. Warm Reminder: Not sure about the material selection!

Name: Keyway Pushing Knife A/B/C/D/E Class
Material: High speed steel
Applicable machine tool: lathe
Brand: Shengyang
Specifications: Diverse specifications, customizable
Whether coated: Non coated

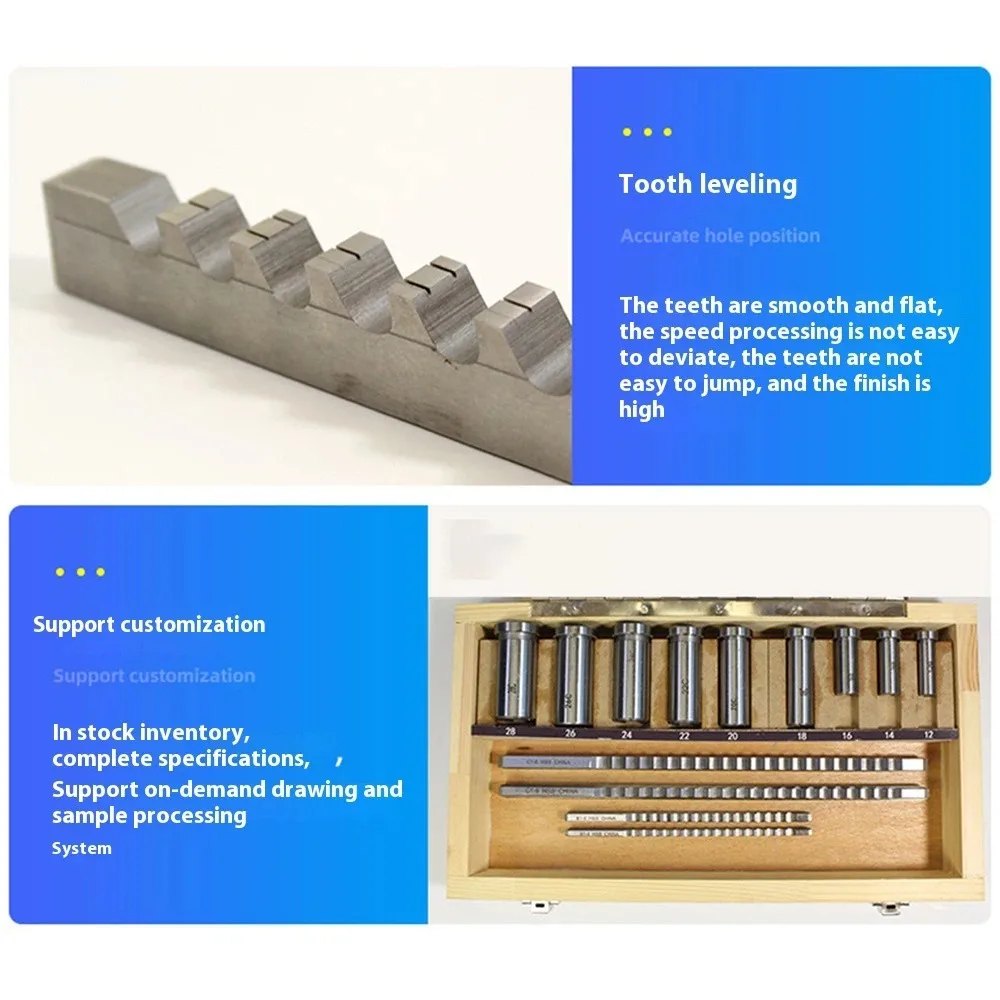

Four big advantage:

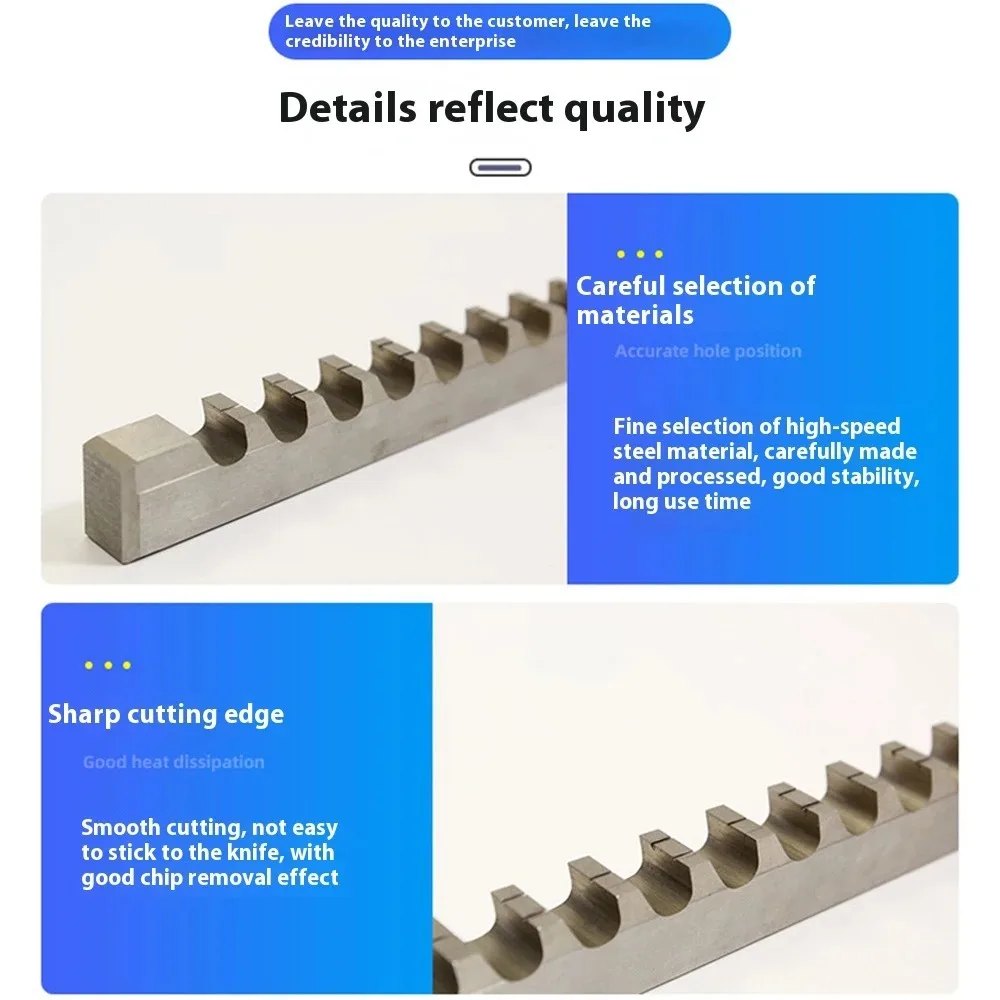

1: Selected materials
2: Wear-resistant and not easy to stick to the knife
3: Has a good chip removal effect
4: Speed processing and high finish

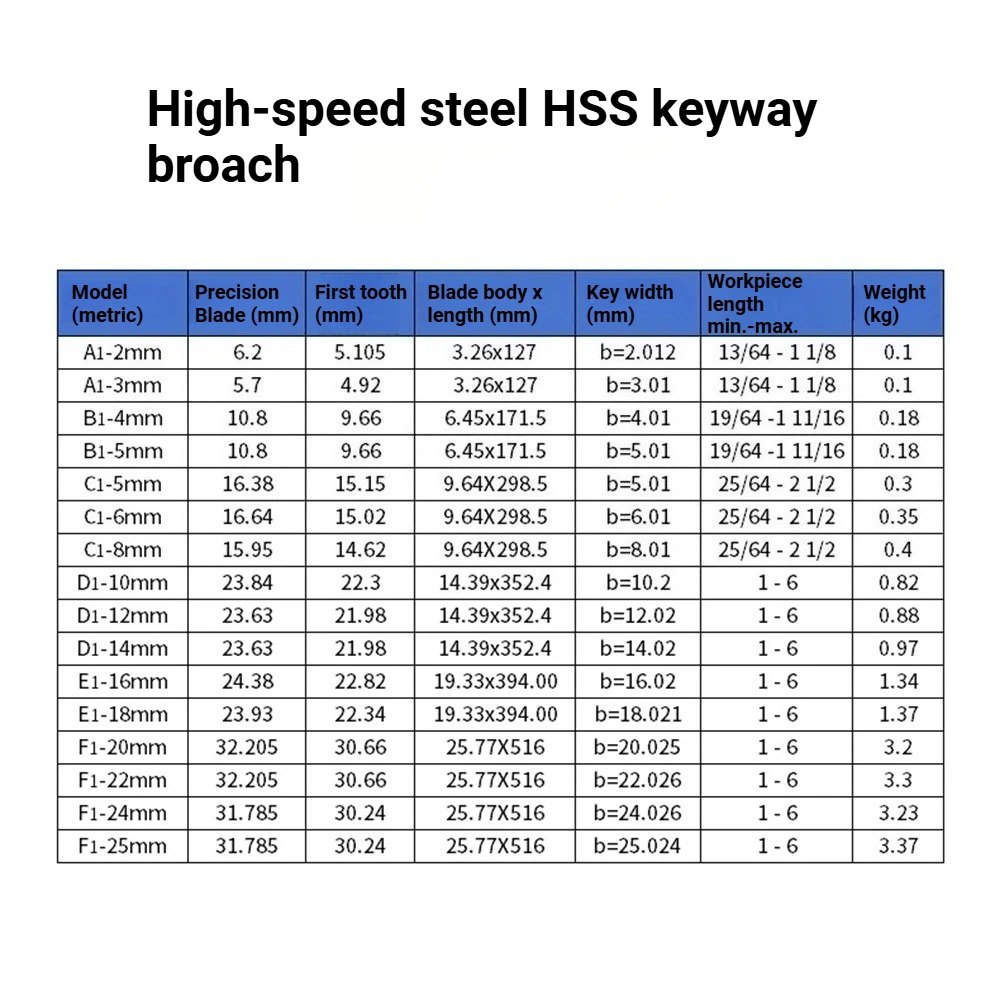

Broach Size

Style

Correction height(mm)

Leading height(mm)

Broach Dimensions*(mm)

Keyway  Width(mm)

Length of Cut * min.-max.

Shims(pcs)

2mm

A1

6.2

5.105

3.26X127

b=2.012

13/64 - 1 1/8

0

3mm

A1

5.7

4.92

3.26X127

b=3.01

13/64 - 1 1/8

1

4mm

B1

10.8

9.66

6.45X171.5

b=4.01

19/64 - 1 11/16

1

5mm

B1

10.8

9.66

6.45X171.5

b=5.01

19/64 - 1 11/16

1

5mm

C1

16.38

15.15

9.64X298.5

b=5.01

25/64 - 2 1/2

1

6mm

C1

16.64

15.02

9.64X298.5

b=6.01

25/64 - 2 1/2

1

8mm

C1

15.95

14.62

9.64X298.5

b=8.01

25/64 - 2 1/2

2

10mm

D1

23.84

22.3

9.64X298.5

b=10.02

1-6

2

12mm

D1

23.63

21.98

9.64X298.5

b=12.02

1-6

2

14mm

D1

23.63

21.98

9.64X298.5

b=14.02

1-6

2

16mm

E1

24.38

22.82

19.33X394

b=16.02

1-6

3

18mm

E1

23.93

22.34

19.33X394

b=18.021

1-6

3
