KEYDIY KD-MINI PROG（With C2 Adapter) Read Data Support VW MQB Work with KD-MATE to Add Key With All Keys Lost

A KEYDIY KD-MINI PROG supplied with the C2 adapter, reading data on VW MQB. Paired with the KD-MATE it adds a key in an all keys lost situation, and it works from minus 20 to 85C at 20 to 100 percent humidity.

Specifications

• Working temperature: -20℃- 85℃
• Working humidity: 20% - 100%

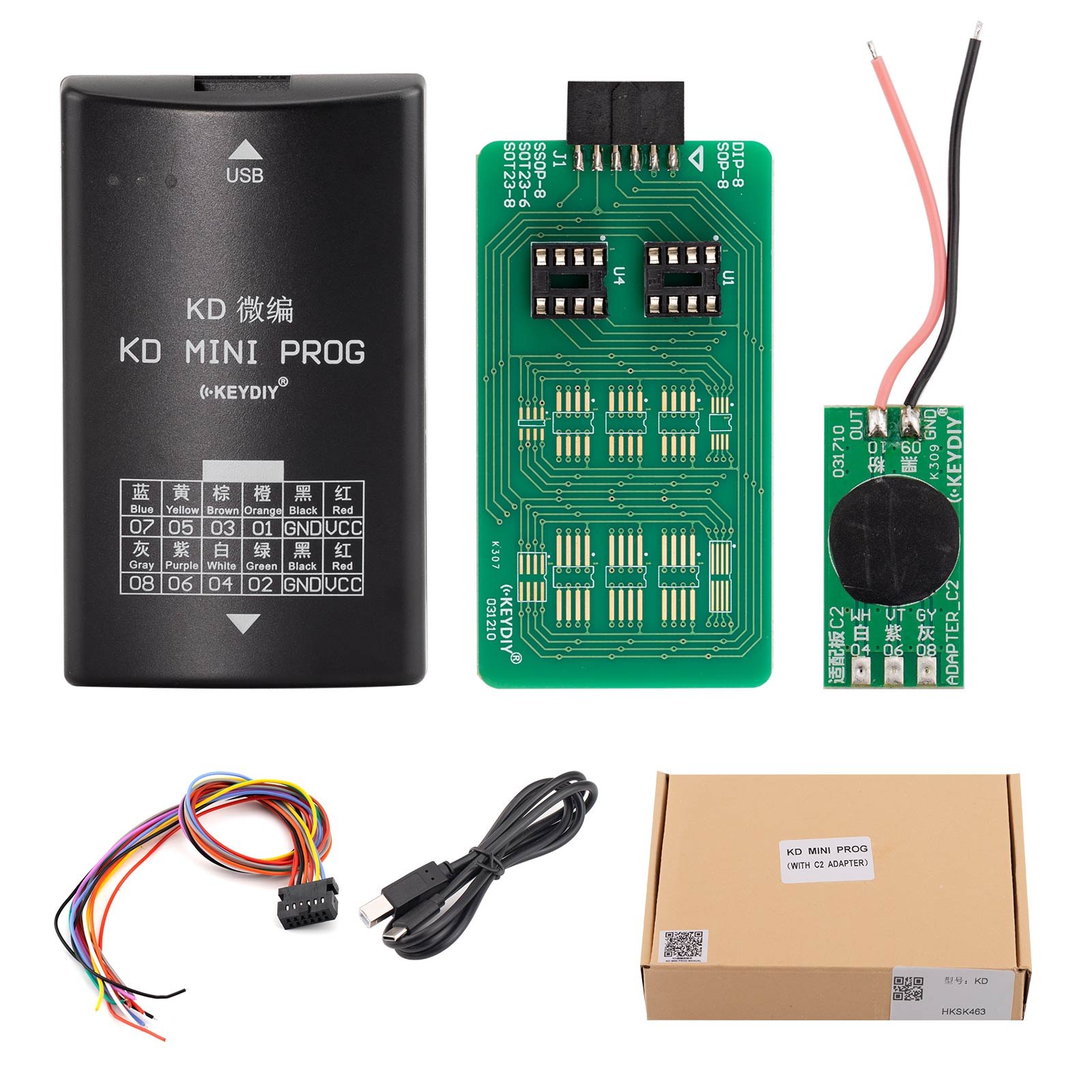

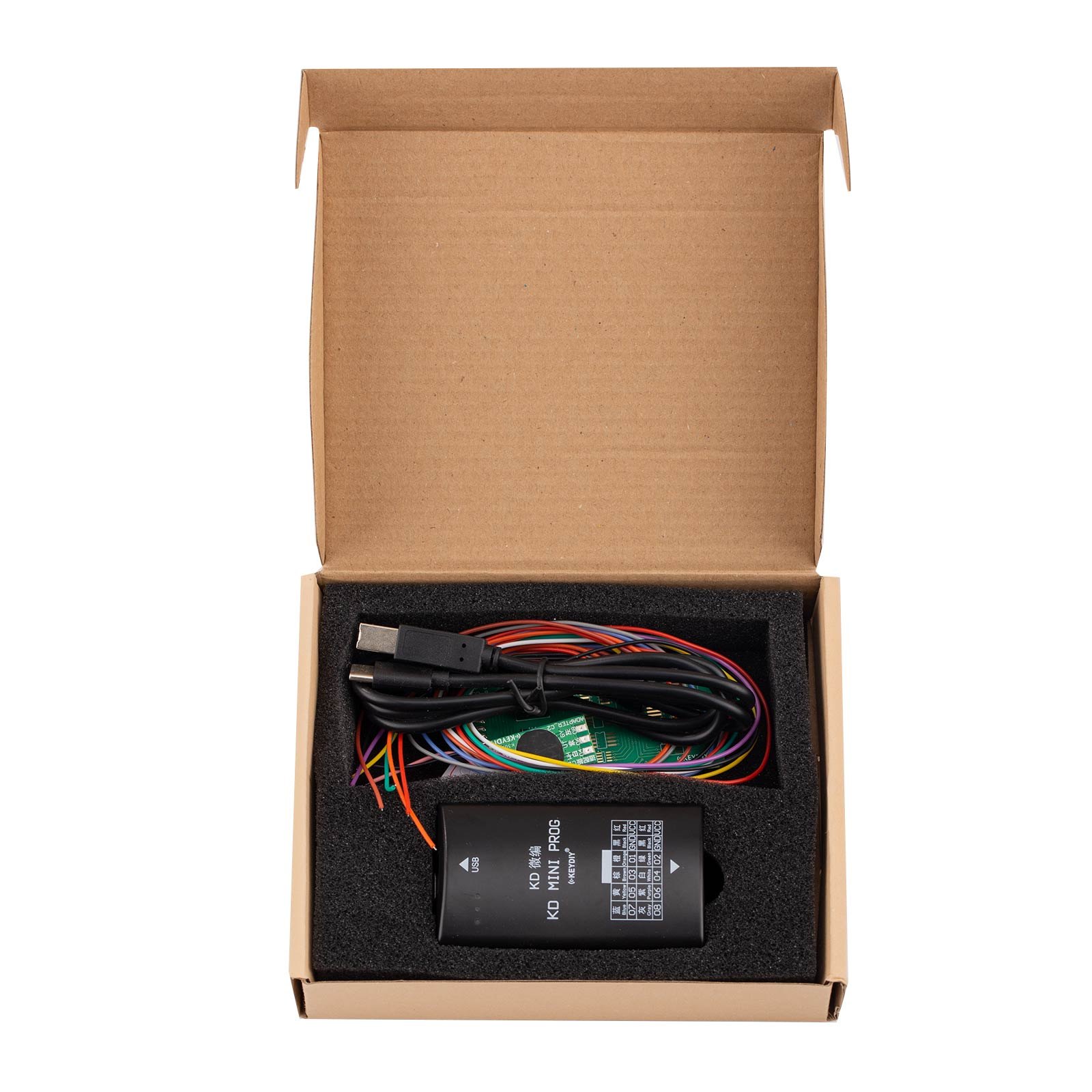

What you get

• 1pc x host
• 1pc x OTG cable
• 1pc x Special cable harness
• 1pc x Adapter plate
• 1pc x Quality certificate

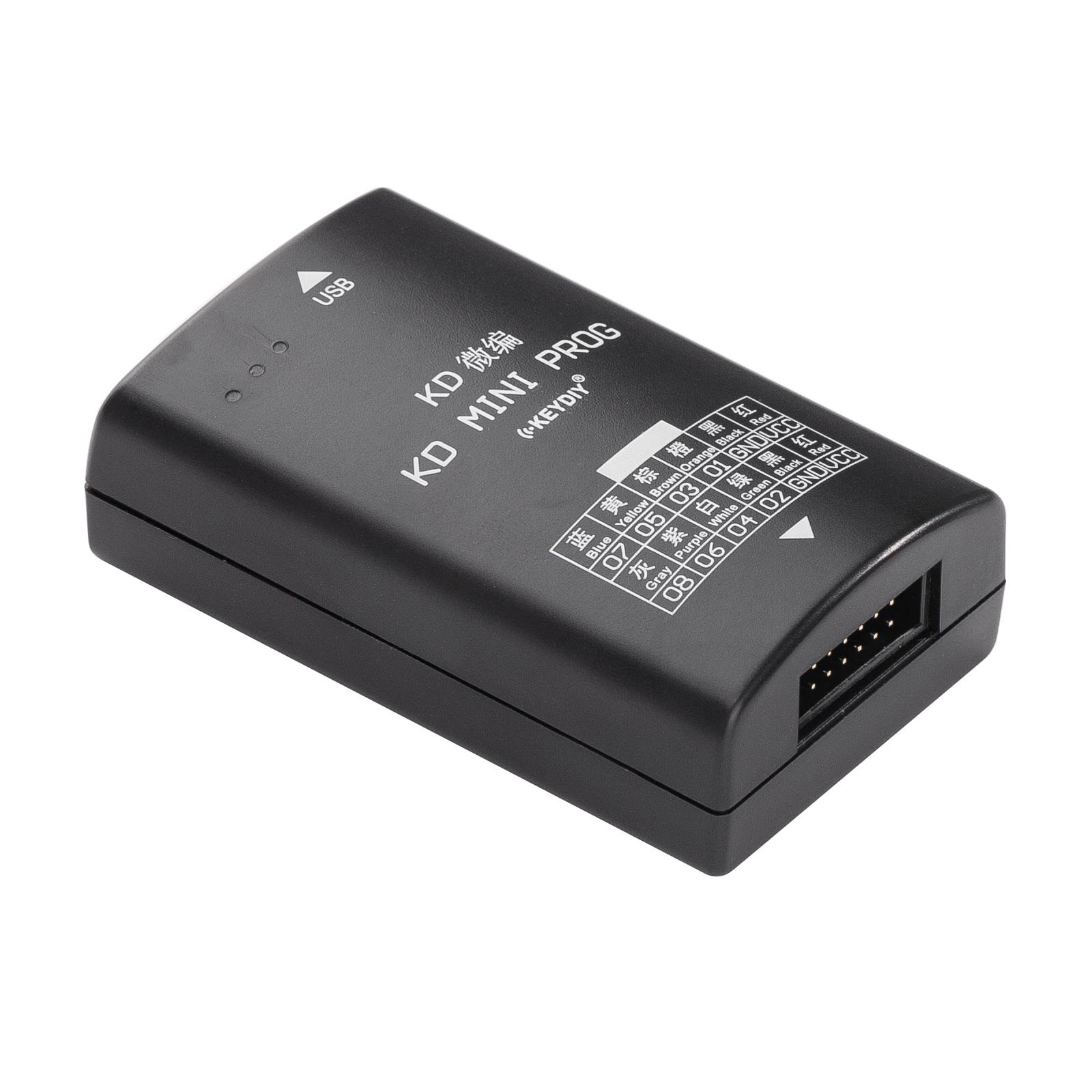

• KEYDIY KD-MINI PROG is specially designed for reading dashboard data, support VW MQB. Working with KD-MATE to add key. It can also adds key with all keys lost. It is a necessary tool for locksmiths.
• KEYDIY KD-MINI PROG（With C2 Adapter) Read Data Support VW MQB Work with KD-MATE to Add Key With All Keys Lost
• This product is specially designed for reading dashboard data, support VW MQB. Working with KD-MATE to add key. It can also adds key with all keys lost. It is a necessary tool for locksmiths.
• Support EEPROM (95xxx) series 8 pins chip data reading, such as95160, 95320, 95640, 95128, 95256, 95512, etc;
• Support EEPROM (93xxx) series 8 pins chip data reading, such as93C86 and 93C66;

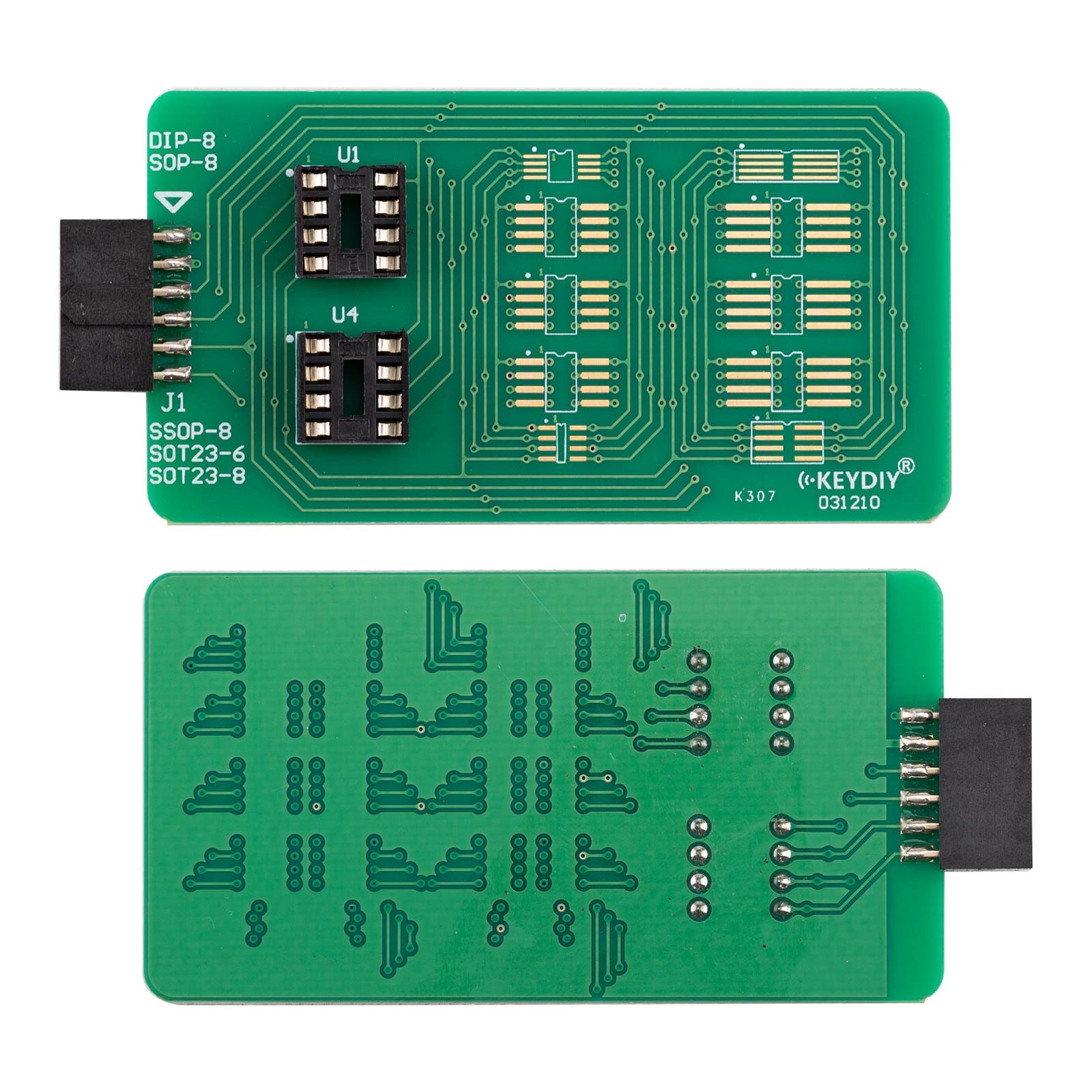

• Reading method: Weld the 8 pins chi p onto the C1 adapter boardand insert it into the KD MINI PROG, as shown in the figure. Openthe Mobile KD app and enter the KD MINI PROG to read the chipdata,Select the wanted chip model to be read data.

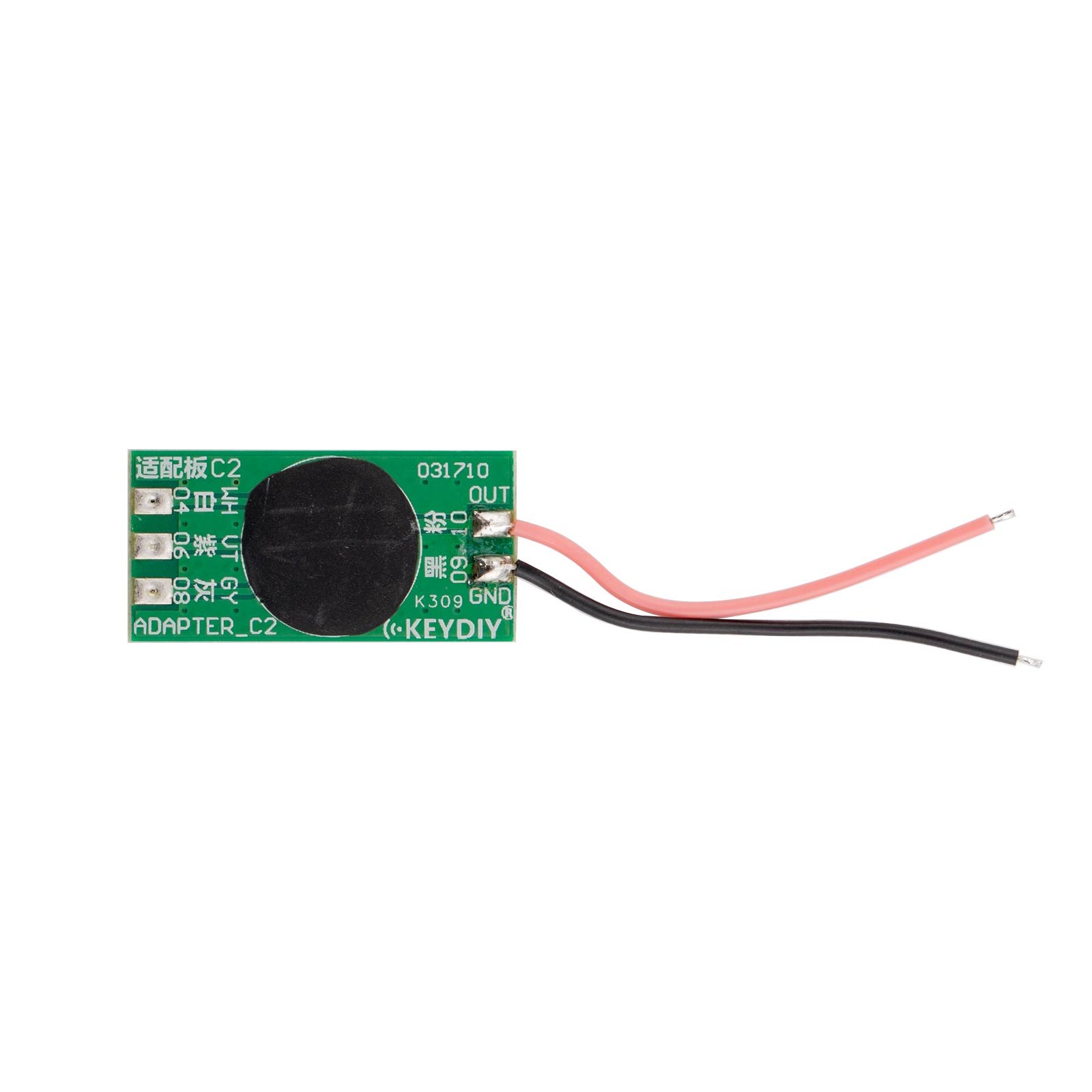

• Using the C2 adapter board with the KD MINI PROG to read theD70F35xx, D70F34xx, and R7F7014xx series instruments can achieveno cutting and no warping. The specific instrument wiring diagramcan be viewed on the Mobile KD app.
• Standby current ≤15 mA
• Working current ≤180mA
• 1.Select connection diagram according to the dashboard model(Connection diagram can be found in Mobile KD app-ImmoProgramming-KD Mini Prog), weld the cable harness to the corresponding position of the instrument according to the wiring diagram

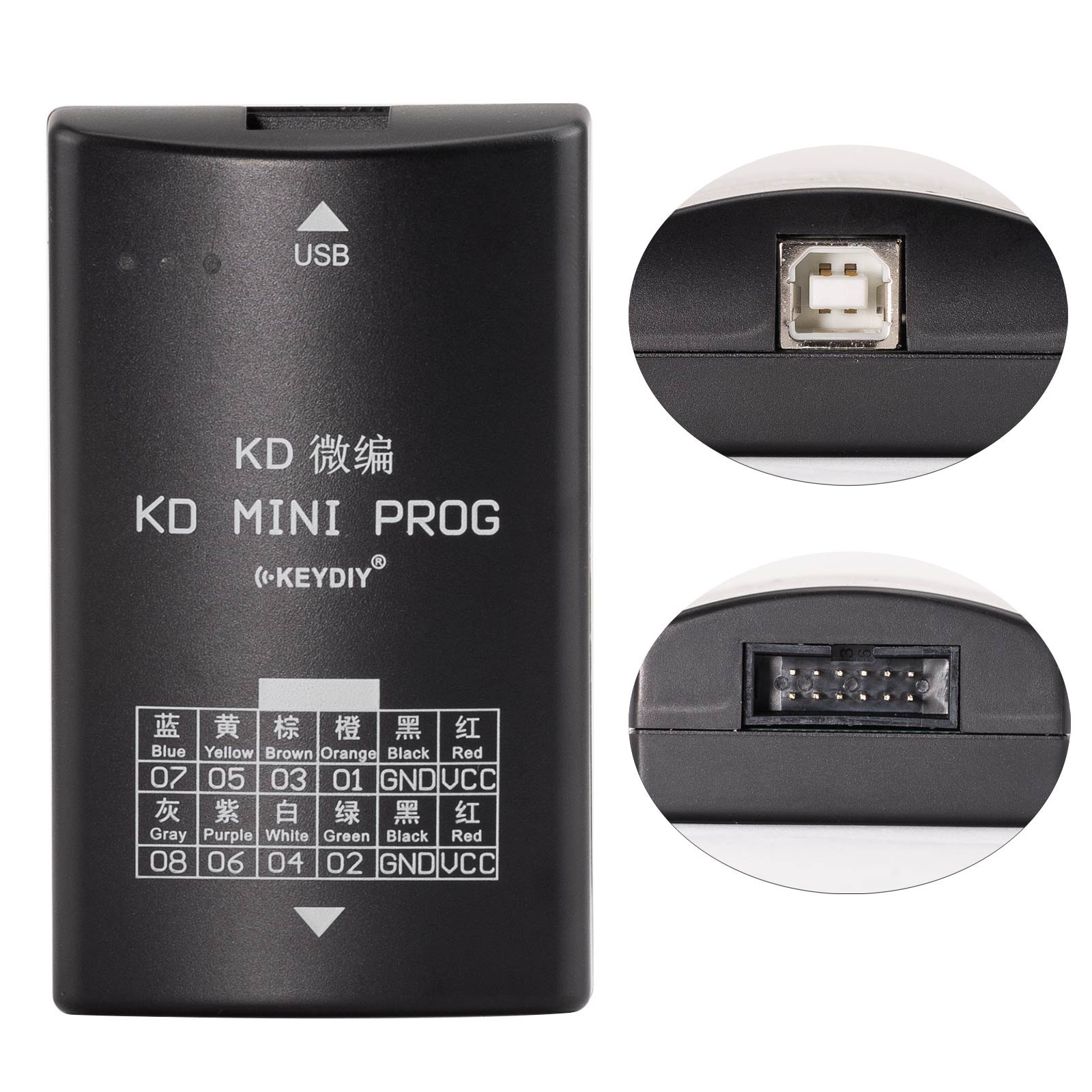

• 2.Insert the cable harness plug to the KD MINI PROG port, connect KD MINI PROG to KD-MAX(Or Android phone/tablet which supportOTG), see as above pictture.
• 3.Open the Mobile KD app, enter the menu of Immo Programming-KDMini Prog to read data, it may needs 5-10 seconds. Notice: Please make sure KD-MAX or the phone do have enough power to avoidreading failure.
• Disclaimer:Before use, please carefully read the product manual and strictly follow the steps described in the manual for installation and use; If personal or property damage is caused by improper use, ourcompany shall not be held responsible.

The MINI PROG reads and the MATE writes, so neither half does the MQB job on its own.
