GODIAG VAG Test Platforms Full Package GT110 GT111 GT112 GT114 for VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO Key Matching

A GODIAG VAG test platforms full package covering the GT110, GT111, GT112 and GT114, for VAG second, third, 3.5th and fourth generation dashboard immobiliser key matching. Bench platforms let a cluster be worked on outside the car.

What you get

• 1pc x GODIAG GT112 Test Platform Cable
• 1pc x GODIAG GT111 Test Platform Cable with POGO PIN
• 1pc x GODIAG GT110 Test Platform Cable with POGO PIN
• Autel IM608 with GT114 to Test Audi A6 Dashboard Tutorials
• How to Use IM608 with GT111 to Test VAG 3th3 5th vag Series Dashboard
• How to Use IM608 with GT112 to Test VAG 2th3th IMMO Series Dashboard
• GODIAG GT110 with Autel IM608 to Test VAG 4th IMMO Series Dashboard
• GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
• GODIAG GT111 FOR VW Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN to Read & Write Data
• GODIAG GT112 K-Line FOR VW Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
• GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
• GODIAG VAG Test Platforms Full Package GT110 GT111 GT112 GT114 for VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO Key Matching

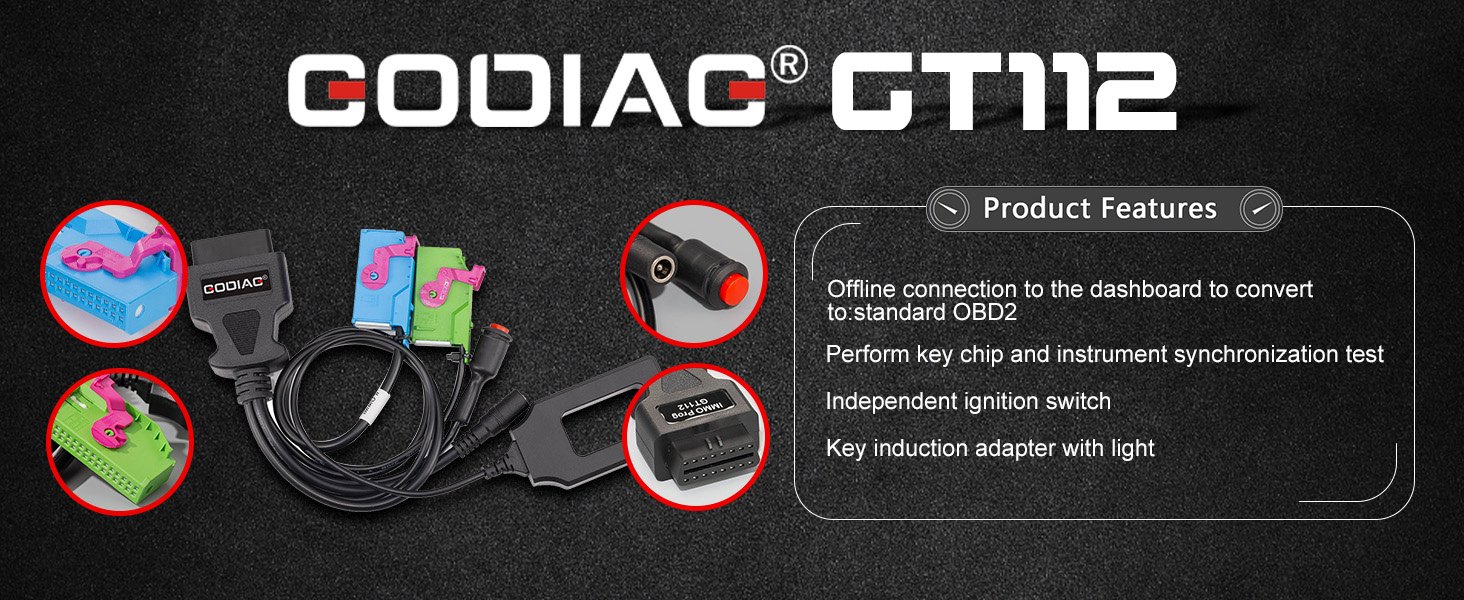

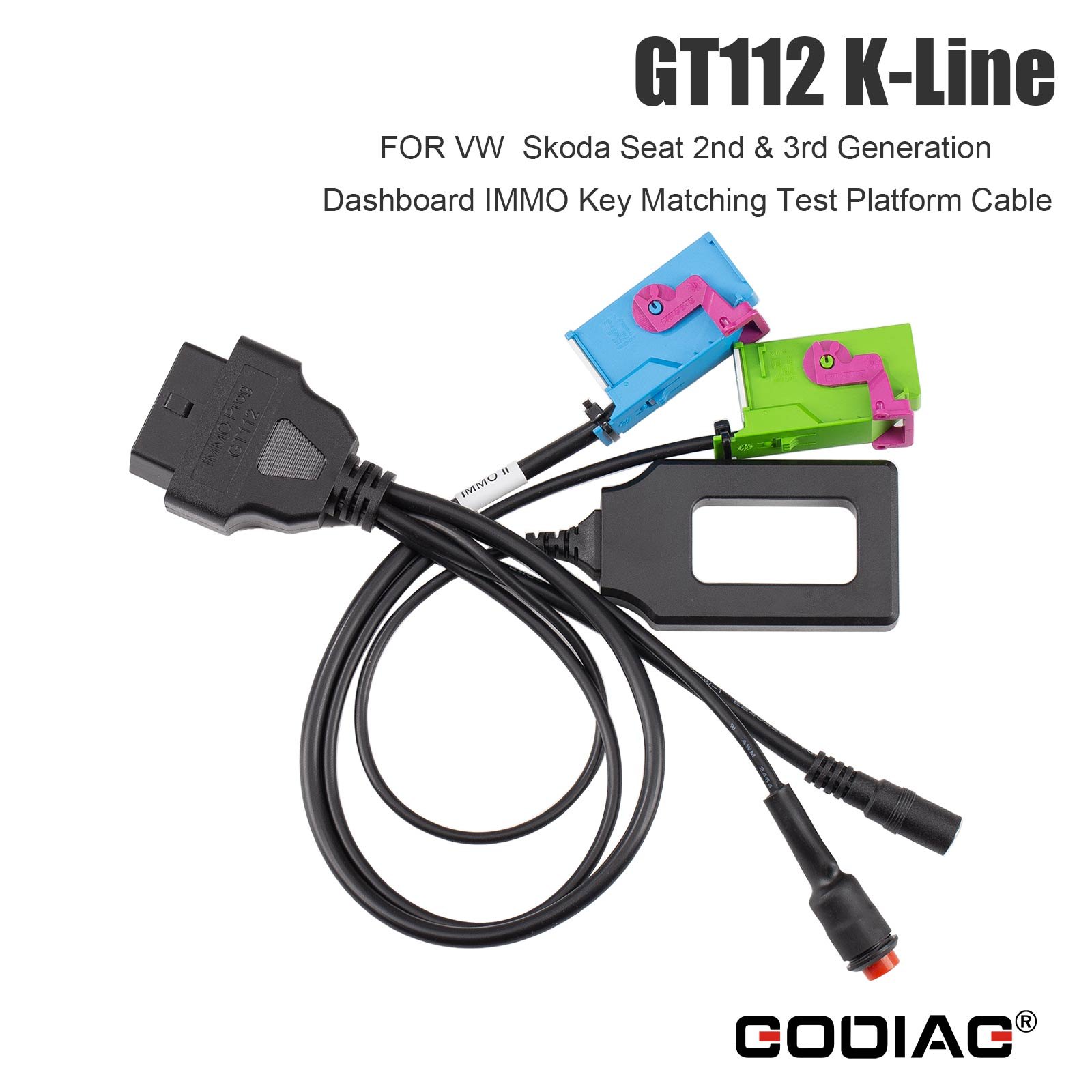

• GODIAG GT112 K-Line for VW Skoda Seat 2nd & 3rd generation dashboard IMMO key matching test platform cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... It supports VW Skoda Seat and other models.

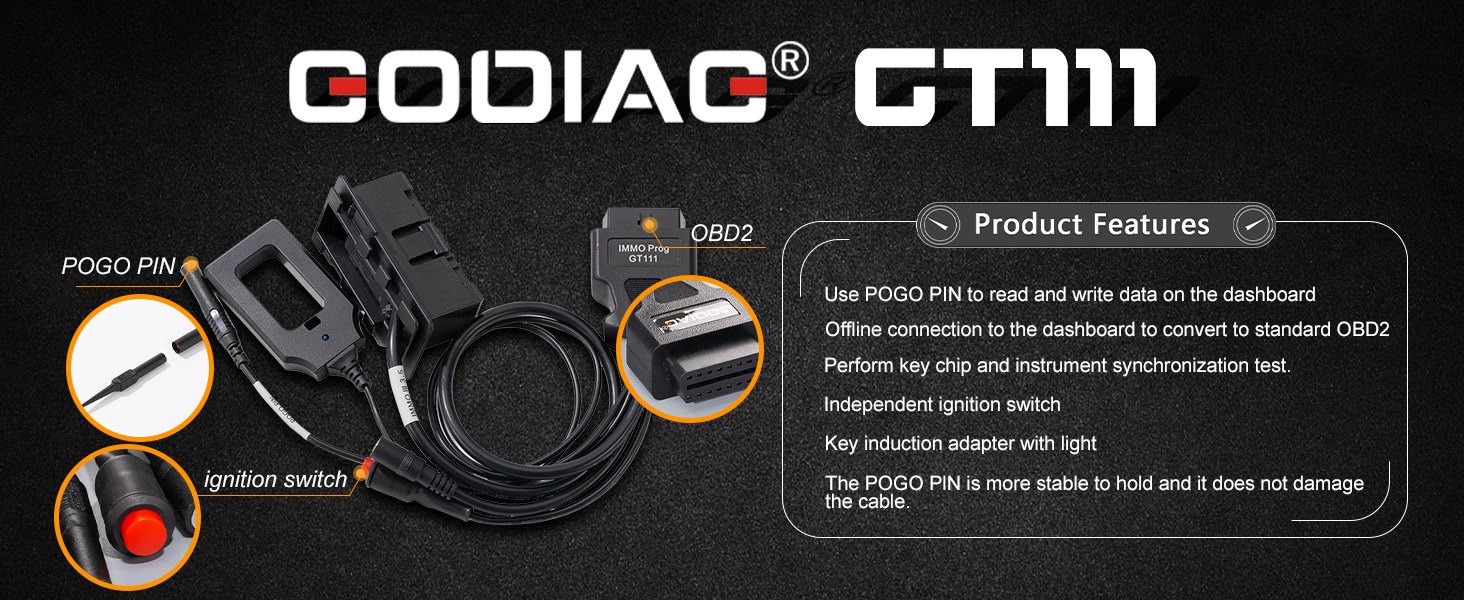

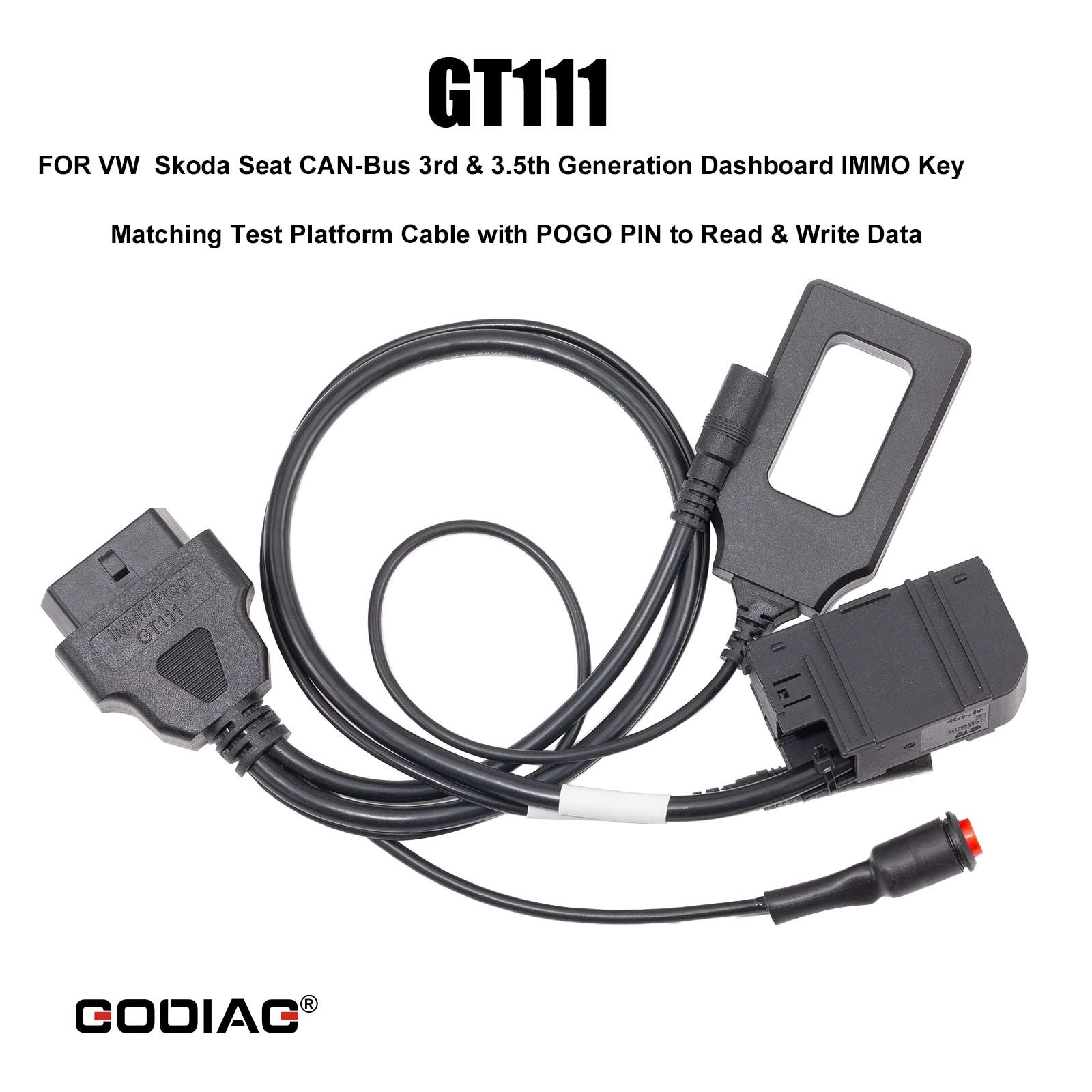

• GODIAG GT111 for VW Skoda Seat CAN-Bus 3rd & 3.5th generation dashboard IMMO key matching test platform cable with POGO PIN supports VW, Skoda, Seat and other models, using POGO PIN for offline data reading and writing. The product supports synchronization testing of keys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.

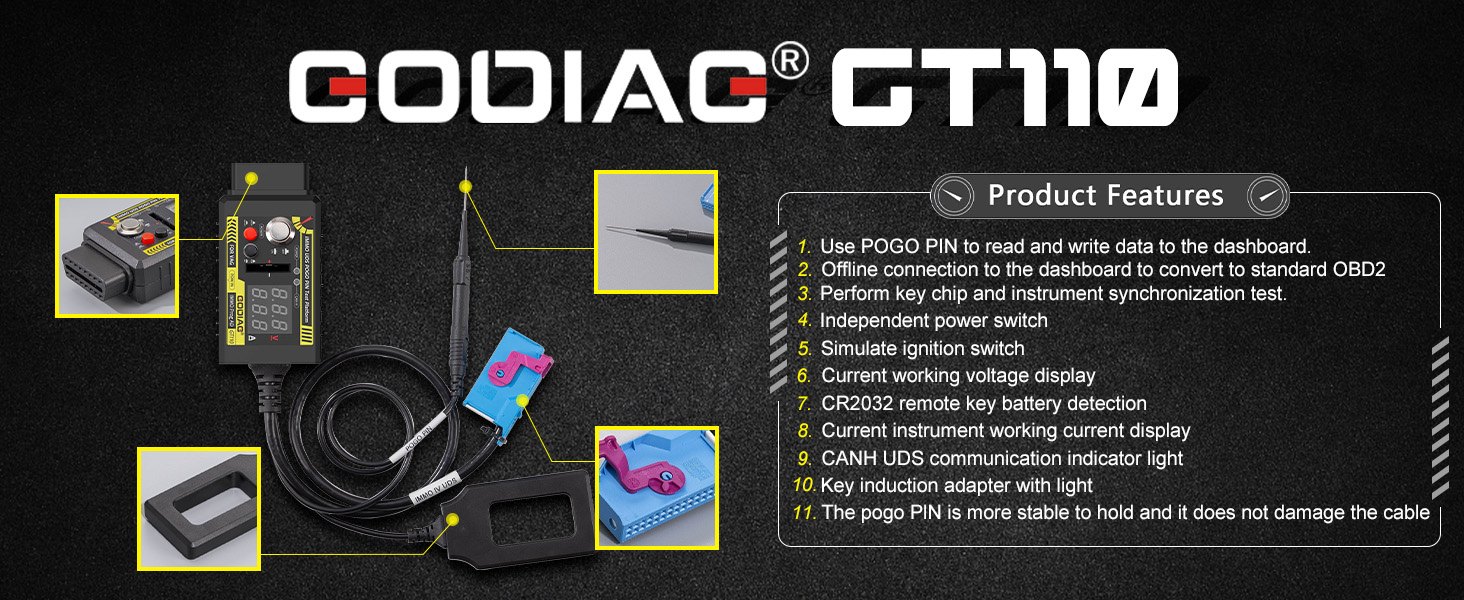

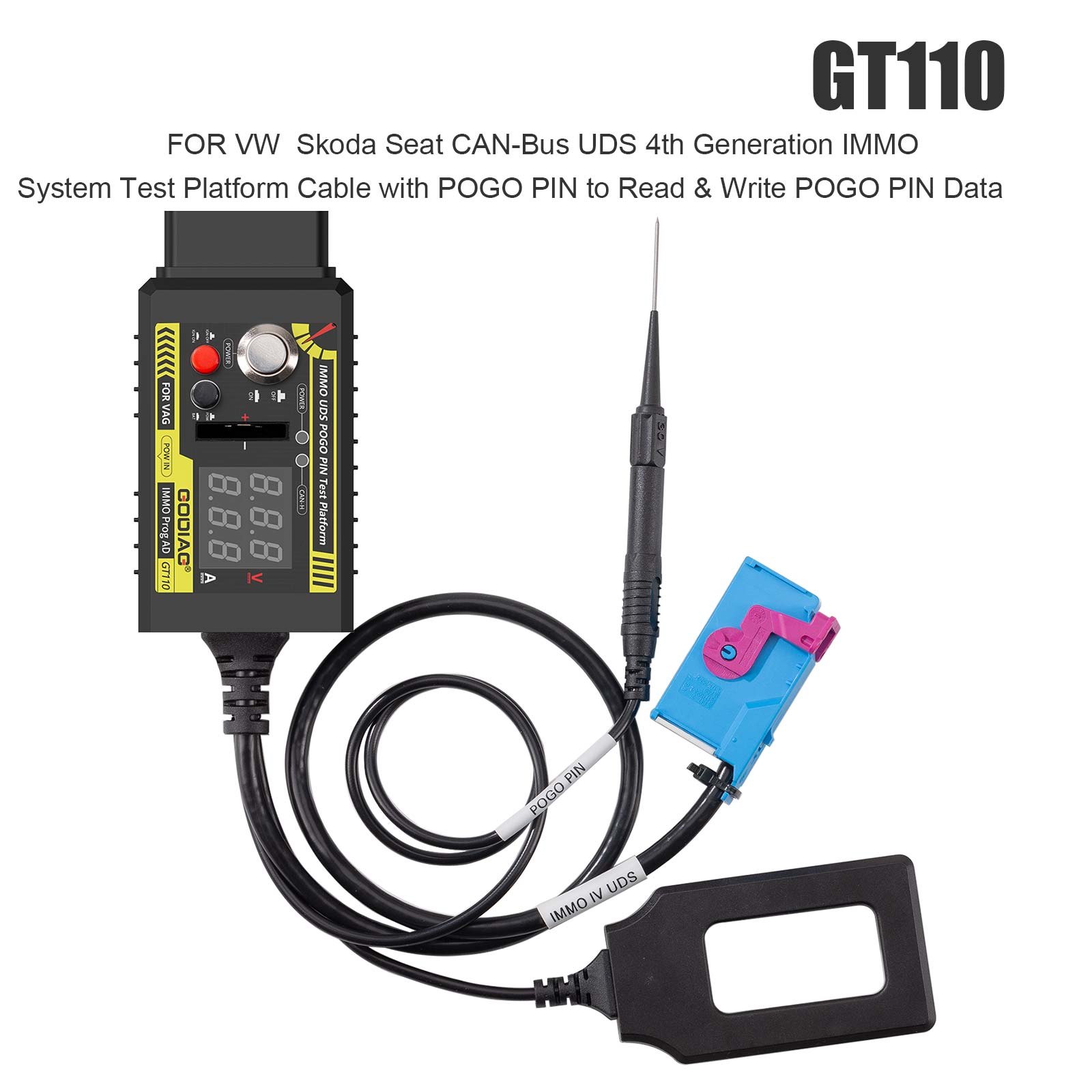

• GODIAG GT110 FOR VW Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports VW Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards key programming (including Boot Probe).of all UDS systems of Volkswagen, Skoda and Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMMO instrument synchronization test, intelligent IMMO system emergency start area induction detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.

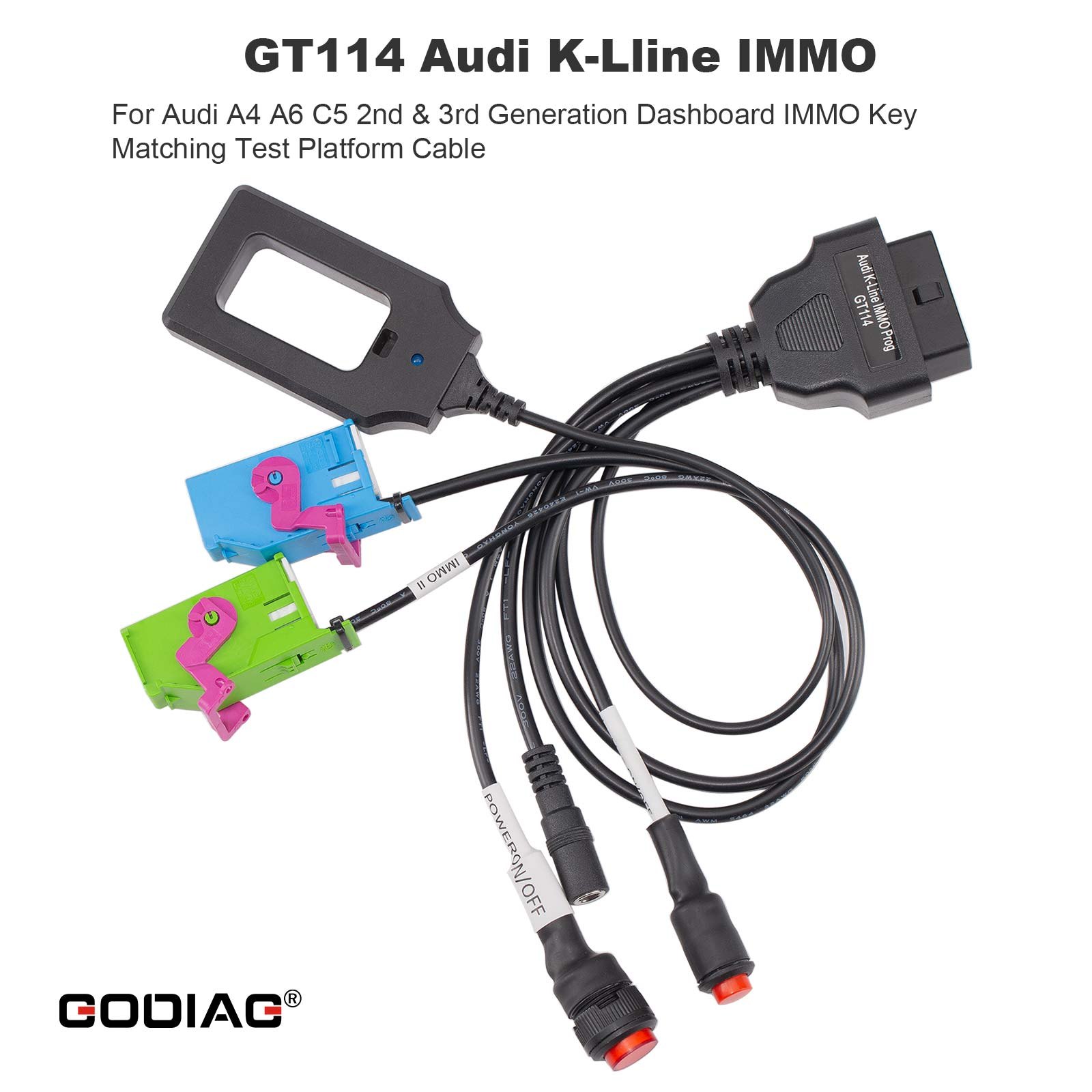

• GODIAG GT114 Audi K-Lline IMMO cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... It supports Audi A6 C5 from 2000-2006.
• Offline connection to the dashboard to convert to standard OBD2.
• Perform key chip and instrument synchronization test.
• Independent power switch
• Key induction adapter with light
• It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.
• Current working voltage display
• CR2032 remote key battery detection
• Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
• Car IMMO Start and Start Key Chip Detection
• The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
• The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
• The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

The GT111 covers CAN-Bus third and 3.5th, the GT112 K-Line, the GT110 CAN-Bus fourth and the GT114 Audi K-Line.
