FCAR F3-M (Mini Version) Special Function Tool with OBDII Diagnosis

The FCAR F3-M in its mini version, a special function tool with OBDII diagnosis. Item model number is F3-M, and it ships at five kilograms, which tells you it comes with its cable set rather than as a bare handset.

Specifications

• Shipping Weight: 5 KG
• Shipping: This item is also available for shipping to different countries.
• Item model number: F3-M

What you get

• 800X600, 16 bit true color
• F3-M, as the mini version of F3-W, can test the global mainstream gasoline, Built-in high and low speed CAN-BUS, one diagnostic connector can test all the CAN-BUS vehicles. Support almost all OBD-II protocols.
• FCAR F3-M (Mini Version)
• Engine, ABS,Transmission,Airbag, Body Electronic equipment,Anti-theft System,Power Steering,Cruise System,Instrument System, Gateway, Air-Conditioning System, Sound System, Light System...
• Readout DTC, Readout Engine Model, Readout Computer Edition Information, Readout System parameter number, Readout Data Stream,Clear DTC,Component test,Compression Test,Maintenance Help,Study on line and so on.
• SAMSUNG ARM2410A, 203MHZ
• Work Power
• DC9-28v/3A
• DB15
• 8-inch TFT LCD touch display true color
• Print model

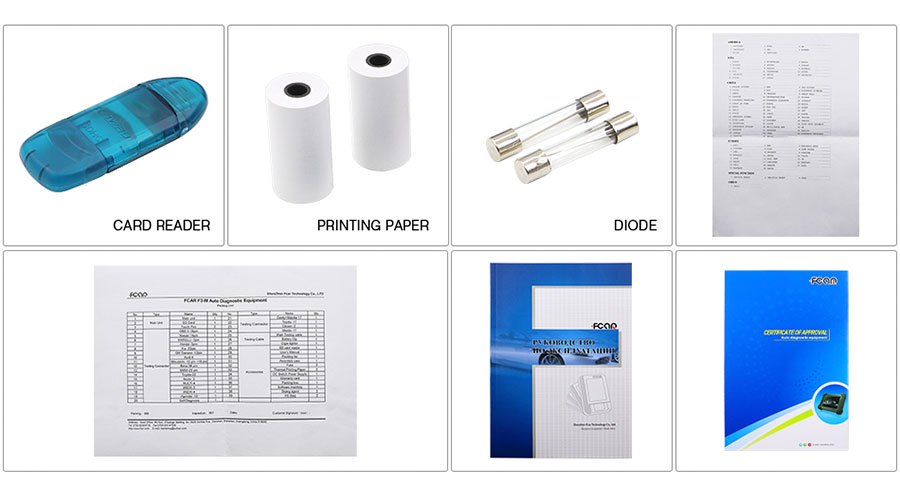

• 58mm thermo printer

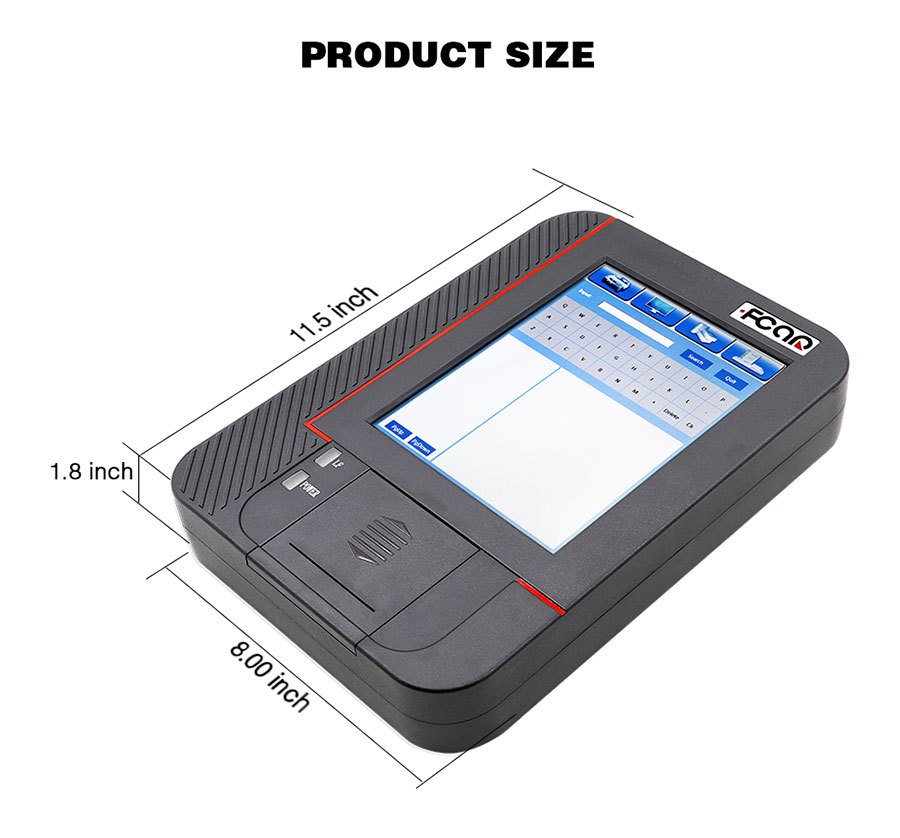

• External Dimension
• 290.7×207.3×45mm
• 30~45℃
• 10~45℃

FCAR builds for heavy vehicles as well as cars, so check coverage against the fleet you actually work on.
