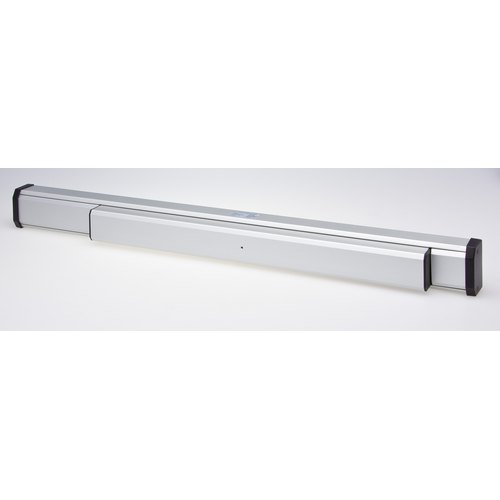

Concealded Vertical Rod Device 3' Clear (LHRB)

The Ilco line of Narrow Stile Exit Devices are available for numerous applications, in a variety of finishes and optional accessories to provide safe, efficient door operation. The CVR Exit Device blends the vertical rod with the appearance of a contemporary panic / exit device. This style secures the door without exposed external hardware. The rods are concealed within the door, making this a more aesthetically pleasing installation. Although CVR devices are primarily used on double doors without a mullion (center piece), they may also be used on single doors. Applications include narrow, medium and wide stile aluminum doors. This style easily retrofits existing doors with Jackson 1285 exit devices.

Features

• Meets ANSI Grade 1 requirements, UL Listed Life Safety
• Low profile push bar projects less than 3" (76.2 mm) from face of door
• Top and bottom bolt design, spring powered with 5/8" (15.88 mm) bolt throw
• Adaptable metal bolt guides permit adjustment with door installed
• Coated metal end caps
• Handed, not reversible
• Easy access dogging system, optional cylinder dogging
• For up to 36" Door
• Field sizeable to 30" (762 mm) in width
• For doors over a 7' (2133.6 mm) height, use a top rod extender
• Left Hand Reverse Bevel/ Aluminum
