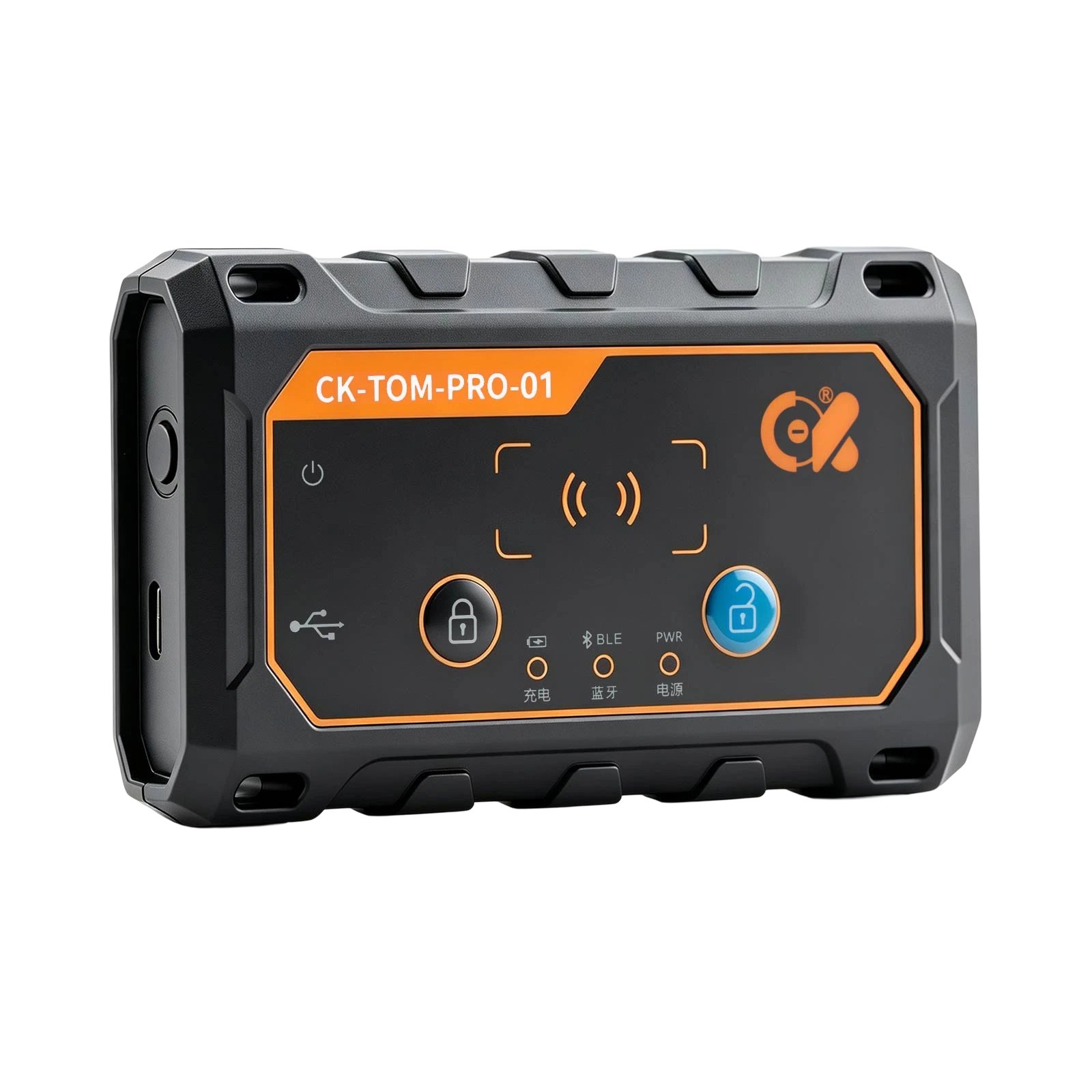

CK-TOM-PRO-01 Key Matching Device for Toyota/Lexus Supports 8A-AA/ 8A-BA Read/Write Key Data and Match the Vehicle

A CK-TOM-PRO-01 key matching device for Toyota and Lexus, reading and writing 8A-AA and 8A-BA key data and matching it to the vehicle. It doubles as a temporary key with lock and unlock buttons, runs over Bluetooth with a blue connection light, and the sequence is connect, read the original key, then match.

Specifications

• Key models supported: 8A-AA, 8A-BA.

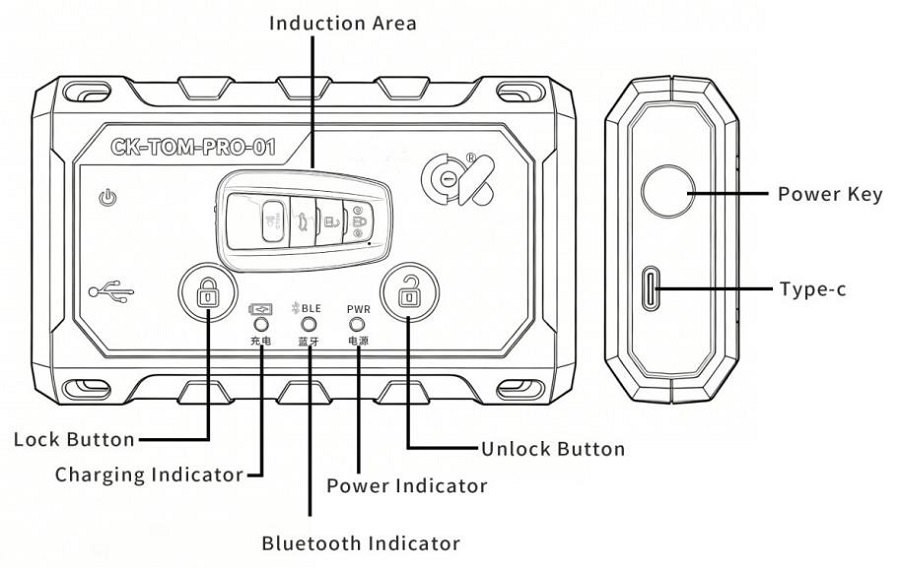

• Power key: Press for three seconds to turn on/off
• Charge status indicator: When charging with the power supply, the indicator turns green.
• Bluetooth light: The blue light indicates that Bluetooth is connected.
• Power indicator: Red light on indicates the device is turned on, while red light off indicates the device is turned off.
• Locking key: When used as a temporary key, it locks the vehicle.
• Unlock key: Used to unlock the vehicle when used as a temporary key.
• Step 1: Connect the device.
• Step 2: Read the original car key information.
• Step 3: Match.
• Step 4: Write new key data (optional).
• Input interface: USB Type-C
• Core chip: Dual cores based on 32-bit ARM Cortex-M4F + Cortex-M0 + BLE 5.0:Bluetooth chip
• Battery capacity: 3.7V, 600mAh
• Bluetooth: Single-mode BLE 5.0
• Wireless Band: 2.4GHz and 134.2kHz
• Input voltage: 5V DC, 500mA
• Programmable transmitter power: up to +3dBm
• Operating Temperatur: -10°C~50°C
• Storage temperature: -15°C~60°C
• Exterior dimensions: 110X68X27MM
• Material: ABS eco-friendly material

What you get

• 1pc x CK-TOM-PRO-01 for Toyota Key Matching Device
• The CK-TOM-PRO-01 is a special matching device designed for Toyota/Lexus vehicle keys. By connecting to the 'Huidao CK' app via Bluetooth, it can read key information, match the vehicle, and write key can also be used directly as a temporary key. With its simple operation and high stability, it is a professional portable tool for Toyota/Lexus vehicle key repair and matching.
• CK-TOM-PRO-01 Key Matching Device for Toyota/Lexus Supports 8A-AA/ 8A-BA Read/Write Key Data and Match the Vehicle
• The 8A-AA and 8A-BA keys for Toyota and Lexus adopt a proprietary encryption architecture, making them impossible to re-use through traditional resetting methods. This solution effectively breaks through technical barriers, adapts to various tools on the market, and is highly entire process uses a non-destructive operation mode, eliminating the need for disassembly, welding, or cracking the keys, while preserving their original form. The operation process is standardized and concise, with a low threshold for use, requiring no professional training. The device can also be used as a temporary key.
• How to use CK-TOM-PRO-01?
• 2.4GHz RF transceiver: High receiver sensitivity (-92dBm@BLE)

Acting as a temporary key is the useful part, since it drives the car before the real key is cut.
