Autel MaxiTPMS TBE200E EU Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2in1 Tester Work with ITS600E

The Autel MaxiTPMS TBE200E EU tire brake examiner, a two in one laser tester for tyre tread depth and brake disc wear, working alongside the ITS600E. Wear status is reported on screen with a beep output, and Autel include lifetime free updates.

Specifications

• Notice: Lifetime free update
• Step 1: Long press the power button to turn on the tool.
• Step 3: Possible Results for Measurements: Wear status is represented by icon color: A gray icon indicates the tire is untested; green indicates the tire is in good condition
• Step 4: Calibration: On the Main Job screen, tap the Calibration icon, and place the magnetic head on the calibration table. Press the power button to start. Wait for 1-2 minutes until calibration is complete.
• Calibration frequency: Calibration is recommended every two months. Immediate calibration should be performed if deviations are detected or if the tool is dropped or in some manner mishandled.
• Output: Beep

What you get

• 4x ARM Cortex-A35 (1.5 GHz)
• Autel MaxiTPMS TBE200E EU (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate (measuring accuracy of 0.1 mm) wear measurements. Measure tread depth/brake disc wear without removing wheels.
• Autel MaxiTPMS TBE200E EU Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2in1 Tester

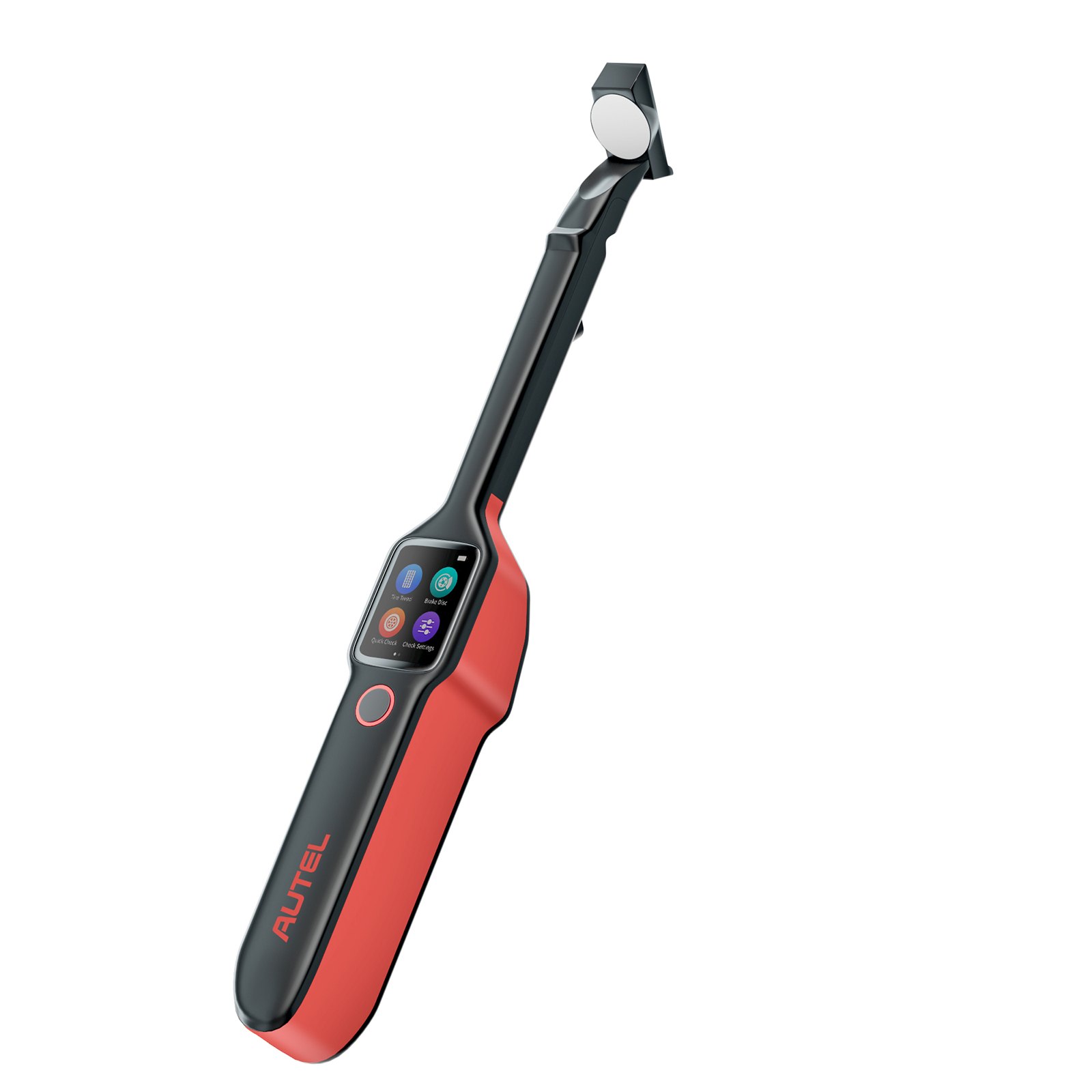

• Autel MaxiTPMS TBE200E EU (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate (measuring accuracy of 0.1 mm) wear measurements. Measure tread depth/brake disc wear without removing wheels. It's a wand-like, laser-enabled device that scans tire and brake disc surfaces to determine the condition and need for service or replacement. The TBE200E EU provides wear analysis and displays the analysis and service recommendations on its 1.65-inch-high resolution Super Retina touchscreen AMOLED display. The full-color graphical display illustrates wear and provides service recommendations, including tire and brake disc replacement, tire rotation, and 4-wheel alignment.

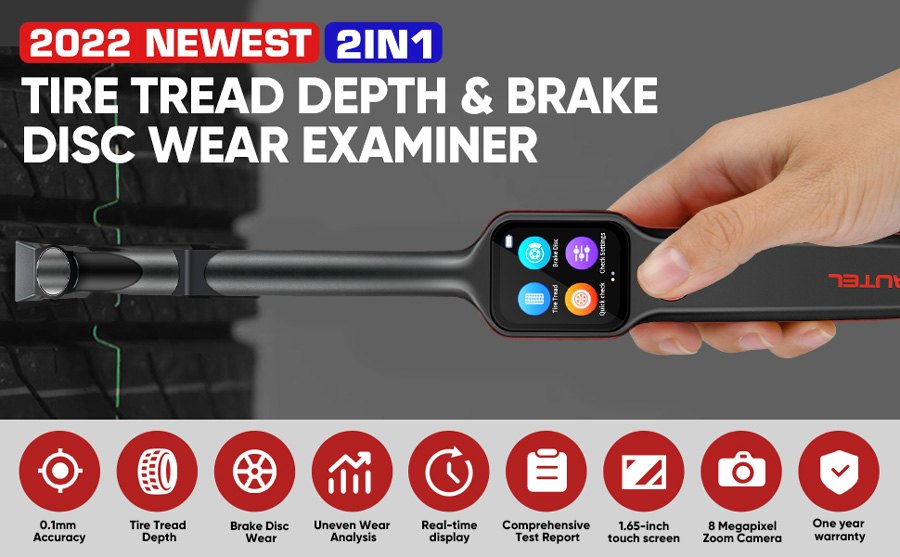

• 2022 Newest 2 in 1 Tire Brake Examiner Autel TEB200E
• MaxiTPMS TBE200E EU is a laser (0.1 mm accuracy) tire tread depth and brake disc wear 2in1 examiner. Autel TBE200E EU is the upgraded version of TBE100E added scan DOT, tire expiration notice, tire recall lookup, take photos of tire wear and damage etc. With 1.65" Amoled super retina touchscreen, dual camera, real-time tire health/uneven wear analysis, full tread measurement, supports almost all tire types, comprehensive test report (Need ITS600E).
• Why choose TBE200E EU? Autel MaxiTPMS TBE200E EU is not only a laser inspector with a measuring accuracy of 0.1 mm, but also measurements displayed graphically. It is convenient for technics and repair shops to measure tread depth/brake disc wear without removing wheels. Autel tpms TBE200E EU provides 4 possible results (Gray, Green, Yellow, Red) are represented to the degrees of tire wear/wear status, it can offer analysis to ensure your driving safety.
• Autel TBE200E EU tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch-high resolution Super Retina touchscreen AMOLED. The full-color graphical display illustrates wear and provides service advice, including tire and brake disc replacement, tire rotation, and 4-wheel alignment. Adding scan DOT, tire expiration notice, tire recall lookup functions help you get the tire data easier.
• Enhancing The TBE200E EU With the ITS66E
• The TBE200E EU will offer optimal performance when paired with the ITS600E TPMS tool. When used with the ITS600E, The TBE200E EU will take advantage of the ITS600E's larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from the ITS600E to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
• Wide Vehicle Coverage & One-Year Warranty
• Autel TBE200E EU TMPS tool not only supports 99% vehicle including passenger cars, off-roads and commercial vehicles, but also compatibility with almost all tire types (Goodyear, Continental, Bridgestone, Dunlop etc) on the market. TBE200E comes with one-year warranty and 100% risk-free purchases. TBE200E EU will be your best choose!

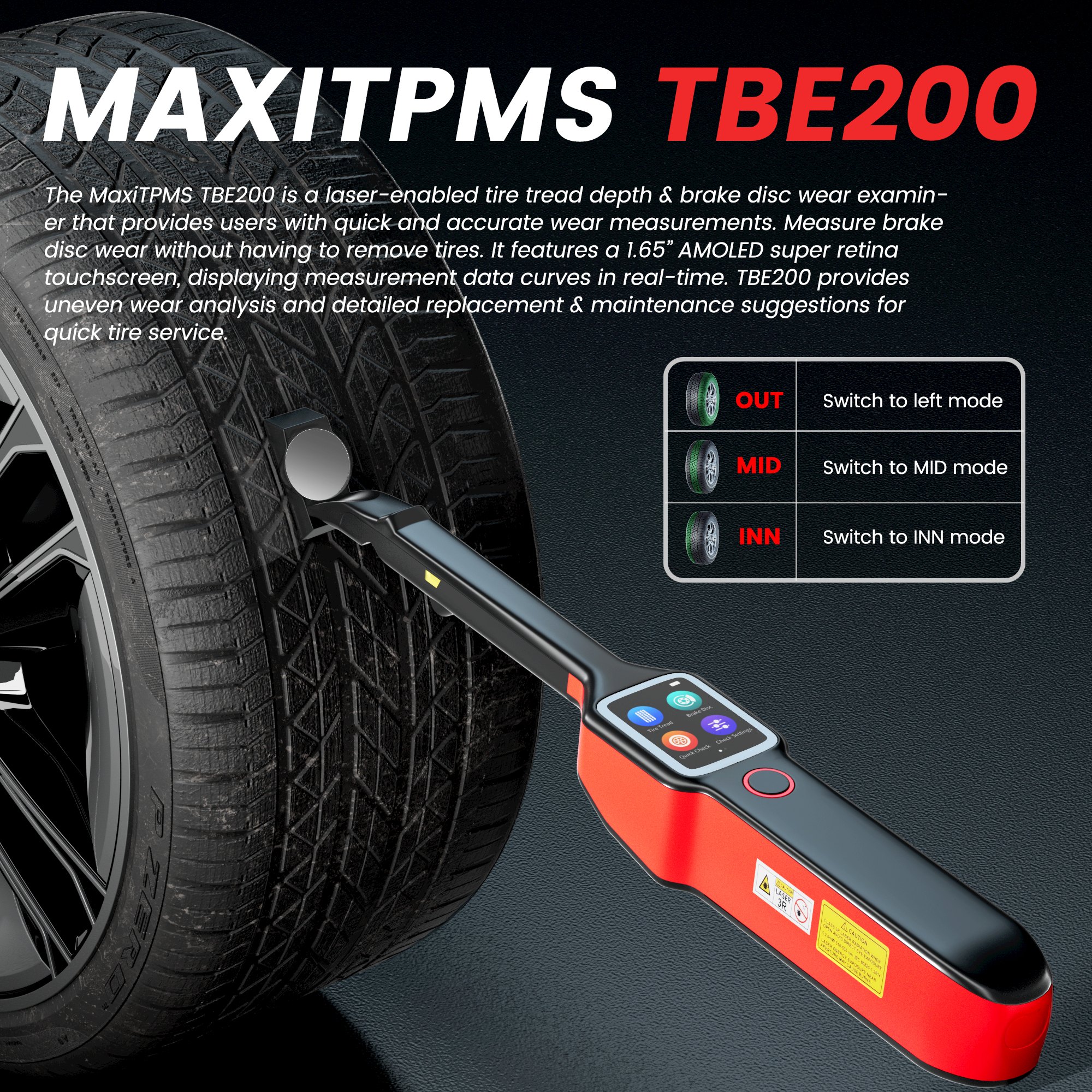

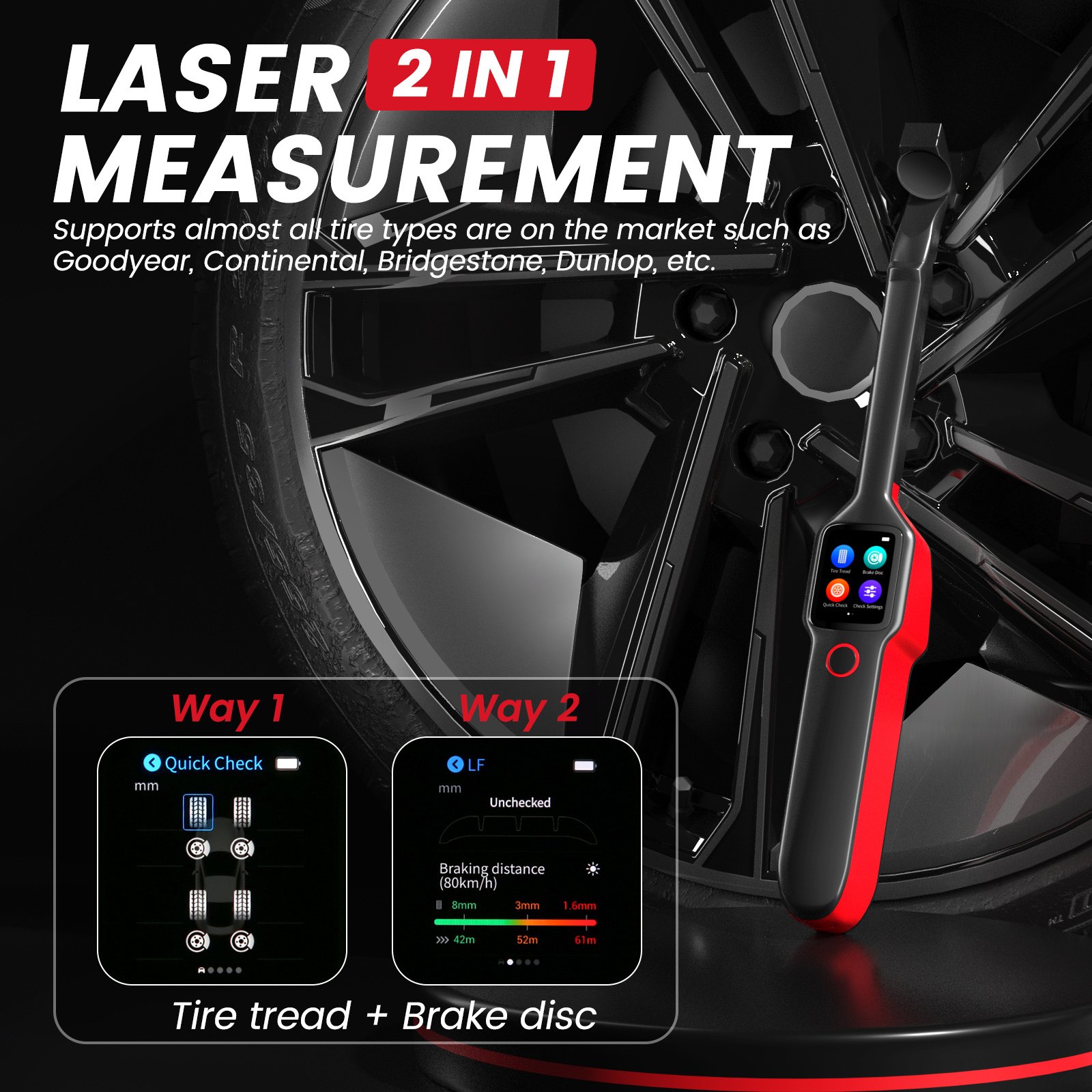

• Using laser technology, the Tire Tread application analyzes the wear of the tires on vehicles with no need to remove the tires. Place the tool on the tire, and the tool projects a laser beam. The wear measurement is then sent to the display screen with an accuracy within 0.1mm. Measurements are also displayed graphically. The Tire Tread application provides two types of checks: "All Treads" and "Single." When using this application, a message will display prompting user to choose between the current mode the alternative one.

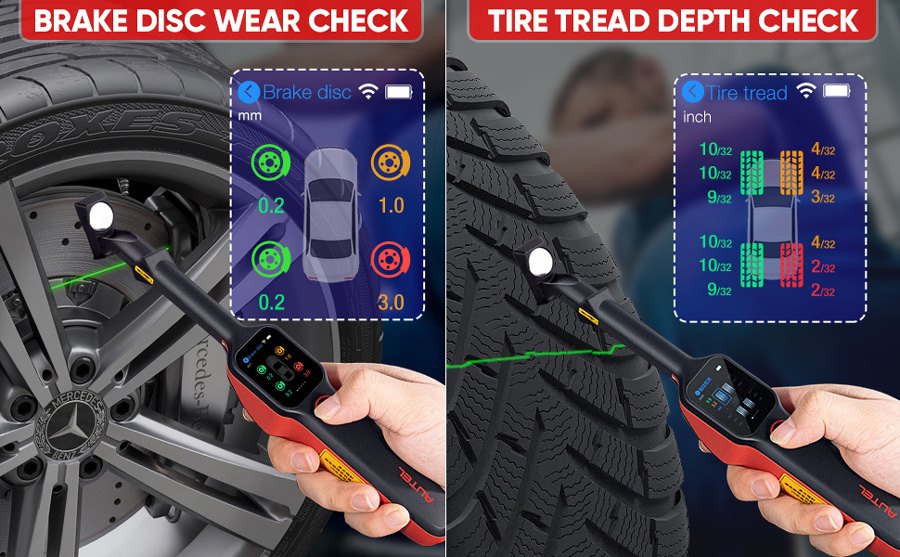

• This function allows the Brake rotor surface wear to be measured independent of the tire tread depth measuring functions. In the order displayed on the tool. Place the tool's magnetic tip on the rotor 90 degrees so the laser will span from the hub and the edge of the disc. Swiping left will display the information for each brake rotor. 0.1 refers to the amount of surface wear on the brake rotor. 1/10TH of a millimeter. The typical threshold for replacement is 1.0 mm of material worn off the surface. These rotors are in great condition.
• How to Use Autel TBE200E EU?
• Easy to Use-Autel MaxiTPMS TBE200E EU, A good helper for Your Vehicle Tire Autel MaxiTPMS TBE200E EU one-button operation, easy to use.
• Step 2: Perform Tire Tread Check: On the Main Job screen, tap the Tread Check icon, and place the tool on the tire surface. Short press the power button. Ensure the laser line is perpendicular to the channels of the tire. The screen will display real-time measurement data, slide left to view details.
• Autel TBE200E EU Supports 99% Vehicle to Ensure Your Safe Driving

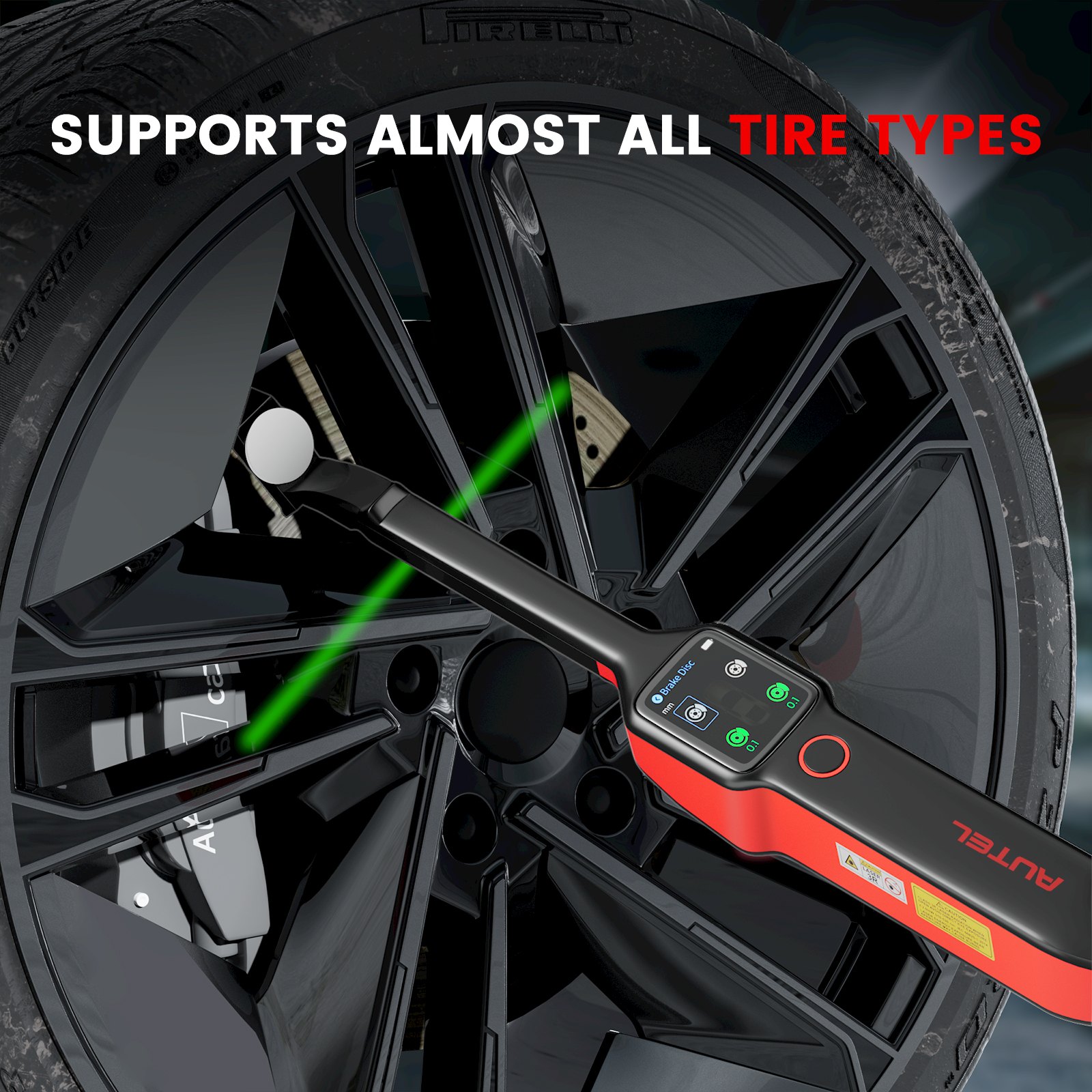

• Autel TBE200E EU laser tpms tool is compatible with passenger cars, off-road vehicles and commercial vehicles. Autel TBE200E EU compatibility with almost all tire types (Goodyear, Continental, Bridgestone, Dunlop etc) on the market
• Autel MaxiTPMS TBE200E EU VS TBE100
• Autel MaxiTPMS TBE200E EU
• Autel MaxiTPMS TBE100
• Measurement accuracy (0.1mm)
• Comprehensive Test Report (Need ITS600)
• 1GB RAM LPDDR3 & 4GB ROM
• 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
• USB 2.0, Type C
• CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
• Power and Battery
• 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
• Tested Battery Life
• Around 8 hours of continuous use
• Battery Charging Input
• 5 V/1.5 A
• Power Consumption
• 300 mA (AMOLED on with default brightness) @3.7 V
• 10 to 45°C(14 to 113°F)
• 20 to 60°C (-4 to 140°F)
• Dimensions (W x H x D)
• 283.0 mm (11.14") x 39.0 mm (1.54") x 33.5 mm (1.32")
• Net Weight
• 188 g (0.41 lb.)

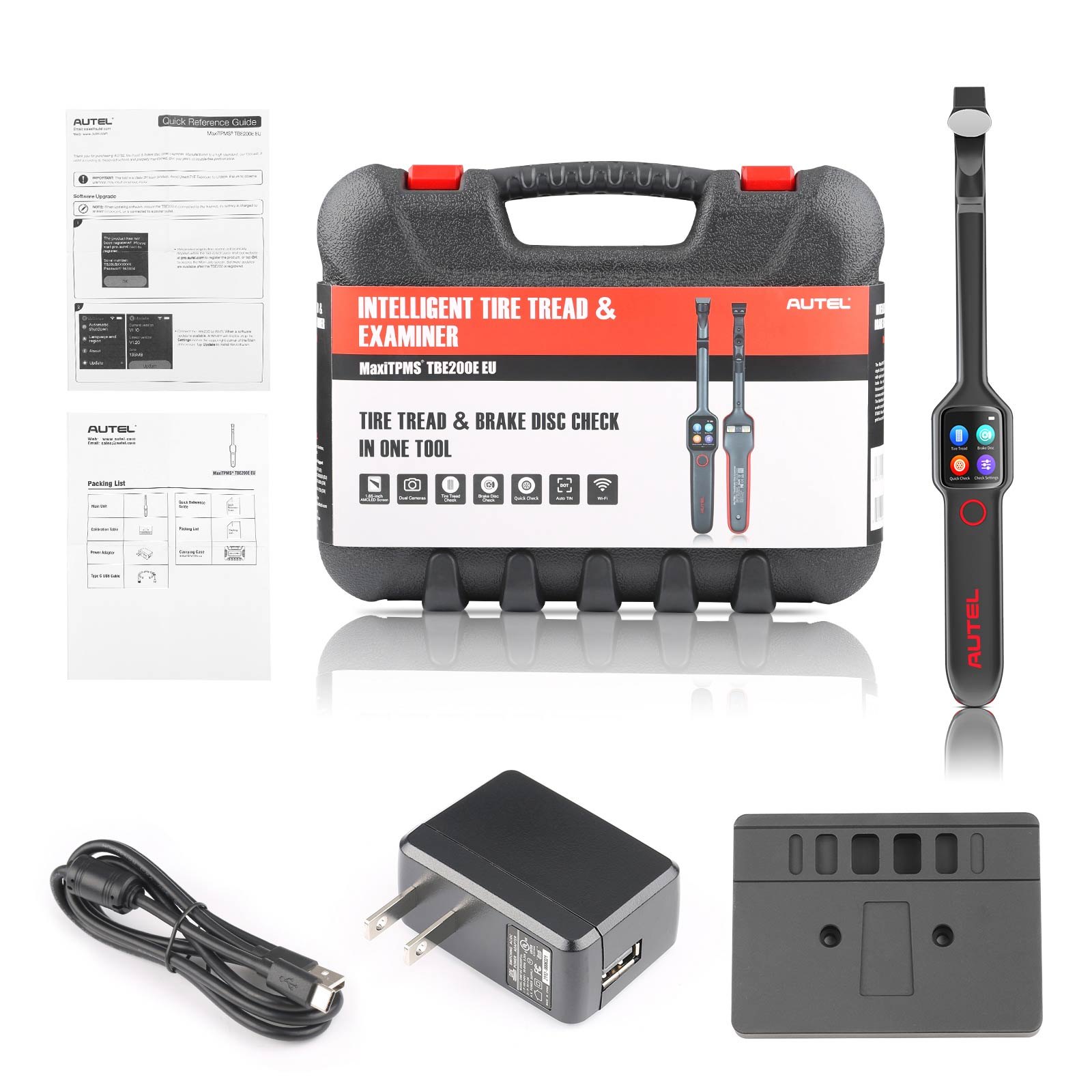

• Autel MaxiTPMS TBE200E EU * 1
• Calibration Table * 1
• Power Adapter * 1
• Type C USB Cable * 1
• Quick Reference Guide * 1

Autel recommend calibrating every two months, done from the calibration icon on the main job screen.
