AUTEL MaxiTPMS ITS600 TPMS Relearn Tool Support Sensor Relearn/ Activation/ Programming

The Autel MaxiTPMS ITS600, a TPMS tool offering three ways to relearn OEM sensors: stationary, automatic and fast OBD relearn. It reads and clears codes, turns off the TPMS warning light, reads and writes sensor data, runs oil, EPB, BMS and SAS resets, and prints a report covering TPMS health, tread depth and brake disc wear.

Specifications

• 3 Ways to Relearn OEM Sensors: Stationary Relearn, Automatic Relearn, OBD Relearn [Fast OBDII relearn works for most vehicles]
• TPMS Diagnosis: read/ clear codes, turn off TPMS warning light, Read/ write sensor ID, tire pressure reference value setting
• Support 4 Reset Functions: Oil reset, EPB reset, BMS reset, SAS reset
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips
• Input: N/A
• Output: Beep

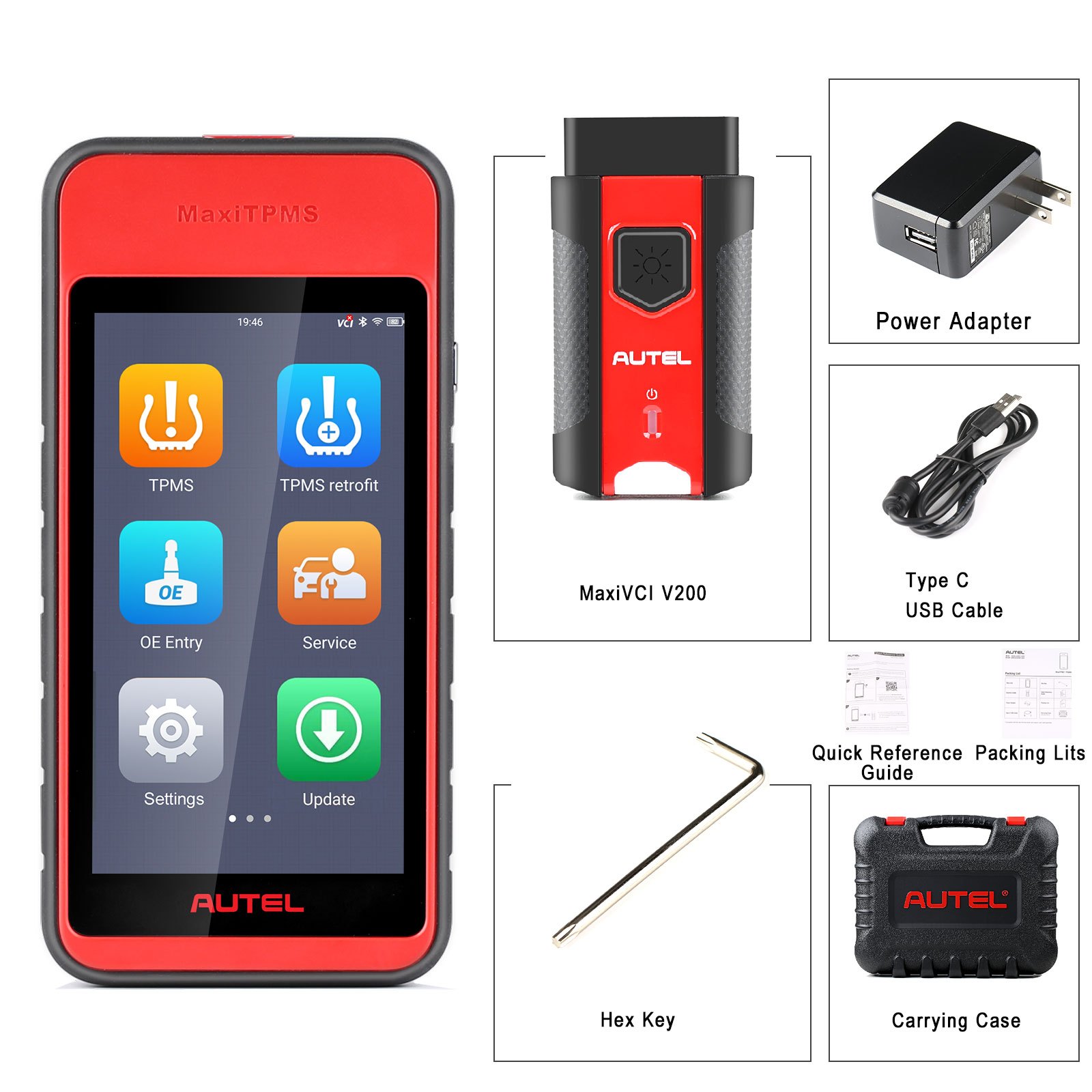

What you get

• 1pc x MaxiTPMS ITS600 Main Unit
• 1pc x MaxiVCI V200
• 1pc x Power Adapter
• 1pc x Type C USB Cable
• 1pc x Hex Key
• 1pc x Quick Reference Guide
• 1pc x Packing List

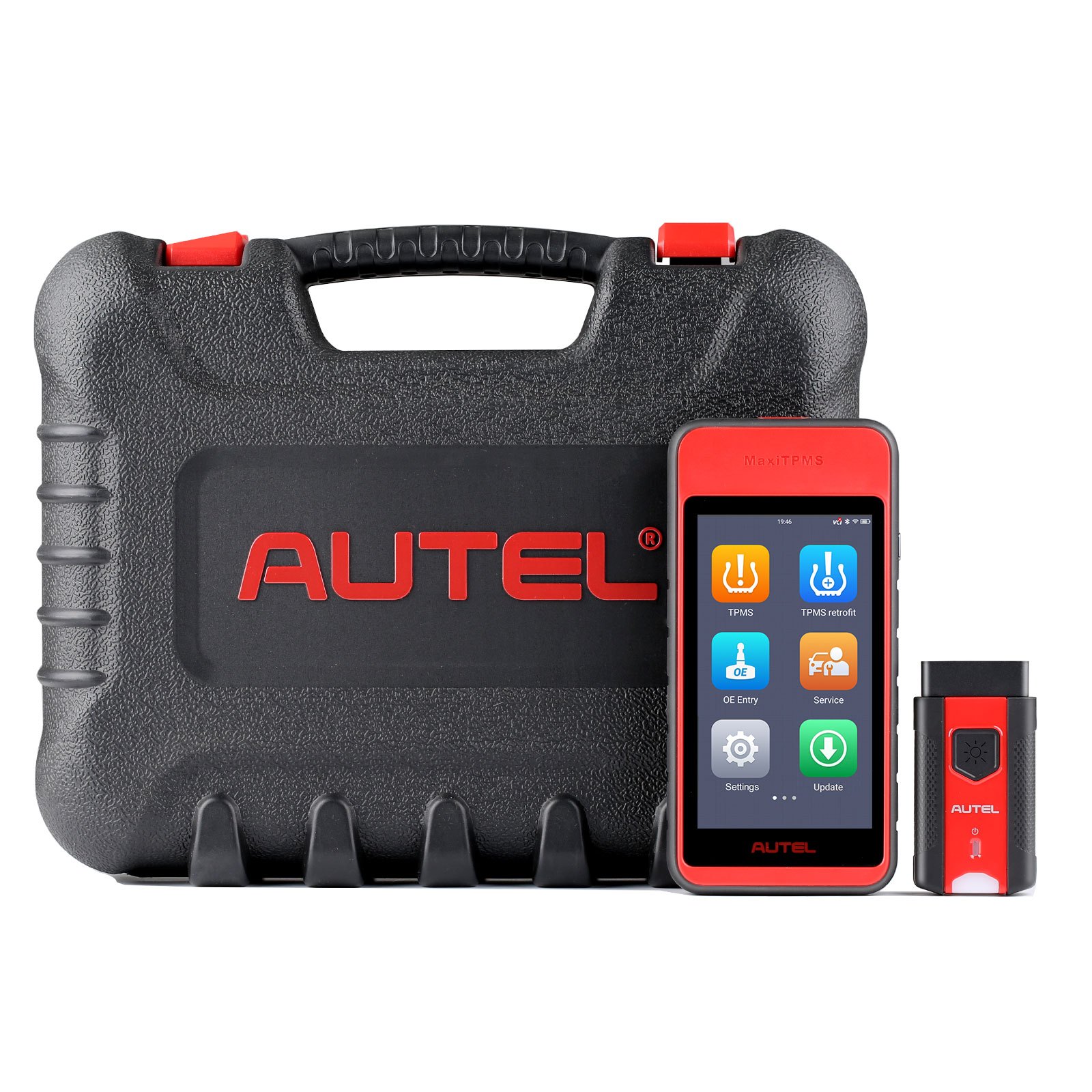

• 1pc x Carrying Case
• Autel MaxiTPMS ITS600 is a wireless, touchscreen Android tablet that performs all TPMS diagnostics and service functions on TPMS-equipped vehicles (US, Asian and European). It can activate, read and relearn all known sensors, and perform four common maintenance services (OLS/ BMS/ SAS/ EPB)
• AUTEL MaxiTPMS ITS600 TPMS Relearn Tool Support Sensor Relearn/ Activation/ Programming
• The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
• 4 Ways to Program 315/433mHz MX-Sensors: Copy by Activation, Copy by OBD, Copy by Input and Auto Create 1-16 Sensors
• Support Batch Program 20 MX-Sensors Maximum One Time, Activate all known TPMS sensors on the market, TPMS Retrofit
• Support Comprehensive TPMS and Tire Diagnosis Report with TEB100/200
• ITS600 Can Only Program Autel Brand MX-Sensors.
• Fast OBDII relearn for most vehicles
• Program MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor programming for faster service
• Four MX-Sensor program modes; batch program up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Free Wi-Fi software updates for the life of the tool
• Identify MMY and sensor OE part number via VIN decoding
• Battery registration
• Included service function updates are free for the life of the tool
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
• Android™ 9.0
• Quad-core processor (1.5 GHz)
• 2GB RAM DDR4 & 64GB ROM
• 5.5-inch LCD capacitive touchscreen with 1280x720 resolution
• USB 2.0, Type C
• Light sensor for brightness auto adjust
• Power and Battery
• 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
• Battery Charging Input
• 5 V/2 A
• Power Consumption
• 5V/1.5A
• 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
• 10 to 45°C(14 to 113°F)
• 20 to 60°C (-4 to 140°F)
• Dimensions (W x H x D)
• 183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87")
• Net Weight
• 368 g (0.8 lb.)
• ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
• ITS600
• TS608
• TS508-WF
• TS508
• Worldwide Vehicle Coverage 99%, Always Up-to-date
• √ (Up to 20 sensors)
• √ (Up to 16 sensors)
• Indicate sensor OE part number
• Check MX-Sensor Information (ID, Battery, etc.)
• Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn
• Test Remote Key Entry (RKE)
• Read/Clear Codes for TPMS System
• Special Functions (e.g. View Live Data for TPMS System)
• Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service
• All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase.
• New software updates for these features will require a new ITS600 Pro Upgrade purchase.
• Android 9.0
• Android 4.4
• 5.5 inch TFT LCD-touch, 1280x720
• 7 inch TFT LCD-touch, 1024x600
• 2.8 inch TFT LCD, 320×240
• 8 MP
• 64GB / 1G; SD card up to 64G (Optional)
• 32G / 1G; SD card up to 32G (Optional)
• 16M / 3M
• Lithium-ion Battery
• 3.8V/5000mAh
• 3.7V/5000mAh
• 3.7V/3200mAh
• Vibration reminder, Microphone voice remote assistance

The tread depth and disc wear report is what turns a TPMS job into a sale on the rest of the corner.
