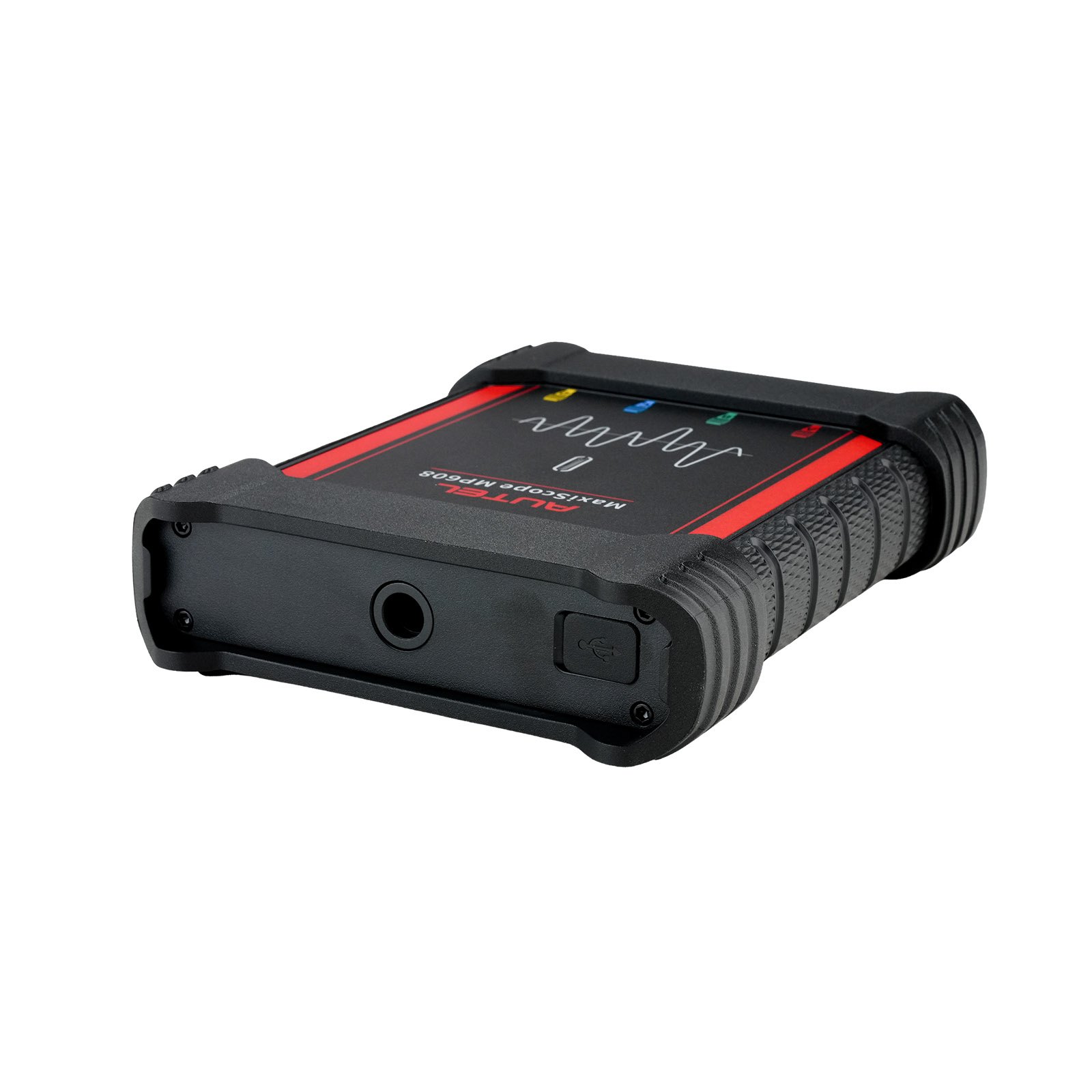

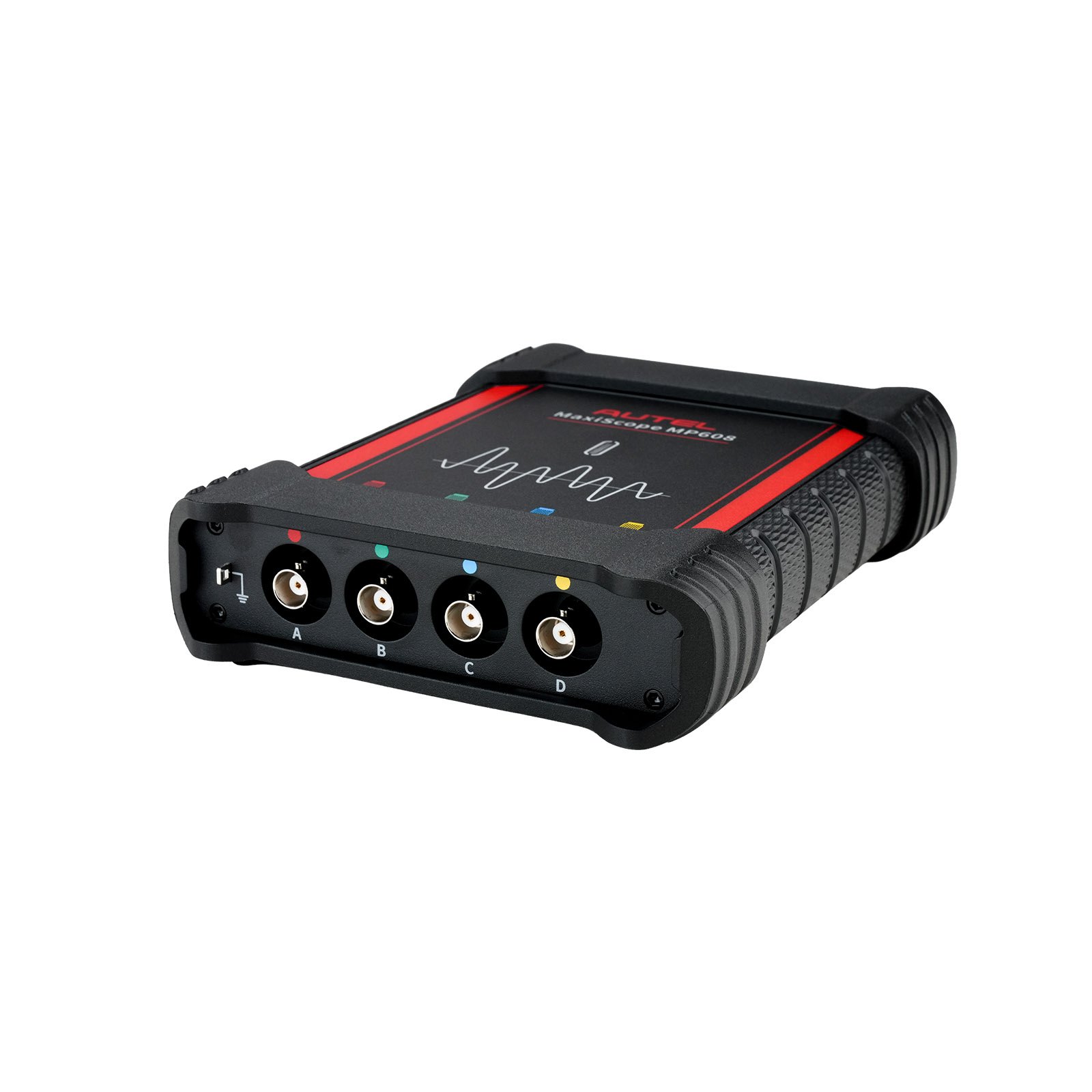

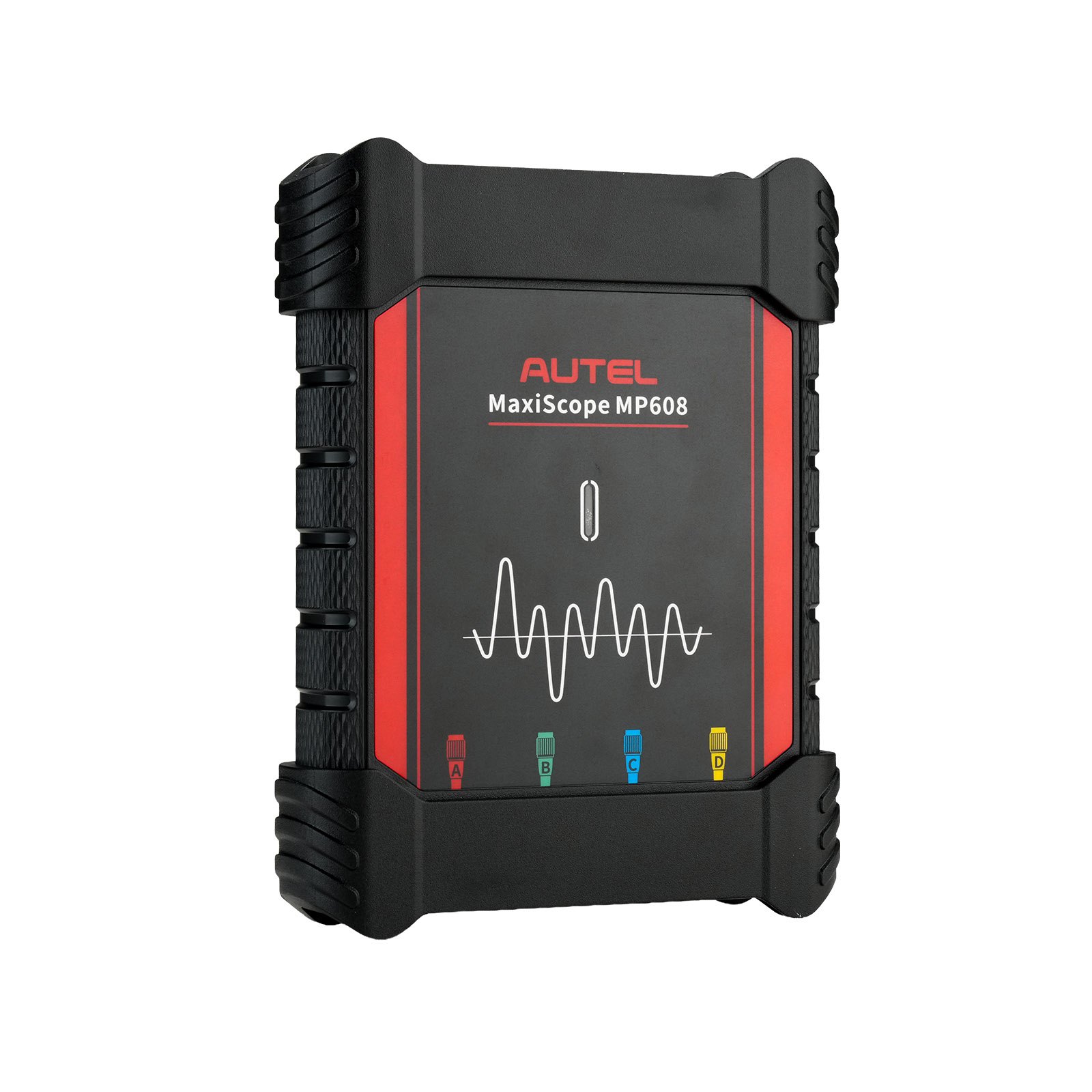

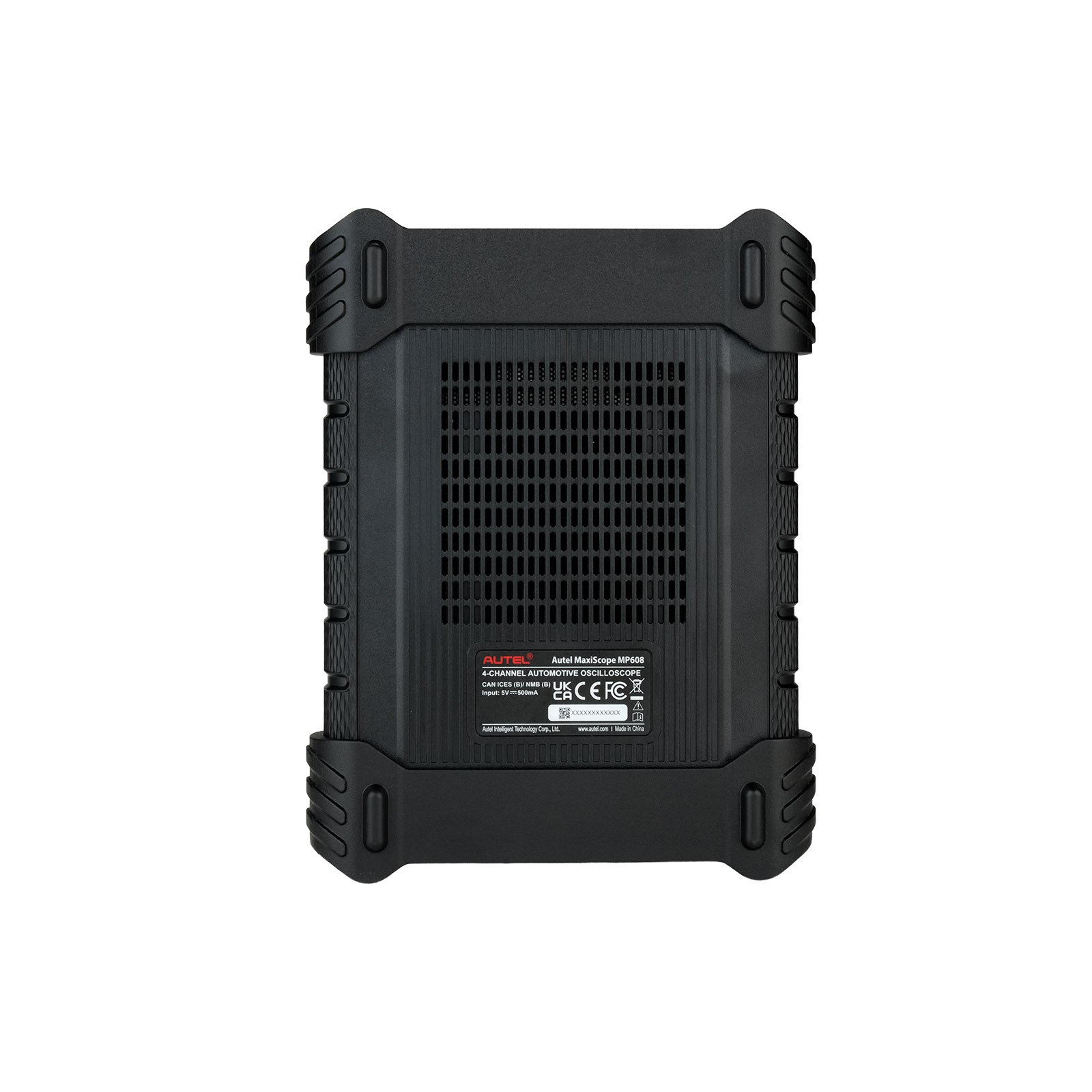

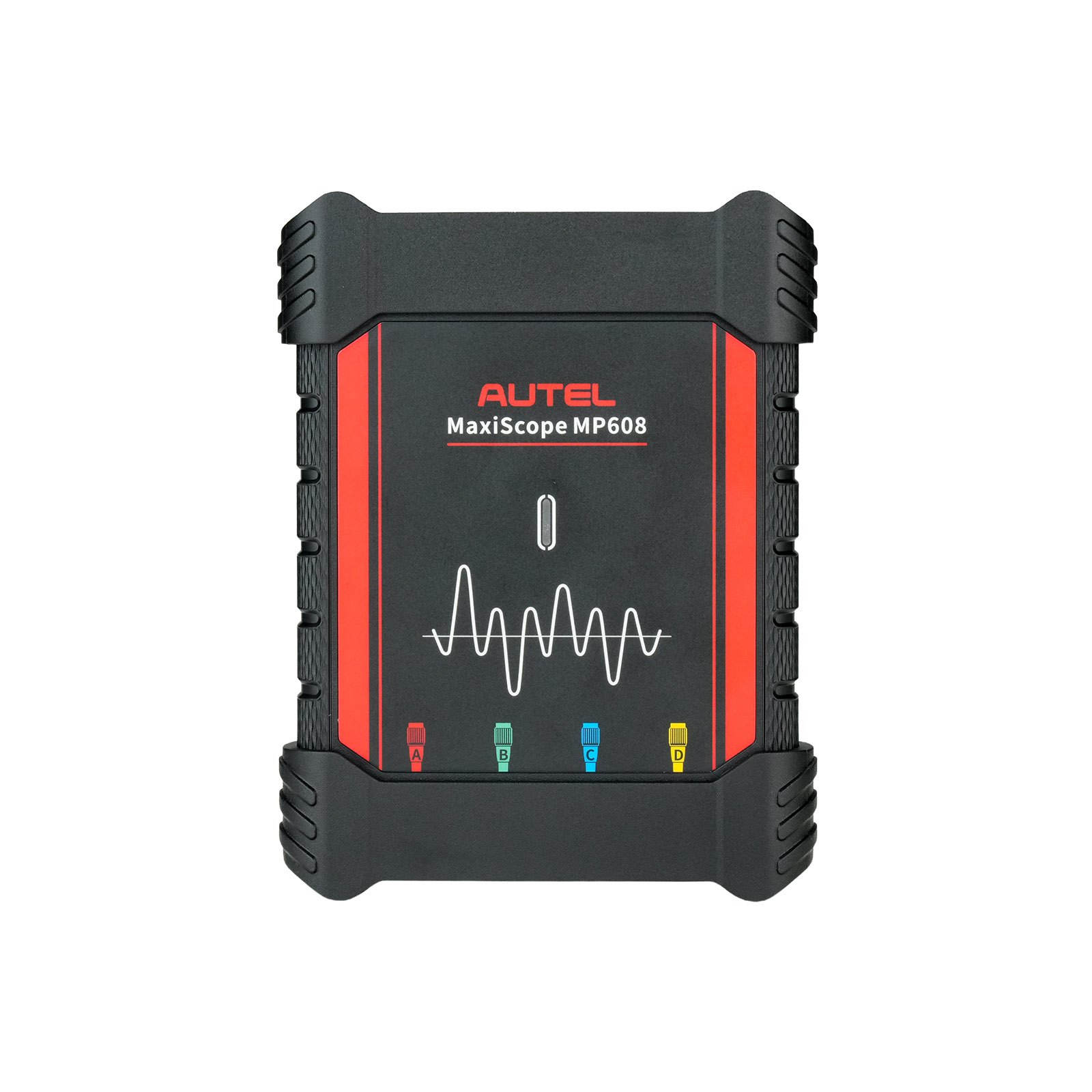

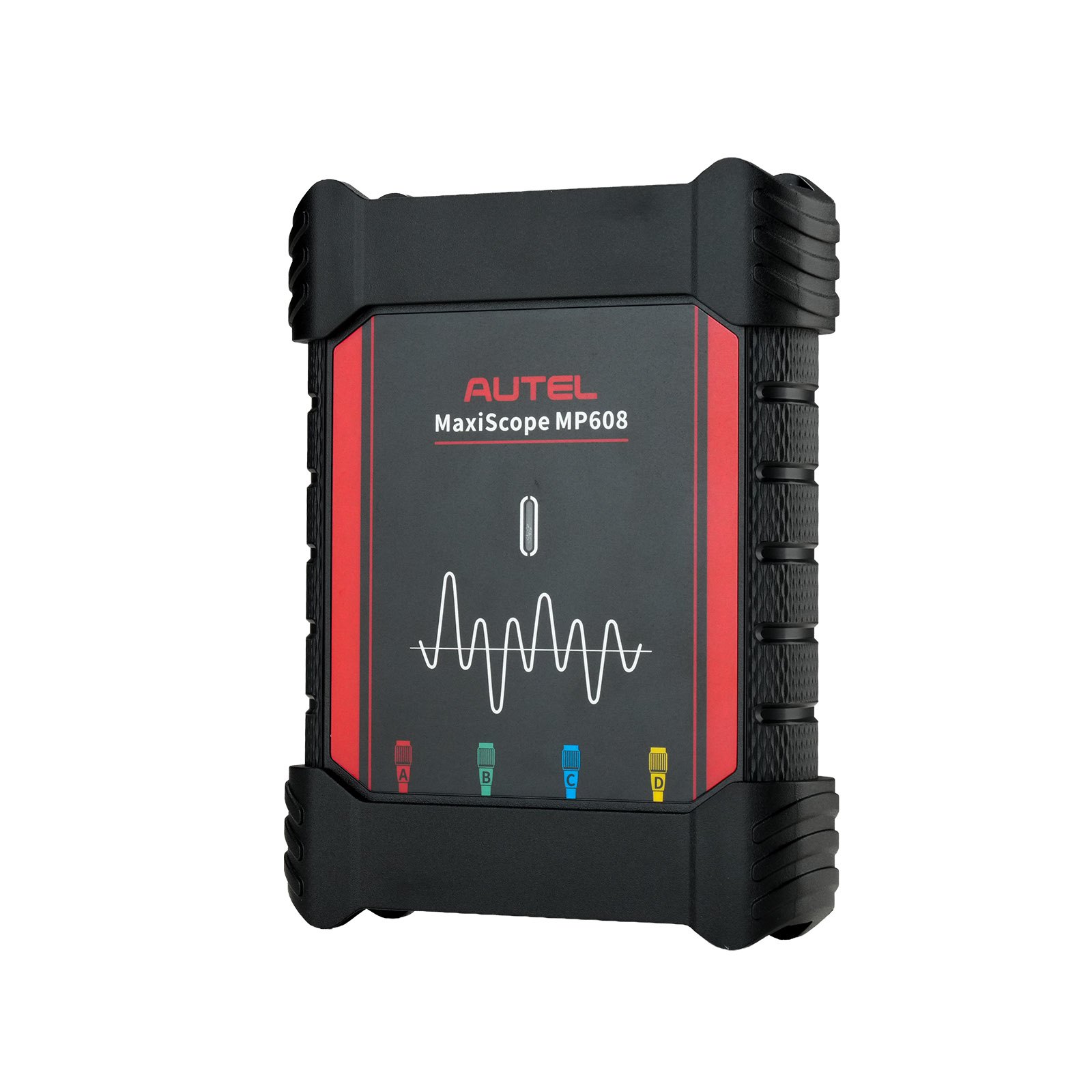

AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics

The Autel MaxiScope MP608, a four channel automotive oscilloscope for advanced electrical diagnostics. It runs 12 bit vertical resolution at 1 percent DC accuracy, 10mV to 40V per division across twelve input ranges from 50mV to 200V, 20MHz bandwidth, 32M samples of buffer memory and timebases from 100ns to 1ks per division, over USB 2.0 and powered from the port.

Specifications

• Channels: 4
• Vertical resolution: 12 bits
• DC accuracy: ±1%
• Sensitivity: 10mV/div to 40 V/div
• Input ranges (full scale): ±50mV to ±200V in 12 ranges
• Bandwidth: 20 MHz
• Buffer Memory: 32M Samples
• Timebase ranges: 100ns/div to 1ks/div
• PC interface: USB 2.0
• Power requirements: Powered from USB port
• Dimensions: 184 x 144 x 41mm (approx. 7.2 x 5.7 x 1.6 in)
• Weight: 560 g (approx. 1.23 lb)
• Operating temperature: -10 to +50°
• Storage temperature: -20~+60°C
• 2pcs x attenuator 20: 1

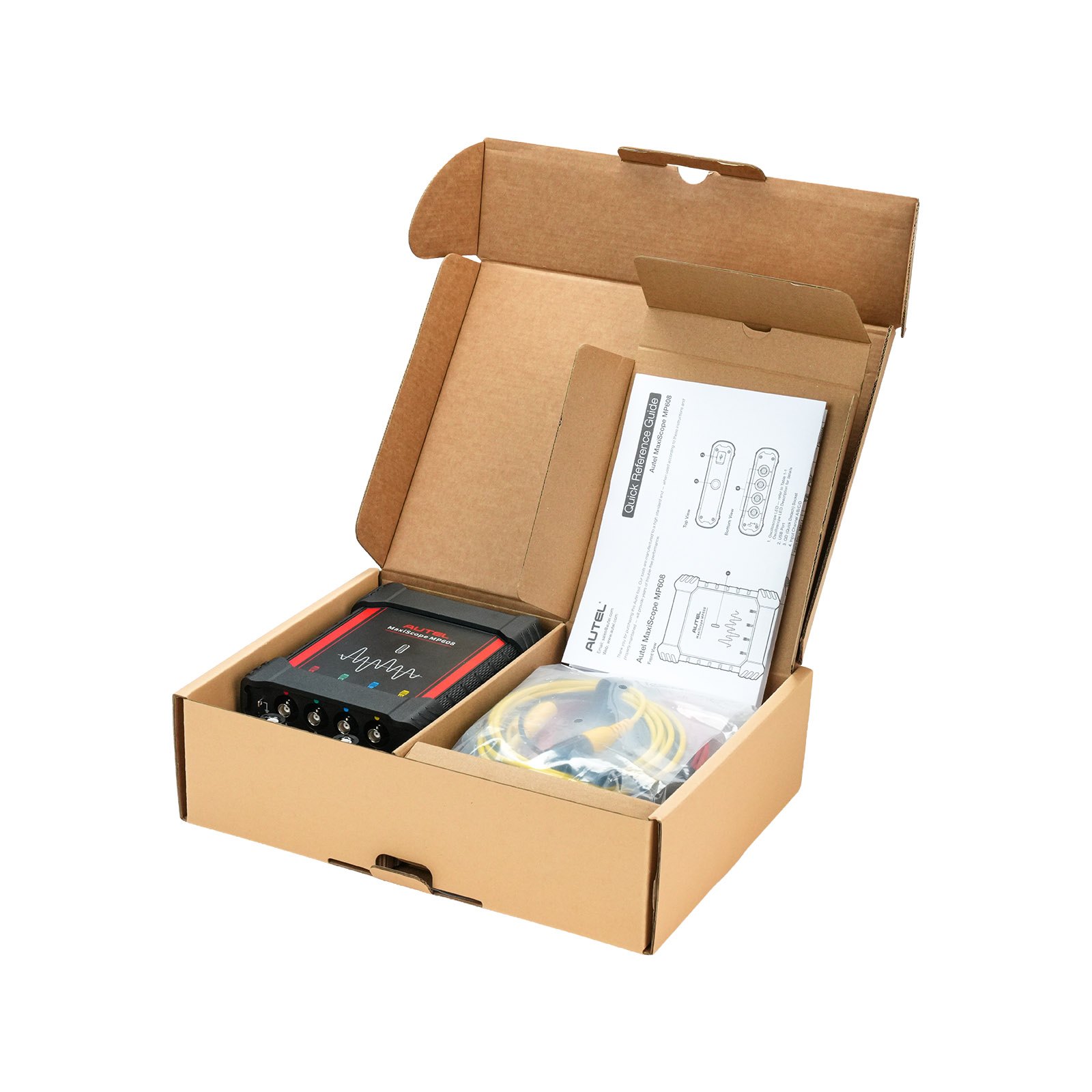

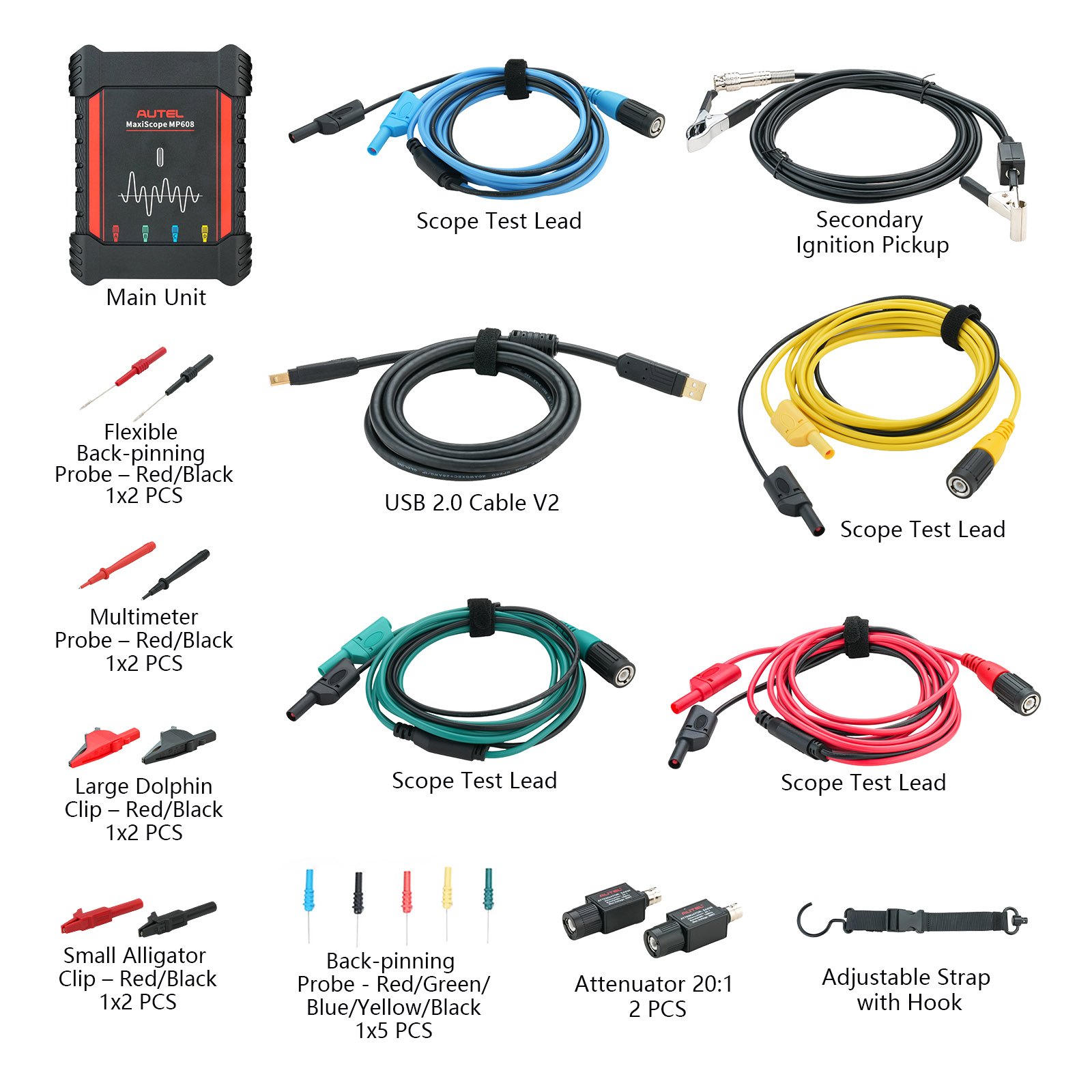

What you get

• 1pc x main unit
• 4pcs x scope test leads
• 1pc x adjustable strap with hook
• 2pcs x large dolphin clips red/black
• Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful waveform diagnostic 12-bit resolution and ±1% measurement accuracy, the MP608 delivers precise signal capture for advanced electrical, electronic, and network diagnostics.
• AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics
• Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful waveform diagnostic 12-bit resolution and ±1% measurement accuracy, the MP608 delivers precise signal capture for advanced electrical, electronic, and network diagnostics. Designed to simplify complex troubleshooting, it offers advanced trigger actions for intermittent fault detection, customizable math channels, serial bus decoding, and guided automotive test procedures. Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV, and Windows PCs, the MP608 provides technicians with a complete solution for analyzing vehicle signals, identifying root causes faster, and improving diagnostic confidence. Covered by a one-year limited warranty.
• Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV, and Windows PC.
• 12-Bit Resolution with ±1% Measurement Accuracy for precise waveform capture and analysis.
• Serial Bus Decoding for multiple protocols. including CAN, CAN FD, LIN, FlexRay, UART, and I²C.
• Complete Diagnostic Kit Included with test leads, ignition pickup, probes, attenuators, carrying case, and accessories.
• Maximum Sampling Rate (single shot): 1 channel in use 80 MS/s; 4 channels in use 20 MS/s
• 2pcs x small alligator clips red/black
• 2pcs x multimeter probes red/black
• 1pc x secondary ignition pickup
• 5pcs x back-pinning probe red/green/blue/yellow/black
• 2pcs x flexible back-pinning probe red/black
• 1pc x USB 2.0 cable V2
• 1pc x packing list
• 1pc x quick reference guide

32M samples of buffer is what lets a long capture be scrolled through rather than only glimpsed.
