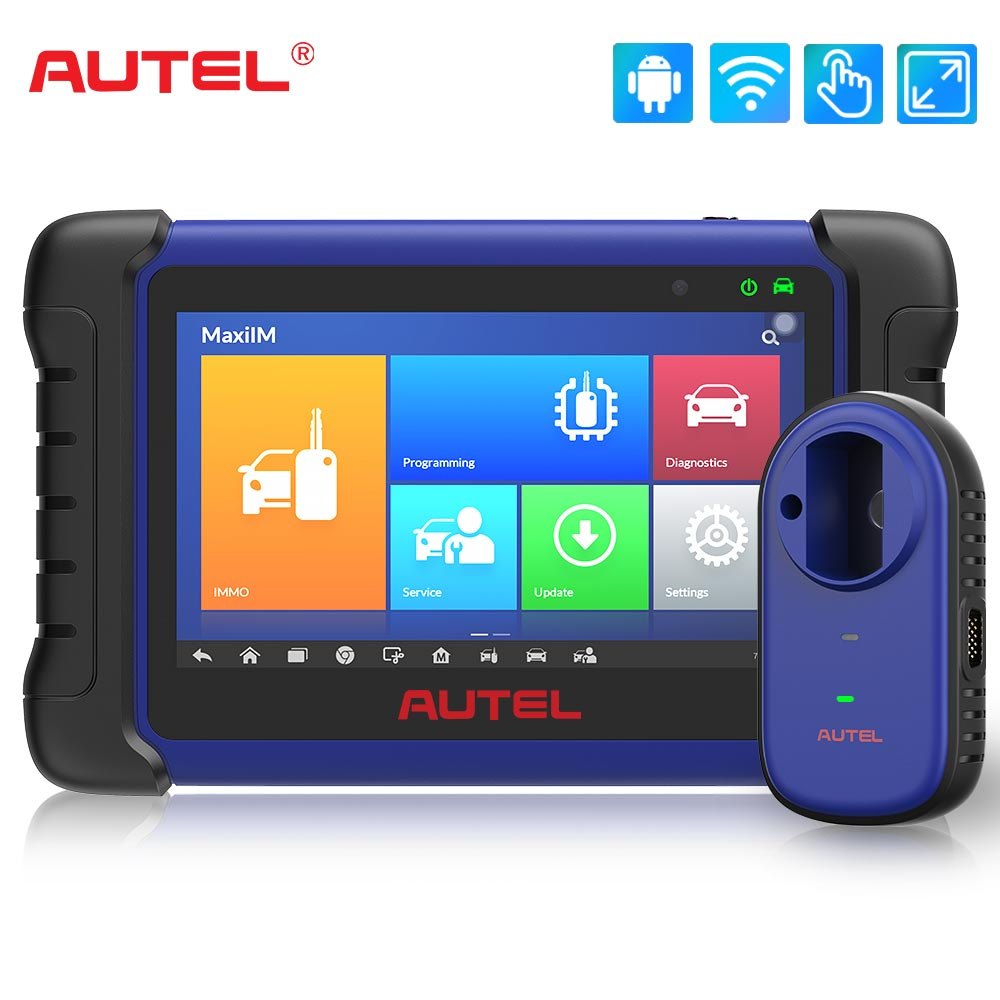

Autel MaxiIM IM508 Key Programming Tool with XP200
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description

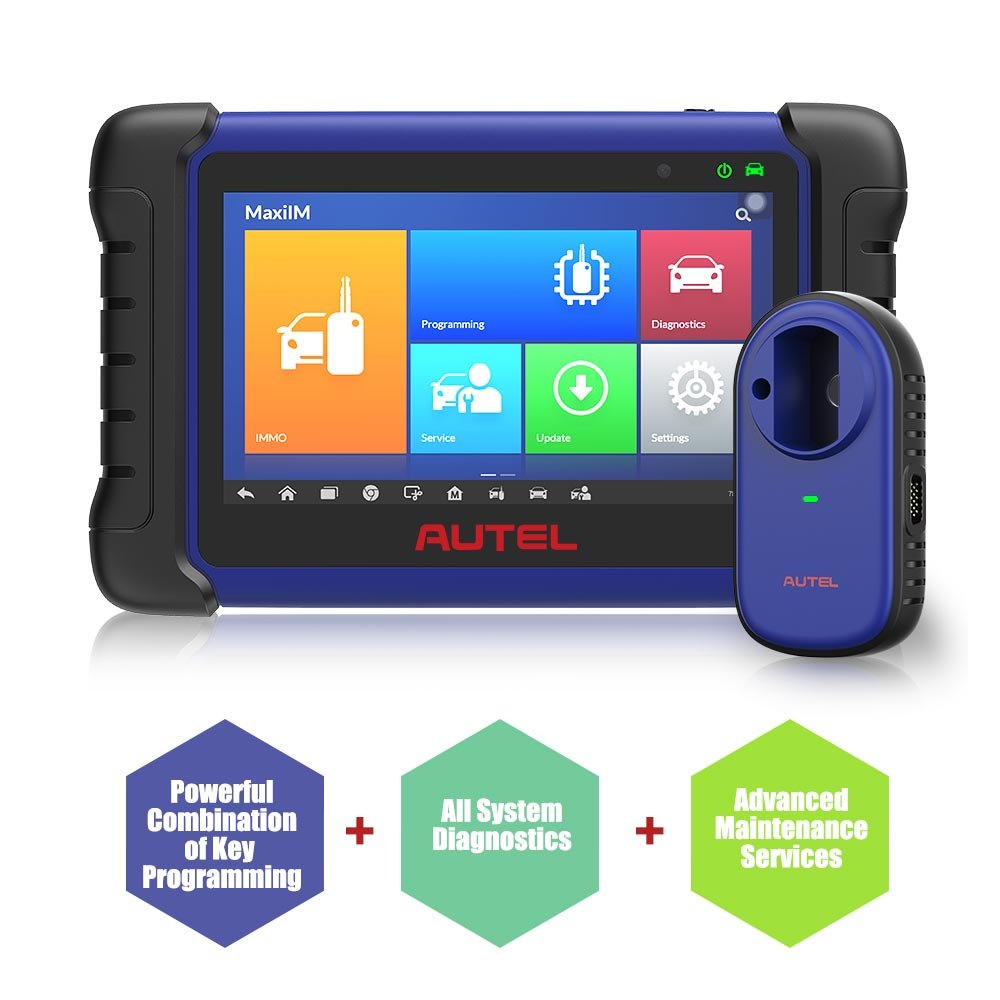

Autel MaxiIM IM508 advanced immobilizer and key programming tool combined with full system diagnostics and 22+ maintenance service functions.

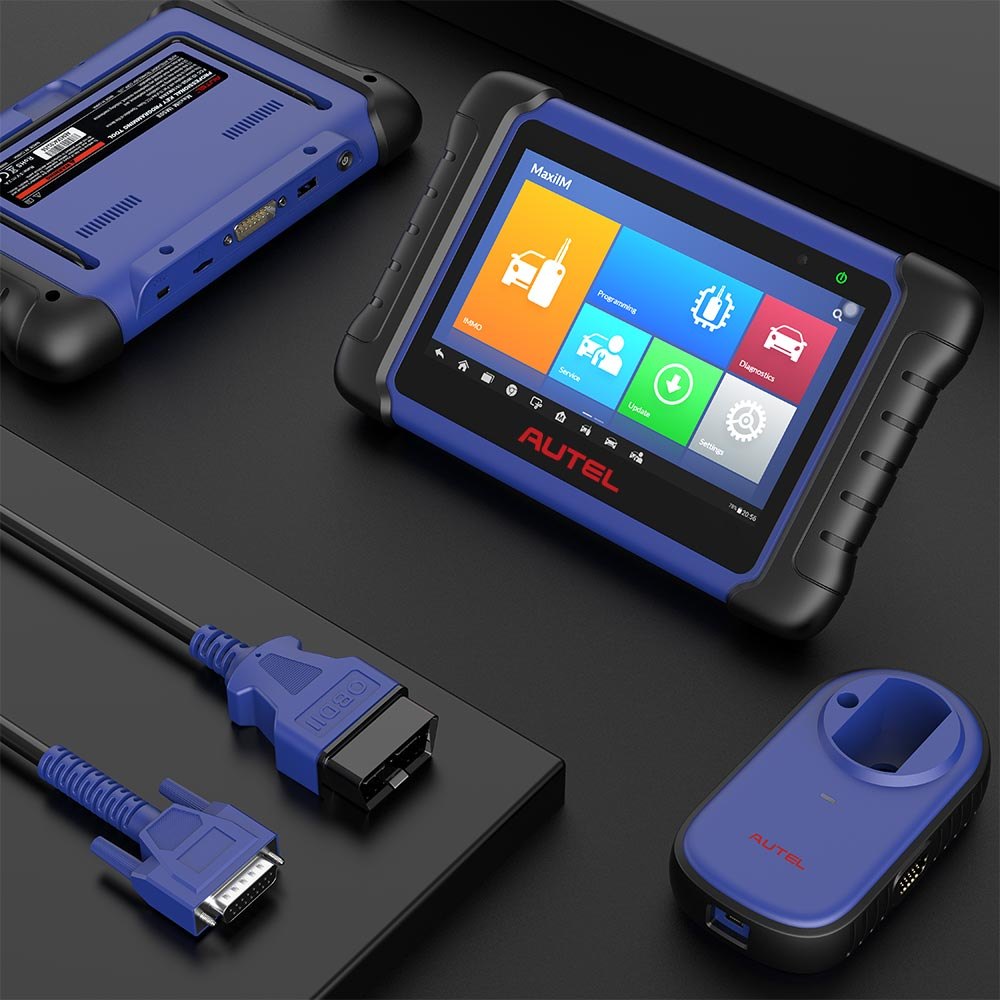

Includes

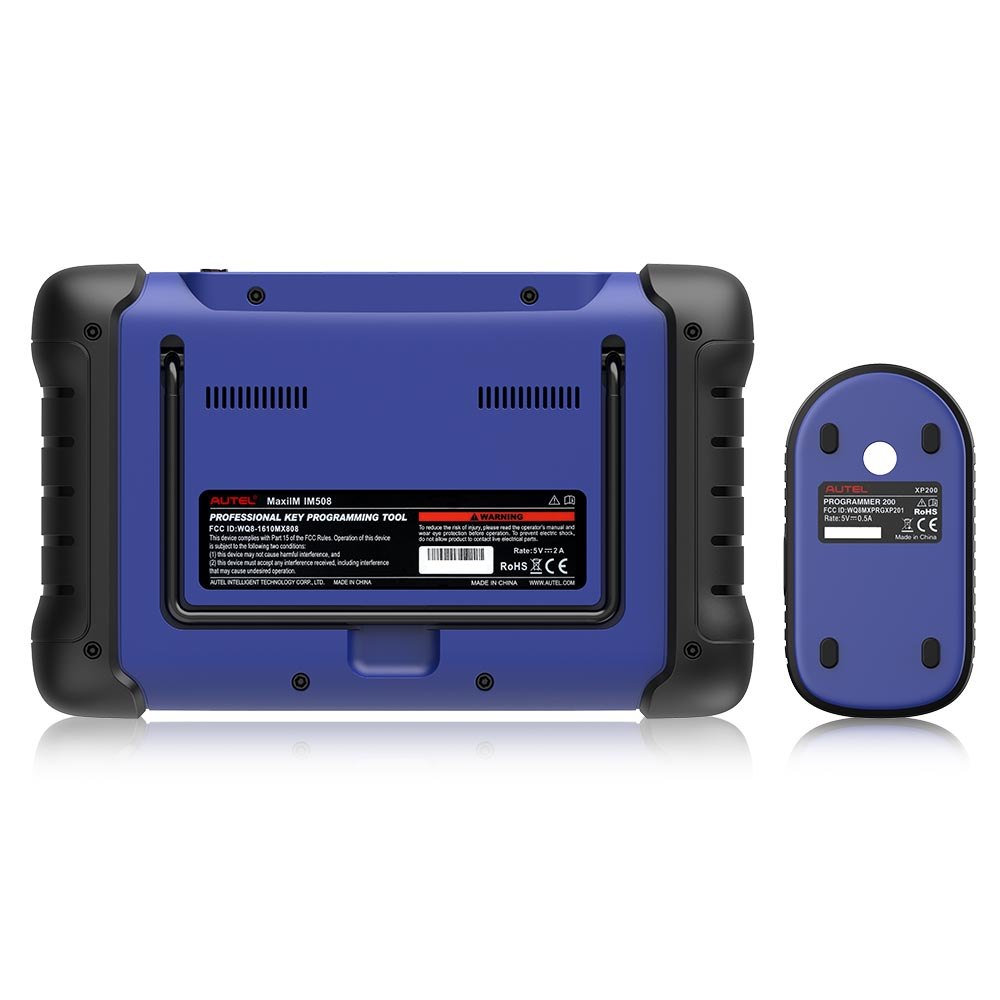

- MaxiIM IM508 Tablet
- XP200 Key Programmer
- AAC001, MED17 Cable
- Honda-3, KIA-20, KIA-10, Mazda-17 Adaptors
- USB External Power Adapter
- Carrying Case, Main Cable, Mini USB Cable
IMMO and Key Programming

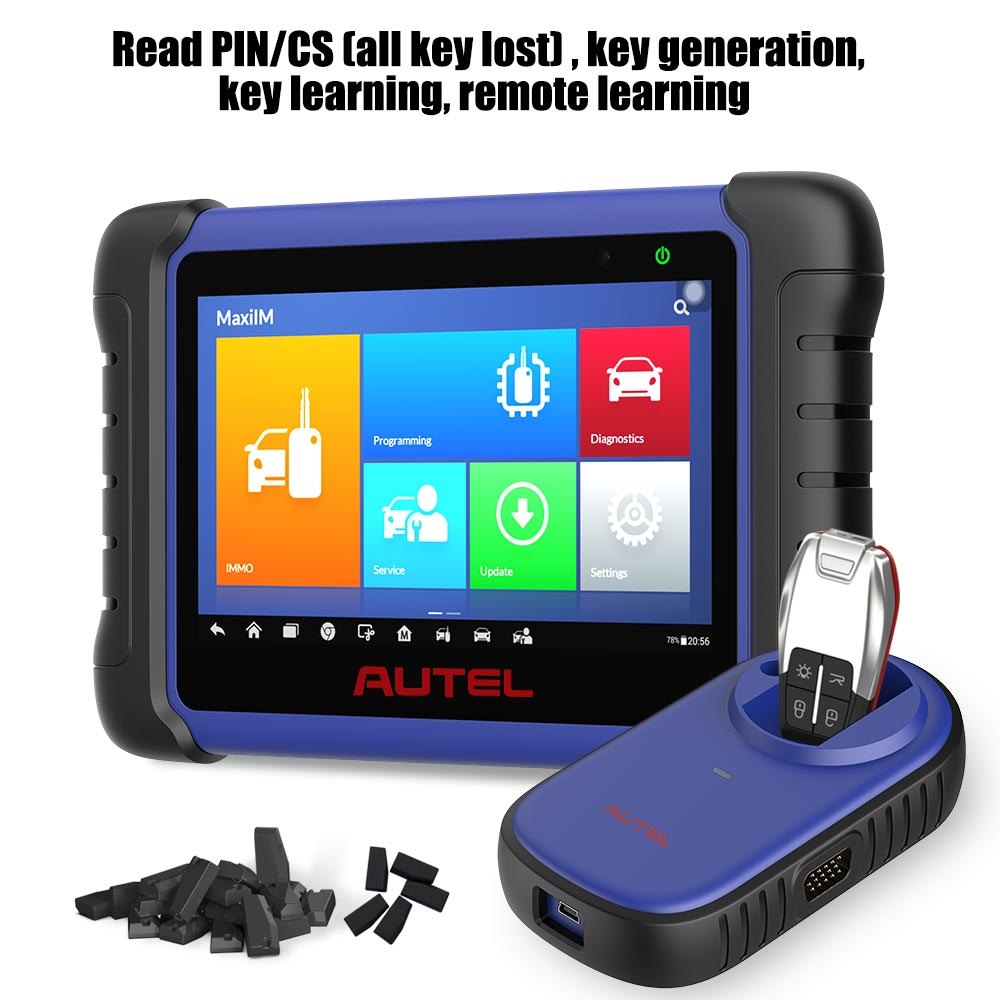

- Read PIN/CS (all key lost)
- Key generation, key learning, remote learning
- Benz FEM/BDC Key Learning / ECU Adaptation
- BMW CAS3/2 Key Learning
- VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost
- IMMO ECU reset/adaptation/refresh/coding
- Transponder read and write
- EEPROM/MCU read and write
For BMW CAS4, Benz 3rd Gen IMMO, BMW CAS4 Key Learning, VW/Audi MQB (VDD and JCI) Add Key, and IMMO V A4/A5/Q5 2015+ Key Learning, purchase XP400 Pro separately or buy the IM508 with XP400Pro bundle. With XP400 Pro, IM508 matches IM608 Pro IMMO functions.

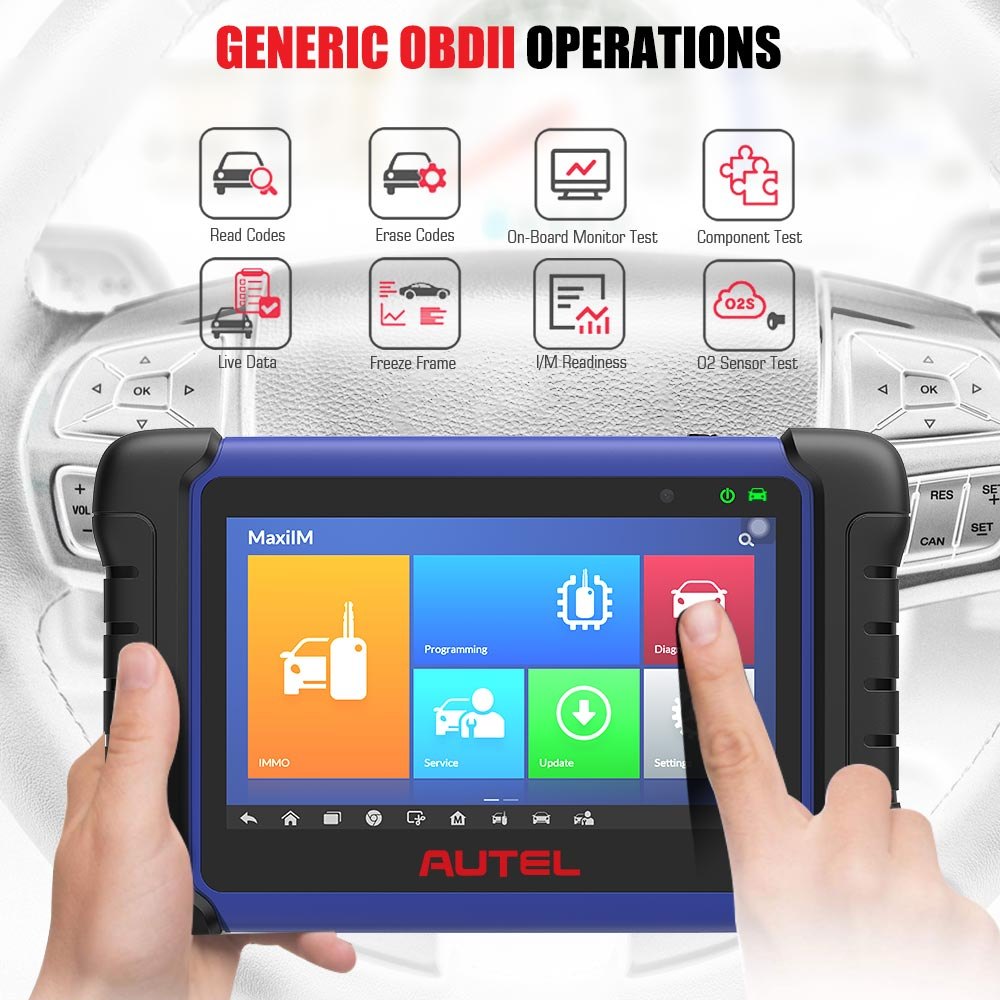

All System Diagnostics
OE-level diagnostics for 80+ US, Asian, and European makes. Covers PCM, ECM, EPS, PDM, BCM, TPM, SCCM and all major systems including ABS, SRS, Engine, Transmission, Brake System. Displays live data from multiple sensors.

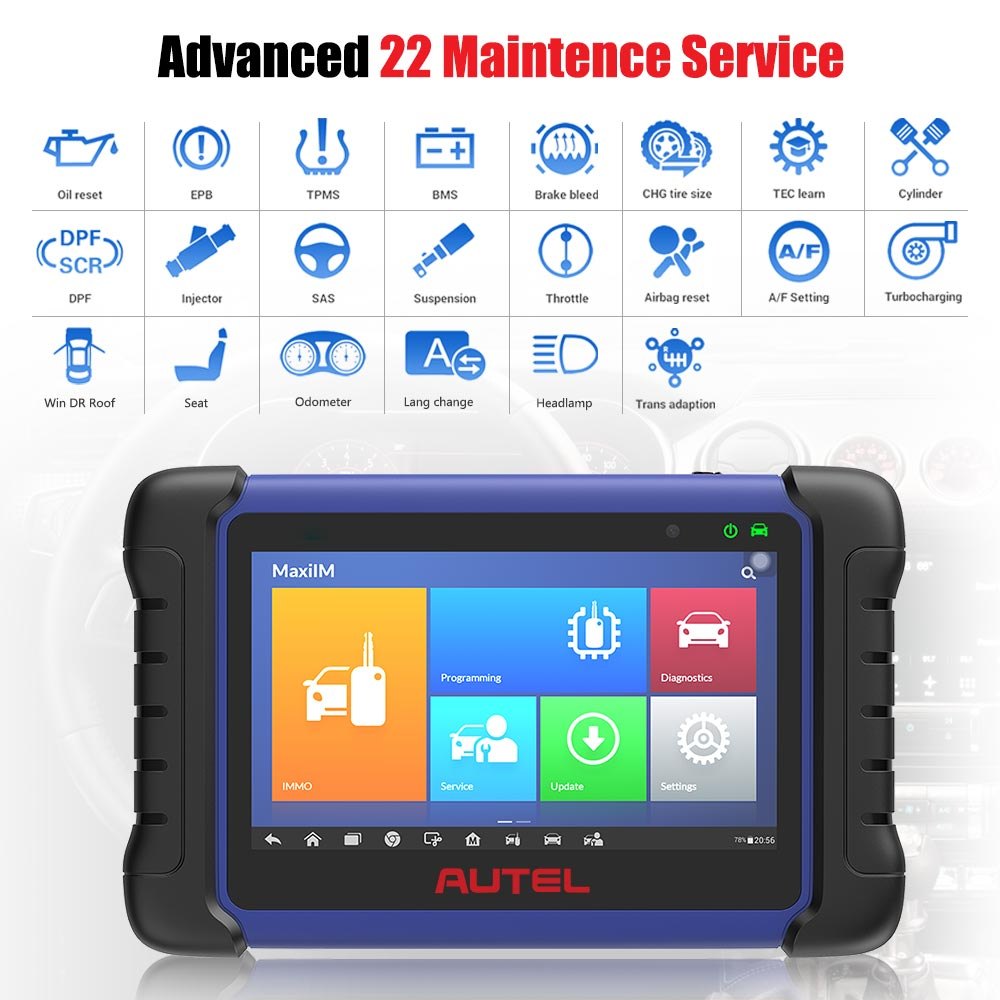

Advanced Maintenance Services
- Oil Reset
- EPB (Electric Parking Brake)
- SAS Calibration
- TPMS Sensor ID Relearn
- BMS (Battery Management System)
- DPF Regeneration
- Active tests for system integrity
Smart Mode and Expert Mode
Smart Mode provides guided automated key learning. Expert Mode gives direct access to individual functions for advanced users.

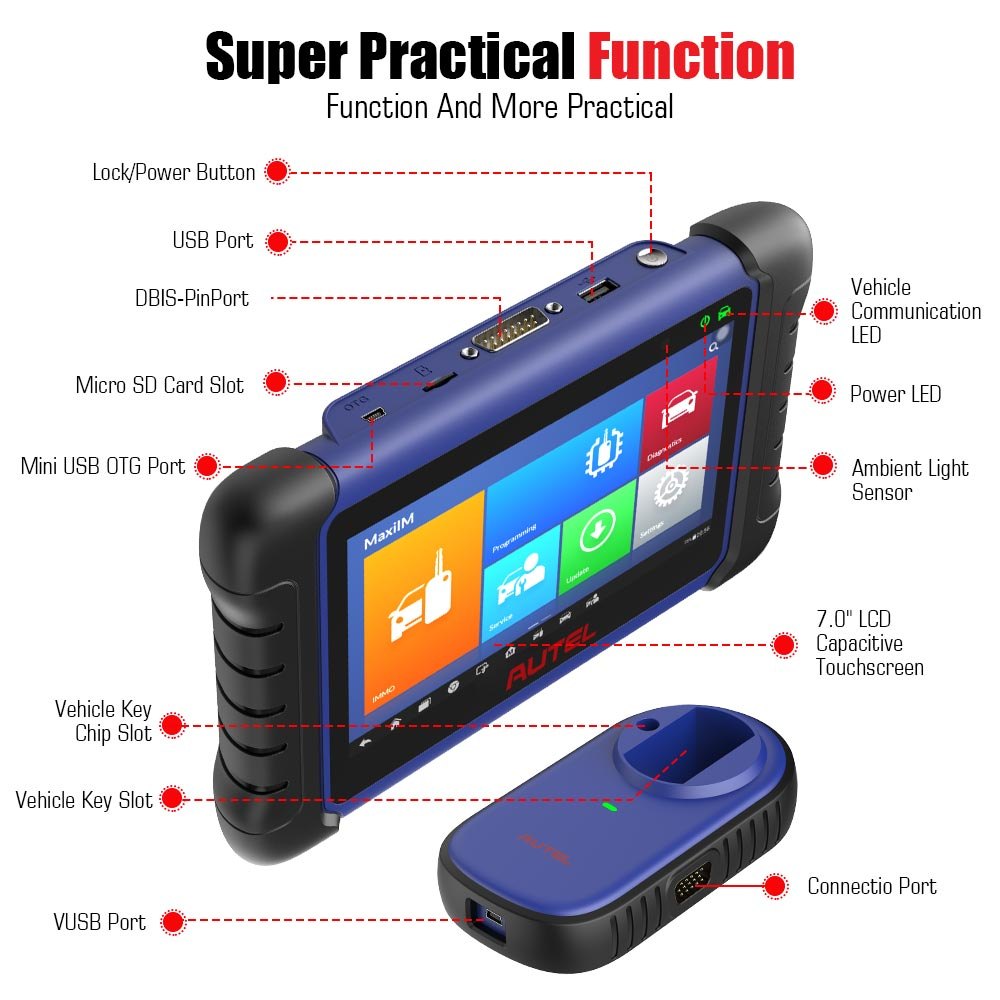

Specifications
- OS: Android 4.4.4
- Processor: Cortex-A9, 1.6 GHz
- Memory: 64GB

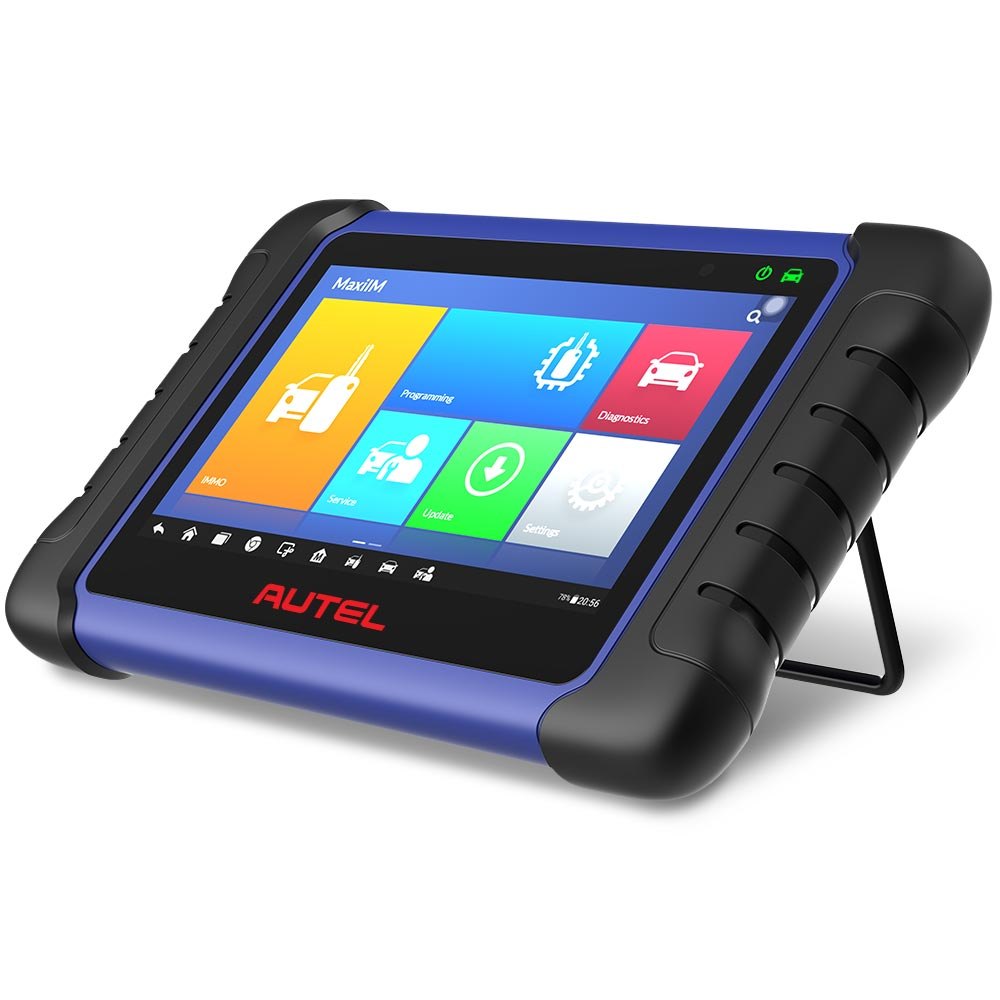

- Display: 7-inch LCD capacitive touchscreen, 1024x600

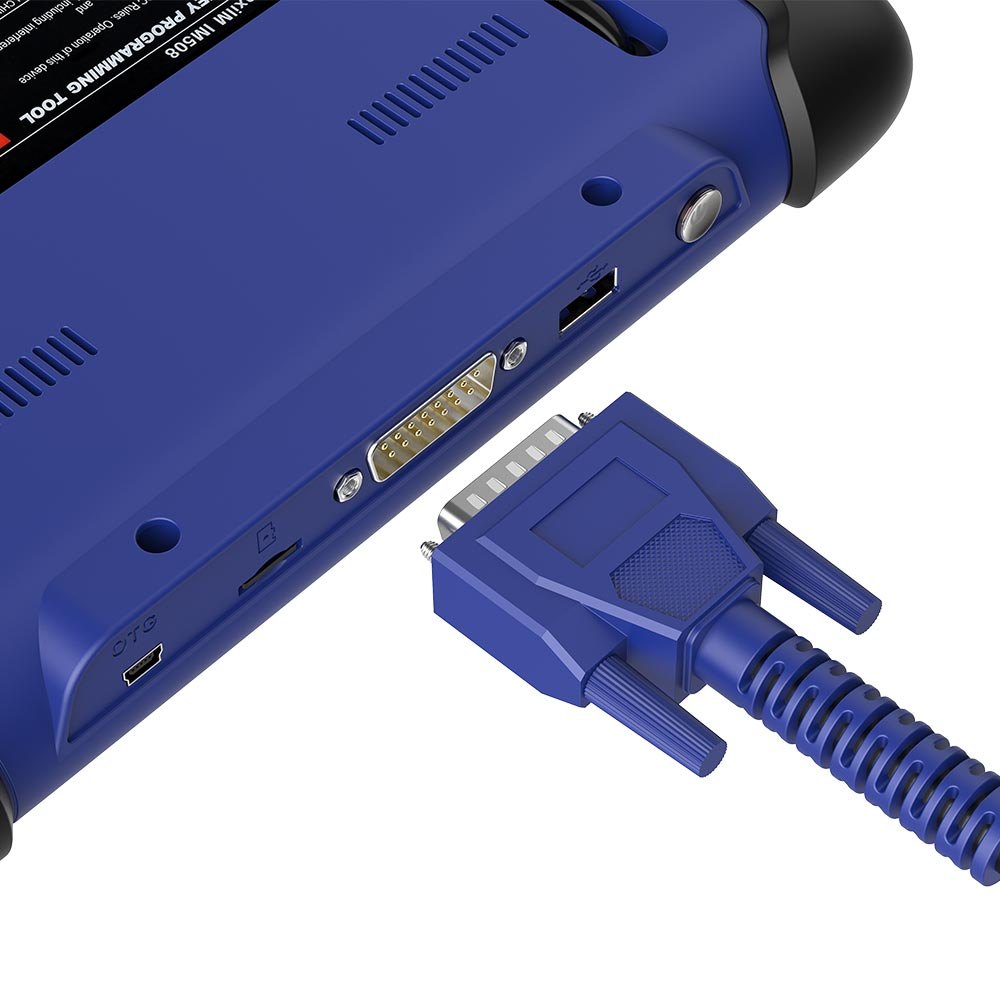

- Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD (up to 32GB)
- Battery: 3.7V 5000mAh lithium-polymer, approx 4.5 hours continuous use
- Operating Temp: 0 to 50C
- Storage Temp: -20 to 60C
- Net Weight: 788g (2.42 lb)
- Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW/PWM, ISO11898, SAE J2610, GM UART, Honda Diag-H, TP2.0, TP1.6
Package List
- MaxiIM IM508 Tablet
- XP200 Key Programmer
- AAC001, MED17 Cable
- Honda-3, KIA-20, KIA-10, Mazda-17 Adaptors
- USB External Power Adapter
- Main Cable, Mini USB Cable
- Quick Guide, Carrying Case
Specifications
| Brand | Autel |
|---|---|
| Type | Original Autel Tool |
| Condition | New |
| Version | IM508 One Year Update, Autel IM508, Autel IM508 + XP400 Pro, Autel IM508 + XP400 Pro + APB112 + GBox2 |
| Price range | $862.99 to $4,307.99 |
