Autel MaxiCheck MX900 OBD2 All System Diagnostic Scanner Bi-Directional Control DoIP/CAN FD Read/Clear Code 40+ Service Upgrade of MK808 MX808

The Autel MaxiCheck MX900, an OBD2 all system diagnostic scanner and the upgrade of the MK808 and MX808. It runs OE level diagnostics with full bidirectional control and active test across more than 80 US, Asian and European makes, AutoVIN and AutoScan, pre and post scan, DoIP and CAN FD and Wi-Fi printing, on Android 11 with a Rockchip RK356, 4GB and 64GB, an 8 inch LCD screen and a 7700mAh battery, with one year of warranty and free updates.

Specifications

• OE-Level All Systems Diagnostic: Autel MaxiCheck MX900 diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.
• Bi-Directional Control/Active Test: Thanks to the full bidirectional control feature, MX900 can do everything Autel MX808 does. Autel MX900 bidirectional scanner control various systems and components of the vehicle
• Enhanced Hardware: Autel MX900 is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.
• Wide Coverage: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996. Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, etc.
• AUTO VIN & AUTO SCAN: Autel MX900 diagnostic scan tool can quickly work on on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.
• Extensive Functions: Support Pre & Post Scan, DoIP & CAN FD Protocol and Wifi Print, while MX800 does not support.
• 1-Year Warranty: Offering 1-Year Warranty and 1-Year-free software update for Autel MX900.
• Superior Hardware: Android 11.0, Larger Memory 4G & 64G, 8'' LCD Screen, 7700mAh Battery Capacity
• Operating System: Android 11
• Processor: Quad core Processor(1.8GHz)
• Memory: 4GB RAM & 64GB ROM
• Display: 8-inch LCD capacitive touchscreen with 1280x800 resolution
• Rear Camera: 8 MP
• Connectivity: USB Type-C/USB 2.0 /Wi-Fi /Mini SD card (supports up to 64GB)
• Audio Input/Output: Input: N/A Output: buzzer
• Power and Battery: 3.7 V/7700mAh lithium-polymer battery Charges via 5 VDC power supply
• Battery Charging Input: 5V/3 A
• Operating Temp: 0 to 50°C (32 to 122°F)
• Storage Temp: -10 to 60°C (14 to 140°F)
• Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UA

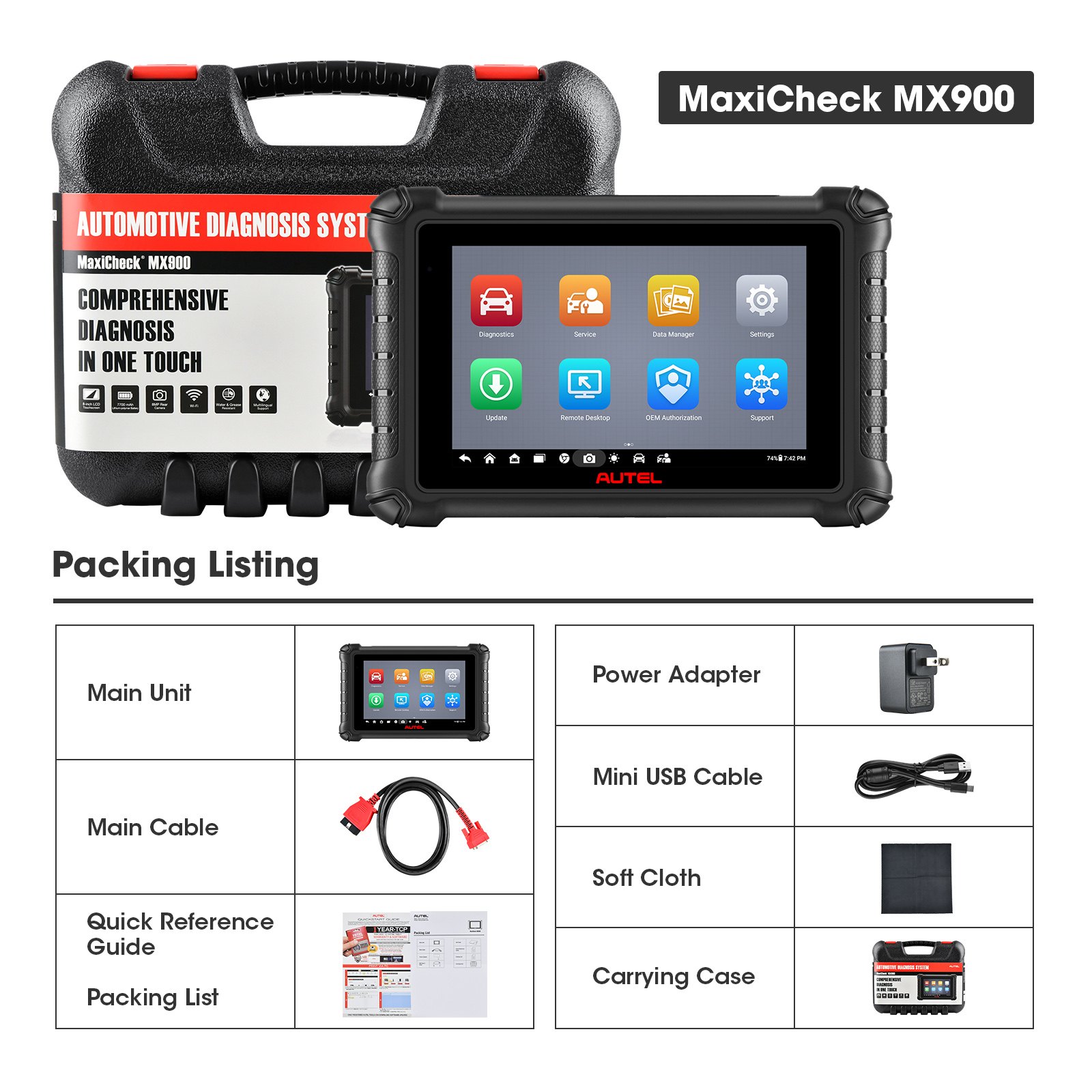

What you get

• 5X Faster Diagnose
• Same functions as Autel MaxiCOM MK900, MK900BT Newer of MaxiCOM MK808S MX808S MP808S MS906.
• 40+ Services, Autel MK900 Made for Workshops
• 3000+ Active Tests, 150 Makes Support
• Upgraded of MK808S/MK808Z/MK808BT Pro
• Autel MaxiCheck MX900

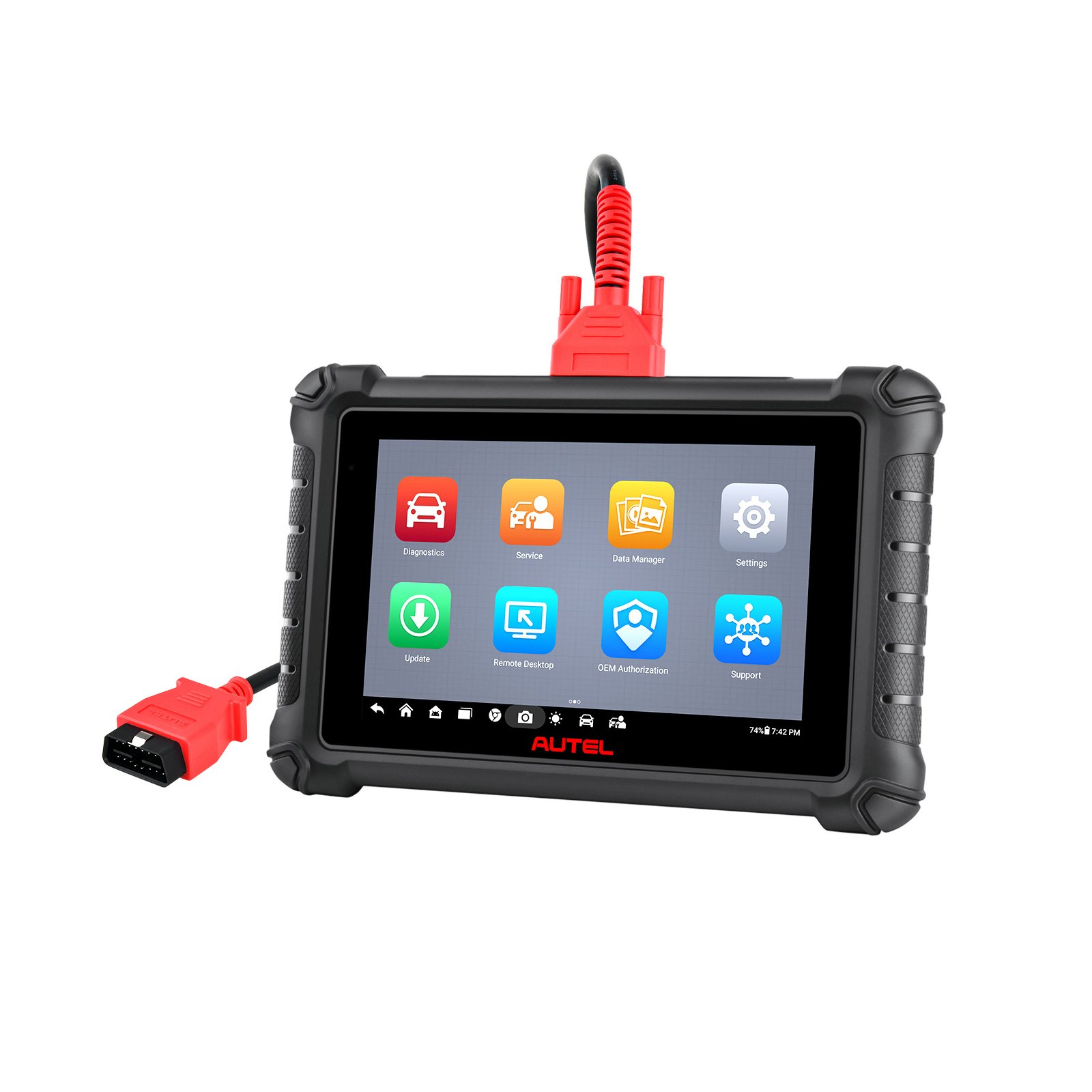

• The MaxiCheck MX900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.
• Top Reasons to Choose MaxiCheck MX900

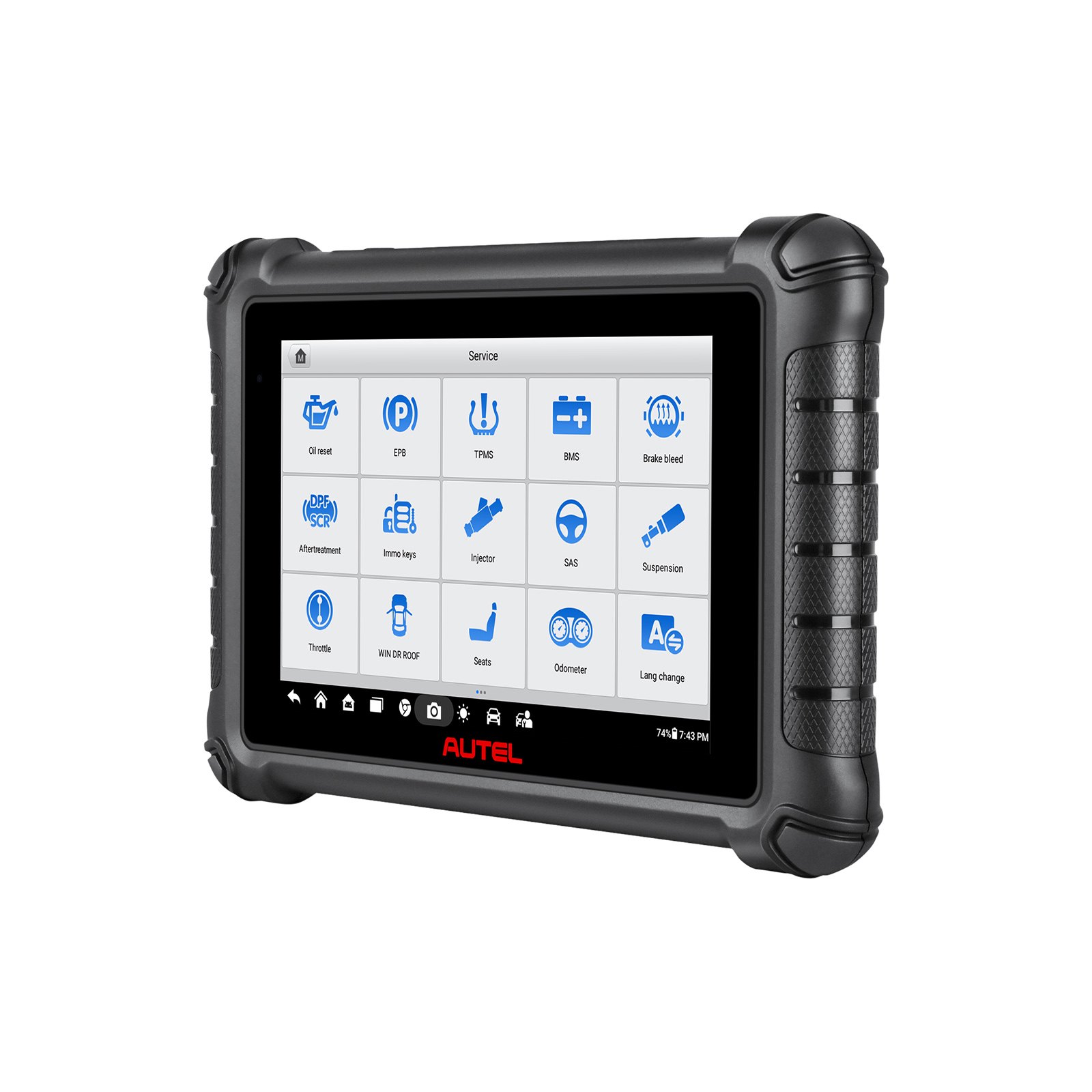

• 40+ Service Functions: Autel MaxiCheck MX900 car diagnostic tool also provides 40+ services including Oil Reset, EPB, SAS Reset, D-P-F Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.
• MaxiCheck MX900 Newly Added Functions
• 8-inch high-resolution, responsive touchscreen display
• Android 11 operating system offers advanced streamlined functionality
• Extensive vehicle coverage for U.S., Asian, and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete code, live data, ECU information, active test, and special function capabilities
• Smart AutoVIN technology for quick and accurate vehicle identification
• Remote Access Technical Support Troubleshooting
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal applications and reviewing data

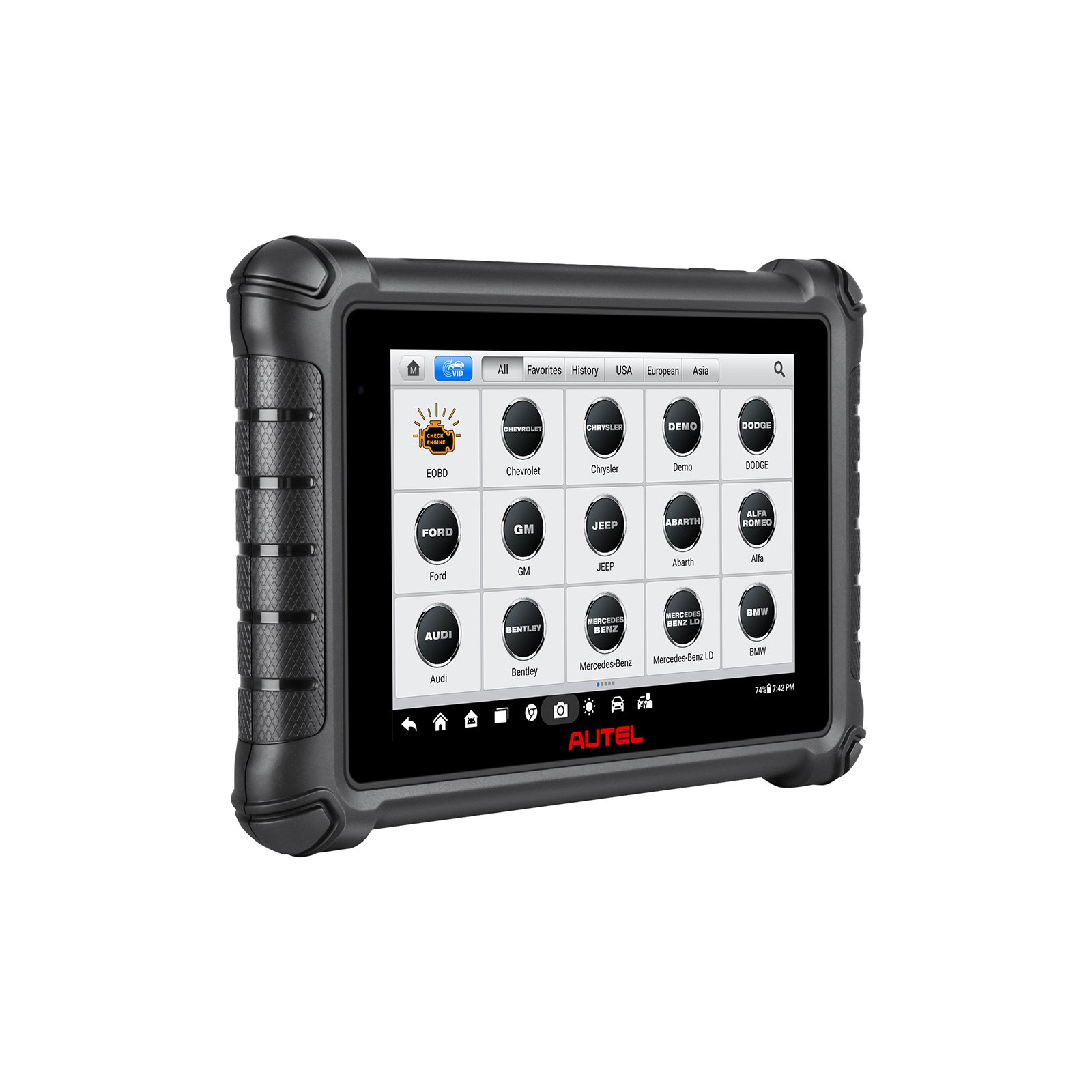

• Widest Vehicle Model Coverage
• Widest Vehicle Model Coverage: Mercedes-Benz supports to 2022: new C-Class (206), S-Class (223), SLK-Class (232); BMW supports to 2022: E67/G26/G42/G83/ G18; VAG supports to 2022: Audi Q4 e-tron 2022, Audi Q5 e-tron 2022; GM supports to 2023; Chrysler supports to 2023: more 2023 models: DD-Ram 3500, JL-Wrangler, JT-Gladiator, LD- Charger, LX-300, Charger, Magnum, Grand voyager, WL-Grand Cherokeed; Posche supports to 2022; Fiat supports to 2022, more GC-Alfa Tonale than competitor.
• Leading Special Service Functions
• 10% ahead of For Benz: GPF, AD Blue reset; Ford cover almost all service function before 2018, Special function coverage after 2018: BMS, SUSPENSION, BRAKE_BLEED, EPB, ABSSRS, SAS, AIRBAG_RESET; 10% ahead for Honda: sudden acceleration control function switching, travel sensor inspection, etc.; 15% ahead for Posche: 9YA PSM brake electronic device speed sensor test, air-b-ag locking function, GM action testing and special functions are leading; Chrysler and Toyota are leading competing products by 15% and 13% respectively.
• More High-efficiency Features
• WIFI Print (only available on MS906 PRO and above models before), allows you to print car health diagnostic reports on any interface; Pre&Post Scan: Compare the diagnostic reports before and after the scan, Clear logic at a glance; Auto Scan 2.0, Scan VIN/License: offers fastest system scanning speed, 3X Faster than other scanners, it support auto scan, scan VIN, scan license, quick get vehicle make, year, model; CAN FD & DOIP Protocol: CANFD for GM 2019-; DOIP for BMW (F&G chassis), Volvo (2018+), Land Rover&Jaguar (2017+). MP808S does not support CAN FD & DOIP protocols is no longer its rival.
• Logically-laid out menus, instant response, it all depends on RK3566 processor and flagship 11.0 O.S. The 8-inch 1028*800 large screen for data visualization and 7700mAh battery capacity enable MX900 bidirectional control scanner to have interactive graphics and make maintenance inquiries clear at a glance. The most cutting-edge hardware paired with incomparable software costs only one-tenth of the cost.
• WIFI printing (only available on MS906 PRO and above models before), allows you to print car health diagnostic reports on any interface. Pre&Post Scan: Compare the diagnostic reports before and after the scan, Clear logic at a glance. Scan VIN/License: You no longer have to find out the VIN and enter it one by one. Scan with one click to get the car information FD & DOIP Protocol: CANFD for GM 2019-; DOIP for BMW (F&G chassis), Volvo (2018+), Land Rover&Jaguar (2017+). MP808S does not support CAN FD & DOIP protocols is no longer its rival.
• 40+ SERVICE & FULL SYSTEM DIAGNOSE, REINFORCE SOFEWARE 2.0
• OE-LEVEL ALL SYSTEM SCAN, DEPPER DIAGNOSIS, WIDER COVERAGE FROM 1996-2023-2024
• 8IN AUTEL MX900, 2024 NEWEST VERSION OF MK808BT PRO MK808S MX808S
• Key IMMO
• MX900 offers Anti-th.eft IMMO Service like disable lost keys, add a new key, key match, IMMO ECU Reset. Only for low-grade anti-th.eft Asian cars.
• Store vehicle test records for direct access and diagnosis in next time, eliminating the need for manual vehicle selection, saving times again.
• Inspection Work
• Work with MV108S/105S, MX900 diagnostic scan tool can clearly obtain the hidden vision inside the car, such as the cylinder, engine etc.
