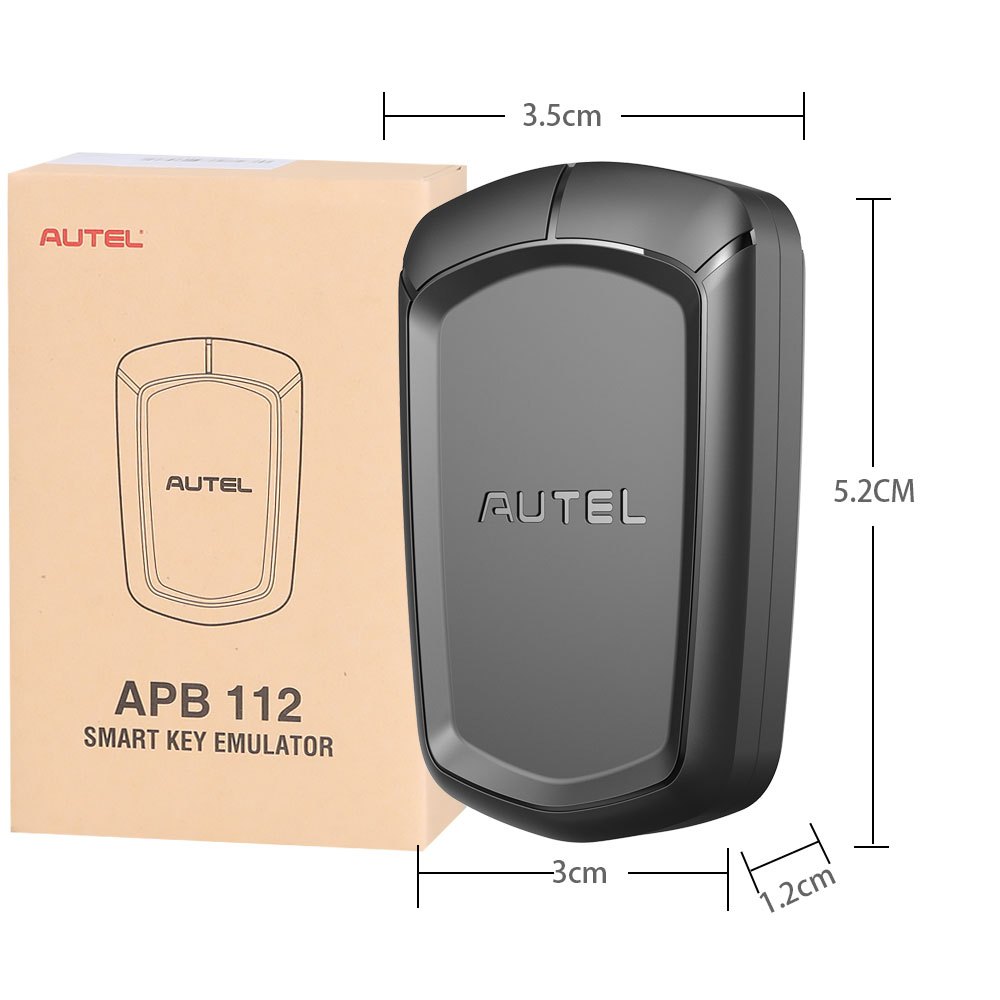

Autel APB112 Smart Key Simulator Works with Autel MaxiIM IM608/ IM508

The Autel APB112 smart key simulator, used to collect the data the ignition sends out. It works with the Autel MaxiIM IM608 and IM508, and it is the part that makes all keys lost work possible on several platforms.

Also stated by the supplier

• Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

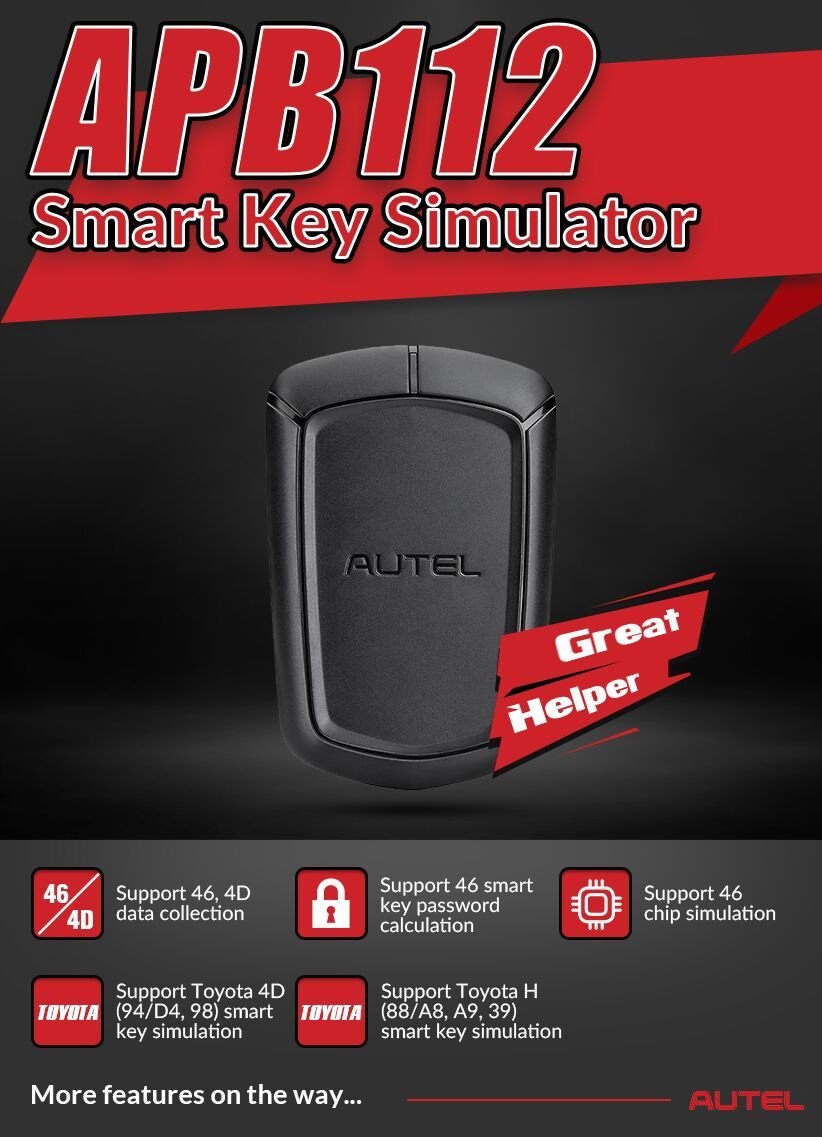

• AUTEL APB112 Smart Key Simulator
• Smart key simulator
• Compatible with IM508 and IM608
• 46, 4D data collection
• 46 smart key password calculation
• 46 chip simulation
• Toyota 4D (94/ D4, 98) smart key simulation
• Toyota H (88/ A8, A9, 39) smart key simulation
• Decode vehicle key chip data
• Simulate vehicle key chip (ex - 4D chip)
• Toyota/ Lexus smart key all key lost
• Chip decoding (Hyundai 46)

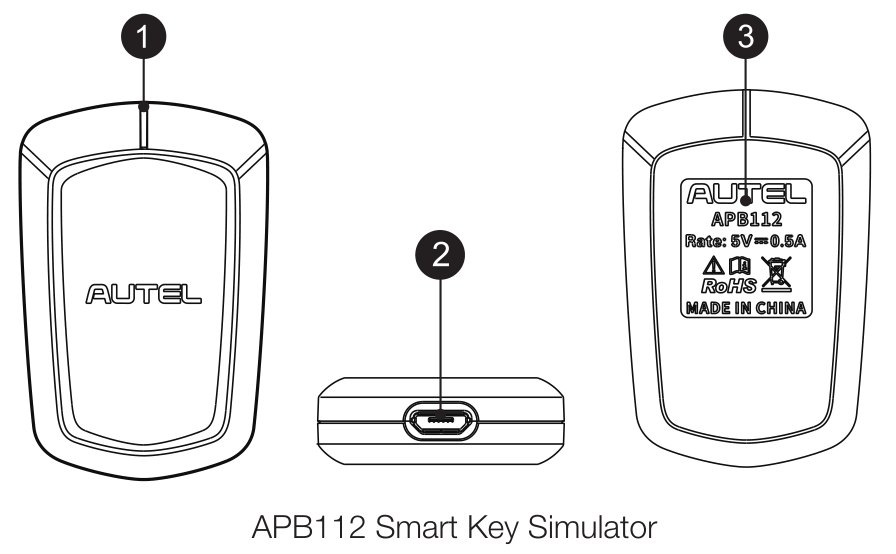

• AUTEL APB112 Smart Key Simulator Overviews:
• Lights Solid Blue - the power supply is working properly and in default state;

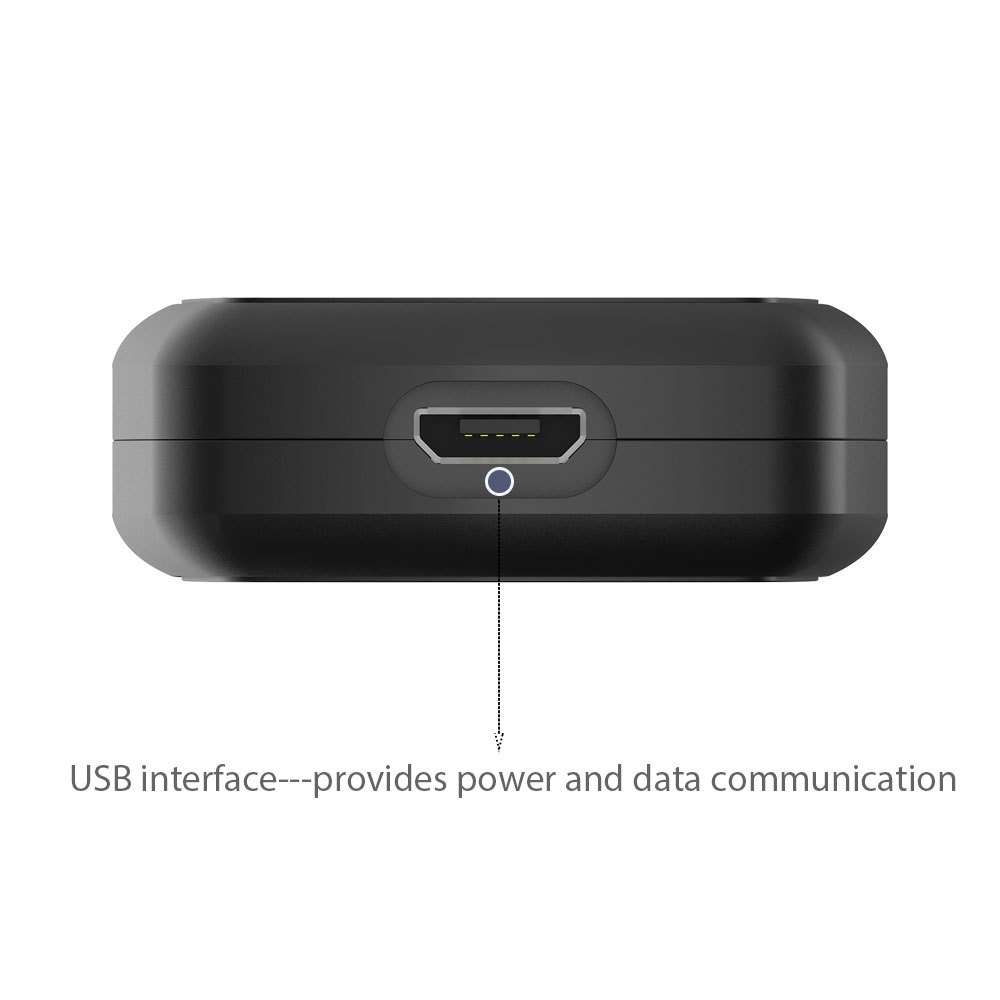

• USB Interface - Provides power and data communication
• How to Use Autel APB112?
• Before operating or maintaining APB112, please read these instrucstions carefully, pay extra attention to the safety warnings and precautions.
• Not work alone, but works together with Autel MaxiIM IM608 or Autel MaxiIM IM508. (Work with both XP200, XP400 and XP400Pro)

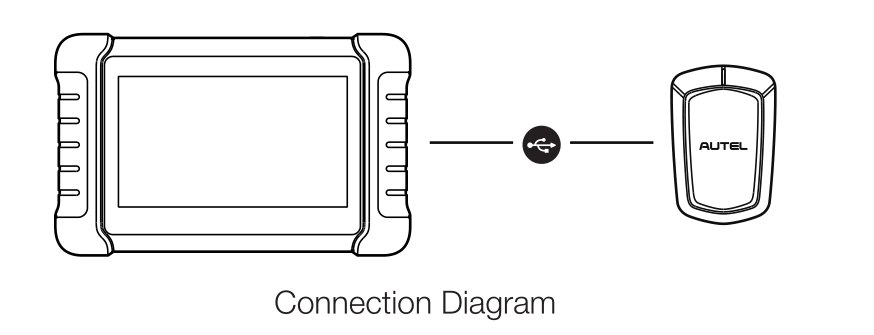

• Connect the APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.
• After connection, the status indicator lights solid blue,indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.
• The APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.
• Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip. After decoding, the original car chip data can becopied.
• The emulator key chip can generate various types ofkey chips with subsequent upgrades according to requirements.

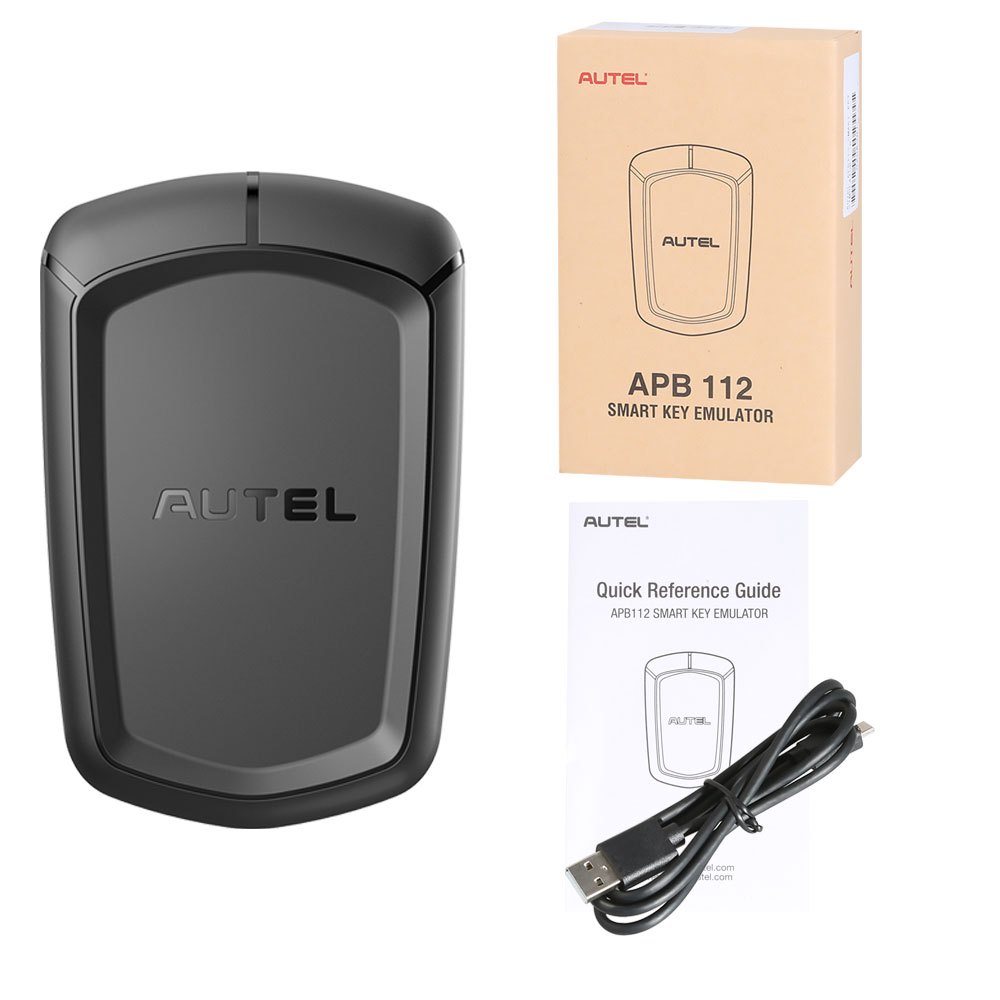

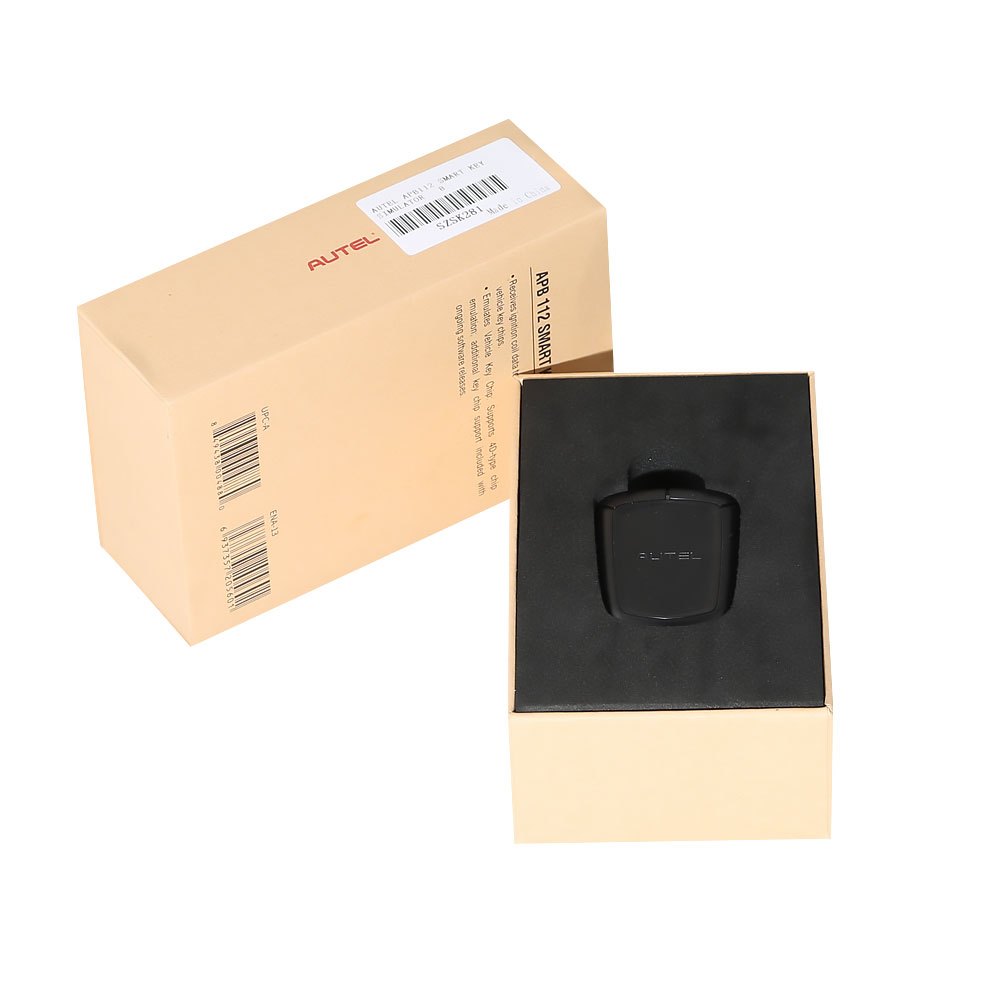

• 1pc x APB112 Smart Key Simulator
• 1pc x USB cable
• 1pc x Quick Reference Guide

Autel treat the APB112 as a required accessory on some jobs rather than an optional extra.
