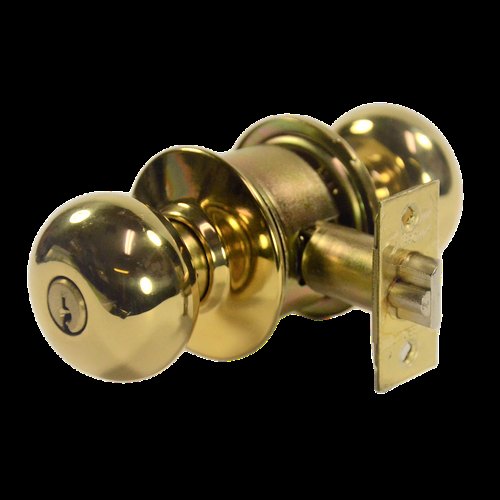

Arrow Lock MK Series Storeroom Tudor Knob Lock Polished Brass Finish - 2-3/4in Backset - Keyway: AR1
$136.23
In stock, delivery 3 to 7 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
The Arrow Lock MK Series Storeroom Tudor Knob Lock Polished Brass Finish - 2-3/4in Backset - Keyway: AR1 is supplied new.
Specifications
- Part number: MK12TA03-300-114
- Fits: AR1
- Brand: Arrow
- Condition: New
Product details
- Arrow Lock MK Series Storeroom Tudor Knob Lock Polished Brass Finish
- 2-3/8in Backset
- Keyway: AR1
- MK12TA03-300-111 Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Certification ANSI/BHMA A156.2, Series 4000, Grade 2 Federal Specifications FF-H-106C, Series 160 Function: MK12 F86/161D, 160D. Storeroom, Dead locking latch bolt operated by key in outside knob or operating inside knob. Outside knob is always inoperatable. Design: Tudor TA Finish: 605 US3A Polished Brass Backset: 2-3/4" (60.32mm) standard. Latch: Brass with 1/2" (12.7mm) throw Latch housing is steel, with zinc dichromate finish for corrosion resistance 7/8" (22.225mm) bore in edge of door is required Latch Front: Brass, bronze or stainless steel. Standard faceplate for 2-3/4" (69.85mm) backset measures 2-1/4" (57.15mm) x 1-1/8" (28.57mm) with a flat front Strike: Brass,bronze or stainlesssteel. Standard "T" strike measures 2-3/4"(69.85mm) x 1-1/8"(28.57mm). All strikes have a 1-1/4"(31.75mm) lip to center dimension. Handing: Reversible Door Thickness: 1-3/8" (34.92mm) to 1-3/4" (44.45mm) Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance Requires standard 2-1/8" (53.97mm) bore through door Cylinder: Solid brass 6 pin cylinder with Arrow "A" keyway, keyed to 5 pins. Supplied with two 5 pin brass keys
Specifications
| Brand | Arrow |
|---|---|
| Type | Door Hardware |
| Part number | MK12TA03-300-114 |
| Condition | New |
