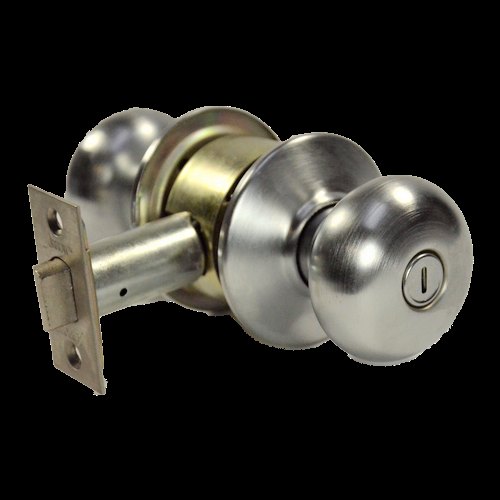

Arrow Lock MK Series Privacy Tudor Knob Lock Brushed Chrome Finish - 2-3/4in Backset - Keyway: N/A
$46.48
In stock, delivery 3 to 7 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description
The Arrow Lock MK Series Privacy Tudor Knob Lock Brushed Chrome Finish - 2-3/4in Backset - Keyway: N/A is supplied new.
Specifications
- Part number: MK02TA26D-300-104
- Fits: N/A
- Brand: Arrow
- Condition: New
Product details
- Arrow Lock MK Series Privacy Tudor Knob Lock Brushed Chrome Finish
- 2-3/4in Backset
- Keyway: N/A
- MK02TA26D-300-104 Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Certification ANSI/BHMA A156.2, Series 4000, Grade 2 Federal Specifications FF-H-106C, Series 160 Function: MK02 F76/161L, 160L. Privacy latch bolt operated by knob from either side. Outside Knob is locked by push button inside and unlocked by emergency release outside, operating inside knob or closing door. Design: Tudor TA Finish: 626 US26D 26D Satin Chromium Plated Backset: 2-3/4" (69.85mm) standard. Latch: Brass with 1/2" (12.7mm) throw Latch housing is steel, with zinc dichromate finish for corrosion resistance 7/8" (22.225mm) bore in edge of door is required Latch Front: Brass, bronze or stainless steel. Standard faceplate for 2-3/4" (69.85mm) backset measures 2-1/4" (57.15mm) x 1-1/8" (28.57mm) with a flat front Strike: Brass,bronze or stainlesssteel. Standard "T" strike measures 2-3/4"(69.85mm) x 1-1/8"(28.57mm). All strikes have a 1-1/4"(31.75mm) lip to center dimension. Handing: Reversible Door Thickness: 1-3/8" (34.92mm) to 1-3/4" (44.45mm) Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance Requires standard 2-1/8" (53.97mm) bore through door Cylinder: N/A
Specifications
| Brand | Arrow |
|---|---|
| Type | Door Hardware |
| Part number | MK02TA26D-300-104 |
| Condition | New |
