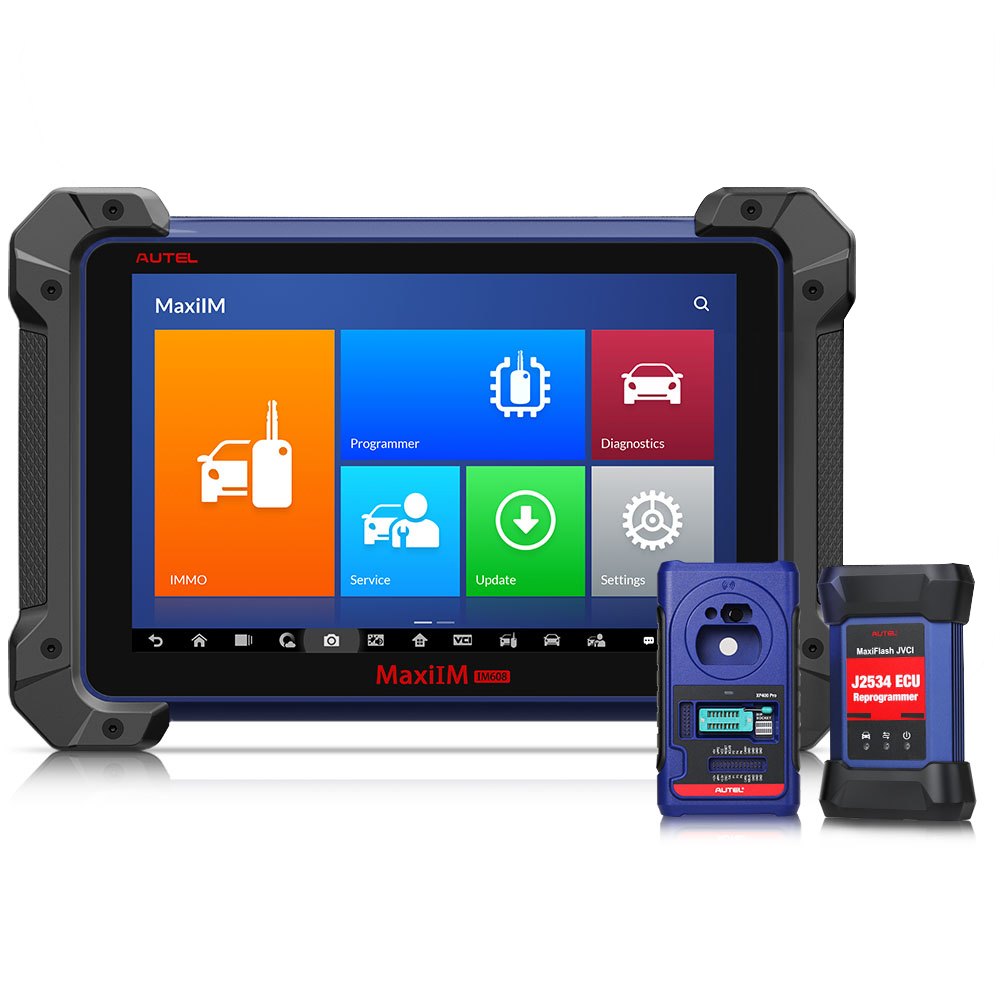

Original Autel MaxiIM IM608 Key Programmer Full Version with APB112 and G-BOX2

The Original Autel MaxiIM IM608 Key Programmer Full Version with APB112 Smart Key Simulator and G-BOX2 is a complete package for key programming, all-system diagnostics, and maintenance services.

Compatibility

APB112 is compatible with IM608, IM508, and MX808IM. Use with IM508 requires XP400. APB112 must be used with an Autel diagnostic tool.

MQB support applies to all Autel IM products including IM608, IM508, and Maxisys IM with XP200, XP400, and XP400 Pro. GM support applies to all Autel IM products including IM608, IM508, and Maxisys IM.

Supported GM models: Chevrolet Silverado, Chevrolet Camaro, GMC Sierra, Chevrolet Equinox, Chevrolet Traverse, Cadillac XT5, Chevrolet Cruze, Chevrolet Tahoe.

G-BOX2 works with IM608 and IM508 with XP400 for Mercedes Benz.

Specifications

• Multi-language for diagnosis and IMMO menu: English, Spanish, German, Russian, Italian, Polish, Swedish, Portuguese, French, Dutch, Turkish, Arabic, Czech, Hebrew, Indonesian
• Global version with no IP blocking, can be used worldwide
• One year free update online. After one year, subscription is 795 USD per year
• Combination of advanced key programming, all-system diagnostics at the same level as MaxiSYS Pro, and advanced maintenance services
• Professional key programming with XP400 and MaxiFlash JVCI for ECU coding. XP400 updated to the same functions as XP400 Pro
• Pass-through system for in-depth diagnosis of all vehicle modules and programming of modules and components
• Volkswagen and Audi software upgraded to V4.10. Support for MQB all models blade key all key lost via OBD
• Volkswagen and Audi software upgraded to V4.25. MQB all key lost via OBD. Support for all MQB models with Megamos AES key. All key lost service: 30 USD per vehicle
• GM software updated to V2.90. All key lost via OBD. Support for all models up to 2020, smart and blade keys

Functions

Autel APB112 Smart Key Simulator: collects data sent from the ignition coil, identifies ignition coil troubles, decodes vehicle key chip data, and simulates the vehicle key chip.

• Smart key simulator
• Compatible with IM508 and IM608
• 46 and 4D data collection
• 46 smart key password calculation
• 46 chip simulation
• Toyota 4D (94 and D4, 98) smart key simulation
• Toyota H (88 and A8, A9, 39) smart key simulation
• Collects data from the ignition coil
• Identifies ignition coil troubles
• Decodes vehicle key chip data
• Simulates vehicle key chip, for example 4D chip
• Must be used with an Autel diagnostic tool
• Toyota and Lexus smart key all key lost
• Chip decoding for Hyundai 46

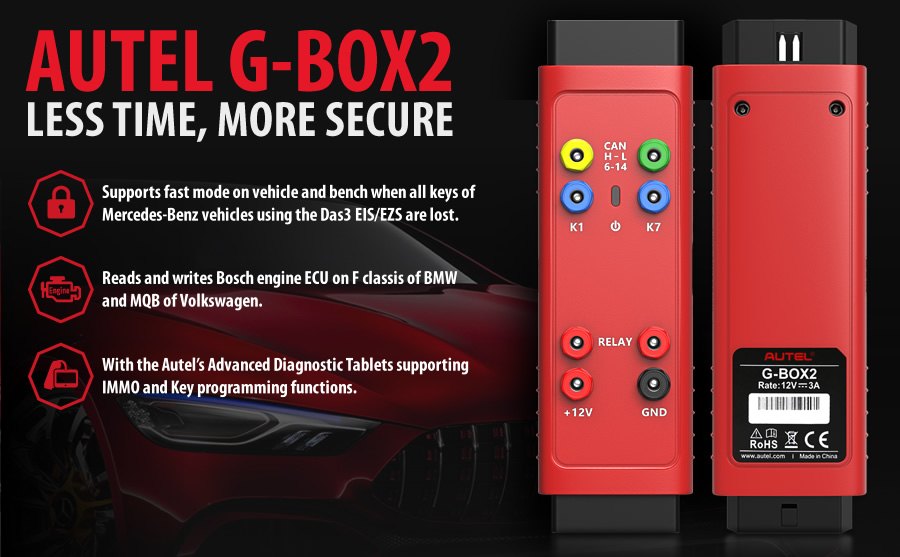

Autel G-BOX2:

• Support for Mercedes Benz all key lost, faster password calculation
• Works with IM608 and IM508 with XP400
• For faster Mercedes ECU data and EIS password calculation
• Mercedes DAS3 CAN EIS and EZS all keys lost
• Reduces reading time of W204 ECU data and W207 EIS by over 85 percent
• No need to remove and reinsert the key for W221 and W164 models after 2009

Box contents

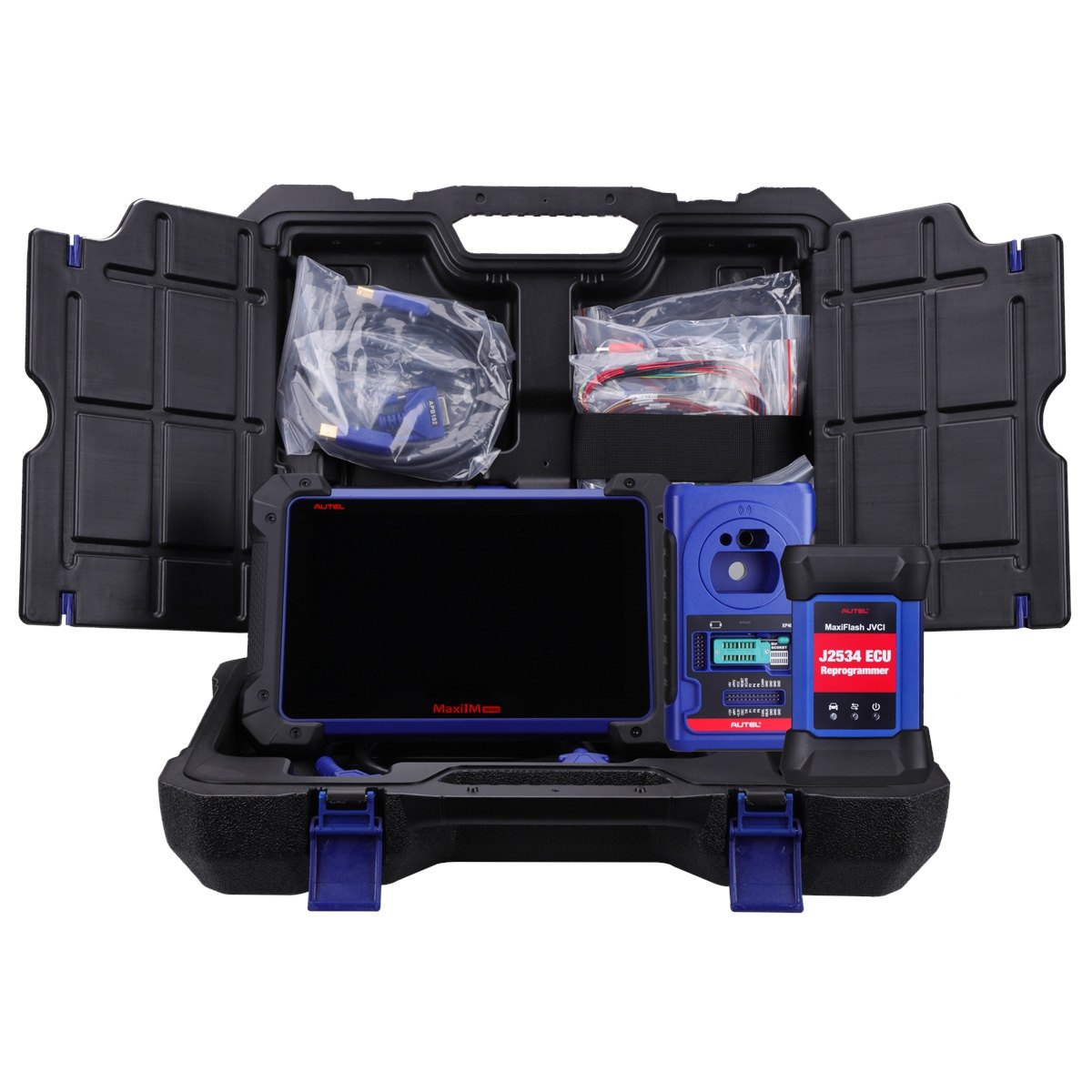

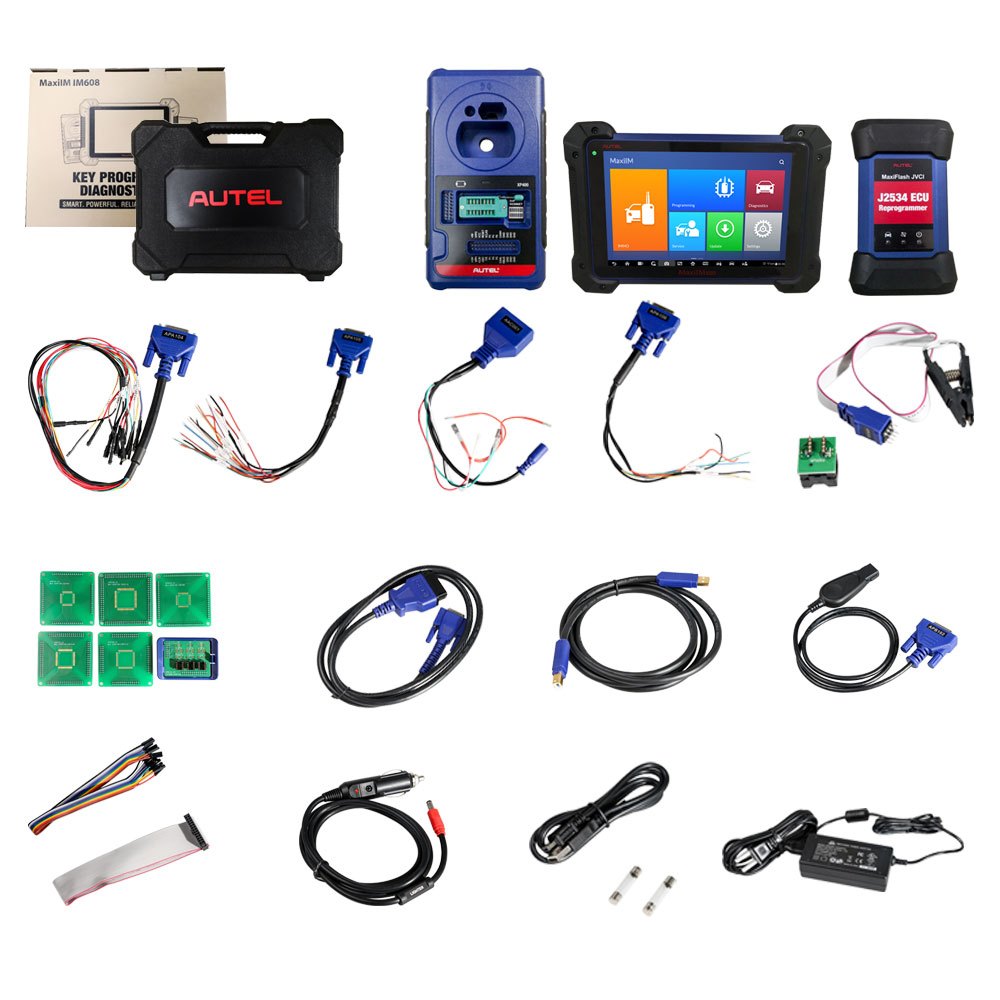

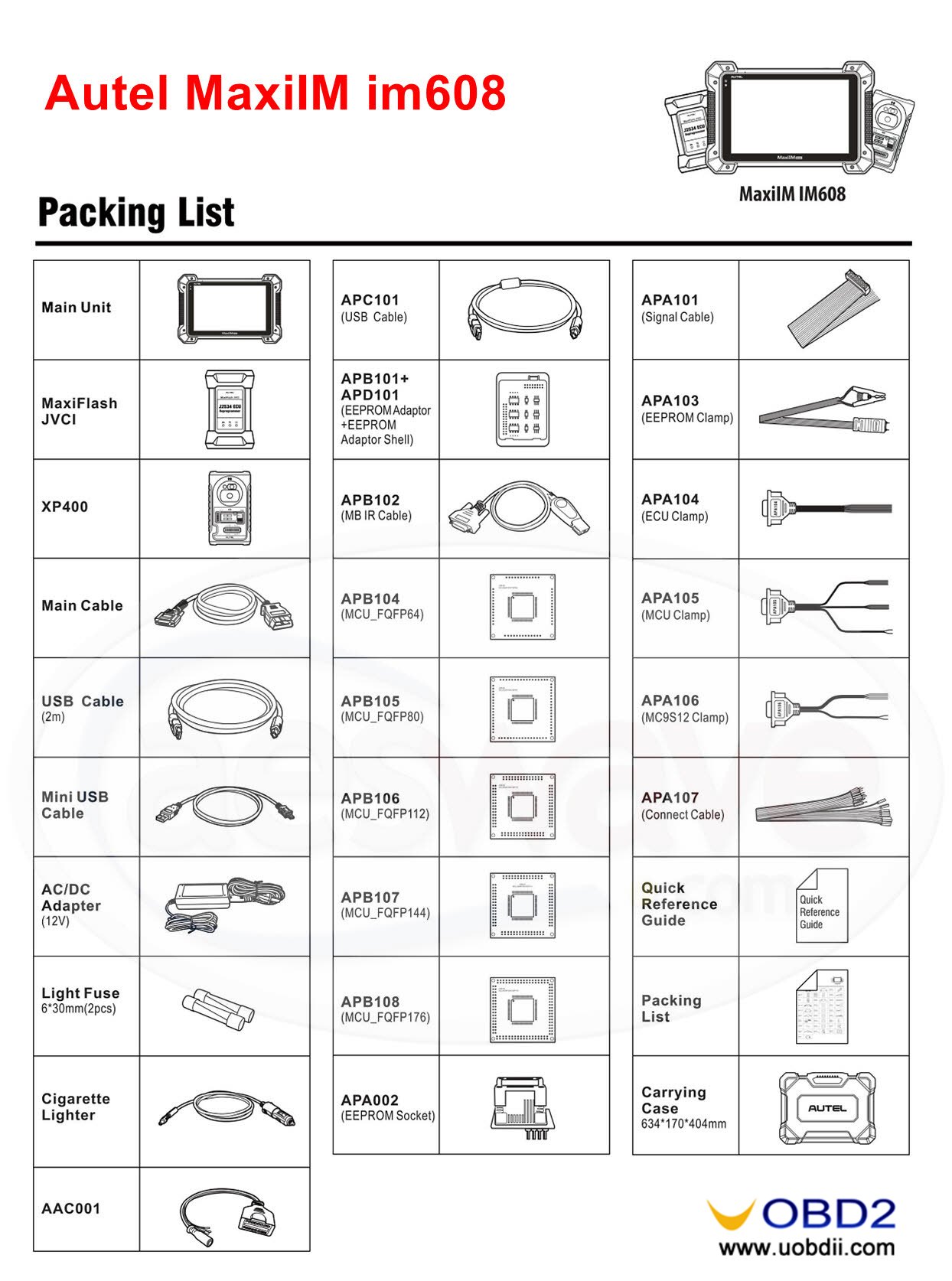

Full set of Autel IM608:

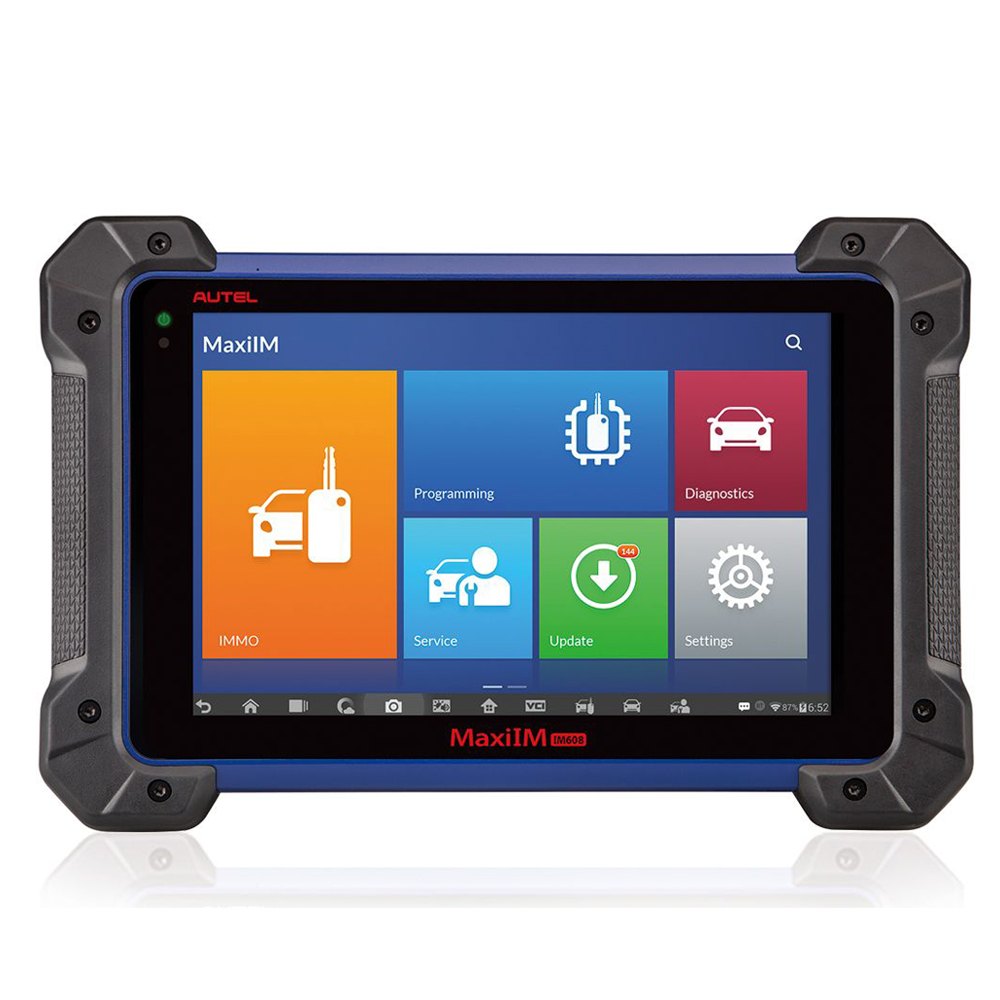

• 1x Autel MaxiIM IM608 main unit
• 1x APC101 USB cable
• 1x APA101 signal cable

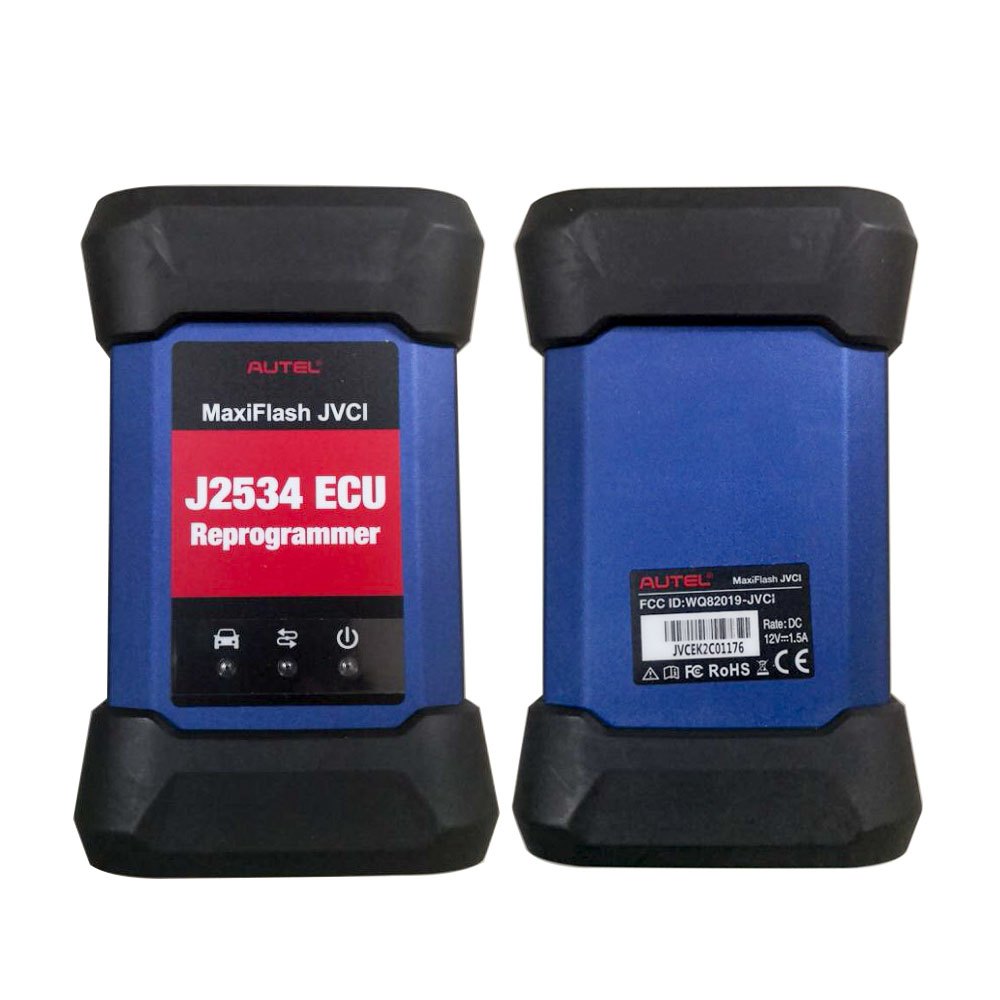

• 1x MaxiFlash JVCI
• 1x APB101 plus APD101, EEPROM adaptor plus EEPROM adapter shell
• 1x APA103 EEPROM clamp

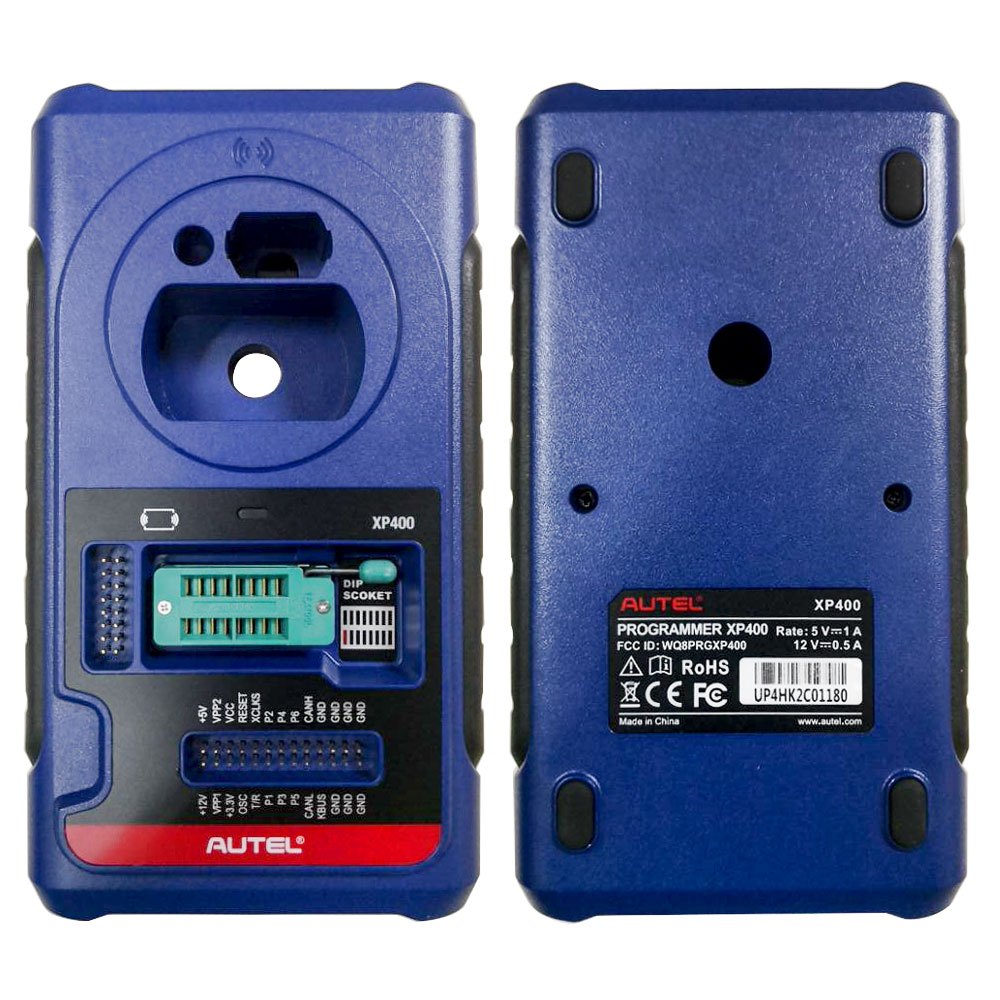

• 1x XP400
• 1x APB102 MB IR cable
• 1x APA104 ECU clamp
• 1x Main cable
• 1x APB104 MCU FQFP64
• 1x APA105 MCU clamp
• 1x USB cable, 2m
• 1x APB105 MCU FQFP80
• 1x APA106 MC9S12 clamp
• 1x Mini USB cable
• 1x APB106 MCU FQFP144
• 1x APA107 connect cable
• 1x AC and DC 12V adapter
• 1x APB107 MCU FQFP144
• 1x Quick reference guide
• 2x Light fuse 6 by 30mm
• 1x APB108 MCU FQFP176
• 1x Packing list
• 1x Cigarette lighter
• 1x APA002 EEPROM socket
• 1x Carrying case 634 by 170 by 404mm
• 1x AAC001

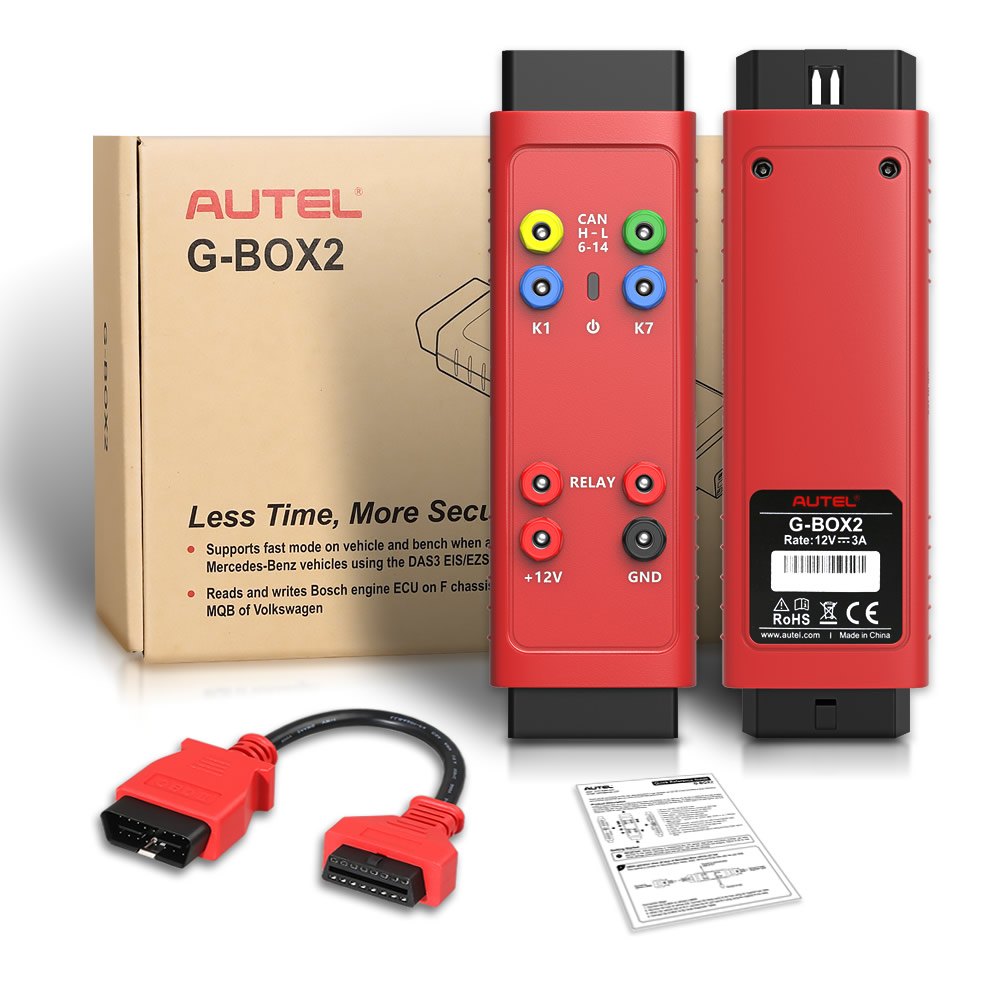

Full set of Autel G-BOX2:

• 1pc x Autel G-BOX2
• 1pc x DB15 cable
• 1pc x K-Line cable
• 1pc x Fuse cable
• 2pcs x Fuse, 5A
• 2pcs x Clamp cable
• 1pc x OBDII extension cable
• 1pc x Quick reference guide

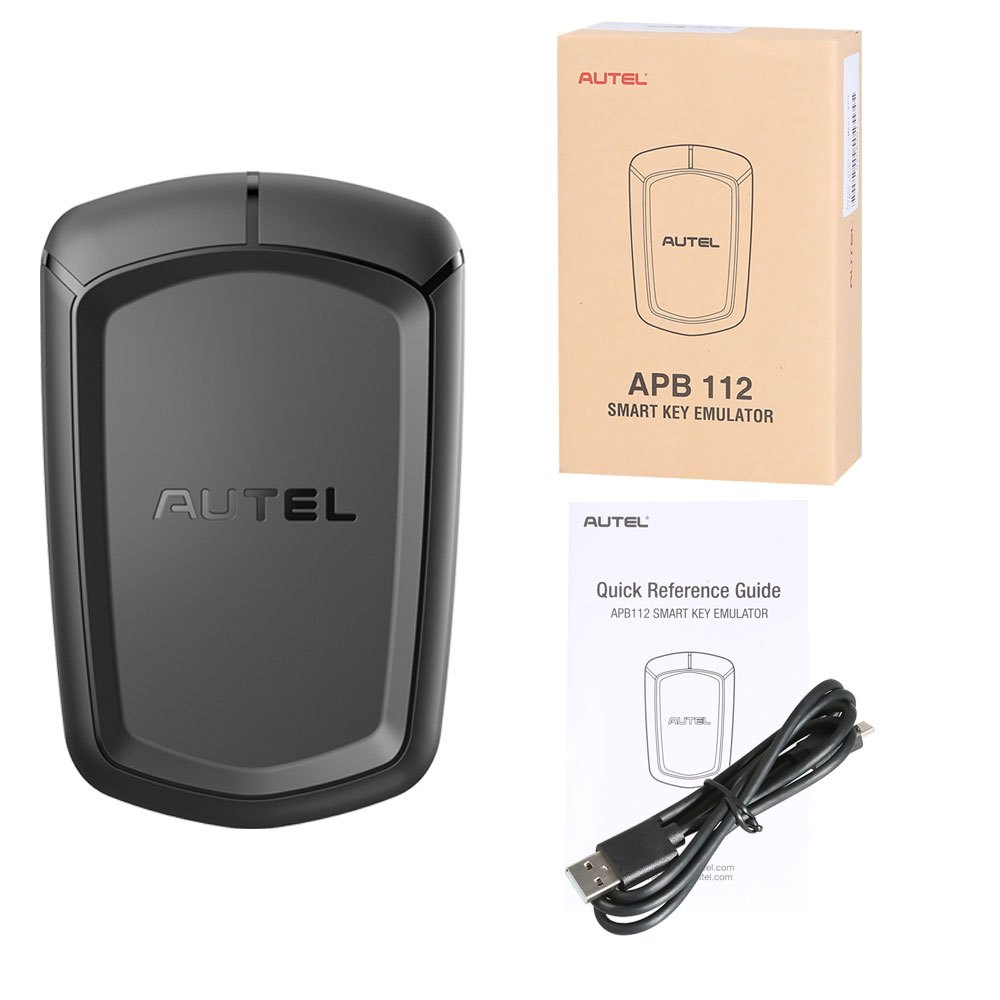

Full set of APB112 Smart Key Simulator:

• 1pc x APB112 Smart Key Simulator
• 1pc x USB cable
• 1pc x Quick reference guide

Notices

One year free update online. After one year, subscription is 795 USD per year. MQB all key lost service is 30 USD per vehicle. Use of APB112 with IM508 requires XP400.
