2026 Xhorse VVDI MLB Tool XDMLB0 Key Programmer Add Key VW Audi MQB Work with VVDI2 / Key Tool Plus Pad

The 2026 Xhorse VVDI MLB Tool, part XDMLB0, a key programmer for adding an MLB key on VW and Audi MQB. It runs with VVDI2 and the Key Tool Plus PAD, and Xhorse prices collection at 200 points for an original vehicle key while collecting a VVDI key costs nothing.

Specifications

• Q: Points Cost and Collection Method Selection
• Collect the original vehicle key: 200 points.
• Collecting a VVDI key: does not require points.
• Q: Common Issues with Collection Failures
• Q: About Matching Devices
• Q: About Supported Keys
• Xhore MLB TOOL Tutorials: Add MLB Key with Key Tool Plus

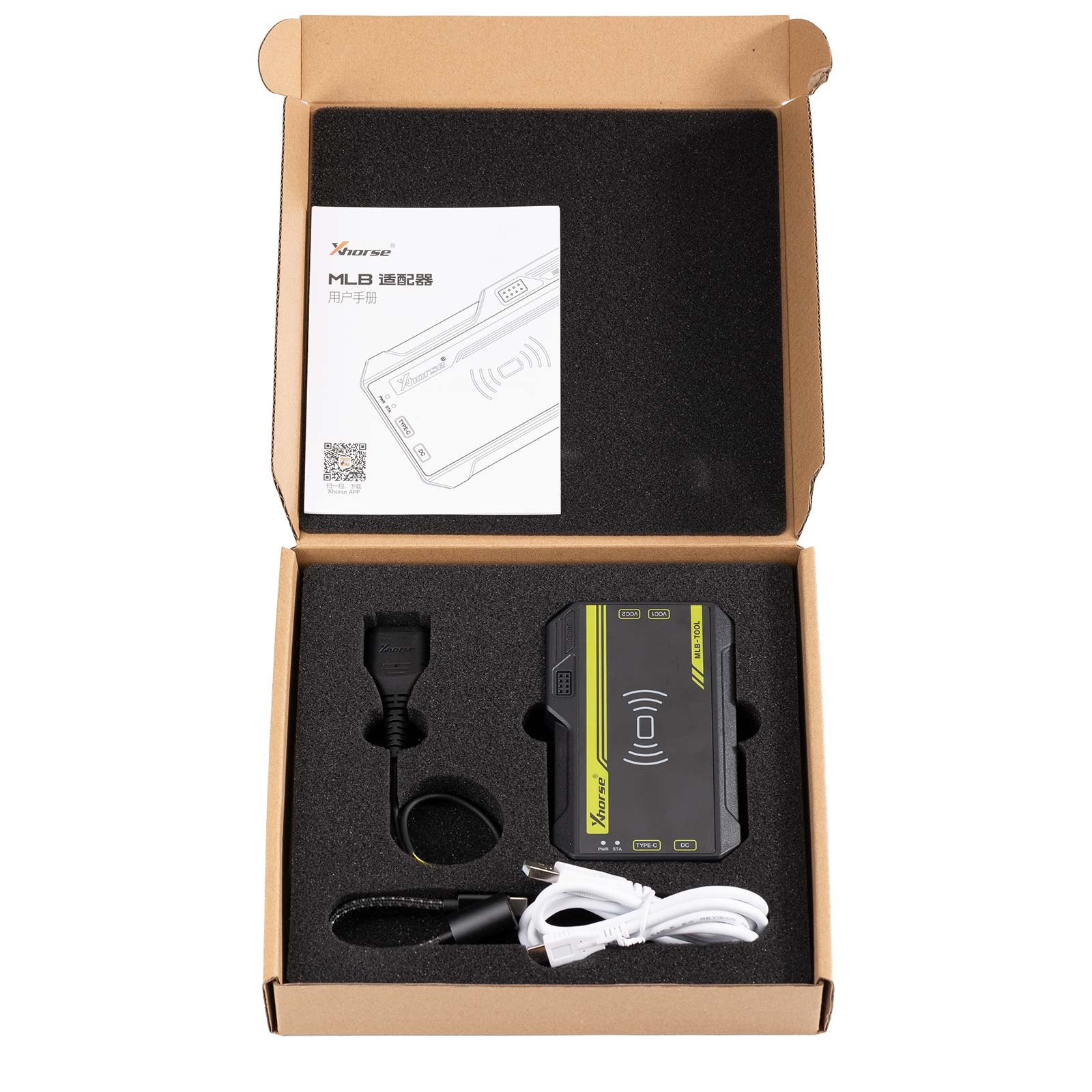

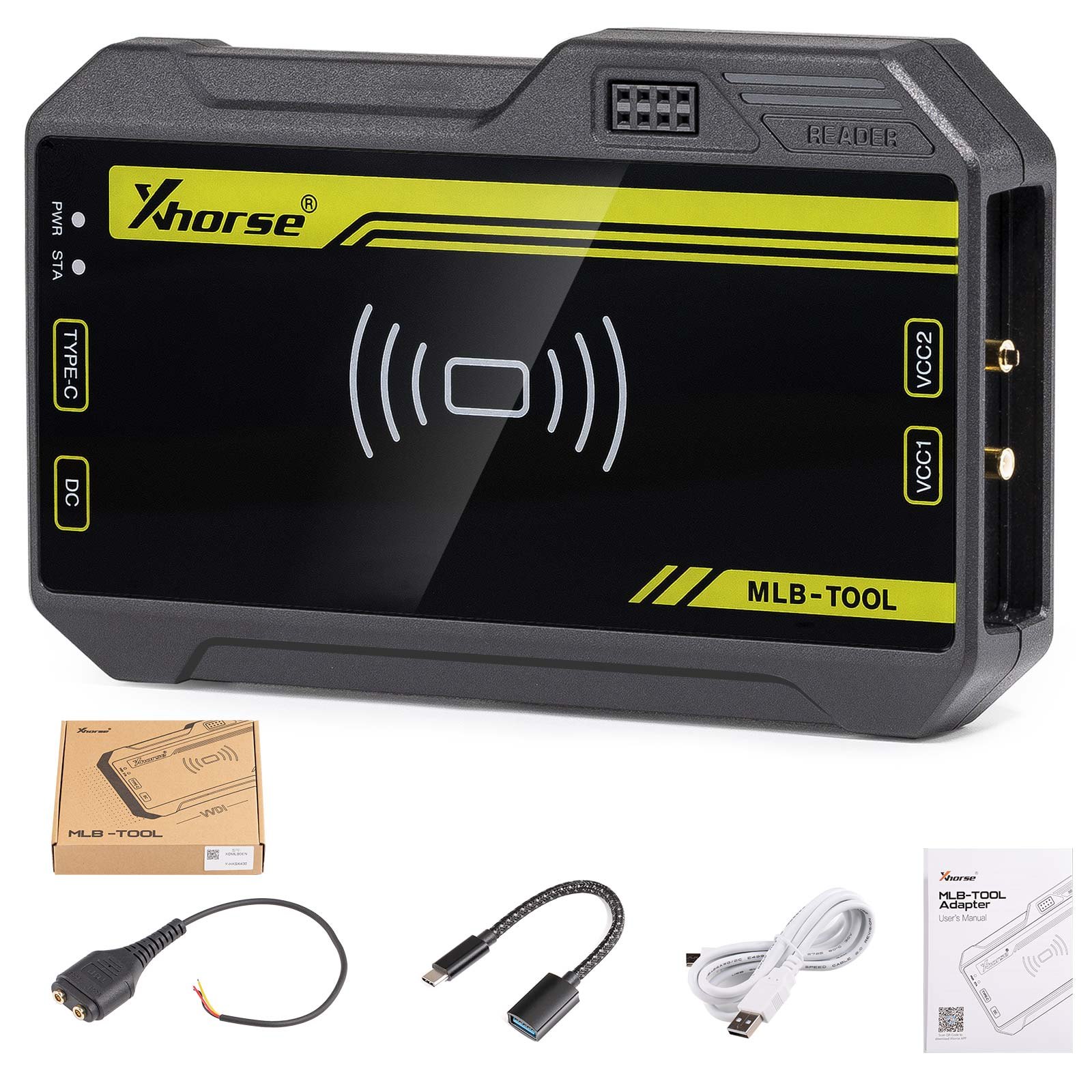

What you get

• 1pc x MLB Tool
• 1pc x MLB Cable
• 1pc x USB Type C Cable
• 1pc x OTG Adapter
• 1pc x User Manual
• Xhorse MLB TOOL with VVDI2 Key Programmer Add MLB Key
• Excel in key adding for MLB models.
• No Need to Remove the Chip.
• Wireless Key Generation for Ultimate Convenience.
• Compatilility with Original Keys and Xhorse Specialized Keys.
• Rewrite Uninitialized Key IDs.
• No Need for On-Vehicle Data Collection.
• Works with VVDI2 and VVDI Key Tool Plus.
• No points required when using VVDI MLB specialized key.

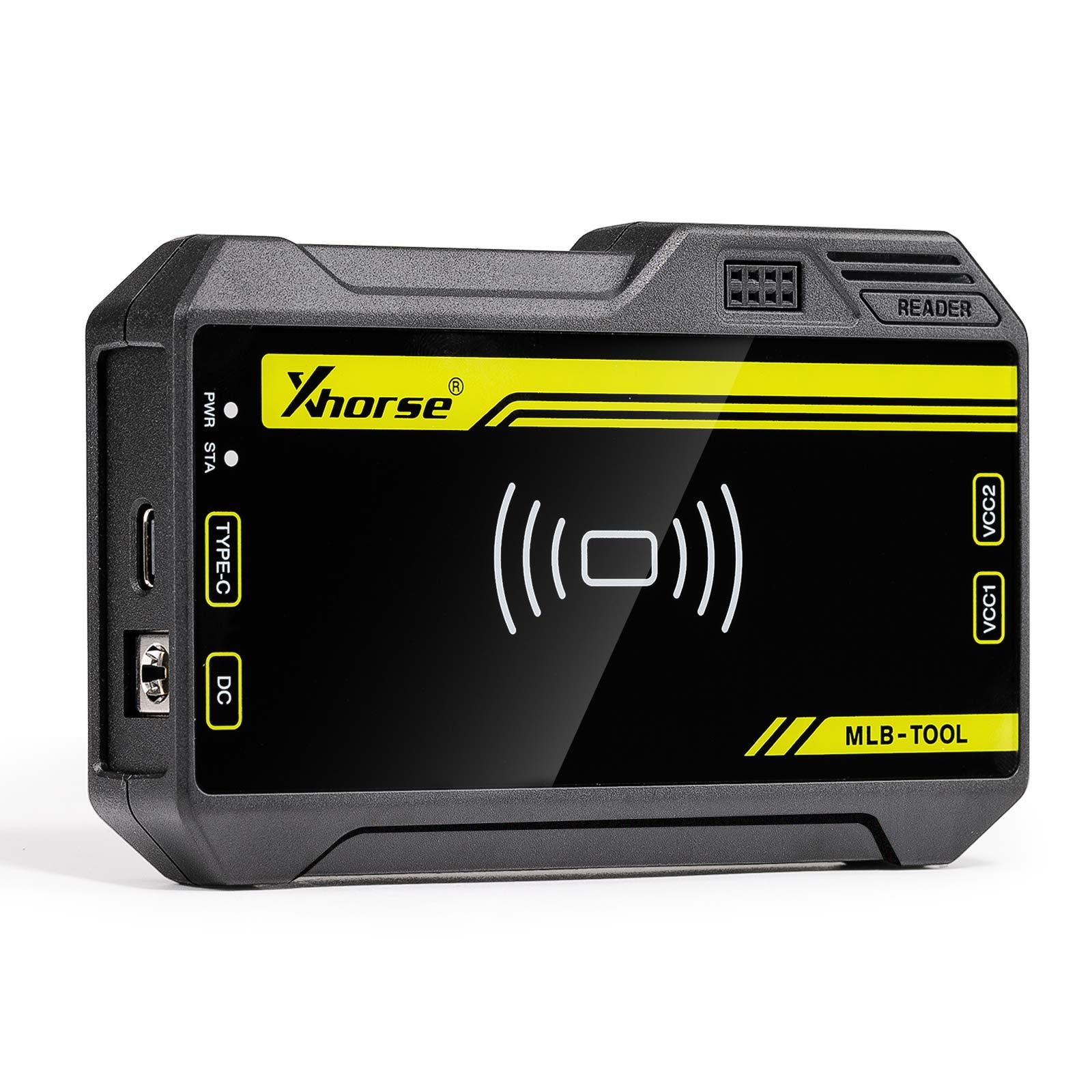

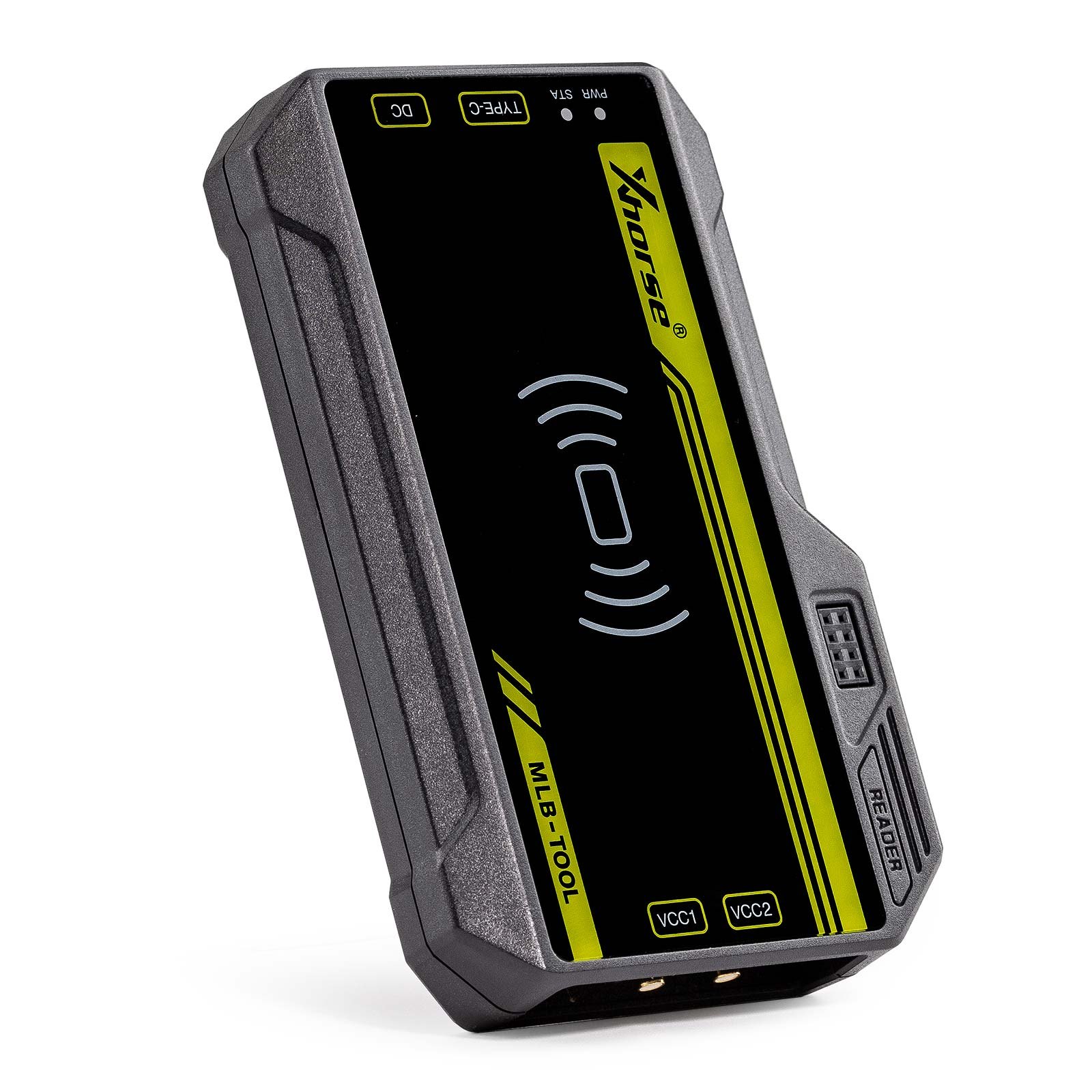

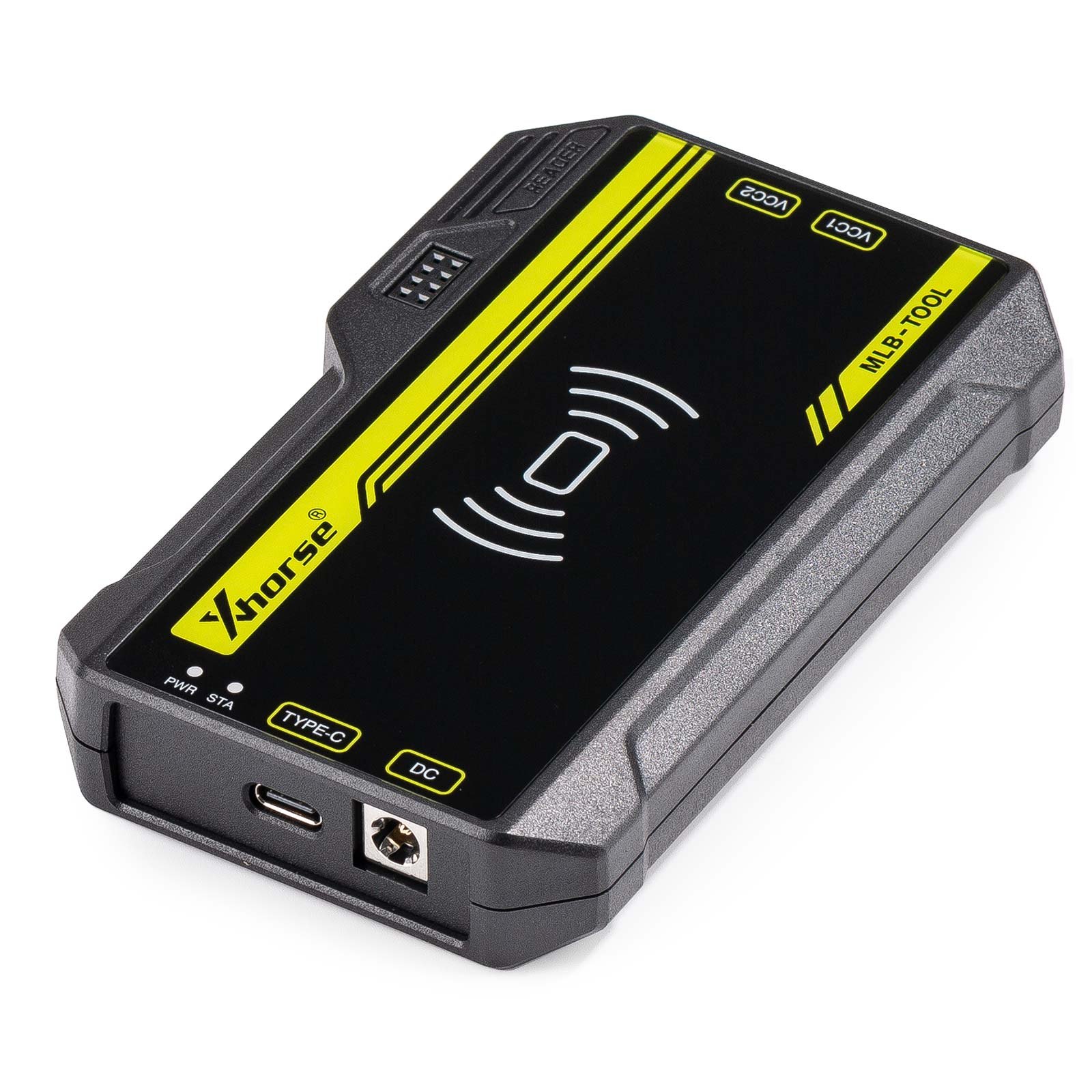

• Xhorse VVDI MLB Tool XDMLB0 Key Programmer
• No points required when using VVDI MLB specialized key
• The following two scenarios require points deduction for MLB calculations:
• When adding keys, points will be deducted to calculate the IMMO data.
• When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored.
• For the Original key
• Unlocked uninitialized with id Can generate key directly to learn key
• Unlocked and uninitialized without id Allows to change the id once.
• Unlocked and initialized Can restore key to unlocked and uninitialized state by calculating anti-theft data No id
• Locked and initialized original key cannot be unlocked.
• Work with VVDI2 / Key Tool Plus Pad / Midi for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
• VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated
• 2.Excel in key Adding for MLB Models
• Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
• No Need to Remove the Chip
• Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
• Wireless Key Generation for Ultimate Convenience
• Generate original dealership keys and Xhorse specialized keys wirelessly.
• Built-in Immo detection module supports wireless key recognition
• Compatibility with Original Keys and Xhorse Specialized Keys
• Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
• Rewrite Uninitialized Key IDs
• Support rewriting uninitialized original key IDs.
• No Need for On-Vehicle Data Collection
• Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.

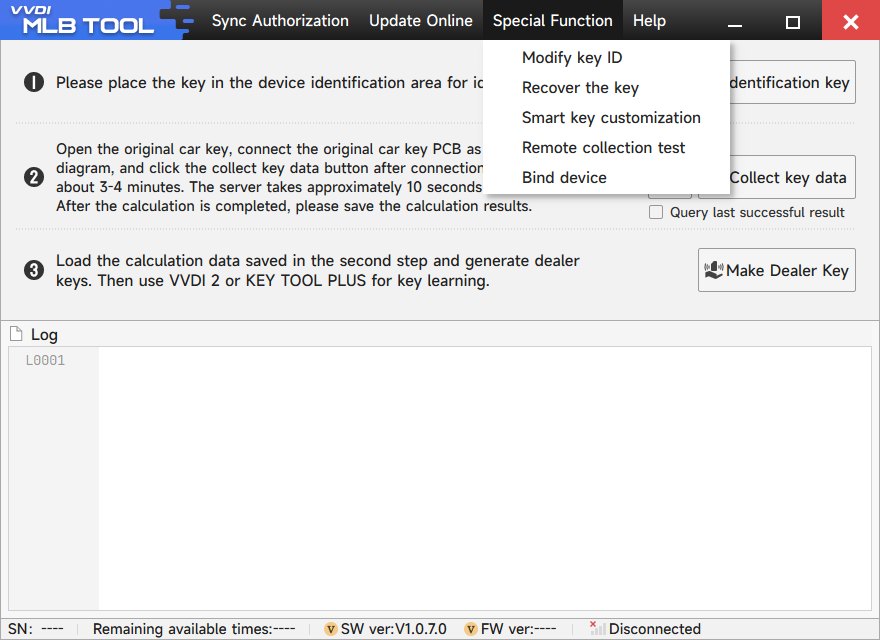

• Users are required to bind MLB-Tool with Xhorse App to perform immo data online to Special Function- Bind Device and scan QR code to bind device.

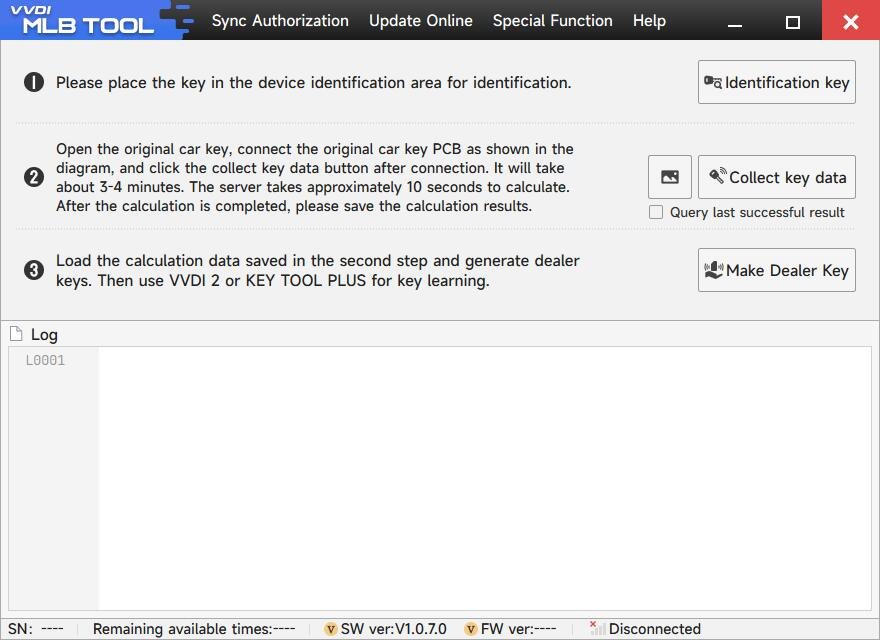

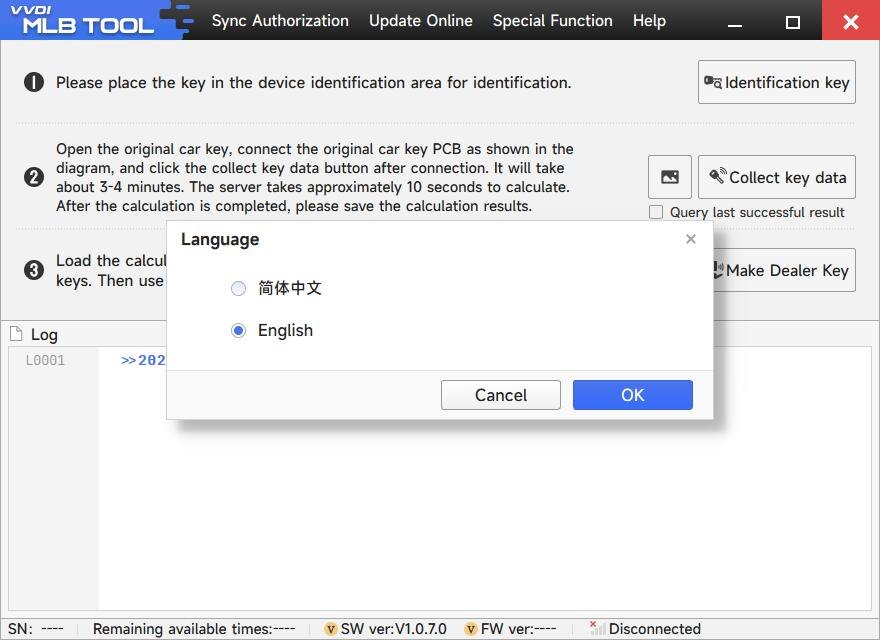

• Software Update online, current version 1.0.3.0 (software free download),Operating system: Win10, Win11
• MLB PC Software is required when you use with vvdi2. If use with vvdi key tool plus, connect MLB-Tool with KTP via the OTG converter. Then you collect key data, make dealer key and learn key all in the key tool plus.
• Collect the original vehicle key, but you have a VVDI MLB key: waive the current collection points. Each MLB key can only waive points once.
• VCC1 and VCC2 are reversed.
• Data collection requires wireless reading of the key simultaneously; if the key is not positioned correctly, it will not be sensed.
• MLB-TOOL can work with KEY TOOL PLUS or VVDI2.
• For vehicles from 2023 onwards, due to SFD restrictions from manufacturers, SFD must be remotely unlocked before the matching device can be used.
• Supports original keys and VVDI MLB keys. Other aftermarket keys are not guaranteed.

The solder free adapter kit, the MQB adapter and full bundles are all separate options on this listing.

Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.

Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
