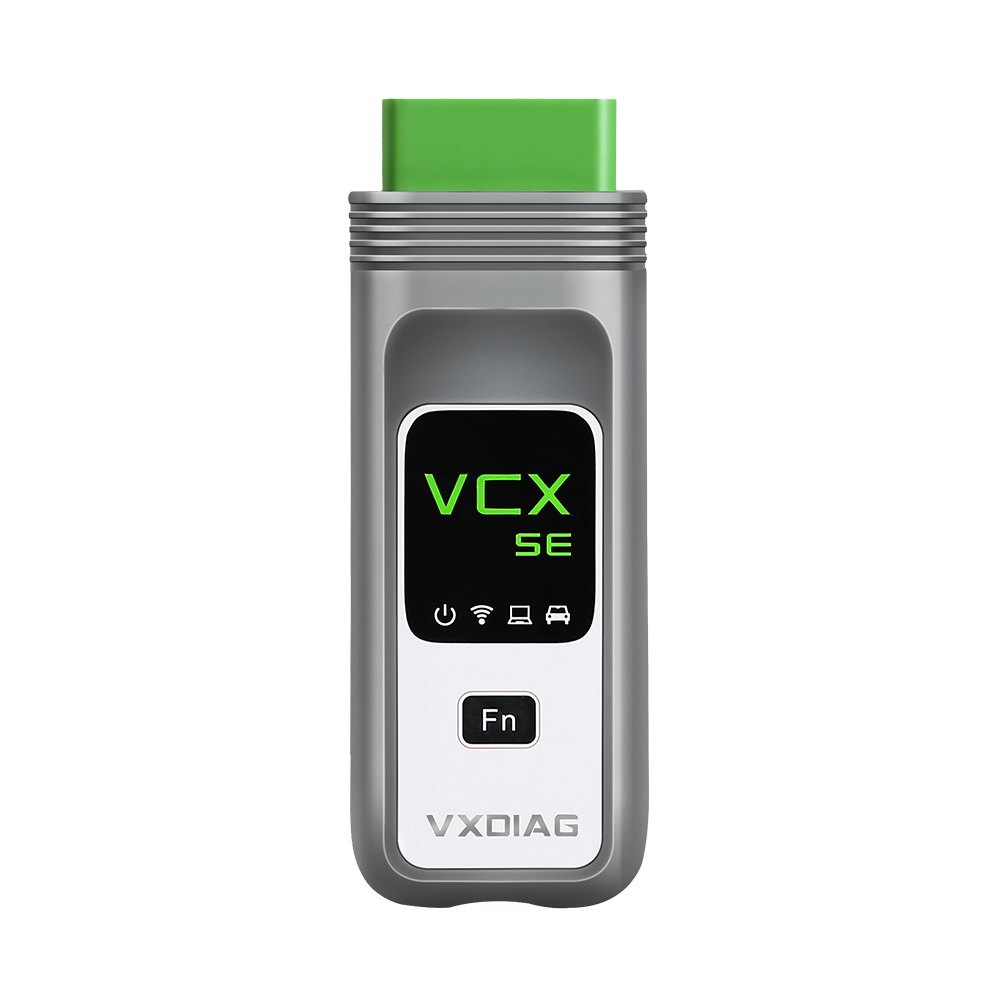

2026 VXDIAG VCX SE Hardware J2534 Passthru Device Support Doip Any License Can be Added

The VXDIAG VCX SE hardware, a J2534 passthru device supporting DOIP, on serials beginning V94SE. It covers diagnostics, programming and coding with free firmware and licence updates online, measures 18.3cm by 5cm, and any brand licence can be added to it.

Specifications

• SN: V94SE****
• Firmware/License: Free Update Online
• Functions: Diagnostic/ Programming/ Coding
• Model Name: VXDIAG VCX SE J2534
• Origin: CN (Original)
• External Testing Certification: CE
• Electronic: No
• Hardware Version: 2020

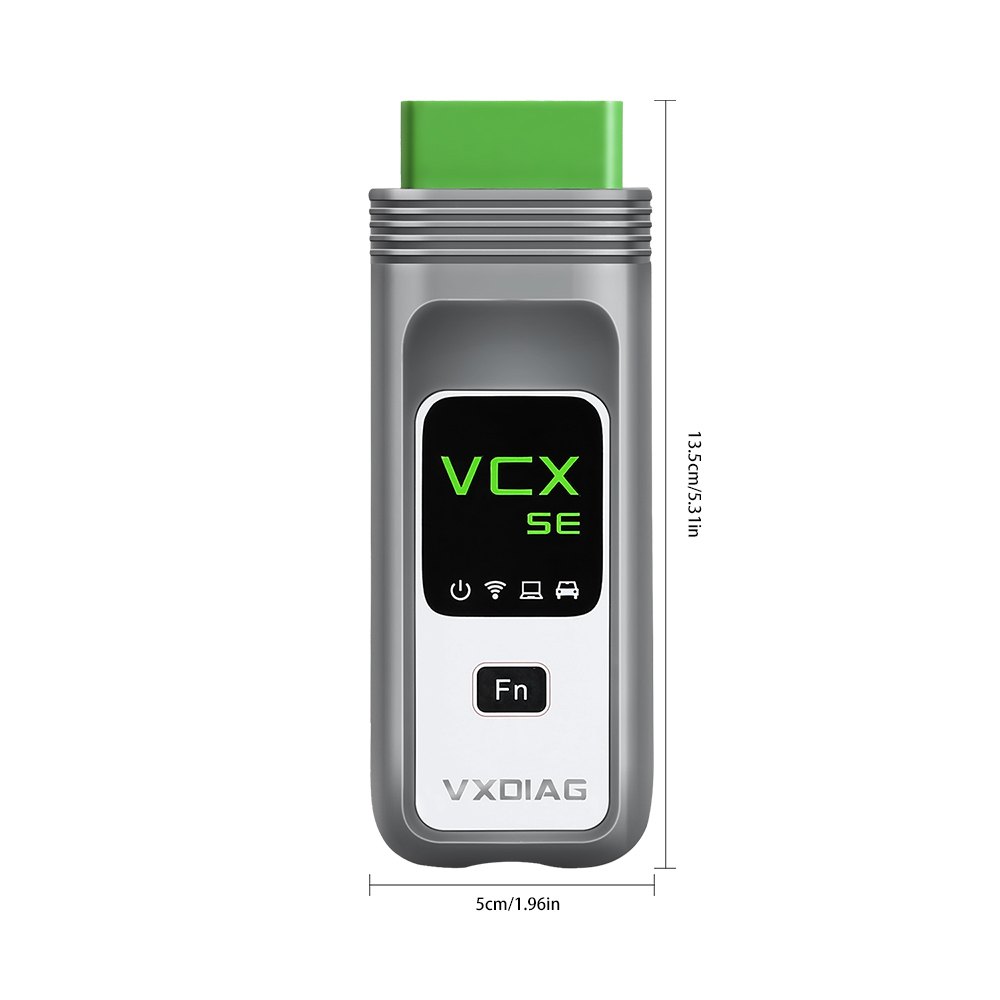

• Item Height: 5cm
• Item Length: 18.3cm
• Power: 1W-3W
• Material Type: Plastic
• Special Features: Wifi
• Special Features: USB
• Item Weight: 0.38kg
• Voltage: 9V-36V
• Item Width: 10cm

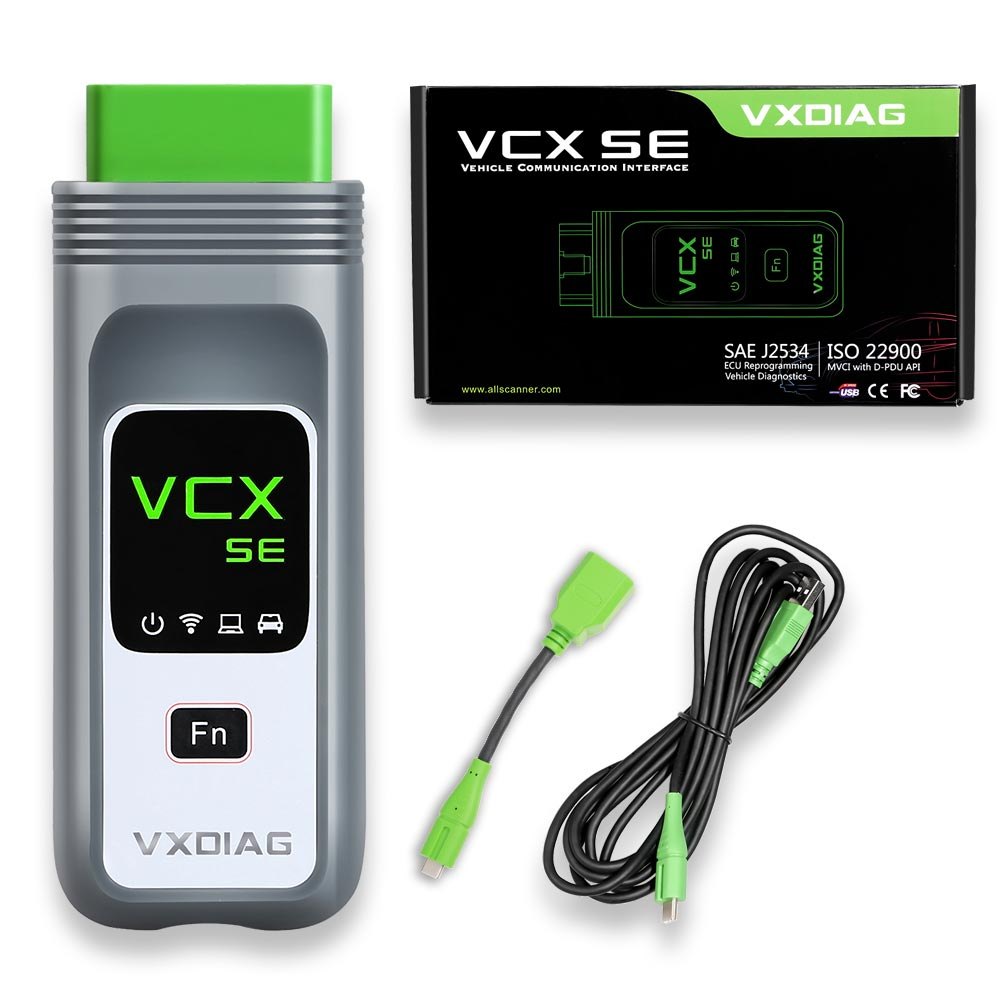

What you get

• 1pc x VCX SE Hardware
• Support Add License like JLR, HONDA, GM, VW, FORD MAZDA, TOYOTA, Subaru, VOLVO, BMW, BENZ, PW2, PW3, JLR DOIP, PSA, Renault.
• USB, WiFi, USB Type C, LAN and DoNET Optional Connection
• Support Offlince Coding, Remote Diagnosis
• SAE J2534 Passthru for OEM Online Programming (Online Account is needed)
• Compatible with OEM diagnostic software
• Can be Used as J2534 Passthru for Multiple Programs like Xentry, pcmflash, bitbox, gromcalc, pcm hammer etc
• Support Add Car License. You can Buy VXDIAG VCX SE Car License like JLR, HONDA, GM, VW, FORD MAZDA, TOYOTA, Subaru, VOLVO, BMW, BENZ, PW2, PW3, JLR DOIP, PSA and Renault etc.
• VCX SE is the latest generation of diagnostic equipment launched by Allscanner for the remote diagnosis platform. The ultra-high integrated hardware design can fully adapt to a variety of original diagnostic software, not only supporting local diagnosis but also realizing super remote diagnosis.

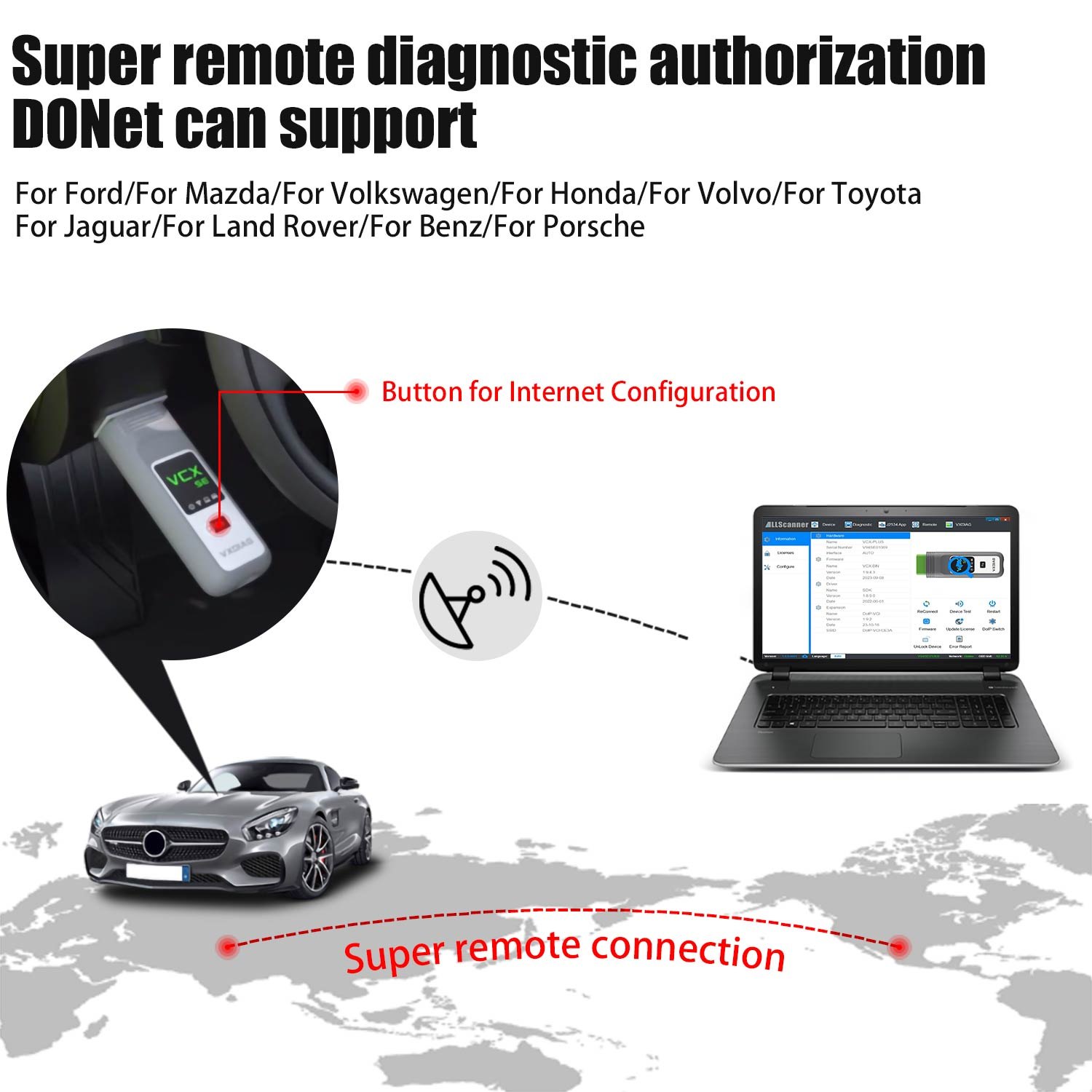

• Dual mode intelligent remote diagnosis
• Super remote diagnosis only needs equipment networking to realize an online diagnosis of the original factory.
• Compatible with remote diagnosis, it can support the remote diagnosis of various special function equipment.
• The equipment can quickly access the remote diagnosis platform with one key.
• The hardware is updated synchronously with the VCI of the major original factories, and it fully supports the new models and new original software based on DOIP Ethernet diagnosis.
• Realize the original factory level diagnosis function of the world's major brands, one piece of equipment can replace many expensive OEM equipments.
• SupportS 4-way can bus, 2-way K-line / L-line, realize multi-protocol high-speed concurrent communication.

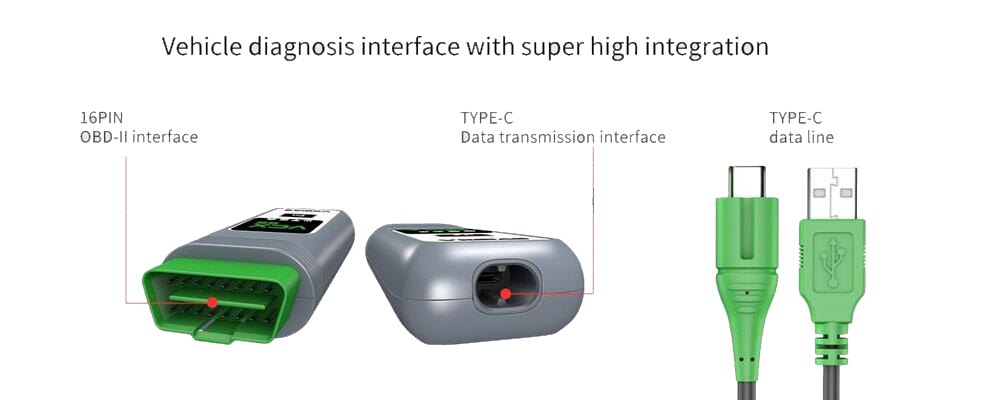

• The host communication interface supports USB / RJ45 / WLAN and other interfaces, which are flexible and easy to use.

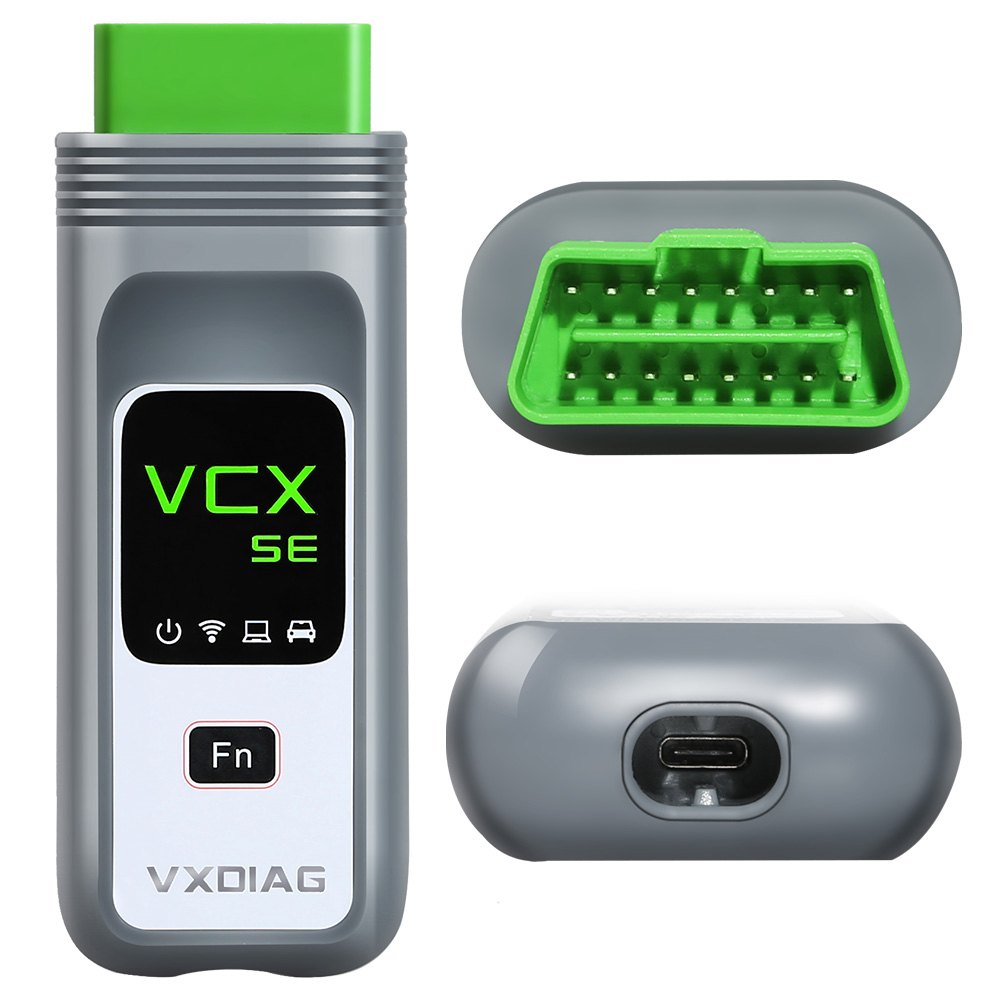

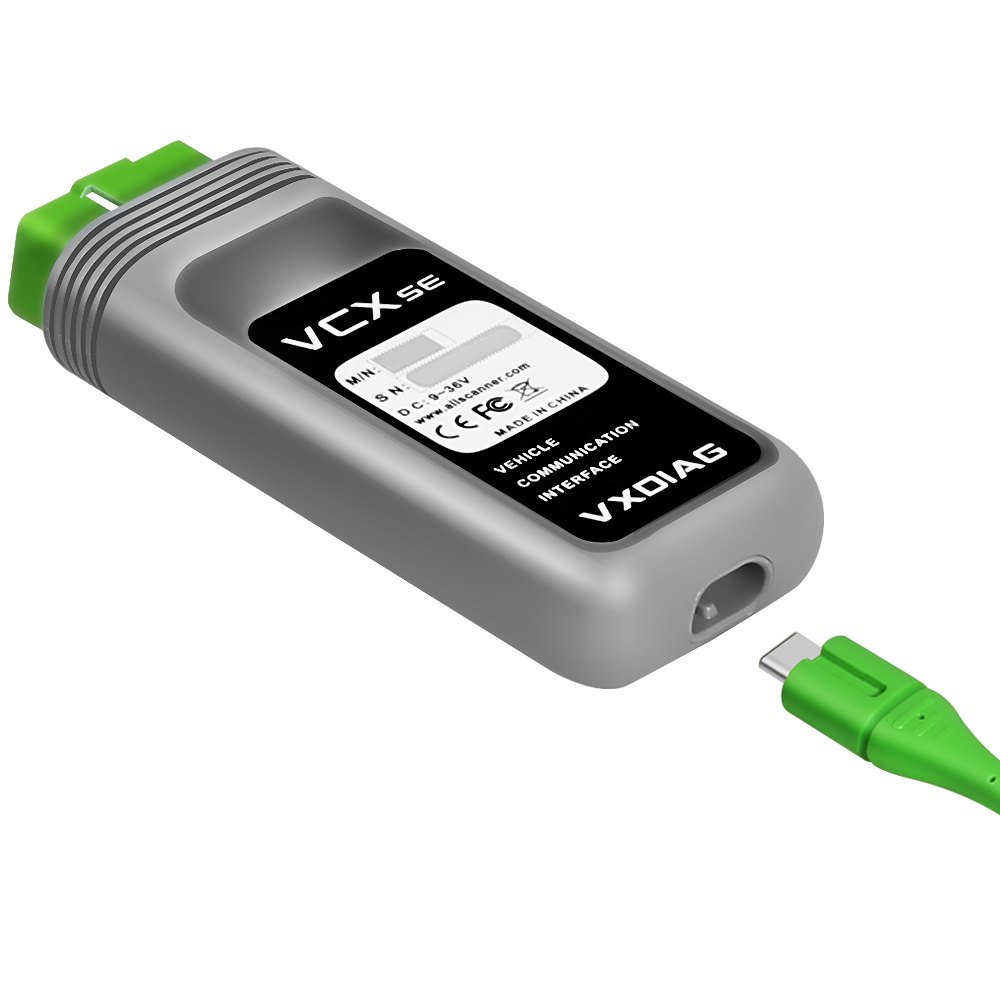

• The USB-type-c interface with reinforcement design can be plugged in and out stably.
• SAE-J2534-1/2 Pass-Thru with EURO 5
• ISO-22900 MVCI & D-PDU
• ISO-13400 DoIP
• J2534 Original Factory Level ECU Programming Functions

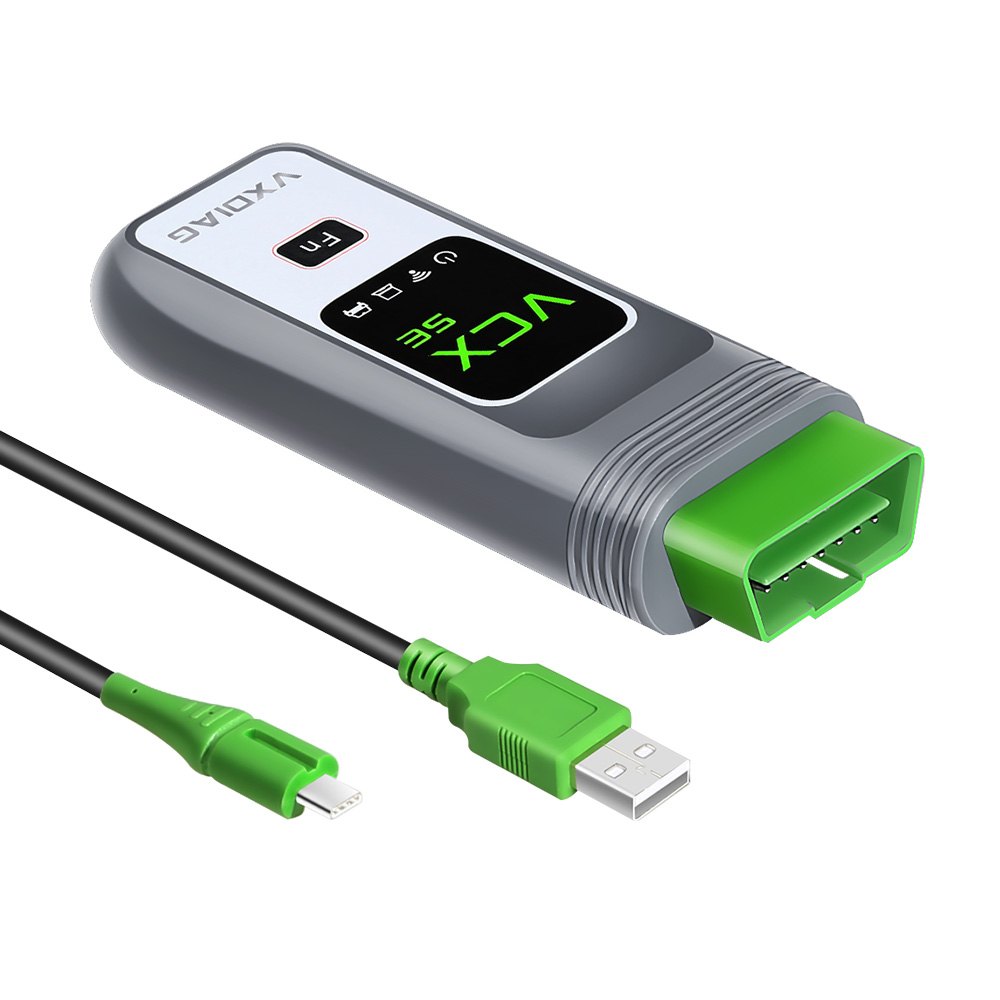

• USB to Type C LAN connection
• for Benz, for BMW, for VW, for Audi, for Jaguar, for Land rover, for Volvo, for GM, for Ford, for Mazda, for Toyota, for Honda, for Subaru, for Por-sch-e
• The interface component, adopts quick pull-and-plug technology, is more stable. Because it is tested to be able to pull and plug 10,000 times.
• With the small size and strong structure, Doip VCX SE is easy to carry. It can update firmware and DOIP firmware, etc.
• ISO-9141 K-Line
• ISO-14230 K-Line
• ISO-17987 LIN BUS
• ISO-15765 CAN
• SAE-J1850-VPW (GM Class2)
• SAE-J1850-PWM (FORD SCP)
• ISO-11898-2 DWCAN
• ISO-11898-3 DWFTCAN
• SAE-J2411 SWCAN (GMLAN)
• VAG TP20 CAN (SAE-J2819)
• VAG TP16 CAN
• VAG KW81 (SAE J2818)
• SAE-J2610 SCI (Chrysler)
• SAE-J1567 CCD BUS (Chrysler)
• SAE-J2740 GM ALDL
• SAE-J2809 HONDA DIAG-H
• NISSAN DDL UART with CLOCK
• BMW DS2
• Color
• Two Colors
