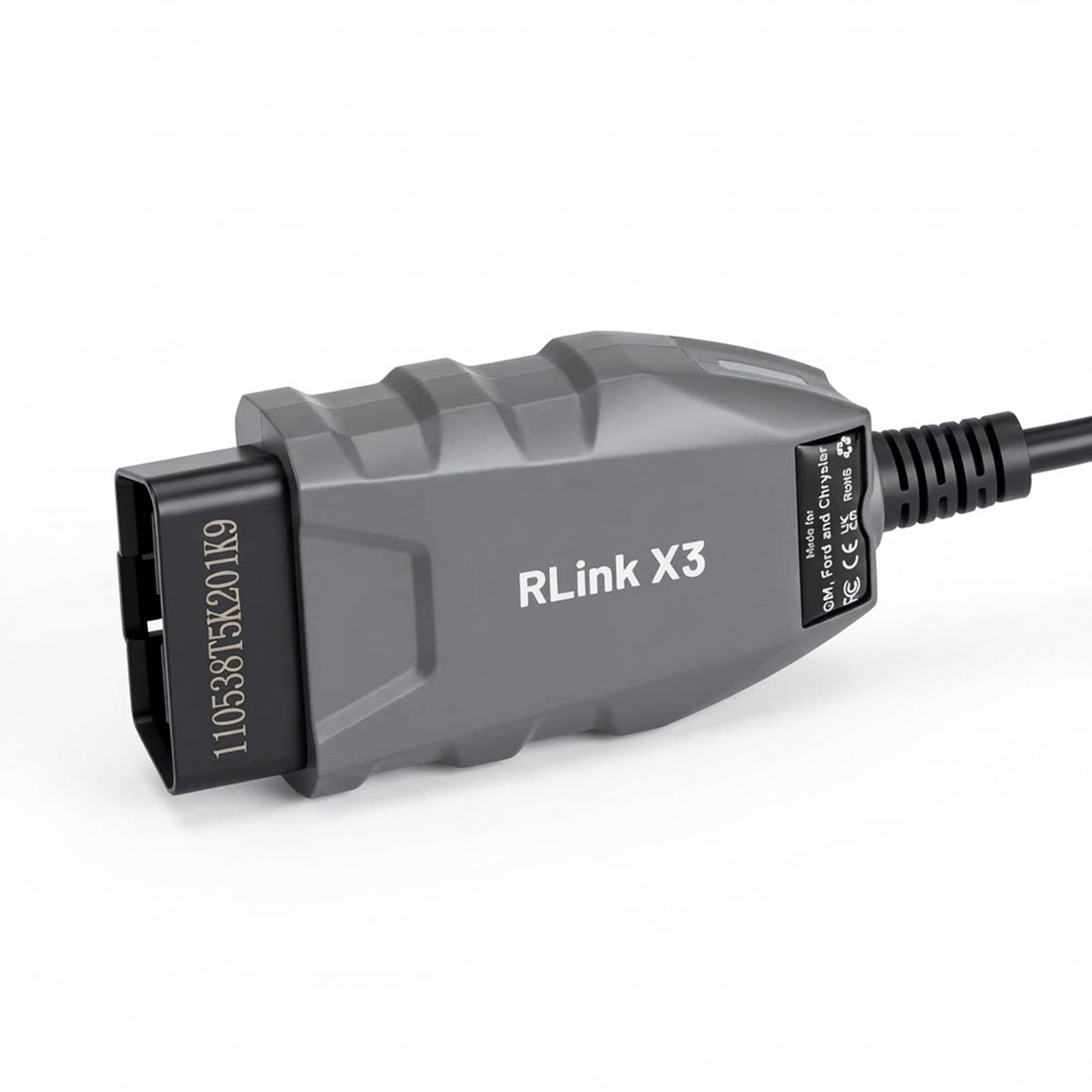

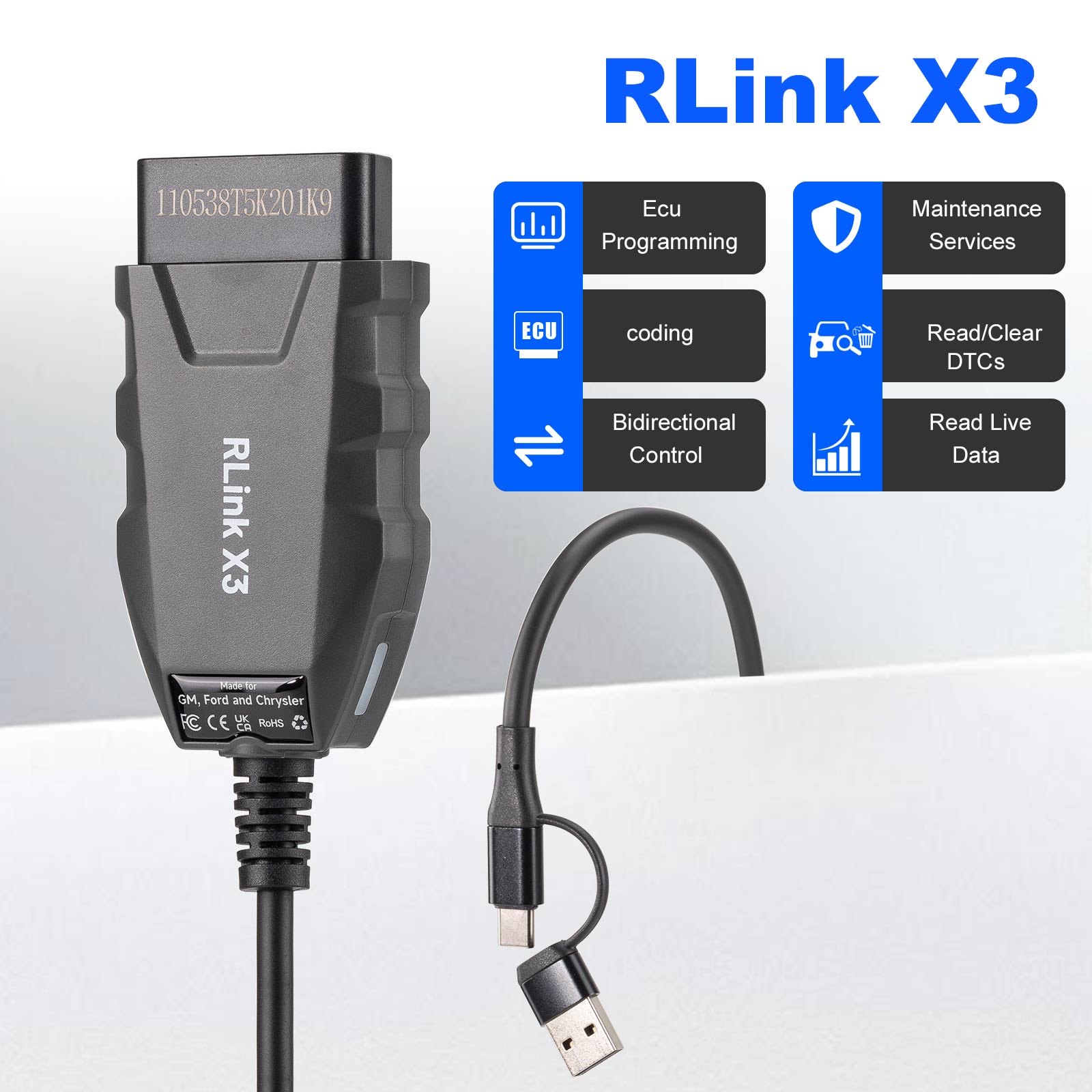

TOPDON RLink X3 J2534 Pass-Thru Programmer GM Ford Chrysler OEM
$189.00
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description

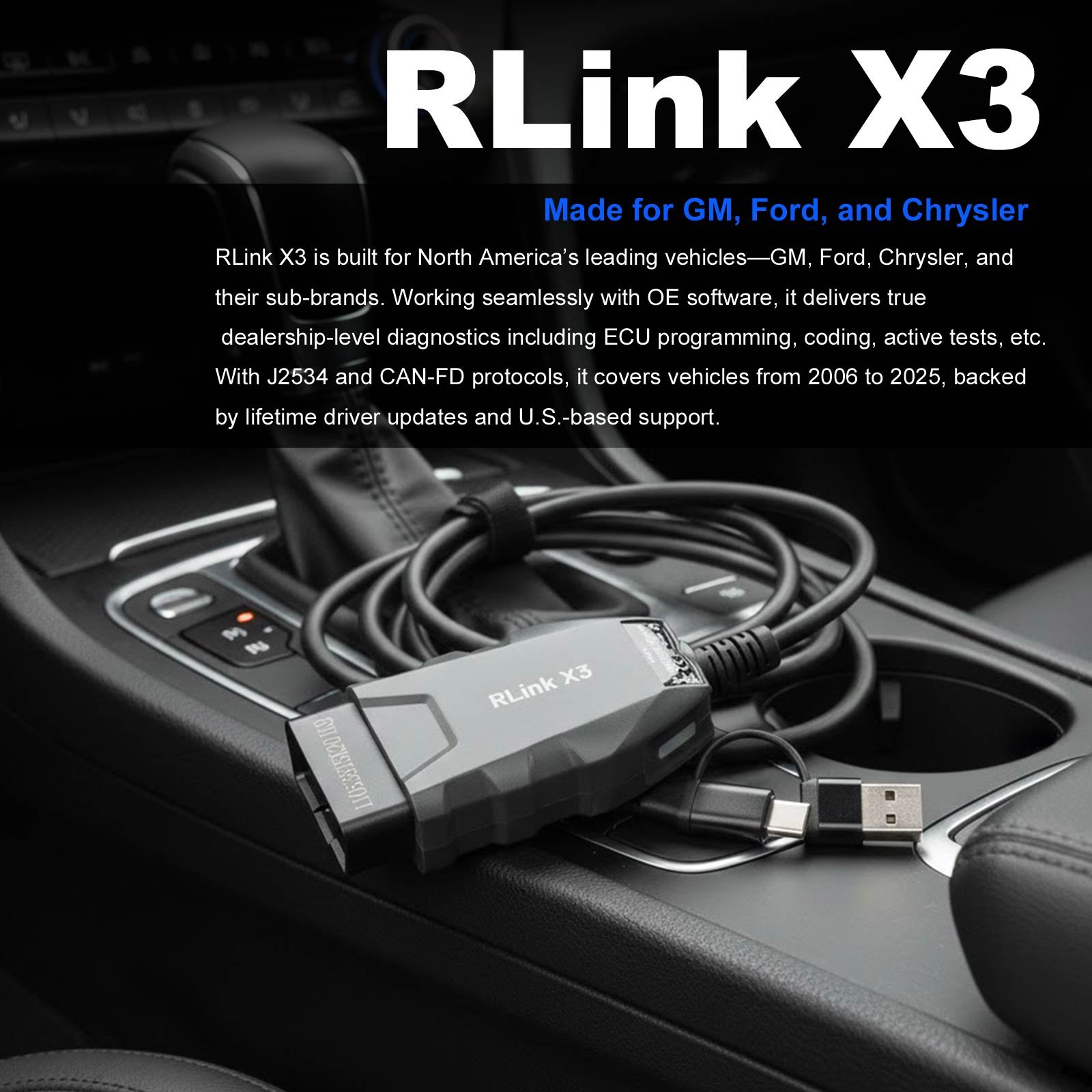

TOPDON RLink X3 is a 3-in-1 OEM-specific VCI (Vehicle Communication Interface) for the US market supporting GM, Ford, and Chrysler vehicles plus sub-brands (1996-2025 model coverage varies by OEM software). OEM software not included; requires separate purchase/subscription through official OE websites.
Specifications
- GM Software: TLC/GDS2, Tech2Win, SPS
- Chrysler Software: WiTECH 2.0
- GM: 4 simultaneous CAN channels, CAN-FD, HS-CAN, LS-CAN, UDS, J1850-VPW, SW-CAN, ALDL, GM-UART, KW81, KW82
- High-speed data transmission: 2x+ data samples vs competitors
- 24V truck protection, lifetime free driver/firmware updates
- Ford: Simultaneous CAN bus for FJDS, FDRS, FORScan

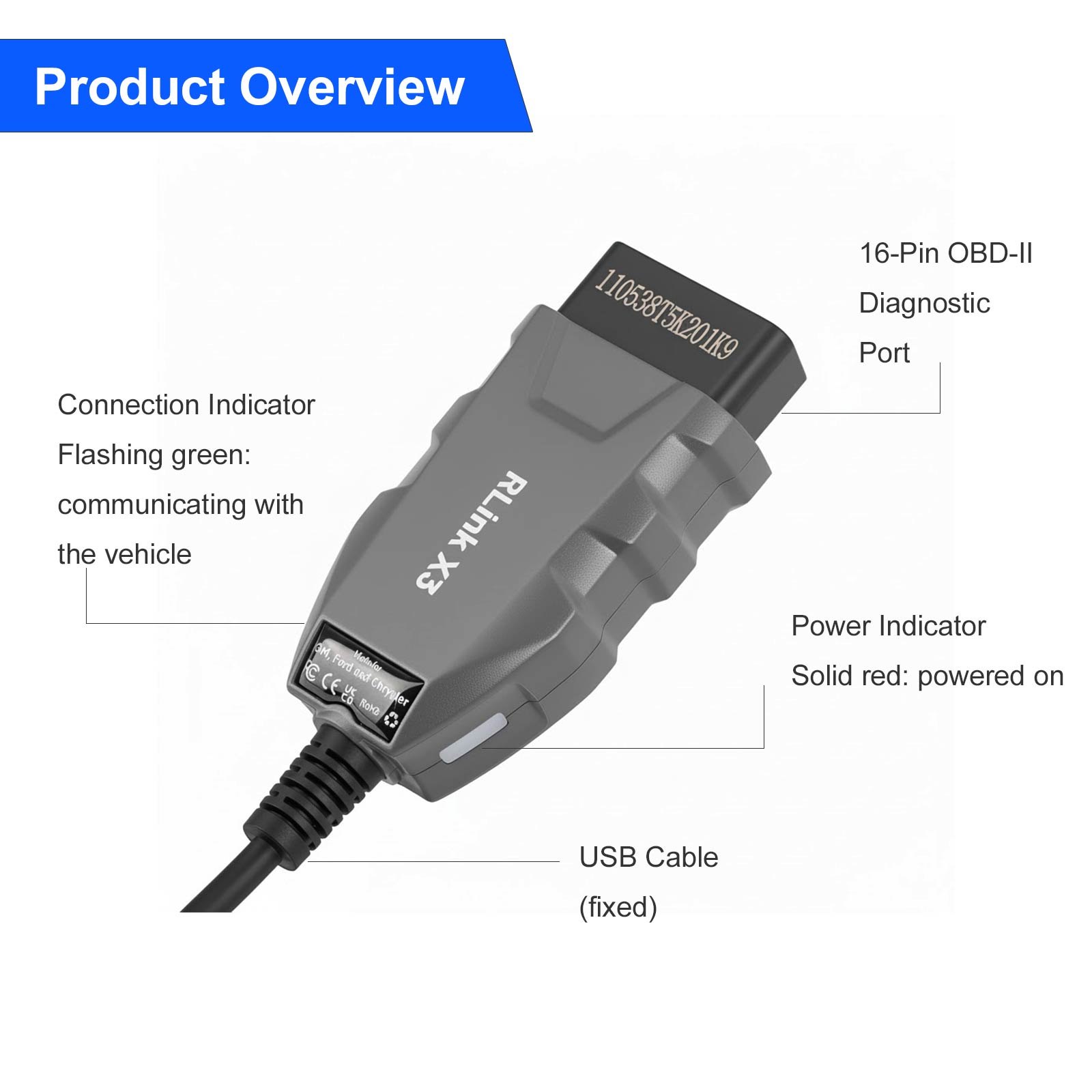

- Dual-color status LEDs (red connection, green communication)
- ARM Cortex-M4F 32-bit, 512KB FLASH, 192KB SRAM
- Operating voltage: 9-18V
- USB cable: 1.8m
- Operating temp: -10C to 60C
- Dimensions: 92 x 48 x 24mm

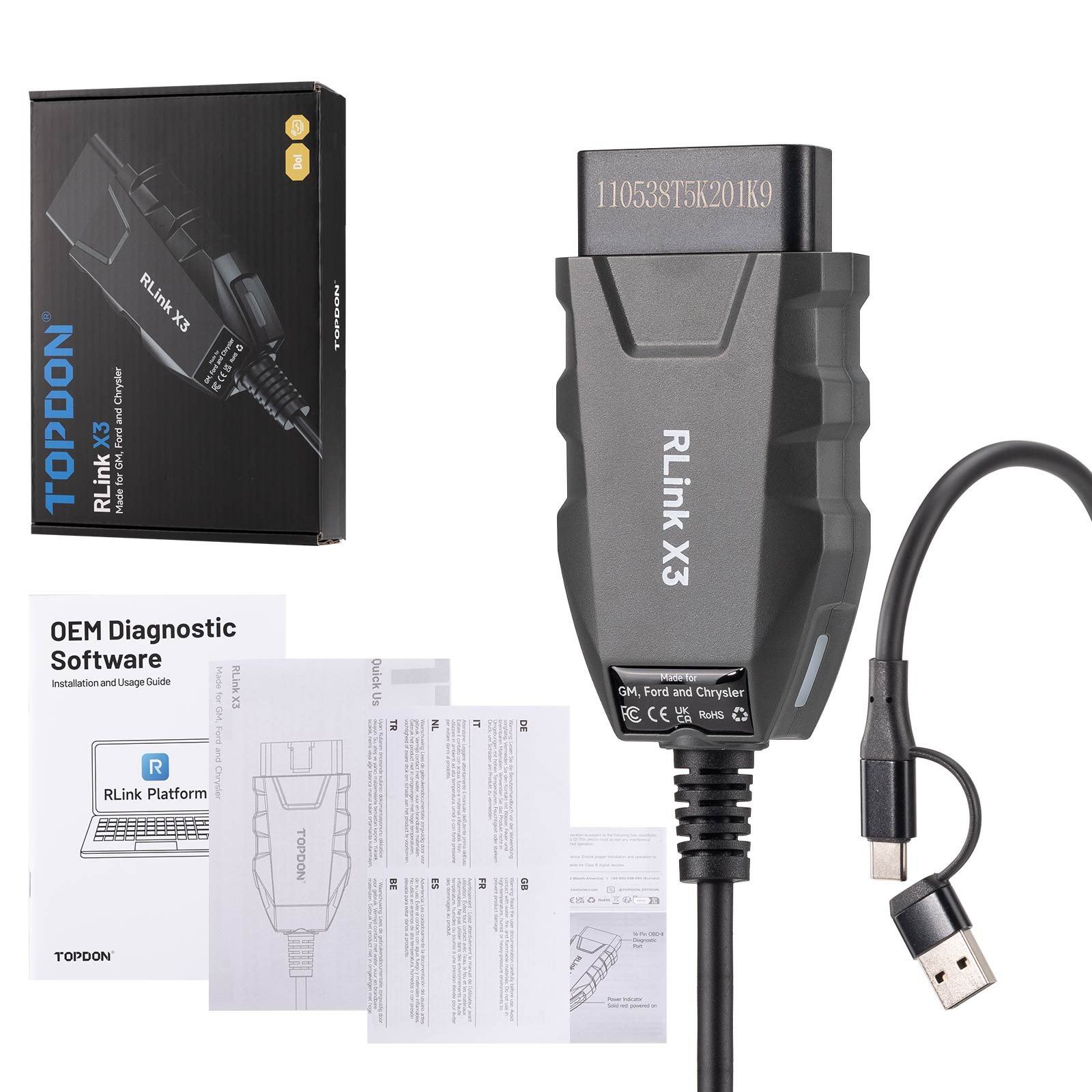

In the box
- 1 x RLink X3 Adapter cable
- 1 x Quick User Guide
Specifications
| Brand | TOPDON |
|---|---|
| Type | Car Diagnostic Tool |
| Part number | HKSP625 |
| Condition | New |
Shipping and returns
Orders leave the warehouse within one business day. Delivery then takes 7 to 20 days. Orders over $150 ship free.
Not right for you? You have 30 days from delivery, with no restocking fee. See the full returns policy.
