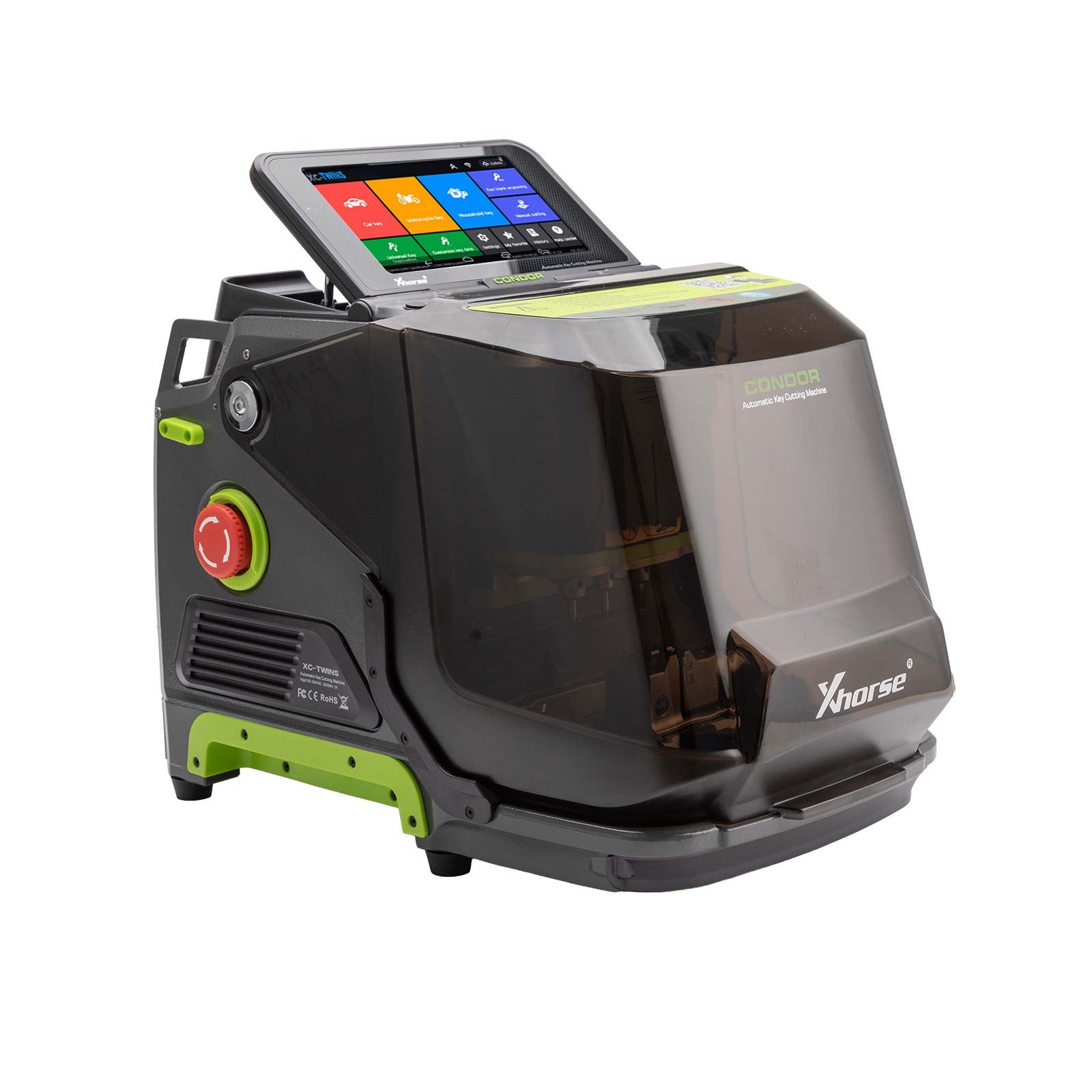

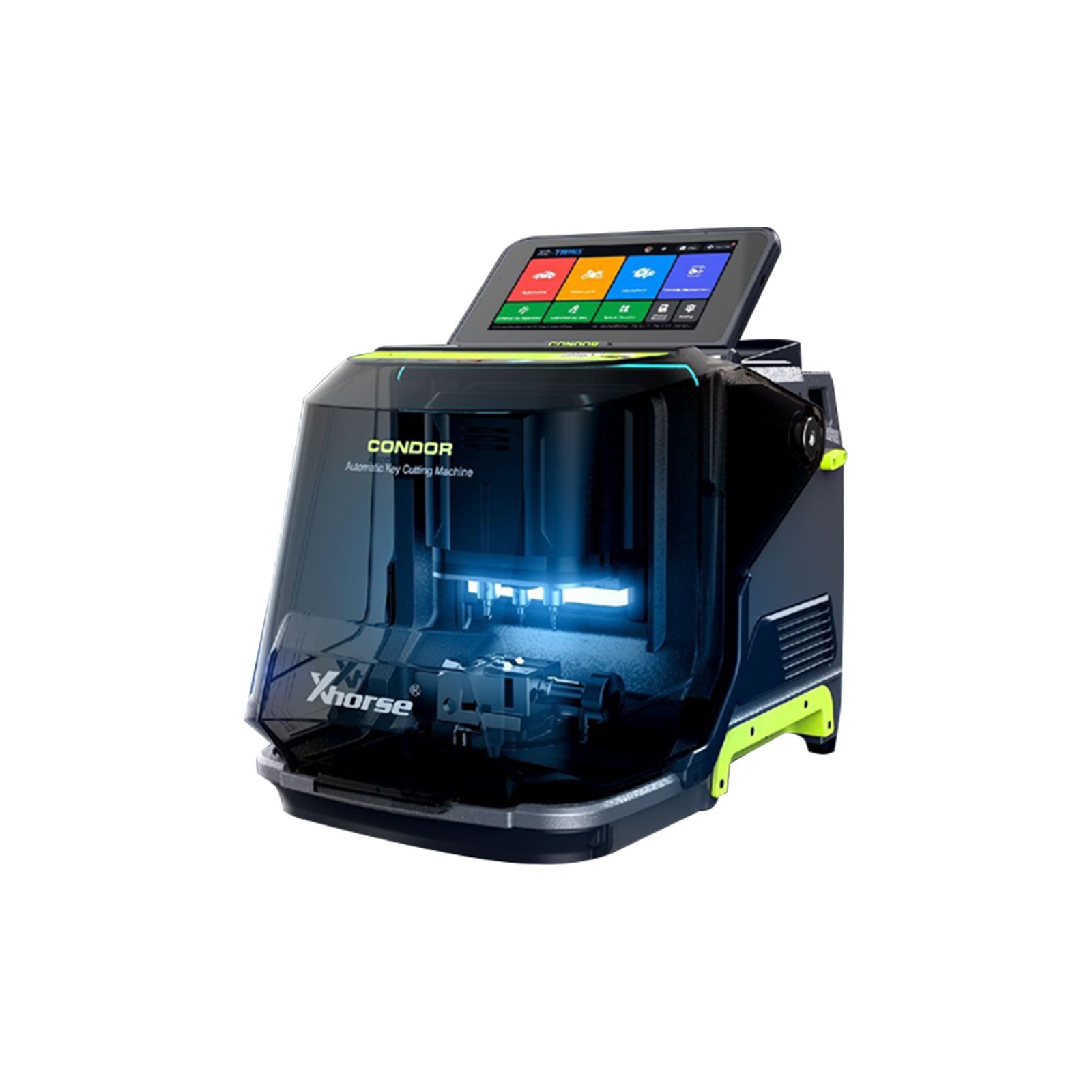

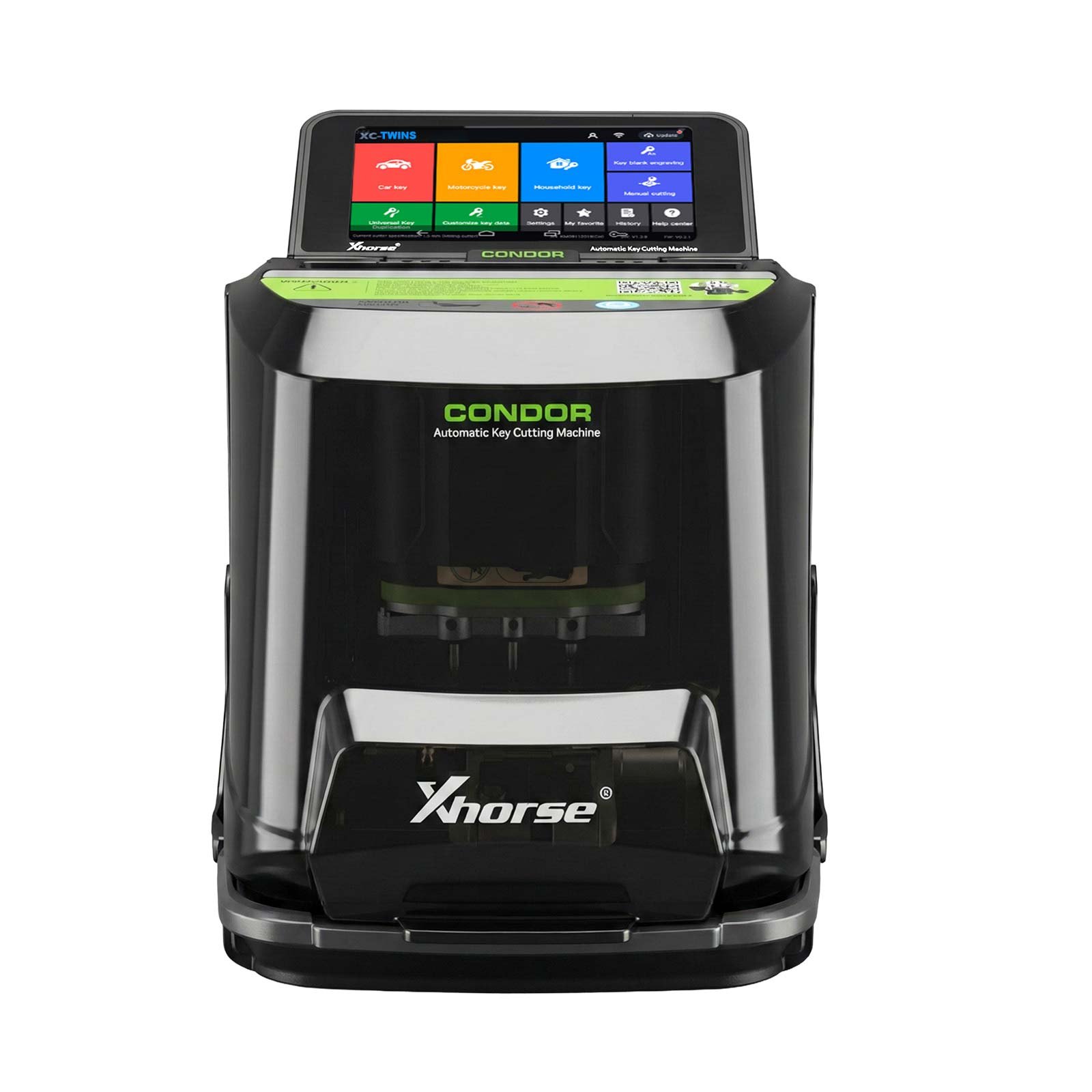

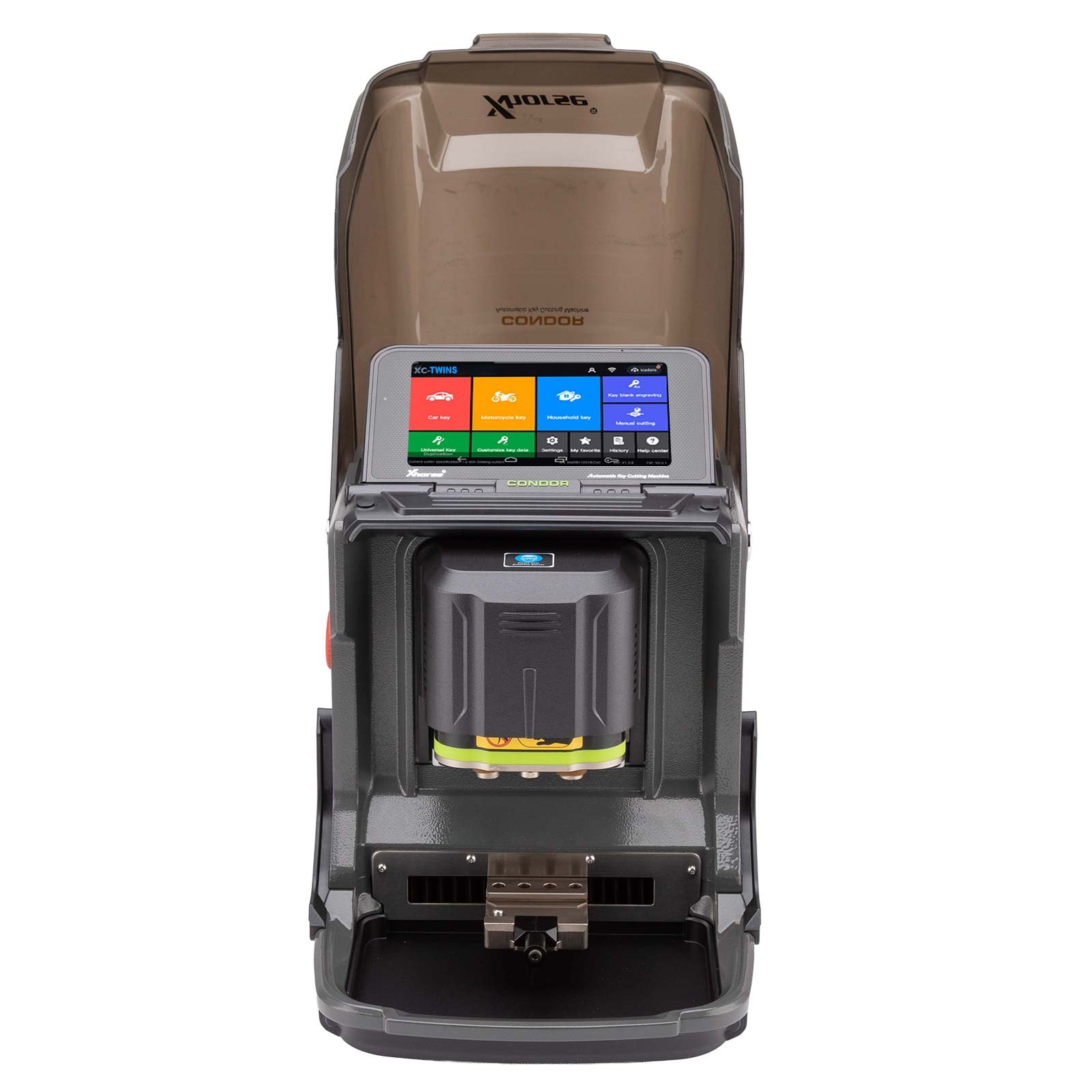

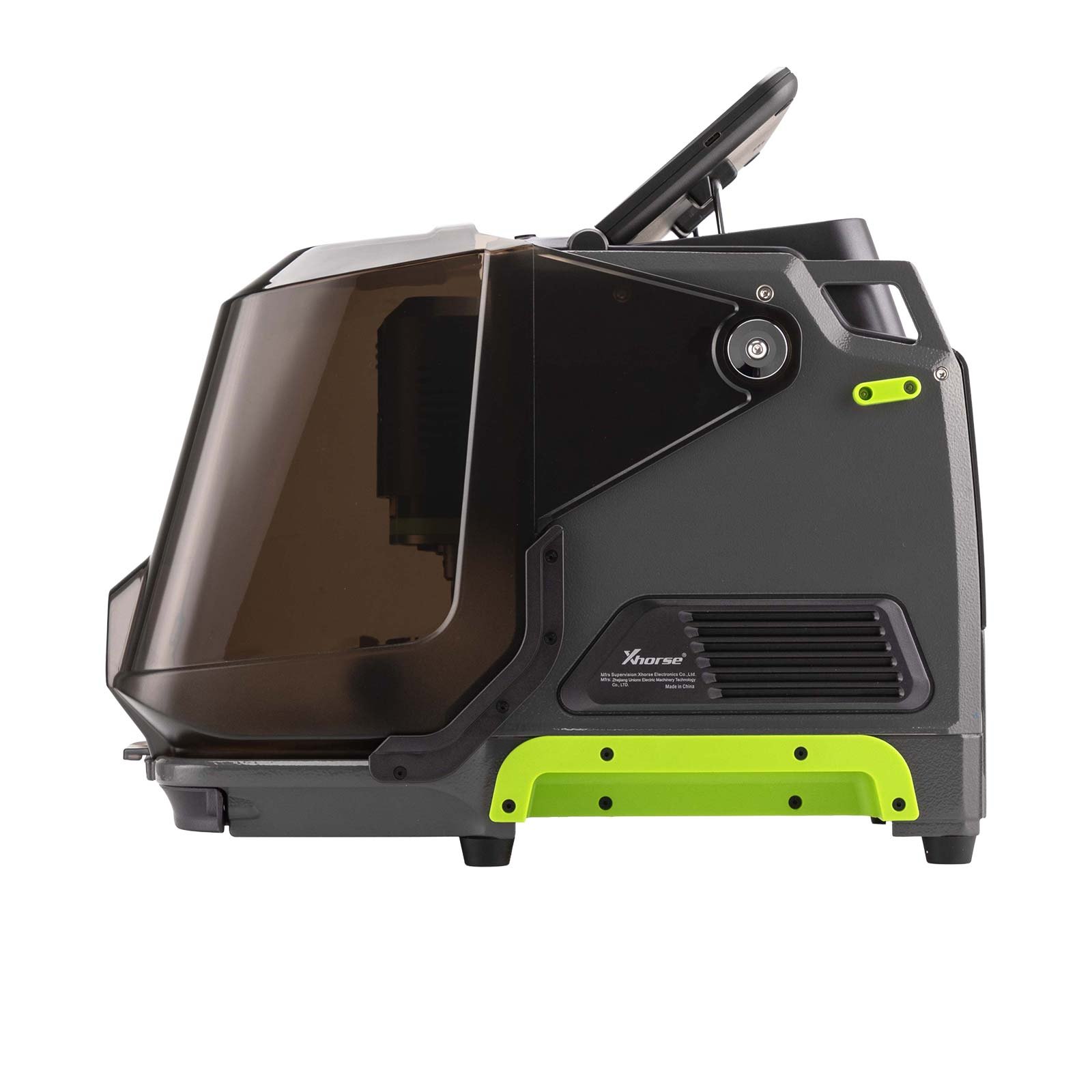

2026 Xhorse Condor XC-TWINS Key Cutting Machine with AI Recognition and Double Cutter

The 2026 Xhorse Condor XC-TWINS is an advanced key cutting machine with AI optical recognition and a double cutter system. It cuts metal, plastic, and aluminum keys for cars, motorbikes, and homes. Part number: HKSL511.

Highlights

• Double cutter design cuts key types without frequent cutter changes
• AI optical recognition camera identifies the key and its valid position automatically, with blank size adjustment
• Built-in pressure sensor at the probe side prevents probe breaking
• Metal, plastic, and aluminum key cutting
• Manual cutting for custom blank needs
• Car, motorbike, and residential key cutting
• Intelligent status lights
• Android system with smart interaction
• 7-inch adjustable touch screen for direct operation
• All keys lost database with 100+ car brands, 2,000 models, and 20,000 key data entries
• Residential key cutting including Mul-T-Lock, Kwikset, Schlage, and Cadman

Cutting system

• Double cutter handles complex types including residential keys with fewer changes, faster and more convenient
• Camera identifies key type and position and adjusts blank size
• Pressure sensor prevents probe breaks, covering compatibility and stability across metal, plastic, and aluminum keys
• Bluetooth and WiFi. Firmware, database, and app update on the machine over WiFi. Smartphone operation through the Xhorse app over Bluetooth
• 7-inch capacitive touch screen at 1280 by 720 pixels with adjustable angle
• CNC custom key shapes through manual cutting or modify-key mode without the proper blank in stock
• All-aluminum body machined on Germany-made DMG CNC equipment. Each key checked with optical instruments. Transparent shield against metal debris. Built for harsh weather
• LED chips and lampshade change color with working status, flicker-free

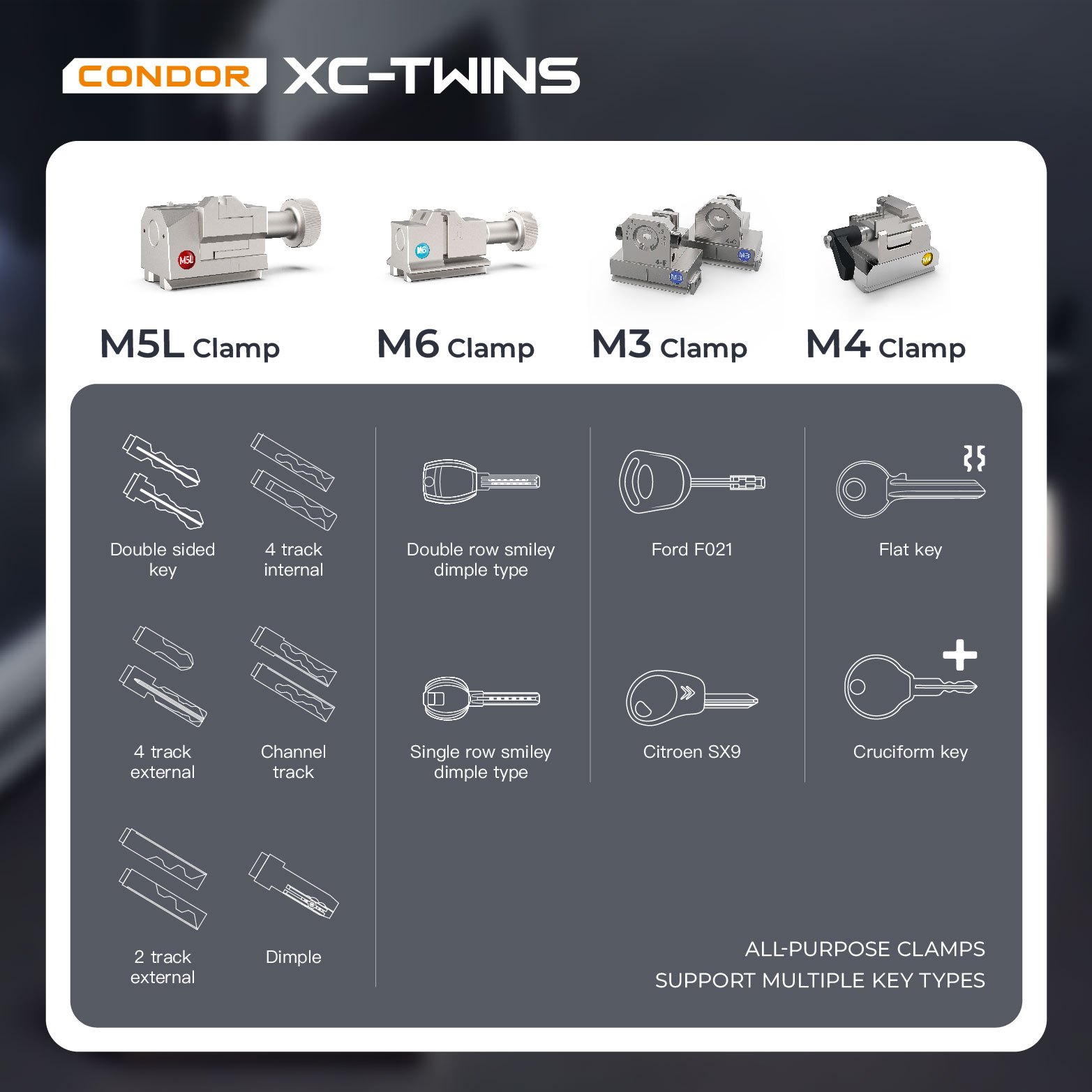

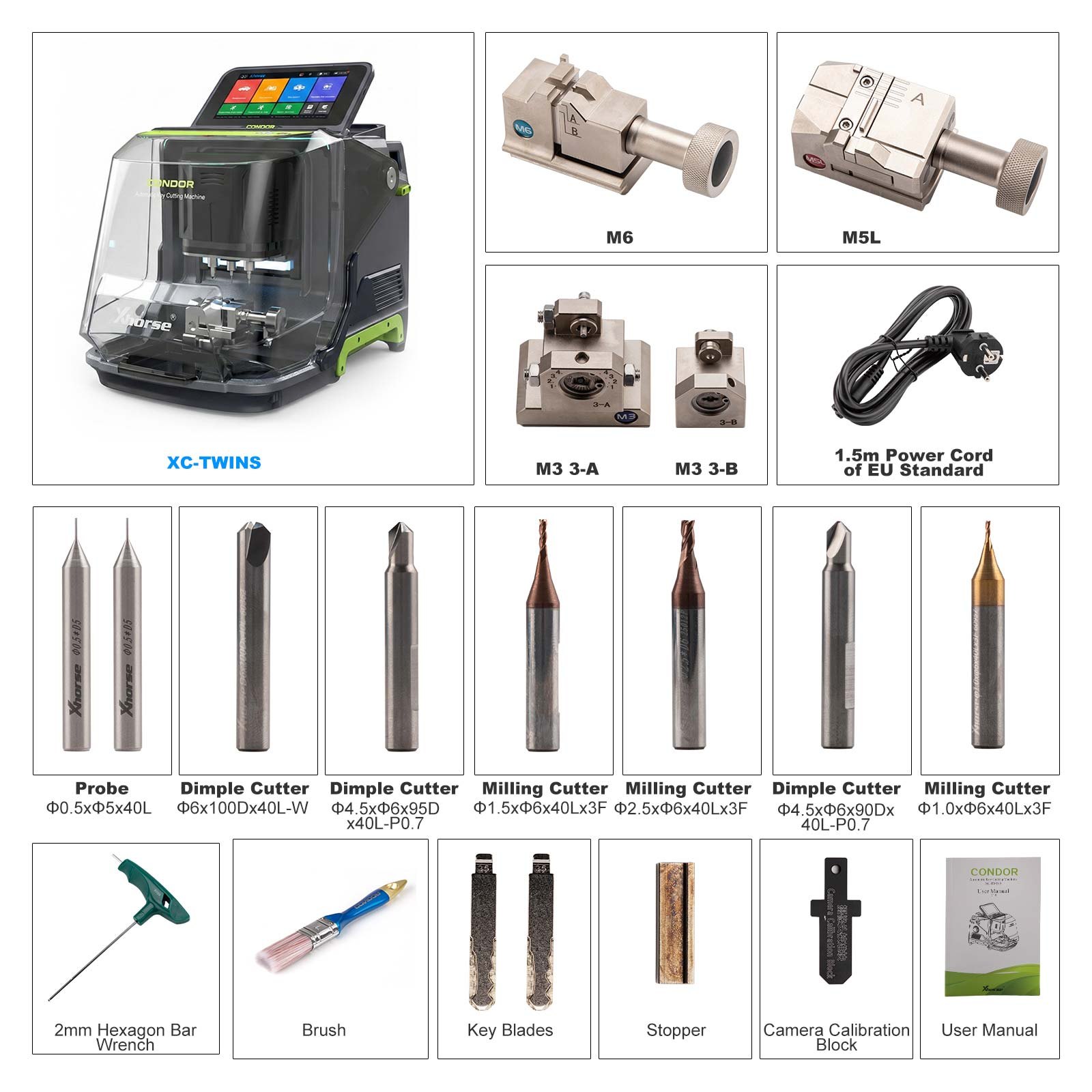

Clamps

All-purpose clamps duplicate car, residential, and motorbike keys: standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, F021, Citroen SX9, and residential keys.

Database

100+ car brands, 2,000 car models, and 20,000 key all-keys-lost entries with lifelong free upgrades. Accurate data, parameters, and clear graphics. Offline operation after database download.

Special functions

• Manual cutting: move the stepping motor directly or preset cutting points. Built for special cuts such as Honda key tip cutting
• Modify key: change blank length, width, thickness, and other parameters. An ordinary blank becomes a flip key and a HON66 becomes a VA2T blank, for example

Parameters

• Input voltage: 90-264V AC and 24V DC
• Power: 150W
• Motor rotation speed: 9000rpm
• LED resolution: 1280 by 720
• Operating temperature: 0 to 50 degrees C
• Net weight: 21KG
• Gross weight: 26KG
• Machine dimensions: 250mm by 413mm by 300mm
• Packaging dimensions: 515mm by 480mm by 380mm

XC-TWINS over XC-MINI Plus II over Dolphin II XP-005L

• Database: more key data with car, motorcycle, and household keys, over large car, motorcycle, and household database, over massive vehicle database with cars and some household keys
• Touch screen: 7-inch adjustable capacitive at 1280 by 720 on the first two, 5-inch adjustable capacitive at 1280 by 720 on the Dolphin II
• System: Android on all three
• Processor: 8 core on the first two
• WiFi, Bluetooth on all three
• Built-in battery: none with AC power only on the first two, built-in 64.75Wh lithium on the Dolphin II
• Net weight: 21kg over 19kg over 13kg. Gross weight: 26kg over 24kg over 18.5kg
• Power: 150W over 200W over 160W
• Motor speed: 9000rpm over 10000rpm over 12500rpm
• Protective shield on all three
• LED indicator: smart status on the first two, status light on the Dolphin II
• Household cutting: most types through the M6 dimple clamp, over optional clamps, over limited with optional M4 clamp
• Offline operation with full standalone database on all three
