2026 Newest Cummins Insite 9.3 Pro + Holset Etool 2.0+ Callterm 5.16 Diagnostic Software Engineering Do Calibration E-tool

Newest Cummins Insite 9.3 pro Diagnostic software no Expired (with Fleet Counts, Zap-It,OEM Zap-It) + callterm 5.16 engineering + Holset Etool 2.0



Software Version:Cum.mins Insite 9.3  calterm 5.16  Holset Etool 2.0 (need options)
Operating System:Win10 /11 pro 64 bit System

Support Multi-Language:

English,Greek,Romanian，Chinese (Simplified), Indonesian, Russian,Czech,Italian,Spanish,
Danish,Japanese,Swedish,Dutch,Korean, Turkish,Finnish, Norwegian,French,Polish,German,Portuguese



After you make the payment, please send us a message as soon as possible, and we will remotely assist you in installing the software

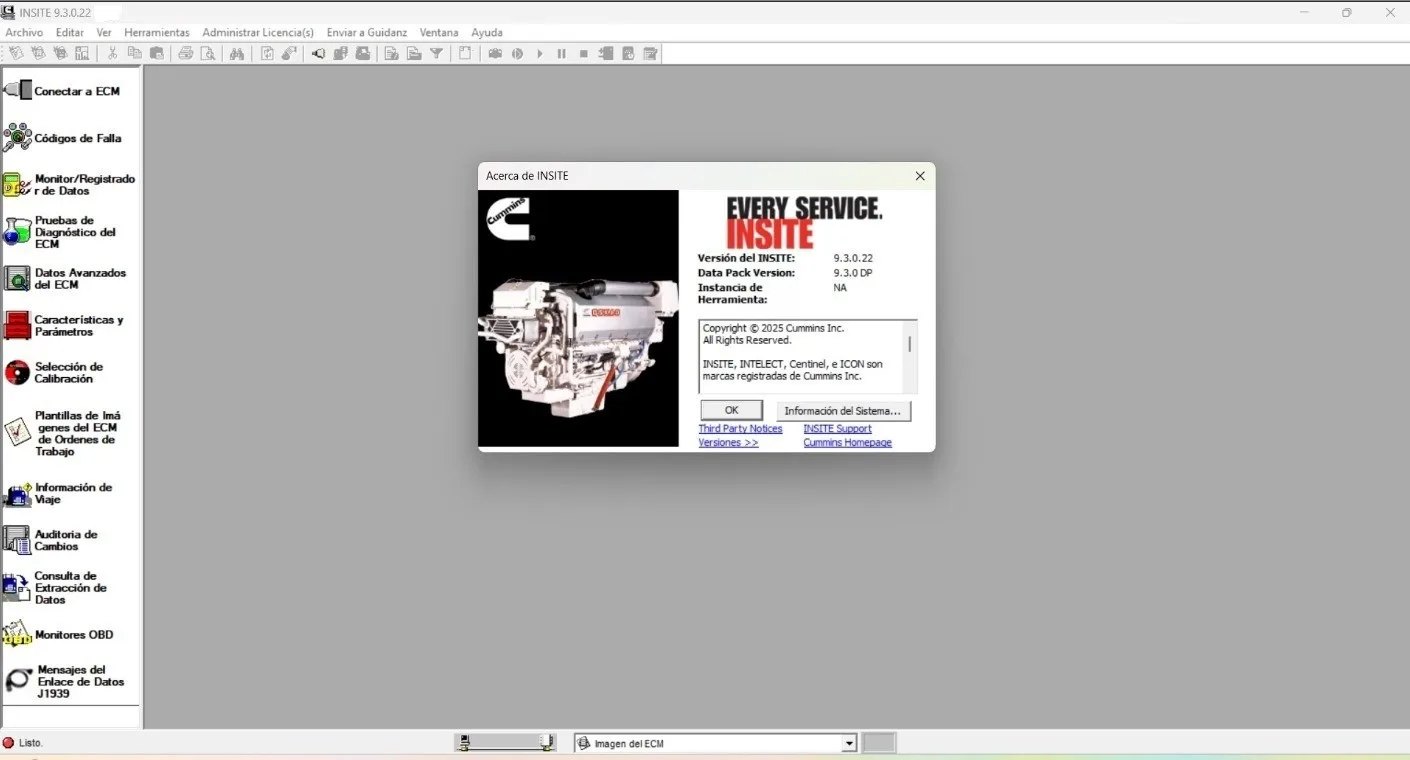

INSITE™ is a Microsoft Windows™ based electronic service diagnostic program that allows you to troubleshoot Cummins electronic engines.



INSITE is a PC-based software application that provides quick and easy access to your engine’s electronic performance information, which enables faster service turnaround times. INSITE helps to ensure accurate procedures and diagnosis and limit downtime, while increasing productivity and profits.



Cummin INSITE software supplies engine information quickly, getting the inside details you need. No matter what kind of equipment you run, INSITE is the one support product to have in your virtual toolbox to fit every Cummins electronic engine.



Product Based

▪ MR/HD Automotive provides access to the EPA 2007 and above on highway engines in North America and the Euro VI engines for Europe which are listed below.



ISM - CM876 ISL9 CM2250

ISX - CM871 ISX12/11.9/15 CM2250

ISB - CM2150 ISX12 G CM2180 EJ

ISC - CM2150 ISB4.5 CM2350 B104

ISL - CM2150D ISB6.7 CM2350 B101

ISL G - CM218 ISL9 CM2350 L1010

ISB6.7 CM2250 ISX12/15 CM2350 X102/X101

ISC8.3 CM2250 Turbo Actuator Controller

Aftertreatment Diesel Exhaust Fluid Controller

▪ MR/HD Plus provides access to all applications and engines except High Horsepower (HHP) engines.

▪ Service Plus provides access to all engines and applications that INSITE supports.

Functionality Levels

▪ Pro is the highest level of functionality that INSITE provides, which includes calibration download.

– NOTE: Requires certification by Cummins distributor to obtain this type of license.

▪ Lite provides all of the functionality of Pro except for calibration download capability.

▪ RSGR/Industrial Pro functionality limits the access to Road Speed Governor parameters and Industrial Pro provide calibration download to Industrial

products only.

▪ Basic functionality is read only and does not have adjustment or calibration download capability.



RP1210 Device Compatibility





Supported
– INLINE 7
• NOTE: INLINE 5 & INLINE 6 do work with INSITE, but are no longer supported
– Any RP1210 Compliant Datalink Adapters

USBLINK / USB  LINK2 / DAP5



Fault Codes

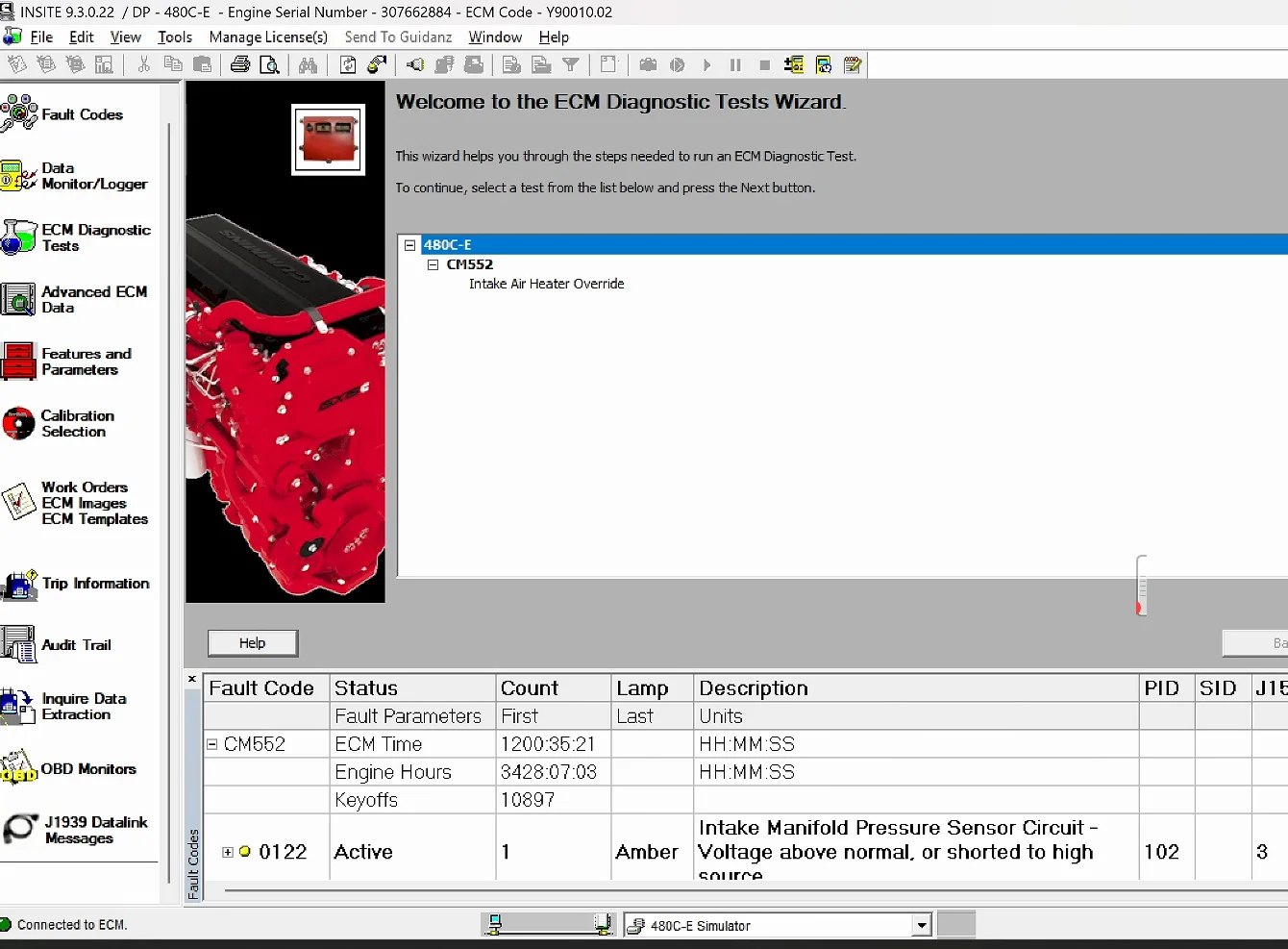

ECM Diagnostic Tests



Fault Information System



Clearing Fault Codes



Data Monitor / Logger



Graphical Monitoring



J1939 Datalink



Supported Protocols



Engine Program ECM J1708 J1939

480C-E CM552 X X

B5.9G CM420 X

C Gas Plus/B Gas Plus CM556 X X

C8.3G CM420 X

CELECT ECM-B X

CELECT Plus ECM-C X

CELECT Plus Industrial ECM-C X

Centinel CM400 X

CENTRY CM400 X

Gas Compression GTA 3.9/5.9/8.3GC

KTA19/38GC

CM556

SSM558 X

CM2358

ISB CM550 X X

ISB – CM850 CM850 X X

ISB Daimler Chrysler CM551 X

ISBe (4 and 6 Cylinder) CM800 X X

ISBe2/3 – CM850 CM850 X

ISBe4 (4 and 6 Cylinder) CM850 X X

ISC / Transit Bus ISL8.3 – CM850 CM850 X X

ISC/ISL CM554 X X

ISL8.9 – CM850 CM850 X X

ISLe4 (6 Cylinder) CM850 X X

ISM CM570 X X

ISM – CM870 CM870 X



ISM – CM875 CM875 X X

ISM – Fuel Control Module – CM570 CM570 X X

KTA19, G855 CM558 G CM558 X

L Gas Plus CM556 X

L10G CM420 X

PIM CM550 X

QSB5.9/44, 5.9/30, 4.5/30 CM550 X X

QSC8.3/QSL9 CM554 X X

QSK19/23/45/60/78 CM500 X X

QSK19G/38G/60G

QSV81/91 - CM700/SSM558/CM2358

CM500 X

CM700 X

SSM558 X

CM2358 X

QSM11 CM570 X X

QST30 CM552 X

QST30 – Power Gen CM552 X

QSX15 CM570 X X

Signature/ISX CM570 X X

Signature/ISX – CM870 CM870 X X

Please Note:

  1. please turn off the anti-virus software when install!!!   2.Support remote free installation of software. if you need our engineer can remote help you install software.

3.After You received the link, please confirm the receiption at once, This is a professional tool if you don't kno

w how to use it, please be cautious to buy. the software once sold, does not support returns.



4.Usually we only help to install and activate the software,but do not provide instructions and help for the use of the software,hope you can understand.



Software Version:CMS Caltem 5.16





Compatible Hardware:



Cummings INLINE 7 Data Link Adapter
Cummings INLINE 6 Data Link Adapter
NEXIQ USB Link

Operating System: Win10 /11 64 bit System

  1.Calltem

The development process for electronic engines requires PC support tools which interface to the electronic subsystem, and its various feature sets. Calltem III is used to increase the productivity of the engineers developing electronic engine features by providing diagnostics, simulation, and value manipulation capabilities for Electronic Control Modules (ECMs).

As is the case with most support tools, Calltem III attempts to work with all of the features in the ECM. However, this superset of functionality is not always feasible given the rapid growth and change being experienced in Commins' electronic systems. As a way to try to give the most support to every electronic engine program, this tool will provide a base set of capabilities which will work on any ECM following the CORE Tools Interface standards. Customized or unique capabilities will then be added, as they are needed. Calltem III was initially designed to support the Global Tool Interface Specification, GTIS, 4.5 and Core-II based software. With the release of Calltem III, version 2.4, support for GTIS 3.8, 2.0 and pre-2 products has been included.

The Calltem III application is designed to support a wide variety of users and access levels. The Calltem III tool will eventually replace Calltem II, NGET, Engineering ESDN, Unlock and Field Calltem. As a result, not all users need, or are permitted to use, the full functionality of the tool. With this in mind, Calltem III comes with five user access levels.

· Level 0 (Service) Enables user with basic Field Calltem functionality
· Level 1 (Standard) Enables user with Calltem II and NGET functionality
· Level 2 (Secure) Enables user with Calltem II, NGET and Unlock tool functionality
· Level 3 (Enterprise) Enables user with Calltem II, NGET, Unlock and Engineering ESDN functionality
· Level 4 (Service Pro) Contains the same functionality as Level 0 (Service) plus the capability to Download to a secure module
