2026 KEYDIY 13# Remote Chip Reading Adapter for Reading Chip Data from Water-damaged or Broken 5C & 5D Keys
In stock, delivery 7 to 20 days
- Free US shipping over $150
- Secure checkout via Stripe
- 30 day returns, no restocking fee
Buying for the trade? Ask for a written quote on quantity.
Description

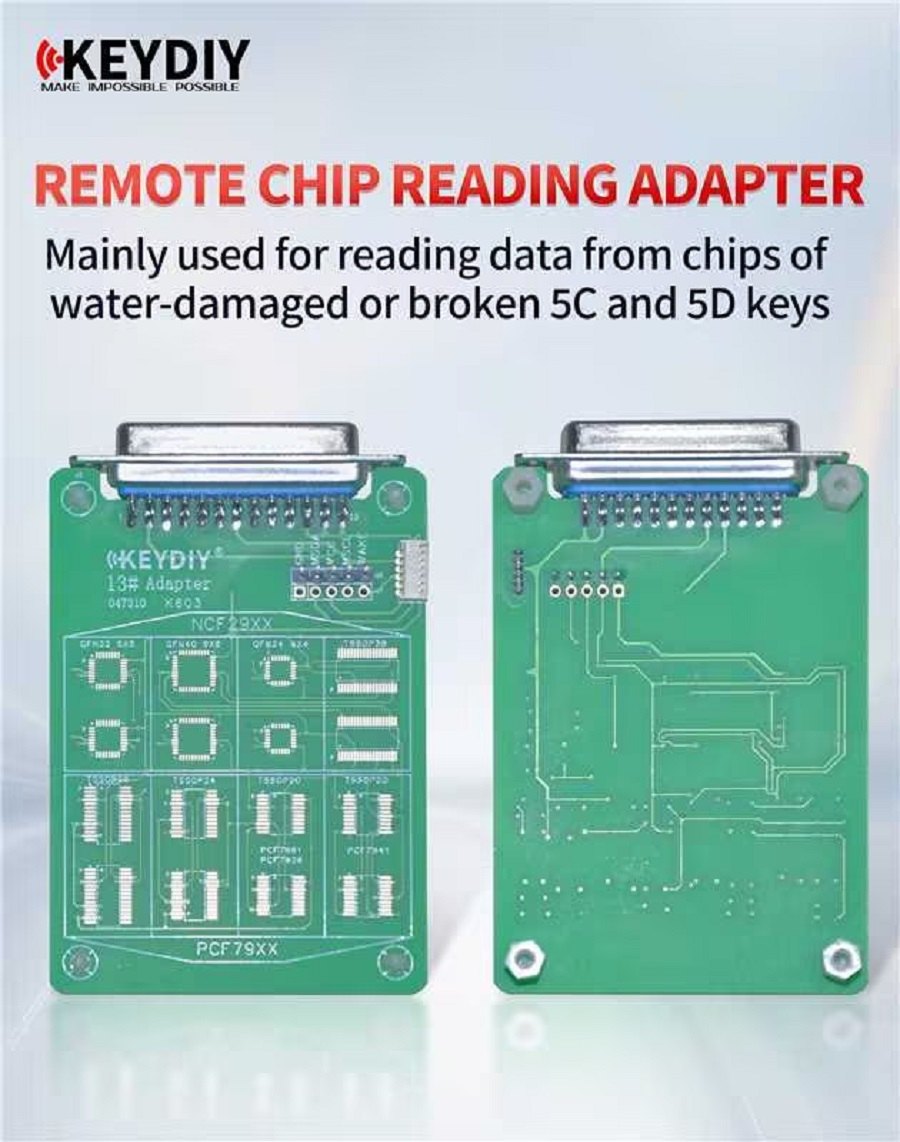

An adapter for recovering chip data from 5C and 5D keys that are water damaged or physically broken. When the key is beyond saving, the data on it usually is not.
It is a bench job and it needs a soldering iron. The chip has to come off the original key's board and onto the adapter, so this is not a plug in and read tool.
Chips supported
- NCF29A1, NCF29A2, NCF29A3, NCF29A4
- NCF2953, NCF2954
How it is used
- Dismantle the original smart key and desolder the NCF29Ax chip from its board

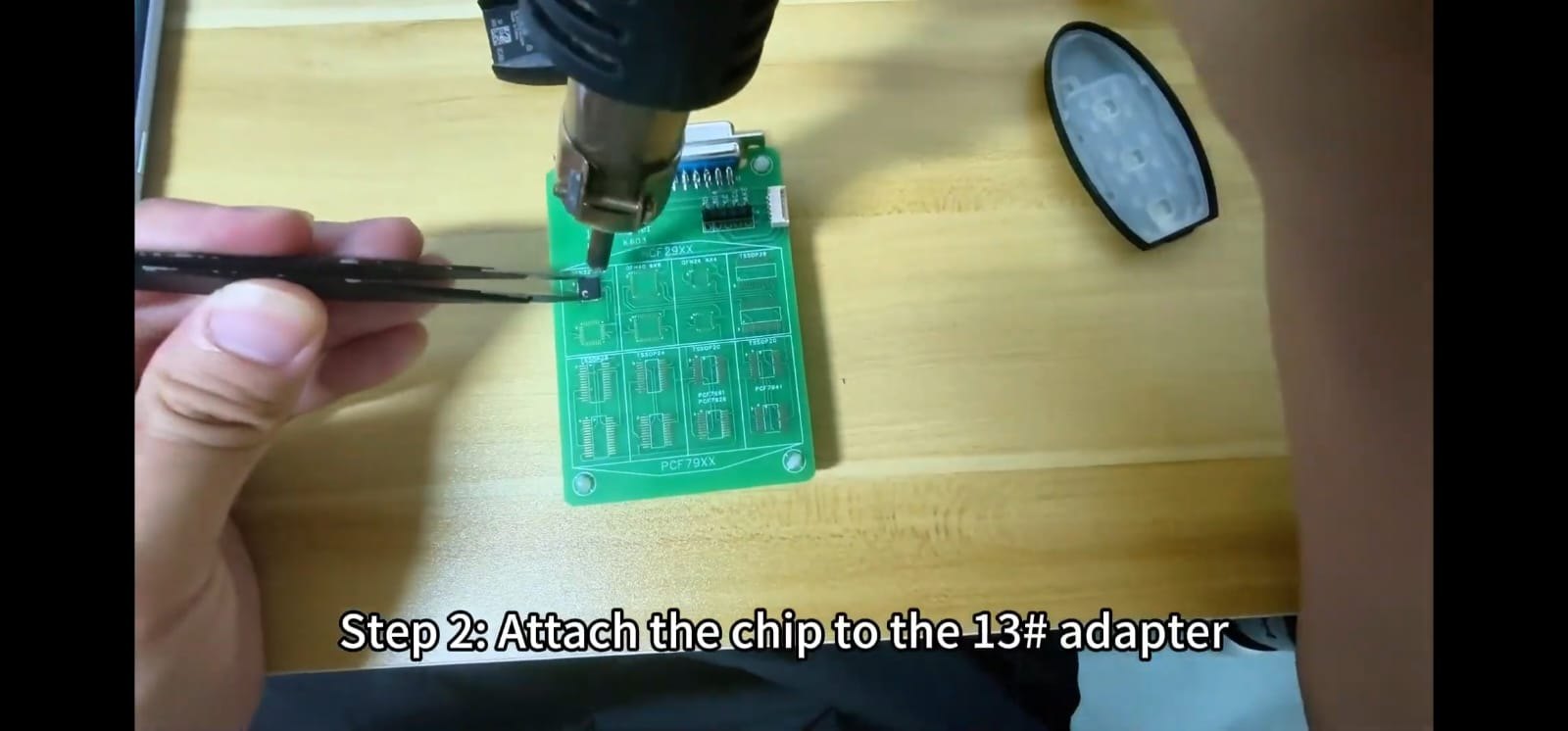

- Solder the chip onto the KD 13# adapter board
- Connect the board to a KD-X4
- In the KD app, go to Remote Function, then Smart Key Clone, then Universal Smart Key Synchronization to read the chip
In the box

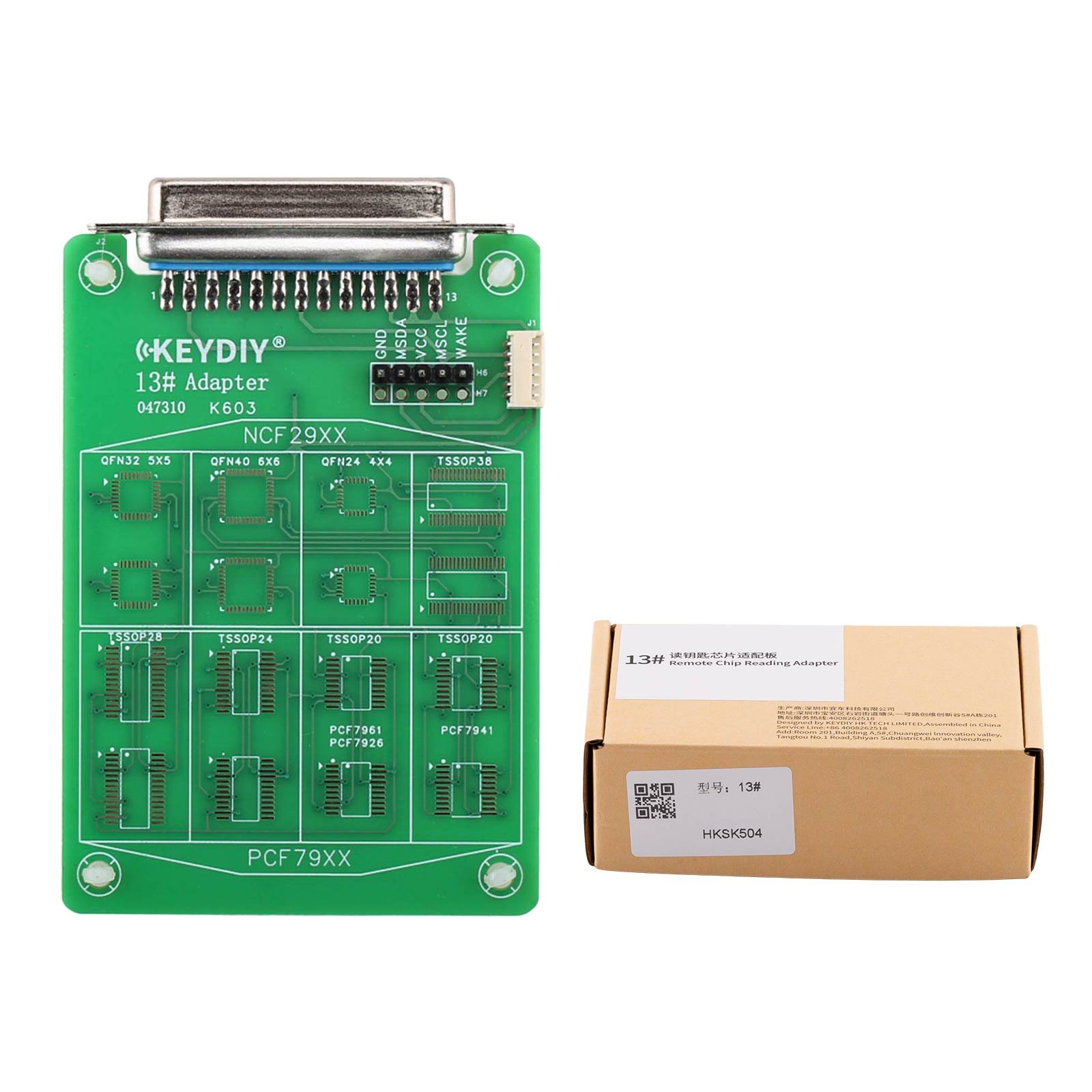

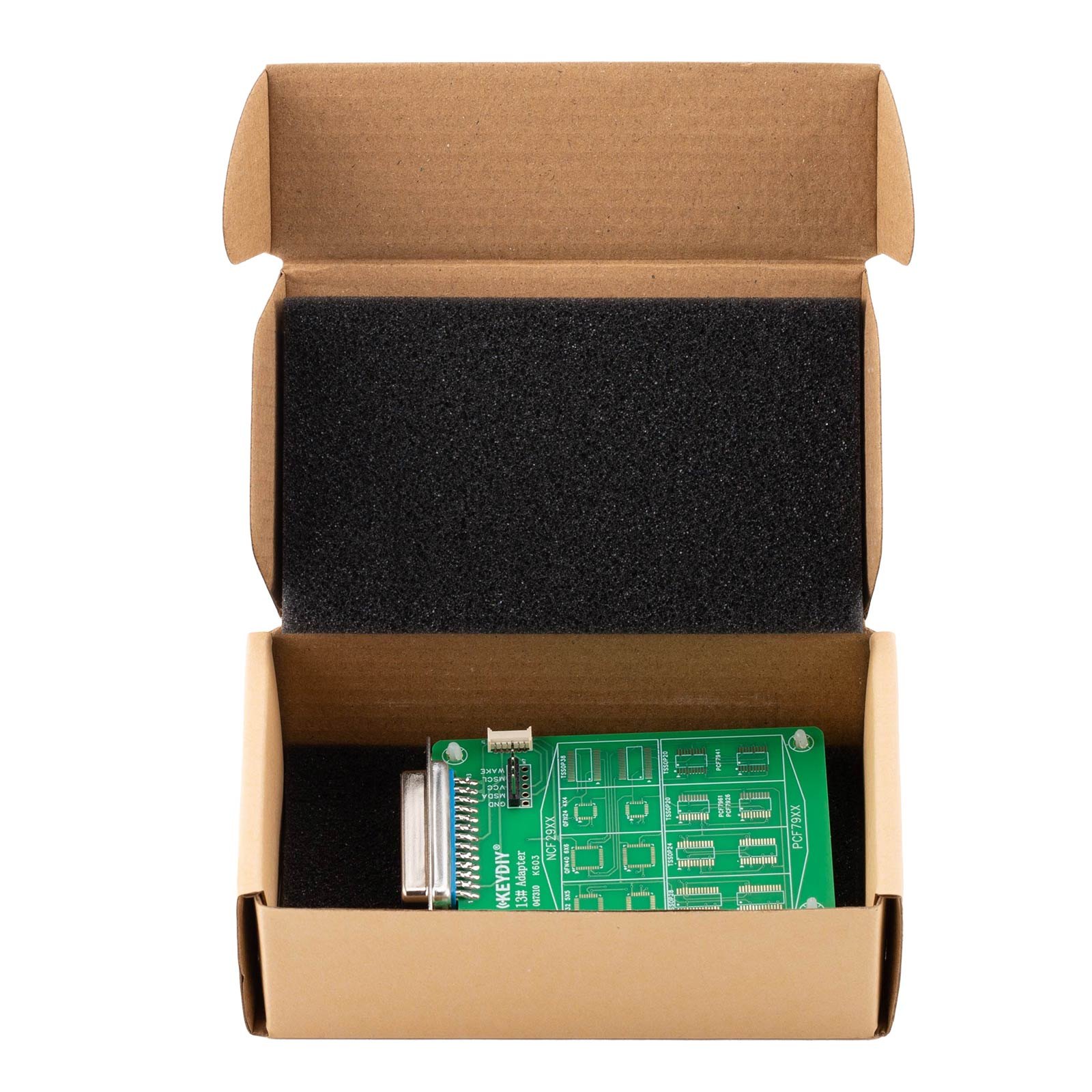

- 1 x KEYDIY 13# remote chip reading adapter
Specifications
| Brand | KEYDIY |
|---|---|
| Type | Auto Key Programmer |
| Part number | HKSK504 |
| Condition | New |
